SPECIFICATIONS

Brand Name: TZT

Display screen: No

Filter Technology: Other

Grounding: Standard Grounding

High-concerned chemical: none

Material: Metal

Model Number: HiFi Power Filter

Origin: Mainland China

Outlets Number: 10

S: 101965

WIFI: No

Features:

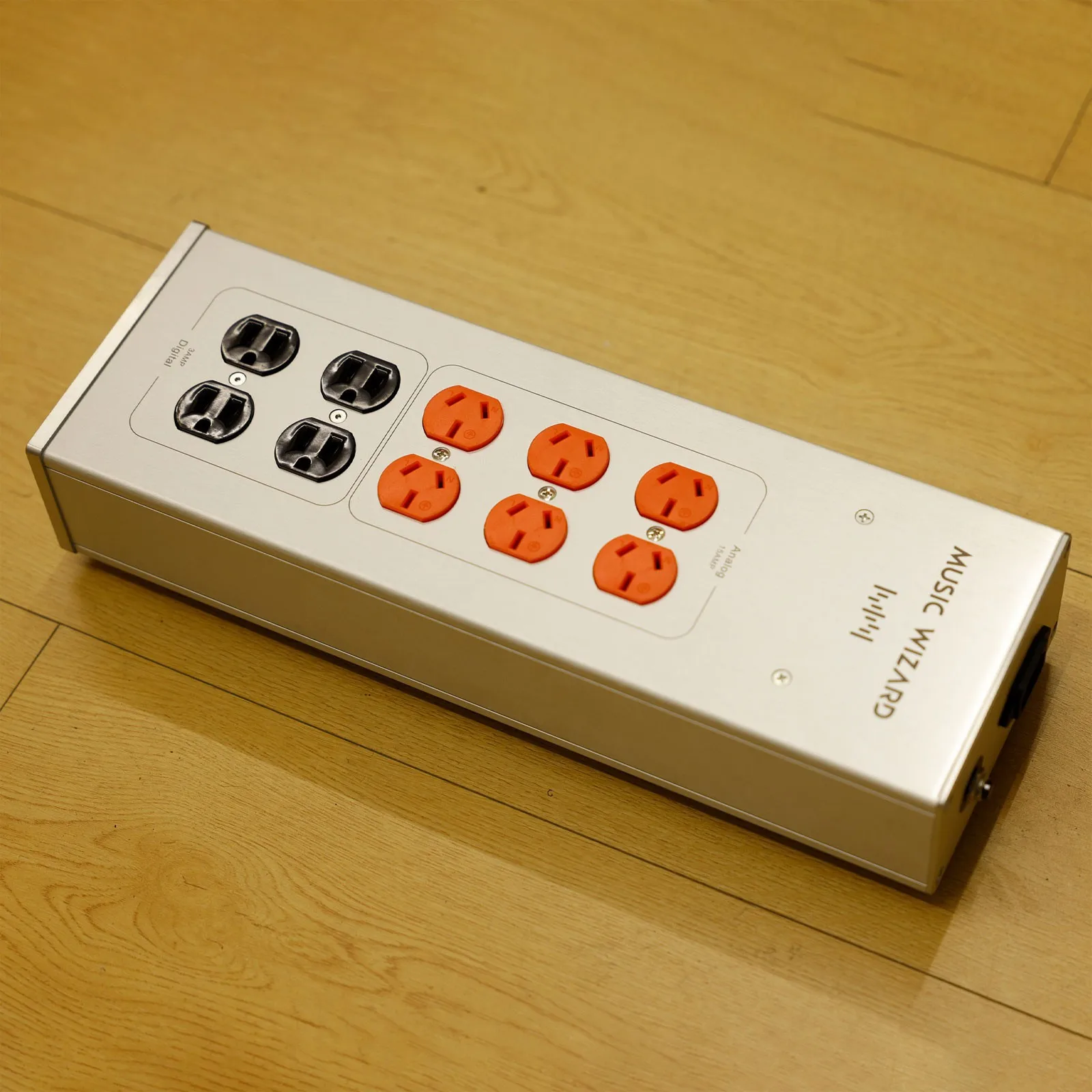

MUSIC WIZARD filter power strip improves sound quality from the source.

Digital devices (CD/SACD/decoders, etc.) and analog devices (preamps and power amps) require different filter circuits. Digital devices have more noise and require steeper filters. In contrast, overly complex filtering in analog devices can result in the loss of details and harmonics. By using separate, appropriate filters for each, effective filtering is achieved without losing detail. At the same time, digital and analog circuits are well-isolated and do not interfere with each other.

For the digital filtering section of the power filter, we have designed highly reliable filters that deliver a very clean power supply, with over 92% of noise filtered out.

For the analog filtering section, multiple high-end foreign power processors were referenced and appropriately modified. It uses common-mode filter coils wound with ultra-thin Z11 silicon steel sheets, which are also used in audio output transformers.
This design achieves excellent filtering performance while ensuring the complete preservation of musical details, overtones, and harmonics.

Specifications:
* The total output power of the analog section is less than 2000W
* The recommended power usage for the digital section is less than 600W
* The above refers to the total maximum power consumption of the device. For example, the L590 pure Class A amplifier for Luxman has an output power of 30W and a power consumption of approximately 350W.
* Input Voltage: AC 100V-250V
* Frequency: 50/60Hz
* Maximum Current: 12A
* Dimensions: 310mm x 140mm x 75mm
* Weight: 2.5kg

Packing List:
* 1 x HiFi Power Filter

Packaging Details:
* Package weight: 3.3kg
