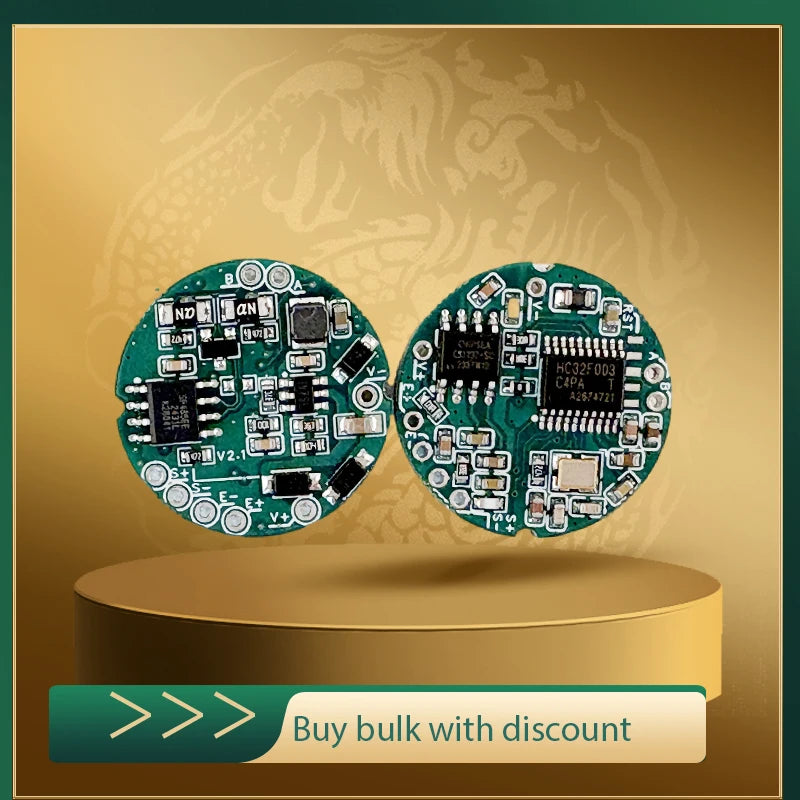

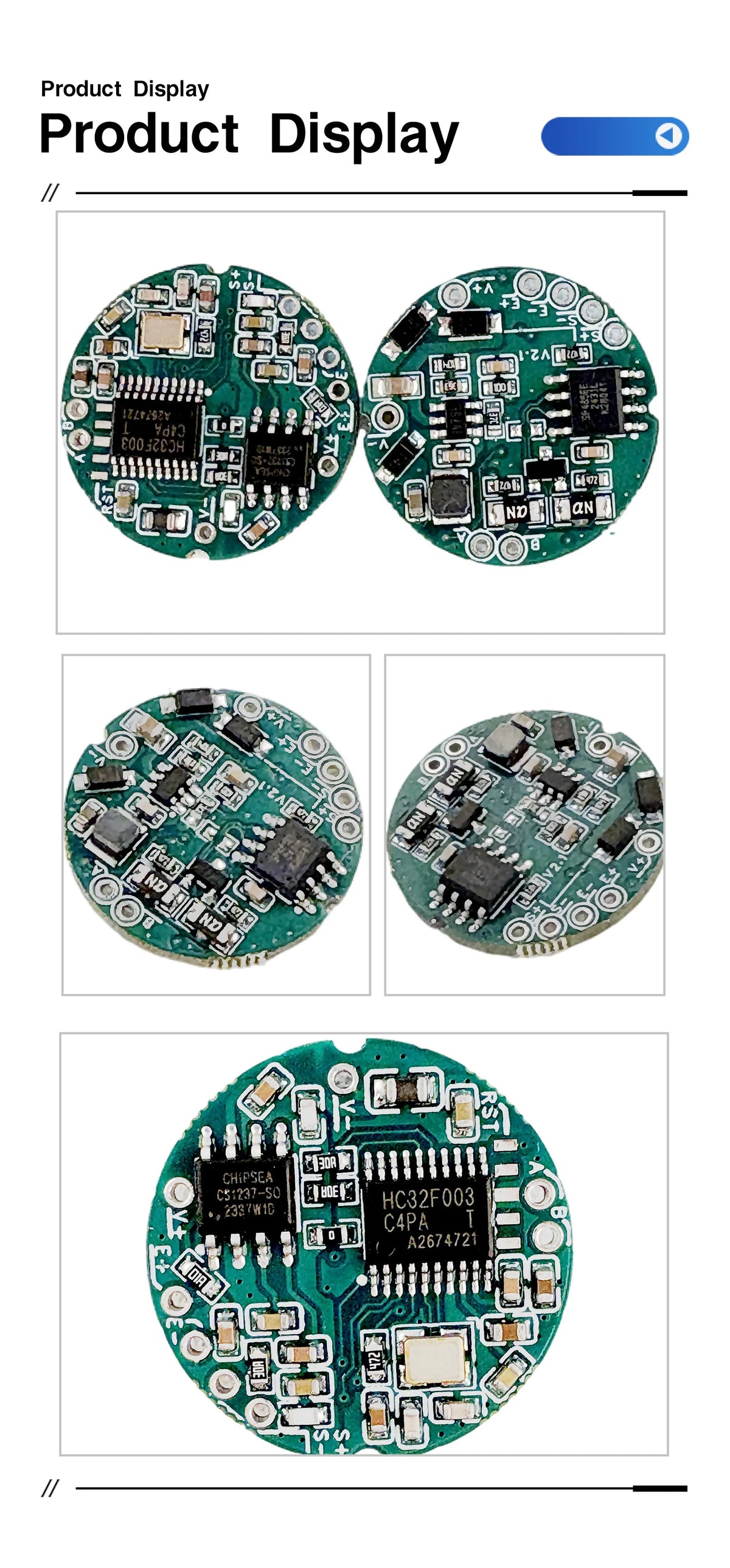

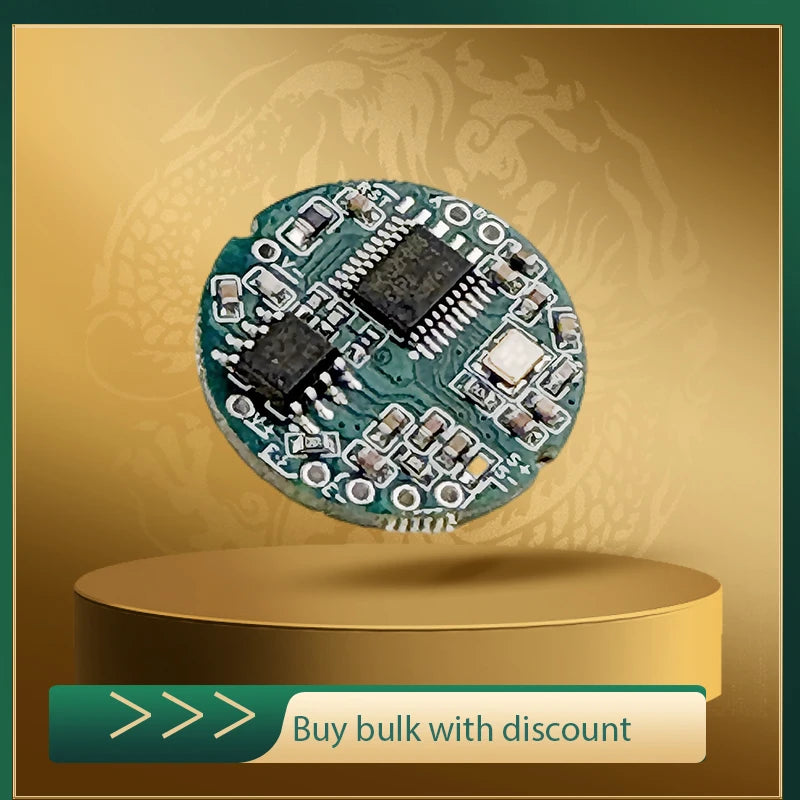

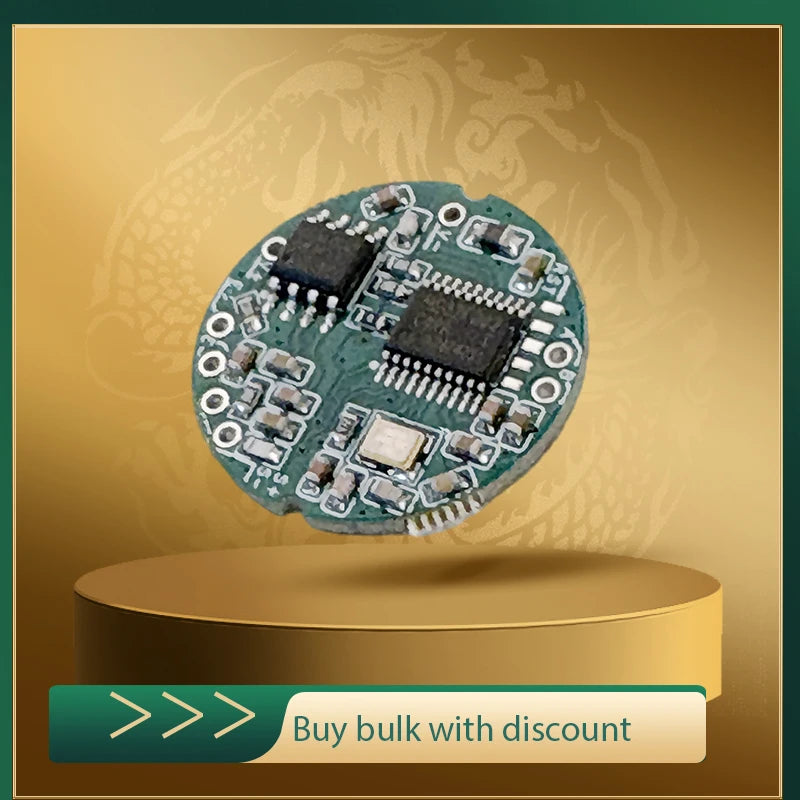

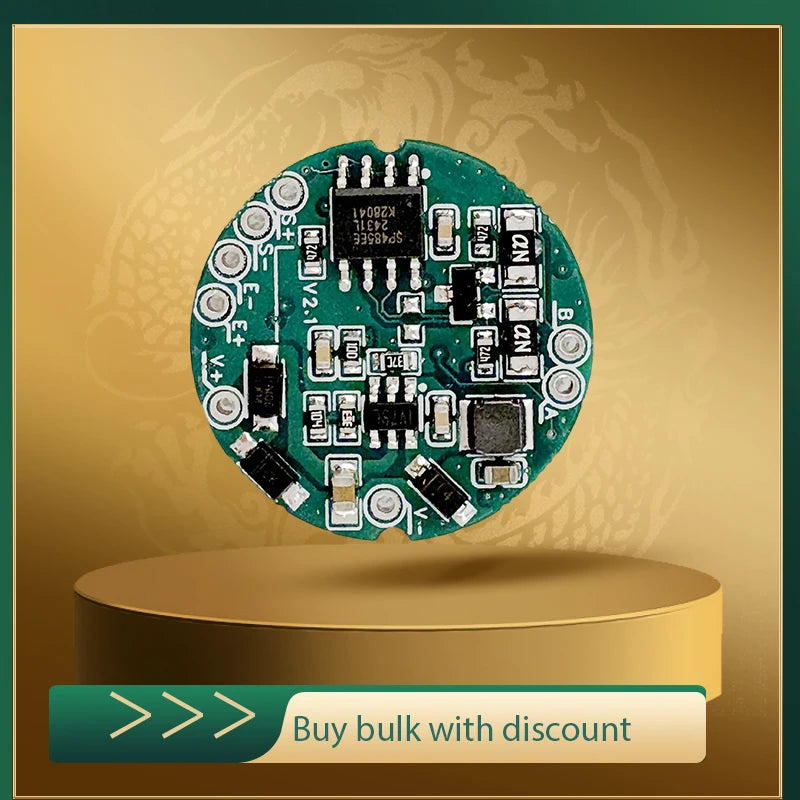

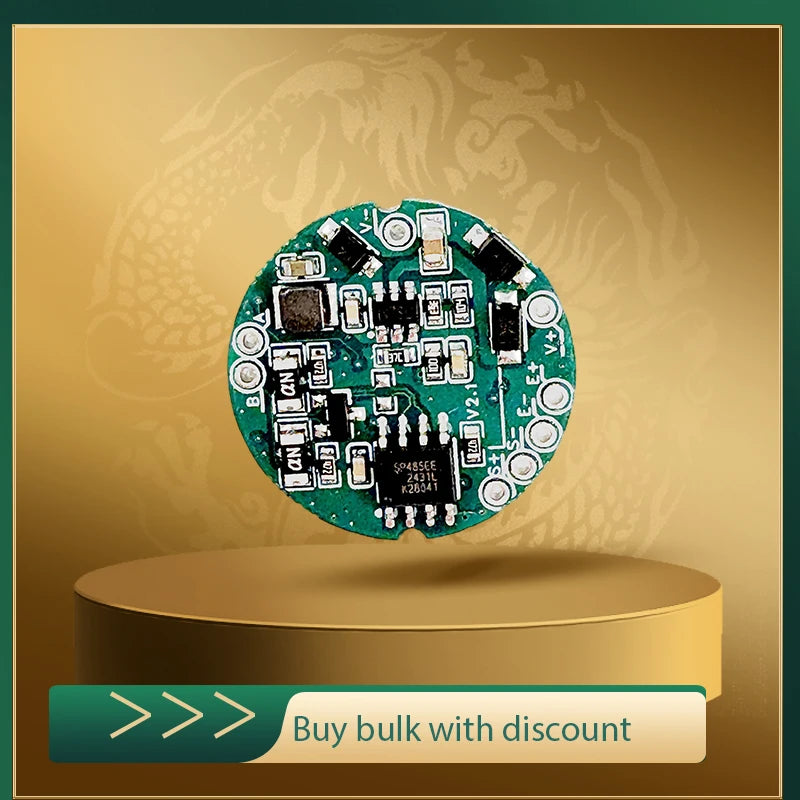

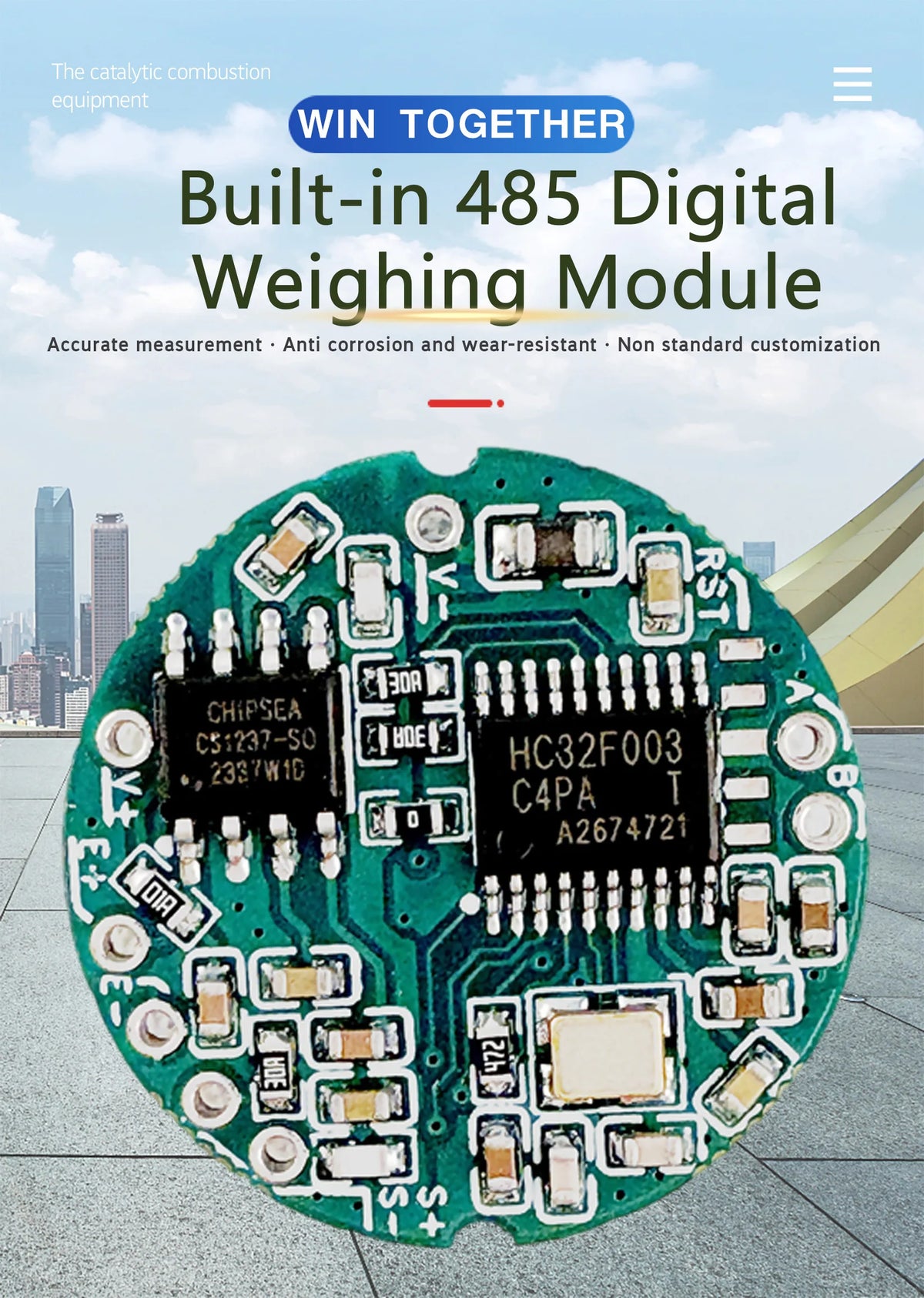

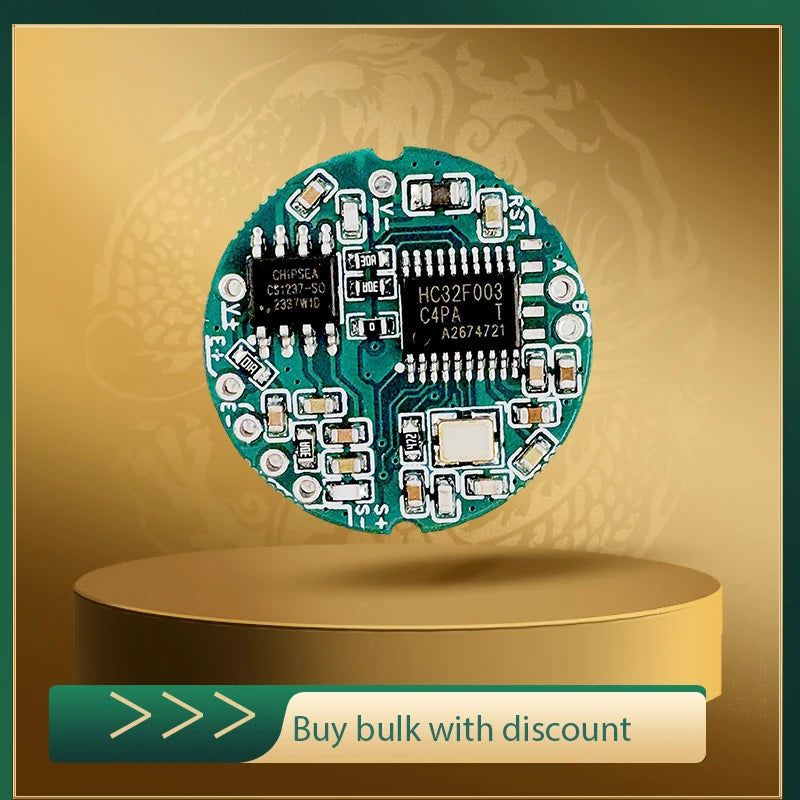

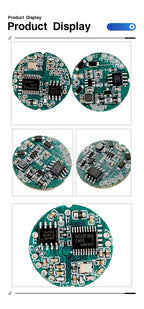

High-Accuracy RS485 Load Cell Signal Amplifier PCB Support Wheatstone Sensor 1280Hz Sampling Modbus RTU Sensor Signal Converter
RS485 MODBUS / 1 PCS
$78.84
Sale price
$78.84
Regular price
$0.00
Skip to product information
High-Accuracy RS485 Load Cell Signal Amplifier PCB Support Wheatstone Sensor 1280Hz Sampling Modbus RTU Sensor Signal Converter
$78.84
Sale price
$78.84
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: BENGBUZZYQ
High-concerned chemical: none
Material: Polymer
Origin: Mainland China
Output: Digital Sensor
Theory: Resistance Sensor
Type: Optical-Electronics Sensor
Use: Pressure Sensor
is_customized: Yes

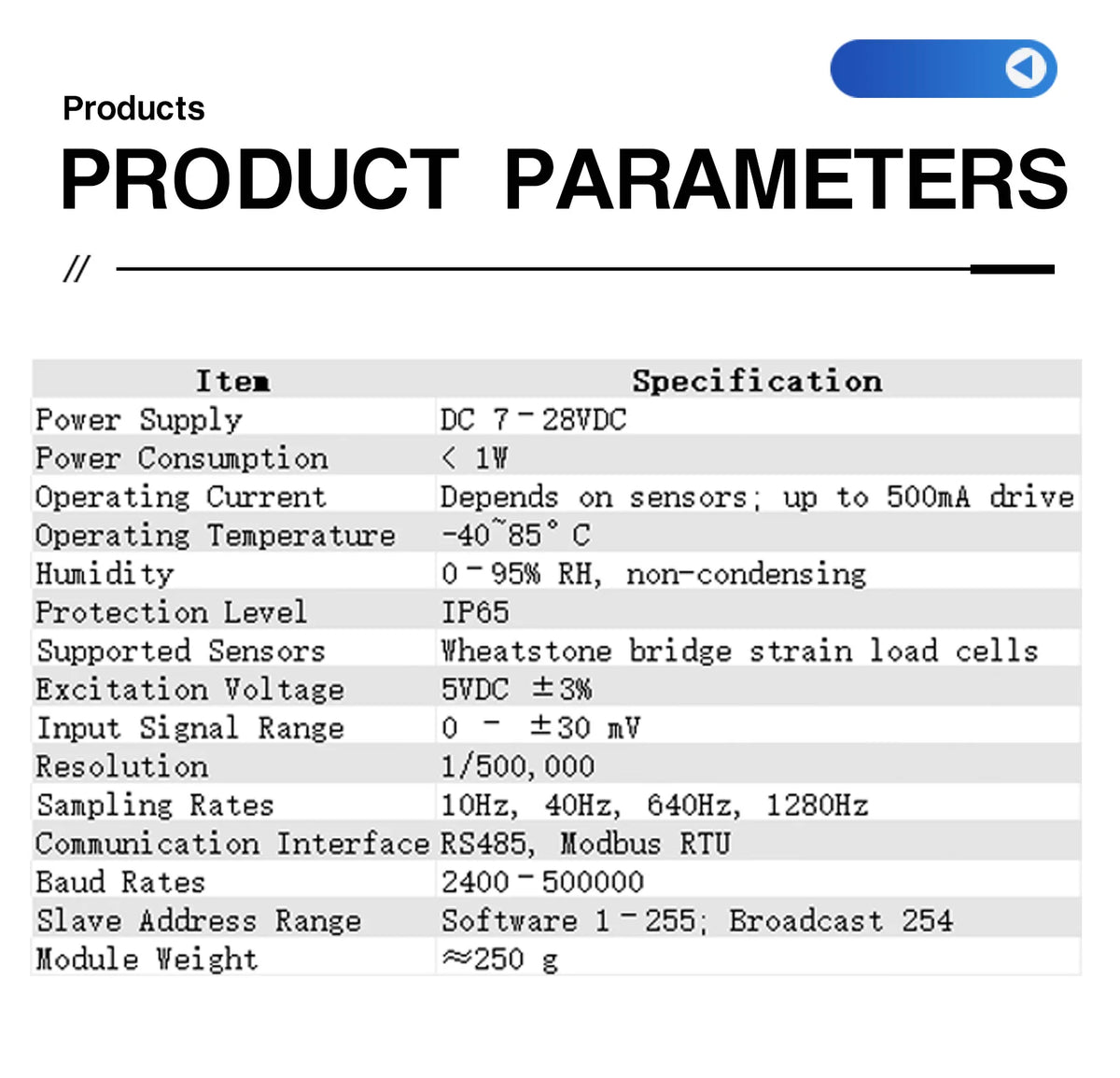

General Technical Specifications
Power Supply: DC 7–28VDC
Power Consumption: <1W
Operating Current: Depends on the number of external sensors and supply voltage; drive capability 500mA
Operating Environment: Temperature −40~85°C; Humidity 0%–95% RH, non-condensing
Isolation & Protection: Opto-isolation, power isolation, surge protection (not included in basic version)
Protection Level: IP65
Mounting Method: Mounting holes
Weight:≈30g
Communication Interface
Communication Method: RS485
Protocol: Standard Modbus RTU protocol; supports function codes 03, 06, 16 (0x10)
Baud Rates: 2400, 4800, 9600, 19200, 28800, 38400, 57600, 115200, 256000, 500000
Slave Software Address: 1–255; Broadcast address 254
