SPECIFICATIONS

>>  PRODUCT DESCRIPTION

Specification:

Condition: New and High qaulity

Voltage: 600V (Max)

Interface type: AC/DC

Material:  Shell: flame retardant PC, stainless steel.   Terminal pins:  Silver plated pure copper.

Vibration Resistance: Excellent

Impact Resistance: High

Fire resistance: UL94V-0

Operating temperature: -20 to 105°C

Color:  Gray/Red/(optional)

Rated current: 50A/120A/175A/350A (optional)

Terminals pin size: (optional)

50A: 6AWG, (suit for 6-12AWG cable )

120A:2AWG (suit for 2-6AWG cable )

175A: 1/0AWG (suit for 1/0-4 AWG cable )

350A: 2/0AWG

Package:

1pcs = 1* Connector plug + 2* Terminal Pins

>>   Features

1. Genderless design,no male and female design, quick to connect or disconnect

The connectors are genderless, 2 pieces are equal to one pair

(flip one 180 degrees and they will mate to each other)

2.Easy to Connect and disconnect,good conductivity

3.Will not heat up while use.

4.Charging process is safe,easy,quick.

Please note:

1. This connector can be connected for andersons connector

2. This connector is genderless design, 2pcs is equal to one pair. but different color has different port, so pls buy the same color and amperage for pairing

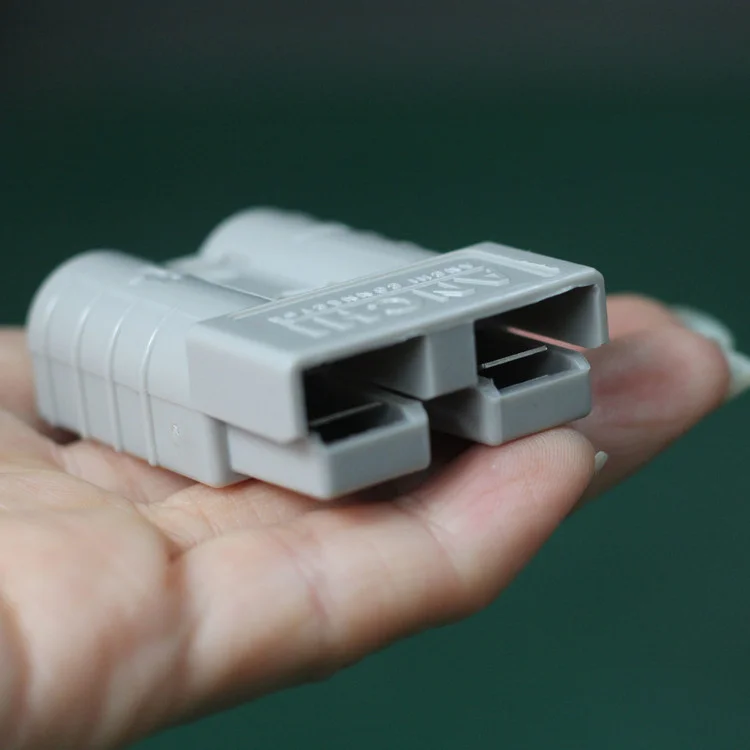

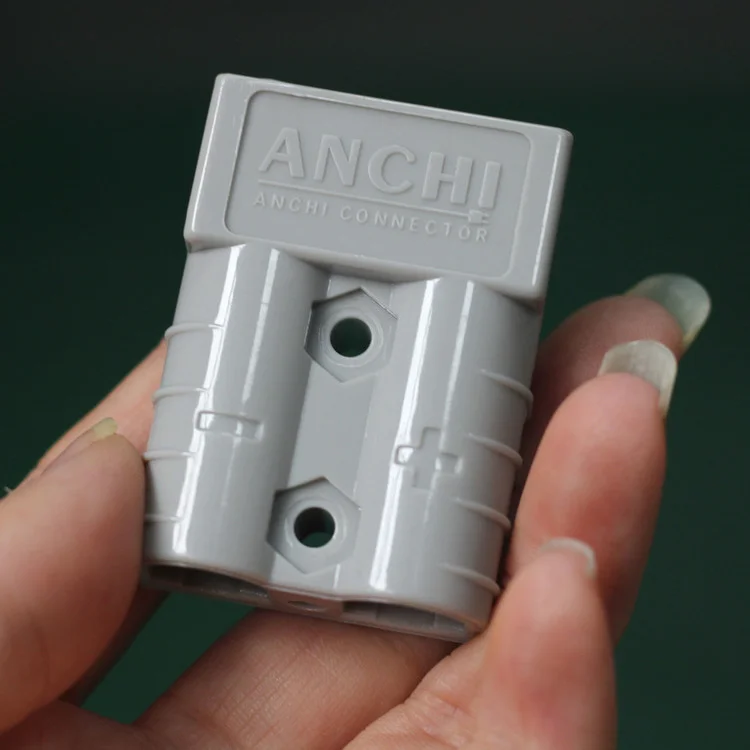

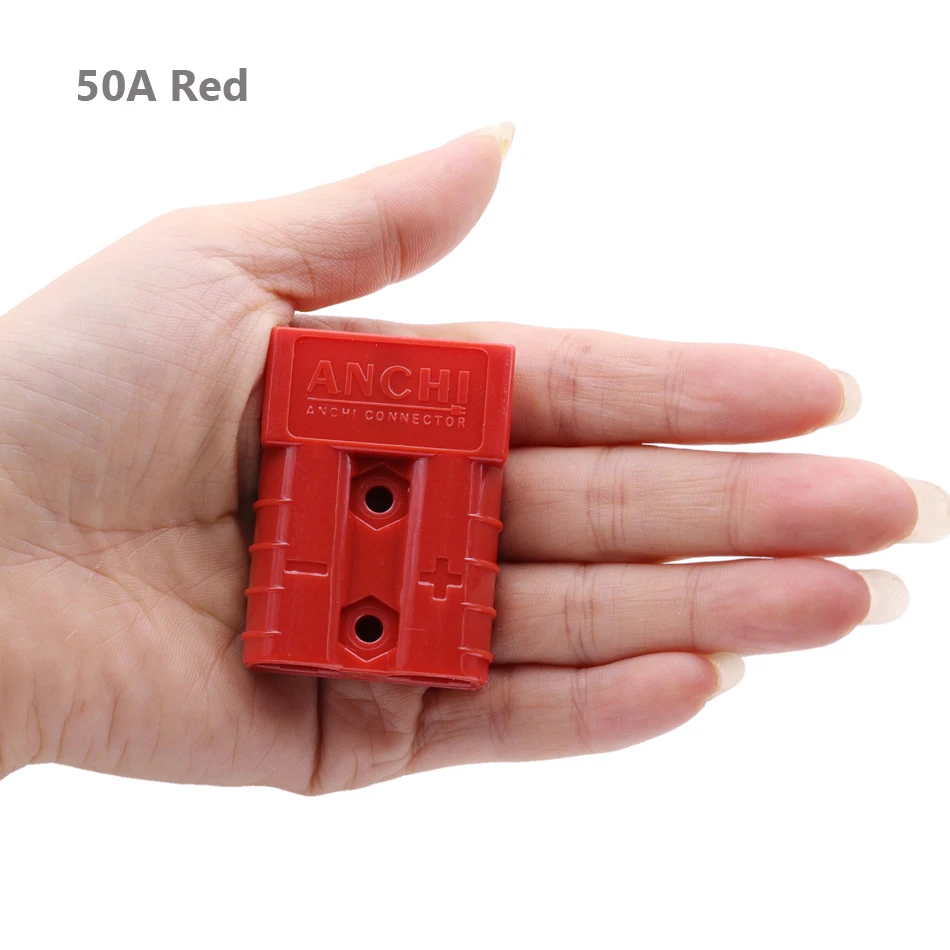

>>   Product picture show

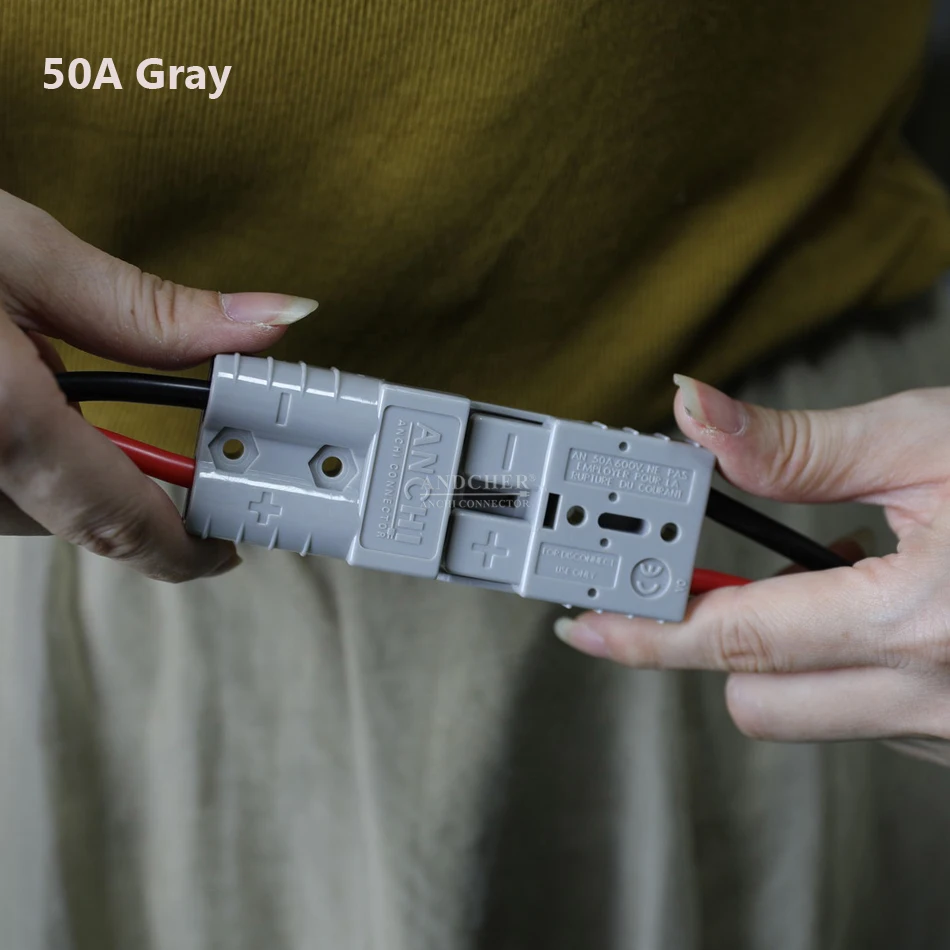

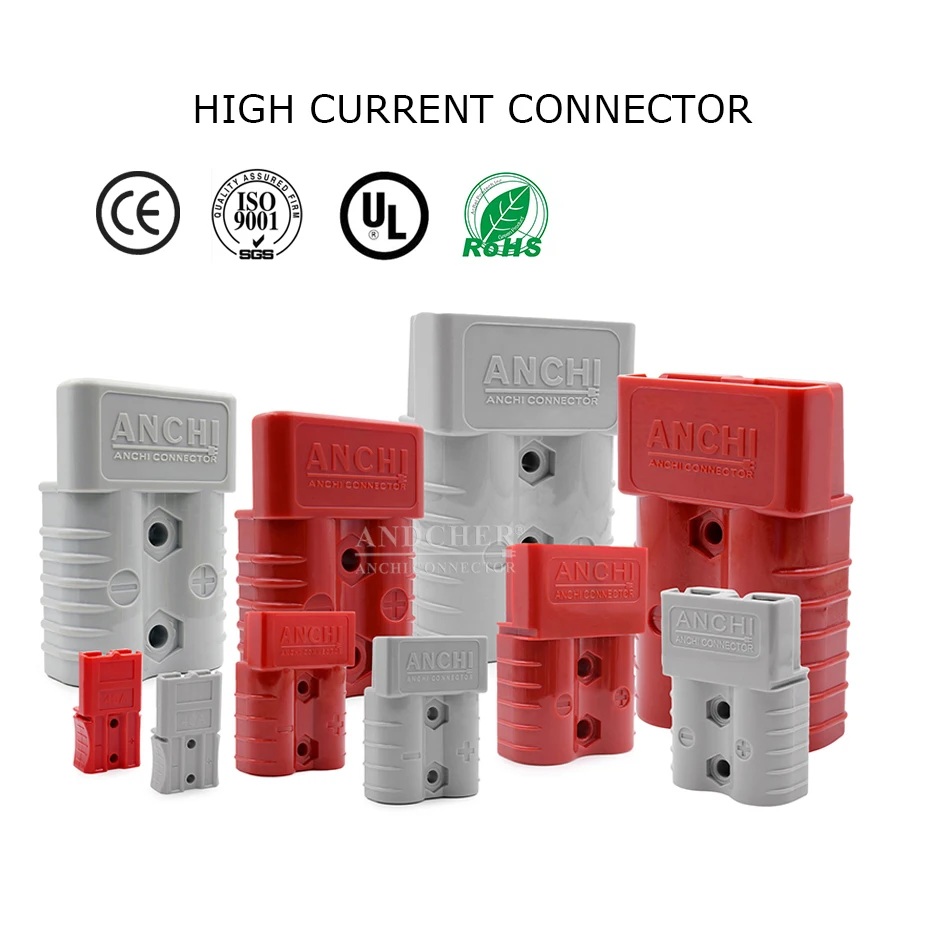

2 Color for choice

50A/120A/175A/350A

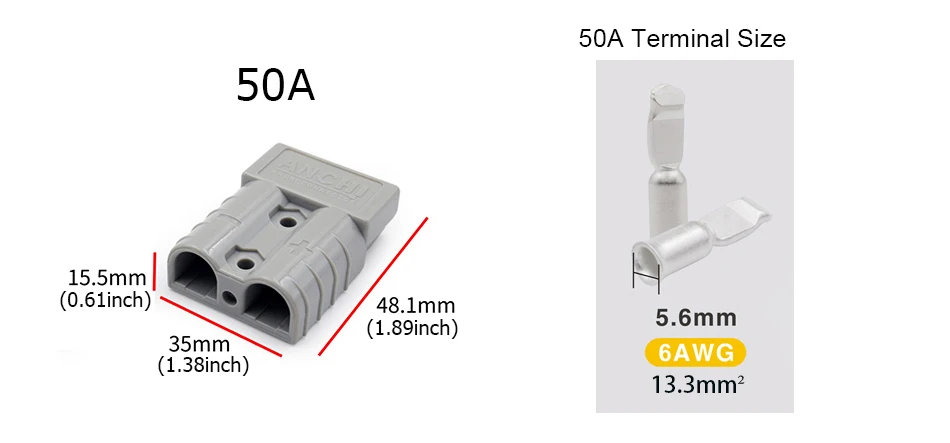

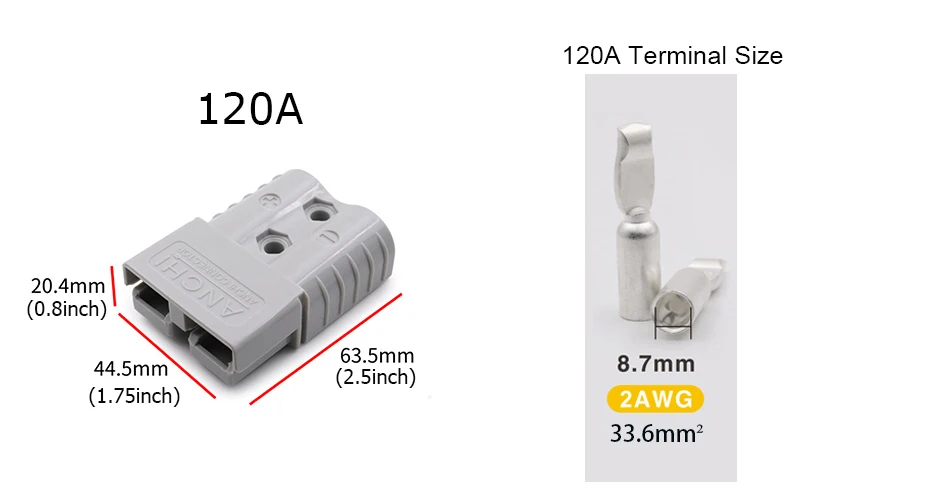

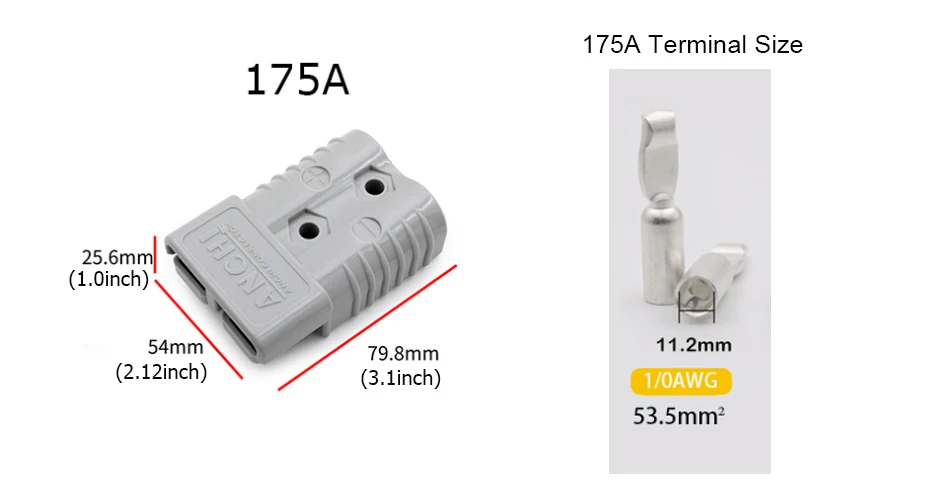

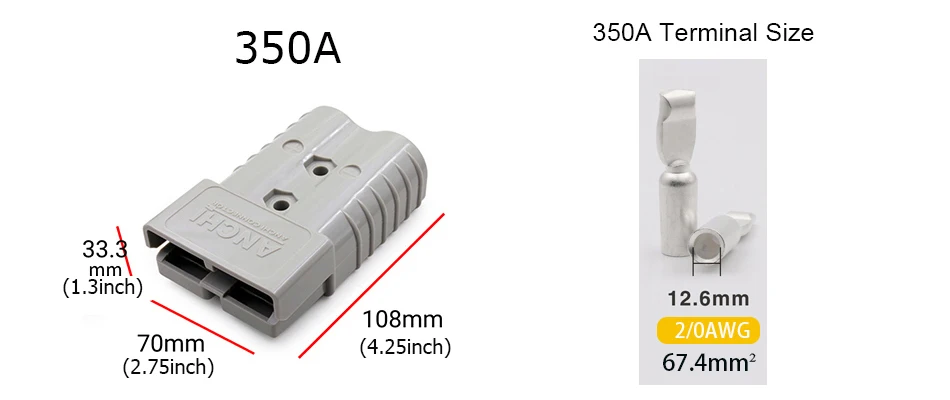

Product size

>>   SALE POINTS

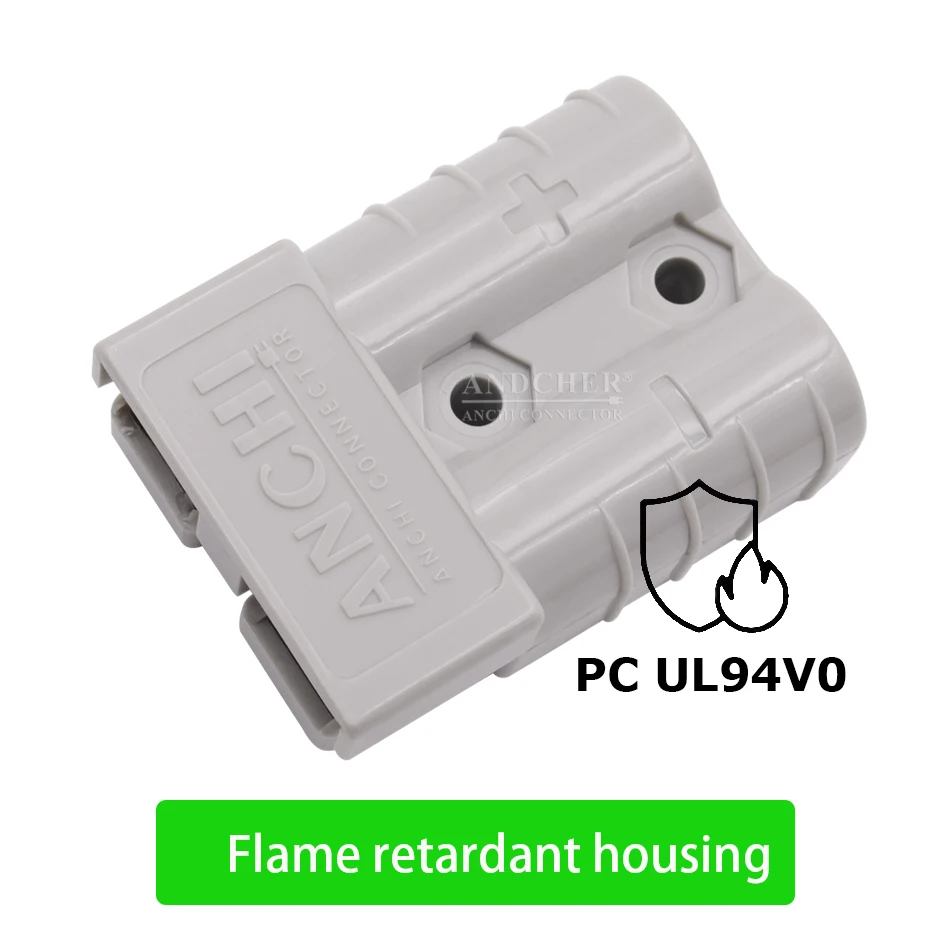

 1.Made of high-quality UL94V-0 flame retardant material

lightweight, durable, safe, wear-resistant and pressure-resistant.

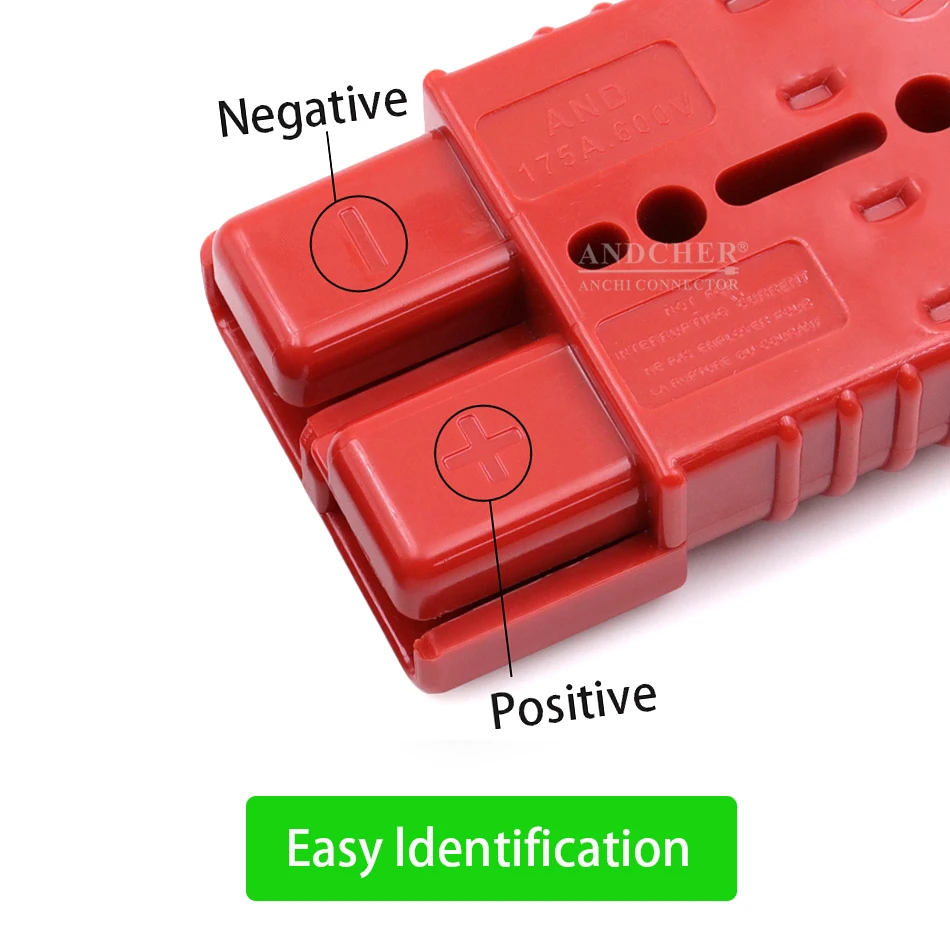

2.Easy ldentification

The polarity marks on the shell help with proper wiring, keeping installation straight-forward and simple.

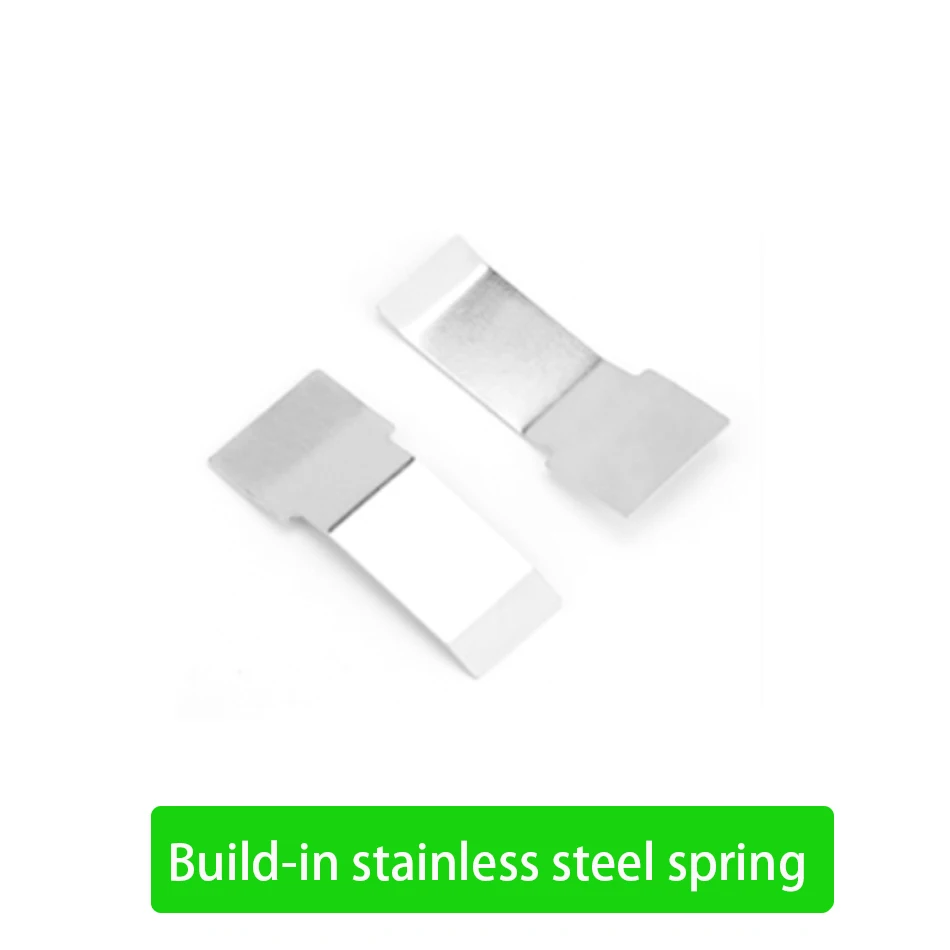

3. Build-in stainless steel shrapnel

Each connector has an internal stainless steel spring to hold its electrical contacts in place, providing reliable service through 10,000+ separate connections.

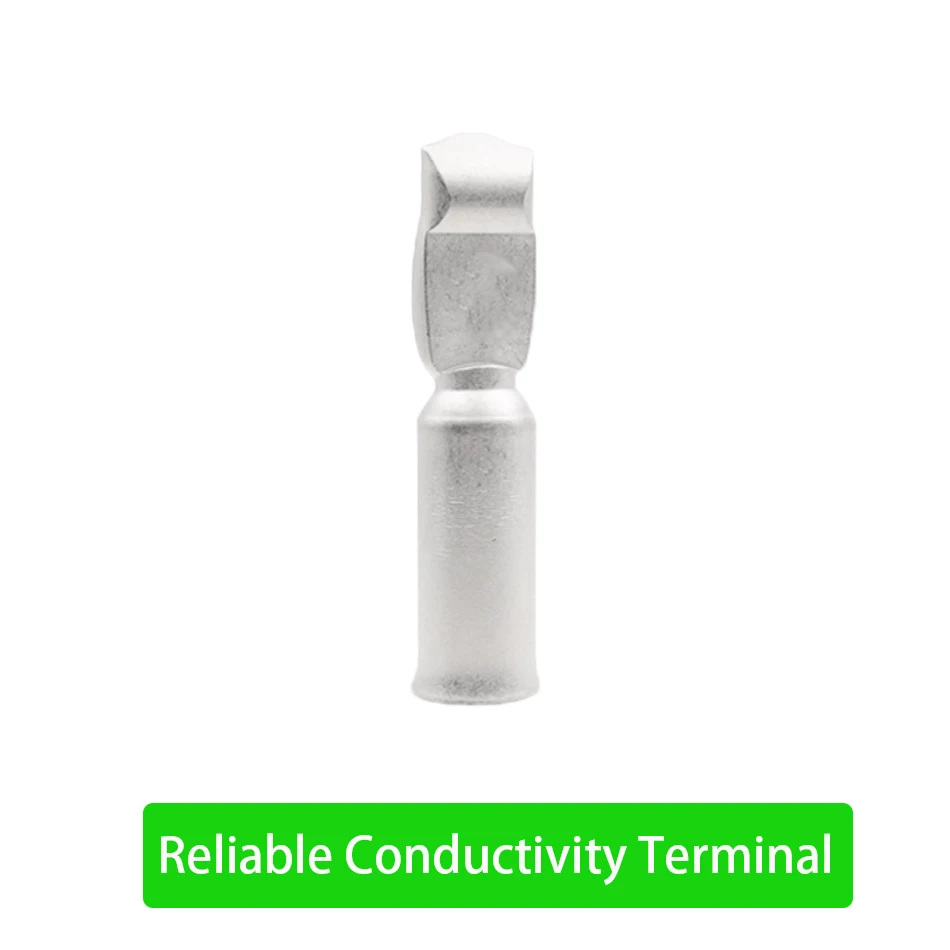

4. Reliable Conductivity Terminal

The terminal pin is made of pure copper coated with silver, to ensure a strong electrical conductivity and

a stable current and voltage.

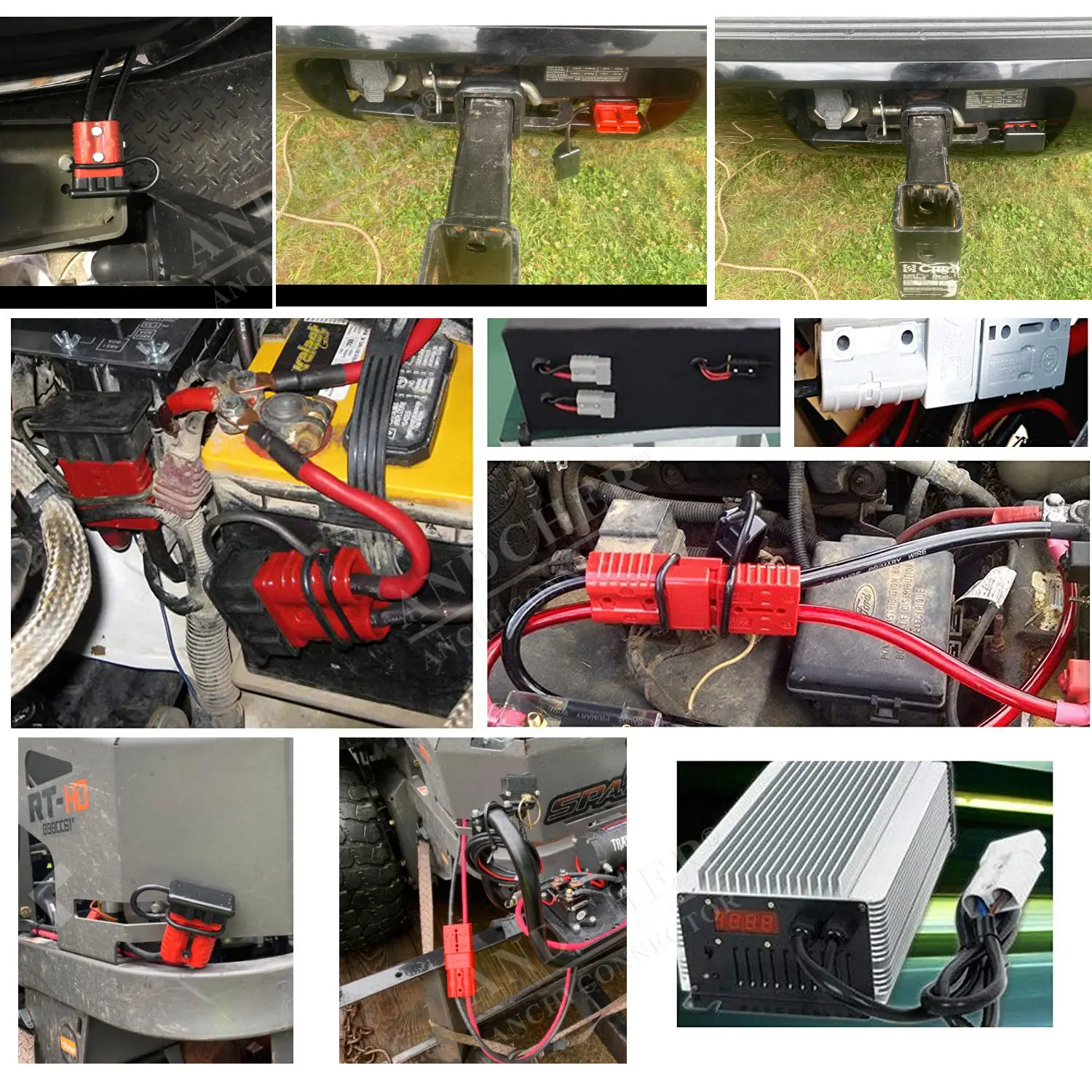

Application
