SPECIFICATIONS

Application: Residential / General-Purpose

Brand Name: TIANCOOLKEI

Certification: CE

Display screen: No

Extension Cable Length: None

Filter Technology: EMI

Grounding: Standard Grounding

High-concerned chemical: none

Master Switch: Yes

Model Number: P-26

Origin: Mainland China

Outlets Number: 2

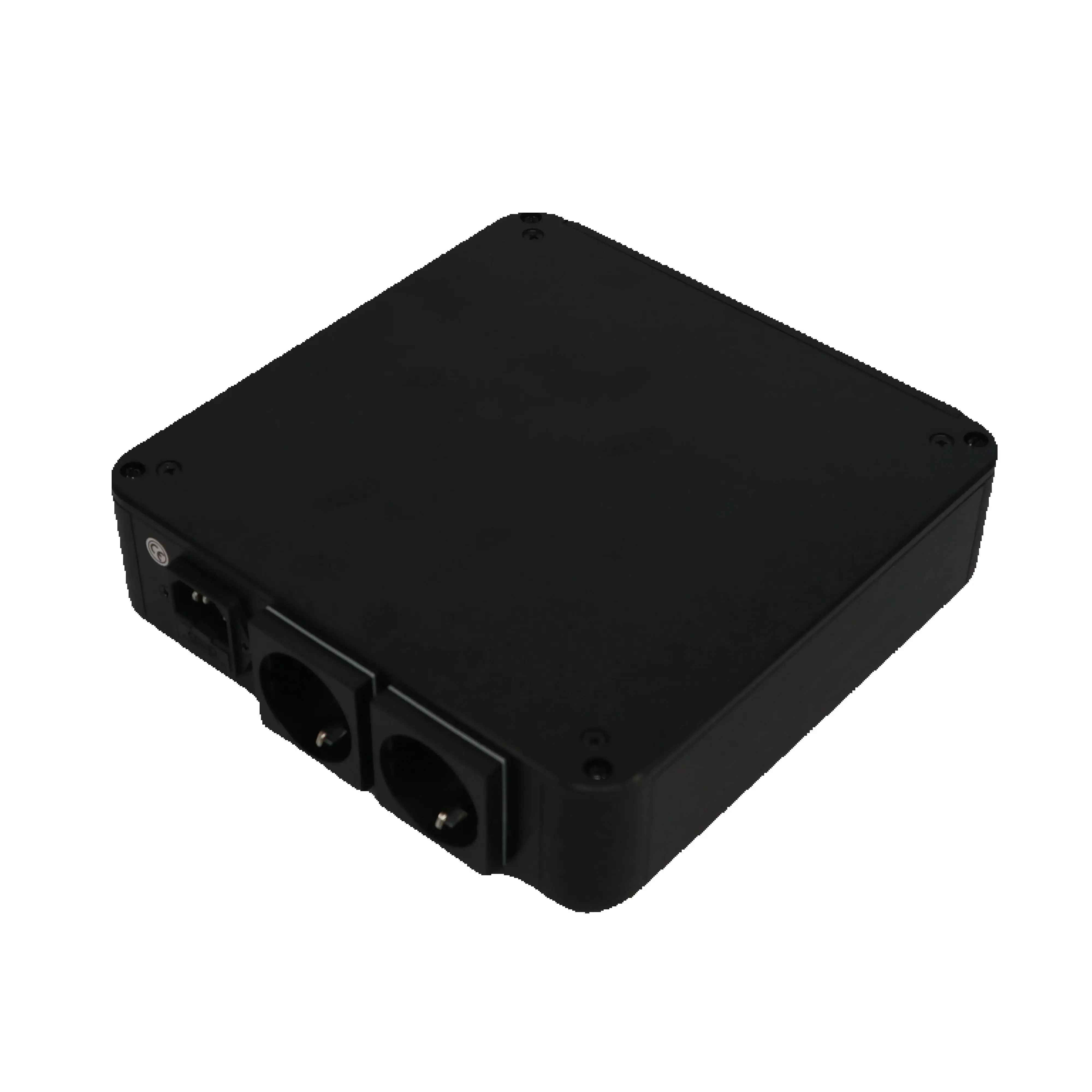

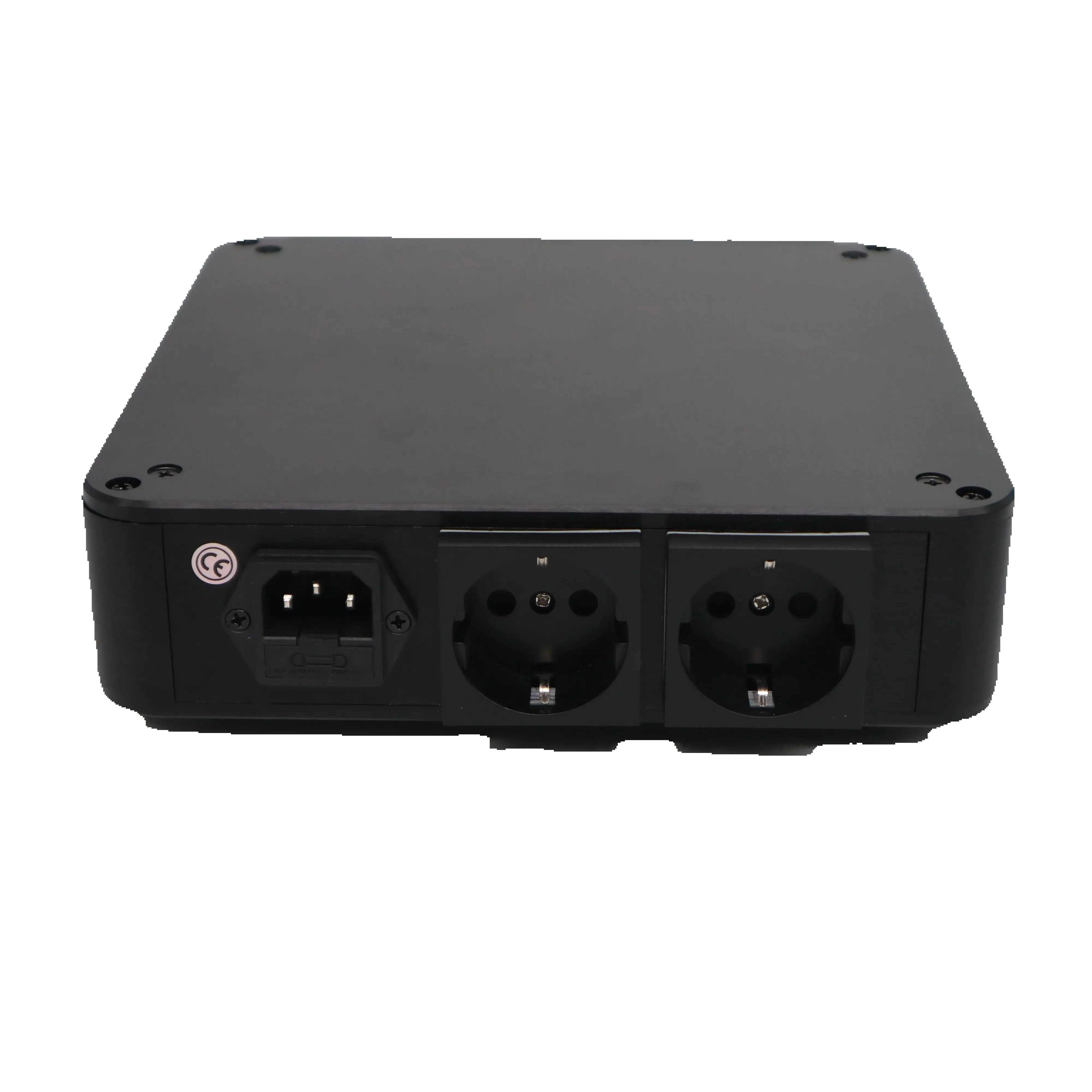

Plug Type: EU

Rated Current: 15A

Rated Voltage: 220V

Sub-control Switch: No

WIFI: No

HiFi Power Purifier with EU Schuko socket Audio purification power socket Amorphous magnetic ring filter

Key Features:

The function of this soft start board is to reduce the inrush current at startup, thereby minimizing the impact on the power grid axtending the life of the switch.

Lightning Protection Function:

Function of the lightning protection tube: The lightning protection tube is also known as a gas discharge tube.

To increase the triggering prility of the discharge tube, a triggering agent is included inside the tube.

It consists of a pair of cold cathode plates separated from each other, encapsulated within a ceramic tube fh a specific inert gas (Ar).

Under normal operating conditions, the gas discharge tube is in an off state, with an inter-electrode resistance reaching the megaohm level. When the surge voltage exceeds the circuit system's withstand voltage, the gas discharge tube breaks down and an arc discharge occurs. Due to the low arc voltage (only tens of volts), itively limits the further rise of the surge voltage within a short period.

The gas discharge tube utilizes the above principle to limit surge voltage, serving to discharge lightning transient overcurrents an limit overvoltage in the circuit.

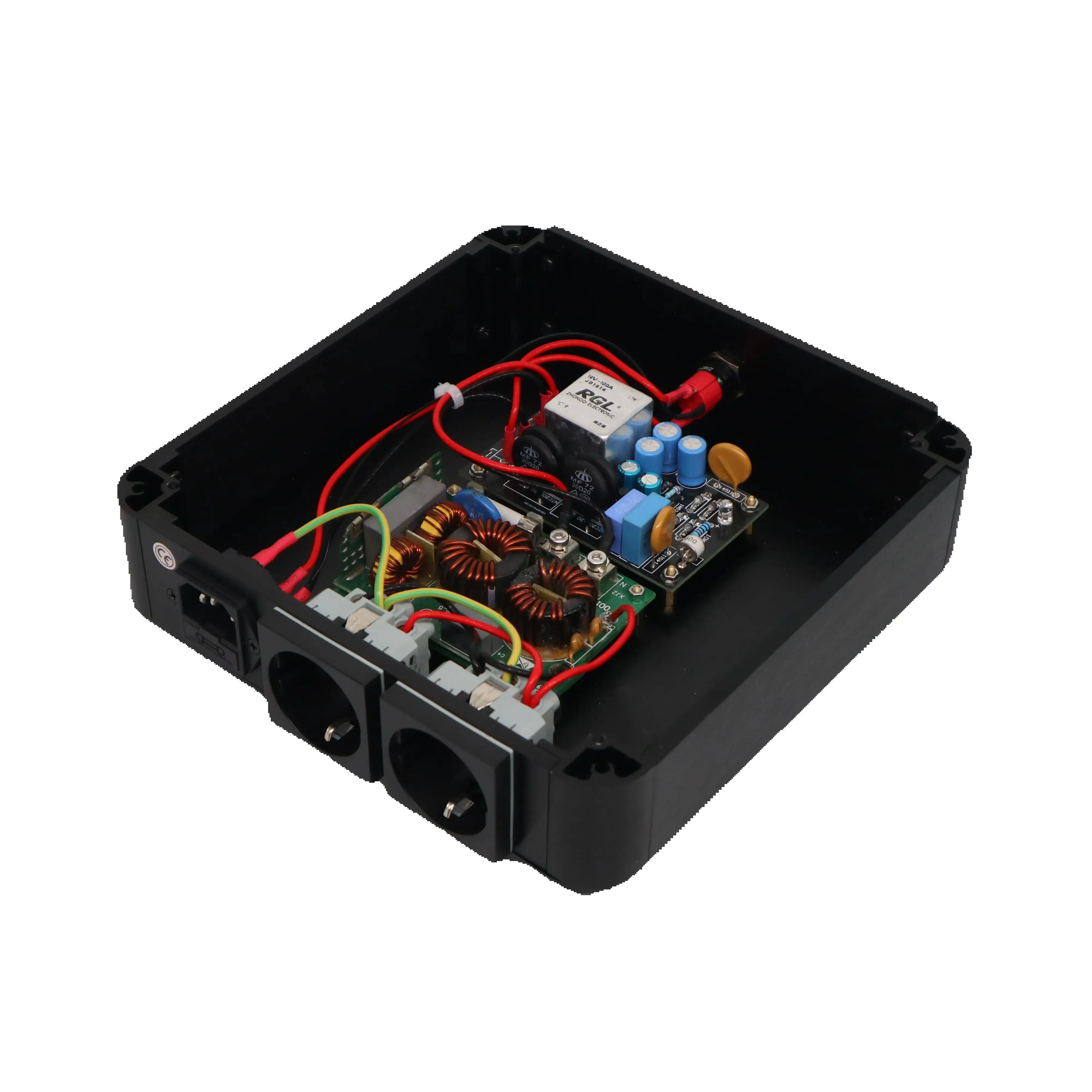

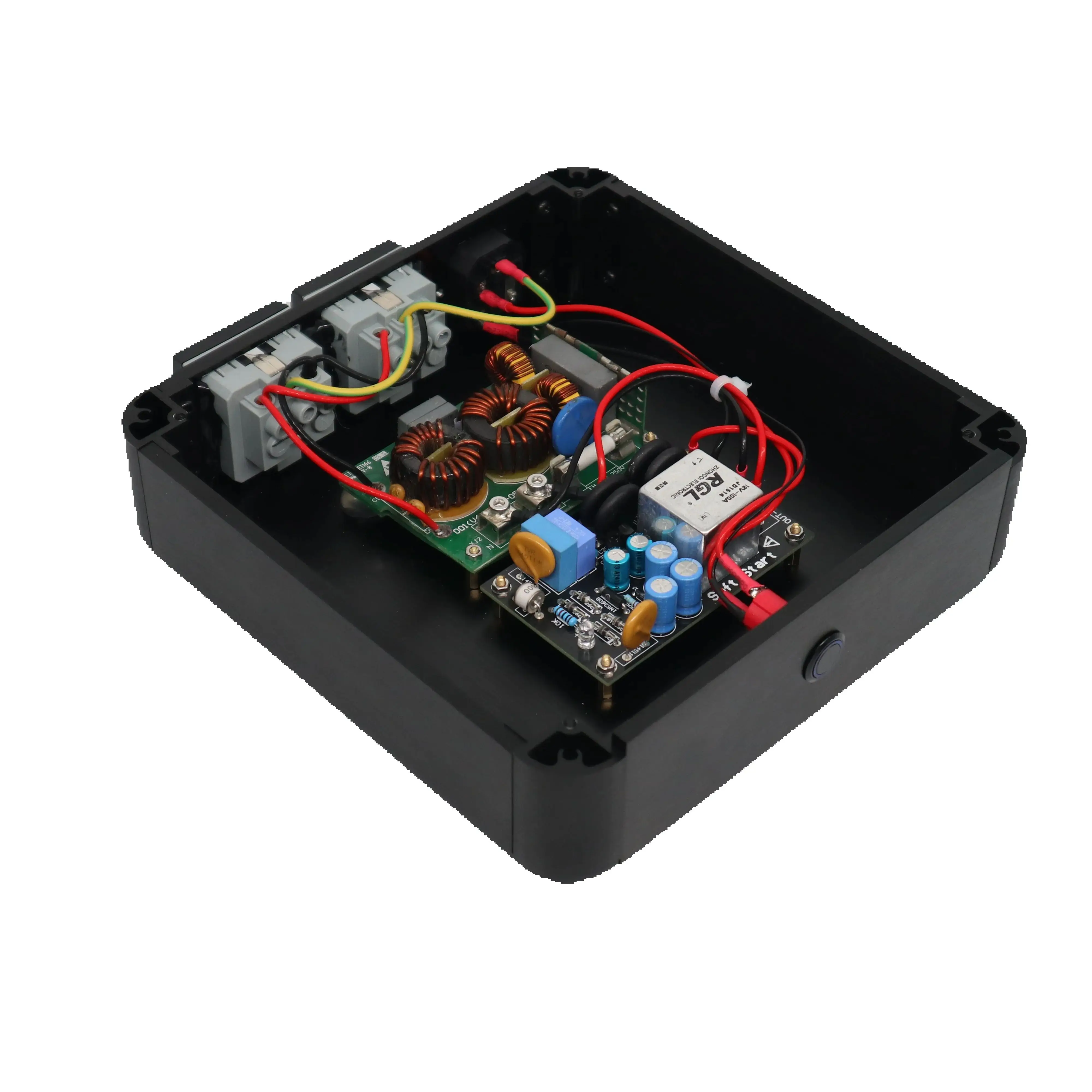

This board utilizes high-current (100A) pure copper terminal relays and 4 large NTC thermitors (20D-20) to effectively protect the machine and prevent excessive startup current.

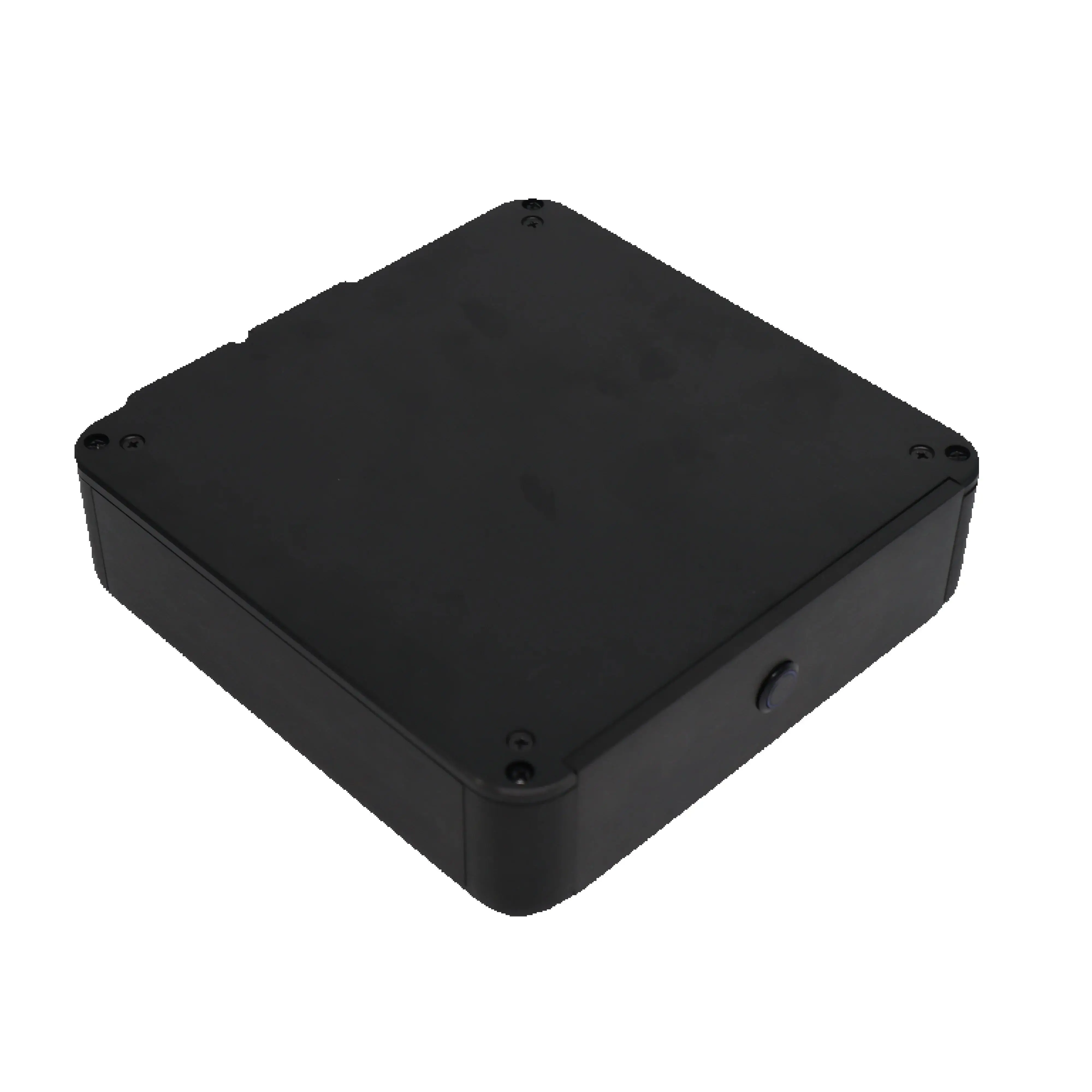

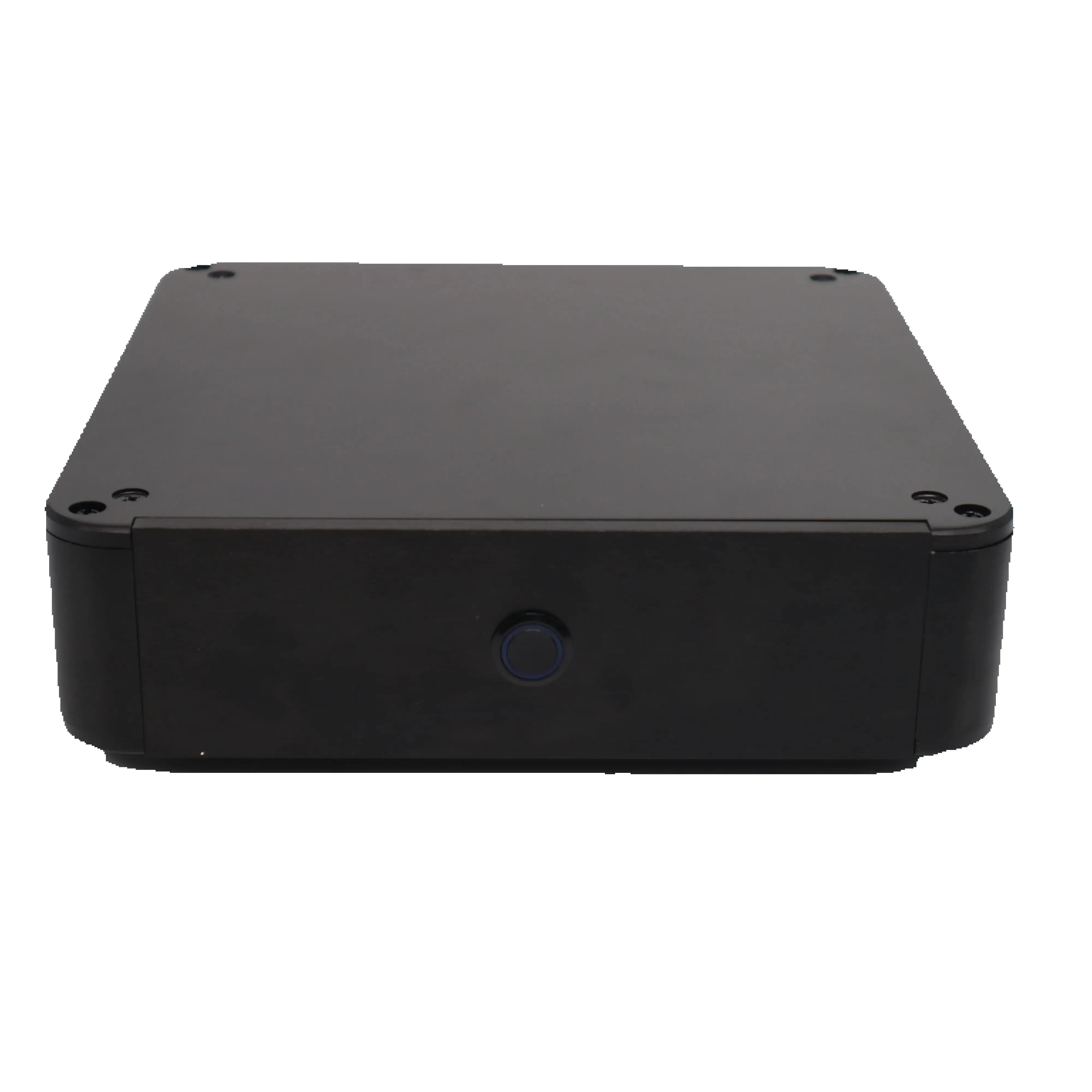

all-aluminum chassis,Internally equipped with EMI audio purification anti-interference filter module

Rated Current: 15A

Chassis Dimensins: 215*215*70mm

AC220V~240V
