SPECIFICATIONS

Applicable Object: Electromechanica

Brand Name: SINOTIMER

CERTIFICATES: CE ROHS EMC LVD

Certification: CE

Contact Load: High Power

DISPLAY: LCD

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

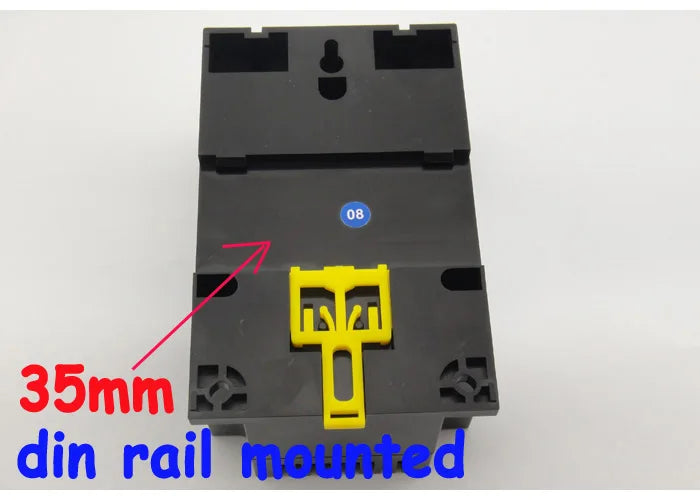

INSTALLATION: PANEL, SCREW, RAIL

LOAD: 30AMP@250VAC

Model Number: TM616-1

Origin: Mainland China

POWER SUPPLY: 120VAC

Power Source: Ac,Ac

Protect Feature: Sealed

Theory: Time Relay

Use: Lights

Voltage: 110V

is_customized: Yes

30AMP load Control 7 Days Programmable Digital TIME SWITCH Relay Control 120V Din Rail Mount, FREE SHIPPING

Why choose SinoTimer TM616?

ONE: Simple wiring, 220V input, 220V output, no need to askan Electrical Engineer,you can do it by yourself at home.

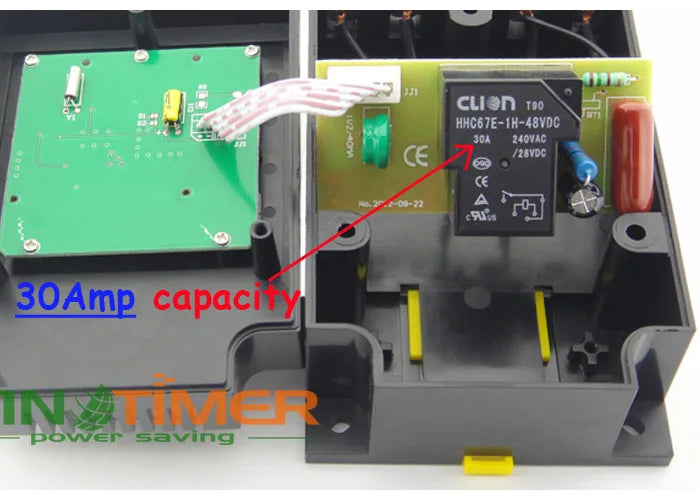

TWO: Excellent load capacity, upto 6500Watt,30AMP@250Vac.

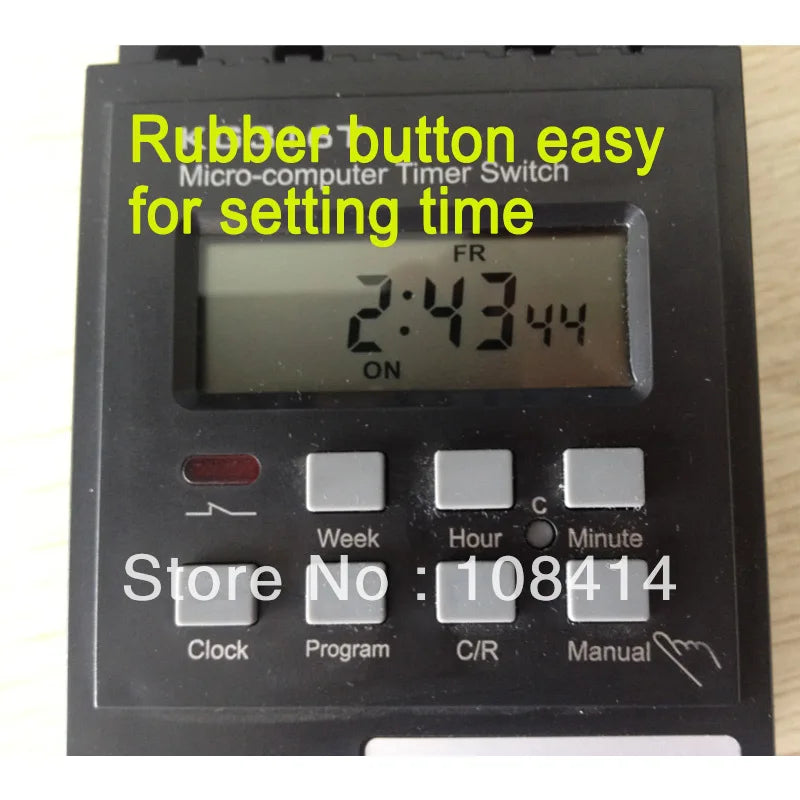

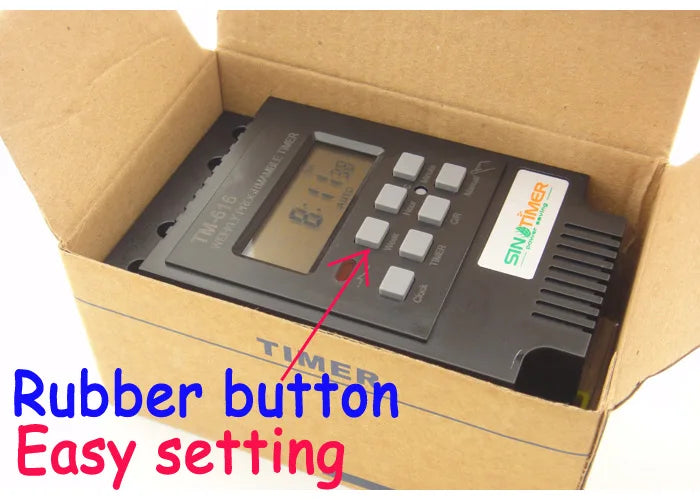

THREE: Easy program, everyone can program it after he reads the manual JUST one time.
FOUR: Stable performance because of professinal manufacturing in power saver since 2002.

Five: Confirm to CE approval, LVD and EMC passsed.

Characterisitcs:

* You can use the tier to SWITCH ON/OFF any elctrical equipments at a preset timer

* Ideal for household use in DB Boards

* 6500 Watt / 30 Amps

* 24 hours / 7 days a week programmable

* Built-in battery for backup the memory (save the programs you set)when power failure

* Auto time error correction +/- 30 sec, weekly
* Repeat programs with 17 on/off settings, and setting on/off manually

Technical Data:

Model	TM616-1
Temp.range: -20°C+50°C	Ui:120VAC
Power consumption 4.5 VA (MAX)	Display: LCD
Switching contact: 1 changeover switch	Programs:17 on/off each day or week
Hysteresis 2 sec/day (25°C)	Mini interval: 1min
Capacity: 30(16) 250V AC	Black-out: 60 days
Timer range: 1min~168hr	Recharge battery: 1.2V 40Ma
Average error: 1s/24h, 25°C	Weight: 0.3kg
