SPECIFICATIONS

Band Width: 500K

Battery Included: Yes

Brand Name: Chargewave

Certification: CE

DIY Supplies: Electrical

Digital Channels: 1

Display Resolution: 320*240 Pixels

Display Size: 2.9 Inches & Under

High-concerned chemical: none

IS Battery Demountable: Yes

Model Number: SCO_1_500K

Origin: Mainland China

Probe: Probe BNC interface

Probe BNC interface: Charging TYPEC interface

Real Time Sampling Rate: 2.5M

Record Length: 1Kb

Semi-finishedproduct: No

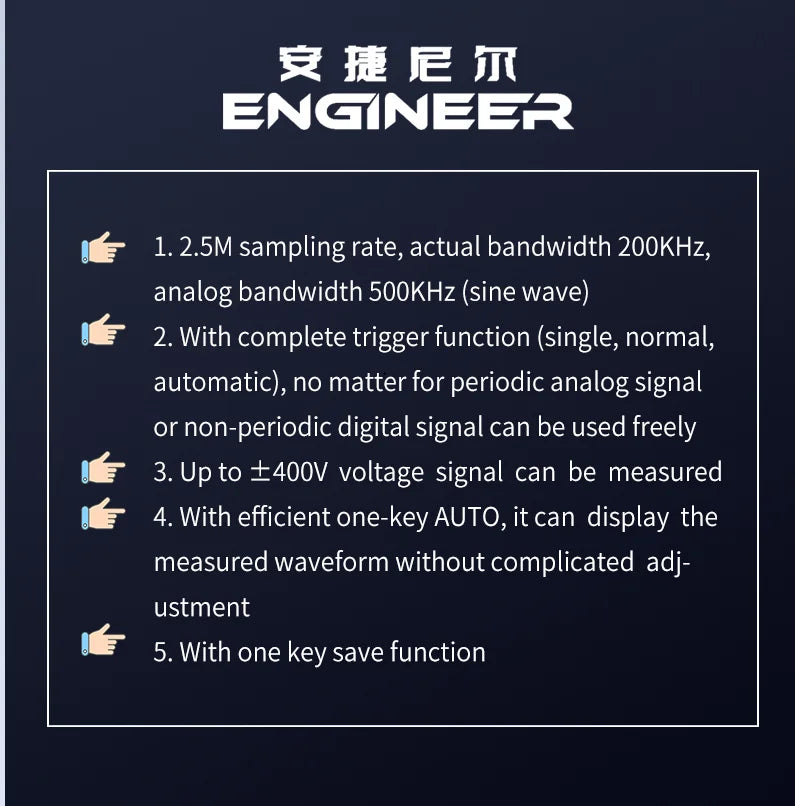

1. 2.5M sampling rate, actual bandwidth 200KHz, analog bandwidth 500KHz (sine wave)

2. With complete trigger function (single, normal, automatic), no matter for periodic analog signal or non-periodic digital signal can be used feely

3. Up to土400V voltage signal can be measured

4. With efficient one key AUTO, it can display the measured waveform without complicated adjustment

5. With one key save function





MATTERS NEED AT1 TENTION

1. When measuring voltages over 40V,be sure to flip the probe to X10

2. When measuring high voltage ( over 36V AC voltage), do not touch the metal position of the instrument, especially the BNC interface

3. Try not to measure the mains while charging

4. The charging voltage should not exceed 6.8V to avoid burning the charging chip

5. When you do not need to upgrade the firmware, flip the switch in thelower left corner to the Nomal position

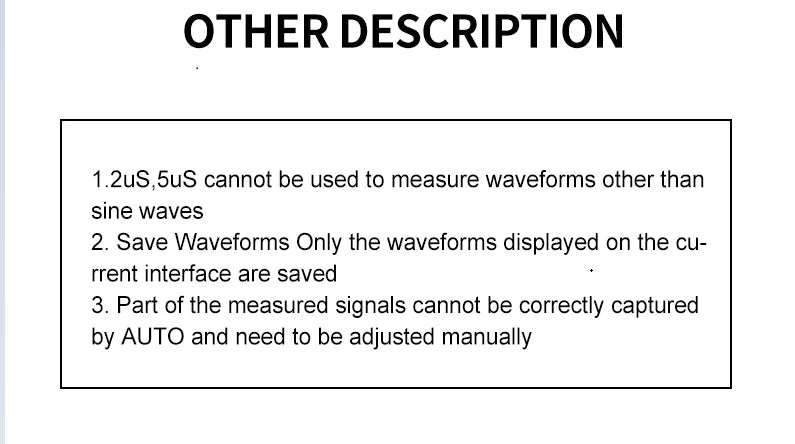

OTHER DESCRIPTION

1.2uS, 5uS cannot be used to measure waveforms other than sine waves

2. Save Waveforms Only the waveforms displayed on the current interface are saved

3. Part of the measured signals cannot be correctly captured by AUTO and need to be adjusted manually
