SPECIFICATIONS

Brand Name: NONE

Expansion slot type: GPIO, MicroSD, Others

Extension module compatibility: Presented on all major platforms

High-concerned chemical: none

Material: none

Network Interface Configuration: Gigabit Ethernet (1 Gbps), I/O

Operating system support: Linux

Origin: Mainland China

Typical application fields: Robotics, Frequency Converters, FPGA Development Boards, ADC Acquisition, ARM Platform Development, Consumer Electronics, Other Applications, Smart Home, Test and Measurement, HP Laser Printer Accessories, Communication and Networking, Rail Transit, Industrial Automation, Building and Building Automation, Energy and Environment, Internet of Things, Computer Hardware, Embedded Hardware, Serial Screen Human-Machine Interface, Edge Computing and AI Applications, Medical Equipment, Industry General Purpose, Peristaltic Pumps, Inkjet Printing Devices, Education, 51 MCU Learning, Automotive Electronics

is_customized: Yes

processor architecture type: ARM+FPGA,FPGA

version: new version

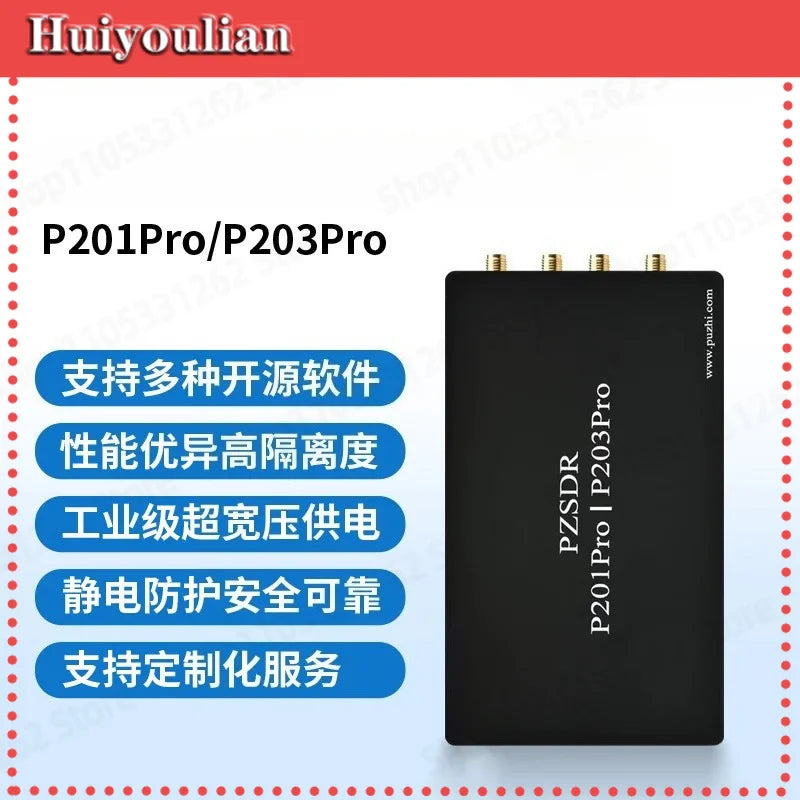

PZSDR High-Performance SDR Module

P201Pro & P203Pro Core Parameters

Dual Core Cortex-A9 766MHz | 8-36V Wide Voltage | Up to 6GHz RF Range

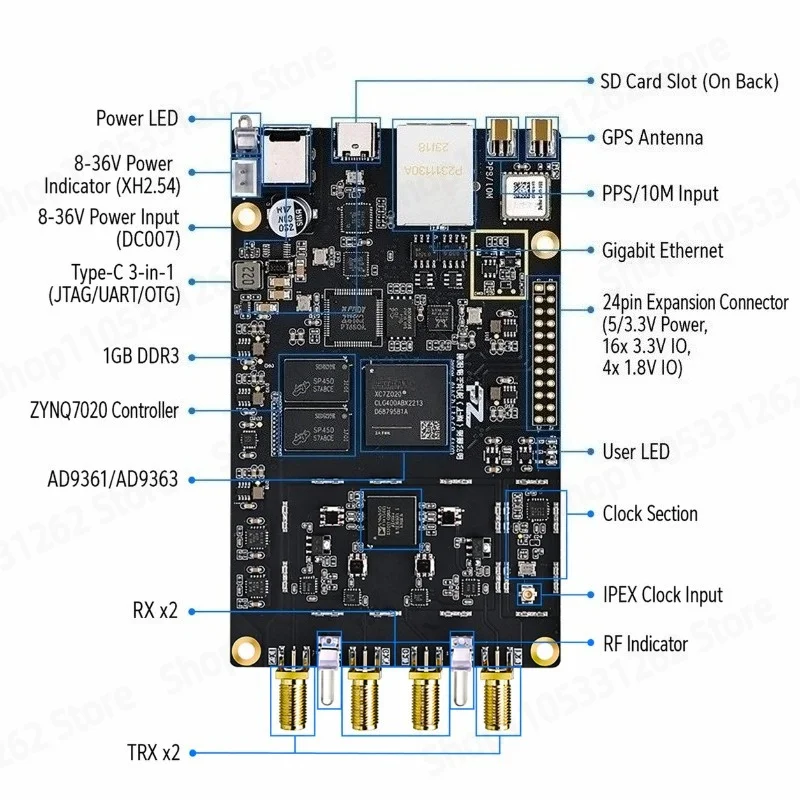

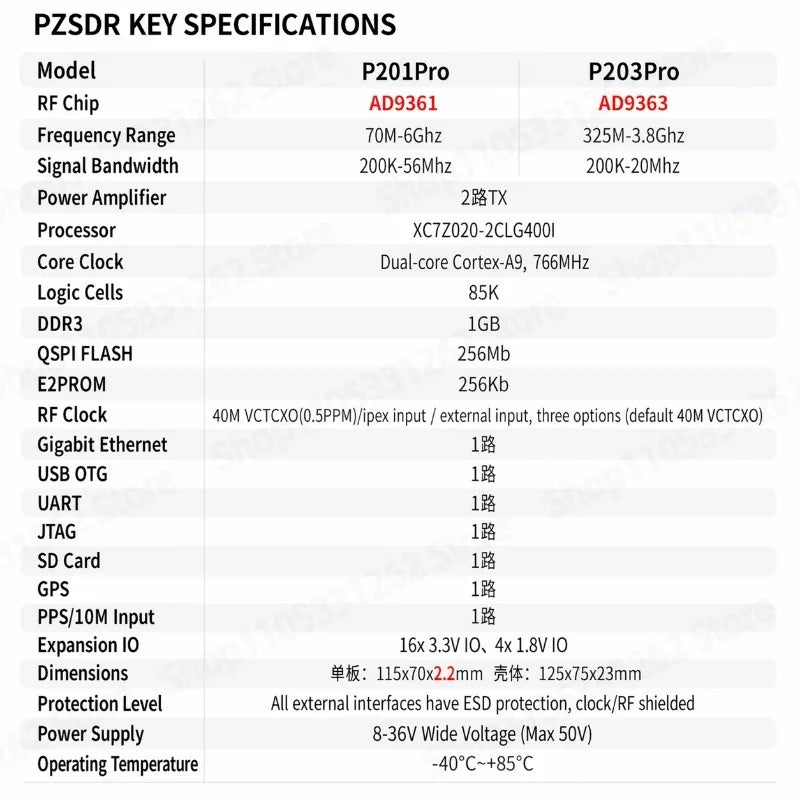

Detailed Comparison Parameters

Parameter	P201Pro	P203Pro
RF Chip	AD9361	AD9363
Frequency Range	70M-6GHz	325M-3.8GHz
Signal Bandwidth	200K-56MHz	200K-20MHz
Power Amplifier	2-way TX
Processor	XC7Z020-2CLG400I
Core Frequency	Dual Core Cortex-A9, 766MHz
Logic Cells	85K
DDR3	1GB
QSPI FLASH	256Mb
E2PROM	256Kb
RF Clock	40MHz VCTCXO 0.5PPM / ipex Input / External Input, Default 40MHz VCTCXO
Gigabit Ethernet	1-way
USB OTG	1-way
UART	1-way
JTAG	1-way
SD Card	1-way
GPS	1-way
PPS/10M Input	1-way
Extended IO	16x 3.3V IO, 4x 1.8V IO

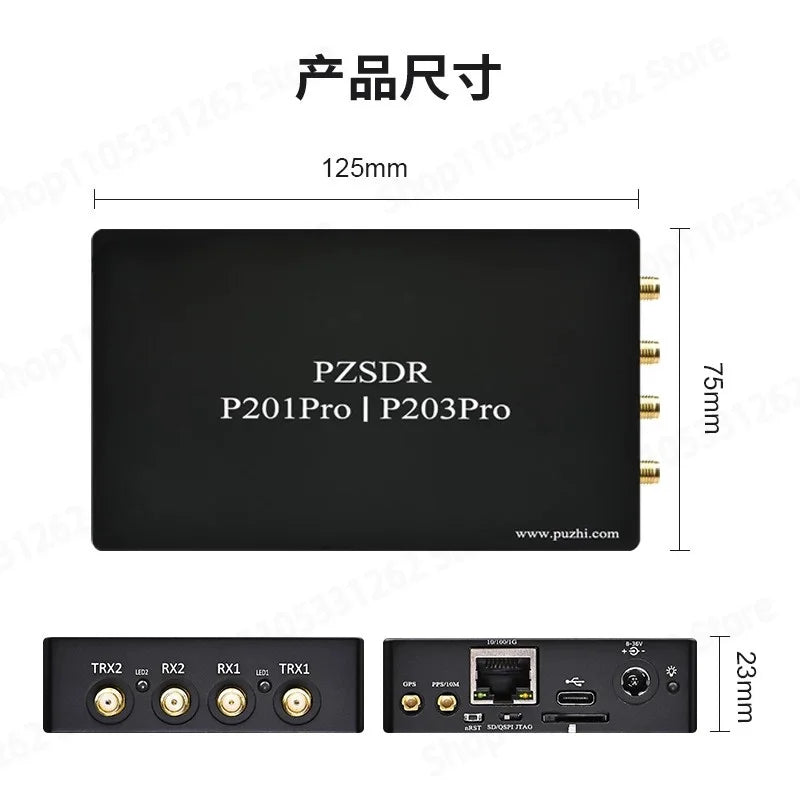

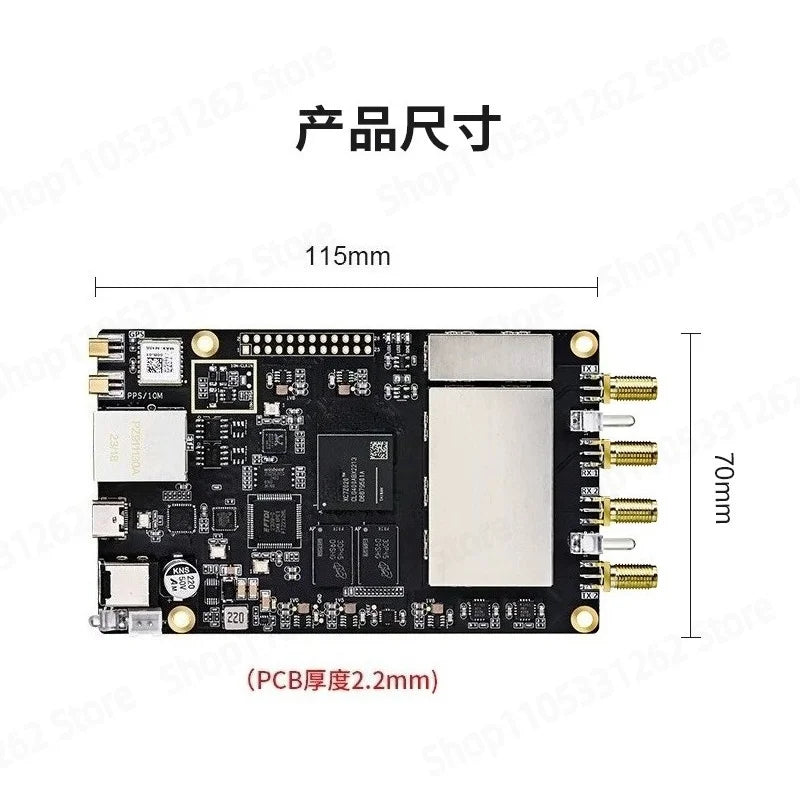

Dimensions	PCB: 115x70x2.2mm, Casing: 125x75x23mm
Protection Level	ESD protection on all external interfaces, shielding on clock and RF signals
Power Supply	8-36V ultra-wide voltage Max 50V
Operating Temperature	-40°C ~ +85°C
