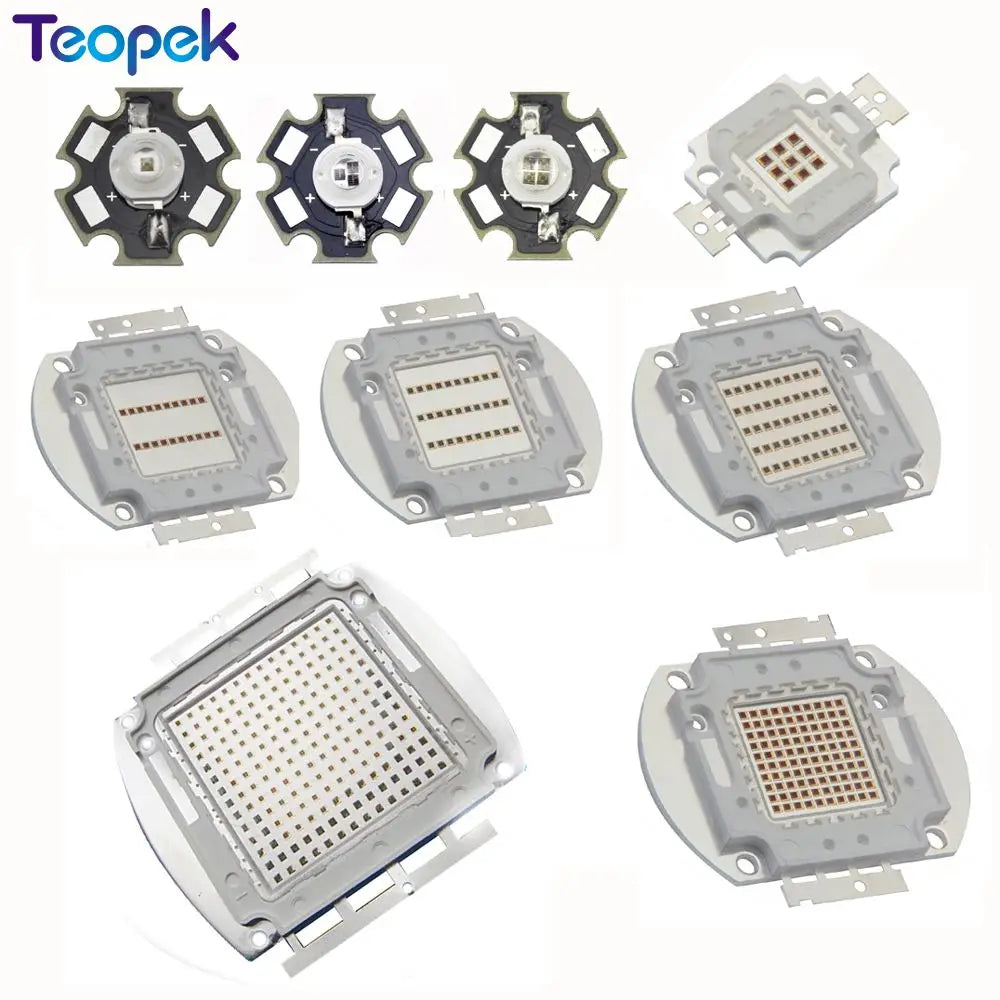

High Power LED 730nm 850nm 940nm IR LED Infrared 1W 3W 5W 10W 20W 30W 50W 100W 850 Nm 940 Nm Emitter Light Lamp

940nm / 200w x1pc

$803.52

Sale price $803.52 Regular price $0.00

Skip to product information

High Power LED 730nm 850nm 940nm IR LED Infrared 1W 3W 5W 10W 20W 30W 50W 100W 850 Nm 940 Nm Emitter Light Lamp

High Power LED 730nm 850nm 940nm IR LED Infrared 1W 3W 5W 10W 20W 30W 50W 100W 850 Nm 940 Nm Emitter Light Lamp

$803.52

Sale price $803.52 Regular price $0.00

Emitting Color 940nm 730nm 850nm

Wattage 200w x1pc 100w x1pc 20w x1pc 10w x1pc 5w x5pcs 1w x5pcs 1w x5pcs 1 50w x1pc 30w x1pc

Description

SPECIFICATIONS

Average Life (hrs): 50000

Base Type: Other

Beam Angle(°): 120°

Brand Name: teopek

Certification: CCC,ce

Control Method: Others

High-concerned chemical: none

Is Smart Device: no

Item Type: LED bulbs

LED Chip Brand: Epistar

LED Chip Model: 1W HIGH POWER

Led Bulb Type: Spotlight Bulb

Length: Other

Luminous Flux: 249-2000

Origin: Mainland China

Power Source: DC

Power Tolerance: Other

Shape: Other

Voltage: 6-10V

10PCS 3W High Power LED Chip light bead emitter Cool White Warm White Red Green Blue Pink Yellow RGB with 20MM Star PCB

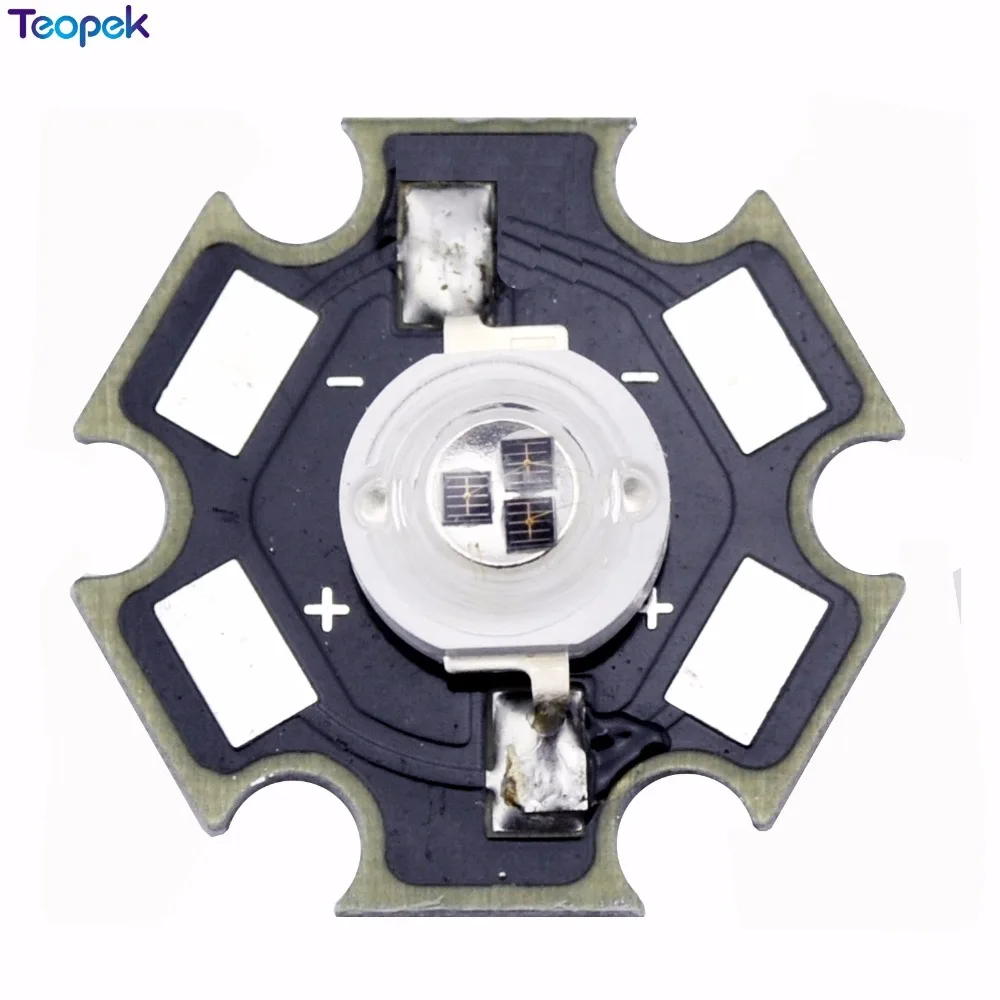

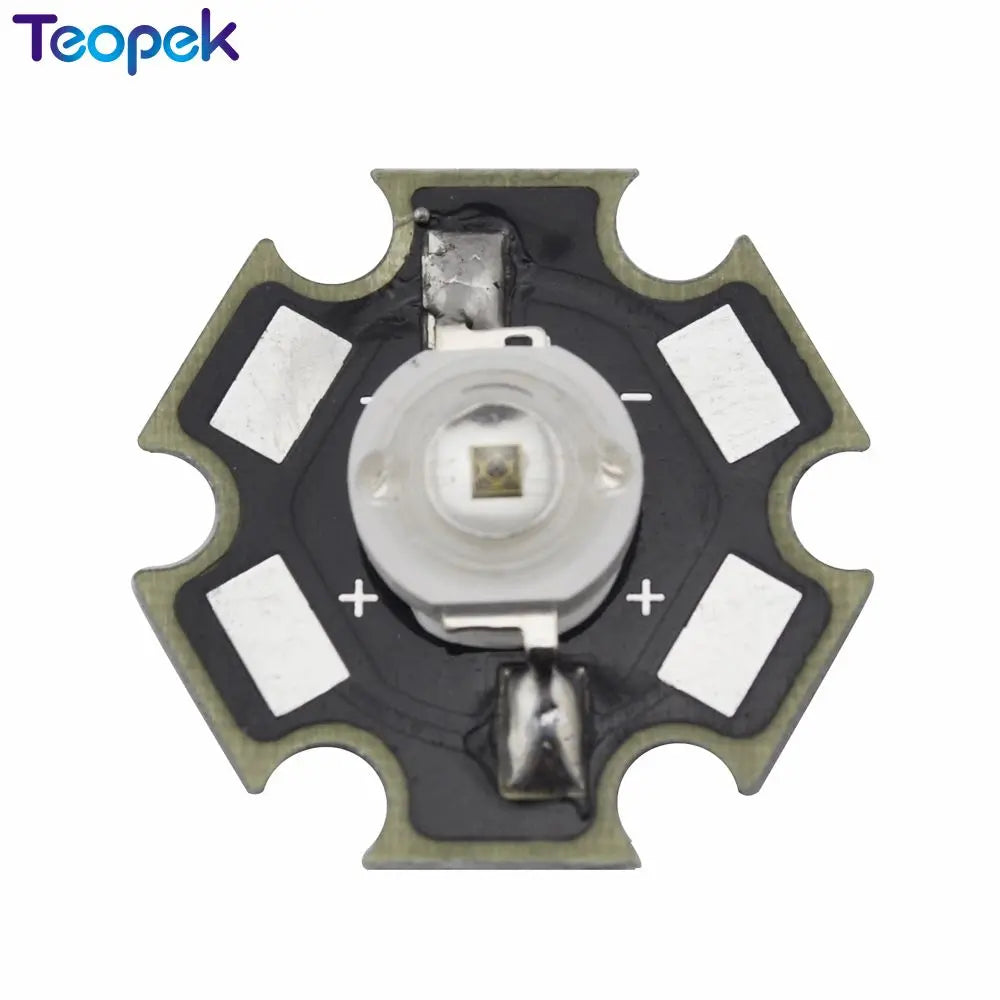

3W IR 730nm/850nm /940nm LED:

Quantity:5pc

DC Forward Voltage (VF): 1.4V-1.6V

DC Forward Current (IF): 700mA

Power:3W

Emitted Color: IR / Infrared

Wavelength: 730nm or 850nm or 940nm

Radiant Power: 1000mW

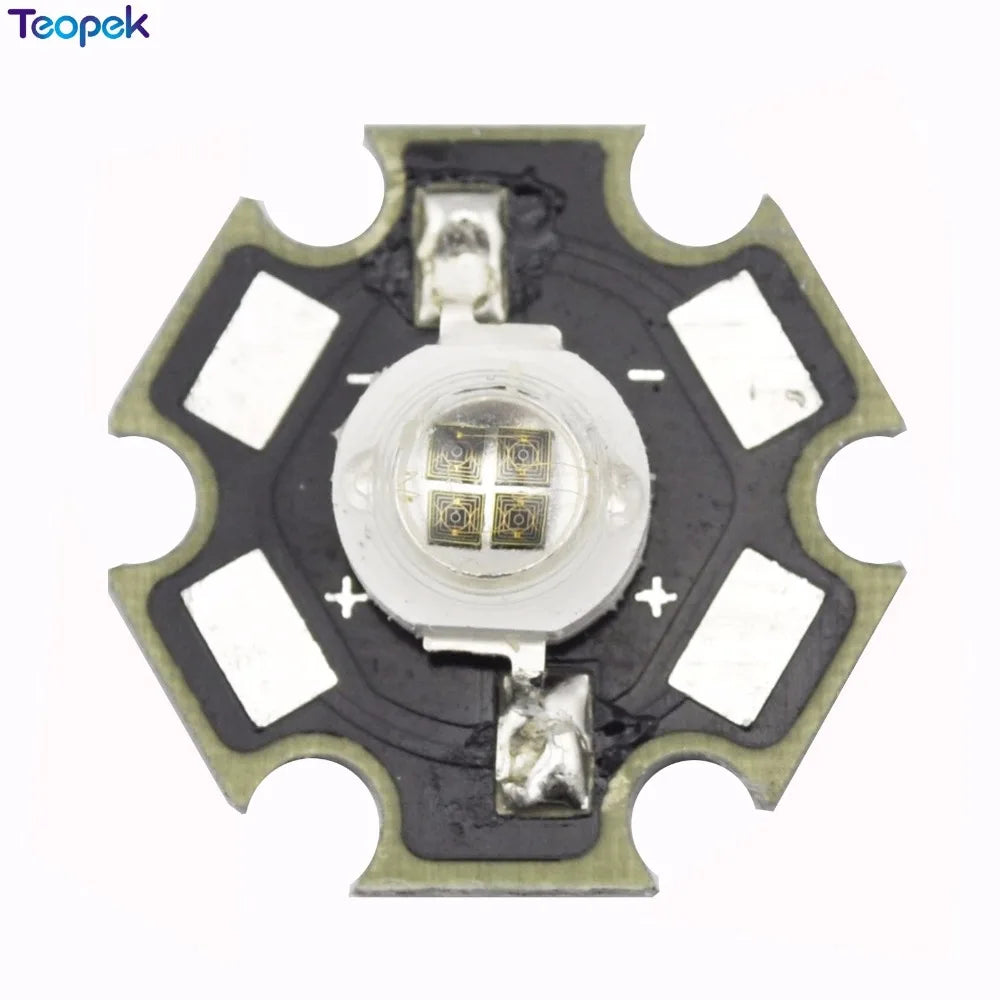

5W IR 730nm/850nm /940nm LED:

Quantity: 5pc

DC Forward Voltage (VF): 1.4V-1.6V

DC Forward Current (IF): 1400mA

Power:5W

Emitted Color: IR / Infrared

Wavelength:730nm or 850nm or 940nm

Radiant Power: 1000mW

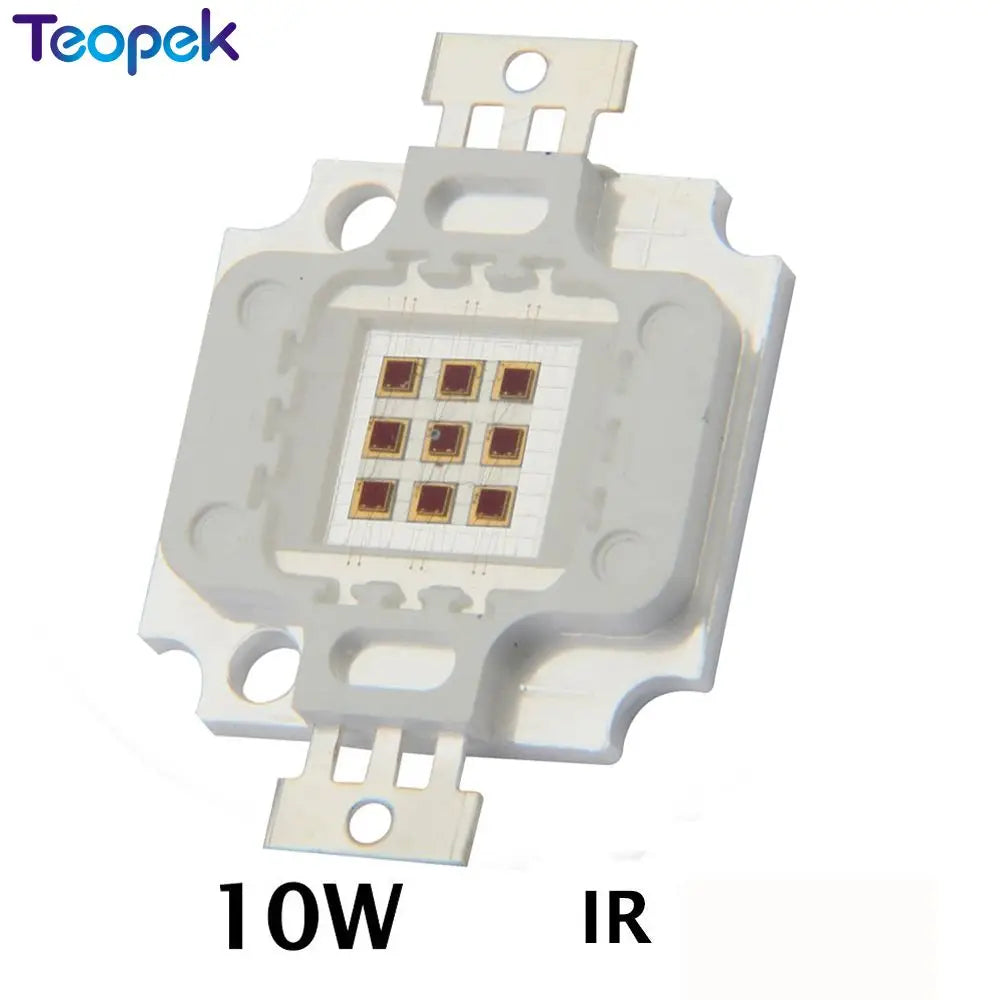

10W IR 730nm/850nm /940nm LED:

Quantity: 1pc

DC Forward Voltage (VF): 4.5V-5.5V

DC Forward Current (IF): 900-1200mA

Power:10W

Emitted Color: IR / Infrared

Wavelength: 730nm or 850nm or 940nm

Radiant Power: 800900mW

Chip Qty:100pcs 1W EPILEDs 42Mil

Chip Array: 3 in serial & 3 in parallel

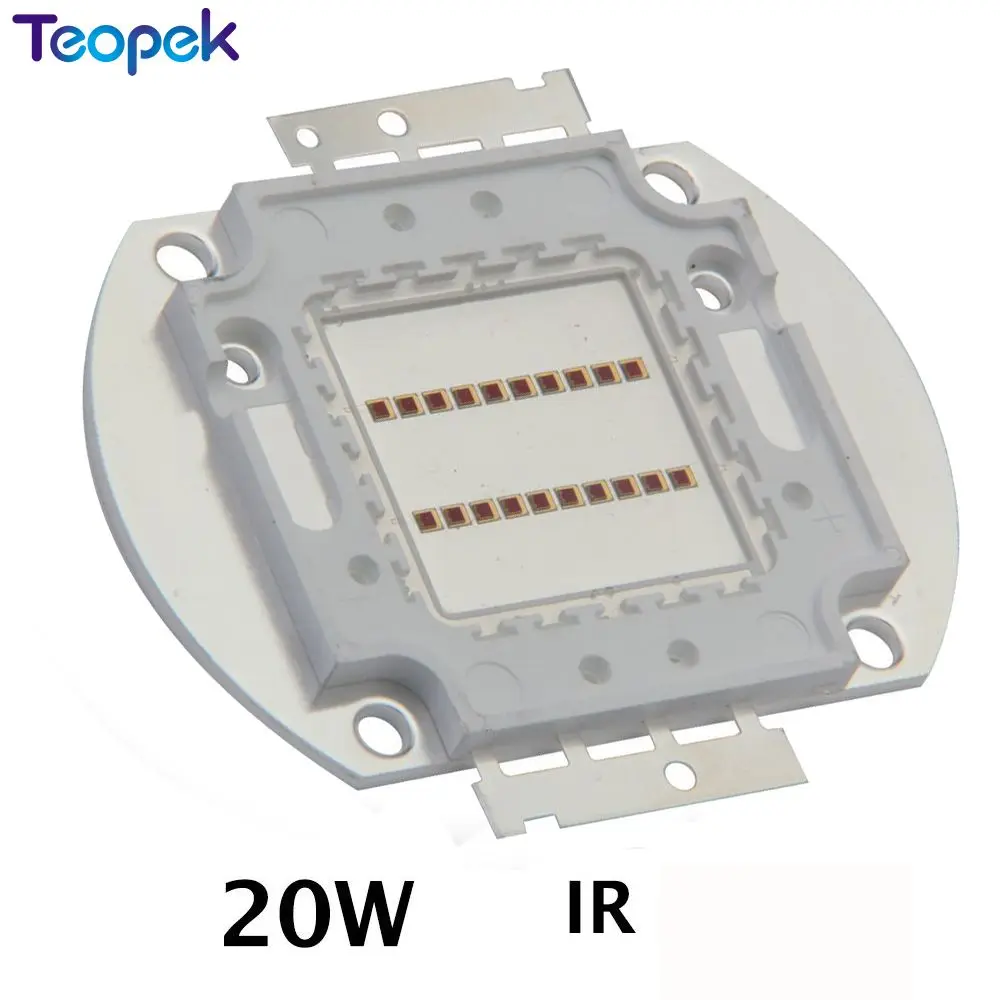

20W IR 730nm/850nm /940nm LED:

Quantity: 1pc

DC Forward Voltage (VF): 14V-17V

DC Forward Current (IF): 650mA-750mA

Power: 20W

Emitted Color: IR / Infrared

Wavelength: 730nm or 850nm or 940nm

Radiant Power: 1500-2000mW

Chip Qty:20pcs 1W EPILEDs 42Mil

Chip Array: 10 in serial & 2 in parallel

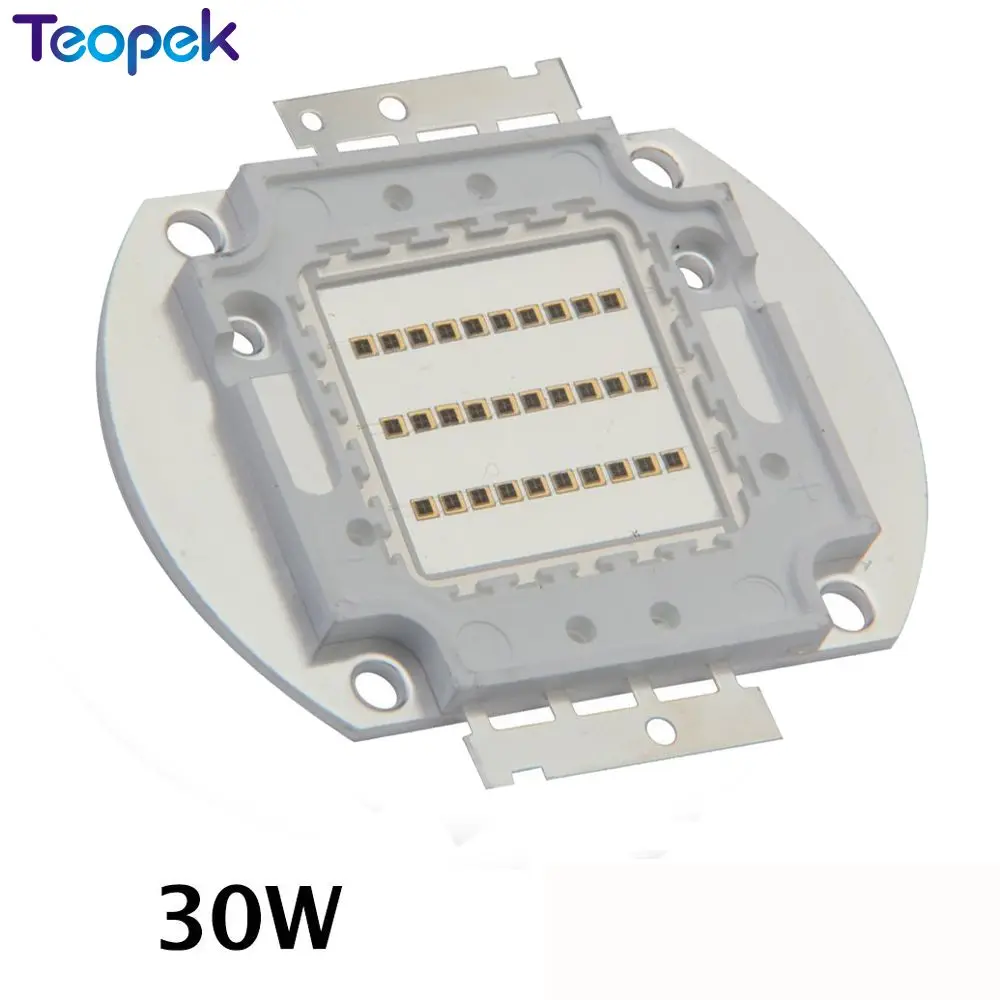

30W 730nm/850nm /940nm LED:

Quantity: 1pc

Power: 30W

DC Forward Voltage (VF) : 14-17V

DC Forward Current (IF): 1050mA

Emit Color: Infrared

Wavelength: 730nm or 850nm or 940nm

Radiation Power: 2250-2700mW

Chip Qty:30pcs 1W EPILEDs 42Mil

Chip Array: 10 in serial & 3 in parallel

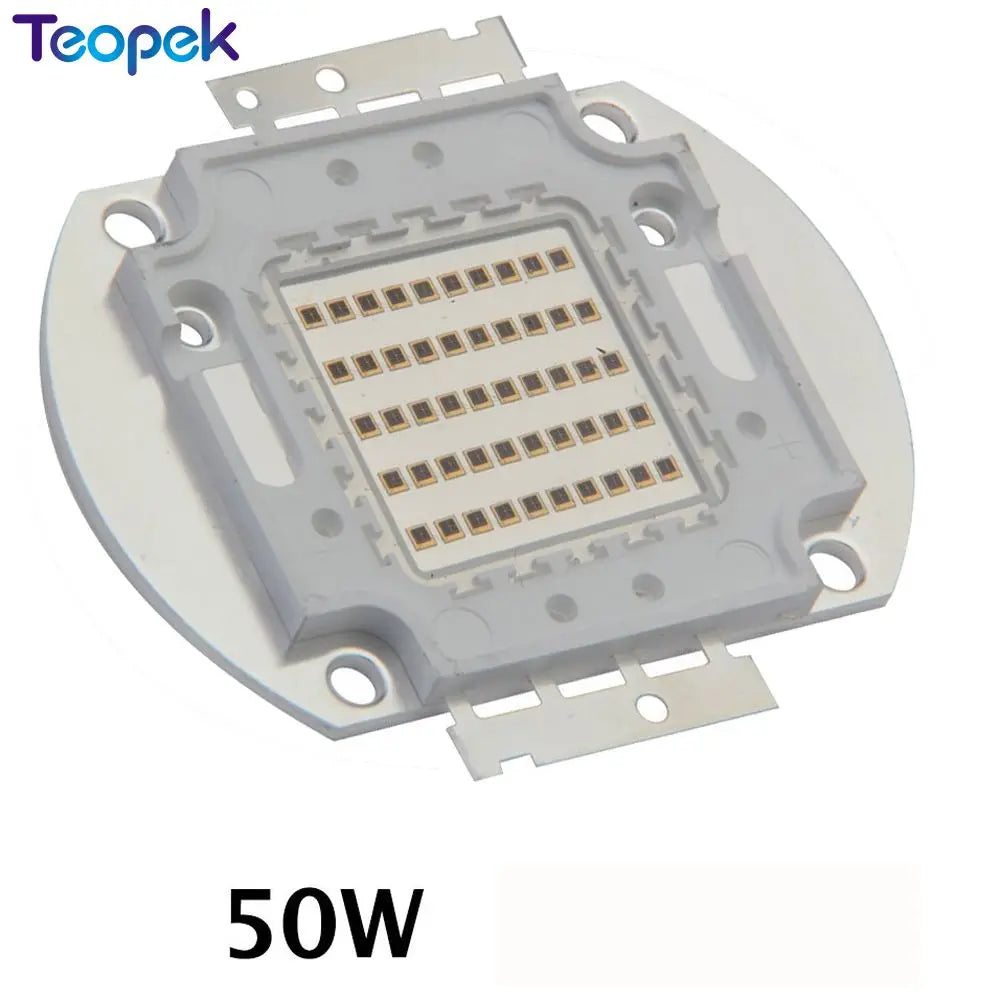

50W IR 730nm/850nm /940nm LED:

Quantity: 1pc

Power: 50W

DC Forward Voltage (VF) : 14-17V

DC Forward Current (IF): 1500-1700mA

Emit Color:Infrared

Wavelength: 730nm or 850nm or 940nm

Radiation Power: 3750mW

Chip Qty:50pcs 1W EPILEDs 42Mil

Chip Array: 10 in serial & 5 in parallel

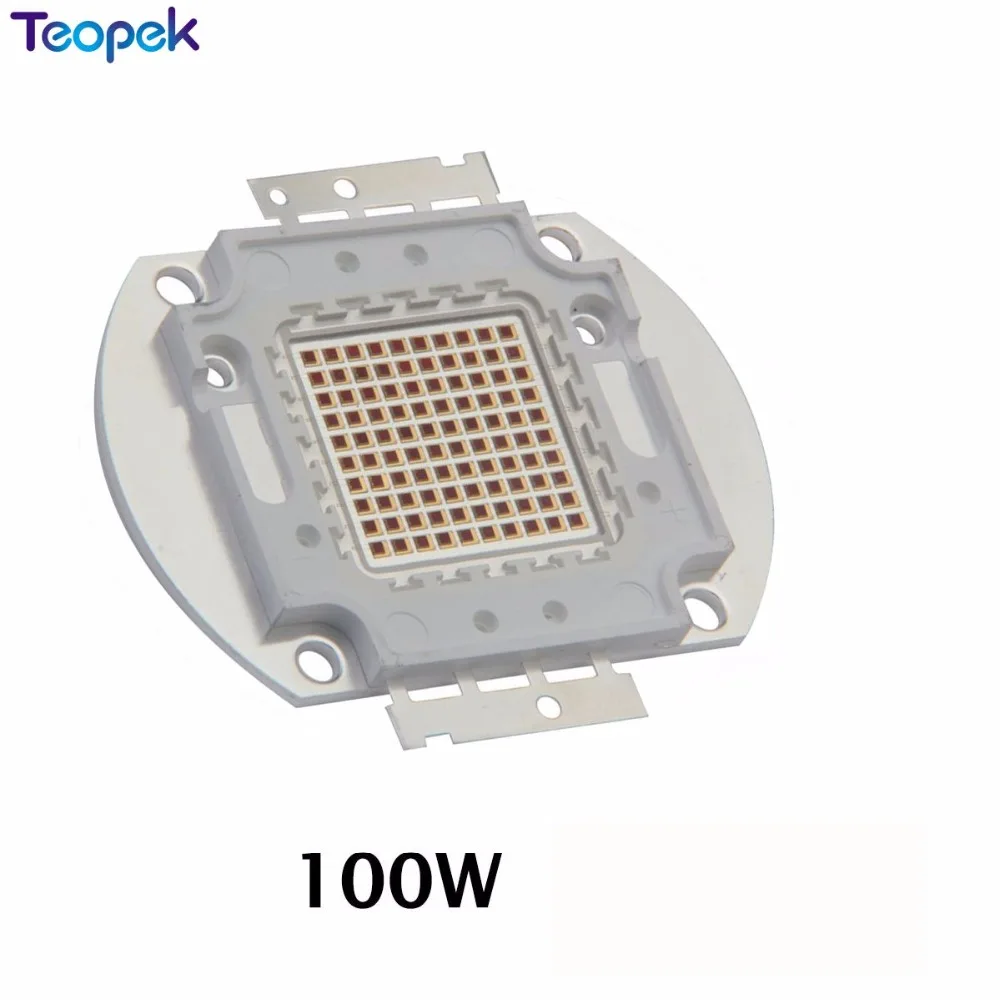

100W IR 730nm/850nm /940nm LED:

Quantity: 1pc

Power:100W

DC Forward Voltage (VF) : 14-17V

DC Forward Current (IF): 3000-3500mA

Emit Color: Infrared

Wavelength: 730nm or 850nm or 940nm

Radiation Power: 7000mW

Chip Qty:100pcs 1W EPILEDs 42Mil

Chip Array: 10 in serial & 10 in parallel

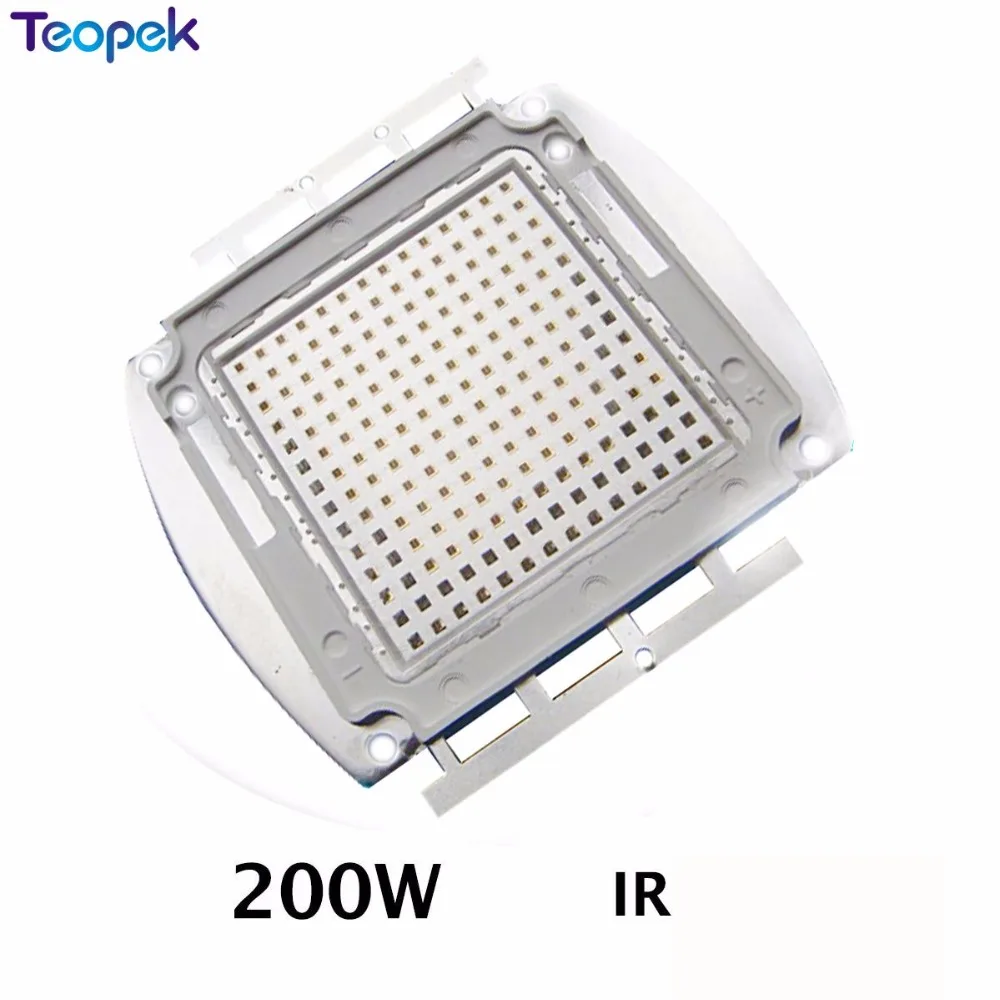

200W IR 730nm/850nm /940nm LED:

Quantity: 1pc

Power:200W

DC Forward Voltage (VF) :30-35V

DC Forward Current (IF): 3000mA

Emit Color: Infrared

Wavelength: 730nm or 850nm or 940nm

Radiation Power: 7000mW

Chip Qty:200pcs 1W EPILEDs 42Mil

Chip Array: 20 in serial & 10 in parallel

*****Propoer constant current driver & heatsink is required! Professional installation is required!**************

*****Power of the led is named after MAX power when full input current & voltage are given, real power depends on your actual input voltage and current!**************

Package Include:

1x IR LED(type as selected)
