SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

Module highlights:

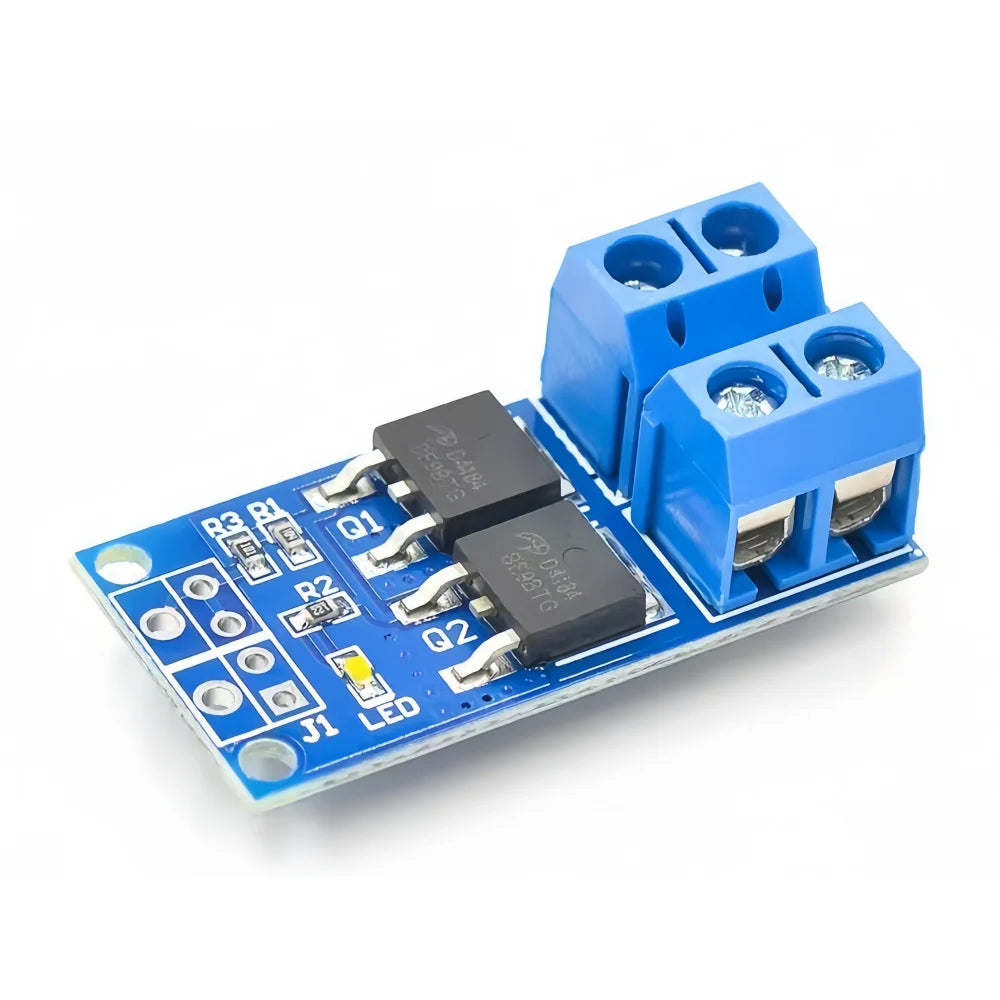

1. Adopting dual MOS parallel active output, it boasts a lower internal resistance, higher current, and robust power. At room temperature, it delivers 1,400W, satisfying the needs of most devices;

2. Wide voltage range, supports PWM;

3. Easily achieve control of high-power equipment.

Product parameters and applications:

1: Operating voltage: DC 5V--36V;

2: Trigger signal source: digital high and low voltage levels (DC3.3V--20V), compatible with microcontroller IO ports, PLC interfaces, DC power supplies, etc. It can also receive PWM signals with a signal frequency range of 0--20KHZ.

3: Output capability: DC 5V--36V, continuous current at room temperature 1, power 400W! Under auxiliary cooling conditions, the maximum current can reach 30A.

4: Application: The output terminal can control high-power devices such as motors, light bulbs, LED strips, DC motors, micro water pumps, solenoid valves, etc. It can also input PWM to control the motor speed, light brightness, etc.

5: Service life: unlimited switching; Operating temperature: -40—85℃
