High-precision 5V2A charge-discharge integrated module Type-C input compatible with 4.2V lithium battery Boost Converter Step-Up

High-precision 5V2A charge-discharge integrated module Type-C input compatible with 4.2V lithium battery Boost Converter Step-Up

$3.72

$3.72 $0.00

Description

SPECIFICATIONS

Application: Computer

Brand Name: NONE

Condition: New

Dissipation Power: 5V

High-concerned chemical: none

Model Number: Step-Up Power Module

Operating Temperature: ..

Origin: Mainland China

Package: SMD

Supply Voltage: 5V

Type: Module

is_customized: Yes

Description

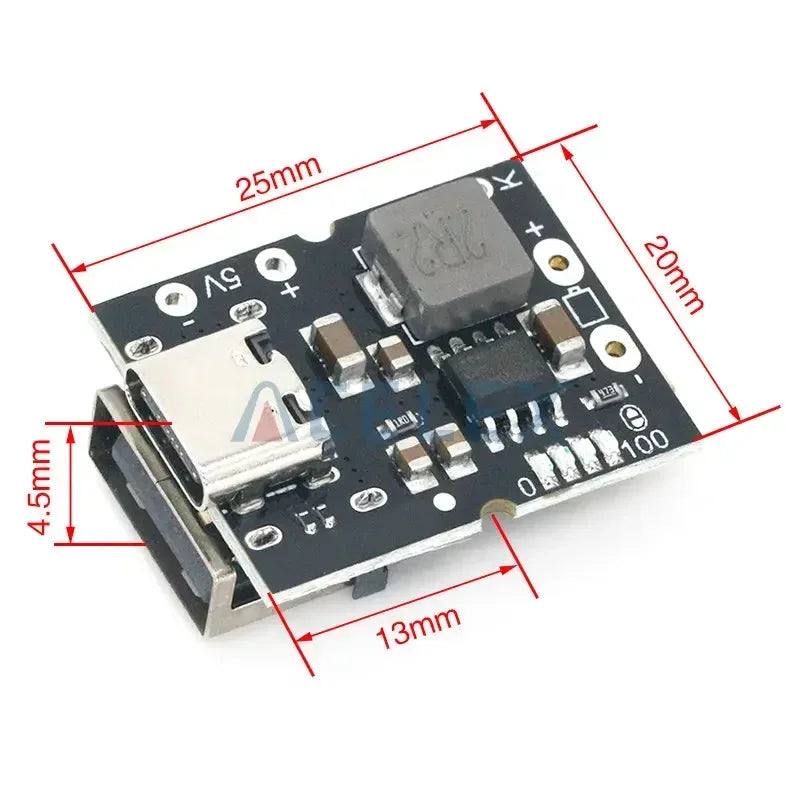

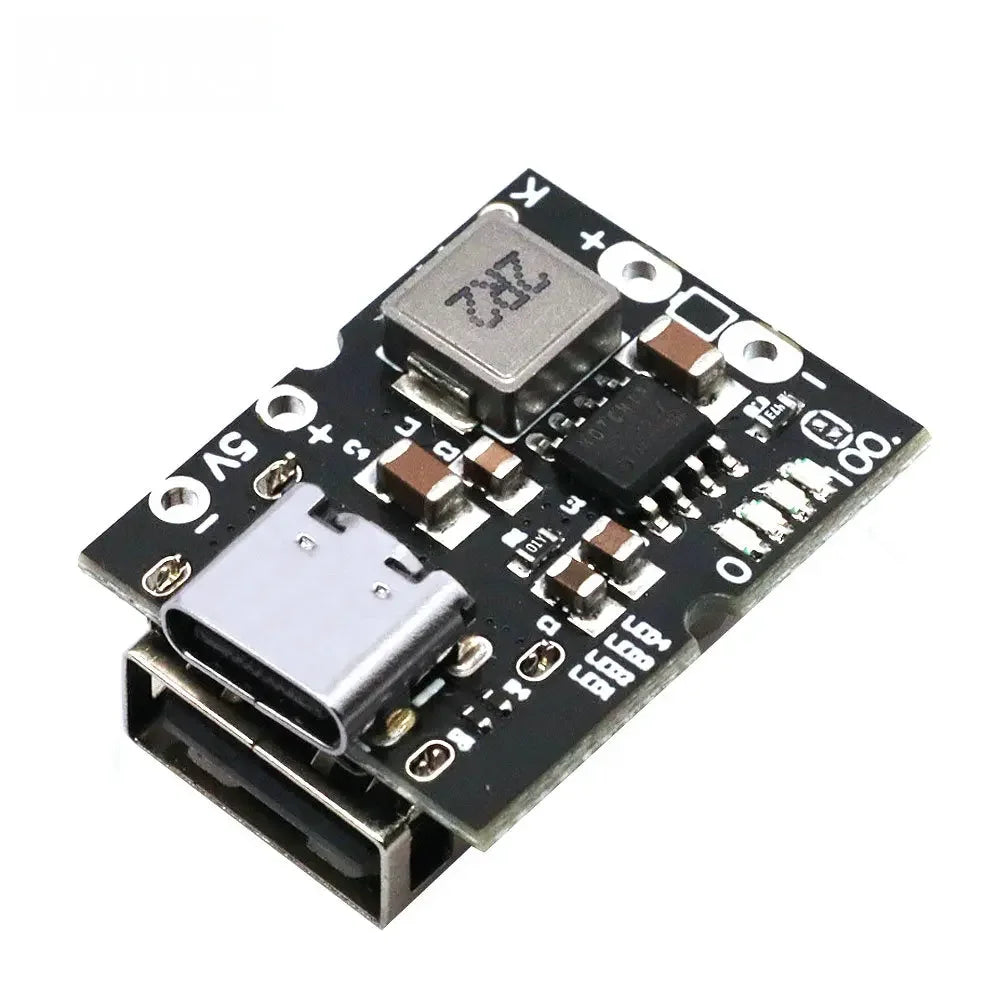

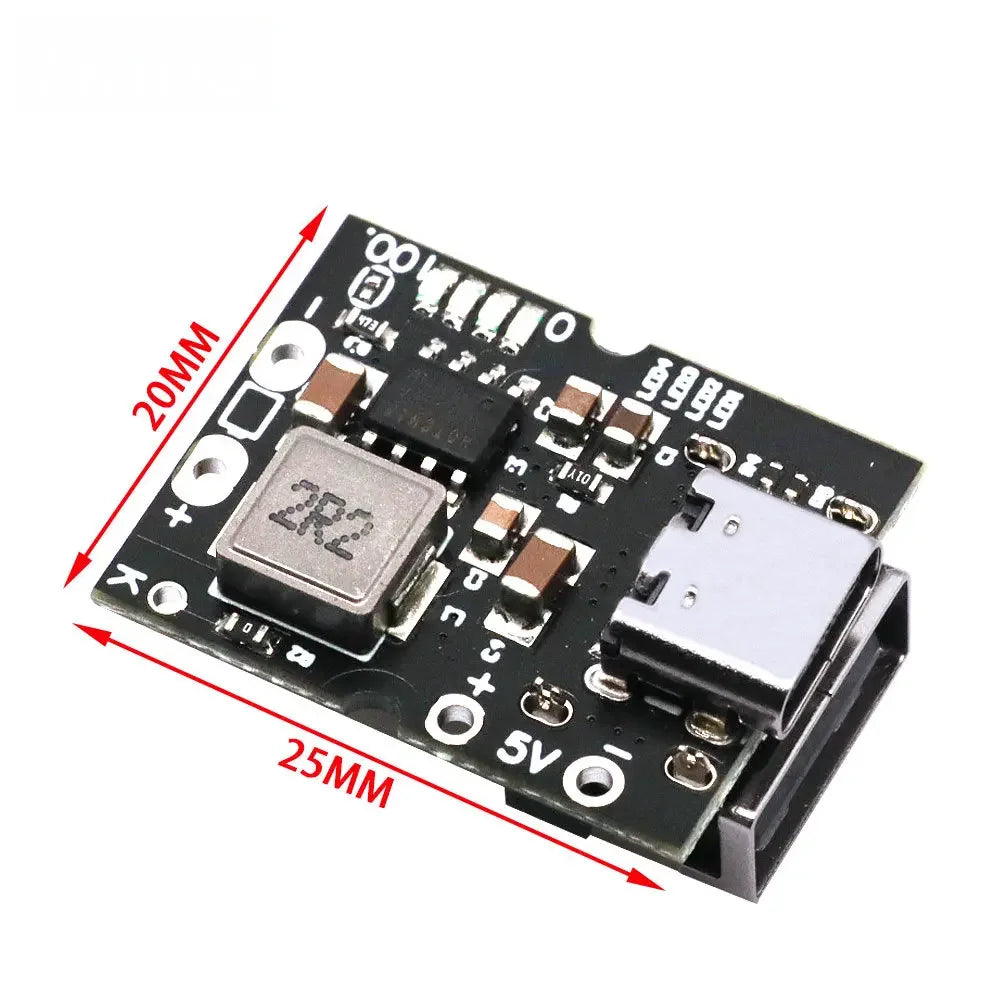

TYPE-C USB Black Board

Specification:
Input voltage range: 5 ~ 5.5V
Charging cut-off voltage: (4.2v/4.35v) ± 0.5%
Charging current: 2.4a ± 5%
Boost output voltage: 5V ~ 5.15v (line loss compensation)
Boost output voltage ripple: 100mV
Boost output current: 2A
Boost conversion efficiency: 92.5% (3.6V input, 5v2a output)
Static current at battery end: < 30uA

Function introduction

When the load current is less than 50mA continuously, the output will be turned off.

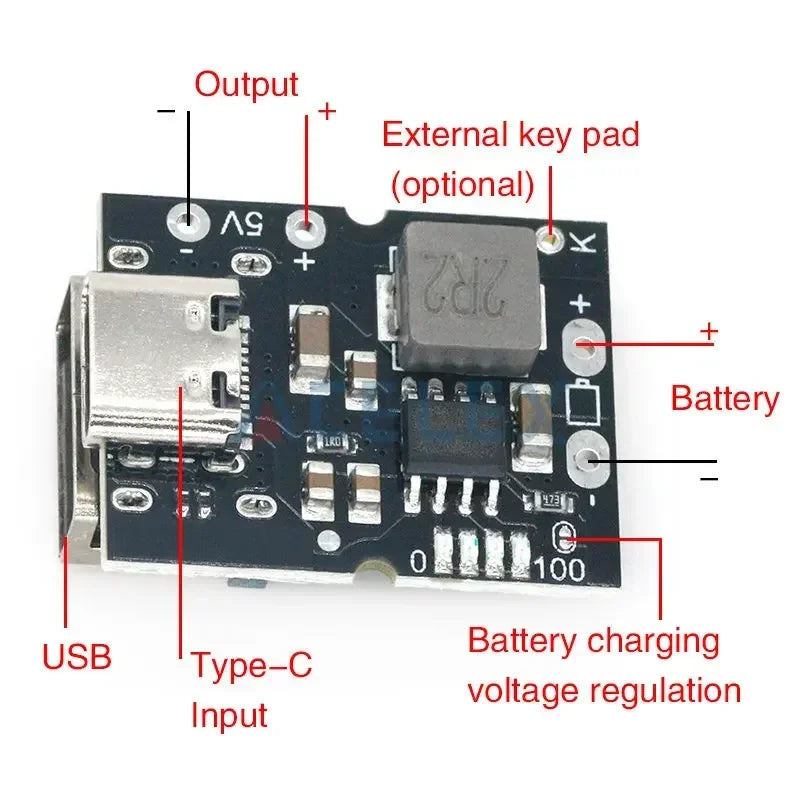

It supports the external key, which is connected to the K point and the output negative pole. Short press to turn on the power display and turn on the 5V output. Two consecutive short presses will turn off the power display and turn off the 5V output.

When the charging current drops to 100mA after reaching the final floating charging voltage, the charging cycle will be automatically terminated.

When the battery voltage drops below 4.1V, the charging cycle starts again.

When the battery voltage is lower than 2.8V, the battery will be pre charged with a current of 180mA.

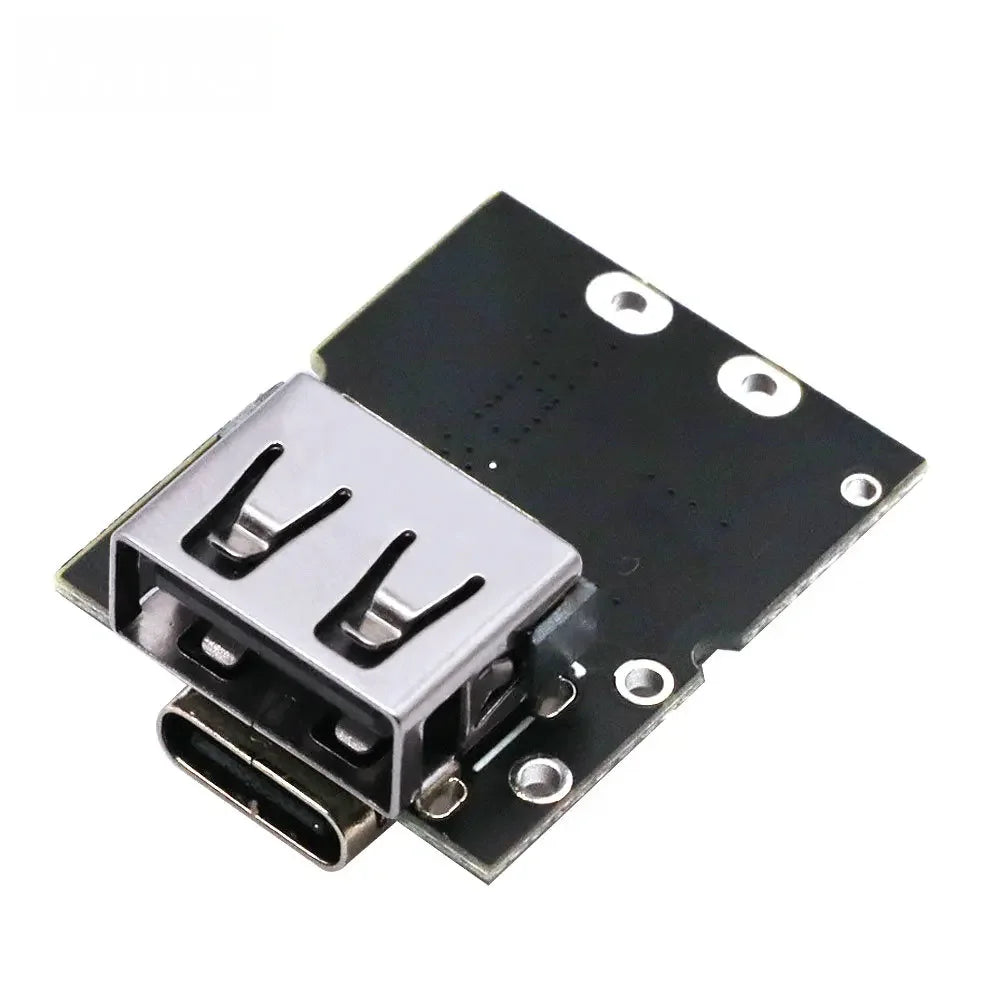

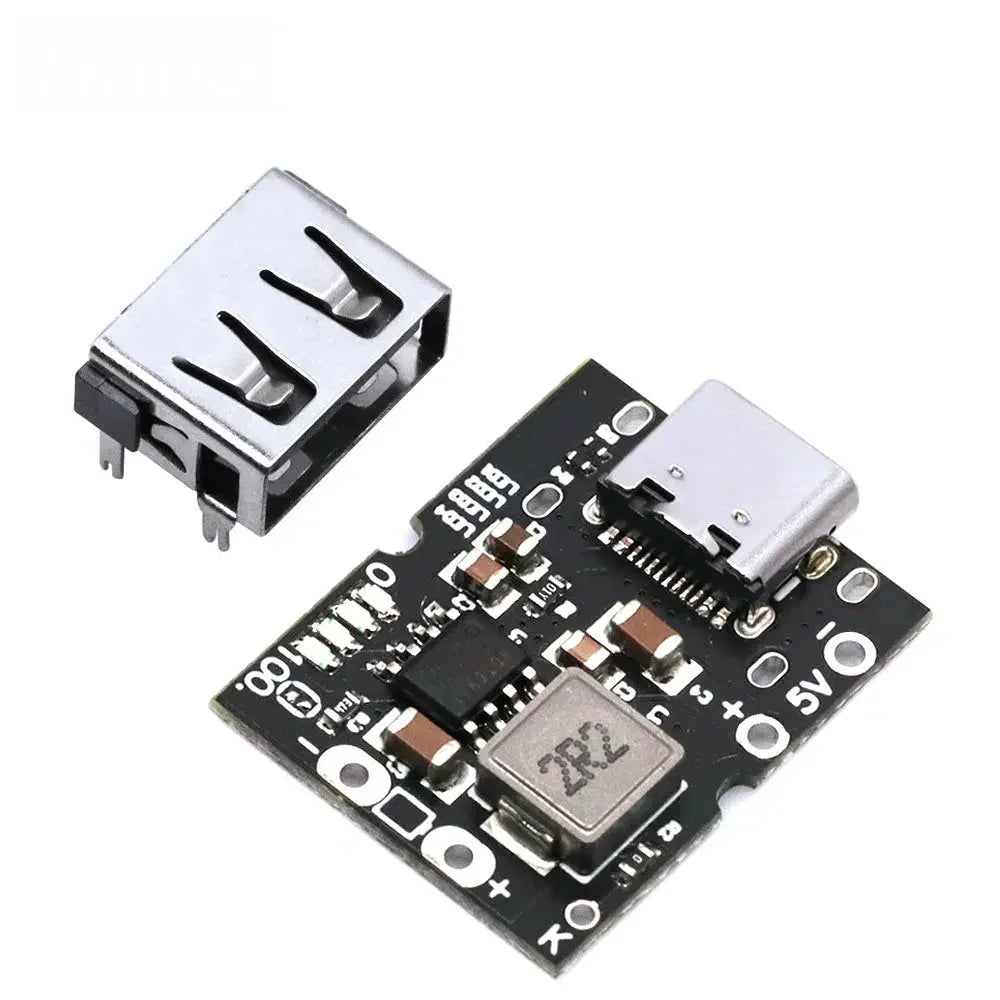

The usb-a base weldingposition is provided on the back of the product, which can be installed manually.

It supports discharging while charging.
