Description

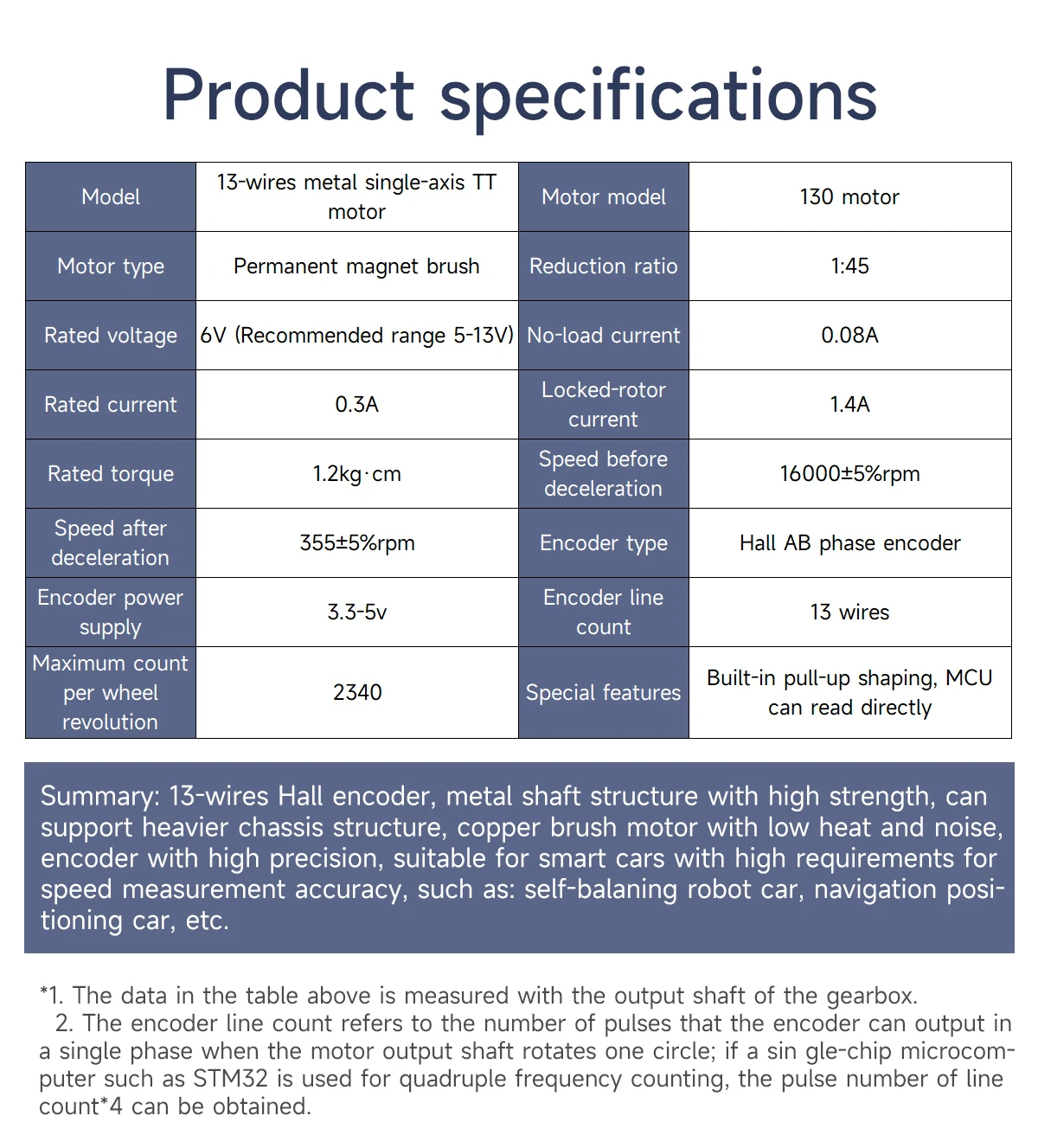

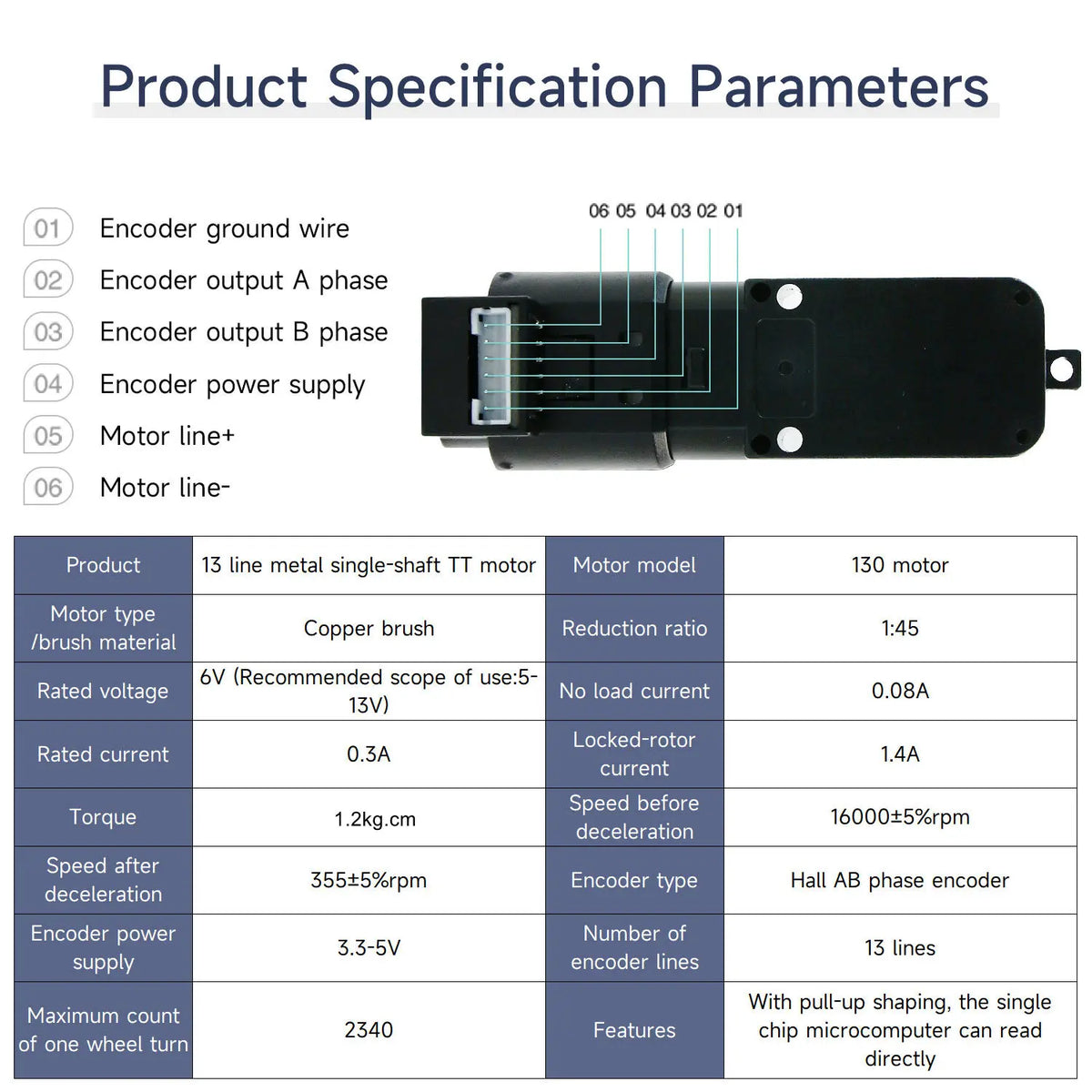

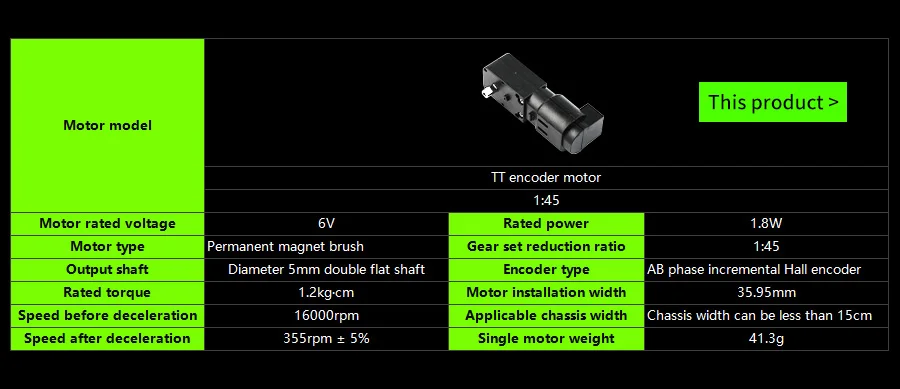

SPECIFICATIONS
Application area: Mecanum wheel car,Balance car,navigation and positioning car
Brand Name: Roboduino
Characteristic function: With pull-up shaping, the single chip microcomputer can read directly
Condition: New
Encoder power supply: 3.3-5V

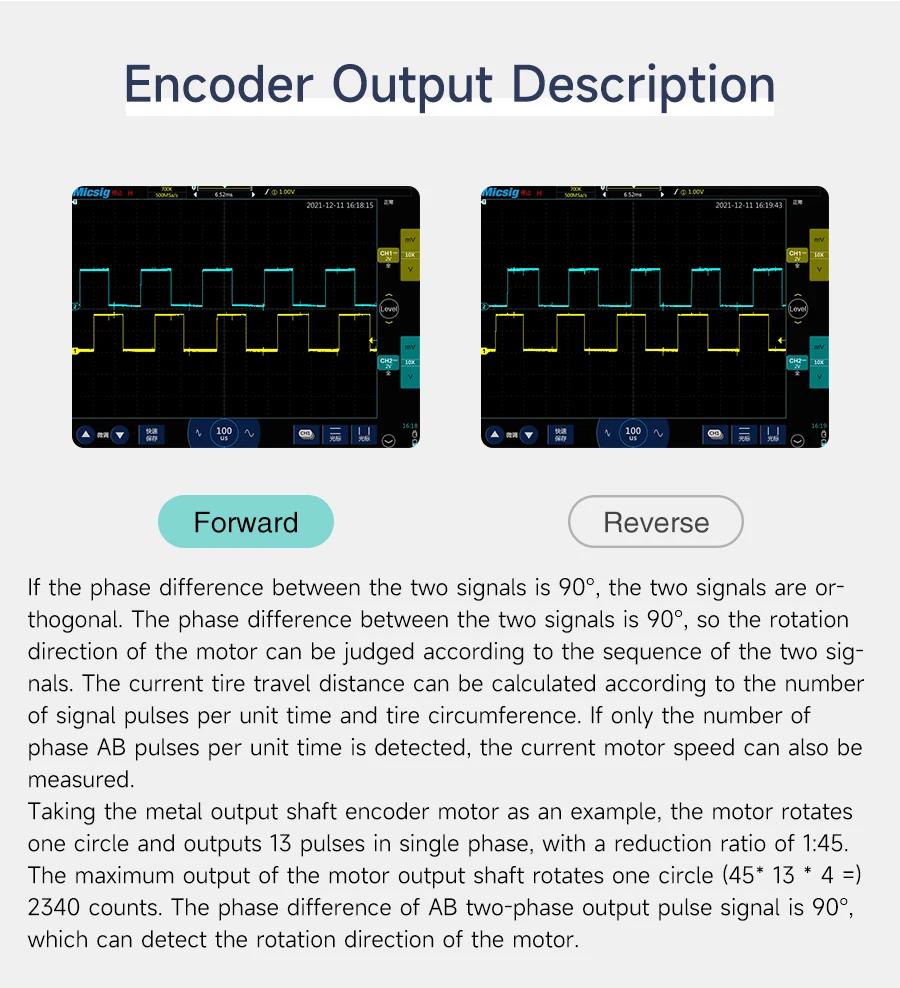

Feature: Hall sensor speed measurement,high-precision,Strong anti-interference,PID control
High-concerned chemical: none
Motor model: 130 motor
Motor type /brush material: Brush copper brush/Brush carbon brush
No load current: 0.08A
Origin: Mainland China
Product: 13 line metal single shaft TT motor and 3 line plastic double shaft TT motor
Rated voltage: 6V
Reduction ratio: 1:45

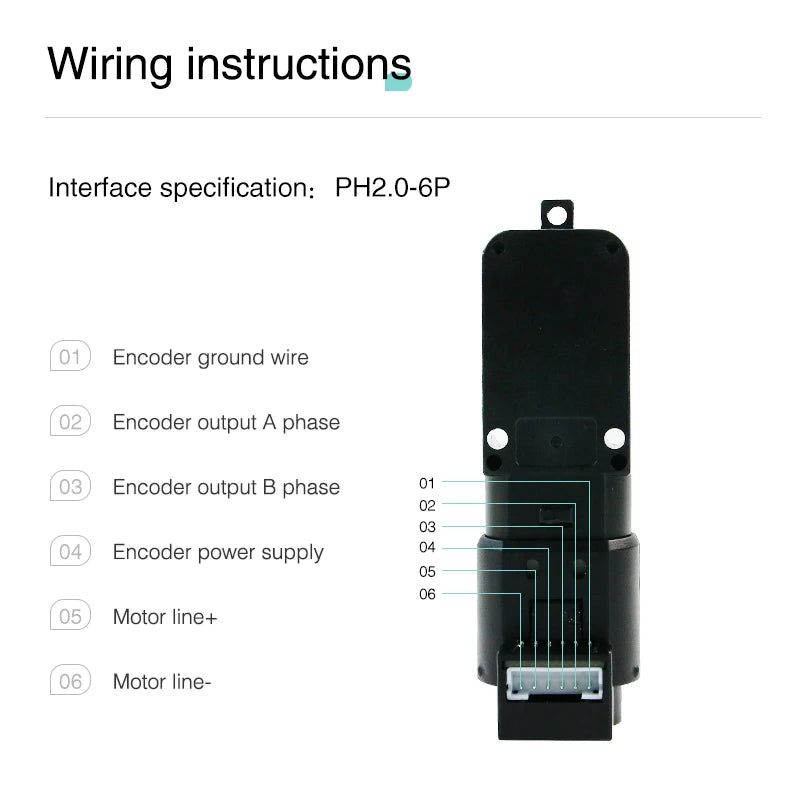

Speed fbk sel: Hall AB phase encoder
Torque: 1.2N.m
Type: Logic ICs
High Precision Hall Encoder TT DC Geared Motor with Encoder AB Phase Tachometer Code Disc Support PID Control for DIY Smart Car
100% brand new and high quality
Description:

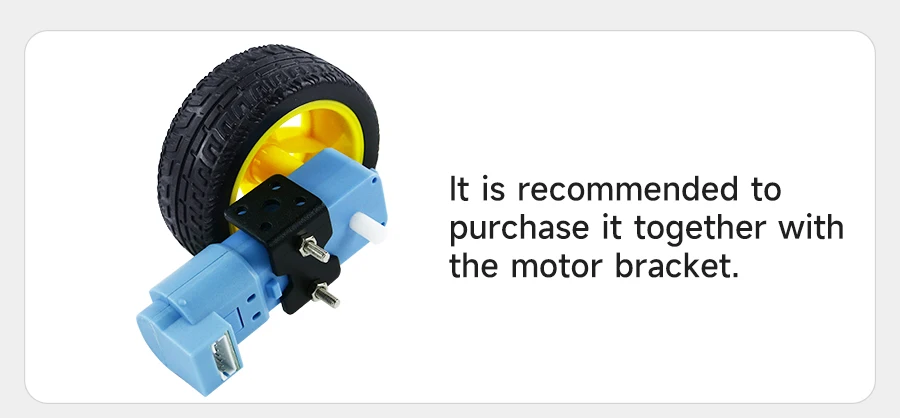

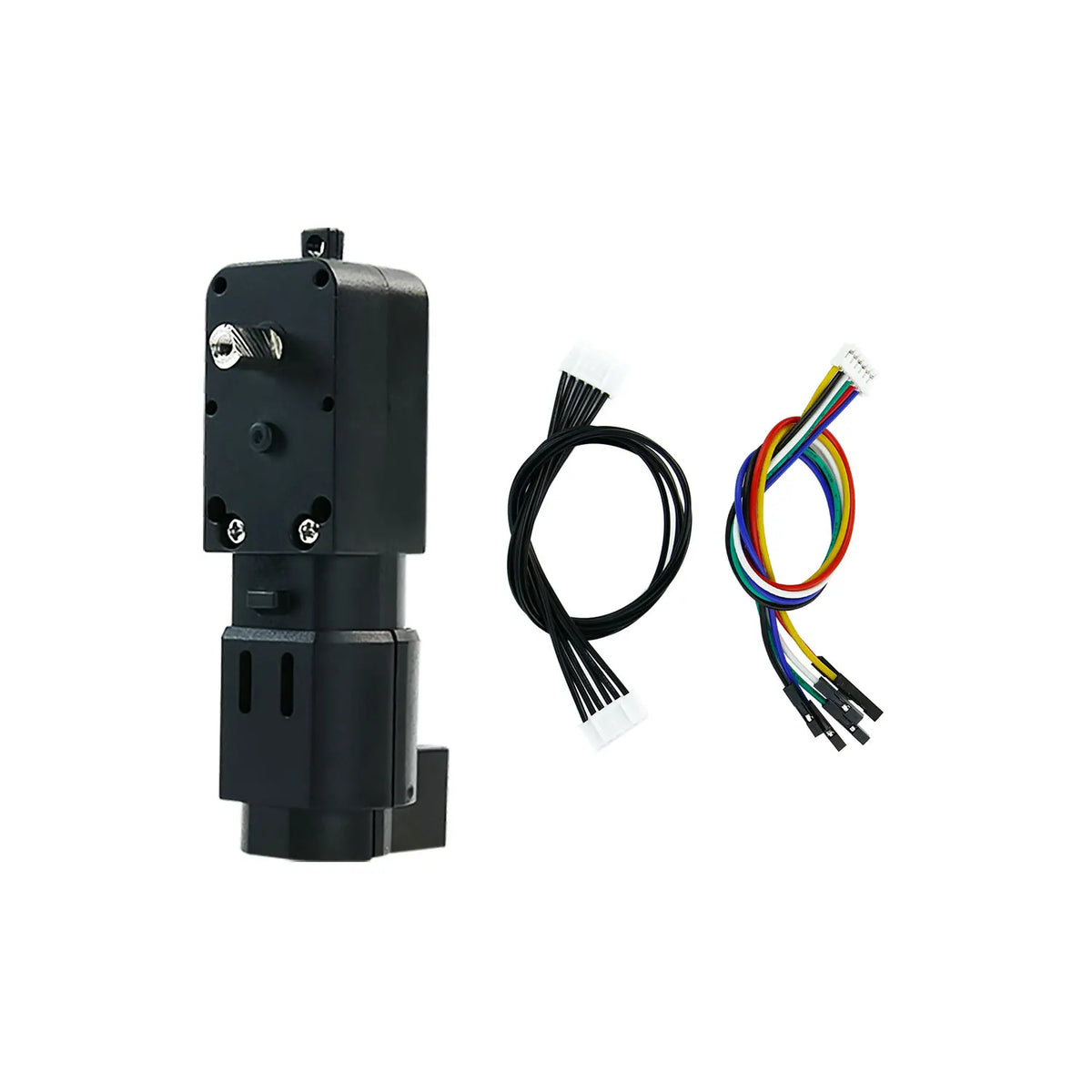

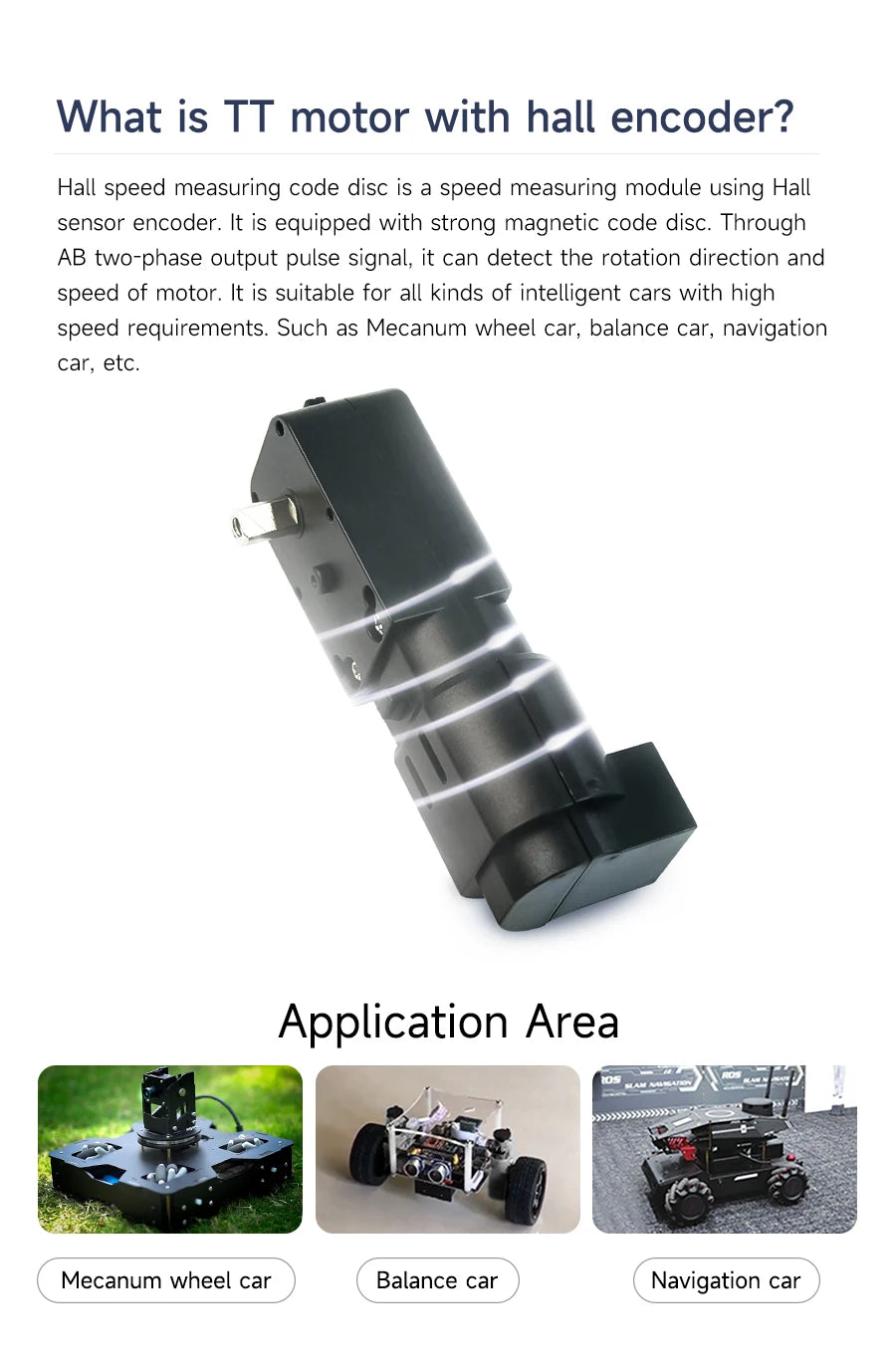

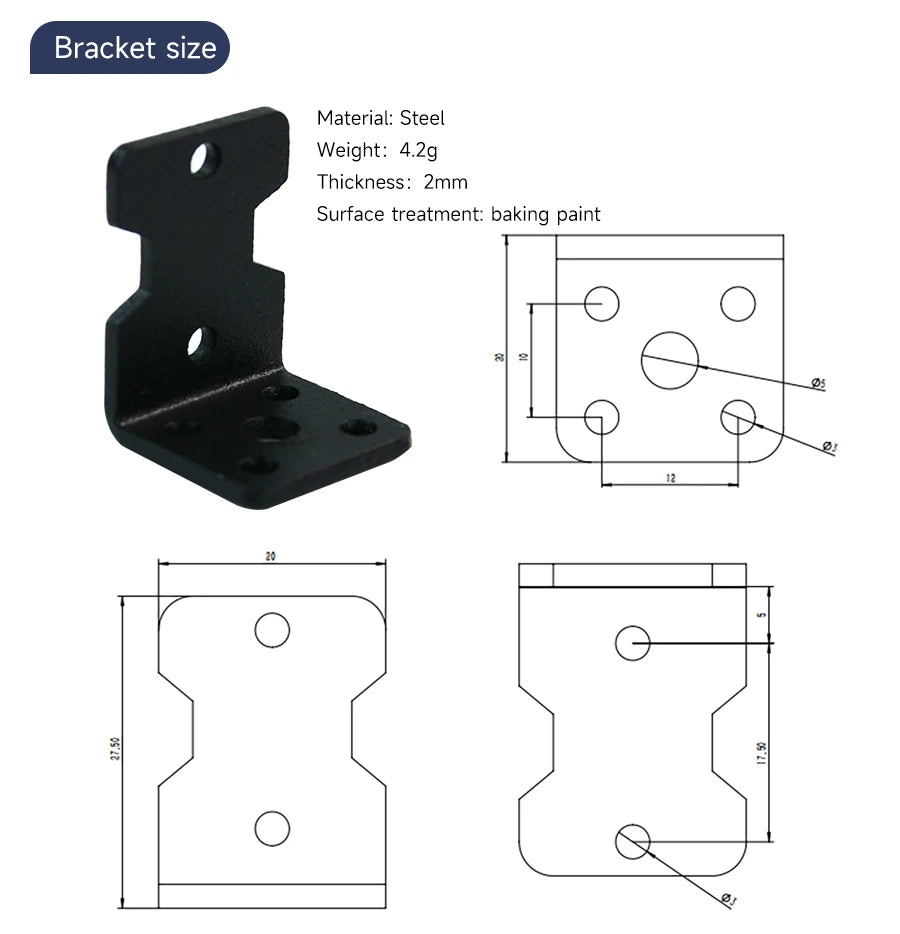

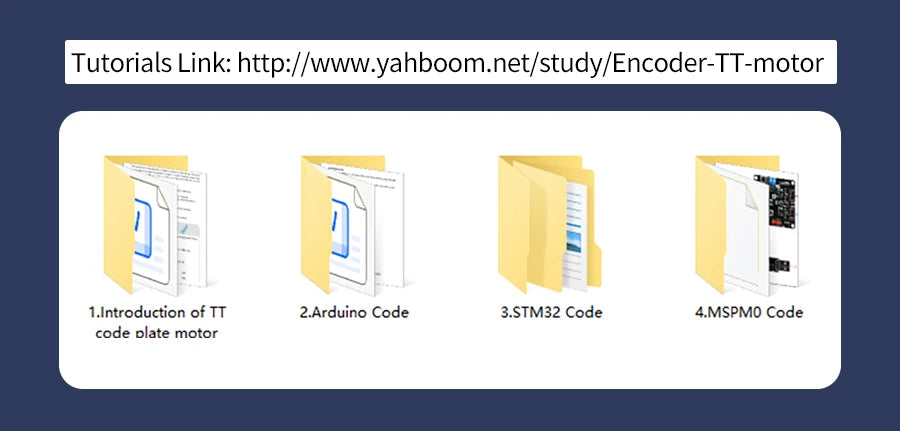

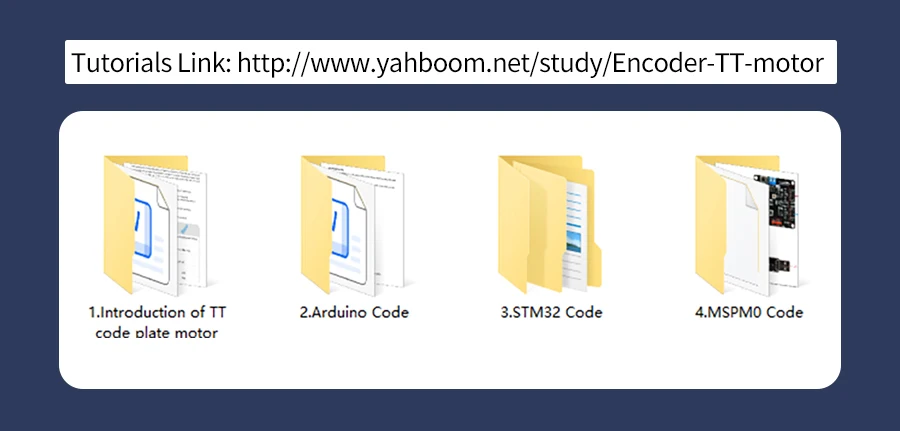

These two high-quality TT motors are equipped with high-precision hall sensors for accurate speed measurement. And it has better anti-interference ability, stable speed, and supports PID control. It can also be used with a motor bracket to install it on the smart car. For these two motors, we will provide detailed drive codes and tutorial materials for user reference.

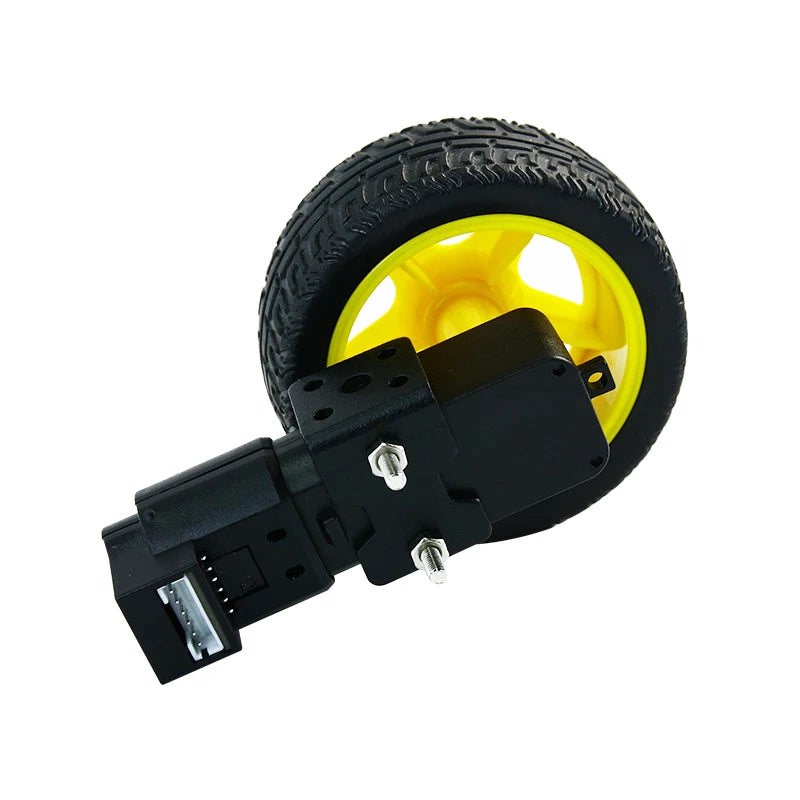

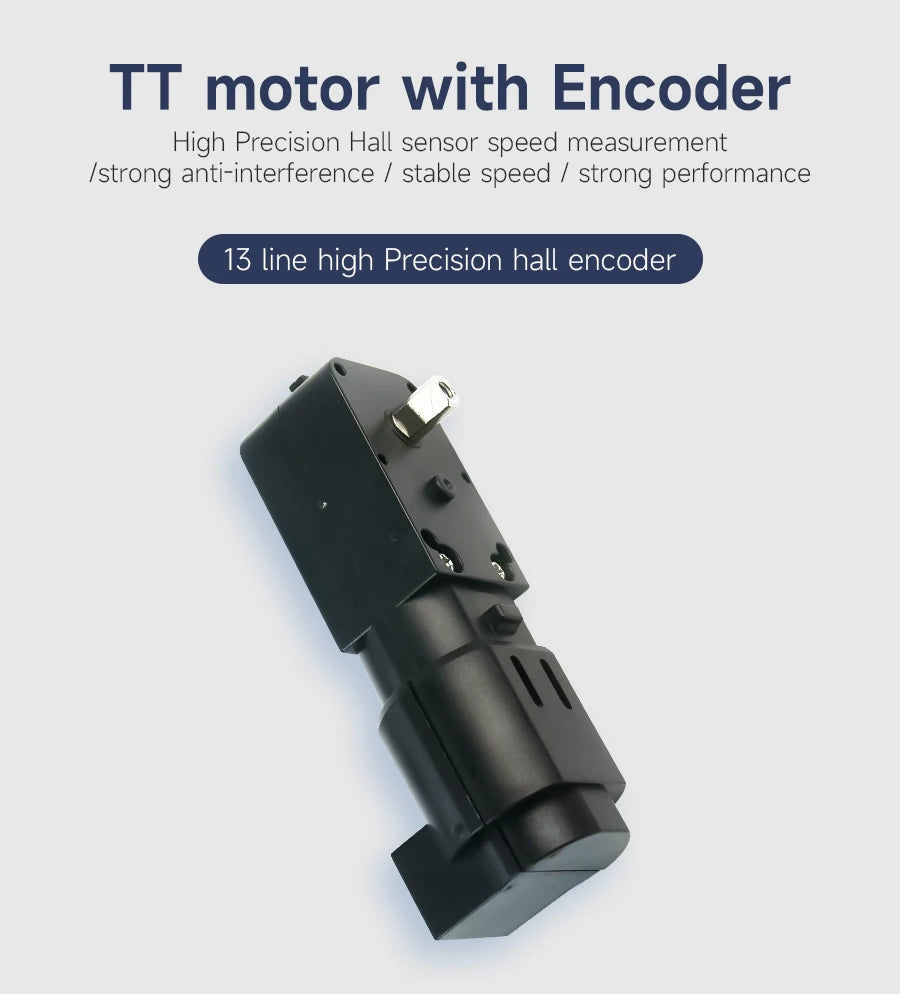

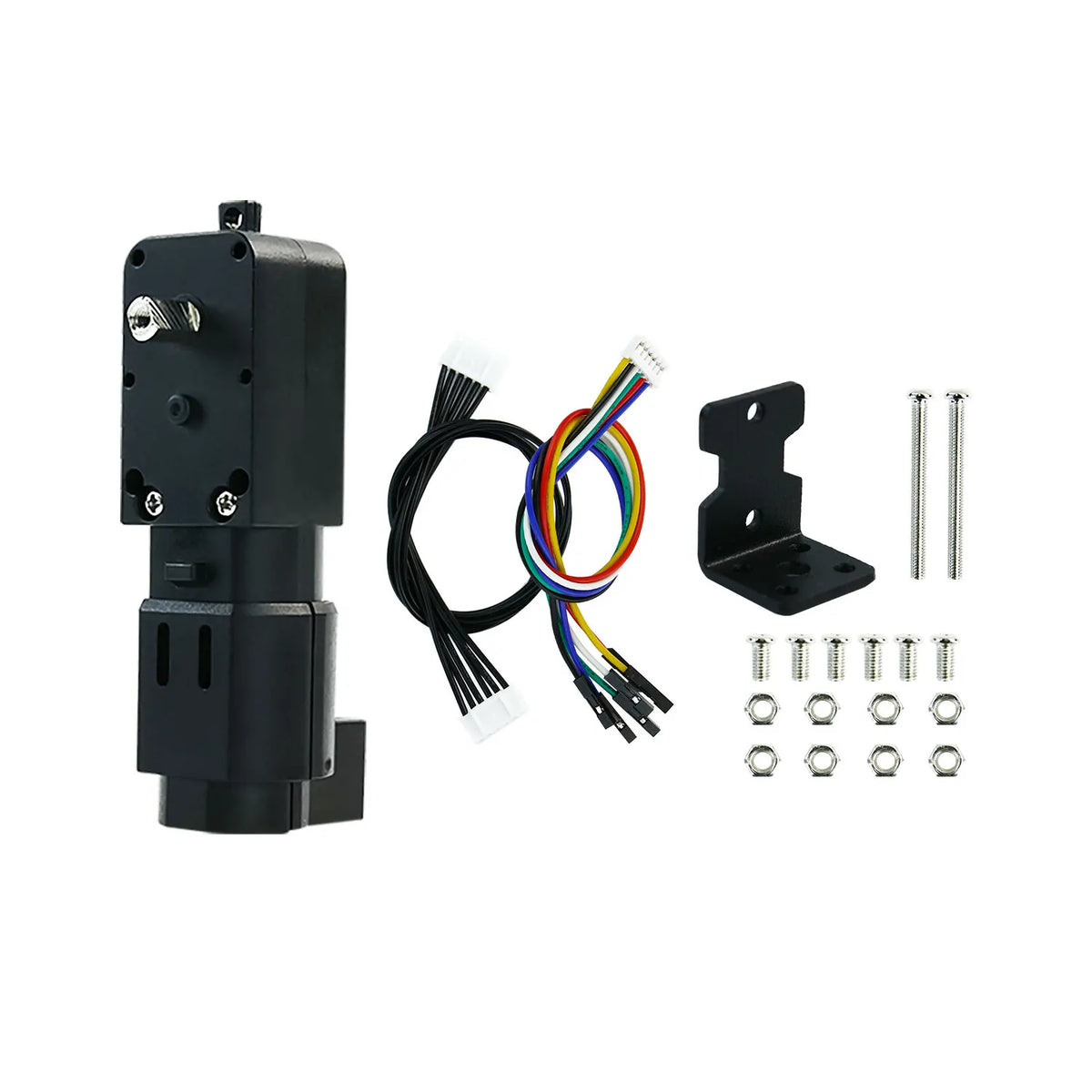

Black 13-line motor:

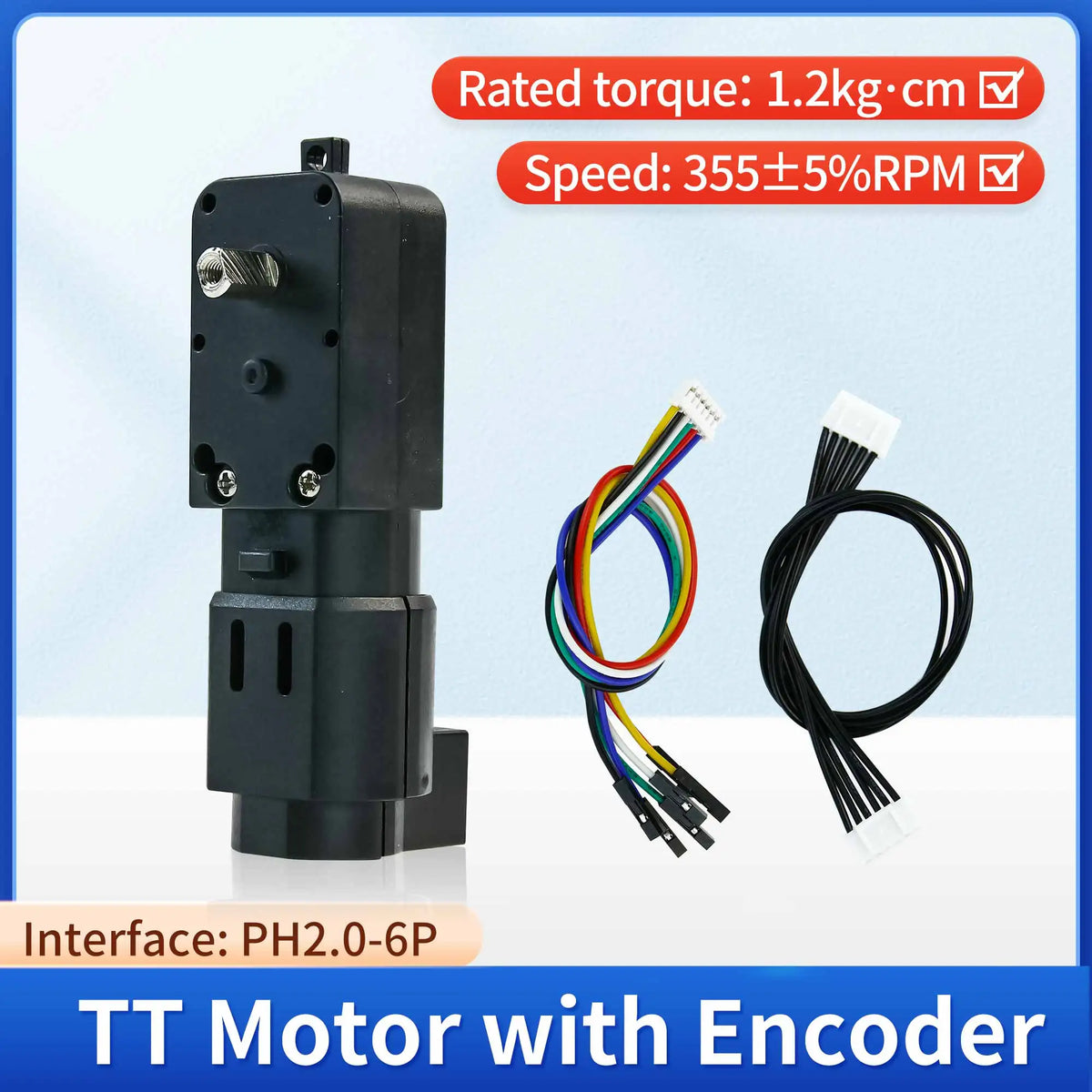

1) Working voltage 6V, rated current 0.3A, torque 1.2N.m, maximum speed can reach 16000+5%rpm.

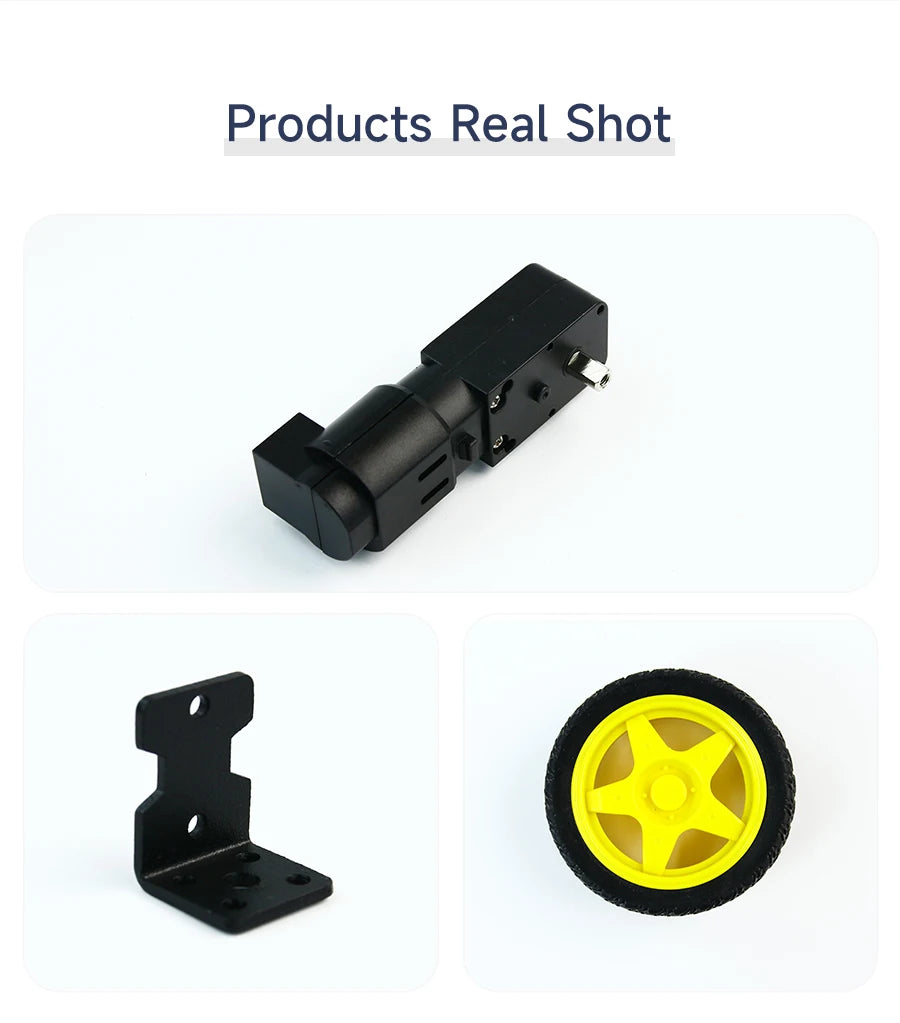

2) Metal single shaft to support the installation of common rubber tires.
3) Built-in copper brush motor with lower noise. 13-line encoder, accurate speed measurement.
4) Suitable for users who have balance car, navigation and positioning car or have competition requirements.
