High Precision RTK GNSS Antenna GPS High Gain ZED F9P Antenna TNC GNSS GPS GLO GAL BDS
High Precision RTK GNSS Antenna GPS High Gain ZED F9P Antenna TNC GNSS GPS GLO GAL BDS
$303.80
Sale price  $303.80 Regular price  $0.00
ColorIvory
Description

SPECIFICATIONS

Axial Ratio: <3dB

Brand Name: ANDPROG

Choice: yes

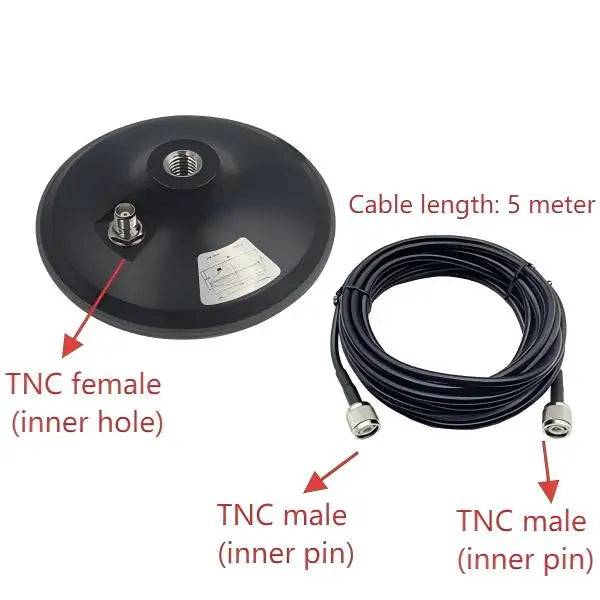

Connector: with TNC plug cable

Current Consumption: <50mA

GPS type: Receiver & Antenna

High-concerned chemical: none

Horizontal coverage angle: 360

IS It With PCB: Yes

LNA Gain: 40dB

Model Name: GGCA228E

Origin: Mainland China

Peak Gain: >5dB

Polarization: RHCP

Supply Voltage: 3~12VDC

Wireless Function: Yes

semi_Choice: yes


 FAQ
Q:The picture is real product?
A:Yes,all product pictures are real product.
Q:If stock quantity is not enough from link, how to do?
A: Contact/Leave message to us, we will reply and help check exact stock within 12 hours.
     If go to bulk ordering, usually lead time 10-15 days.
Q:when I go to bulk several items, and find shipping cost is different, how do I do?
A: Shipping cost depends on unit weight, but if you find shipping cost very high,
Contact/Leave message to us, we will check whether shipping cost can be reduced.
Q:How can I get commercial invoice for company finance?
A: Contact/Leave message to us,leave billing address, we will send PDF version there.

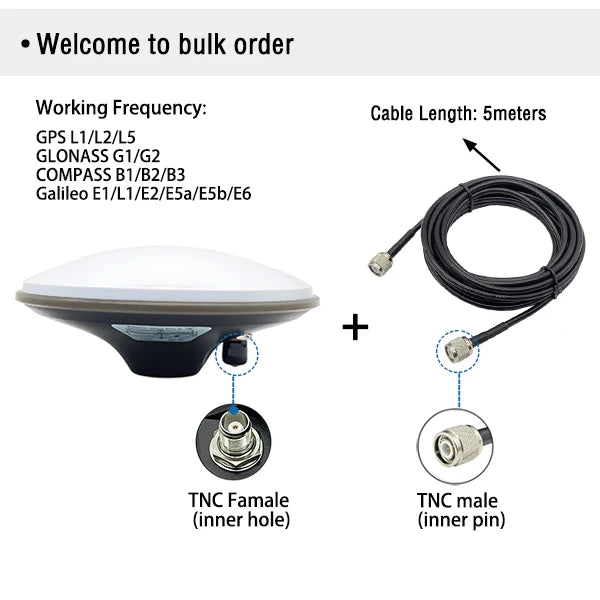

Q:Is the antenna has different length cable or connectors?
A:Yes, can be custom-made, Contact/Leave message to us, we can quote for you.
GPS is for SMA Male/Fakra C(blue), which are normal.
Fakra C has straight and right angle(90 degree).
Wellcome to tell us of your requirements.
Q:Is GLONASS better than GPS?
A:The 2 systems also differ somewhat on accuracy. GLONASS position accuracy is 5-10m while GPS is 3.5-7.8m.
Therefore, GPS outweighs GLONASS in accuracy as lower error numbers are better.
Q:Should you use GPS with GLONASS?
A:Actually only gps should do its job in case satellite reception is perfect.
The combination with another system will improve accuracy when the signal gets weaker.
Q:Does GPS work without an antenna?
A:GPS (Global Positioning System) systems work by receiving signals from satellites.
That isn't possible without an antenna
Q:Where to put a GPS antenna?
A:In most cases, you can mount the GPS antenna near the top of the underside of your dash (behind or above the receiver).

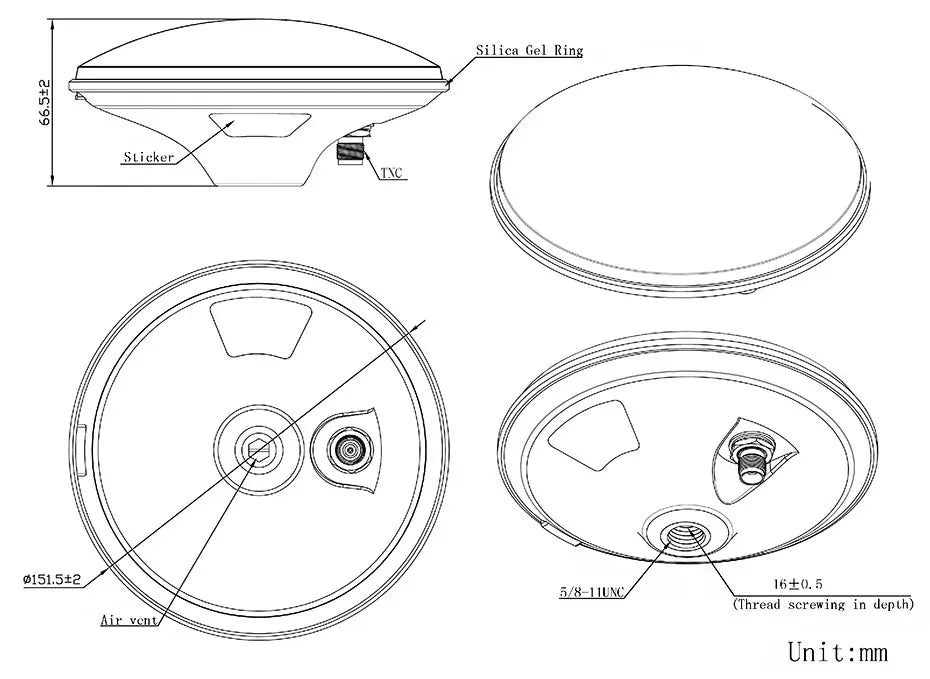

 DIMENSIONS&SPECIFICATIONS




Item

Specifications

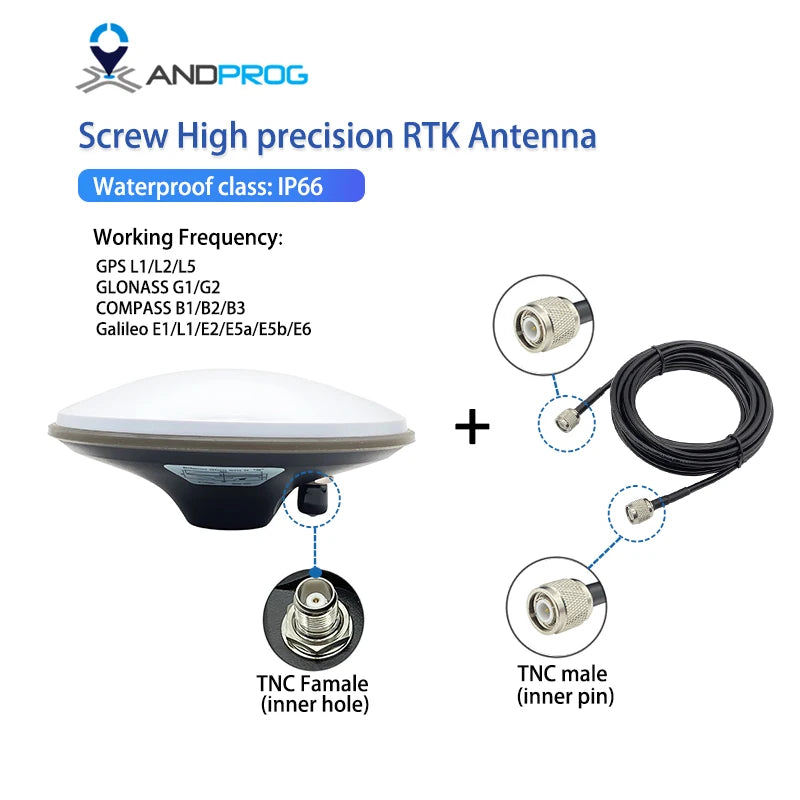

Antenna

Frequency

GPS L1/L2/L5

GLONASS G1/G2

COMPASS B1/B2/B3

Galileo E1/L1/E2/E5a/E5b/E6

Polarization

RHCP

Axial Ratio

≤3dB

V.S.W.R

≤1.5

Peak Gain

≥5dBi

Impedance

50Ω

Phase Center Error

±2mm

Horizontal coverage angle

360°

LNA

Gain

40±2dB

Noise Figure

≤1.5dB

Passband fluctuation

±1dB

Supply Voltage

3~12V DC

Current Consumption

≤50mA

V.S.W.R

≤2.0

Mechanical

Connector

TNC-K

Radome Material

ABS

Mounting Method

Screw

Environmental

Operating Temperature

-40℃~+85℃

Relative Humidity

Up to 95%

Ingress Protection

IP67 (exclude Air vent in screw hole)

Environmentally Friendly

ROHS Compliant

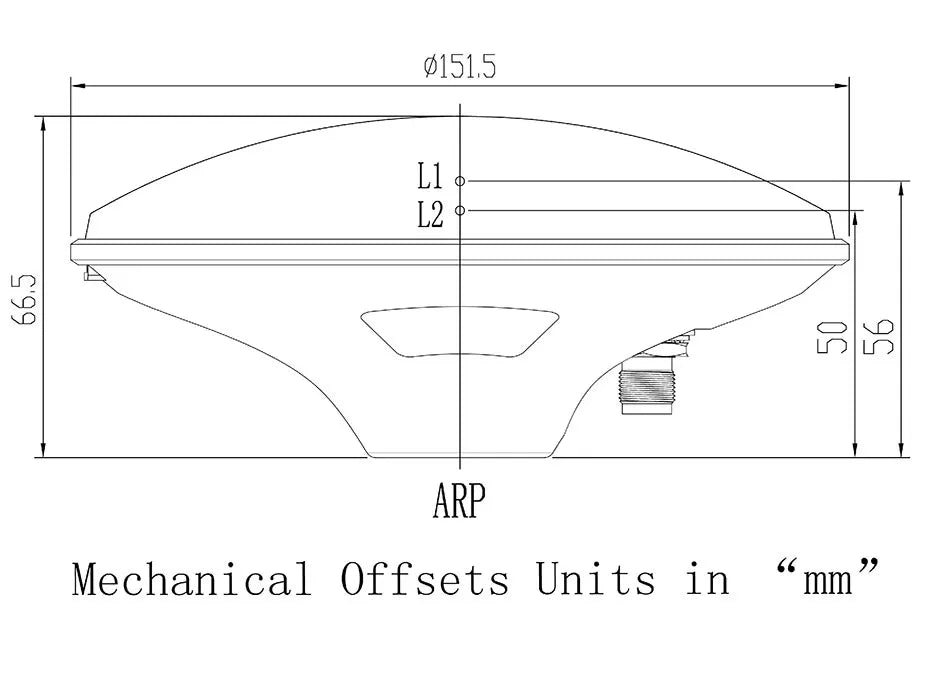

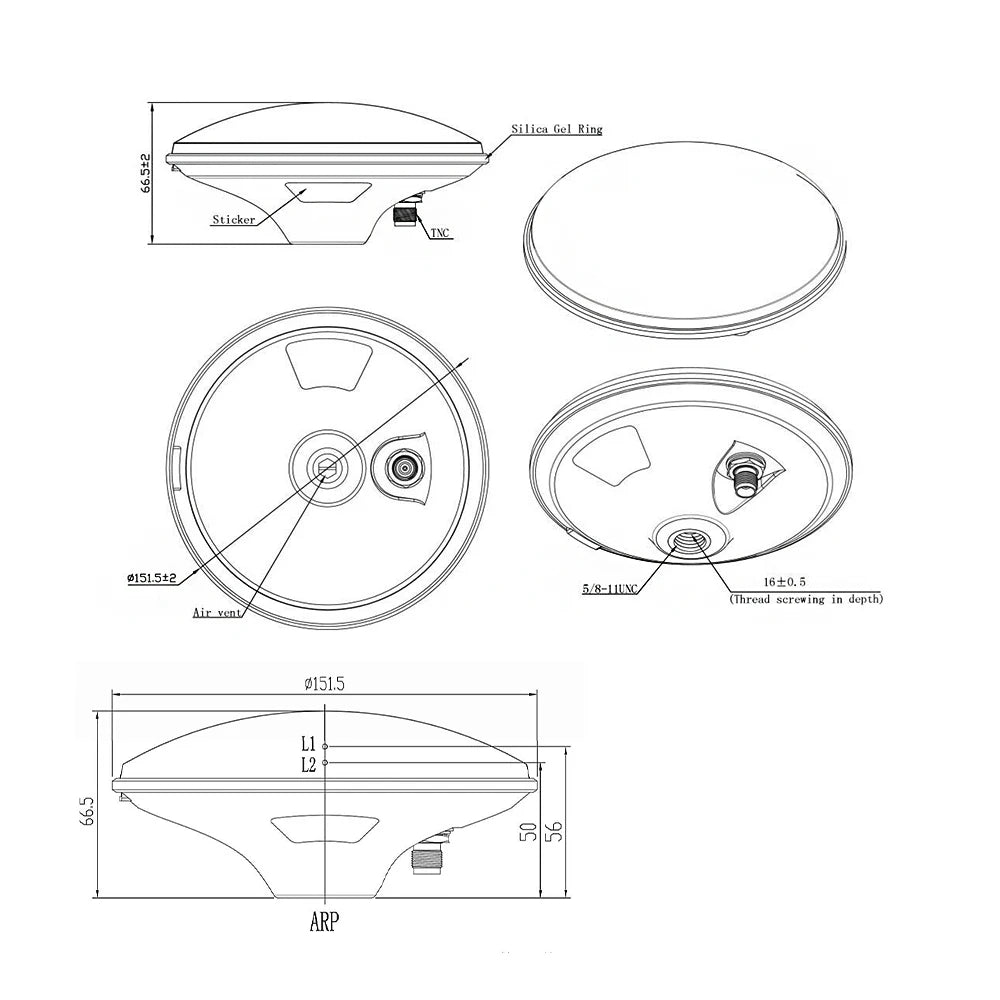

 Antenna Reference Point&Phase Center
