High Precision T12-BCM3 Welding Tips Excellent Quality Compatible Accessories for FX951 FX952 Soldering Iron & FM2027 FM2028

High Precision T12-BCM3 Welding Tips Excellent Quality Compatible Accessories for FX951 FX952 Soldering Iron & FM2027 FM2028

$62.72

$62.72 $0.00

Description

SPECIFICATIONS

Brand Name: NONE,QUECOO

Certification: NONE

Choice: yes

High-concerned chemical: none

Length: 150mm

Model Number: T12,T12

Origin: Mainland China

for: PCB Repair

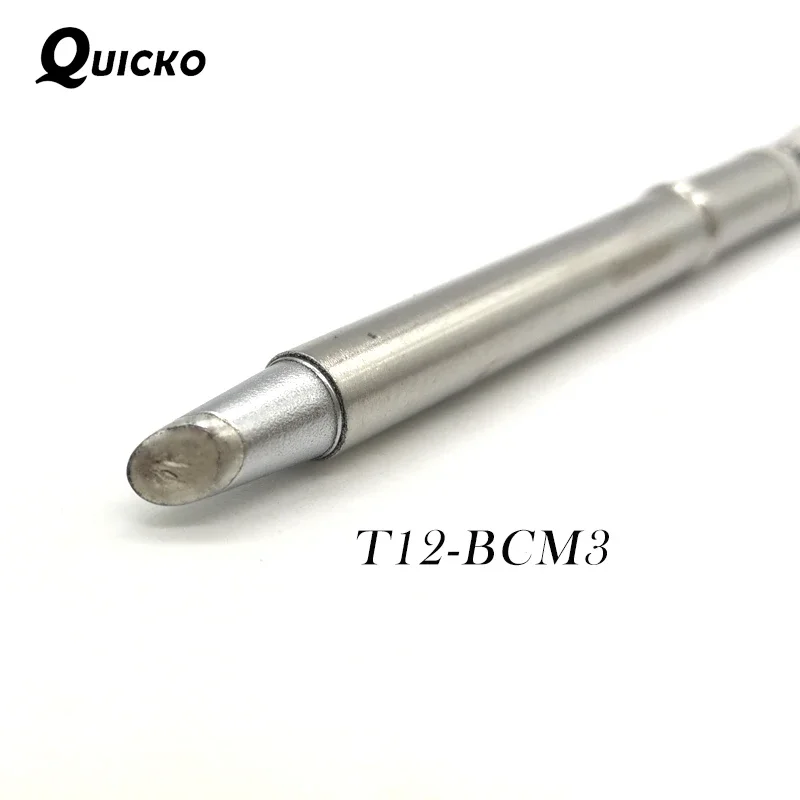

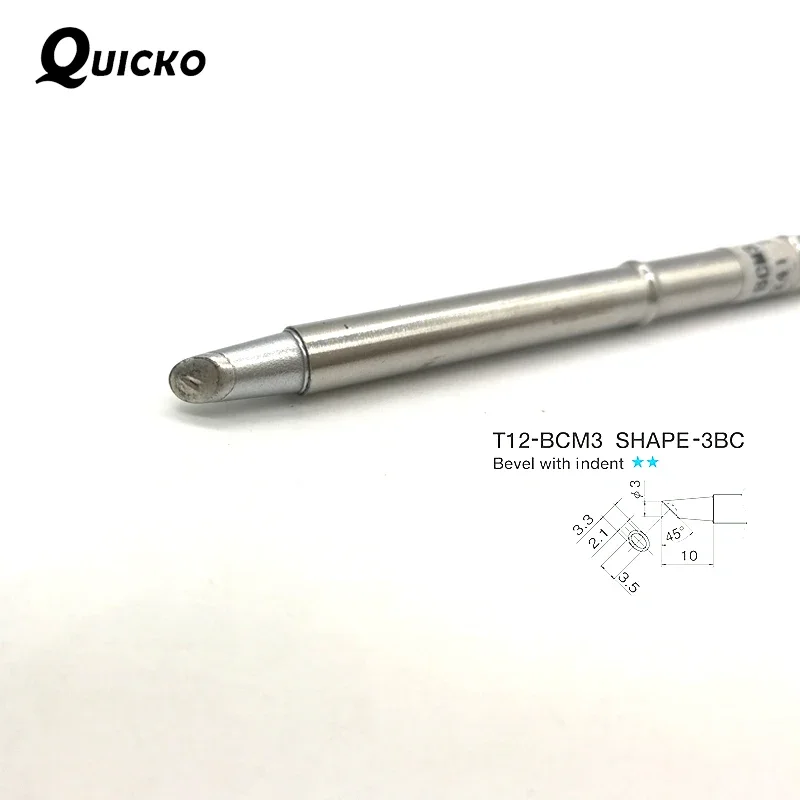

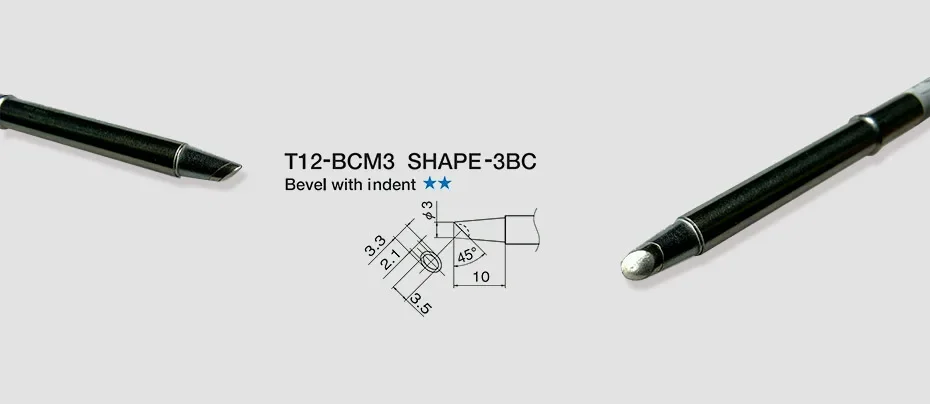

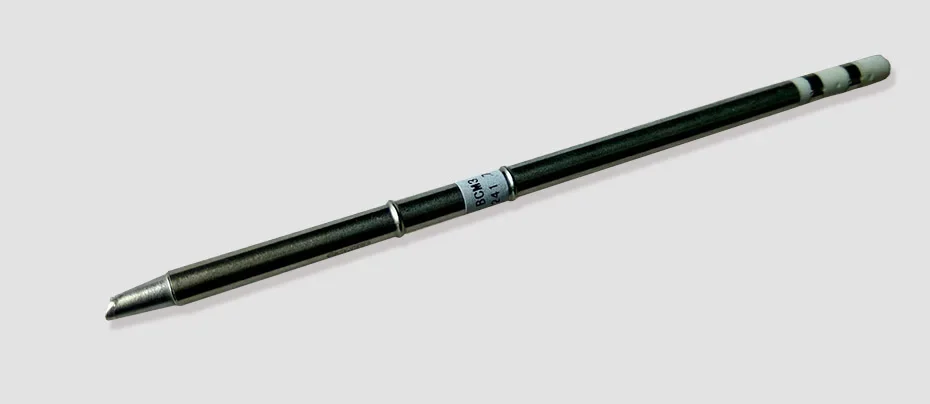

T12-BCM3. Soldering iron tips with excellent quality FX951/FX 952 soldering station,FM2027/FM2028 iron

FAQ:

1.Why the temperature of the new T12 solder tip is jump?

Because the inside heating core of the new T12 solder tip did not go through the high temperature, so the first time to use will be a bit of temperature, generally without special treatment, the normal use of 1-2 days after the basic will not bounce.Such as the need to immediately effective, the general proposal to adjust the temperature to 380 degree -400 degree, side of the solder tip to the tip of tin, burning 5-10 minutes after the shutdown, until the solder tip of the cooling and then re-boot!( if 1 times no effect, then can be repeated 2-3 times).T12 is pulsating temperature warming, even if the display temperature is flashing, the tip of the real temperature is completely stable.

T12 jump temperature also are connected with the temperature control board of procedures, power of electrostatic and if it connect the ground.

2.What the problem of attention when we use the T12 first time?

T12 tip heating speed is very fast, when the new solder tip connect the electricity, it must be tinput immediately to the solder tip, for protection, due to heating up fast, just need 6-10 seconds, no have more time to you for preparetion.

so the important is prepare the items which will be welded, and finally boot power, and each welding gap or the end, should be more on the tin to protect and then shutdown, so it can avoid to tin the new sold tip is difficult, especially the T12 tip type of iron, such as T12-I / T12-IL / T12-BL / T12-ILS and so on!

3.What are the precautions for using the T12 tip?

to.If can use low temperature, then do not high temperature: T12 is constant temperature control, the general recommended working temperature control between 300 degree- 380 degree, higher than 380 degree damage the coating of solder tip and cut down the PTC life!

b.Do not dry: the first time to use solder tip, should be wrapped while heating a layer of tin.If it's without work, at once shutdown!

c. Diligent to clean: before shutting down, use a wet sponge or detin the ball to remove the tip of the oxidation of debris, on the tin after the shutdown power off!

d.Standard operation: Do not violent collision the solder tip, do not stamp the top of the hard objects, but can not be used to hot plastic and other materials, specifically reminded that friends like tin should avoid the iron and other hard metal knock tin, the heating core of T12 is in the head of the solder tip, often percussion is a fatal damage to T12!

e. Less use of scaling powder: scaling powder can not be used, can be used as less as possible! When scaling powder help make beautiful and reliable welding at the same time, but also greatly speed up the consumption the coating of the solder tip, T12 heating core high temperature position is very near of the Nozzle tip of the solder tip,Scaling powder in the fear of threat to T12 head pressing parts.

Material: High-quality CopperCompatibility: FX951/FX 952, FM2027/FM2028 soldering stationsTemperature Range: 105 ℃ Voltage: Compatible with 24V soldering stationsDurability: Long-lasting performanceDesign: Conforming to the T12 tip standard | T12 Soldering Iron Tip | T12 Tip Soldering Iron | **Elevated Performance and Durability**The T12-BCM3 soldering iron tips are a testament to precision and longevity. Crafted from the finest copper, these tips are engineered to withstand the rigors of professional soldering, ensuring a reliable and consistent performance. The high-temperature resistance of 105 ℃ ensures that your solder joints are strong and secure, while the low volatility of ≤QUECOO makes the tips perfect for delicate electronics and sensitive components. **Seamless Integration and Versatility**Designed to fit seamlessly with the FX951/FX 952 and FM2027/FM2028 soldering stations, these T12 tips offer an effortless integration that enhances both your soldering experience and the station's capabilities. Whether you're working on intricate circuit boards or larger electronic components, the T12 tips' versatility allows for precise soldering in a variety of scenarios. **Crafted for Professionals and Hobbyists**Tailored for both professional solderers and hobbyists, the T12-BCM3 soldering iron tips are a testament to quality and precision. The conformance to the T12 tip standard ensures compatibility with a wide range of soldering stations, making it a versatile addition to any soldering kit. The excellent quality and durability of these tips make them an ideal choice for those who demand the best from their soldering tools.
