SPECIFICATIONS

Brand Name: odoelec

High-concerned chemical: none

Material: Mixture

Origin: Mainland China

Output: Switching Transducer

Theory: Inductance Sensor

Type: vibration sensor

Use: Position Sensor

is_customized: Yes

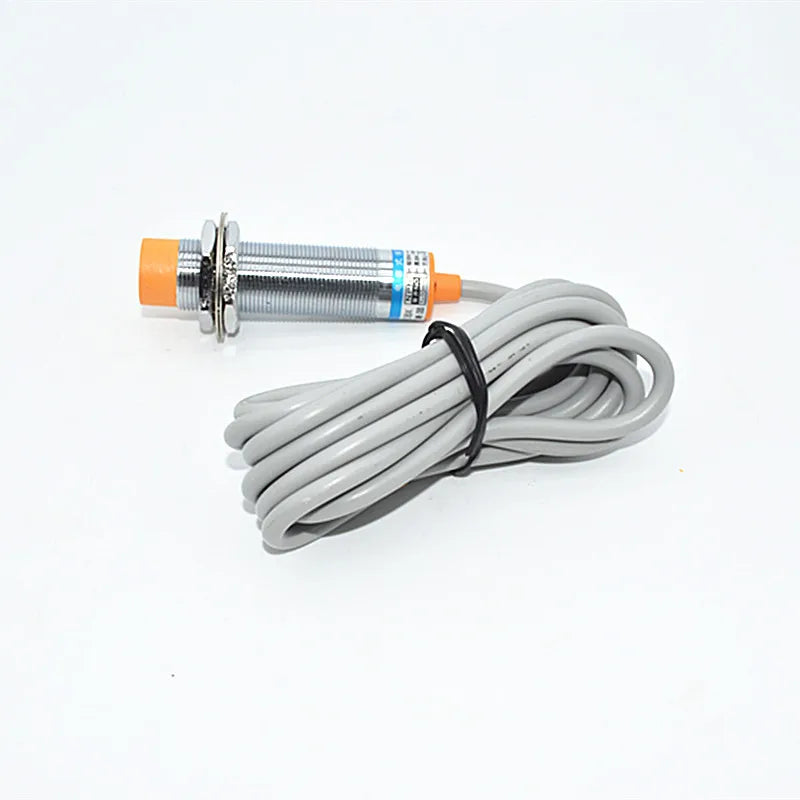

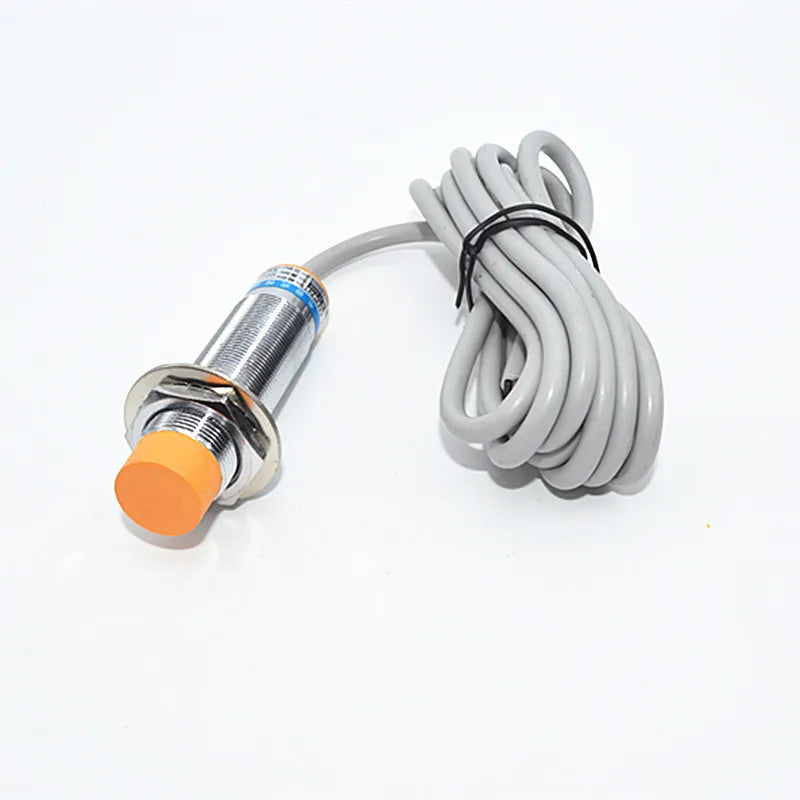

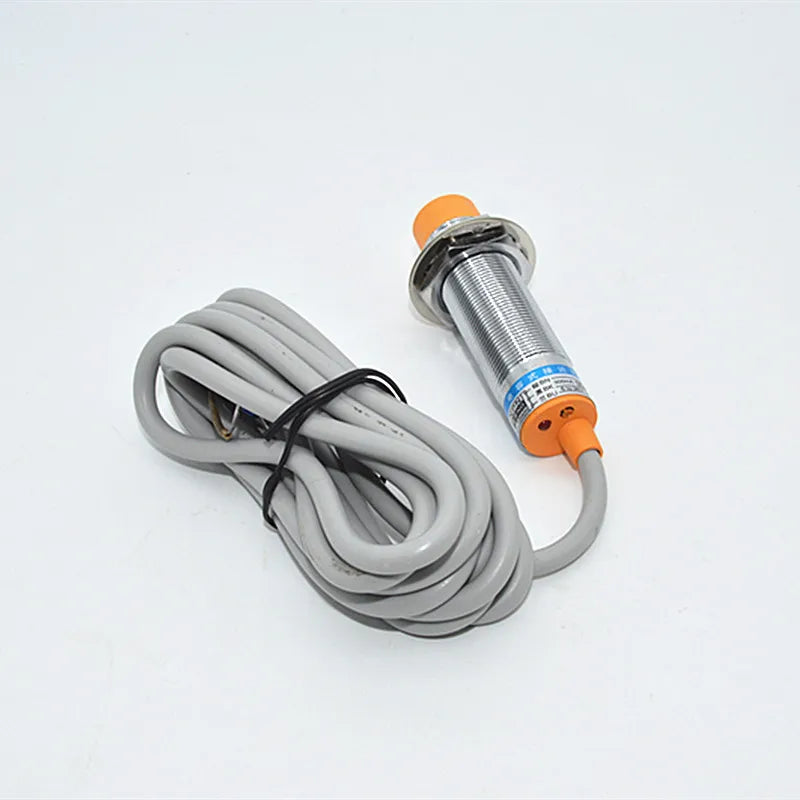

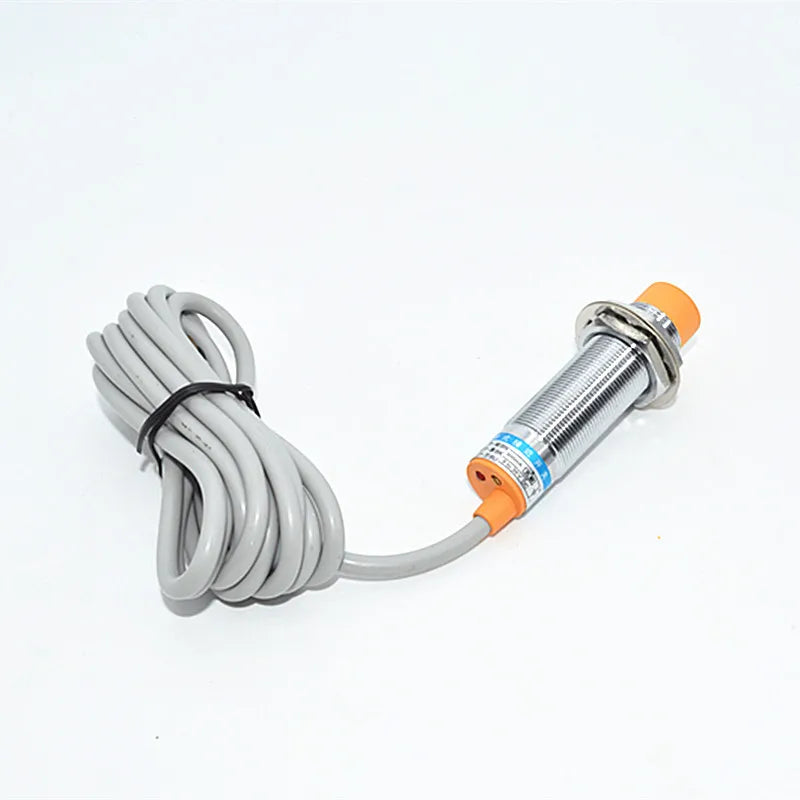

High Quality LJC18A3-H-Z/BX 1-10mm Capacitance Proximity Sensor Switch NPN NO DC 6-36V 300mA

Item Specification
Model:LJC18A3-H-Z/BX
Wire Type:DC3 Wire Type (Brown, Black, Blue)
Switch Appearance Type:Cylinder Type
Theory:Capacitance Sensor
Output Type:NPN NO(Normal Open)
Diameter of Head:18mm
Detecting Distance:1-10mm
Detecting Object:Metal or Nonmetal Material
Supply Voltage:DC6-36V
Current Output:300mA
Response Frequency:100Hz
Operating Temperature:-25°C to +65°C (Non-freezing Condition)
Size:7.5 x 4cm/3\'\' x 1.6\'\' (L*Max. Dia)
Cable Length:120cm/47"
External Material:Plastic, Alloy
Net Weight"85g
Color:Silver Tone, Black,Brown,Blue cable

Brand new and high quality
It is a component widely used in automatic control industry for detecting, controlling, and noncontact switching.
When proximity switch is close to some target object, it will send out control signal.
As it is capacitive type proximity switch, its detecting object target is not limited to only conductor, but also liquid and even powder things,
like plastic, water, glass, oil, etc.
It\'s widely used in machine, paper making, light industry for limiting station, orientation taking count, speeding trial ect.
Integrated circuit proximity switch which is composed of oscillator and
shaping amplipier oscillator start-up after induction head switch the last alternating magnetic field.
This series of proximity switch for high-frequency oscillation with no contact,no pressure, no spark, quickly issued a detection signal.
This series of proximity switch, is widely used in modern industry, machinery, metallurgy, transportation, electric power, military, textile, chemical, mining, scientific research departments of machine tools and industrial automatic production line.
This switch includesa high frequency oscillating circuit, detection circuit, amplifier circuit, ttigger circuit and the output circuit.

Package Included
1 x Capacitive Proximity Switch
