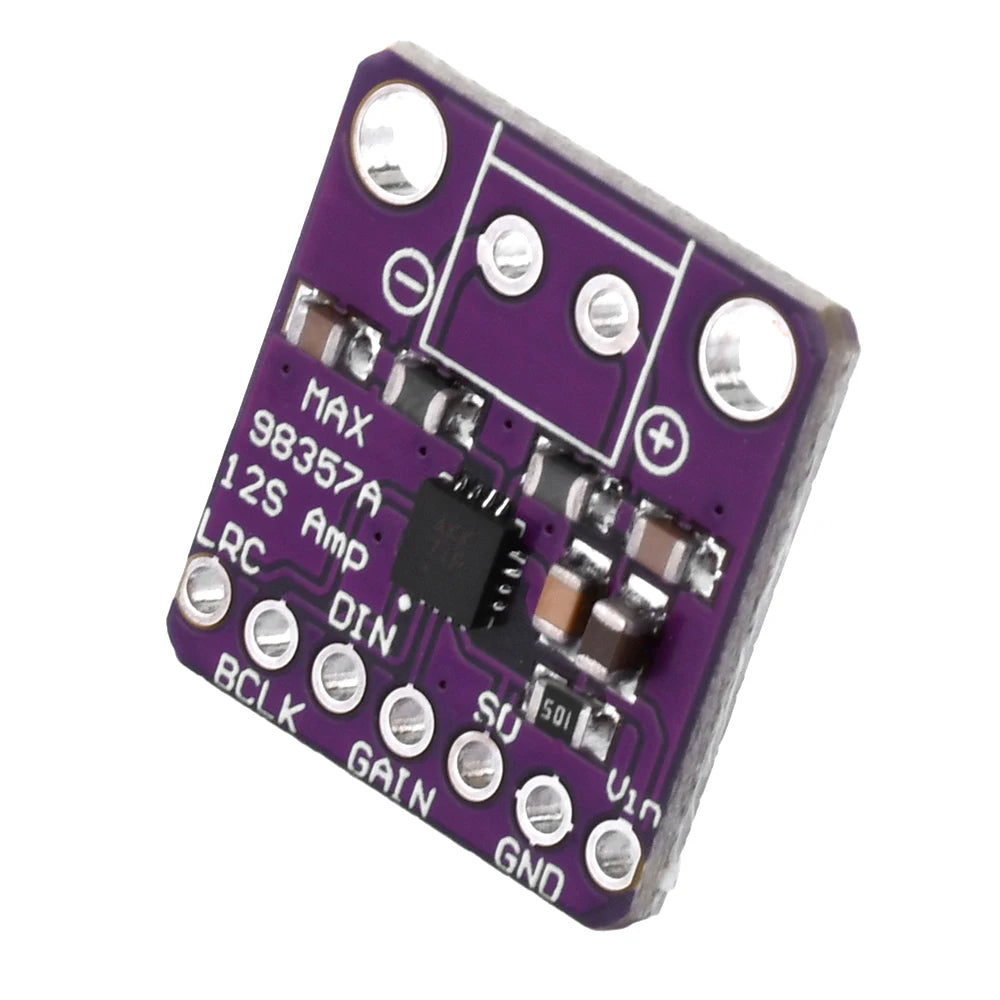

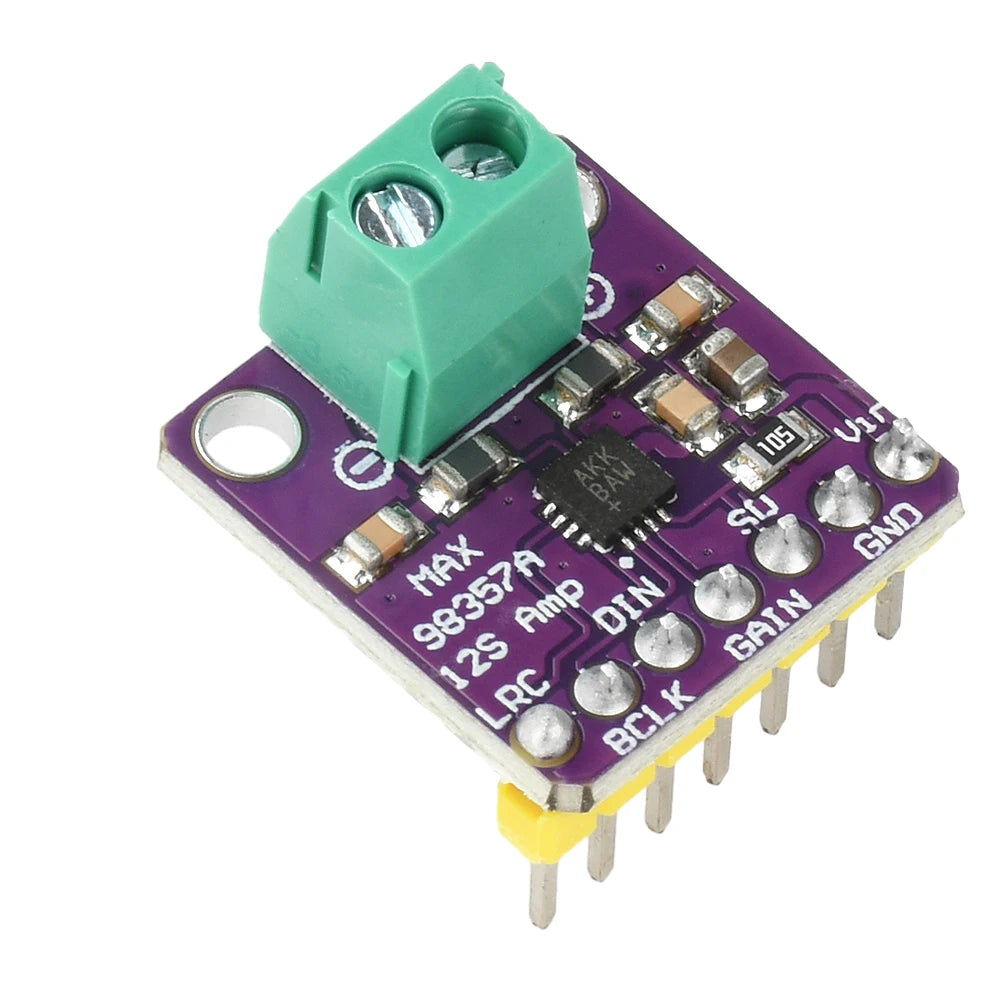

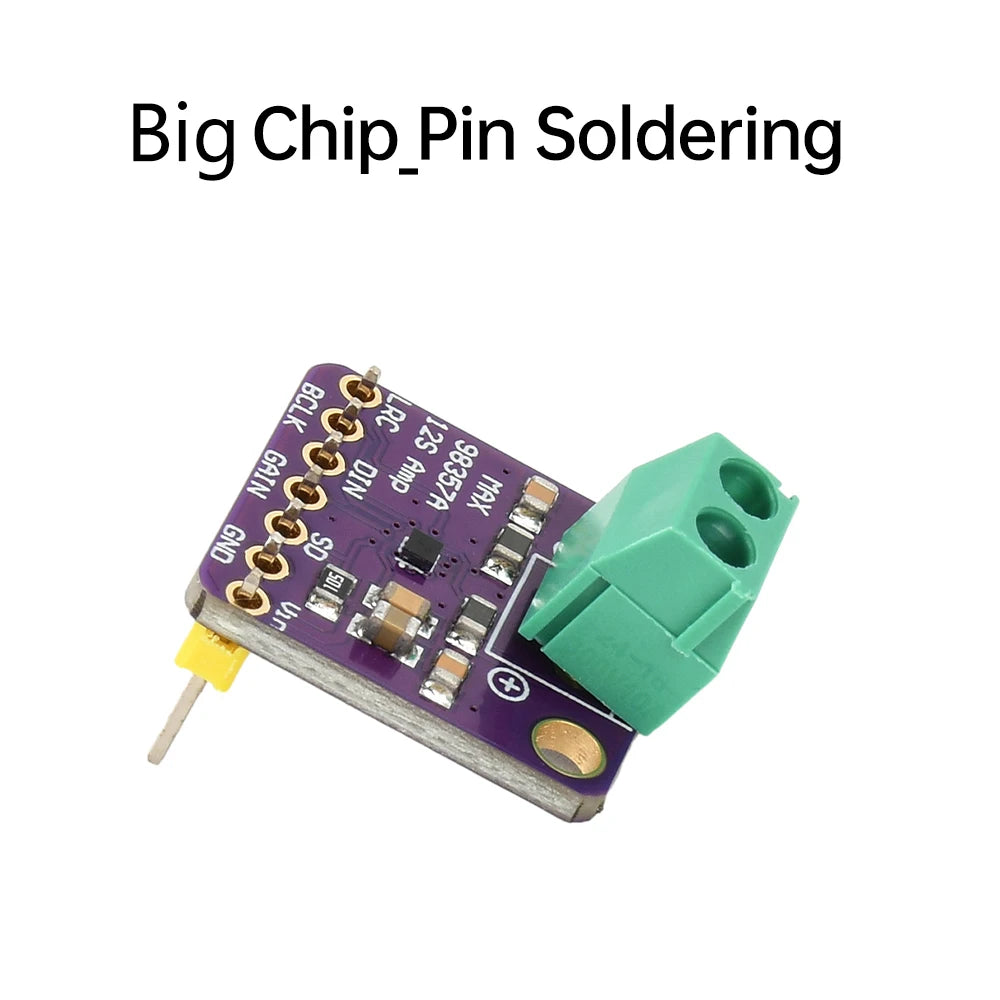

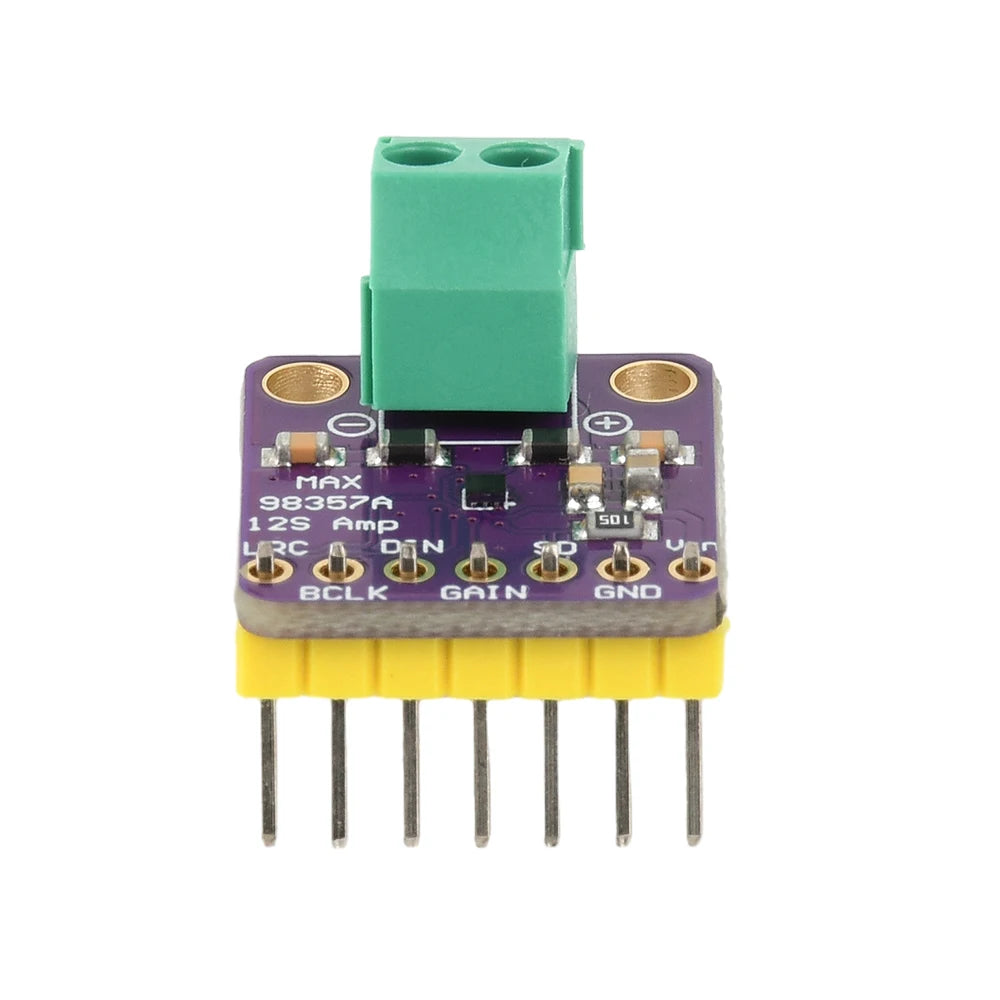

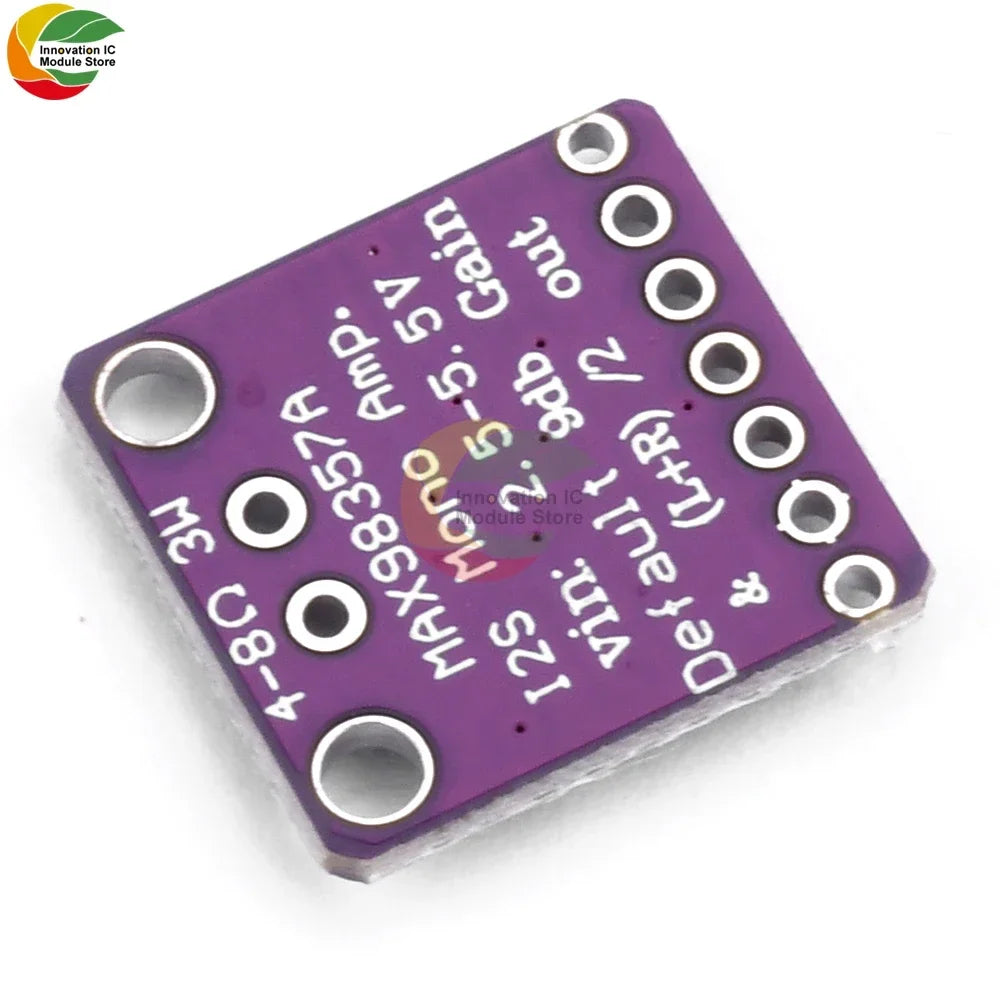

High Quality MAX98357 MAX98357A I2S 3W Class D Amplifier Breakout Interface I2S DAC Decoder for Raspberry Pi Esp32

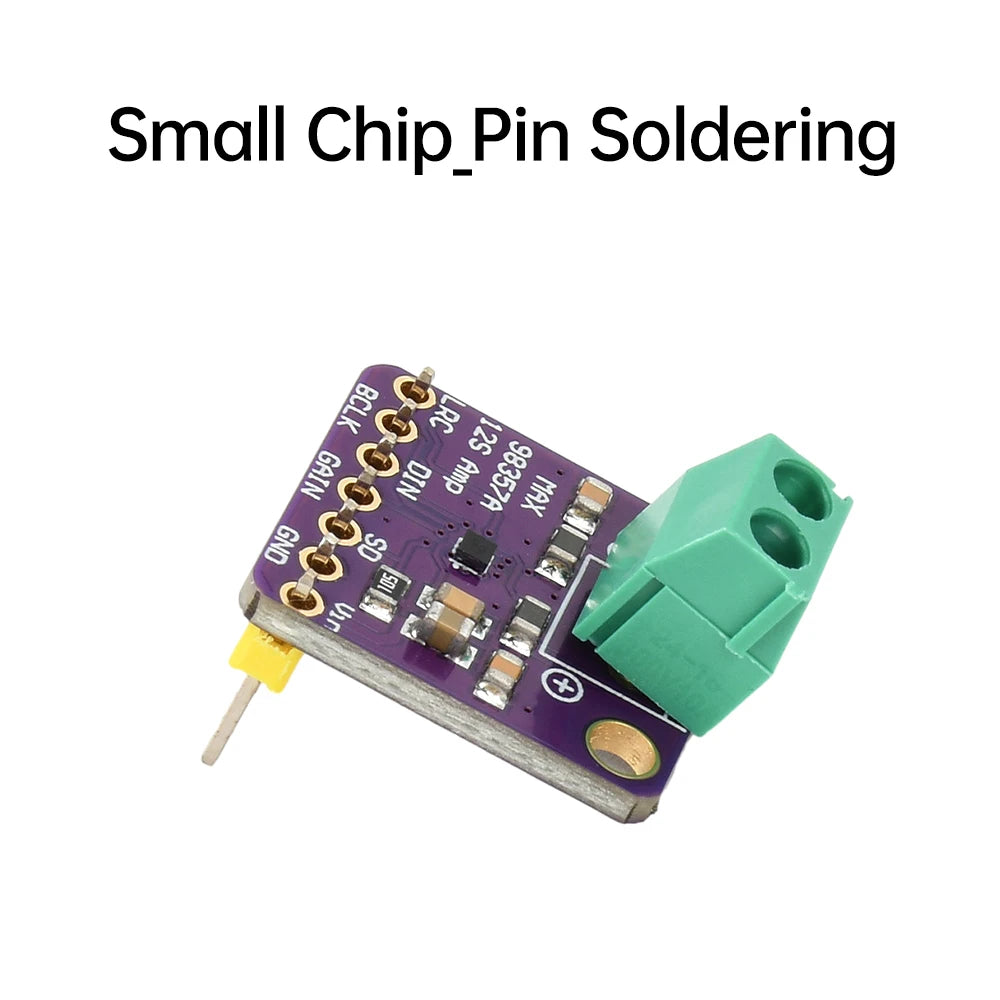

Small Unwelded / China Mainland
$3.33
Sale price
$3.33
Regular price
$0.00
Skip to product information
High Quality MAX98357 MAX98357A I2S 3W Class D Amplifier Breakout Interface I2S DAC Decoder for Raspberry Pi Esp32
Features:
1.Made of high-quality materials, durable and practical
2.In order to achieve excellent sound quality, the device adopts digital inputs with high noise resistance and high jitter tolerance (at least 8dB better than ordinary solutions)
3.Stable performance, capable of achieving 3.2W Class AB amplifier sound quality with Class D amplifier efficiency
4.The product also provides excellent electromagnetic interference (EMI) suppression, allowing the use of long wires to connect speakers without the need for external filtering
5.Excellent high fidelity sound effect, suitable for various product applications
High Quality MAX98357 MAX98357A I2S 3W Class D Amplifier Breakout Interface I2S DAC Decoder for Raspberry Pi Esp32
$3.33
Sale price
$3.33
Regular price
$0.00
Description
SPECIFICATIONS
Applicable: Raspberry Pi, Arduino, ESP32, etc
Brand Name: Ziqqucu
Condition: New
Dissipation Power: 1.8W/3.2W
High-concerned chemical: none
I2S sampling rate: 8KHz~96KHz
Operating Temperature: -20℃ ~ +85℃
Origin: Mainland China
Output power 1: 3.2W at 4 Ω, THD at 10%
Output power 2: 1.8W at 8 Ω, THD at 10%
Package: SOP
Product: Audio amplifier module
Quantity: 1
Supply Voltage: DC 2.5V~5.5V
Type: Module
is_customized: Yes
High Quality MAX98357 MAX98357A I2S 3W Class D Amplifier Breakout Interface I2S DAC Decoder for Raspberry Pi Esp32
Features:
1.Made of high-quality materials, durable and practical
2.In order to achieve excellent sound quality, the device adopts digital inputs with high noise resistance and high jitter tolerance (at least 8dB better than ordinary solutions)
3.Stable performance, capable of achieving 3.2W Class AB amplifier sound quality with Class D amplifier efficiency
4.The product also provides excellent electromagnetic interference (EMI) suppression, allowing the use of long wires to connect speakers without the need for external filtering
5.Excellent high fidelity sound effect, suitable for various product applications
Parameters:
01 Output power:
3.2W at 4 Ω, THD at 10%
1.8W at 8 Ω, THD at 10%
I2S sampling rate: 8Khz~96Khz
D-class amplifier gain options: 3dB/6dB/9dB/12dB/15dB
No need for master clock (MCLK)
Plug and Play: With just a single power supply, you can automatically configure 35 different clocks and 128 digital audio formats
Suitable for tools such as Raspberry Pi, Arduino, and ESP32, with a microcontroller or development board system with I2S audio output

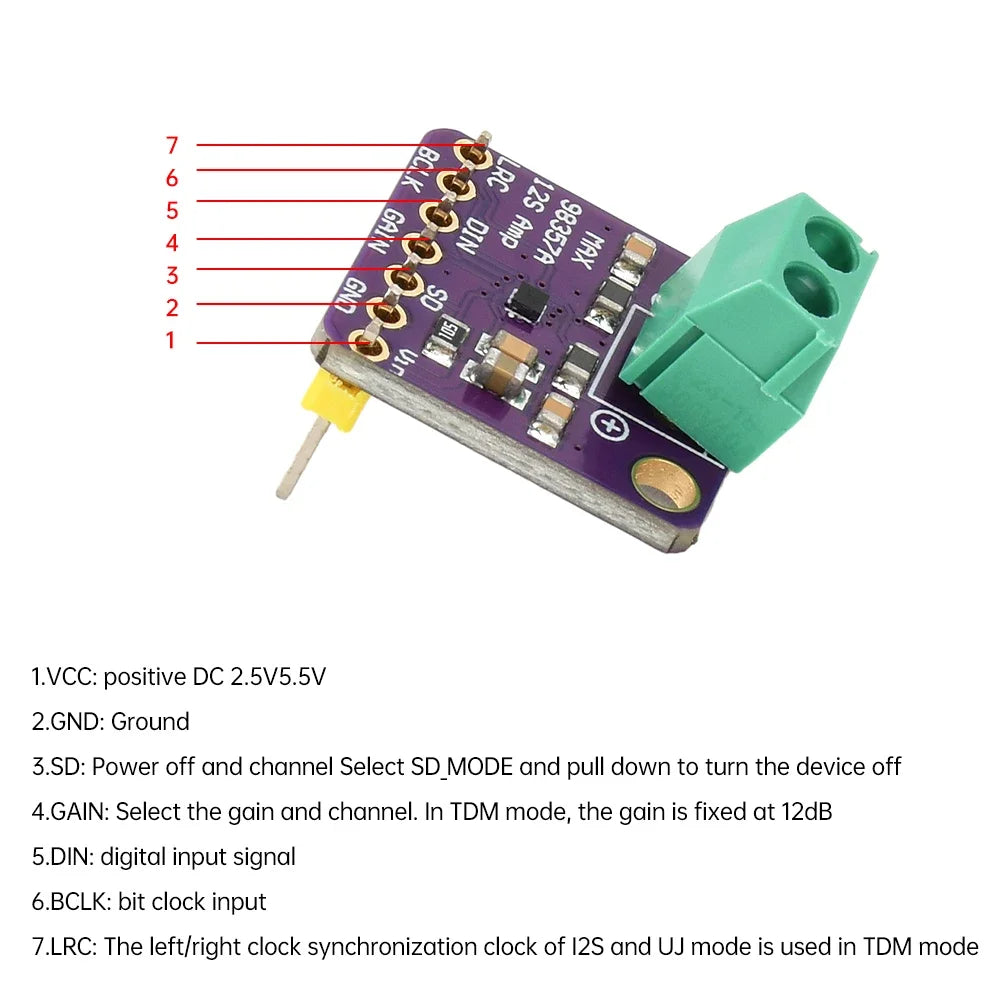

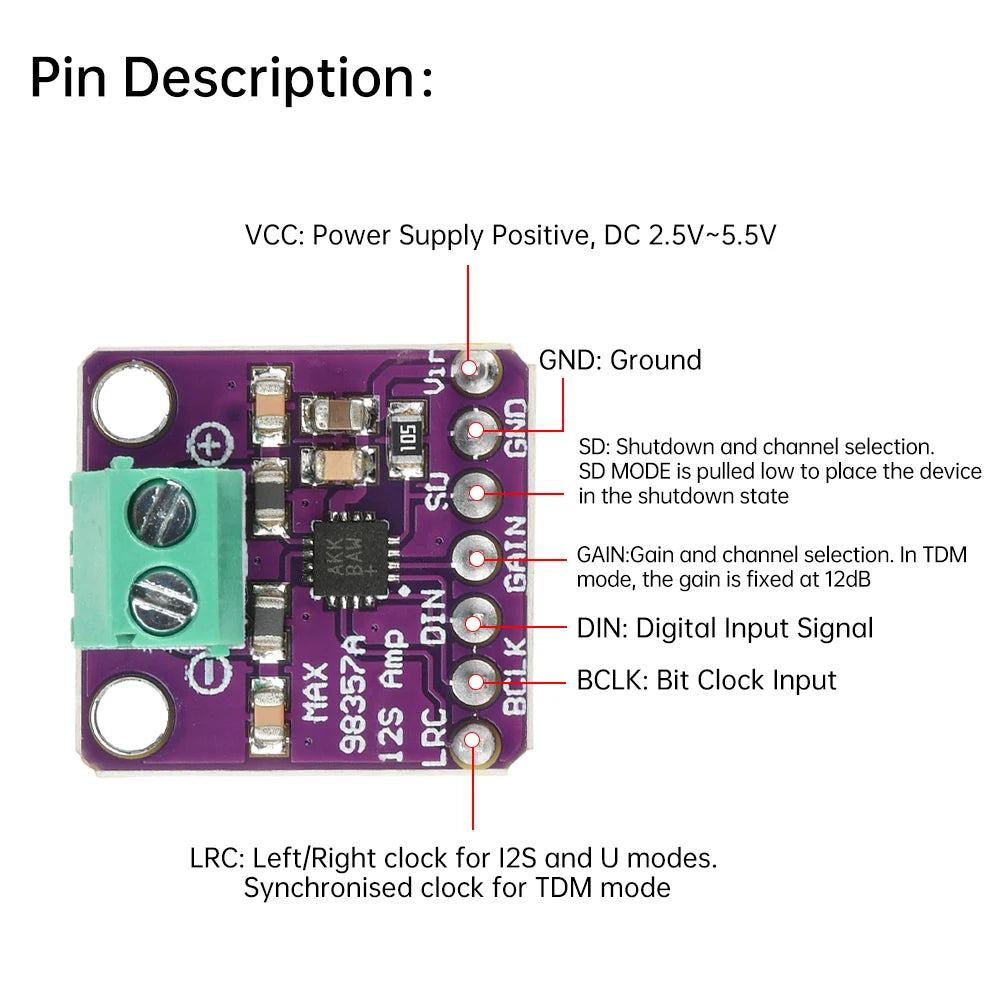

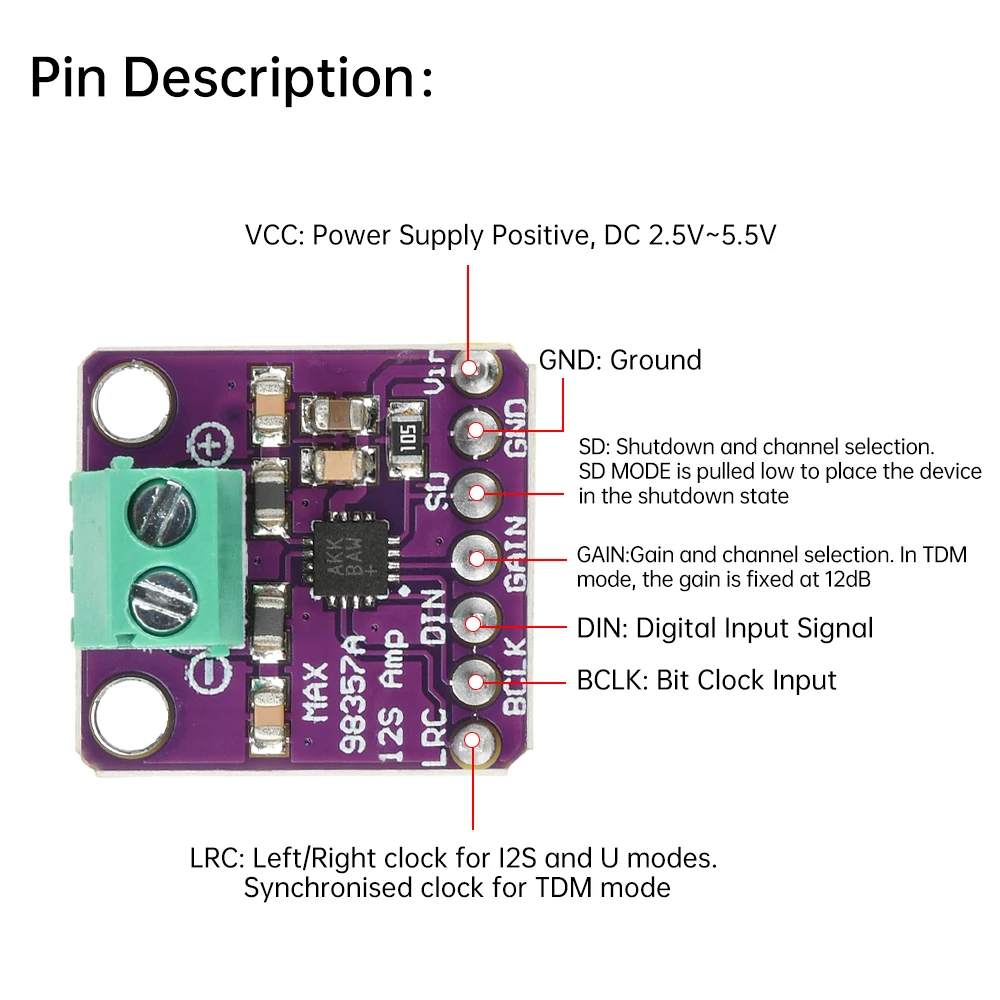

Pin Description:
VCC: Positive pole of power supply, DC 2.5V~5.5V
GND: Grounding
SD: Shutdown and channel selection. SD_ Pull down the MODE to place the device in the off state
GAIN: Gain and channel selection. In TDM mode, the gain is fixed at 12dB
DIN: Digital input signal
BCLK: bit clock input
LRC: Left/right clock for 12S and UJ modes. Synchronous clock for TDM mode
Package include:

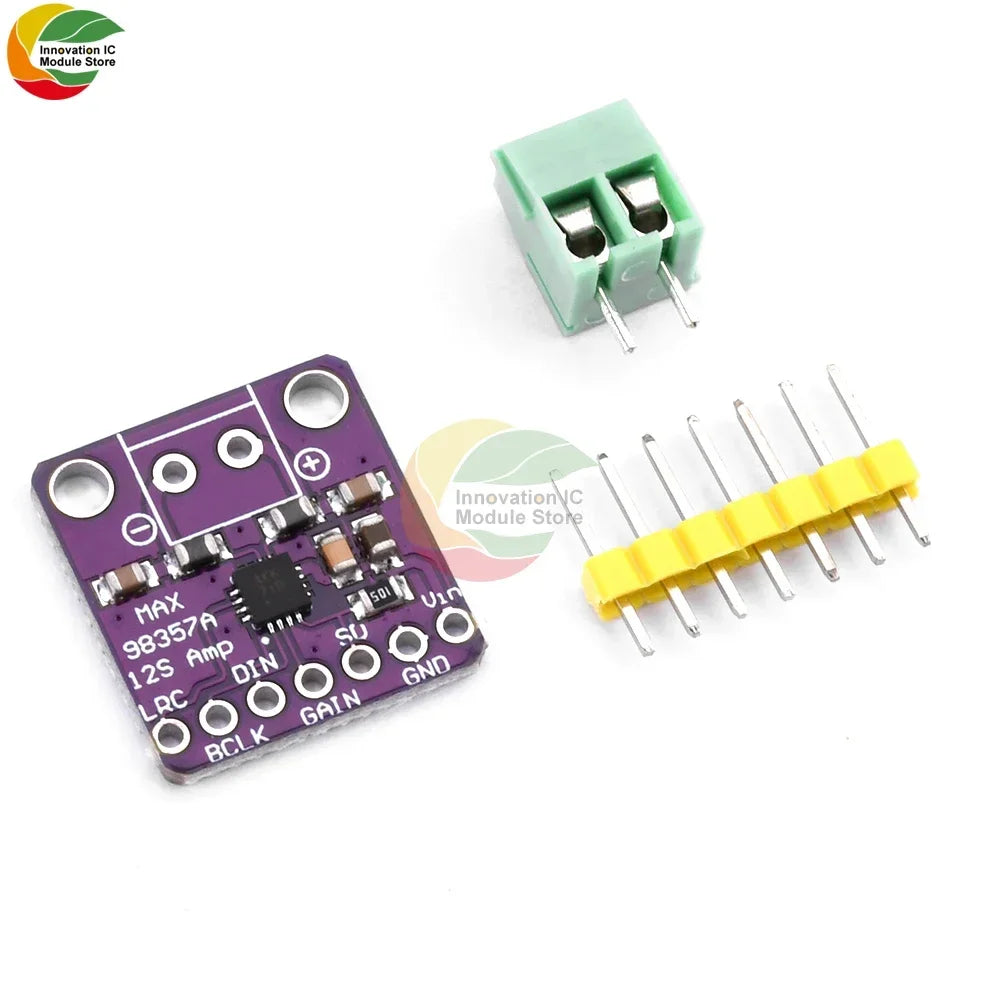

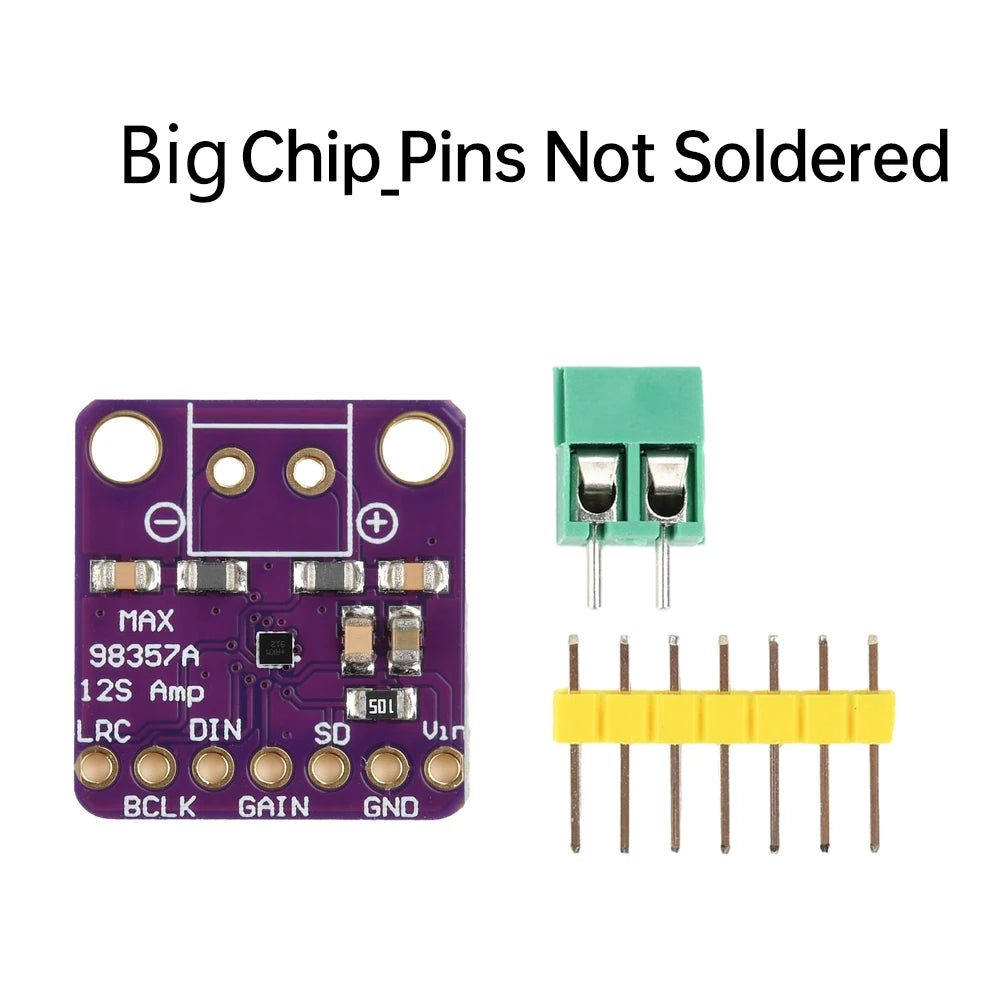

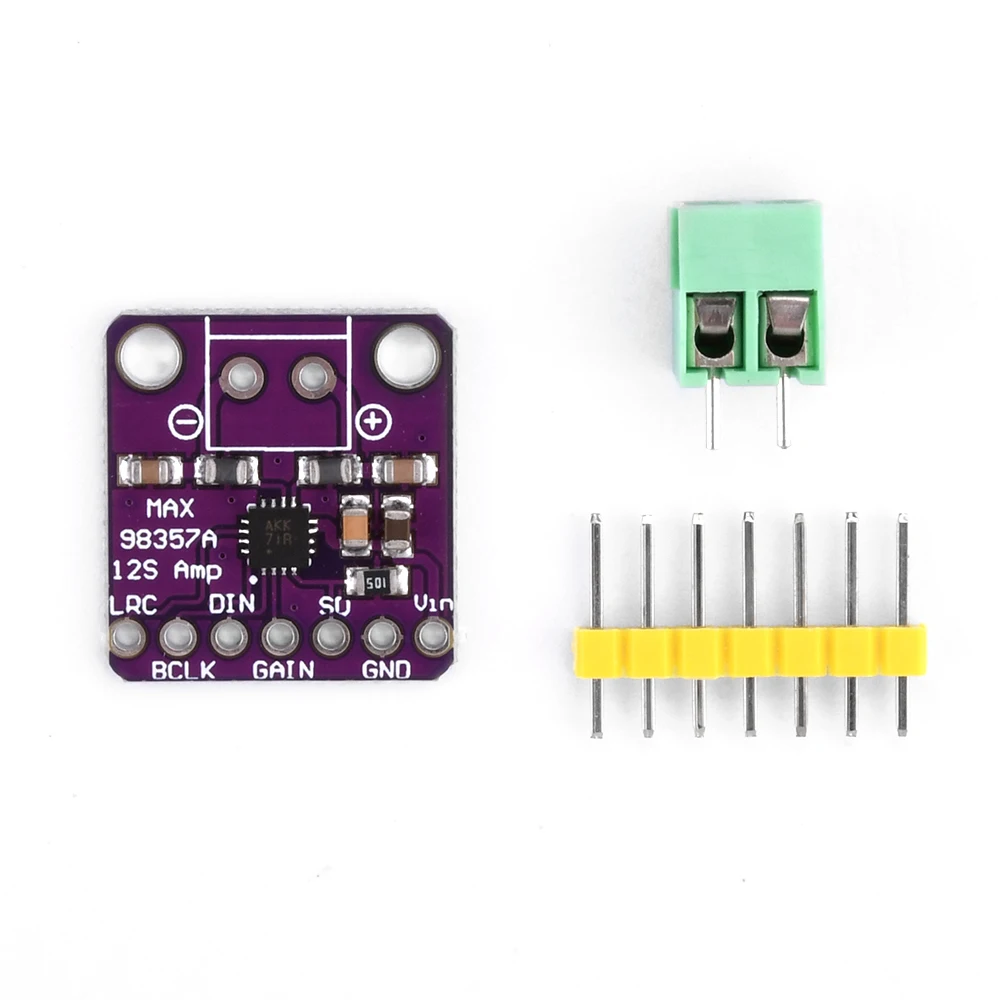

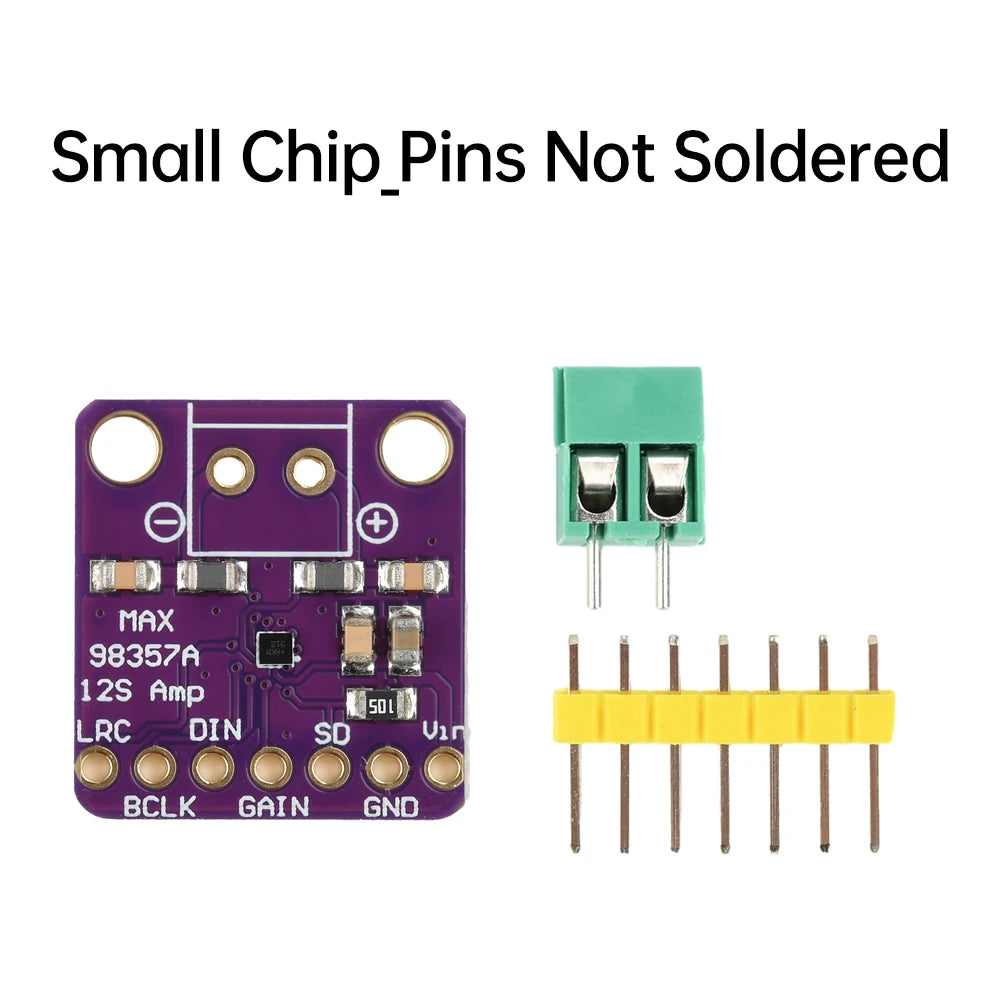

Module * 1+row pins * 1+terminals * 1
