SPECIFICATIONS

Brand Name: NONE

Certification: CCC,CCC

Current: 5A

Features: Limit Switch

High-concerned chemical: none

Is Smart Device: no

Item Type: SWITCHES

Material: Plastic

Model Number: ME-8104

Origin: Mainland China

Switch Type: MICRO SWITCH

Warranty: 1year

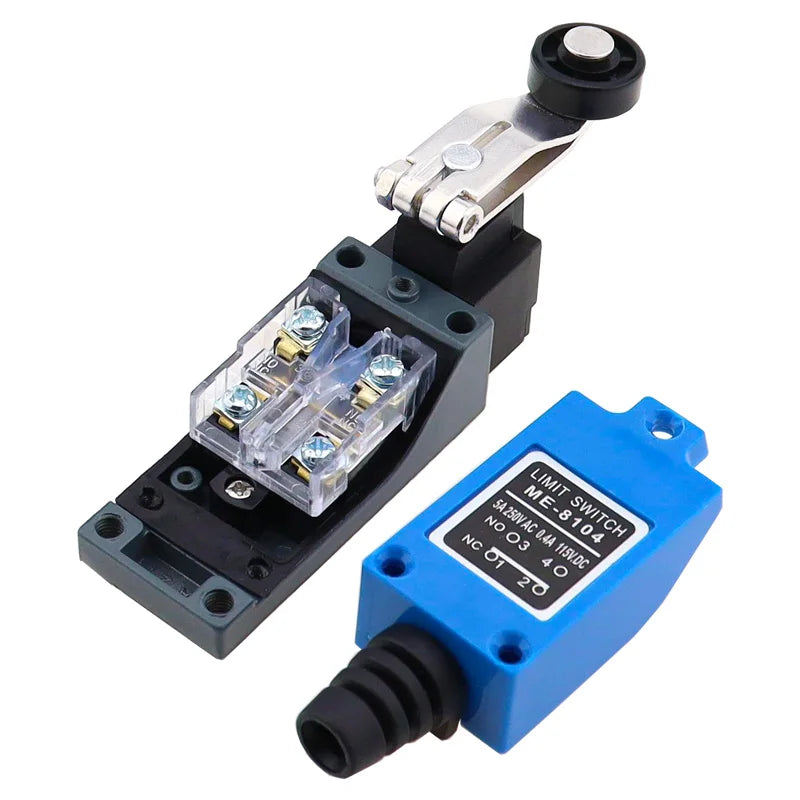

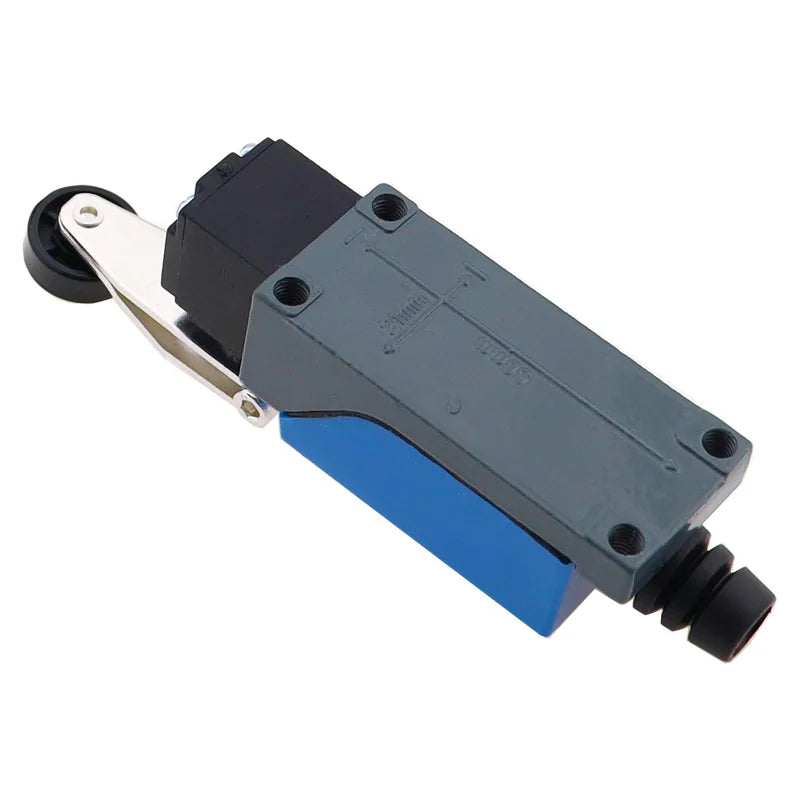

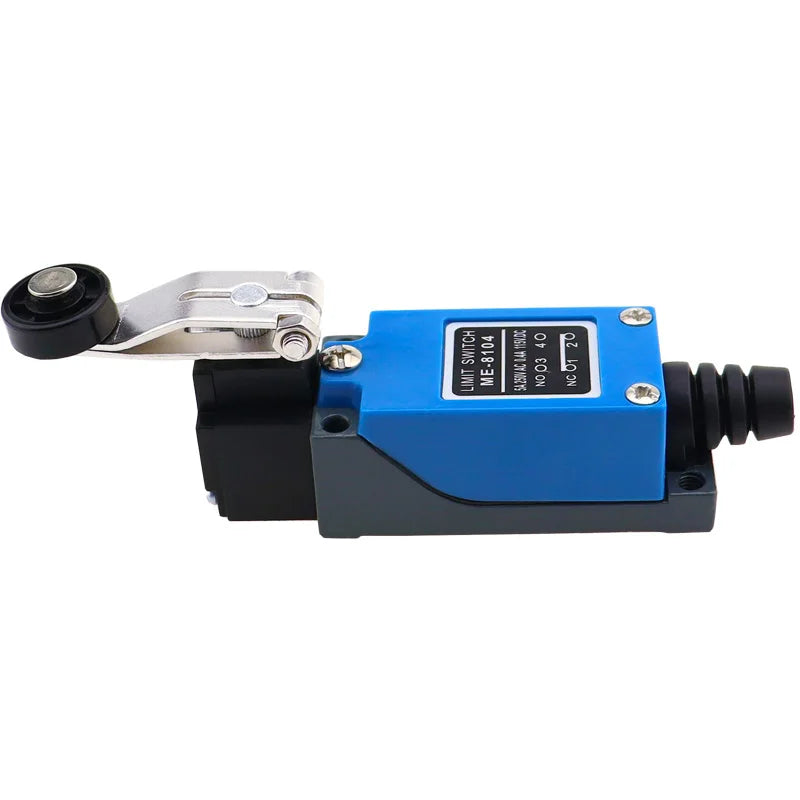

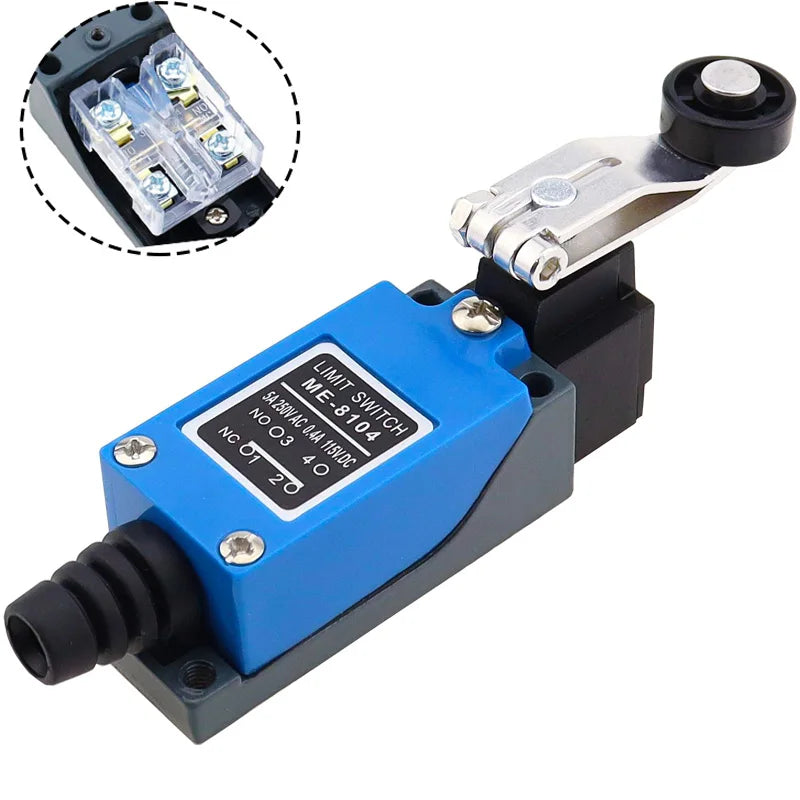

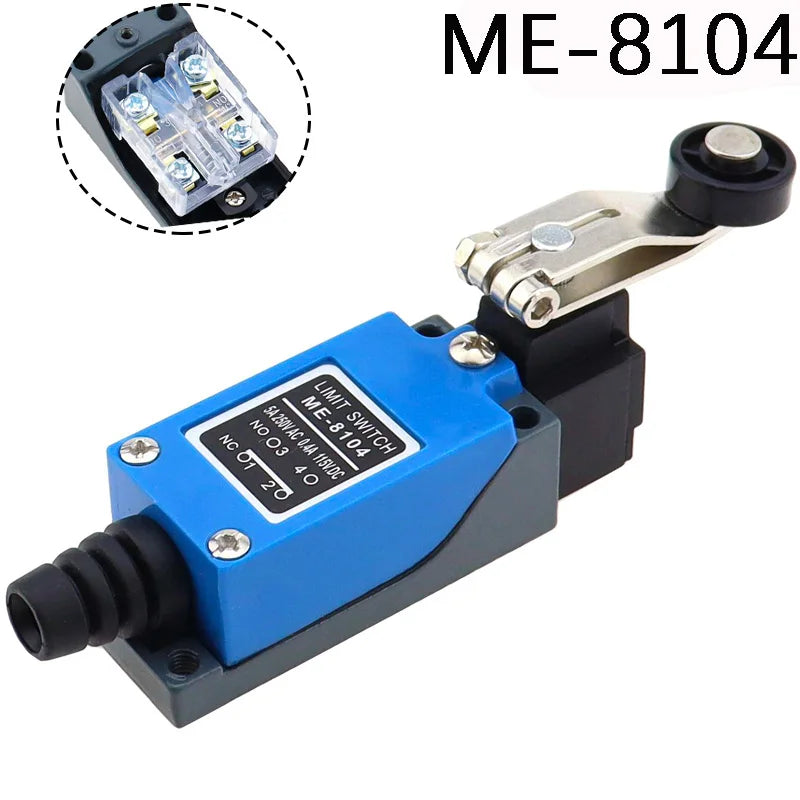

Product Name : Limit Switch;Model No. : ME-8104;Actuator Action : Momentary
Actuator Type : Rotary Adjustable Lever Arm with Roller;Contact Configuration : 1NC + 1NO(SPDT);Voltage Rating : AC 250V 5A

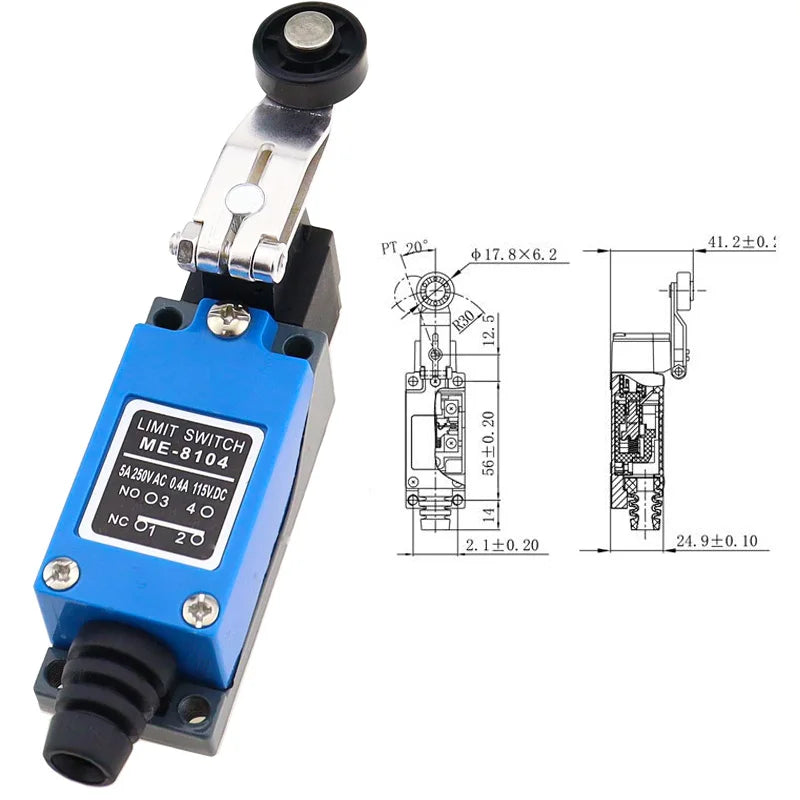

DC 115V 0.4A : DC 115V 0.4A;Roller Dimension : 1.8 x 0.7cm / 0.7' x 0.3'(D*H);Lever Arm Length : 5cm / 2'
Fixing Thread Diameter : 0.4cm / 0.2';Total Size : 12.3 x 5 x 2.8cm / 4.8 x 2 x 1.1'(L*W*H);Material : Resin, Plastic & Metal
Color : Blue, Gray & Black;Net Weight : 94g;Package Content : 1 x Limit Switch
Features
Double loop limited switch
The structure is strong, composed of zinc alloy and reinforced plastic.
Small structure, waterproof and oil proof
The built-in micro switch has two reed mechanism, and the mechanical life is longer.
A larger OT action
Design of catheterization for easy wiring
There are many kinds of actuators, easy to use

Rated working voltage: AC380V, DC220
Rated control capacitance: AC100VA DC30W
Speed of operation: 0.5mm/s~50cm/s
Operating frequency: 120 times / minute (Mechanical), 30 times / minute (Electrical)
Contact resistance: less than 25m omega (initial value)
Insulation resistance: > 100M omega (DC500V)
Withstand voltage: between terminals (1000VAC 1 minutes):
Charged metal parts to ground (2000VAC1 minutes)
Between terminals and without electronic components (2000VAC 1 minutes)
Service life: 100 x 104 times (Mechanical) 30 x 104 times (Electrical)
Vibration: misaction as 10Hz~50Hz double amplitude 1.5mm
Impact: malfunction as 30G, tolerance to 100G
Protection grade: IP65
