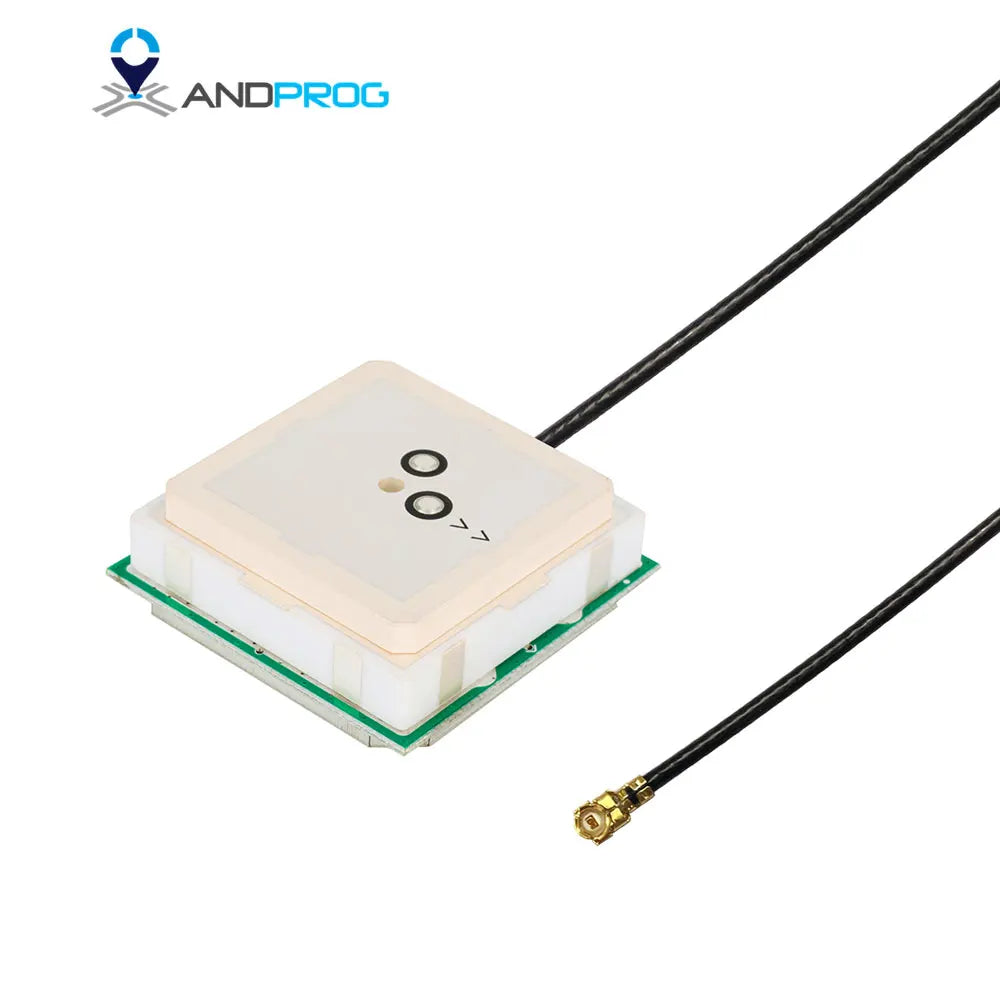

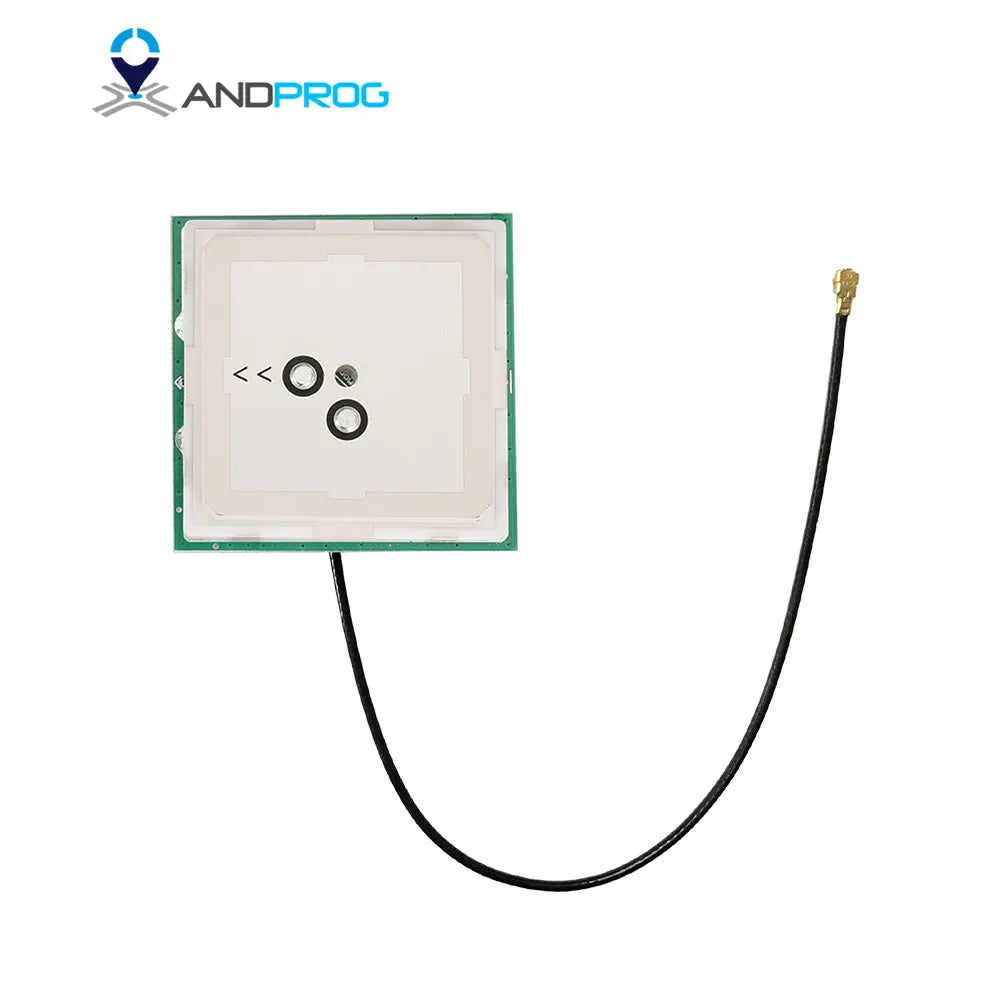

High Quality RTK Active High Precision GPS Antenna, Multi LNA GPS/GLONASS/BEIDOU/GALILEO

High Quality RTK Active High Precision GPS Antenna, Multi LNA GPS/GLONASS/BEIDOU/GALILEO

$103.00

$103.00 $0.00

Description

SPECIFICATIONS

Brand Name: ANDPROG

COMPASS: B1/B2

Choice: yes

Environmentally Friendly: ROHS Compliant

GLONASS: G1/G2/G3

GPS: L1/L5

GPS type: Receiver & Antenna

Gain: 30dBi

Galileo: E1/L1/E2/E5a/E5b

High-concerned chemical: none

IS It With PCB: Yes

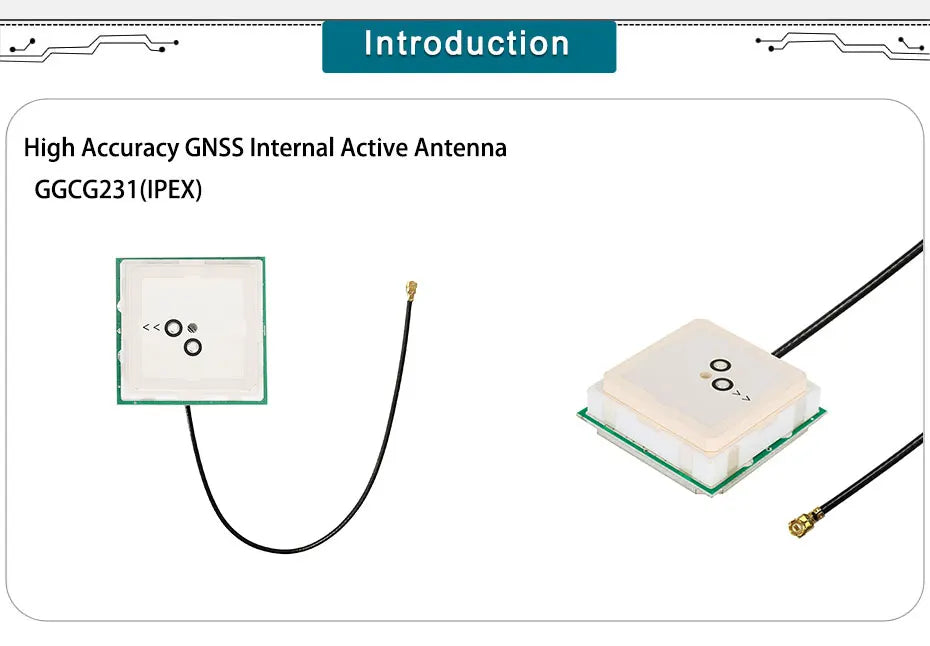

Model Name: GGCG231(IPX)

Origin: Mainland China

Polarization: RHCP

Wireless Function: Yes

semi_Choice: yes

Top quality GNSS antennas for optimal positioning performance
An important factor in ensuring best positioning performance of your GNSS receiver is the right GNSS antenna. These antennas have been carefully selected and verified to work together with GPS receivers under challenging conditions to deliver accurate positions.

Q:Should you use GPS with GLONASS?
A:Actually only gps should do its job in case satellite reception is perfect.
The combination with another system will improve accuracy when the signal gets weaker.
Q:Does GPS work without an antenna?
A:GPS (Global Positioning System) systems work by receiving signals from satellites.
That isn't possible without an antenna
Q:Where to put a GPS antenna?
A:In most cases, you can mount the GPS antenna near the top of the underside of your dash (behind or above the receiver).

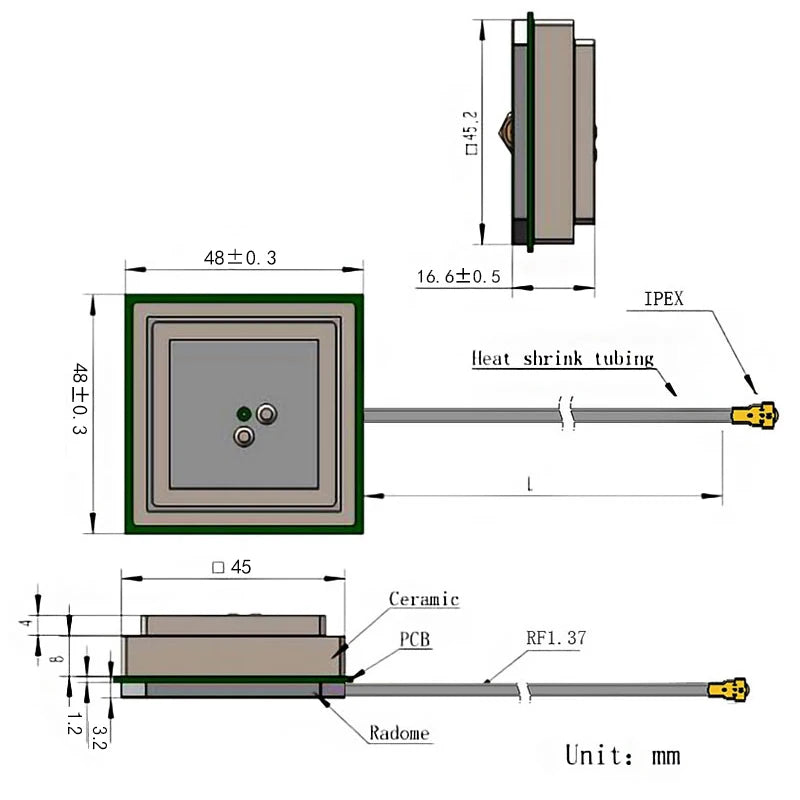

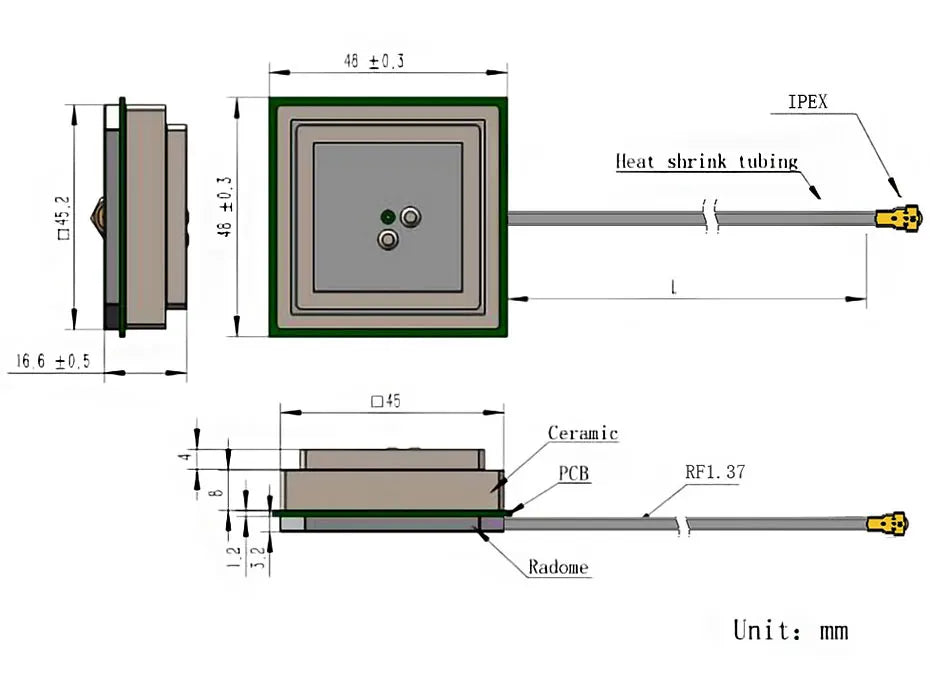

DIMENSIONS&SPECIFICATIONS

Item		Specifications

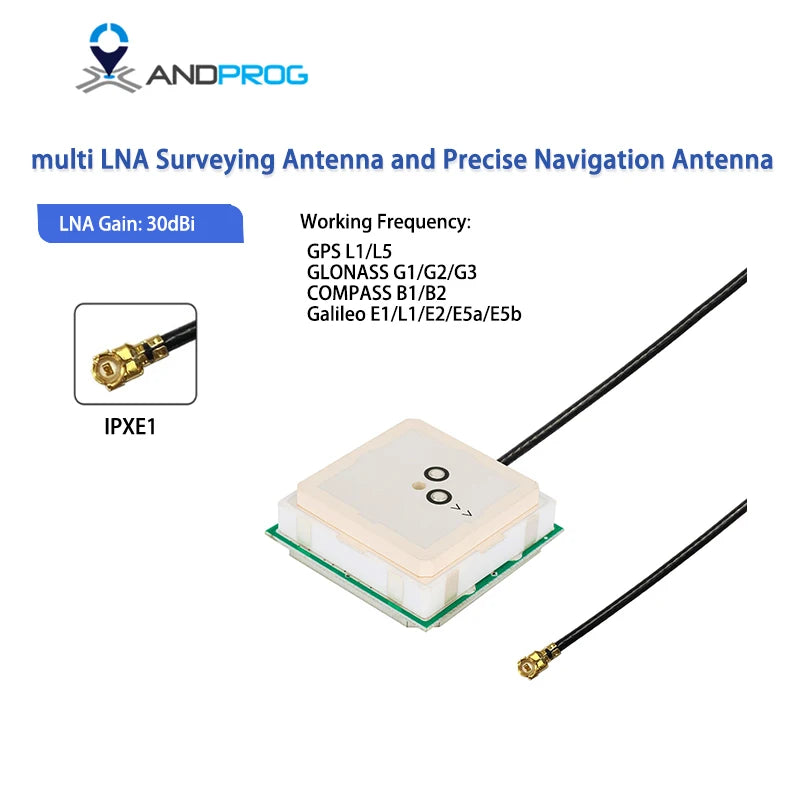

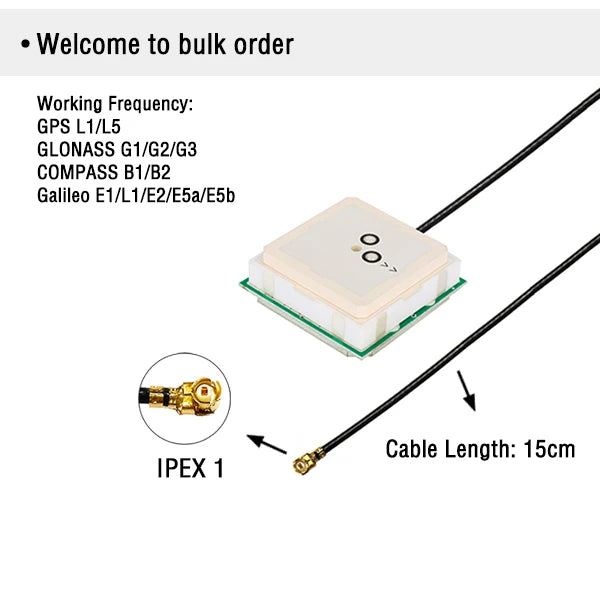

Antenna	Frequency	GPS L1/L5 GLONASS G1/G2/G3 COMPASS B1/B2 Galileo E1/L1/E2/E5a/E5b



	Polarization	RHCP
	Axial Ratio(min)	≤3dB
	V.S.W.R	≤2.0
	Peak Gain	≥2dBi
	Impedance	50 Ω
	Horizontal coverage angle	360 °
LNA	Gain	28±2dB
	Noise Figure	≤1.5dB
	Passband fluctuation	±1.5dB
	Supply Voltage	3~ 12V DC
	Current Consumption	≤50mA
	V.S.W.R	≤2.0
Mechanical	Connector	IPEX or others
	Cable	RF1.37 or others
	Mounting Method	Embedded
Environmental	Operating Temperature	-40℃~+85℃
	Relative Humidity	Up to 95%
	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
	Environmentally Friendly	ROHS Compliant
