SPECIFICATIONS

Brand Name: NONE

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Package: SMD

Quantity: 1

Type: Module

is_customized: Yes

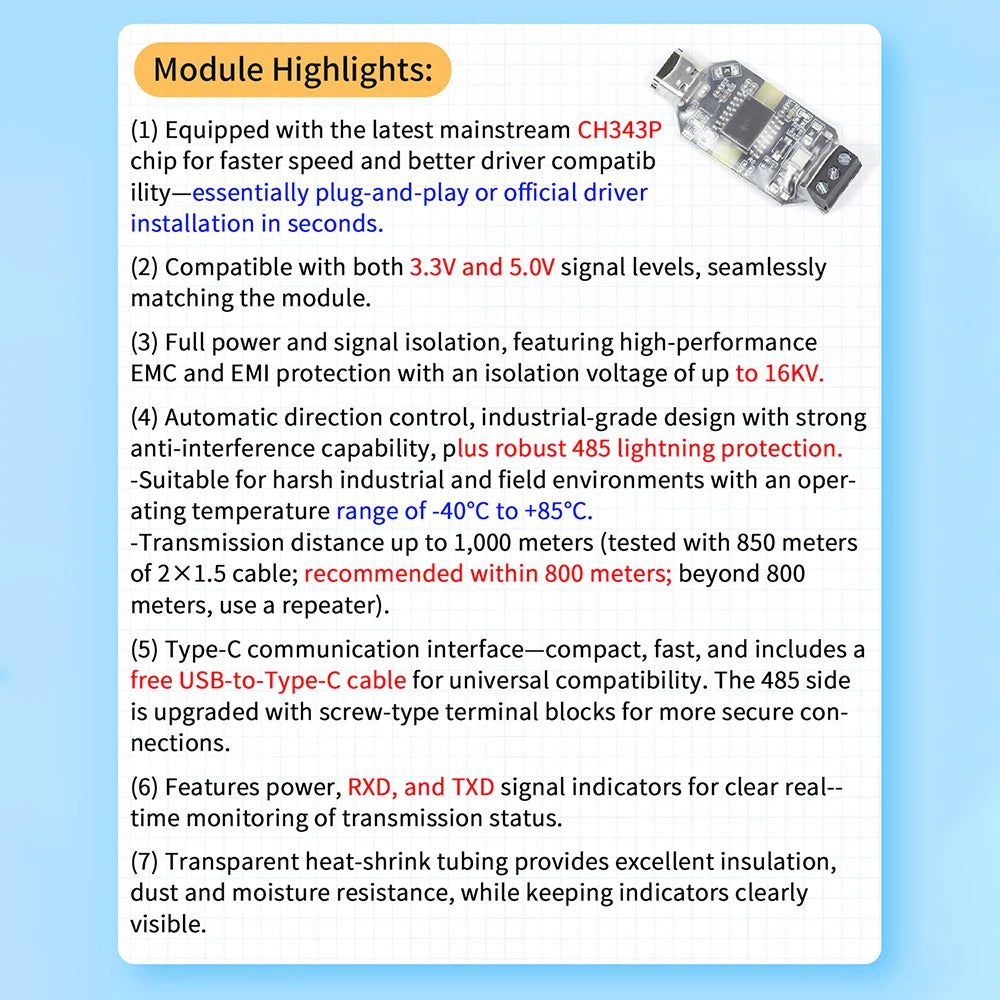

Features:

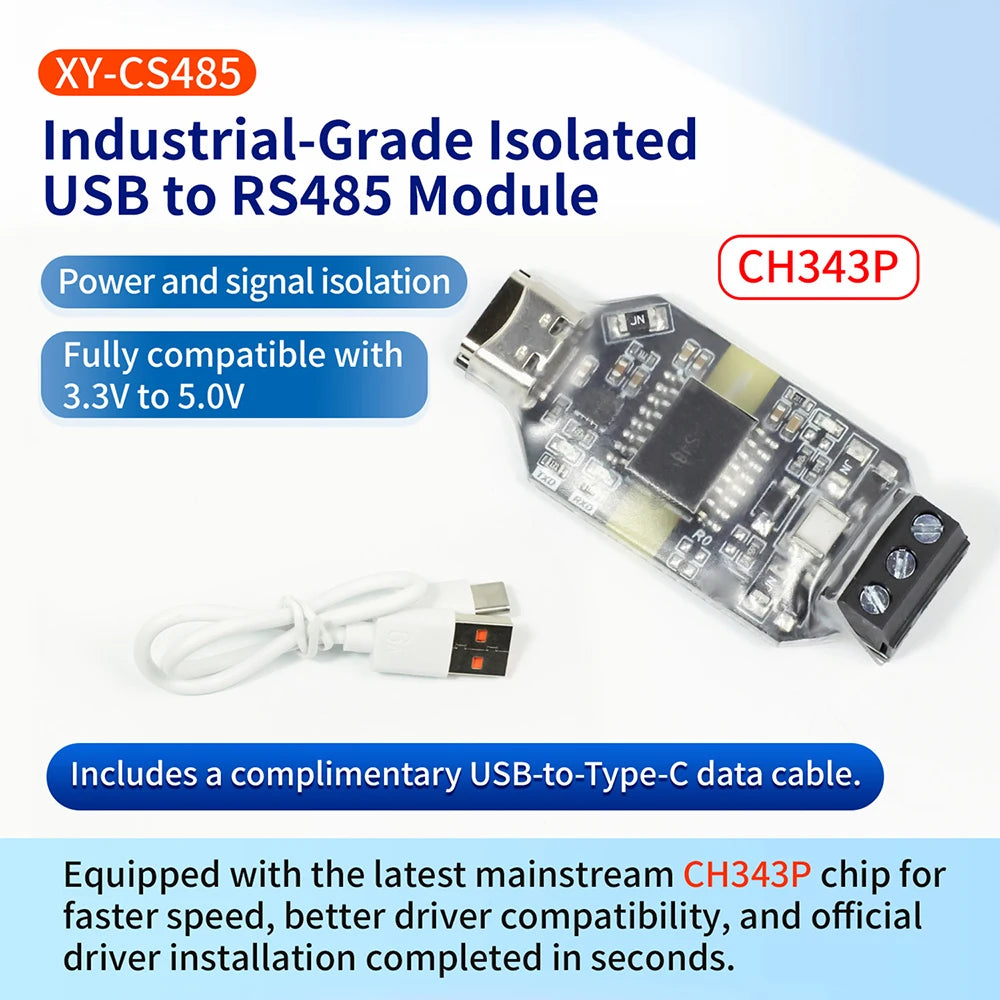

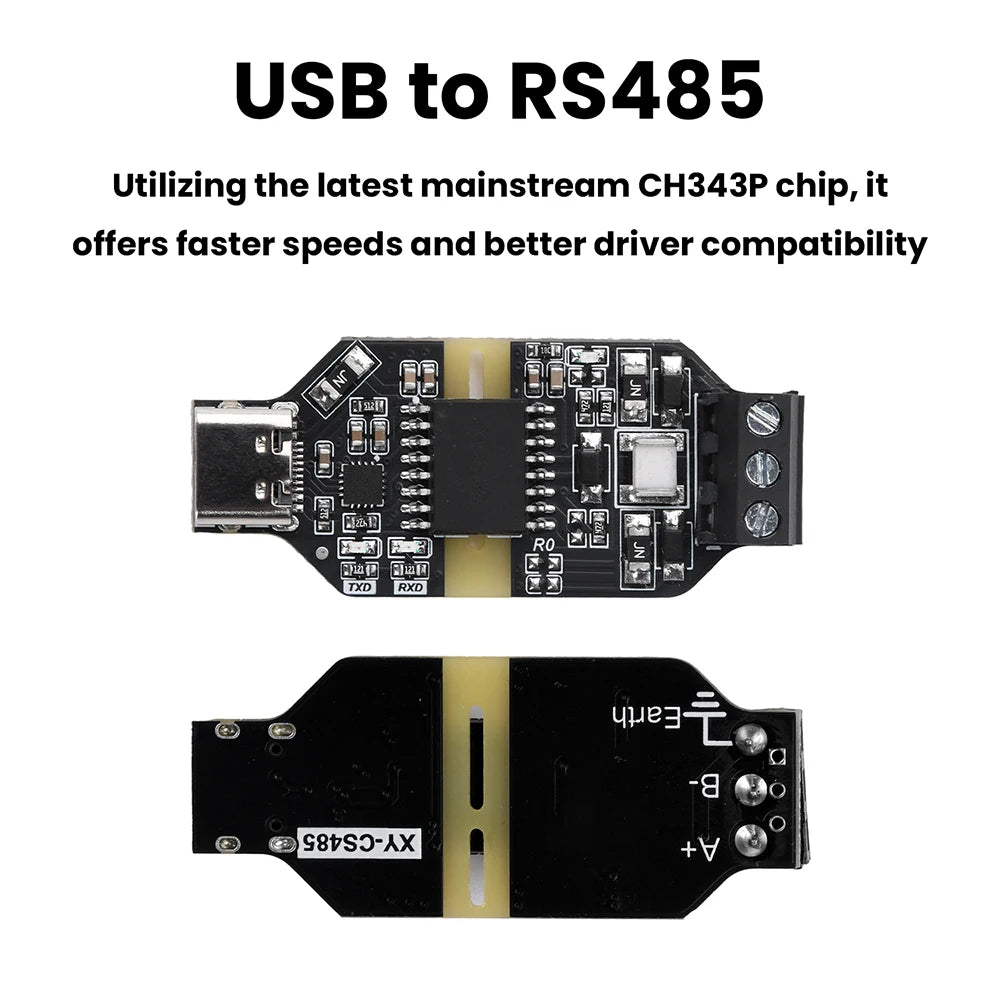

1. Adopting the latest mainstream CH343P chip, with faster speed and better driver compatibility

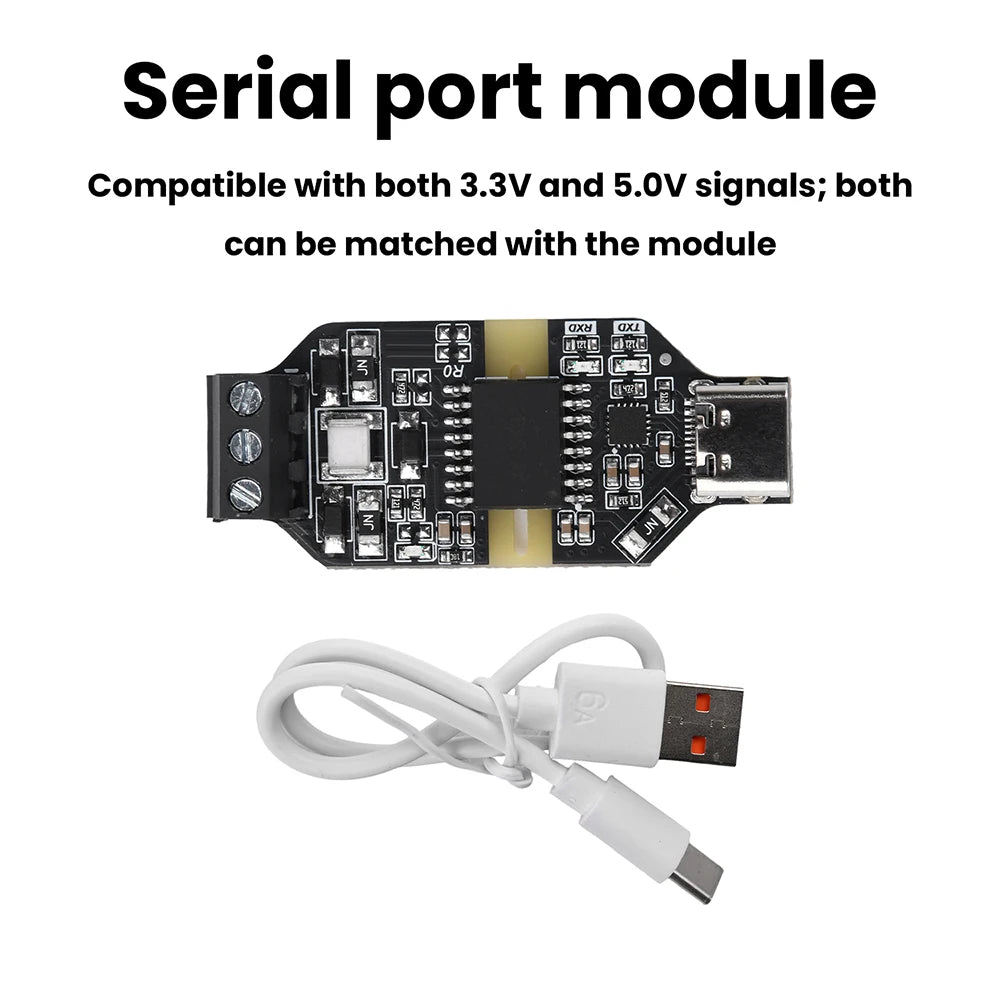

2.3.3V and 5.0V signals are compatible and can be matched with the module

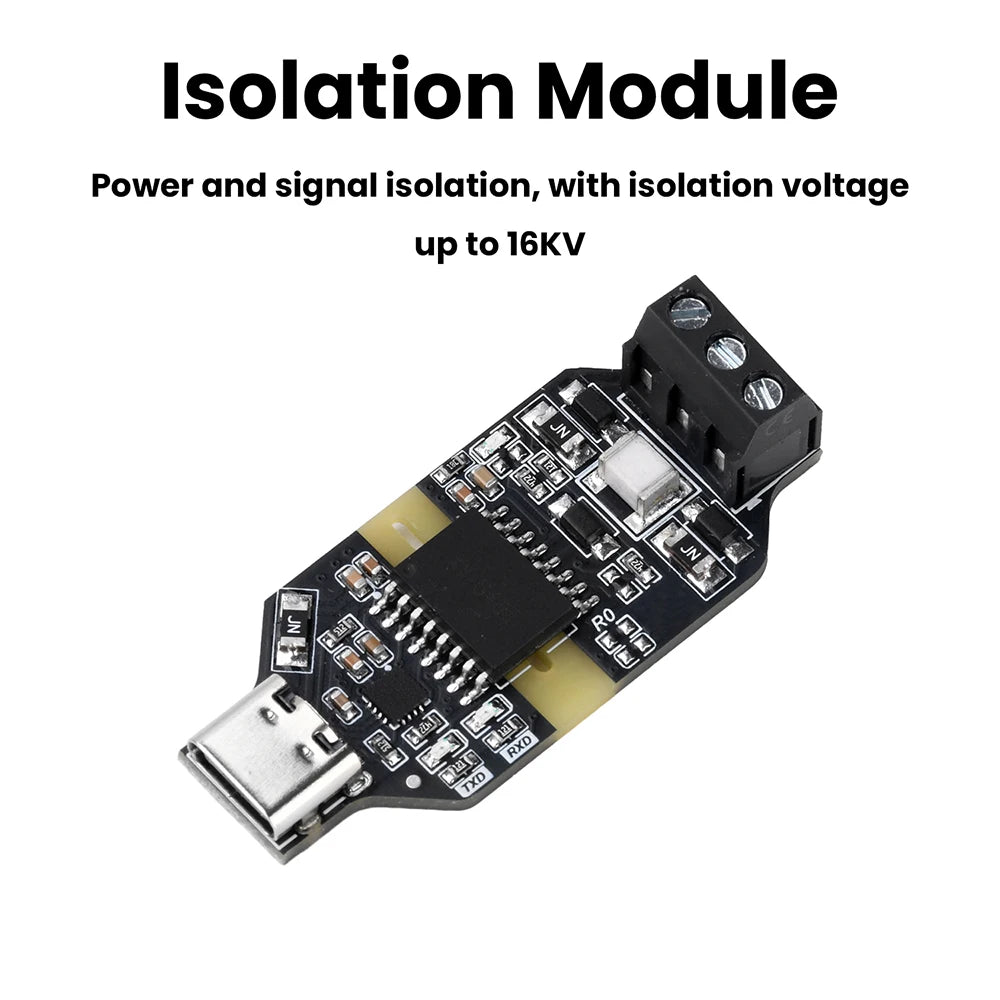

3. Power and signal isolation, with an isolation voltage of up to 16KV

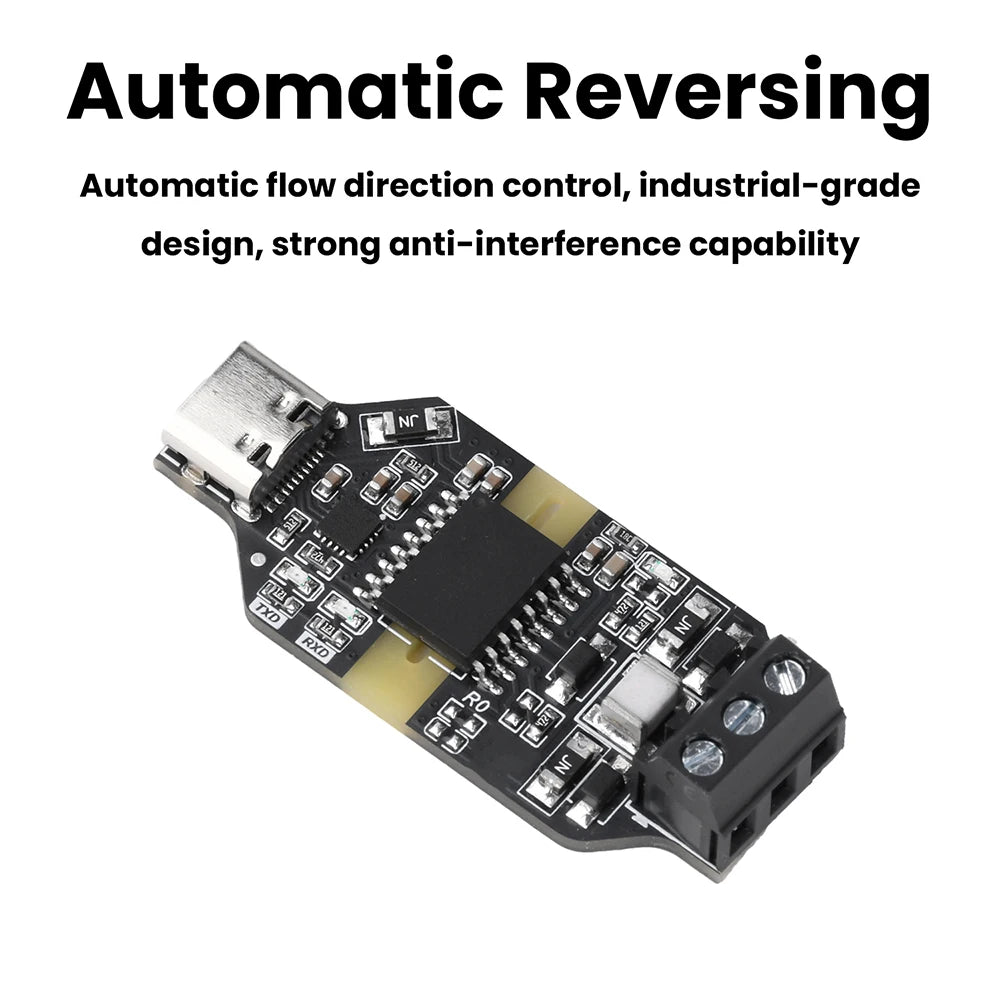

4. Automatic flow control, industrial grade design, strong anti-interference ability

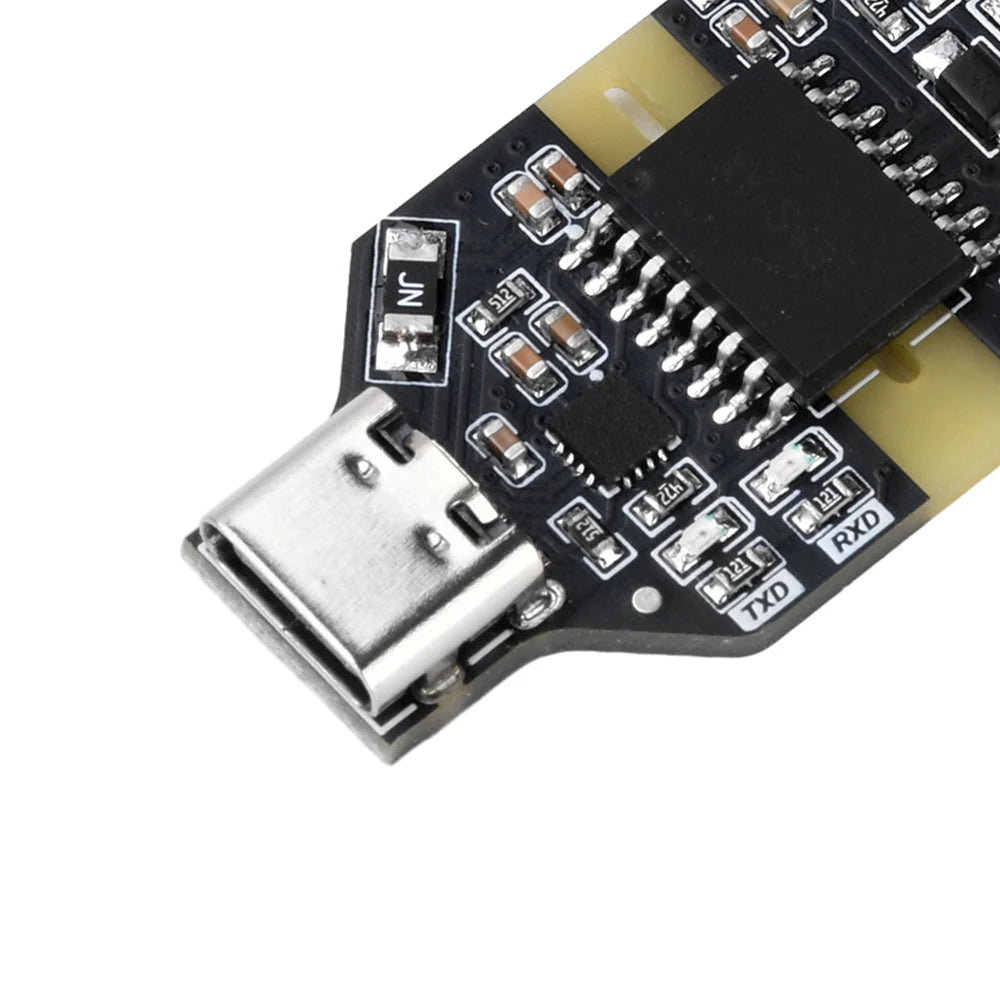

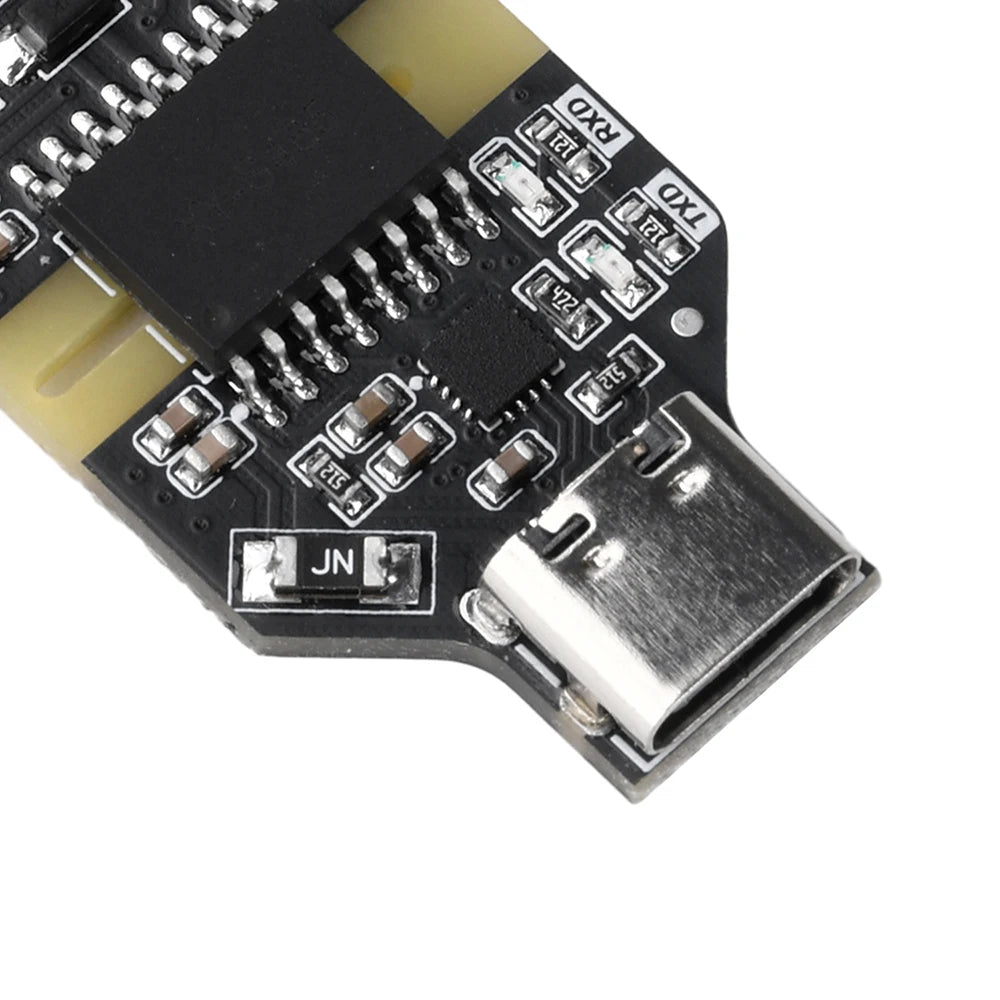

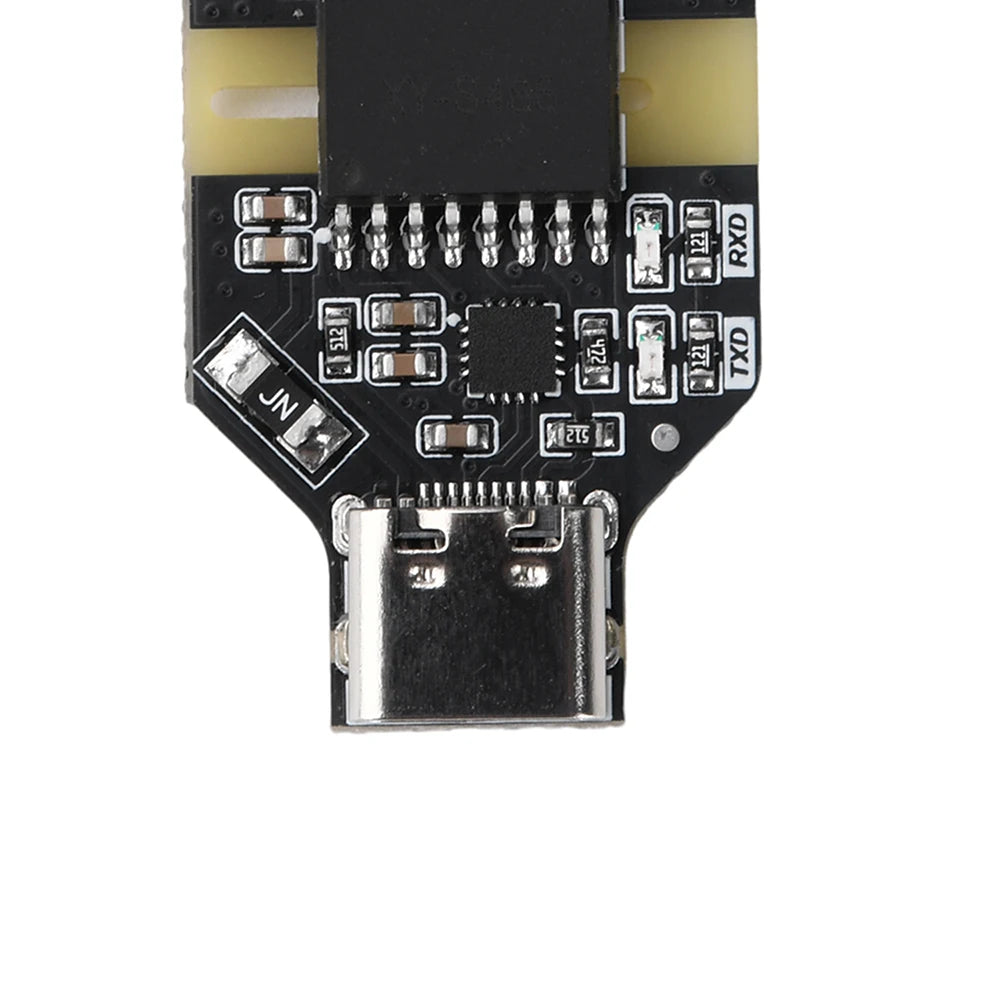

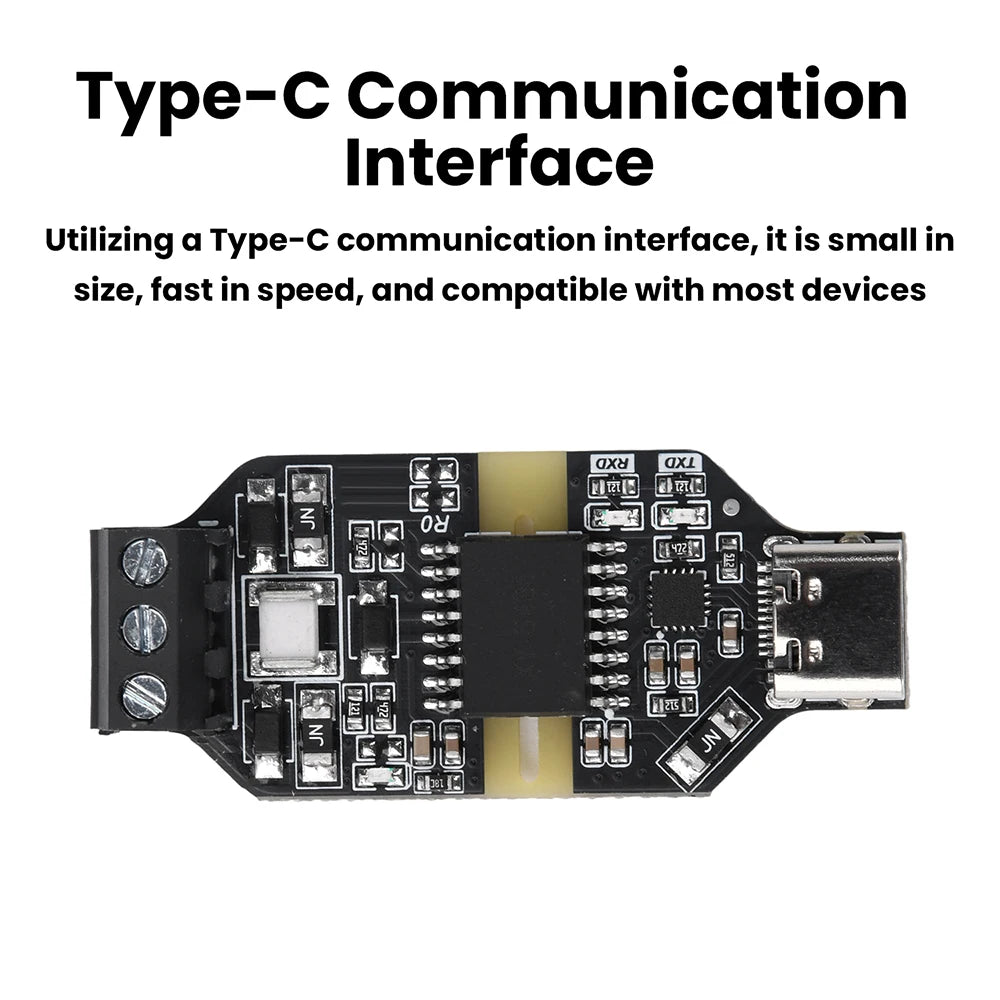

5. Adopting Type-C communication interface, small size, fast speed, compatible with most devices

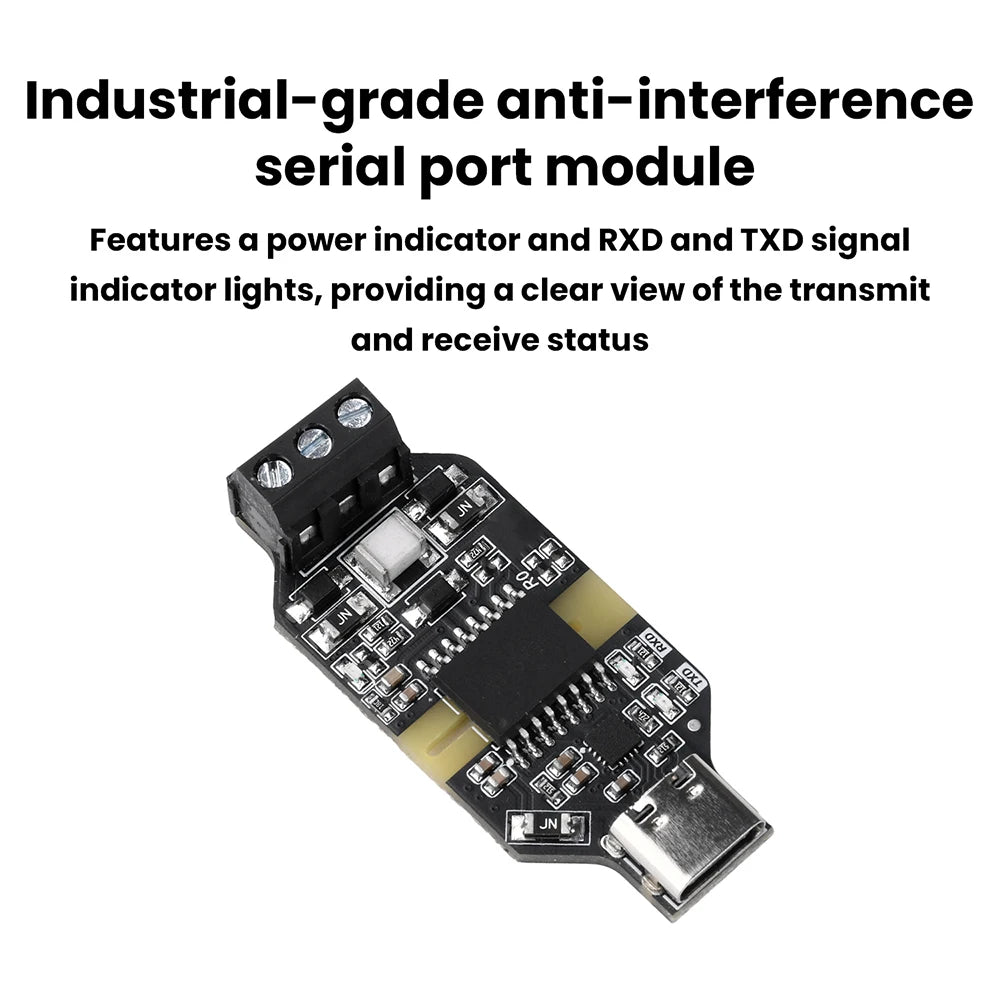

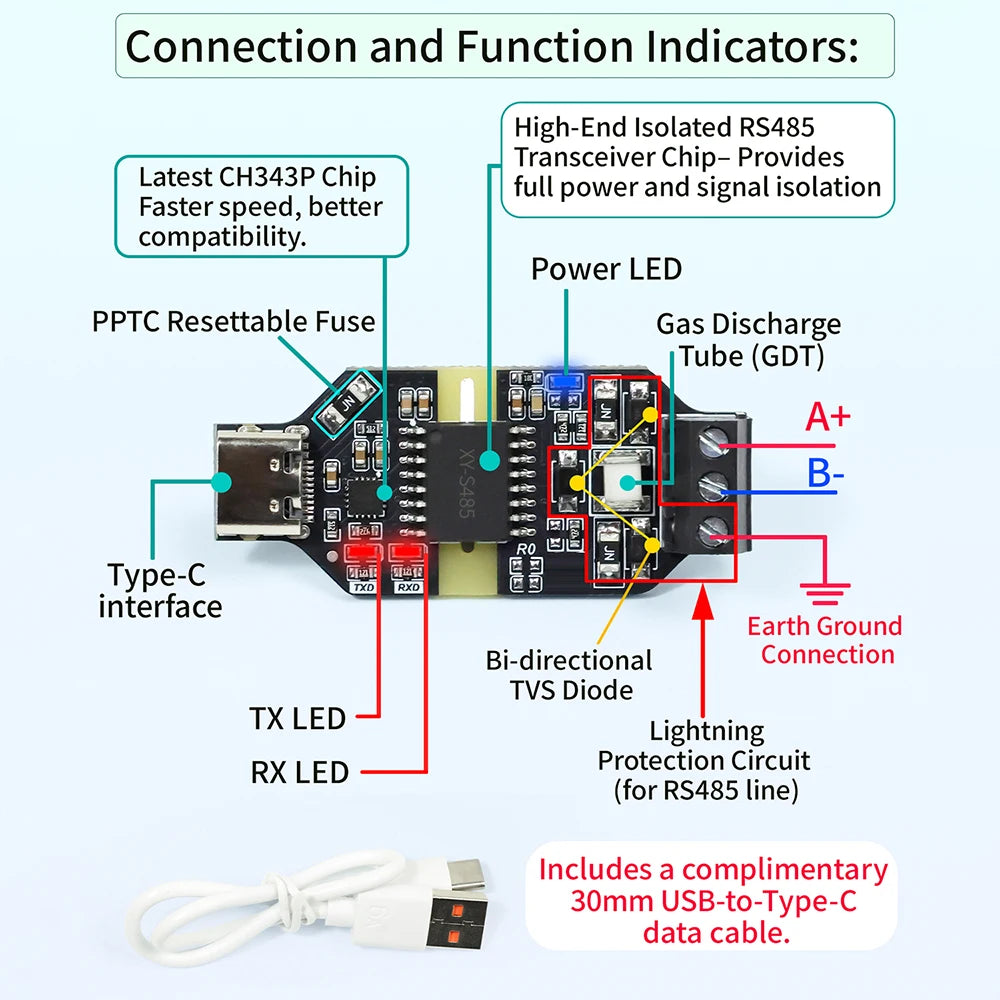

6. Equipped with a power indicator light and RXD, TXD signal indicator lights, providing a comprehensive view of the transmission and reception status

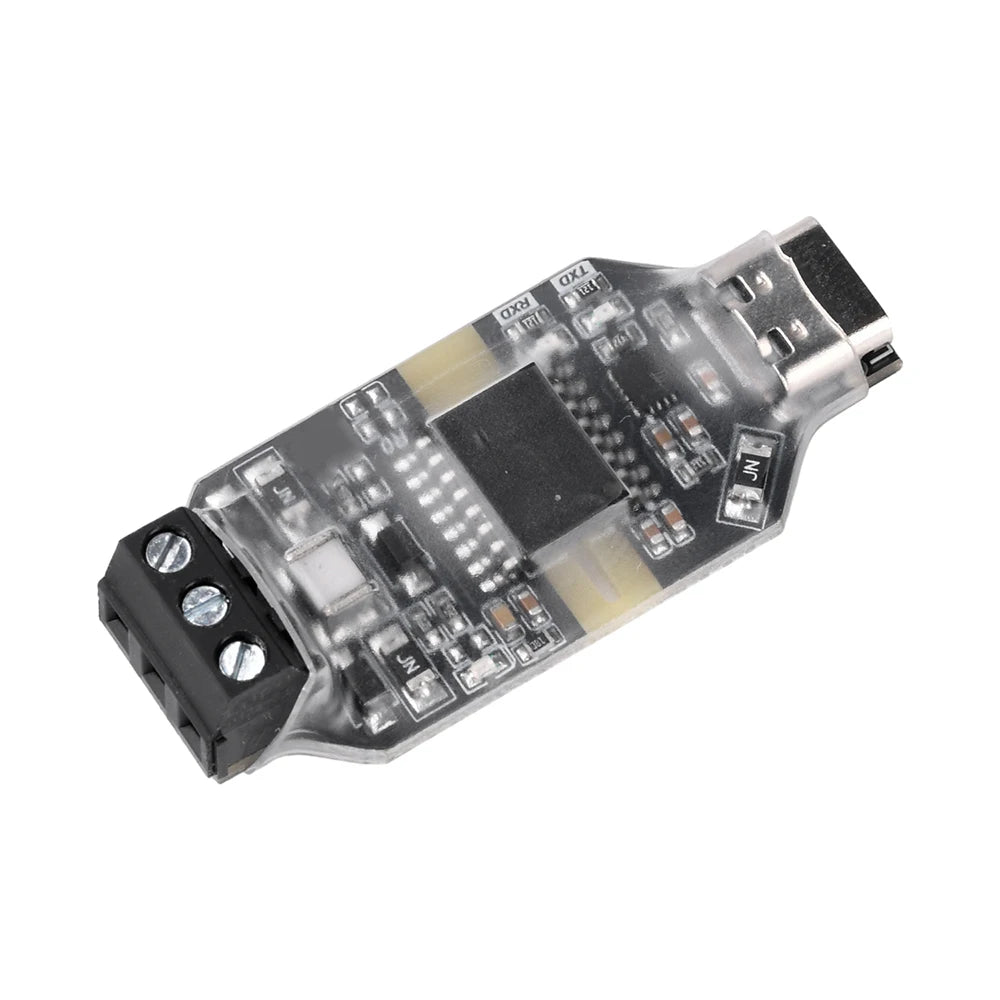

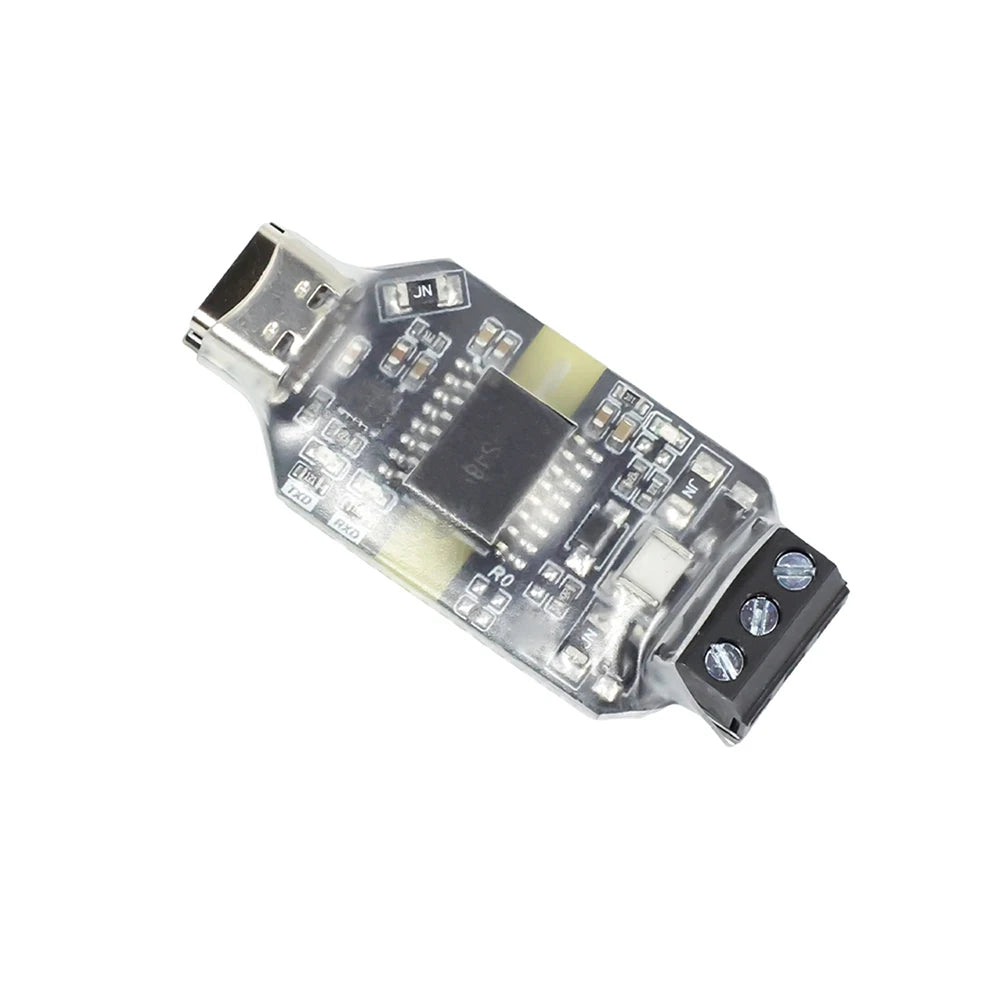

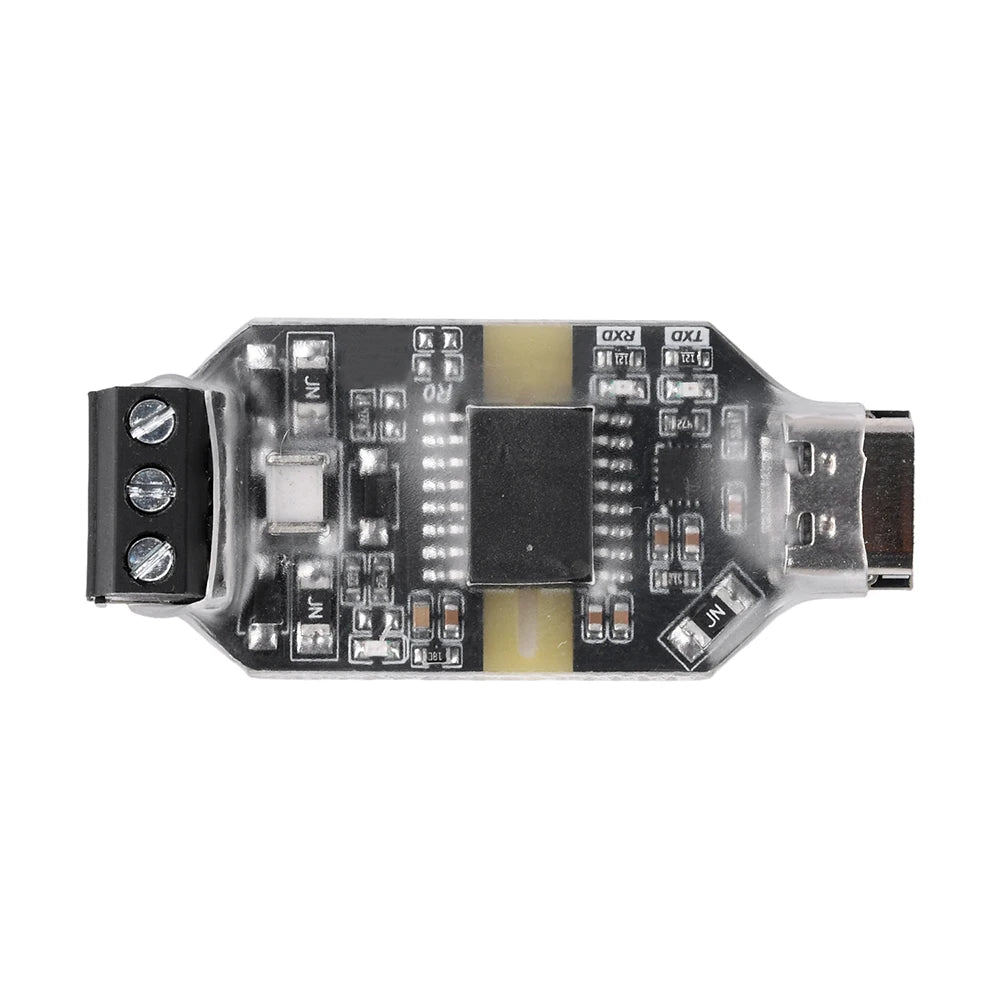

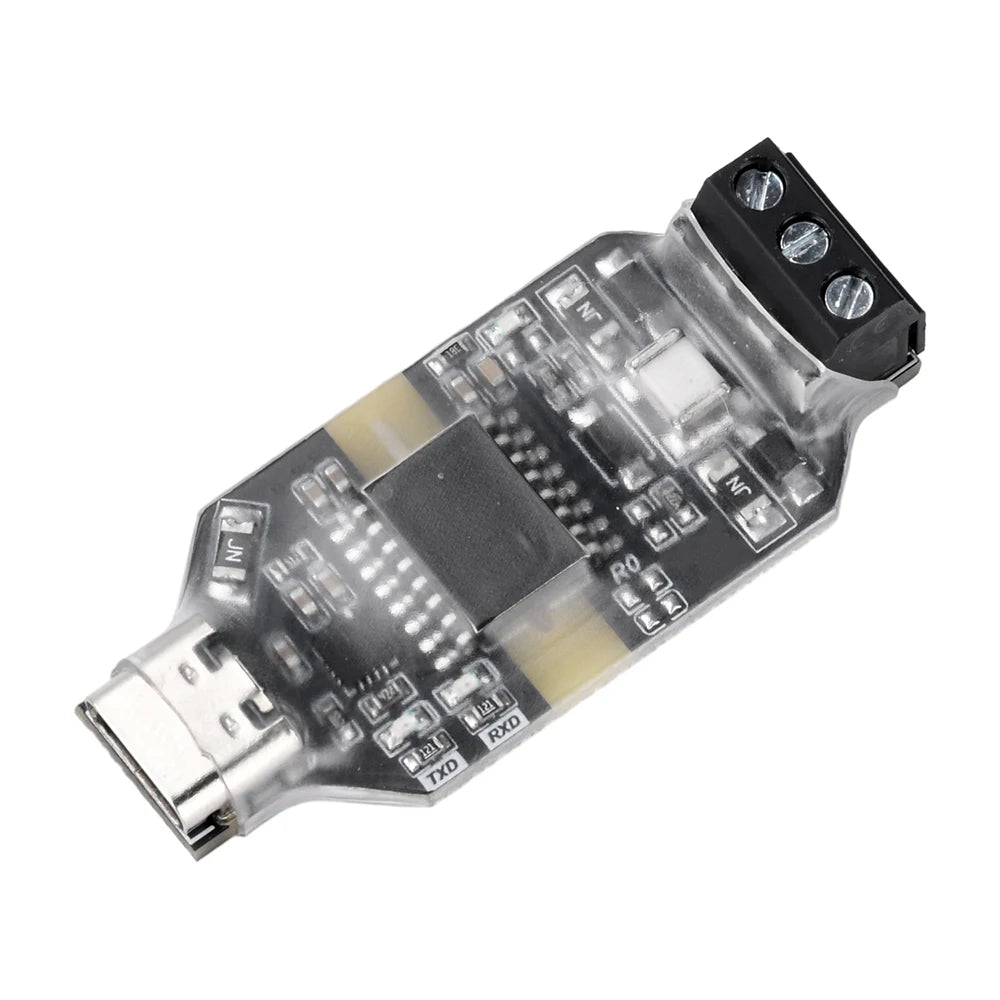

7. Set transparent heat shrink tubing, with good insulation effect, dust-proof and moisture-proof, and clear and visible indicator lights

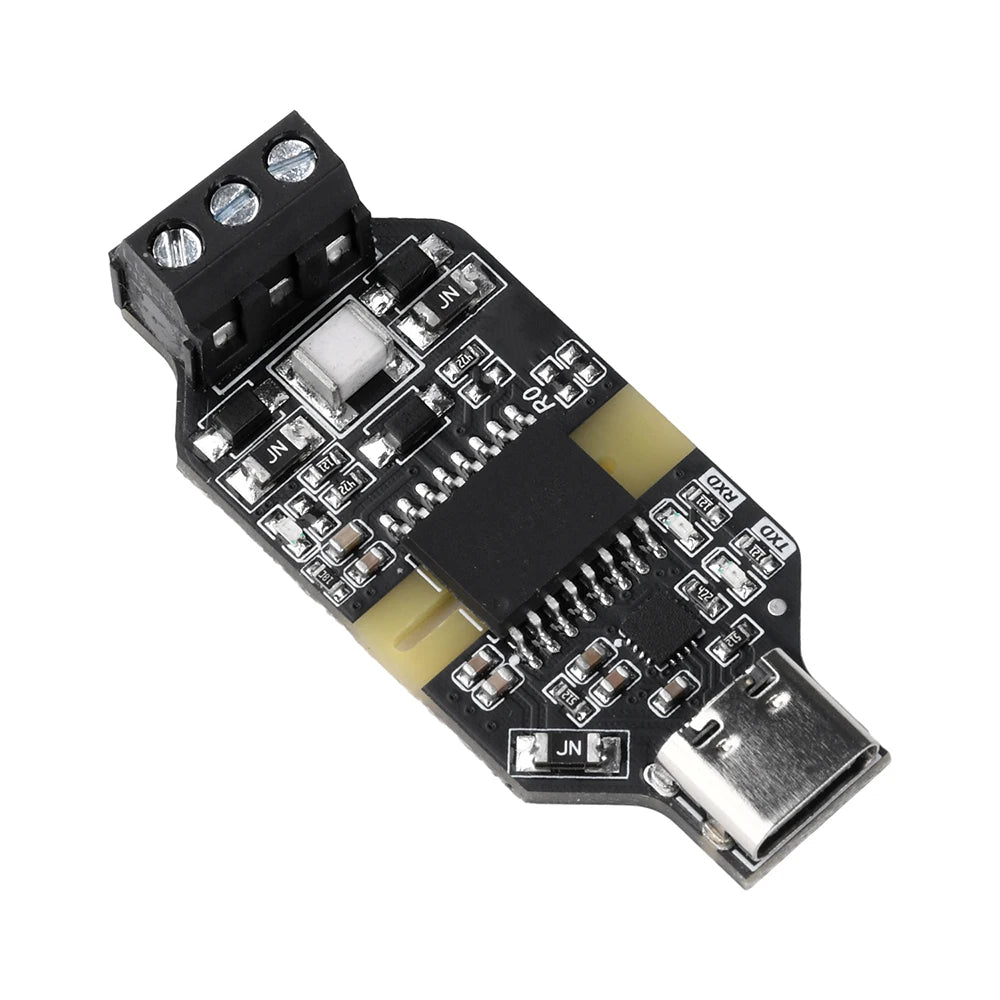

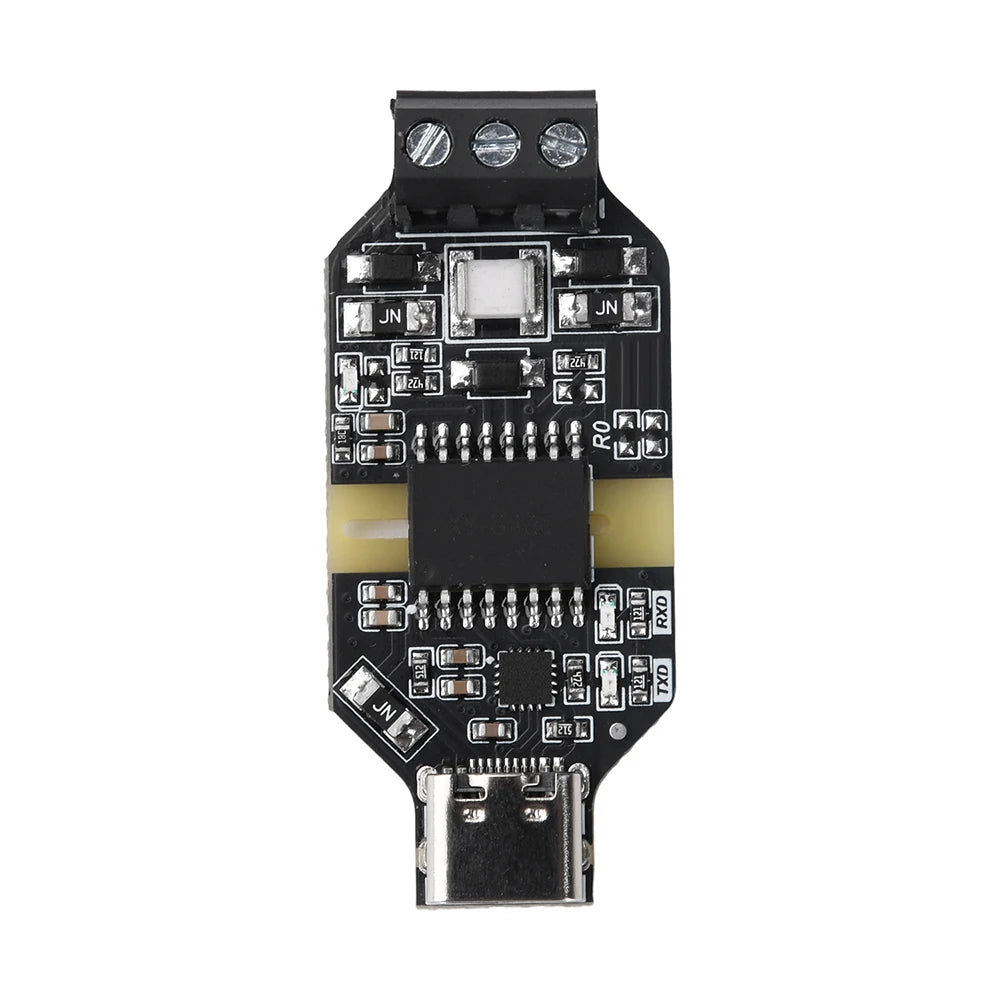

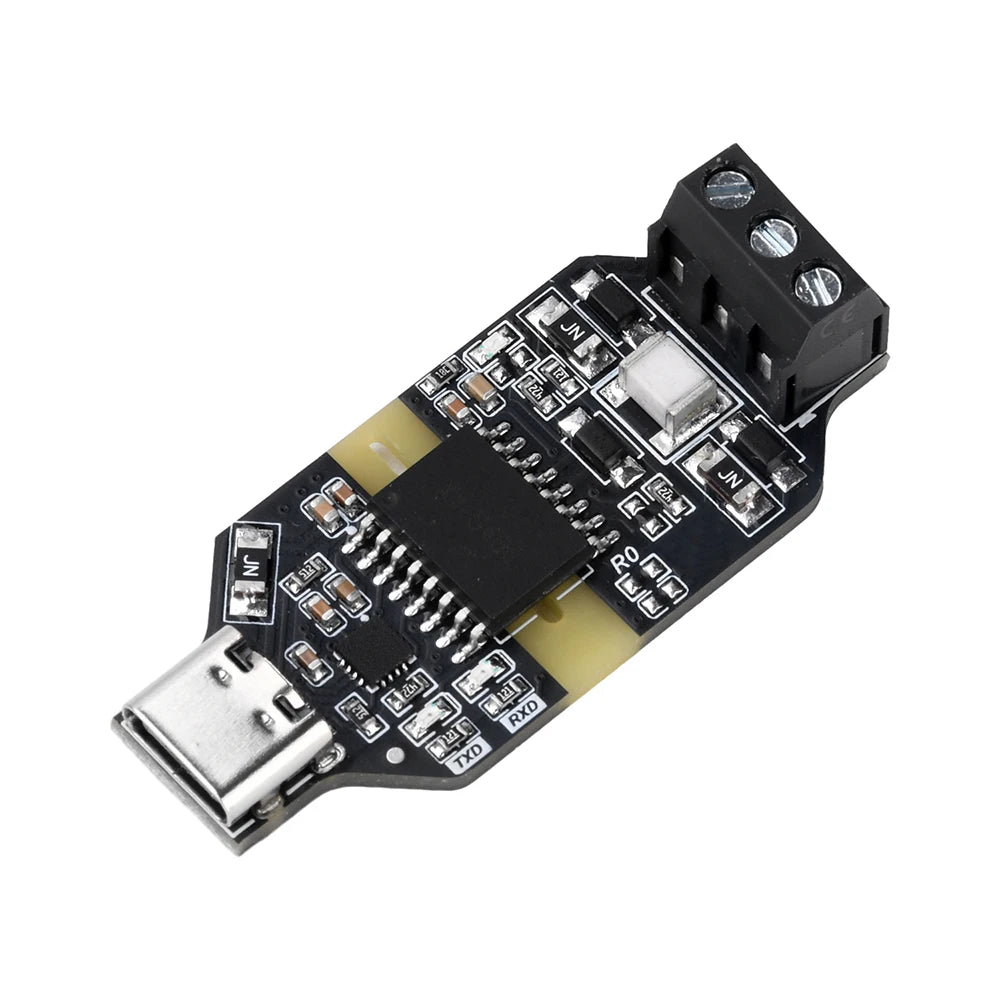

Product Introduction:

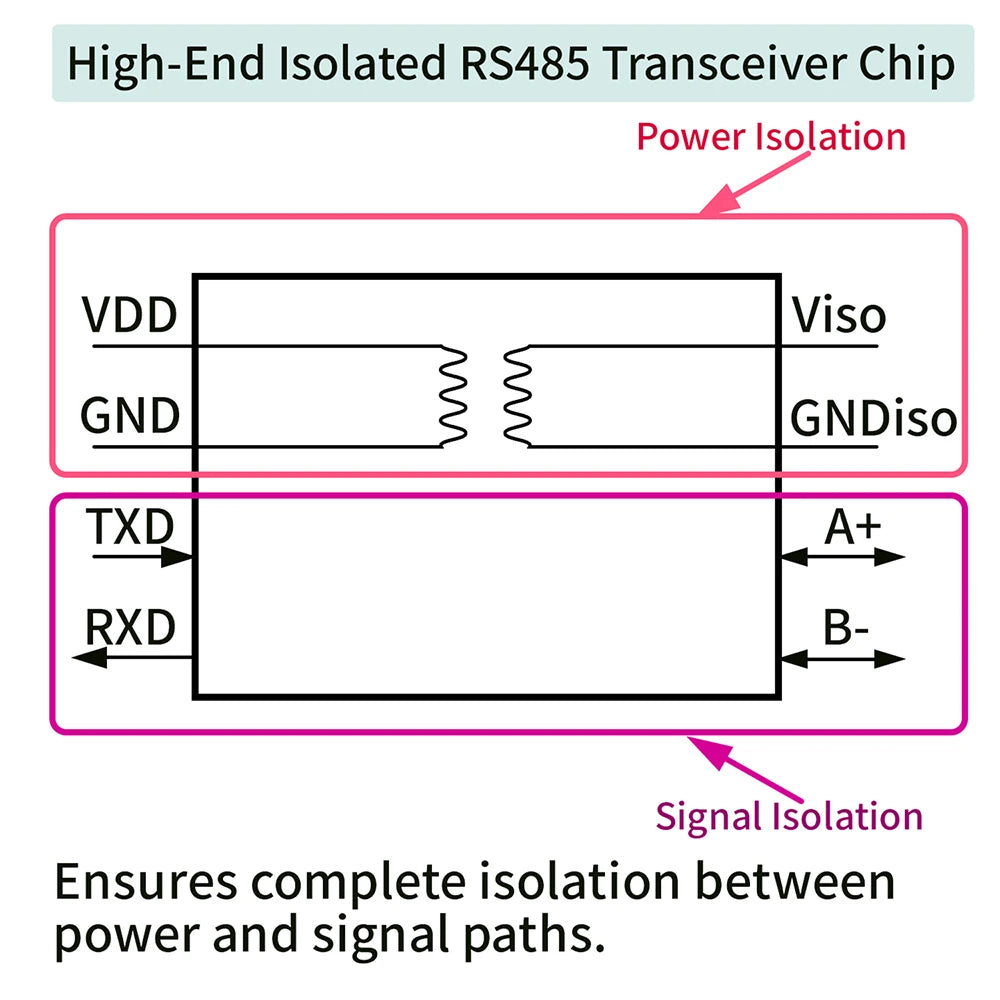

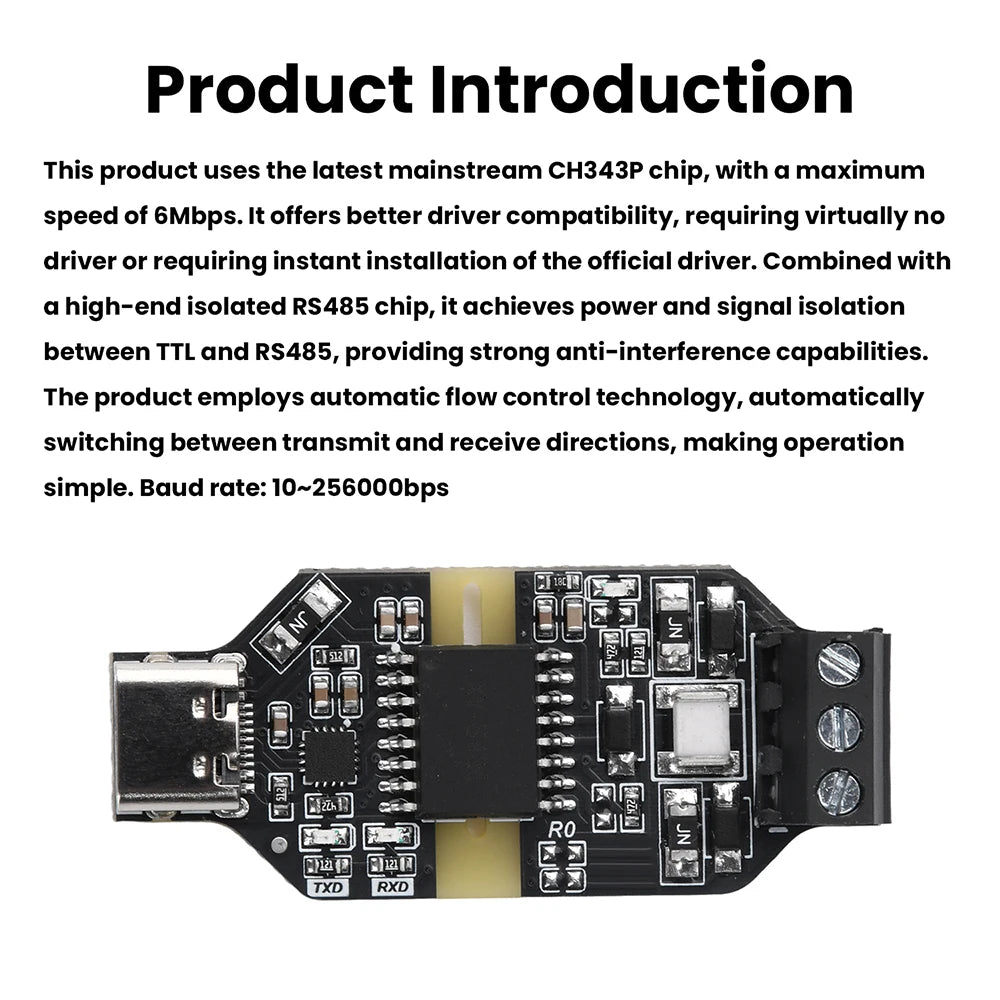

This product uses the latest mainstream CH343P chip, with a maximum speed of 6Mbps and better driver compatibility. It is basically driver free or official driver installed in seconds, and is equipped with a high-end isolated RS485 chip to achieve power and signal isolation between TTL and RS485, with strong anti-interference ability. The product adopts automatic flow control technology, with automatic switching of sending and receiving directions and simple operation. Baud rate: 10~256000bps

Notes:

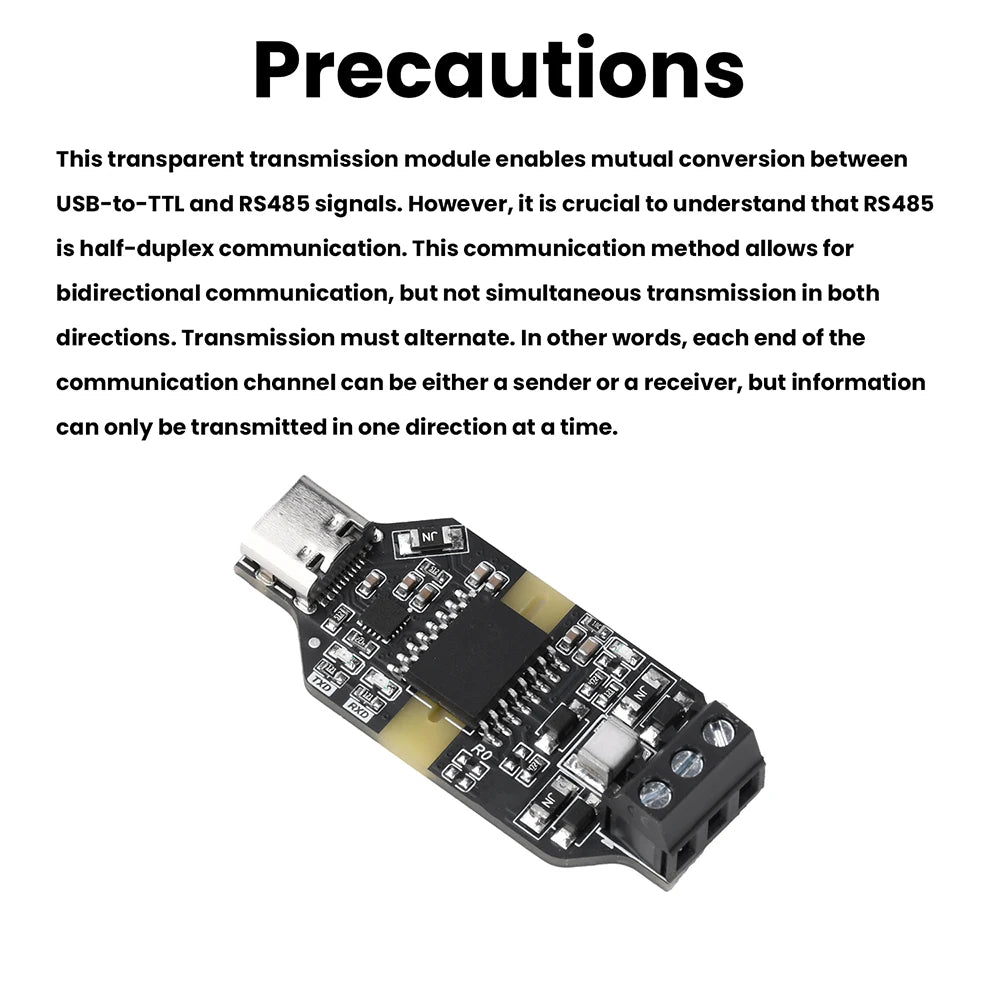

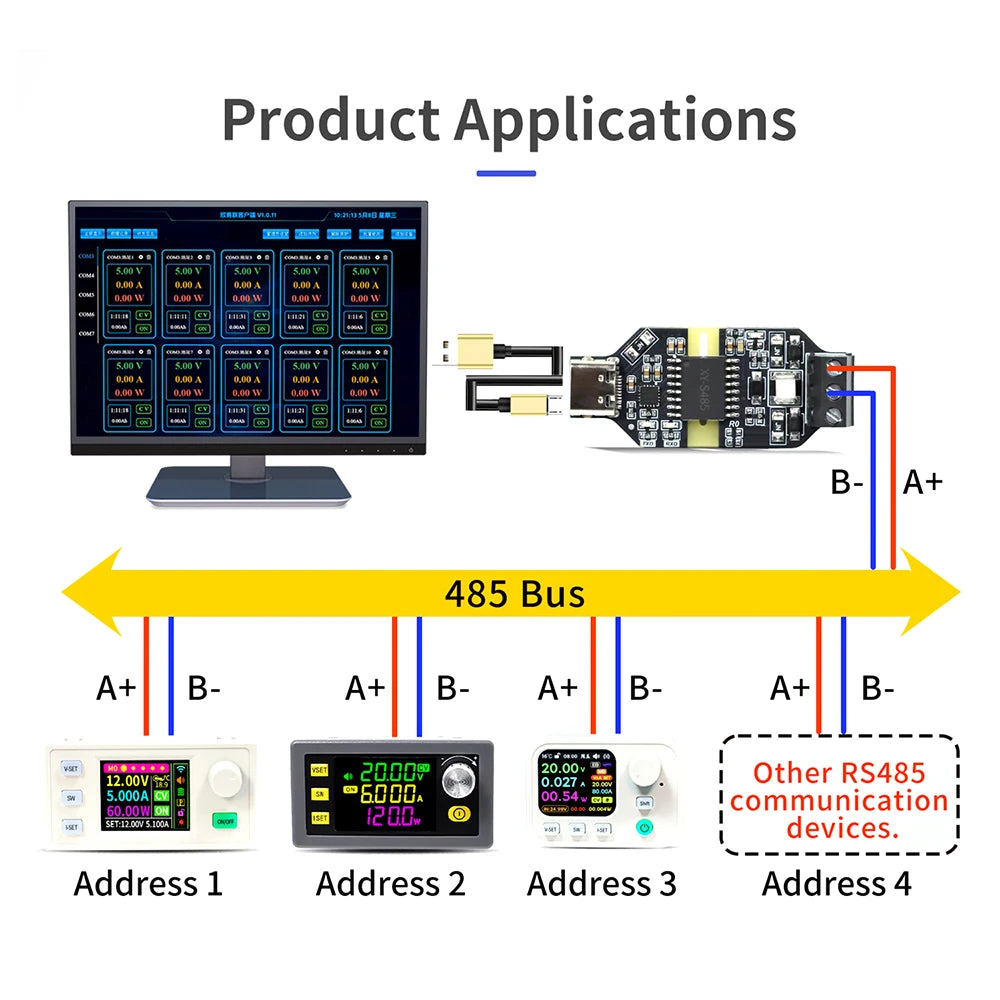

This transparent transmission module realizes the mutual conversion of USB to TTL signals and RS485 signals. However, everyone must know that 485 is a half duplex communication method, which can achieve bidirectional communication, but cannot be carried out in both directions at the same time. It must be alternately carried out. That is to say, each end of the communication channel can be the sending end or the receiving end, but at the same time, information can only have one transmission direction.

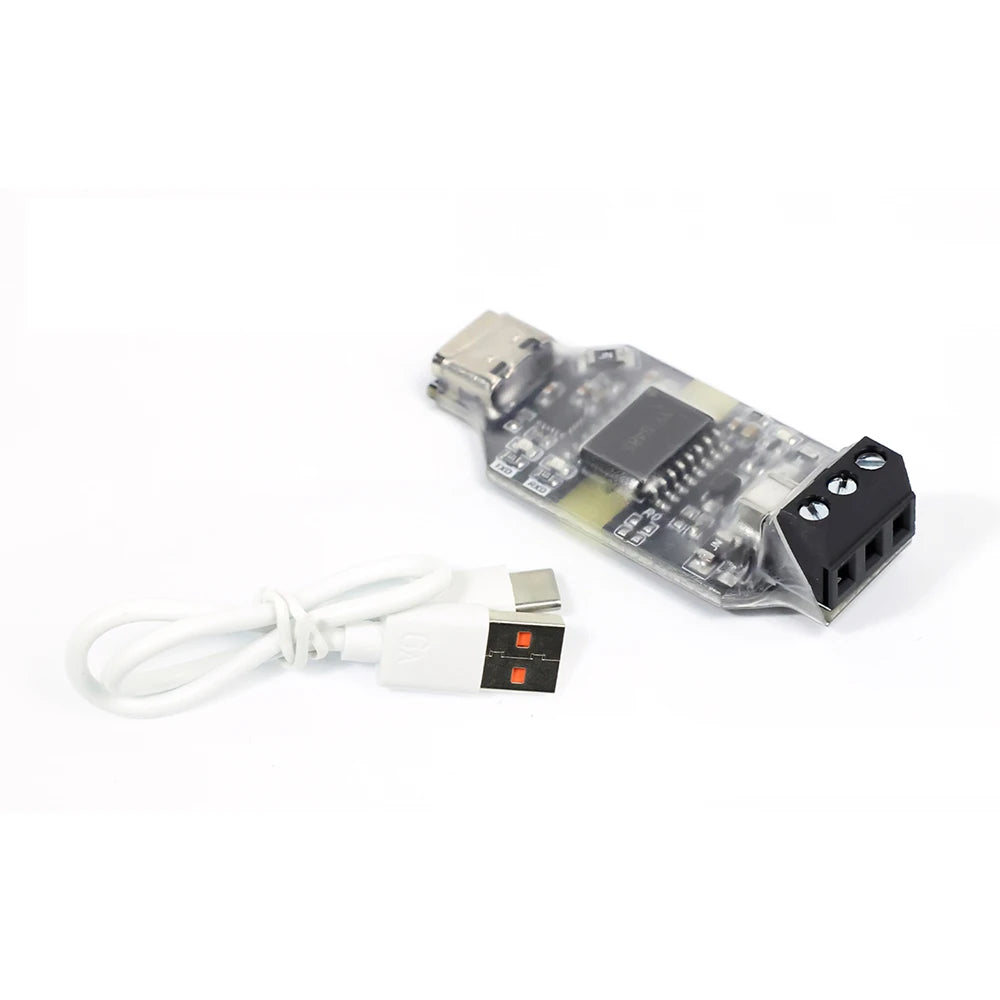

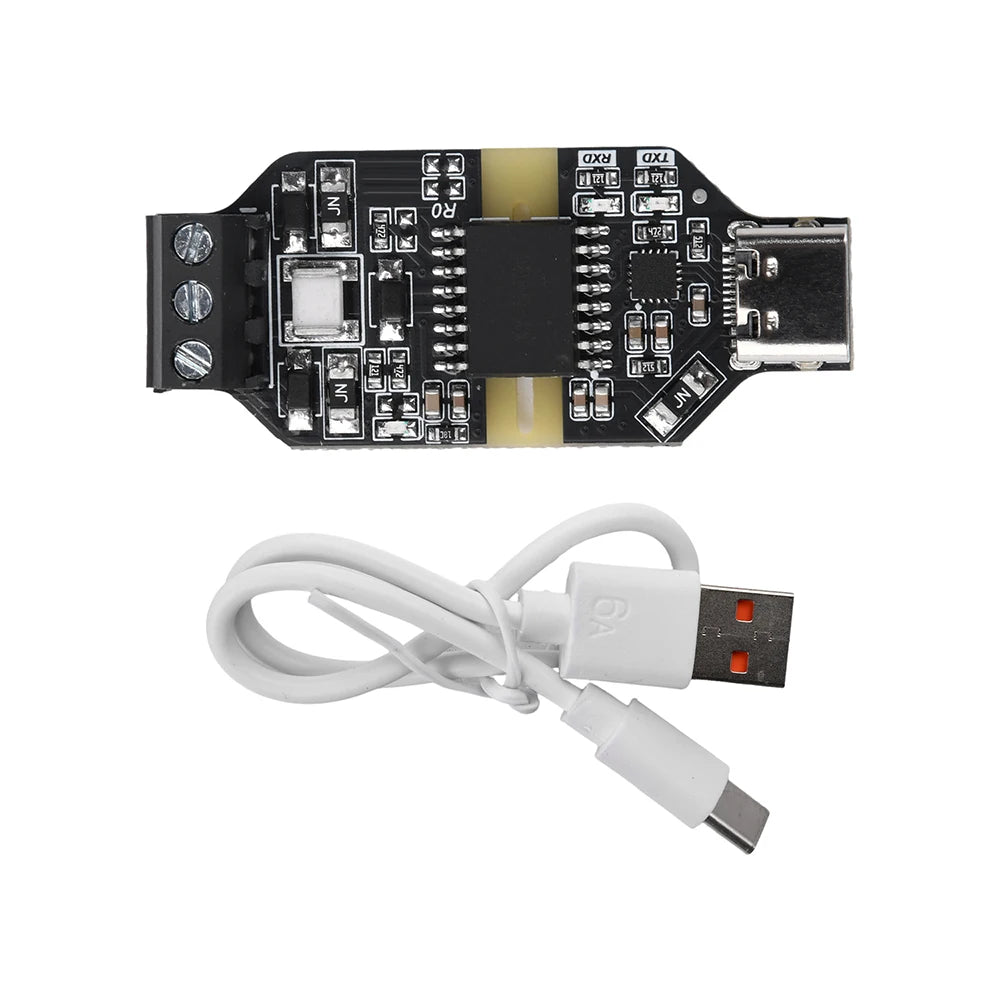

Package List:

Transparent transmission module * 1

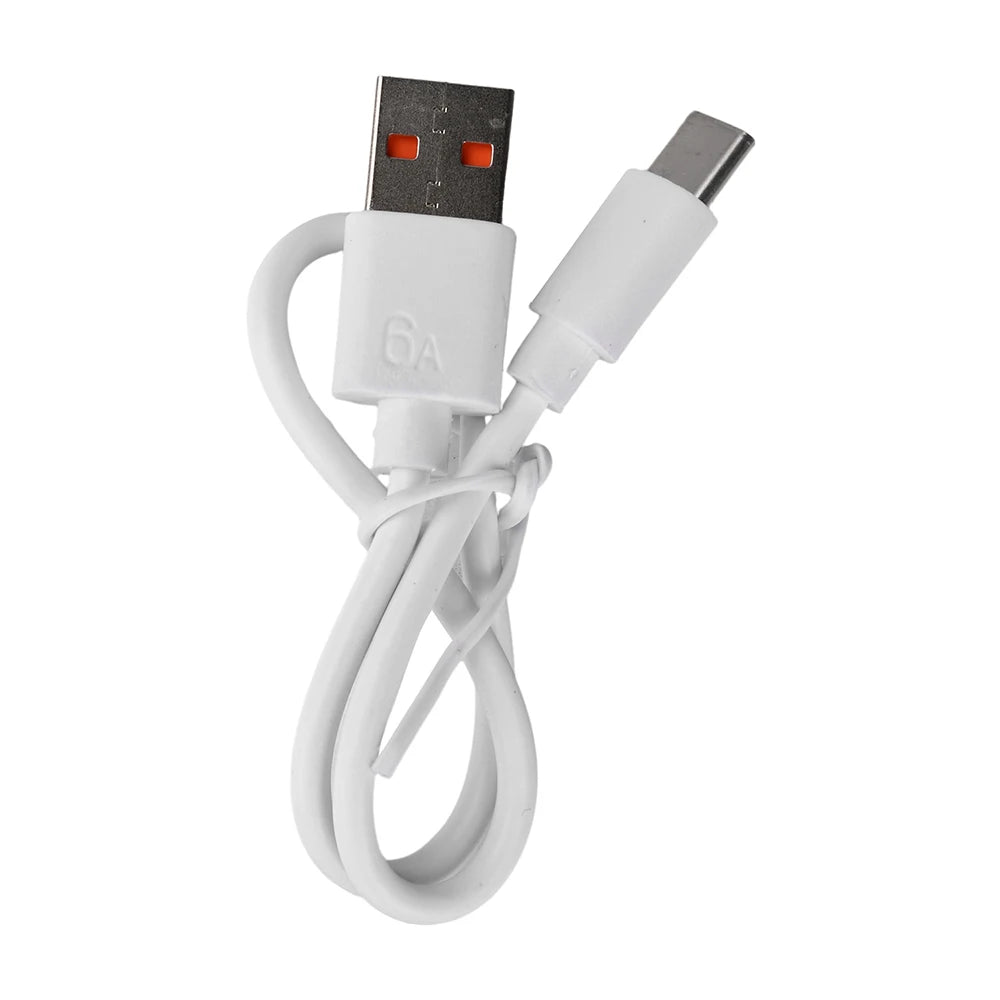

data cable*1
