SPECIFICATIONS

Brand Name: eletechsup

Certification: CE

Choice: yes

High-concerned chemical: none

Model Number: DDIS12TD

Origin: Mainland China

Output Current: 1.3A

Output Frequency: DC-DC

Output Power: 1 - 50W

Output Type: SINGLE

Size: 49 x 26 x 12mm

Type: DC/DC Converters

Weight: 18g

is_customized: Yes

semi_Choice: yes

Product Name : High Voltage Isolated DC 24V 36V 48V 60V 72V TO 12V DC-DC Buck Converter Voltage Stabilizing Module Power Isolation Protection

Packing list:

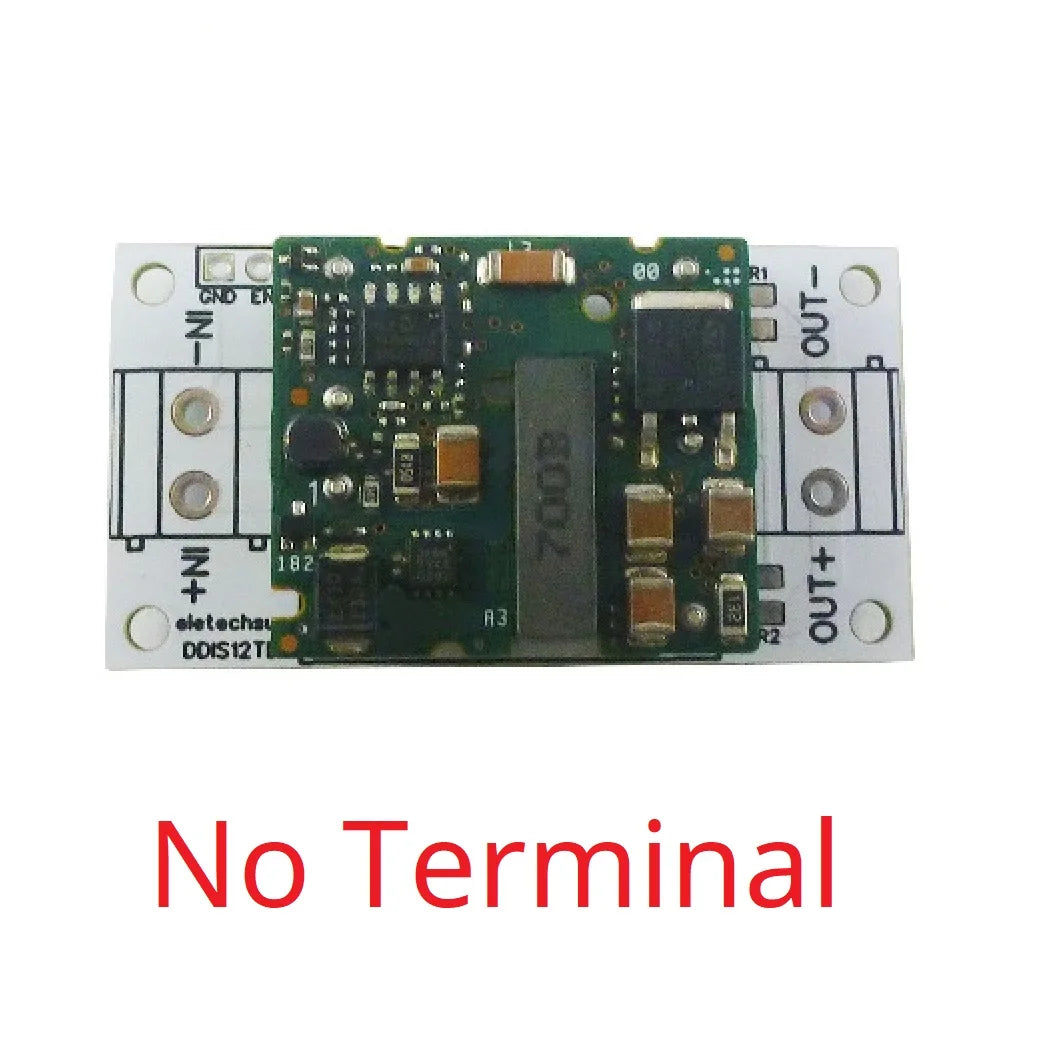

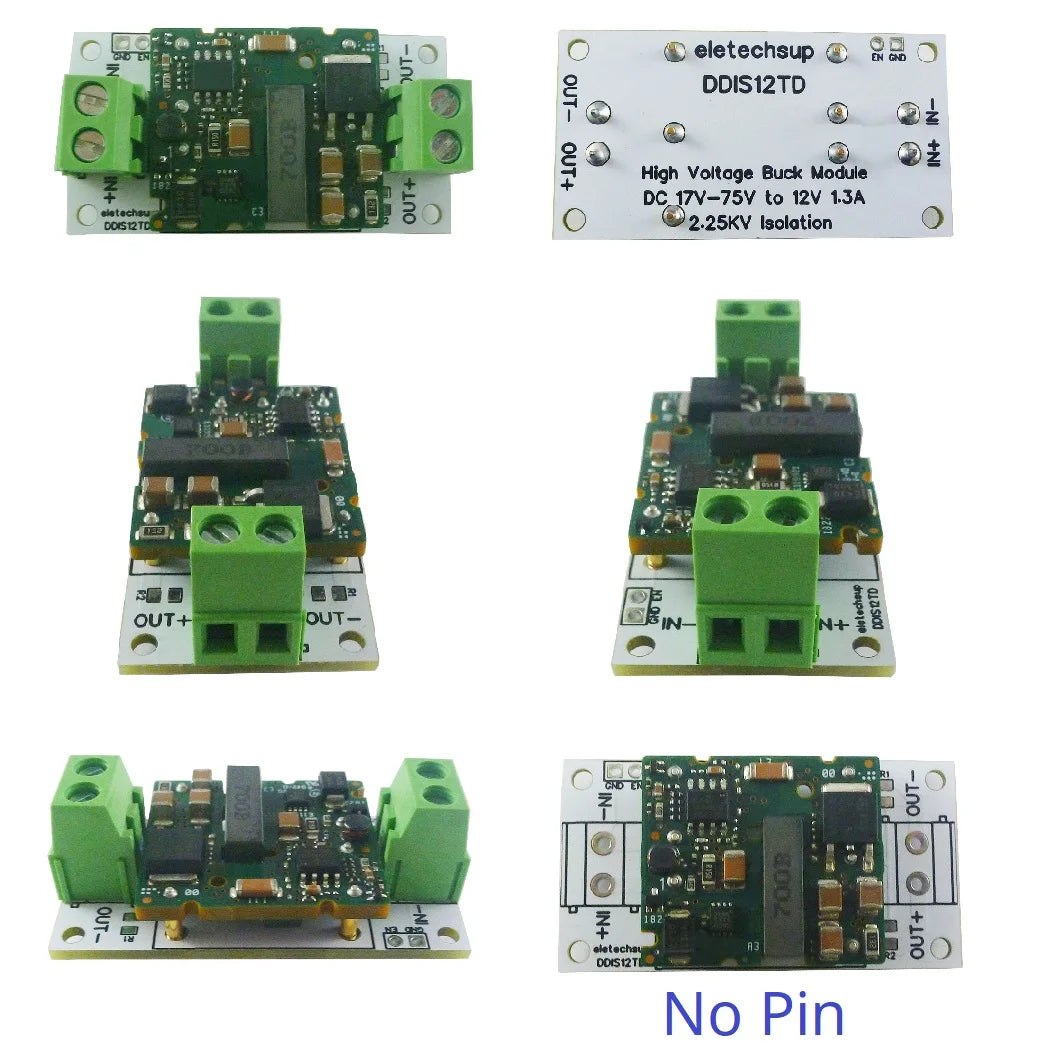

1PCS DDIS12TD Input DC 18-75V Isolated Output DC 12V 1.3A DC-DC step-down module

Description:

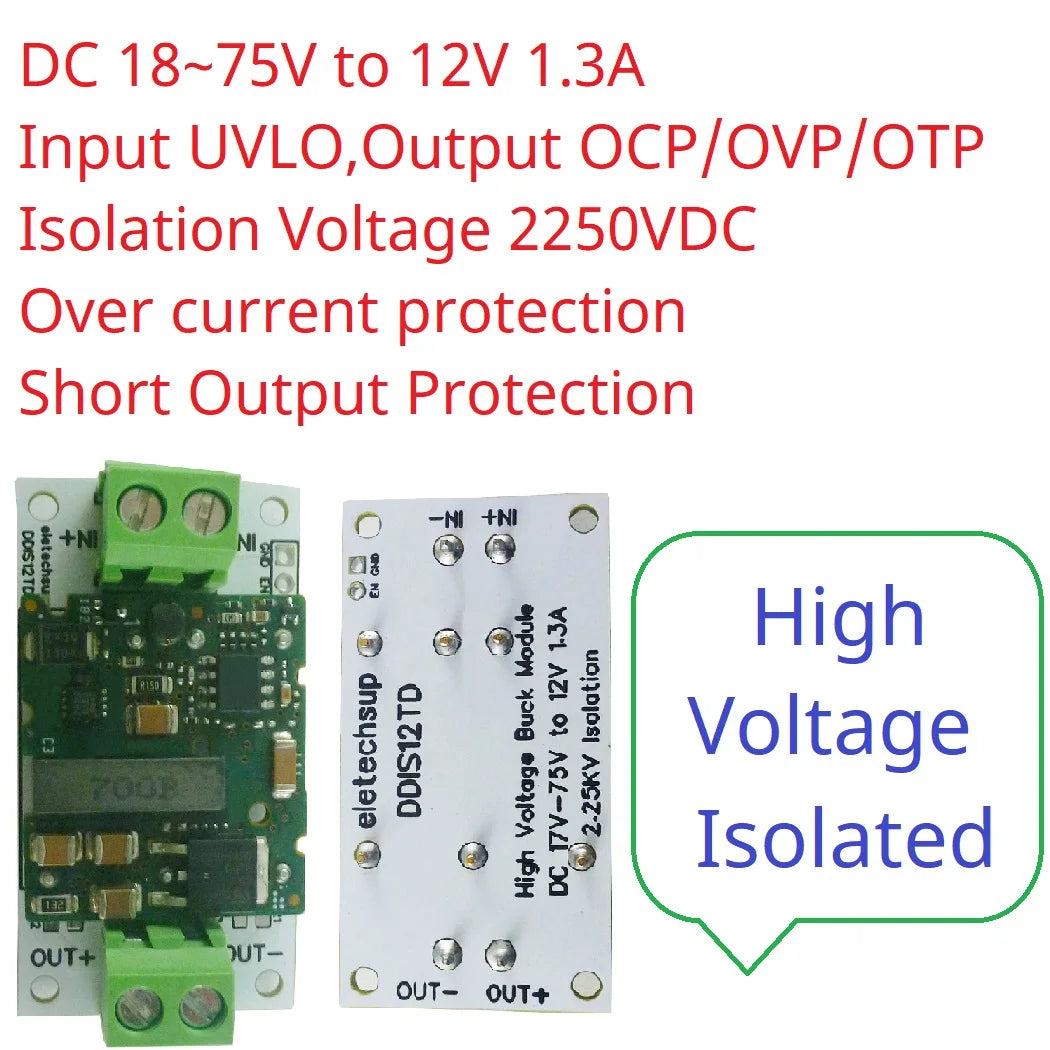

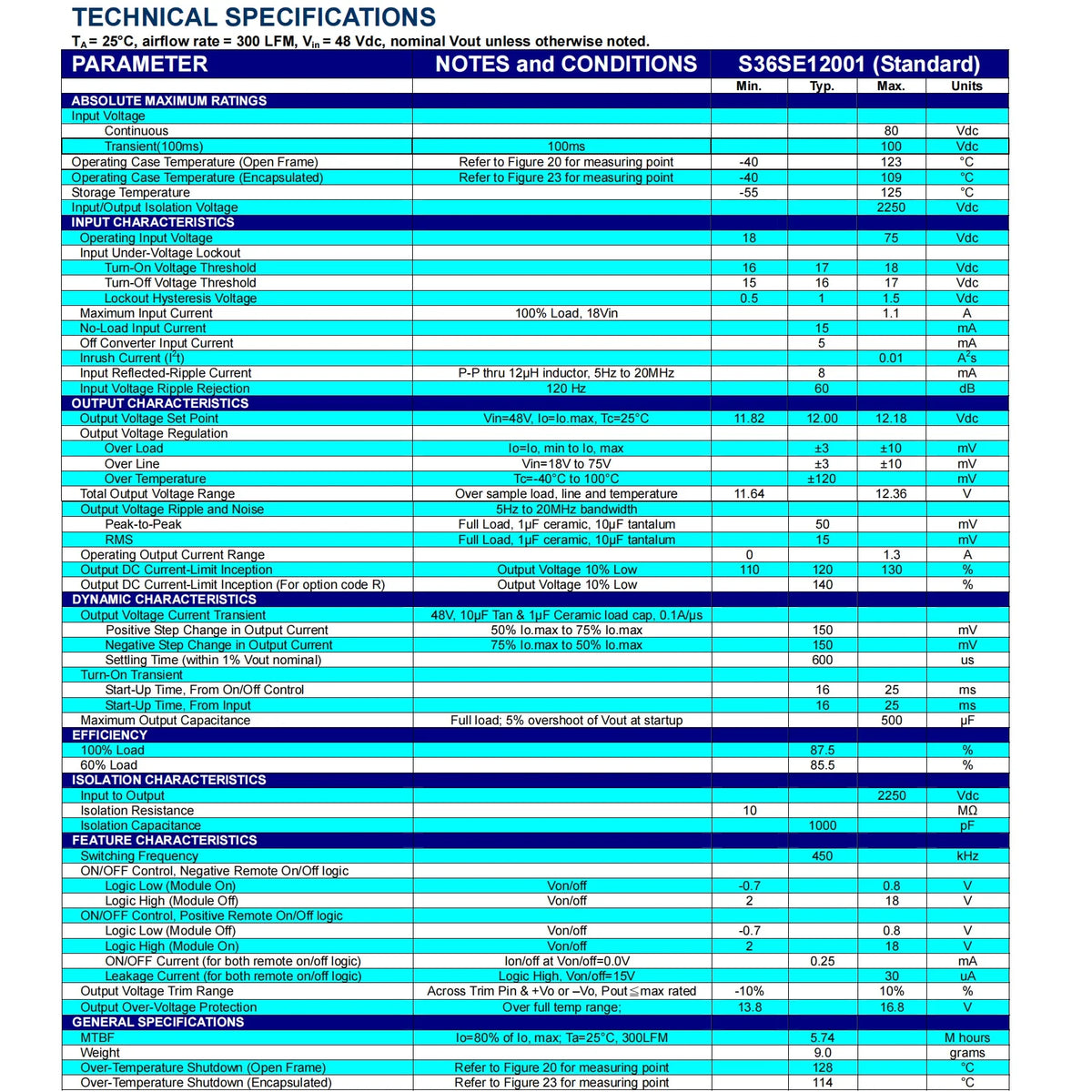

DC 18~75V Wide Voltage Input
DC 12V/1.3A isolated output
Switching Frequency 450 kHZ
High efficiency : 87% @ 12V/1.3A
Input UVLO,Output OCP/OVP/OTP
The output voltage can be fine-tuned from 10.8-13.2V
2250V isolation and basic insulation
No minimum load required
Operating Temperature :–40°C to +105°C

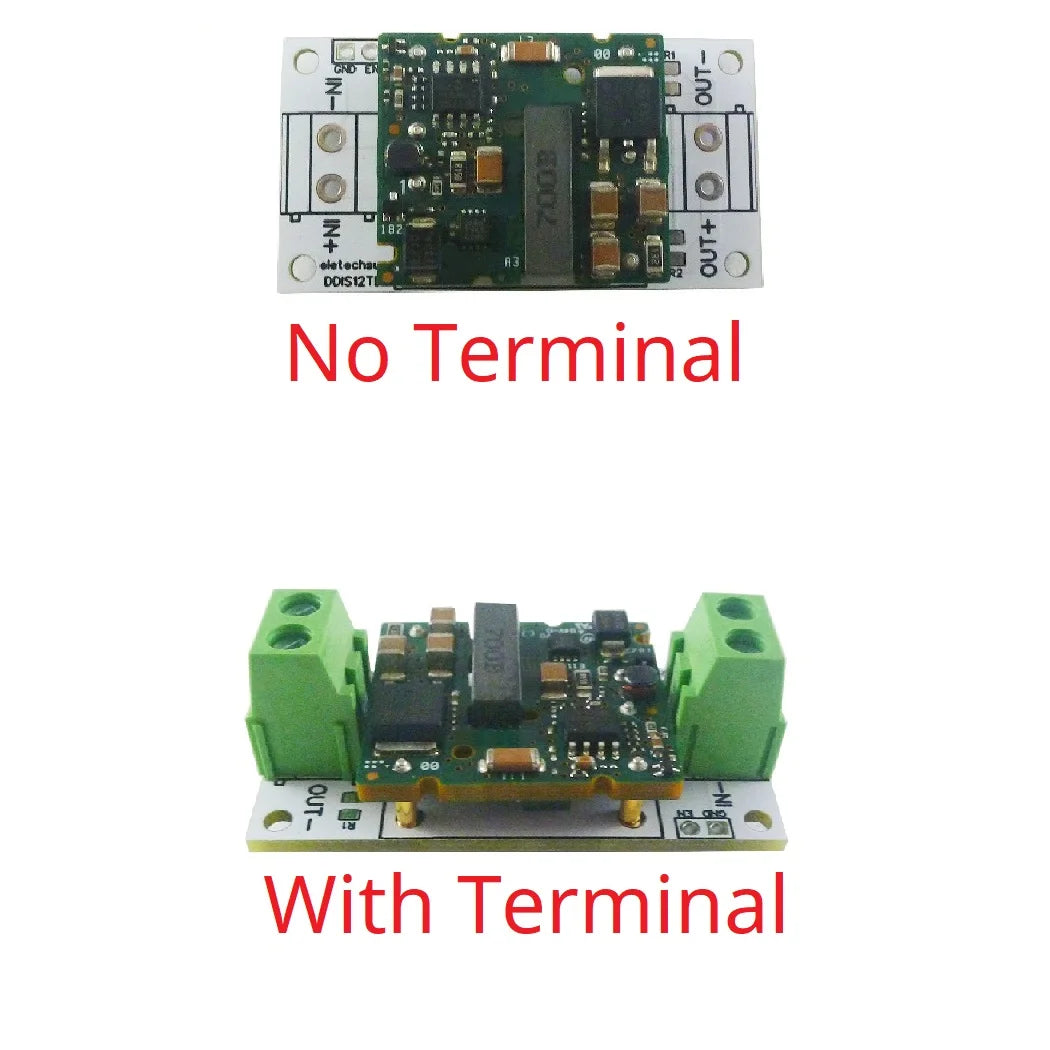

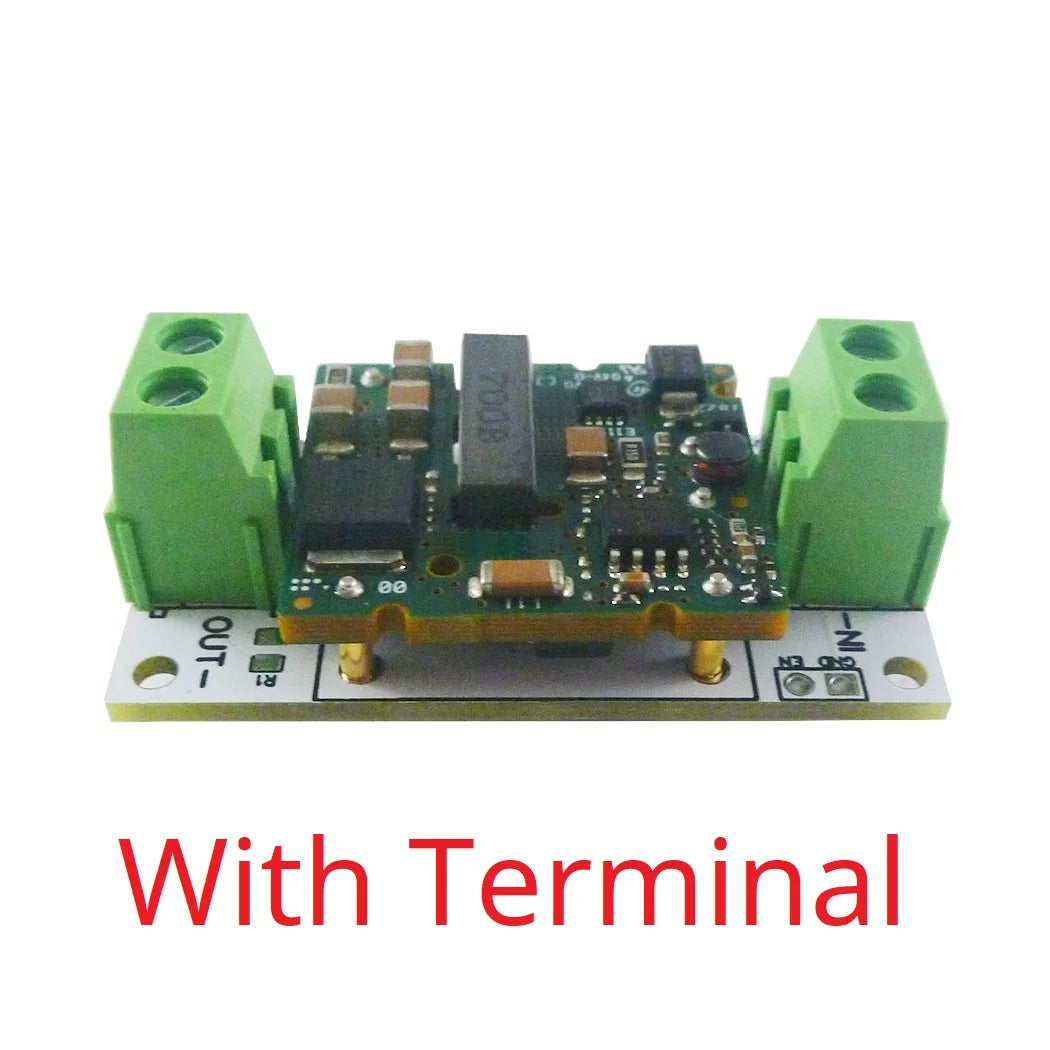

Size : 49 x 26 x 12mm(No Terminal) ,49 x 26 x 16mm(With Terminal)
Weight : 13.5g(No Terminal),18g(With Terminal)

Applications:

for Solar cells, solar panels
for RVs, bed cars, travel cars
for Electric bicycle /battery car
for Lead acid battery charging
UPS power supply equipment diy

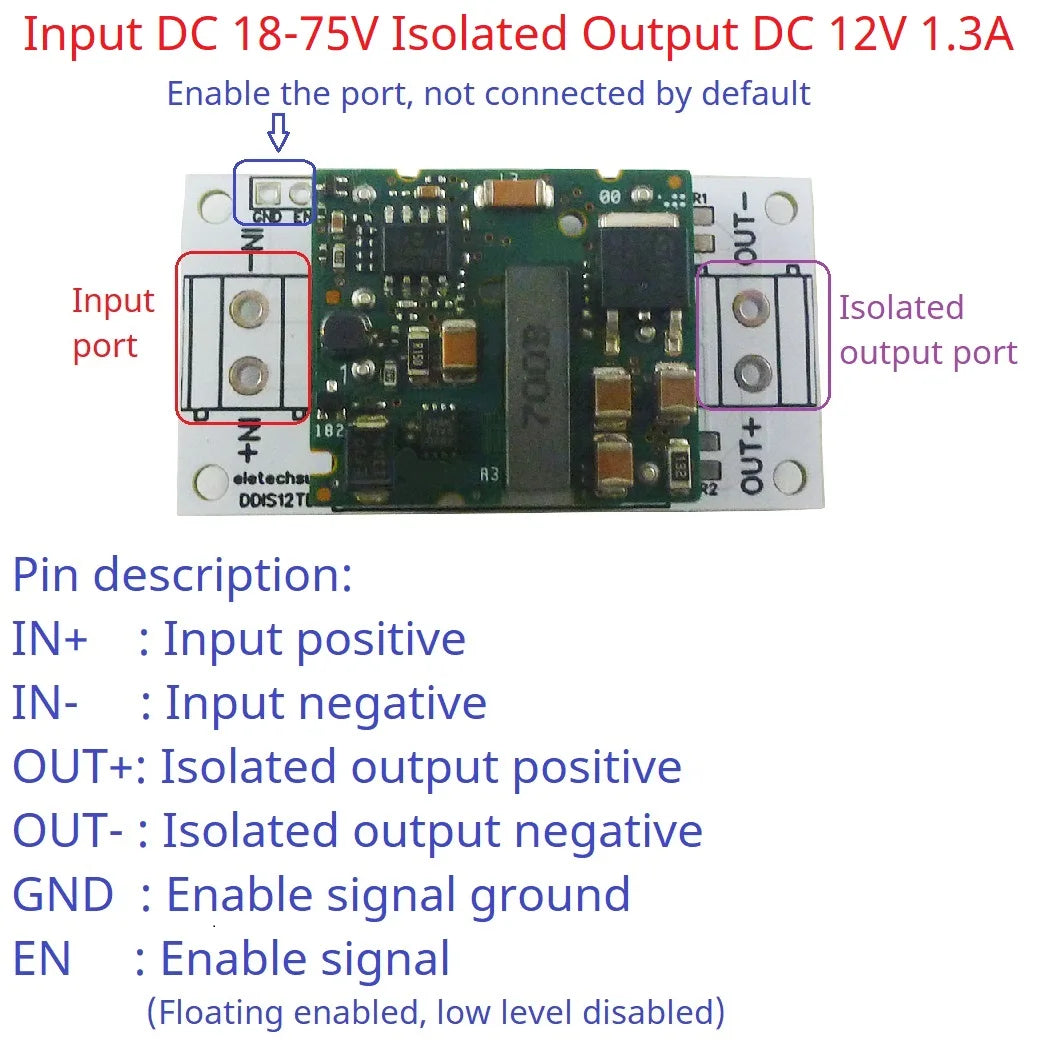

Pin description:
IN+ : Input positive
IN- : Input negative
OUT+: Isolated output positive
OUT-: Isolated output negative
GND : Enable signal ground

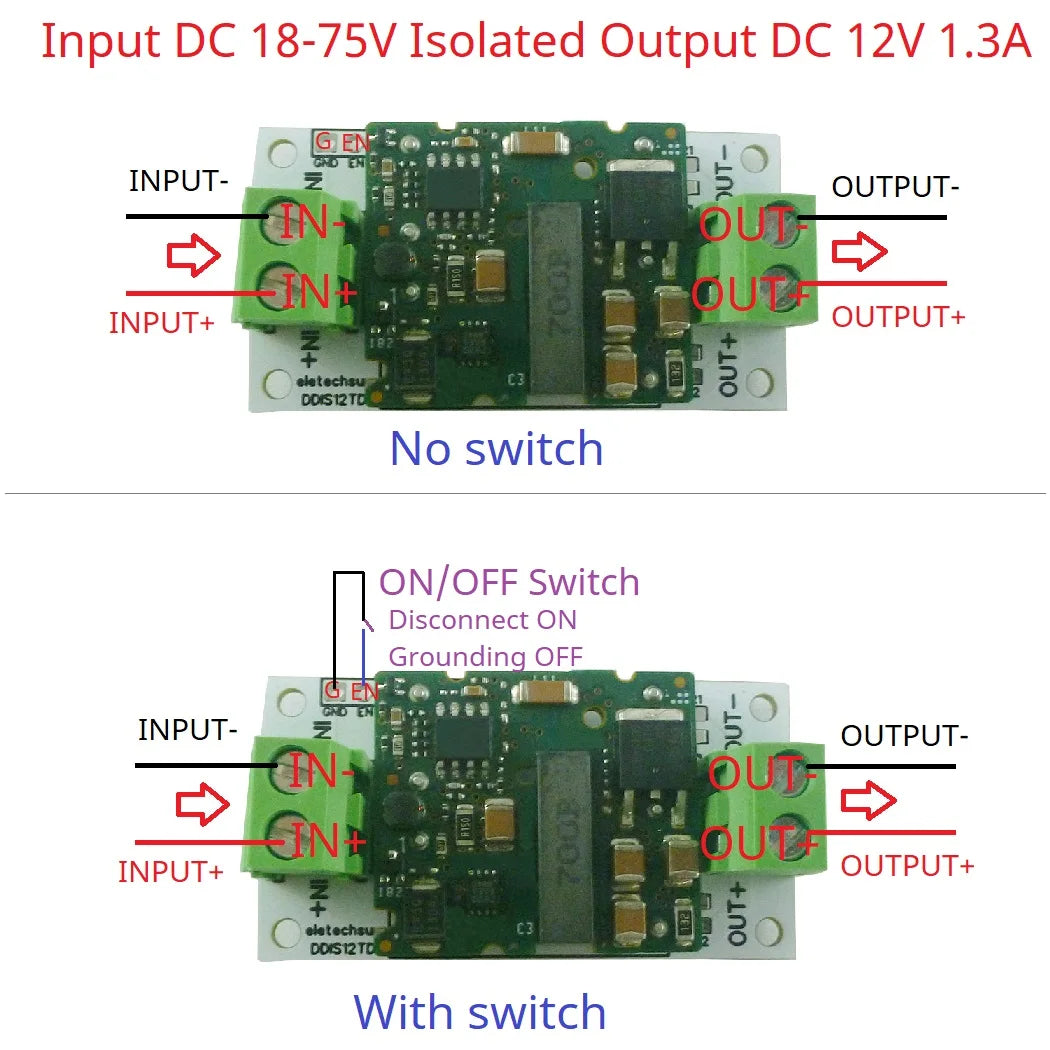

EN : Enable signal(Floating enabled, low level disabled)

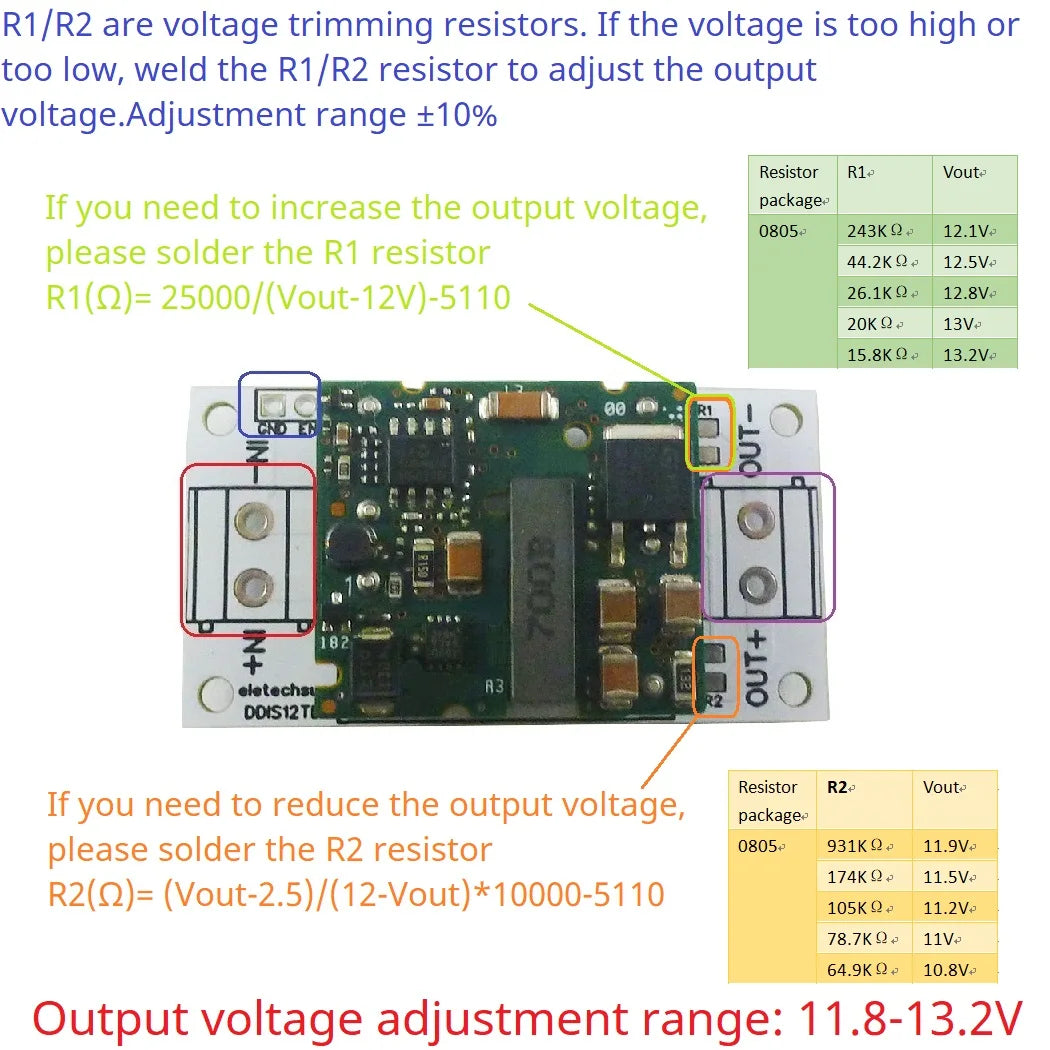

R1/R2 are voltage trimming resistors. If the voltage is too high or too low, weld the R1/R2 resistor to adjust the output voltage.Adjustment range ±10%

If you need to increase the output voltage, please solder the R1 resistor
R1(Ω)= 25000/(Vout-12V)-5110

If you need to reduce the output voltage, please solder the R2 resistor
R2(Ω)= (Vout-2.5)/(12-Vout)*10000-5110
