HLK-5M03 HLK-5M05 HLK-5M09 HLK-5M12 10pcs/lot 5W ACDC 220V to 5V Buck Step Down Power Supply Module Converter Intelligent

HLK-5M03 HLK-5M05 HLK-5M09 HLK-5M12 10pcs/lot 5W ACDC 220V to 5V Buck Step Down Power Supply Module Converter Intelligent

$98.16

$98.16 $0.00

Color HLK-5M15 HLK-5M12 HLK-5M09 HLK-5M05 HLK-5M24 HLK-5M03

Current10 PCS

Description

SPECIFICATIONS

Accessory Type: Battery Accessories

Battery Included: no

Brand Name: bibikoo

Charger included: N

Electronic: no

High-concerned chemical: none

Model Number: HLK-5M03

Origin: Mainland China

PCBincluded: Yes

Reusability: Reusable

Voltage range: USB (5-20V DC)

Shenzhen Hi-Link Electronic Co., Ltd.

If you need samples, please place order here, we will ship to you soon.

If you need more quantity, welcome to contact us directly, we will provide you best price and best shipping method to you.

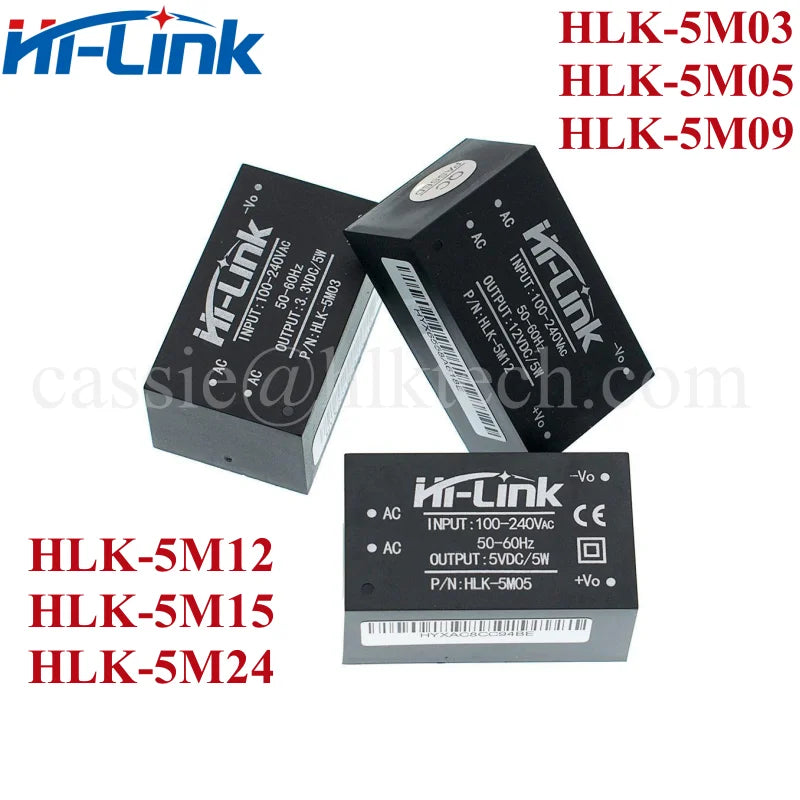

HLK-5M03/5M05/5M09/5M12/5M15/5M24

Product Introduction

The 5W ultra-small series module power supply is a small-volume, high-efficiency AC DC power odule supply designed by Shenzhen Hi-Link Electronics Co.,Ltd. It has the advantages of global input voltage range, low temperature rise, low power consumption,high efficiency, high reliability and high safety isolation. It has been widely used in smart home, automation control, communications equipment, instrumentation and other industries.

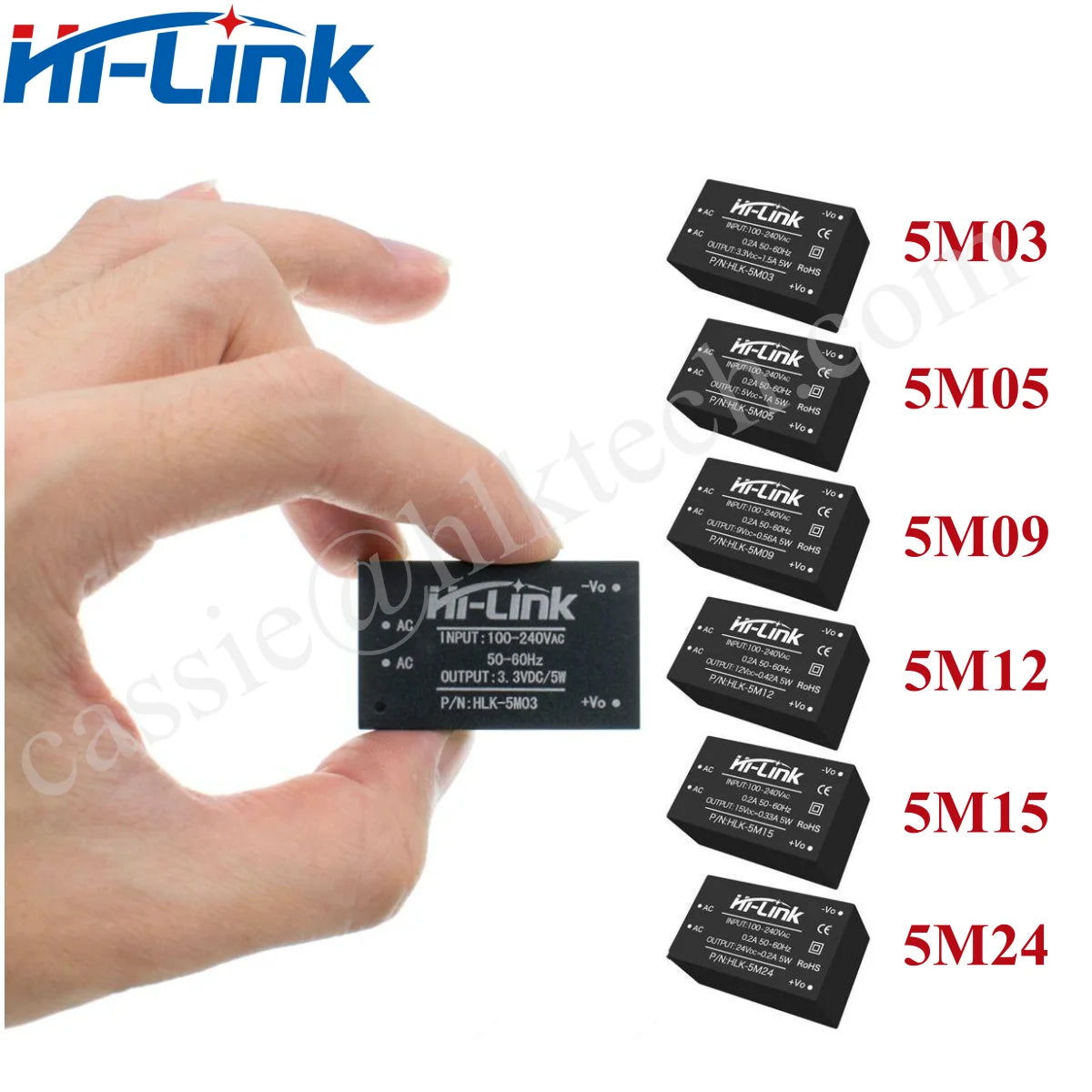

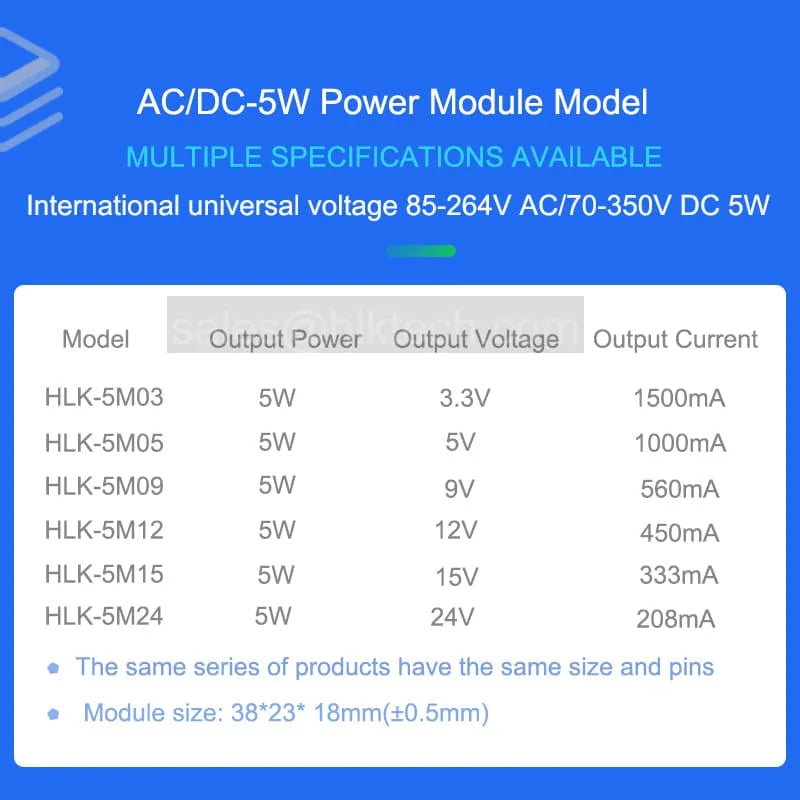

Product Model

MODEL	Size (mm)	Output watt (W)	Output voltage (V)	Output current (mA)	Notes
HLK-5M03	382318	5	3.3	1500
HLK-5M05			5	1000
HLK-5M09			9	560
HLK-5M12			12	450
HLK-5M15			15	333
HLK-5M24			24	208

Product features

Ultra-thin, ultra-small, smallest volume;
Global universal input voltage（85~265Vac）
Low power consumption, green environmental protection, no-load loss<0.1W
Low ripple, low noise
High output short circuit and over-current protection and self recovery
High efficiency, high power density
Input and output isolation voltage 3000Vac
100% full load aging and testing
High reliability, long life design, continuous working time is greater than 100,000 hours;
Meet UL, CE requirements; product design to meet EMC and safety testing requirement;
Using high-quality environmentally friendly waterproof plastic potting, moisture, vibration, water and dust to meet IP65 standards
Economic solutions, cost-effective
Work without external circuit
1 year quality guarantee period

Environmental conditions

Items	TechnicalParameters	Units	Notes
Working temperature	-25—+60	℃
Storage temperature	-40—+80	℃
Relative humidity	5—95	%
Thermal methods	Natural cooling
Atmospheric pressure	80—106	Kpa
Altitude	≤2000	m
Vibration	Vibration coefficient 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes		Meets requirements for secondary road transportation

Output features (15V/333mA)

Items	Technical Parameters	Units	Notes
No-load rated output voltage	15.0±0.1	Vdc
Full load rated output voltage	15.0±0.2	Vdc
Short-time maximum output current	≥440	mA
Long time maximum output current	333	mA
Voltage regulation	±0.2	%
Load regulation	±0.5	%
Input low voltage efficiency	Vin=115Vac，Output full load≥69	%
Input high voltage efficiency	Vin=230Vac，Output full load≥70	%
Output ripple and noise(mVp-p)	≤120 Rated input voltage, full output load. Using 20MHz bandwidth oscilloscope, Load side and 10uF and 0.1uF capacitors are tested.	mV
Switching on/offovershoot amplitude	（Rated input voltage, output plus 10% load）≤5	%VO
Output over-current protection	Output maximum load110-150%	A
Output short circuit protection	Direct short circuit in normal output and automatic return to normal operation after removal of short circuit		No damage to the whole device

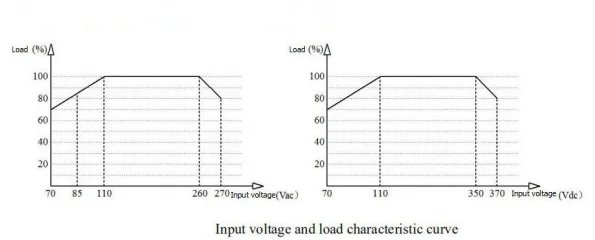

Input voltage and load characteristics

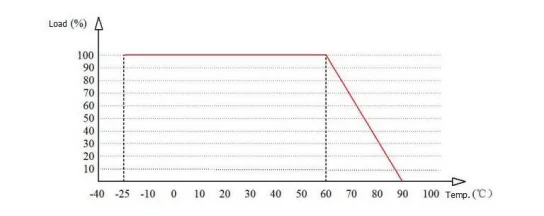

Working environment temperature and load characteristics

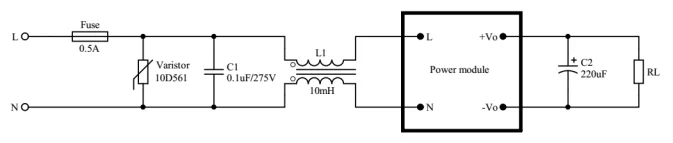

Typical application circuit

Safety and electromagnetic compatibility

The input design adopts UL listed 1A / 250Vac slow-blow fuse or 10Ω wire-wound resistor
The PCB board is made of double-sided copper clad foil, and the material fire resistance grade is 94-V0 grade
Safety standard meetsUL1012,EN60950,UL60950
Insulation voltage I/P-O/P:2500Vac
Insulation resistance I/P-O/P>100M Ohms/500Vdc25℃ 70% RH
Conduction and radiationmeet EN55011, EN55022 (CISPR22)
Electrostatic dischargeIEC/EN 61000-4-2 level 4 8kV/15kV
Radio frequency radiation immunity IEC/EN 61000-4-3

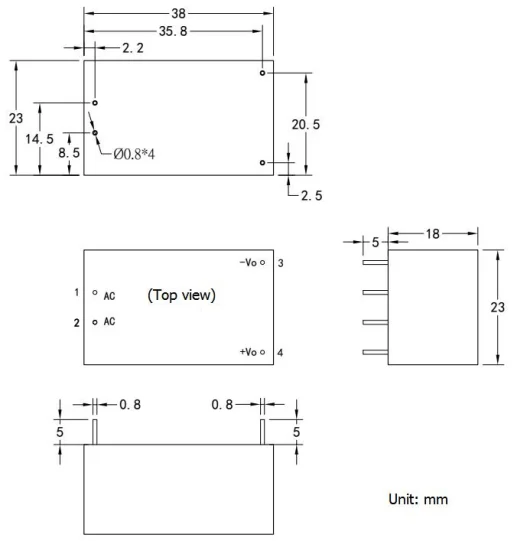

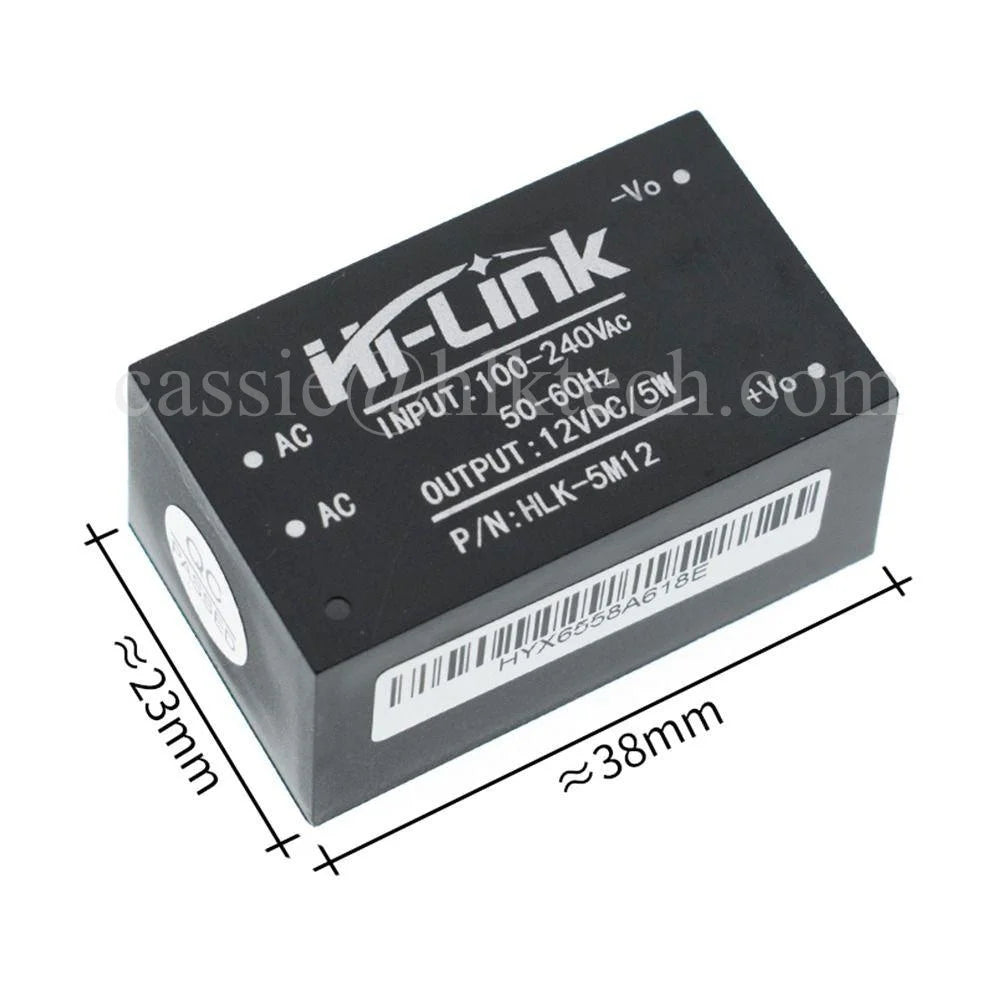

Dimensions and weight

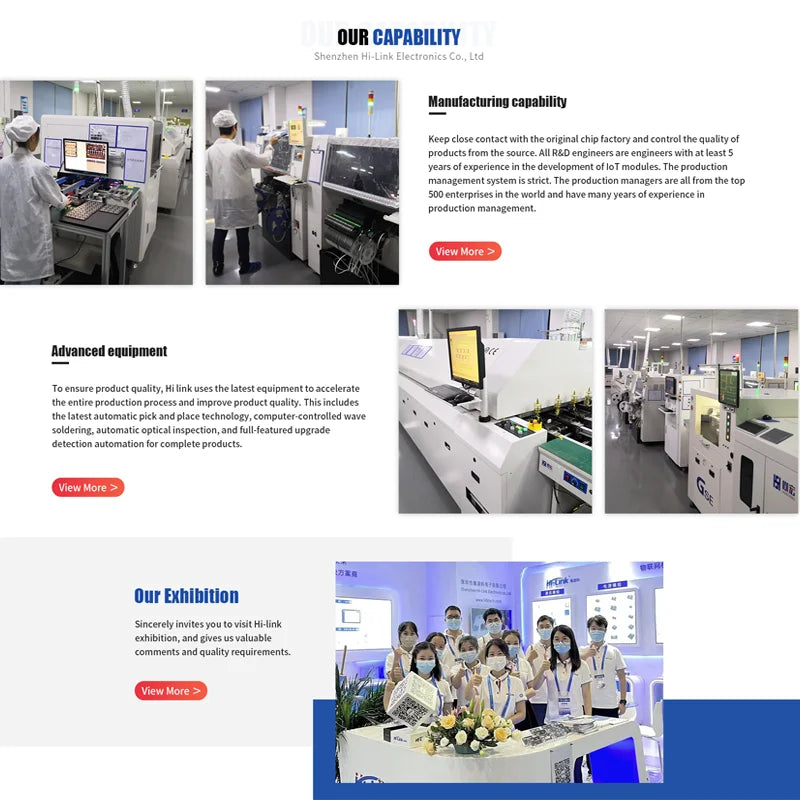

Company Strength
