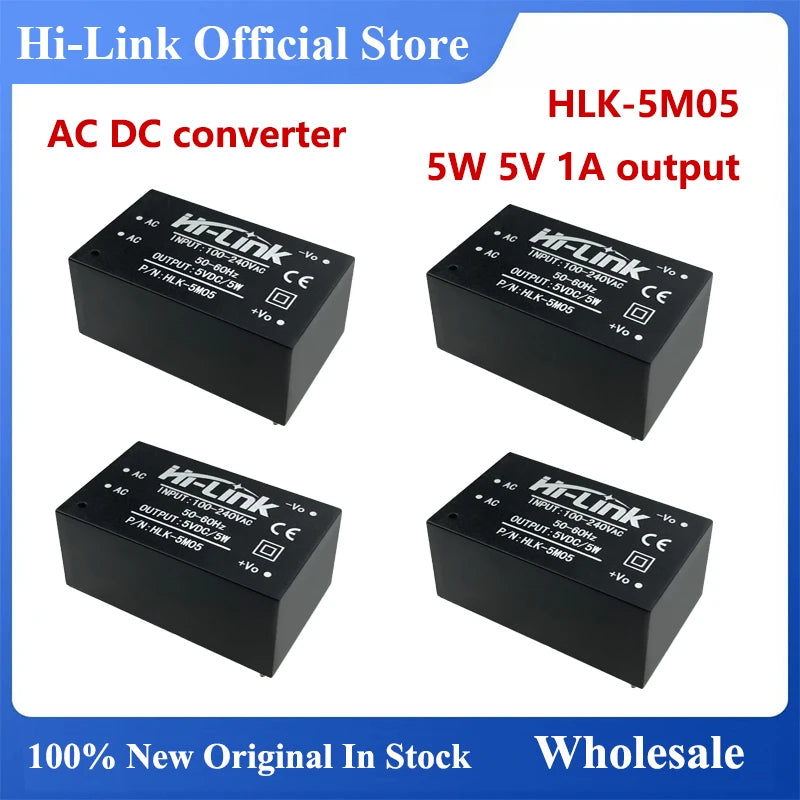

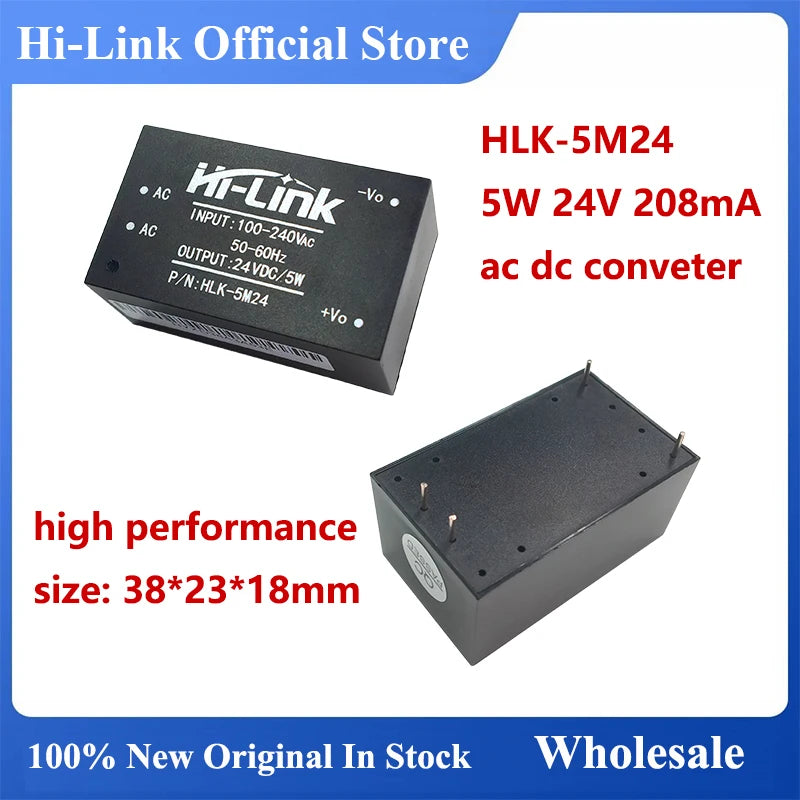

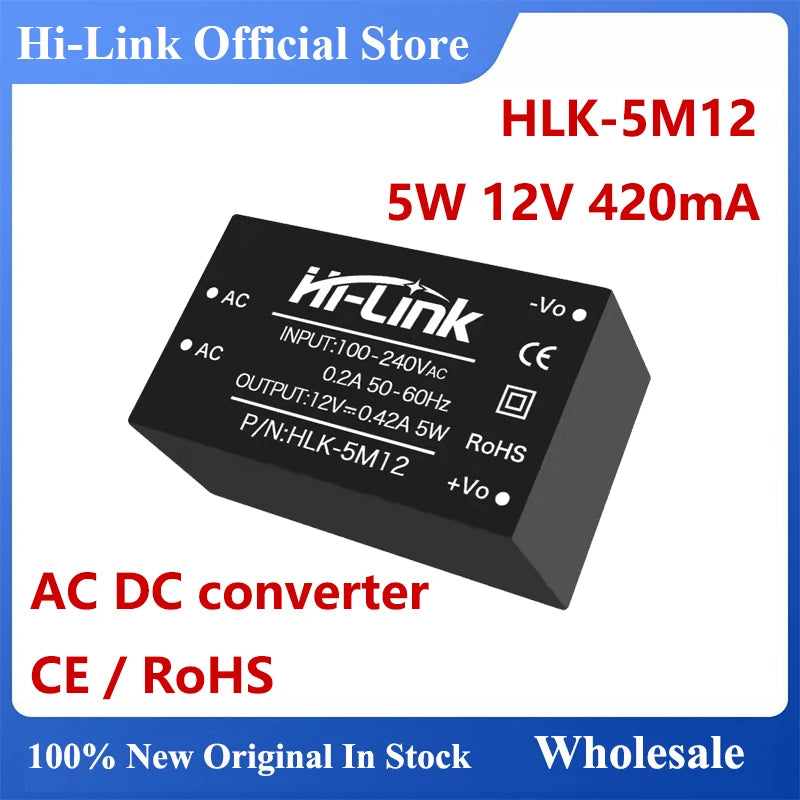

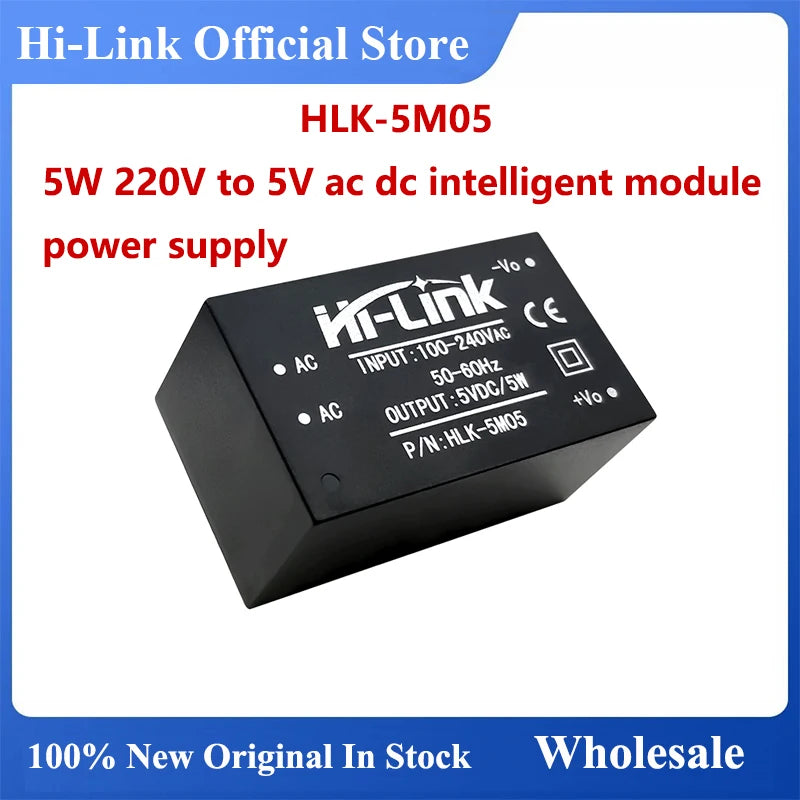

HLK-5M12 HLK-5M05 HLK-5M24 HLK-5M03 HLK-5M09 Hi-Link Original 5W AC DC Power Module 220V to 3.3V/5V/9V/12V/15V/24V Switch CE FCC

HLK-5M12 HLK-5M05 HLK-5M24 HLK-5M03 HLK-5M09 Hi-Link Original 5W AC DC Power Module 220V to 3.3V/5V/9V/12V/15V/24V Switch CE FCC

$28.52

$28.52 $0.00

Color 2pcs 5pcs

Bundle HLK-5M09 HLK-5M12 HLK-5M03 HLK-5M05 HLK-5M15 HLK-5M24

Ships FromChina Mainland

Description

SPECIFICATIONS

Brand Name: bibikoo

Camera Equipped: No

Certification: CE,EAC,FCC

Choice: yes

Communication method: Other

Compatibility: All Compatible

Current: 1500/1000/560/450/333/208mA

High-concerned chemical: none

Isolation: 3000Vac

Model Number: HLK-5M12 HLK-5M05 HLK-5M24 HLK-5M03 HLK-5M09

Onput voltage range: 3.3V/5V/9V/12V/15V/24V

Origin: Mainland China

Specification: EU Plug

State of Assembly: Ready-to-Go

Wireless capabilities: None

Working temperature: -40℃ ~ +85℃

input voltage: 85~265Vac

no-load loss: <0.1W

semi_Choice: yes

warranty: 3 years

Welcome to HI-LINK store!

We are a professional manufacturer of IOT modules with 15 years of experience, specializing in AC DC/DC DC power module/ WiFi module/ Human presence radar module. We also support APP customization.

Advantages:

1. Hi-link is a high-tech enterprise, we are integrate R&D, production, and sales services.

2. 3000 square meters of production area

3. We have regular stock, shipping in 1-3days after order;

4. Support OEM/ODM;

5. Multiple shipping ways for your choosing.

The 5W ultra-small series module power supply is a small-volume, high-efficiency AC DC power odule supply designed by Shenzhen Hi-Link Electronics Co.,Ltd. It has the advantages of global input voltage range, low temperature rise, low power consumption,high efficiency, high reliability and high safety isolation. It has been widely used in smart home, automation control, communications equipment, instrumentation and other industries.

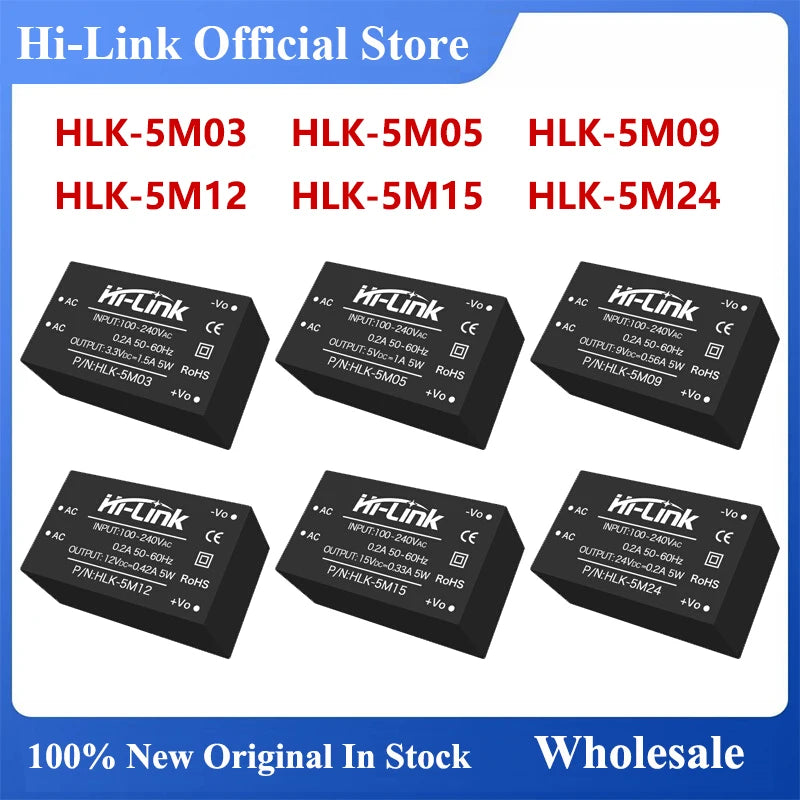

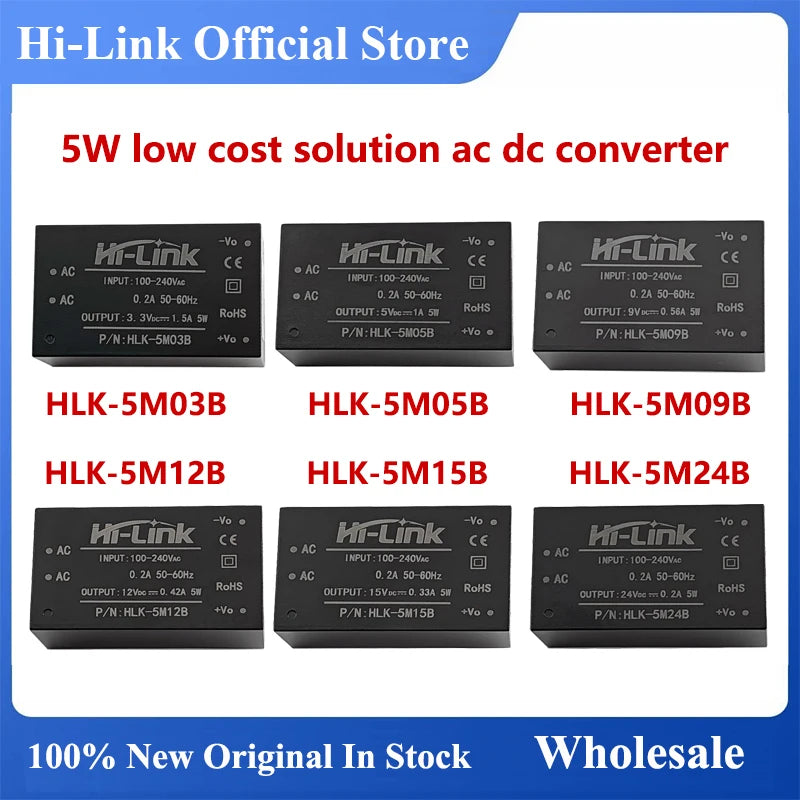

Product Model

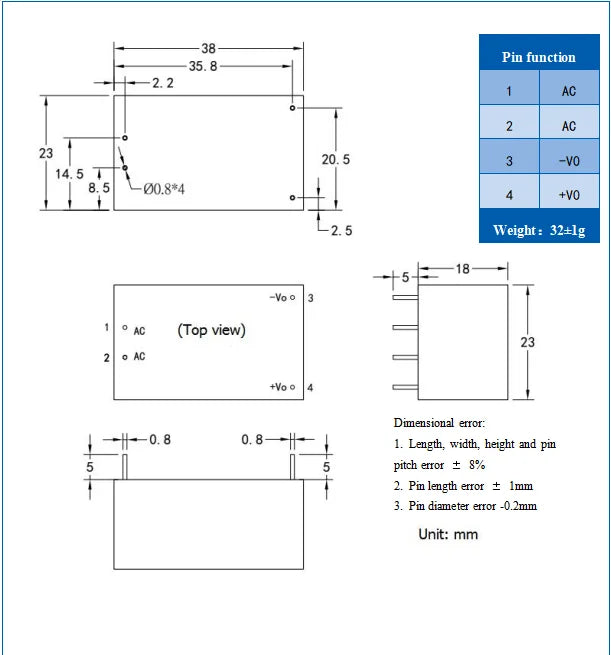

MODEL	Size (mm)	Output watt (W)	Output voltage (V)	Output current (mA)	Notes
HLK-5M03	382318	5	3.3	1500
HLK-5M05			5	1000
HLK-5M09			9	560
HLK-5M12			12	450
HLK-5M15			15	333
HLK-5M24			24	208

Product features

1. Ultra-thin, ultra-small, smallest volume;

2. Global universal input voltage（85~265Vac）

3. Low power consumption, green environmental protection, no-load loss<0.1W

4. Low ripple, low noise

5. High output short circuit and over-current protection and self recovery

6. High efficiency, high power density

7. Input and output isolation voltage 3000Vac

8. 100% full load aging and testing

9. High reliability, long life design, continuous working time is greater than 100,000 hours;

10. Meet UL, CE requirements; product design to meet EMC and safety testing requirement;

11. Using high-quality environmentally friendly waterproof plastic potting, moisture, vibration, water and dust to meet IP65 standards

12. Economic solutions, cost-effective

13. Work without external circuit

14. 1 year quality guarantee period

Environmental conditions

Items	TechnicalParameters	Units	Notes
Working temperature	-25—+60	℃
Storage temperature	-40—+80	℃
Relative humidity	5—95	%
Thermal methods	Natural cooling
Atmospheric pressure	80—106	Kpa
Altitude	≤2000	m
Vibration	Vibration coefficient 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes		Meets requirements for secondary road transportation

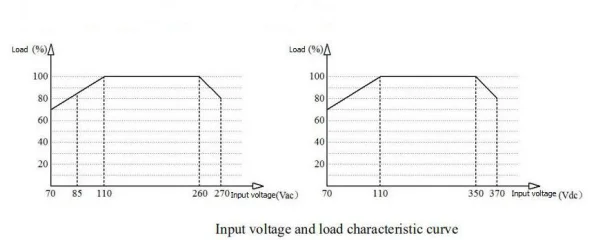

Input features

Items	Technical Parameters	Units	Notes
Rated input voltage	100~240	Vac
Input voltage range	85-265	Vac	Or 120-350Vdc
The maximum input current	≤0.2	A
Input inrush current	≤10	A
Input low start	≤50	mS
Long-term reliability	MTBF≥100，000	h
External fuse recommended	1A / 250Vac or 10Ω wire wound resistance		Slow blow

Output features (3.3V/1500mA)

Items	TechnicalParameters	Units	Notes
No-load rated output voltage	3.3±0.1	Vdc
Full-load rated output voltage	3.3±0.2	Vdc
Short time maximum output current	≥1800	mA
Long time maximum output current	1500	mA
Voltage regulation	±0.2	%
Load regulation	±0.5	%
Input low voltage efficiency	Vin=115Vac，Output full load≥69	%
Input high voltage efficiency	Vin=230Vac，Output full load≥70	%
Output ripple and noise (mVp-p)	≤100 Rated input voltage, output full load. With 20MHz bandwidth oscilloscope, Load side 10uF and 0.1uF capacitance test.	mV
Switching on/offovershoot amplitude	（Rated input voltage, output plus 10% load）≤5	%VO
Output over-current protection	Output maximum load110-150%	A
Output short circuit protection	Direct short circuit in normal output and automatic return to normal operation after removal of short circuit		No-damage tothe whole device

Output features (5V/1000mA)

Items	Technical Parameters	Units	Notes
No-load rated output voltage	5.0±0.1	Vdc
Full load rated output voltage	5.0±0.2	Vdc
Short-time maximum output current	≥1200	mA
Long time maximum output current	1000	mA
Voltage regulation	±0.2	%
Load regulation	±0.5	%
Input low voltage efficiency	Vin=115Vac，Output full load≥69	%
Input high voltage efficiency	Vin=230Vac，Output full load≥70	%
Output ripple and noise(mVp-p)	≤100 Rated input voltage, full output load. Using 20MHz bandwidth oscilloscope, Load side test with 10uF and 0.1uF capacitors	mV
Switching on/off overshoot amplitude	（Rated input voltage, output plus 10% load）≤5	%VO
Output over-current protection	Output maximum load110-150%	A
Output short circuit protection	Direct short circuit in normal output and automatic return to normal operation after removal of short circuit		No damage to the whole device

Output features (9V/560mA)

Items	Technical Parameters	Units	Notes
No-load rated output voltage	9.0±0.1	Vdc
Full load rated output voltage	9.0±0.2	Vdc
Short-time maximum output current	≥680	mA
Long time maximum output current	560	mA
Voltage regulation	±0.2	%
Load regulation	±0.5	%
Input low voltage efficiency	Vin=115Vac，Output full load≥69	%
Input high voltage efficiency	Vin=230Vac，Output full load≥70	%
Output ripple and noise(mVp-p)	≤100 Rated input voltage, full output load. Using 20MHz bandwidth oscilloscope, Load side and 10uF and 0.1uF capacitors are tested.	mV
Switching on/offovershoot amplitude	（Rated input voltage, output plus 10% load）≤5	%VO
Output over-current protection	Output maximum load110-150%	A
Output short circuit protection	Direct short circuit in normal output and automatic return to normal operation after removal of short circuit		No damage to the whole device

Output features (12V/450mA)

Items	Technical Parameters	Units	Notes
No-load rated output voltage	12.0±0.1	Vdc
Full load rated output voltage	12.0±0.2	Vdc
Short-time maximum output current	≥540	mA
Long time maximum output current	450	mA
Voltage regulation	±0.2	%
Load regulation	±0.5	%
Input low voltage efficiency	Vin=115Vac，Output full load≥69	%
Input high voltage efficiency	Vin=230Vac，Output full load≥70	%
Output ripple and noise(mVp-p)	≤120 Rated input voltage, full output load. Using 20MHz bandwidth oscilloscope, Load side and 10uF and 0.1uF capacitors are tested.	mV
Switching on/offovershoot amplitude	（Rated input voltage, output plus 10% load）≤5	%VO
Output over-current protection	Output maximum load110-150%	A
Output short circuit protection	Direct short circuit in normal output and automatic return to normal operation after removal of short circuit		No damage to the whole device
