SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

1. Product features:

1. Meet UL and CE requirements,

2. Ultra-thin and ultra-small

2. Full voltage input (90~264Vac)

3. Low ripple and low noise

4. Output overload and short circuit protection function

5. High efficiency and high power density

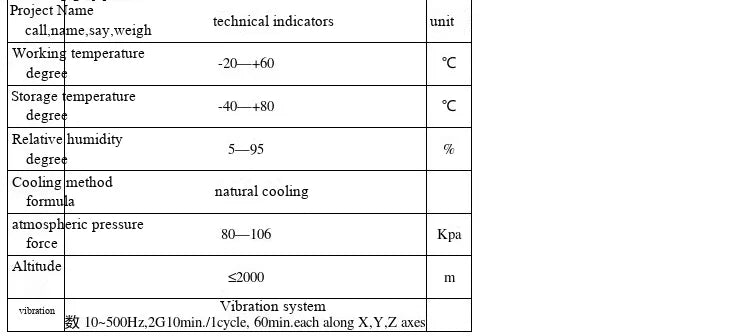

2. Environmental conditions

3. 接详情图1

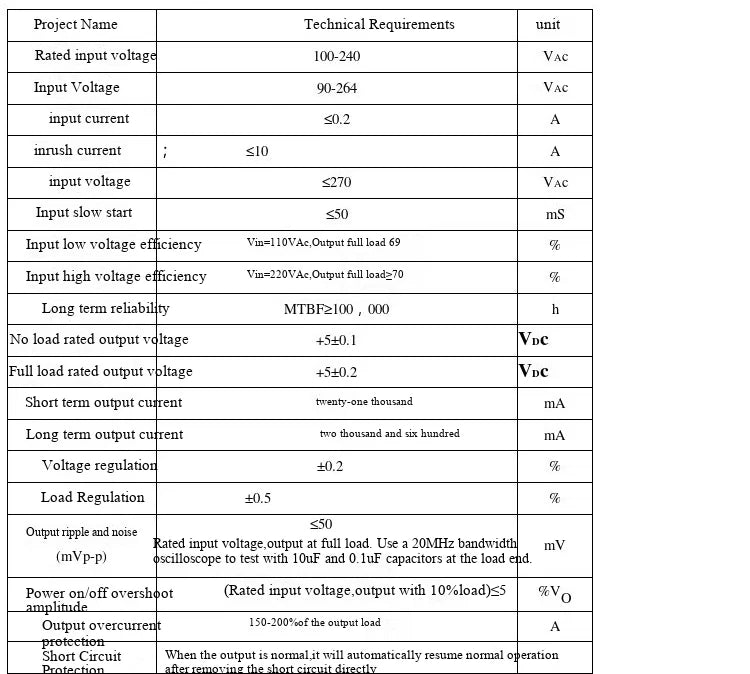

3. Electrical characteristics

1. Input characteristics (tested at room temperature).

接详情图2

4. Safety characteristics:

4.1 The product design complies with UL and CE safety certification requirements.

4.2 Safety and Electromagnetic Compatibility

The input terminal design adopts a UL-certified 0.5A fuse;

The PCB board is made of double-sided copper-clad laminate, with a fire rating of 94-V0;

Safety standards comply with UL1012, EN60950, and UL60950

Insulation voltage I/P-O/P: 2500VAC

Insulation resistance I/P-O/P > 100M Ohms at 500VDC, 25℃, and 70% RH

Conduction and radiation comply with EN55011, EN55022 (CISPR22)

Electrostatic discharge IEC/EN 61000-4-2 level 4 8kV/15kV

Radio frequency radiation immunity IEC/EN 61000-4-3. See application instructions for details

4.3 Temperature rise safety design

At room temperature, the temperature rise on the inner surfaces of the power supply's capacitors, main converters, etc. does not exceed 90℃;

The temperature rise on the surface of the shell does not exceed 60℃;

5. Marking, packaging, transportation, and storage

5.1 Logo

5.1.1 Product marking

Signs are affixed at appropriate locations on the product, and their content complies with national and industry standards.

5.1.2 Packaging Mark

The product packaging box is marked with the manufacturer's name, address, postal code, product model, and the year, month, and day of manufacture;

Marked with transportation signs such as "Upward", "Moisture-proof", and "Handle with Care", all signs comply with the specifications of GB 191

"Sure."

5.2 Packaging

The product is packaged in a dedicated blister box with shockproof function and complies with GB 3873 regulations.

5.3 Transportation: The packaged products can be transported by any means of transportation. During transportation, they should be covered with a canopy and should not be exposed to the elements

Severe vibration, impact, etc

5.4 Storage: The storage of products shall comply with the provisions of GB 3873.

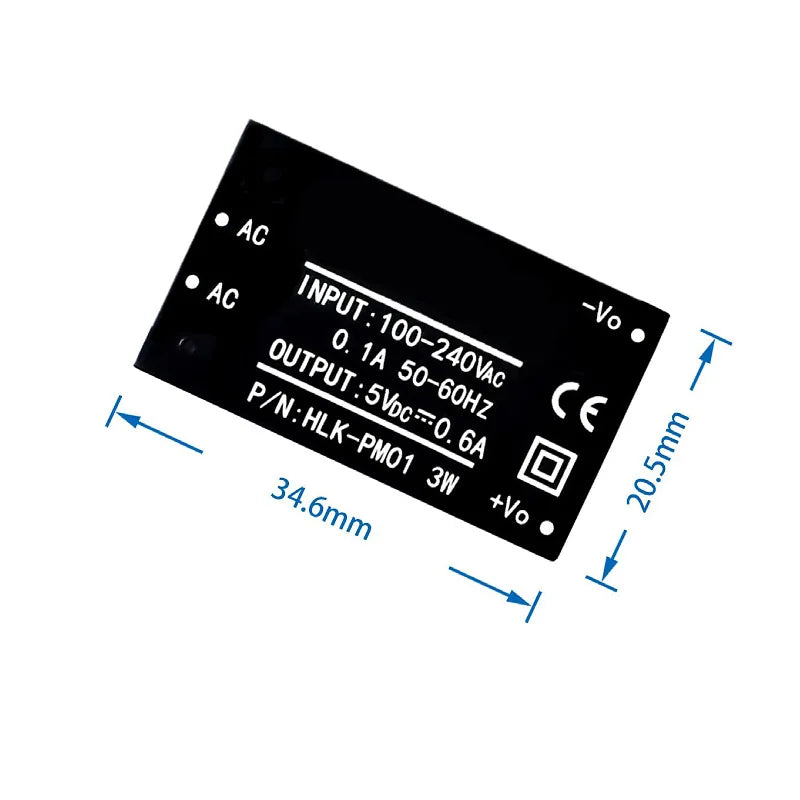

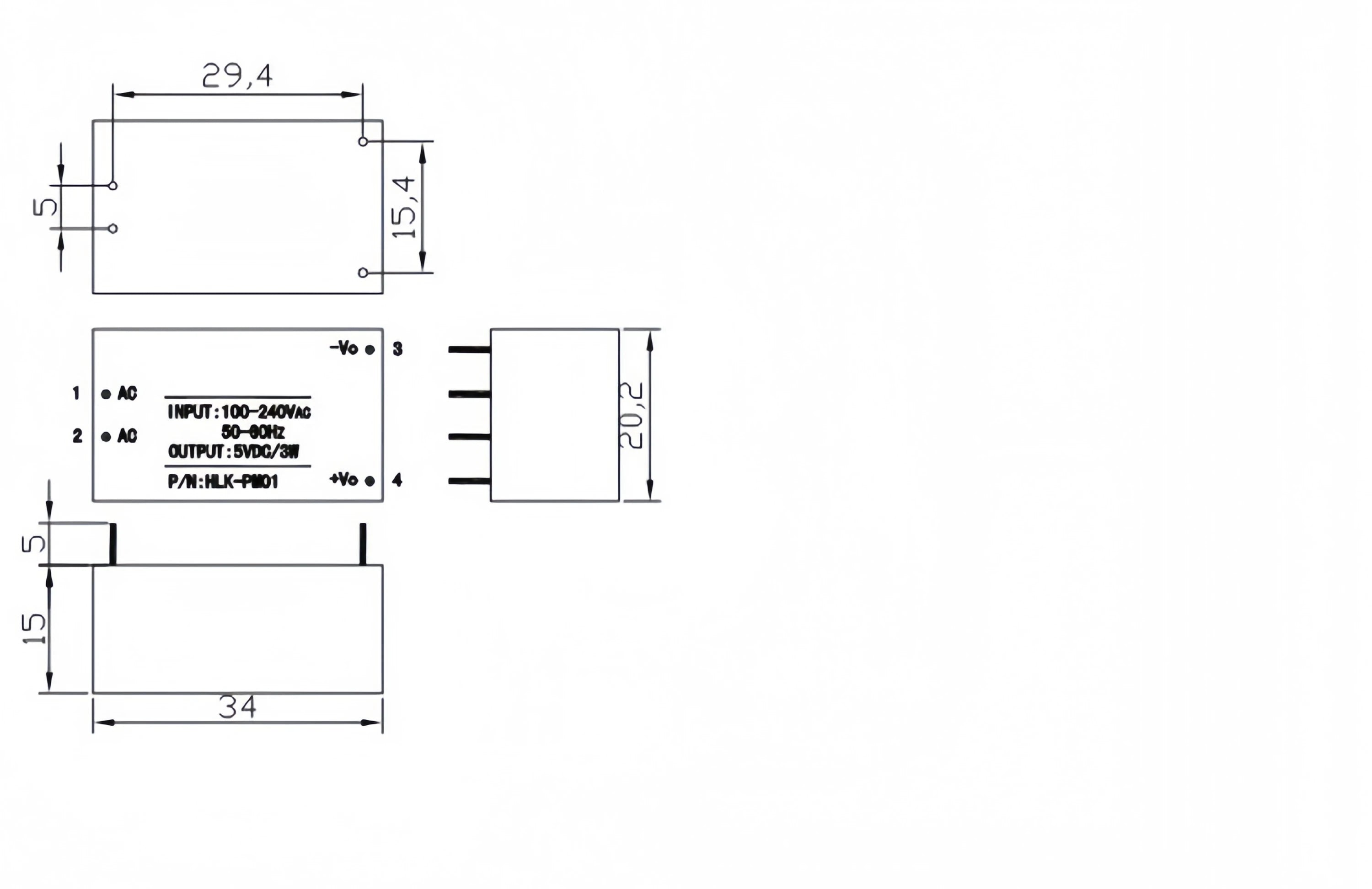

6. Weight and dimensions:
