SPECIFICATIONS

1. Product features:
1. Meet UL, CE requirements,
2. Ultra-thin, ultra-small
3. Full voltage input (90 ~ 264Vac)
4. Low ripple, low noise
5. Output overload short circuit protection function
6. High efficiency and high power density
2. Environmental conditions


3. Electrical characteristics

1. Input characteristics (Test at room temperature).

4. Safety features:

4.1 product design conforms to UL, CE safety certification requirements.

The input design adopts UL certification 0.5A insurance;

The PCB board is made of double-sided copper clad foil, and the fire rating of the material is 94-V0;

Safety standards compliant with UL1012,EN60950,UL60950

Insulation voltage I/P-O/P:2500VAC

Insulation resistance I/P-O/P>100M Ohms/500VDC 25 ℃ 70% RH

Conduction and radiation compliance EN55011, EN55022 (CISPR22)

Electrostatic Discharge IEC/EN 61000-4-2 level 4 8kV/15kV

See IEC/EN 61000-4-3 Application Note for RF Radiation Immunity

Under normal temperature, the temperature rise of the inner surface of the power capacitor and main converter shall not exceed 90 ℃;

The temperature rise of the shell surface shall not exceed 60 ℃;

5. Marking, packaging, transportation and storage

5.1.1 Product Marking

In the appropriate position of the product is affixed with a logo, its content in line with national standards, industry standards.

5.1.2 Packing mark

The product packaging box is marked with the manufacturer's name, address, zip code, product model, delivery year, month and day;

Marked with "upward", "moisture-proof", "handle with care" and other transport signs, all signs are in line with GB 191

set.

5.3 transportation

The packaged product can be transported by any means of transportation, and there should be a canopy during transportation.

violent vibration, impact, etc

5.4. Storage

Product storage shall comply with GB 3873。

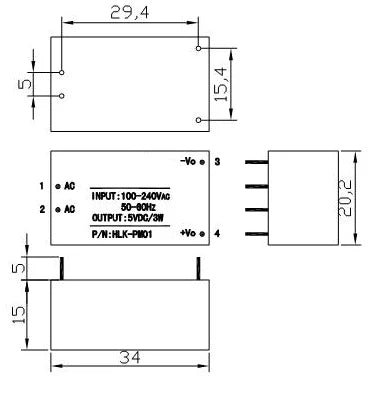

 6. Weight and overall dimensions:
