SPECIFICATIONS

Brand Name: NONE

For Vehicle Type: Cars

Four-wheel Drive Attributes: Assemblage

High-concerned chemical: none

Is Batteries Included: No

Is Electric: No battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Composite Material

Model Number: HolyBro H-RTK F9P Ultralight

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Radio Systems

Recommend Age: 14+y

Remote Control Peripherals/Devices: Starter

Technical parameters: Value 8

Tool Supplies: Gluing

Upgrade Parts/Accessories: Adapter

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

Specifications

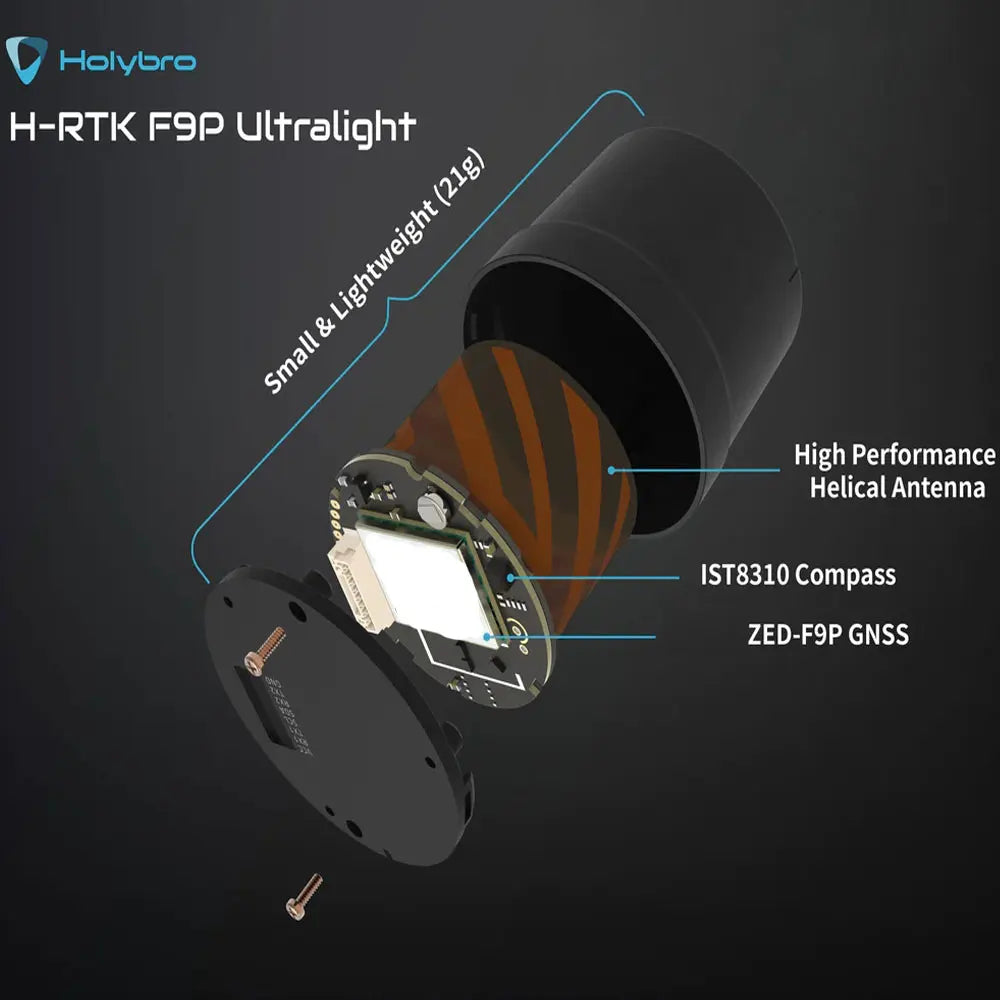

Module Type: ZED-F9P high-precision GNSS module
Electronic Compass: IST8310 three-axis magnetometer
Application Scenario: Mobile station (aircraft platform)
Satellite Systems:
- GPS L1C/A/L2C
- Galileo E1/E5b
- GLONASS G1/G2
- Beidou B1I/B2I
Sensitivity:
- Tracking sensitivity: -167dBm
- Reacquisition sensitivity: -160dBm
Time to First Fix:
- Cold start: ≤35 s
- Warm start: ≤20 s
- Hot start: ≤1 s
Position Accuracy:
- Horizontal accuracy: 1.5m
- Vertical accuracy: 2.0m
- RTK positioning: Horizontal 1cm + 1ppm
Time Pulse Accuracy: RMS: 30ns
Speed Measurement Accuracy: D-GNSS: 0.05 m/s
Operating Limits:
- Maximum acceleration: ≤4 g
- Maximum altitude: 80000 m
- Maximum speed: 500 m/s (1800 km/h)
Communication Baud Rate: 38400 - 230400 bps (default 115200 bps)
Maximum Navigation Update Rate: 10Hz (Please contact us if a higher frequency is needed)

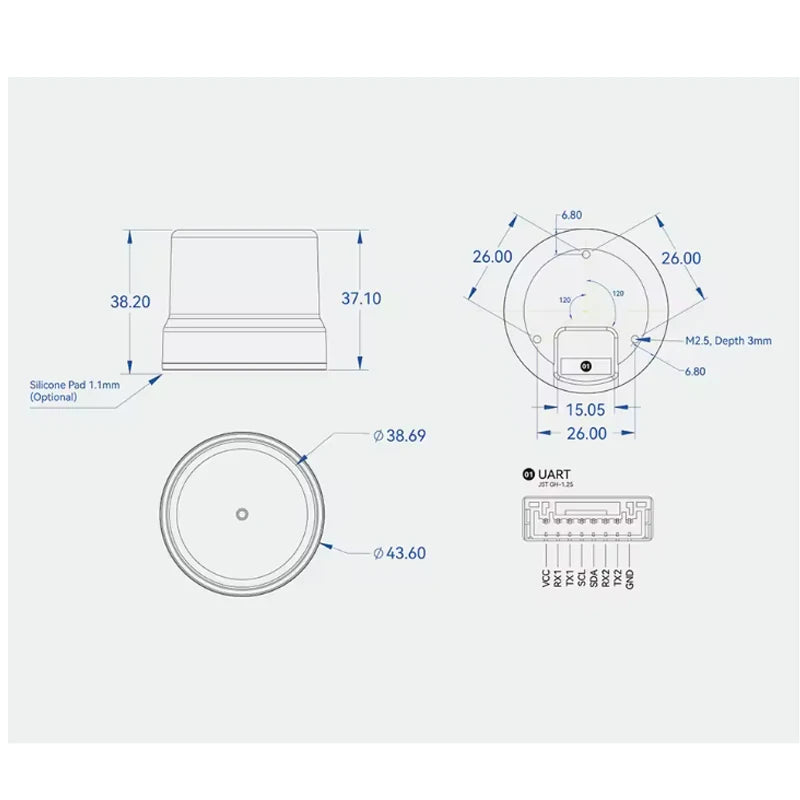

Dimensions:
- Diameter: 43.6 mm
- Height: 37.1 mm

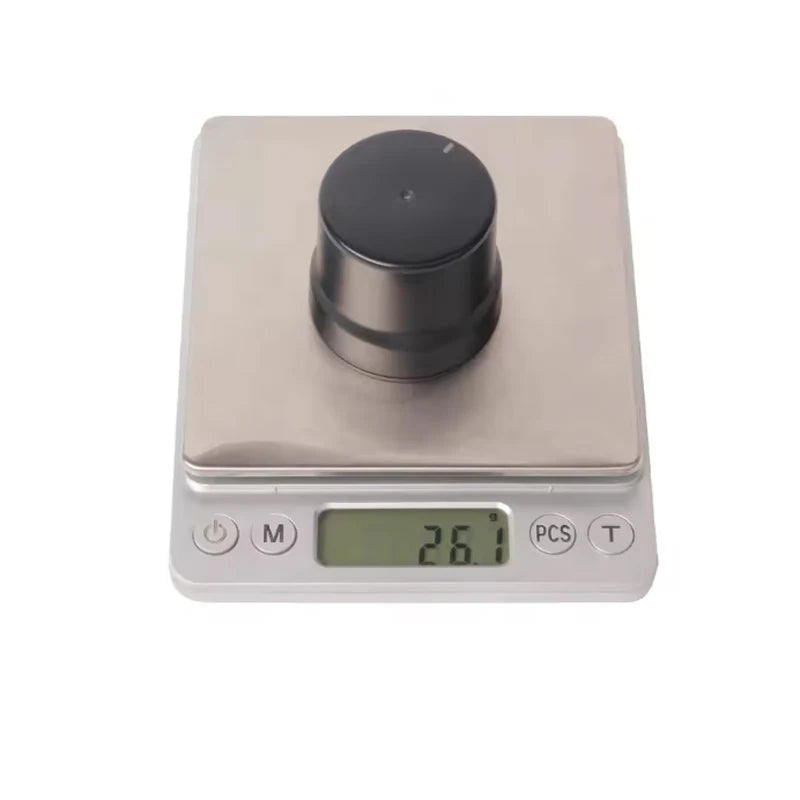

Weight: 26 g
