Holybro H-RTK F9P Ultralight RTK GNSS with ZED-F9P IST8310 compass For Toy Rc Airplane/Car Parts Pixhawk 6x Flight Control

Holybro H-RTK F9P Ultralight RTK GNSS with ZED-F9P IST8310 compass For Toy Rc Airplane/Car Parts Pixhawk 6x Flight Control

$1,259.96

$1,259.96 $0.00

Description

SPECIFICATIONS

Brand Name: RCMOY

For Vehicle Type: Airplanes

High-concerned chemical: none

Is Batteries Included: No

Is Electric: No battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Composite Material

Model Number: H-RTK F9P Ultralight

Origin: Mainland China

Quantity: 1 pcs

Recommend Age: 14+y

Use: Vehicles & Remote Control Toys

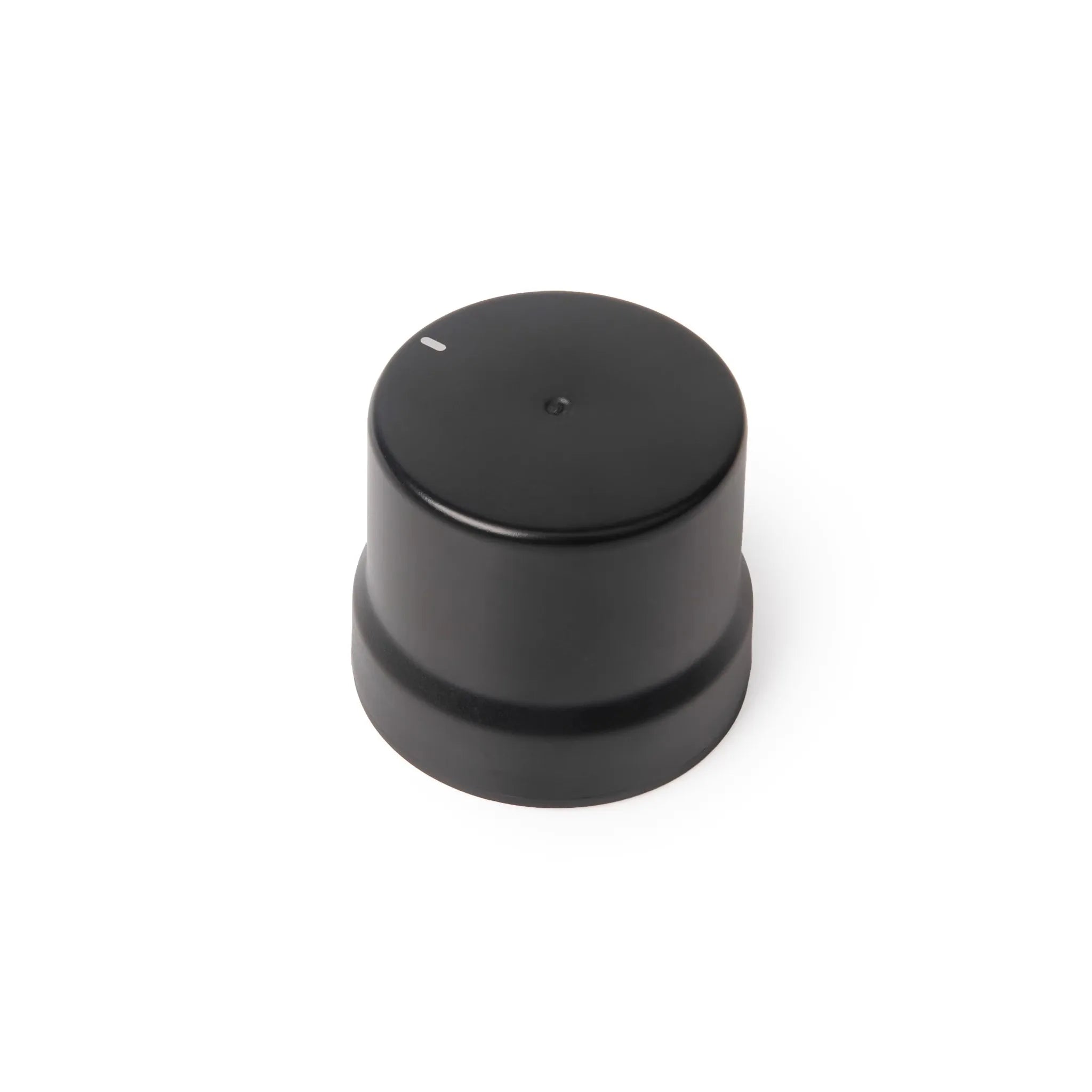

Compared with the old version (SKU12053), the new version (SKU12078) is smaller in size and has the LOGO silk screen removed. However, the modules are the same.

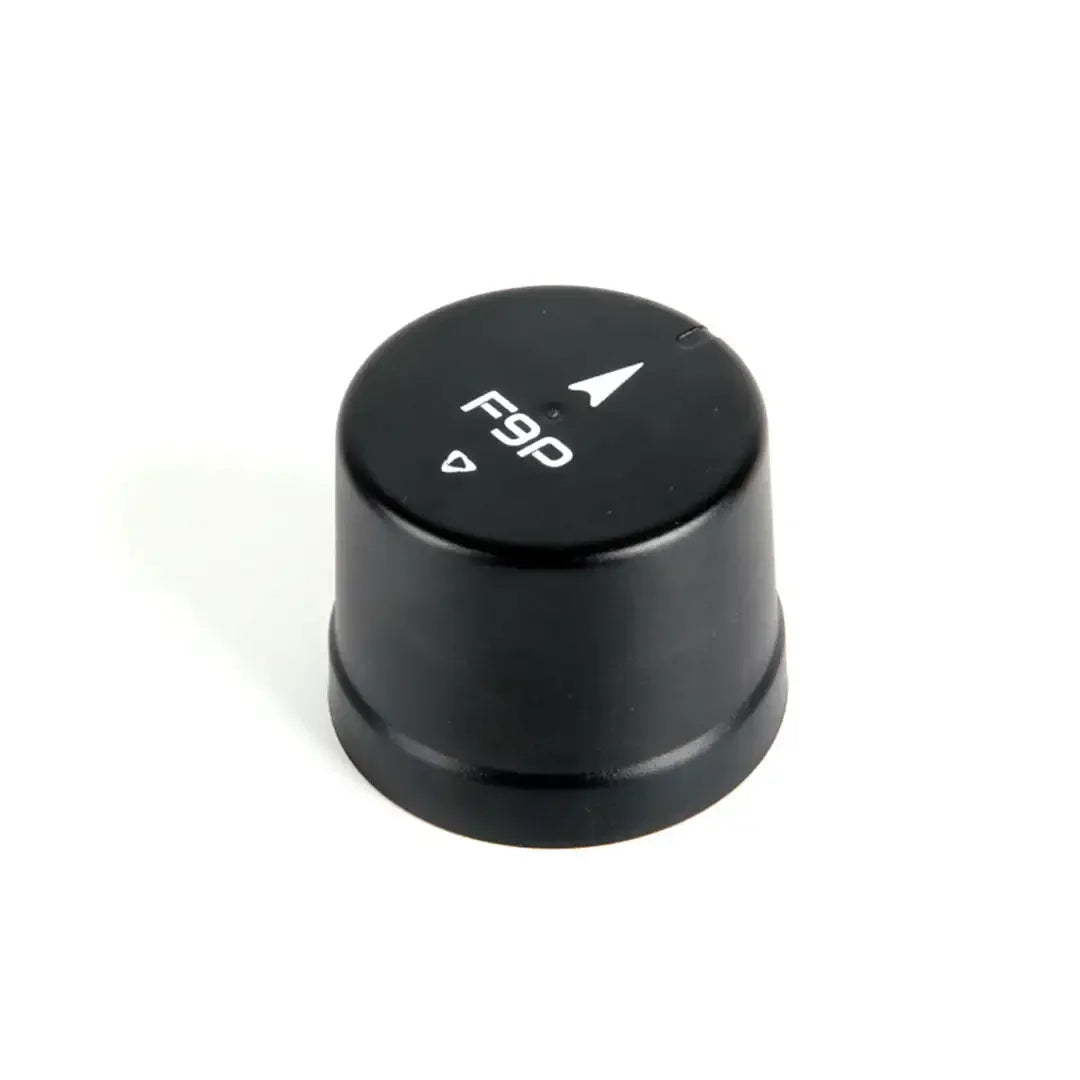

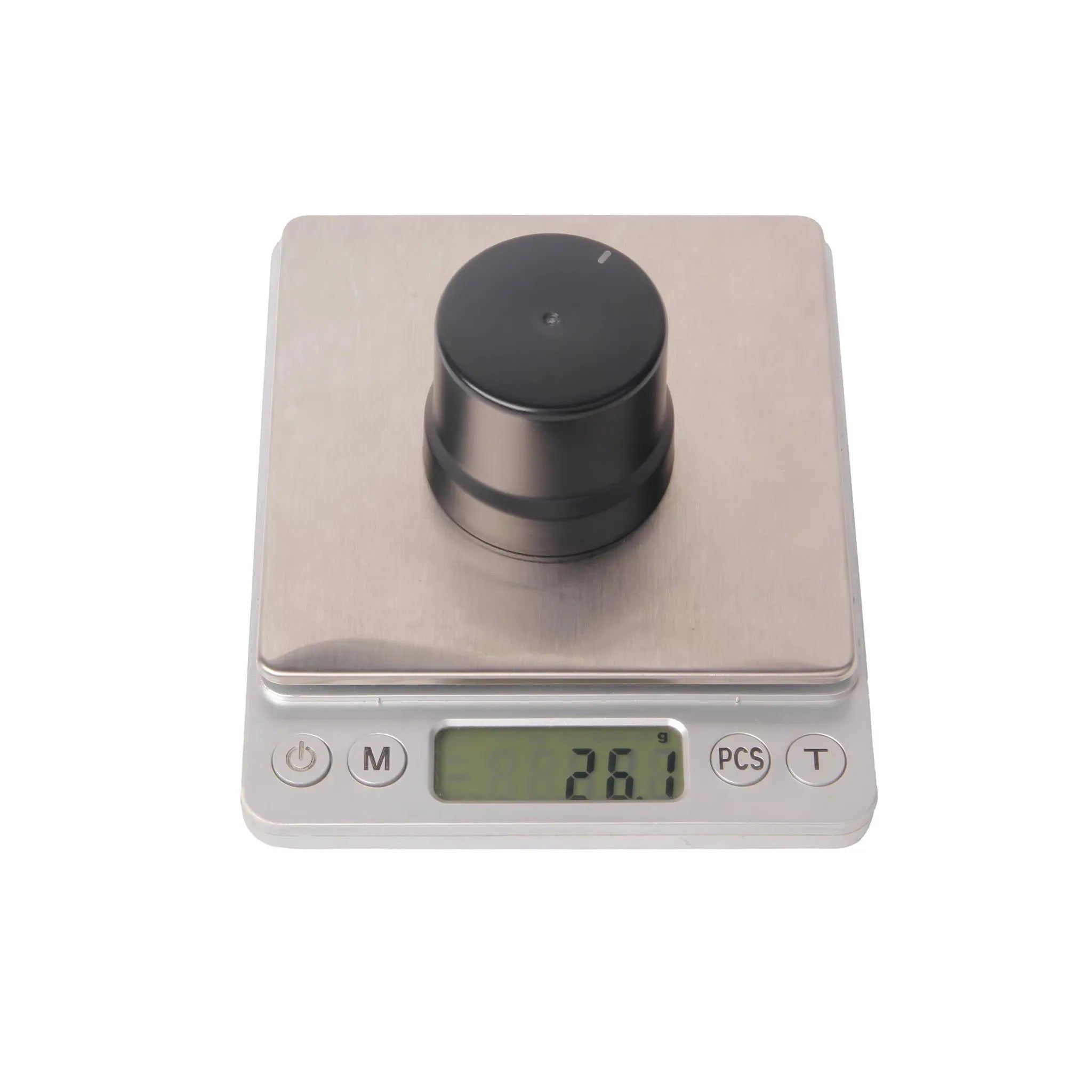

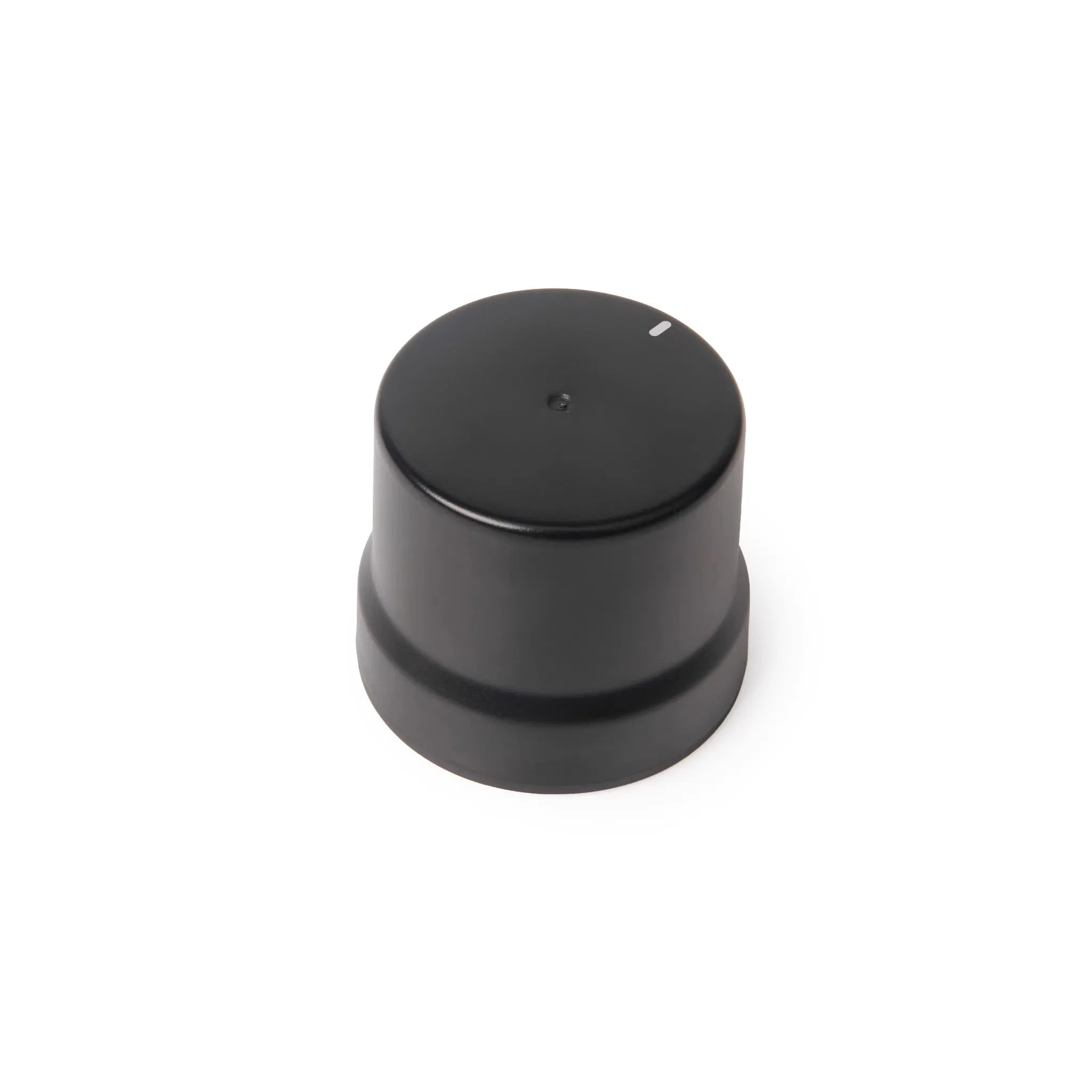

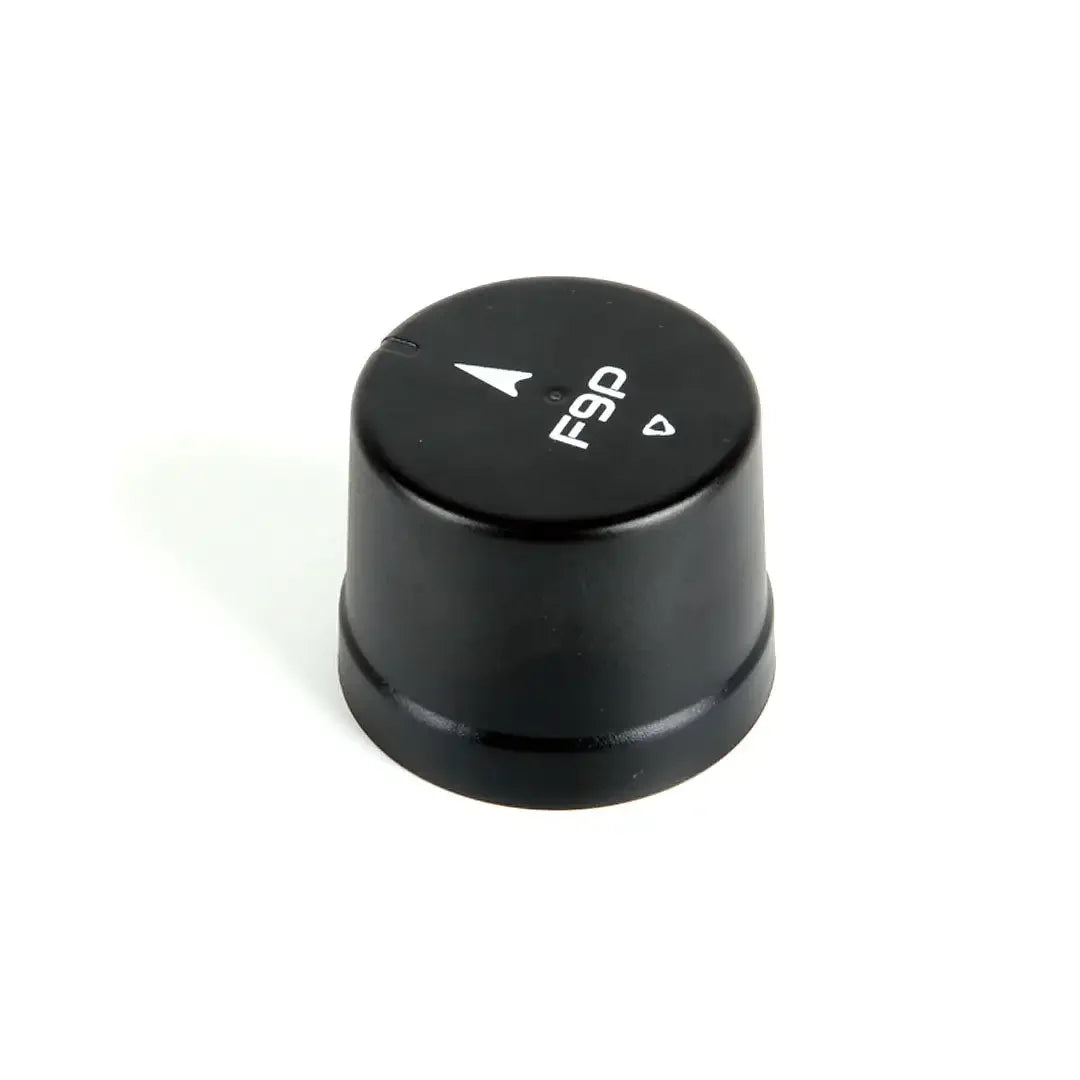

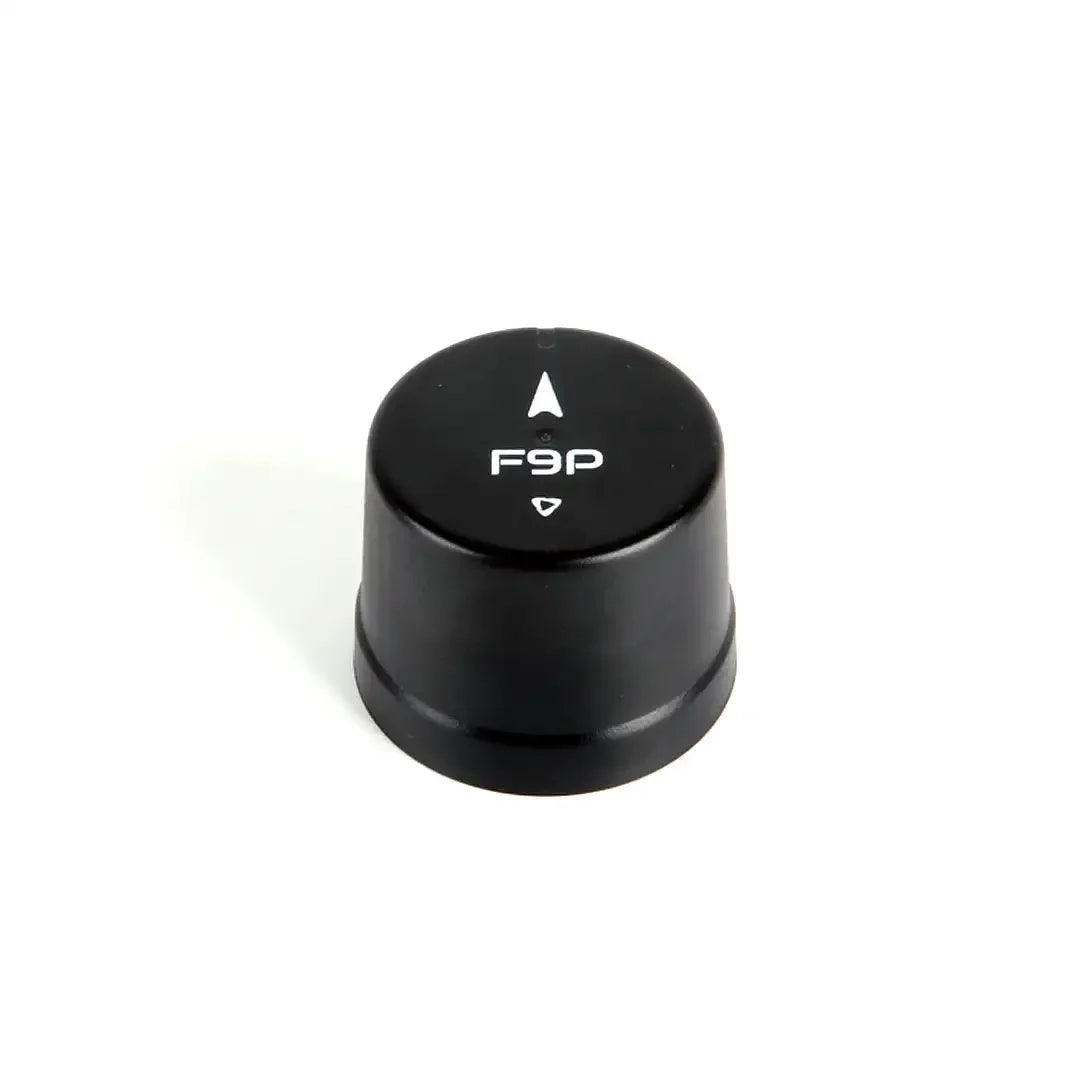

H-RTK F9P Ultralight is an ultra-lightweight RTK GNSS module with ZED-F9P, an IST8310 compass, and an integrated helical antenna. It is designed specifically for weight-conscious applications where every gram counts.

The H-RTK F9P Ultralight can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture, all four major GNSS constellations (GPS, GLONASS, Galileo, and BDS) can be received concurrently. All satellites in view can be processed to provide an RTK navigation solution when used with correction data.

It can be configured for concurrent GPS, GLONASS, Galileo, BDS, QZSS, and SBAS reception to provide a high-performance position reporting and navigation solution. It provides exceptional sensitivity and acquisition times, and interference suppression measures enable reliable positioning even in difficult signal conditions.

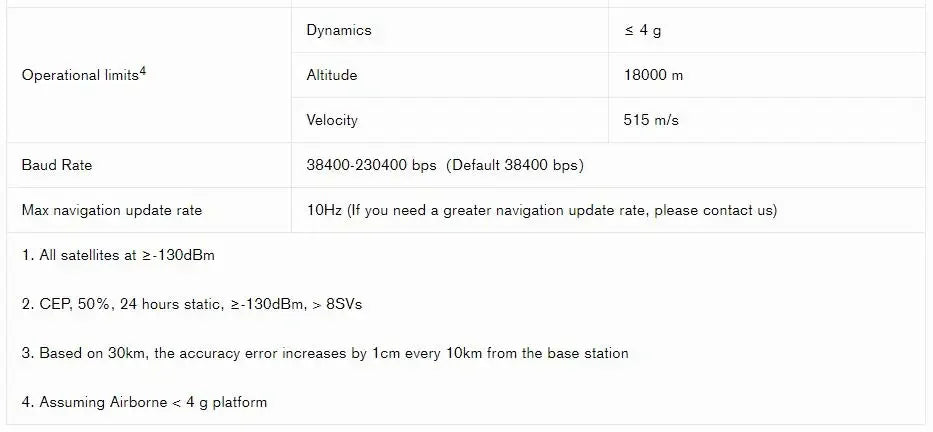

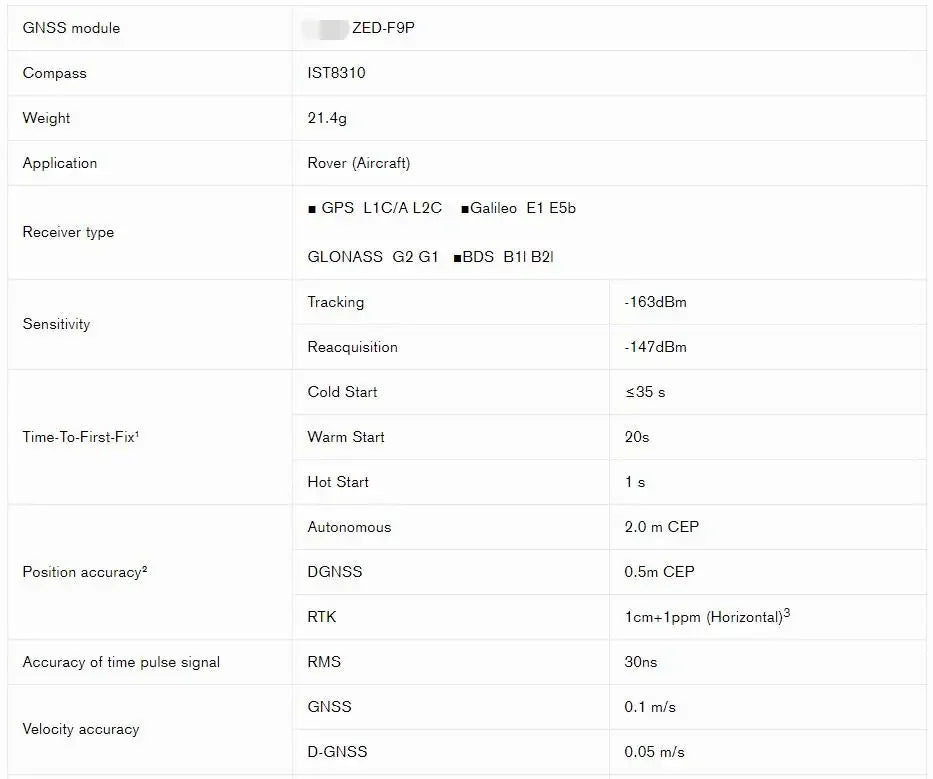

Specification:

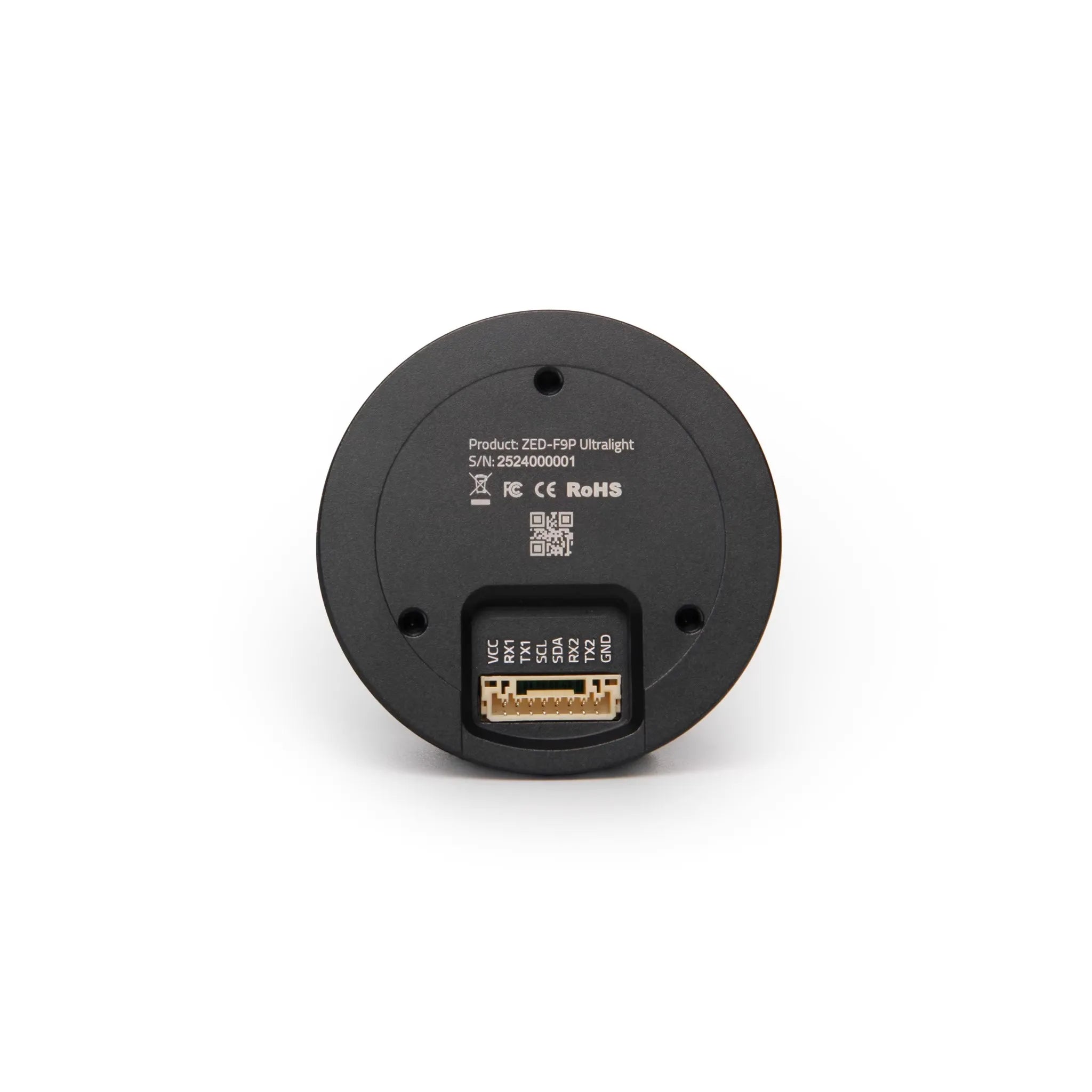

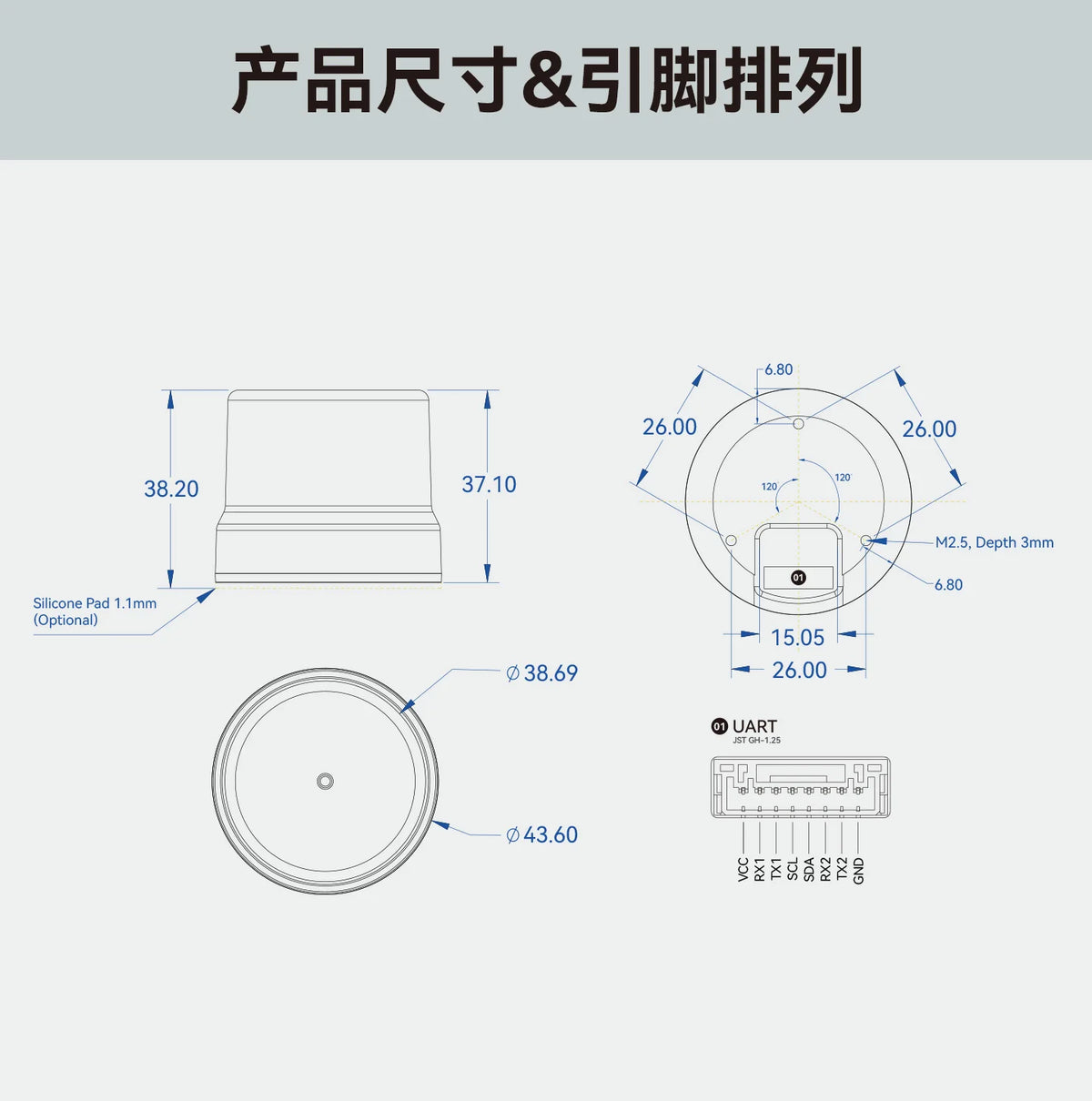

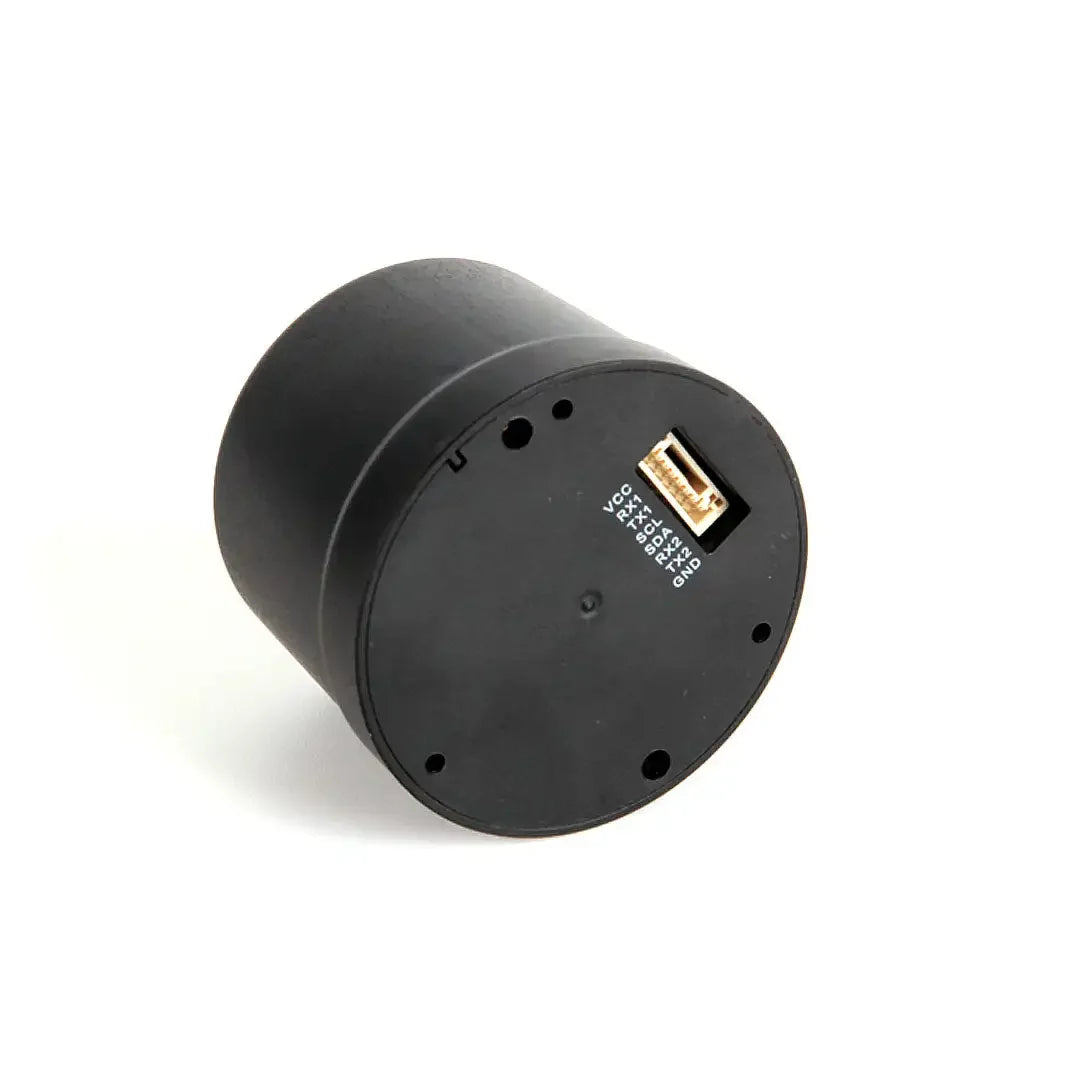

Pin Map

No.	Name	I/O	Description
1	VCC	P	Main supply
2	RX1	I	GPS RX1
3	TX1	O	GPS TX1
4	SCL	I/O	I2C Clock(keep open if not used)
5	SDA	I/O	I2C Clock(keep open if not used)
6	RX2	I	GPS RX2
7	TX2	O	GPS TX2
8	GND	G	Ground
