SPECIFICATIONS

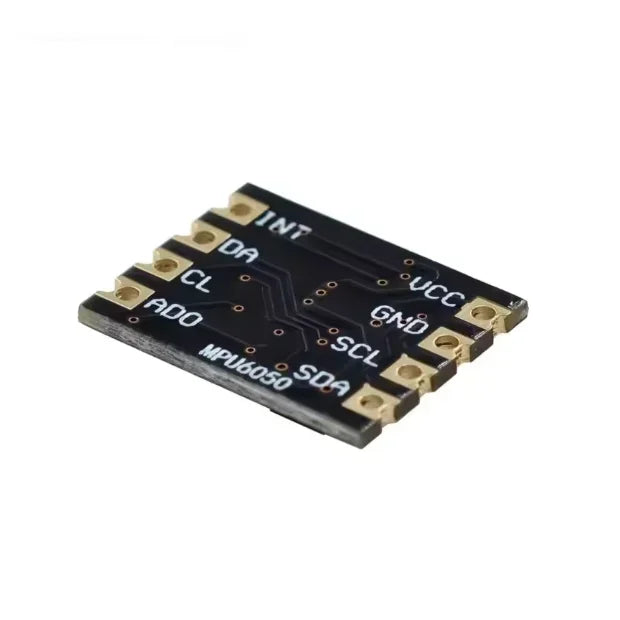

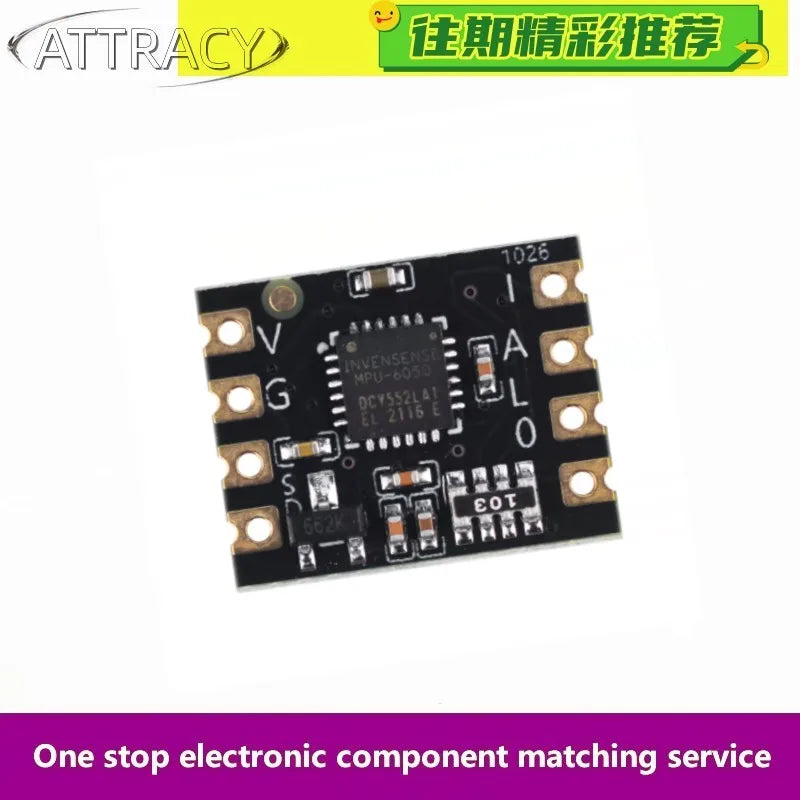

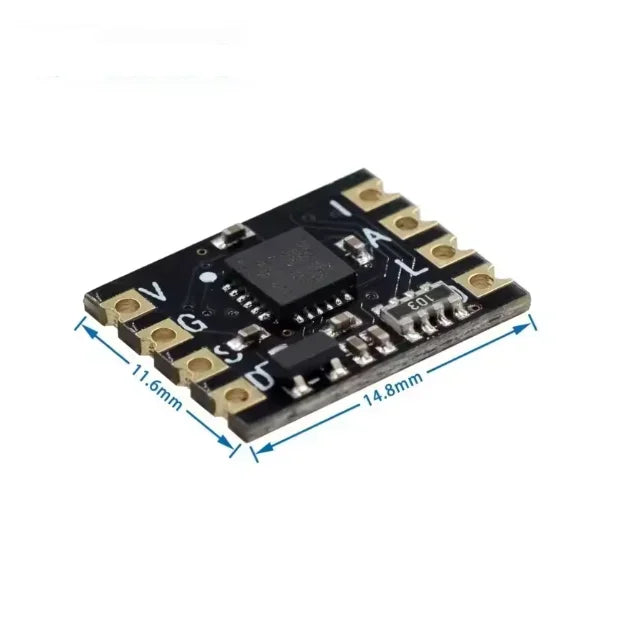

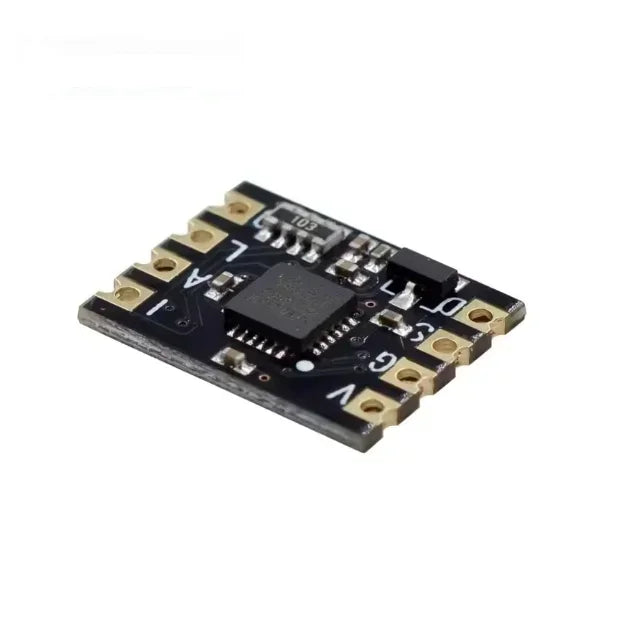

The MPU6050 accelerometer gyroscope module is based on the MPU6050 six axis motion processing chip, which integrates peripheral LD0 and 12C pull-up resistors. It extends double row 2.54mm spacing gold-plated pin holes and stamp holes, making it easy for users to solder and expand. It can also be directly attached to users' products. The module adopts 12C communication and supports a wide working voltage. Using woven packaging.

The MPU6050 chip integrates a 3-axis gyroscope and a 3-axis accelerometer internally. Three 16 bit ADCs are used for the gyroscope and accelerometer, respectively, to convert their measured analog quantities into digital quantities that can be output. In order to accurately track fast and slow movements, the measurement range of the sensors is user controllable. The gyroscope can measure ranges of ± 250, ± 500, ± 1000, and ± 2000 °/s (dps), while the accelerometer can measure ranges of ± 2, ± 4, ± 8, and ± 16g

Working voltage: 3.0V~5.5V

I1C communication interface, supporting a maximum communication rate of 400Khz, acceleration measurement range: ± 2/± 4/+8/± 16g

Gyroscope measurement range: Soil 250/+500/+1000/

Shi 2000 °/s

Gyroscope: Resolution: Acceleration: 16384LSB/g (Max)

131LSB/(°/s)(Max)

Gyroscope: 8KHz Output rate: Acceleration: 1KHz (Max)

(Max)

Attitude calculation output rate 200Hz (Max)

Measurement range of on-chip temperature sensor: -40 ℃~85 ℃, accuracy

Shi 1C
