SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Origin: Mainland China

Package: SMD

Type: Module

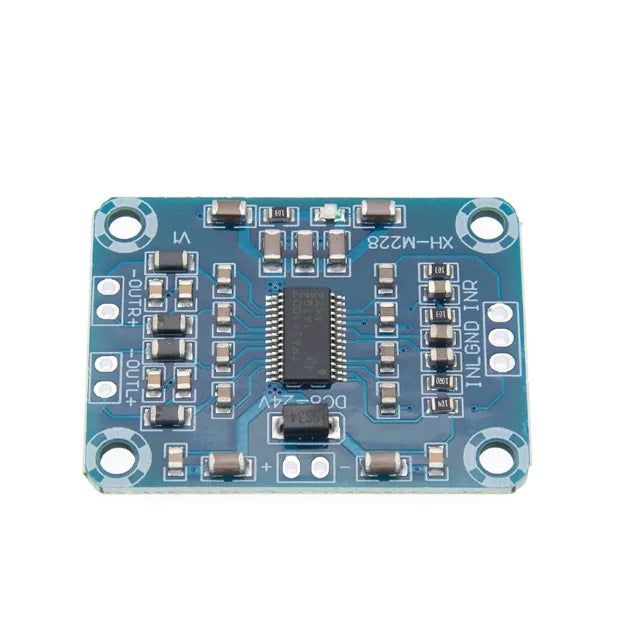

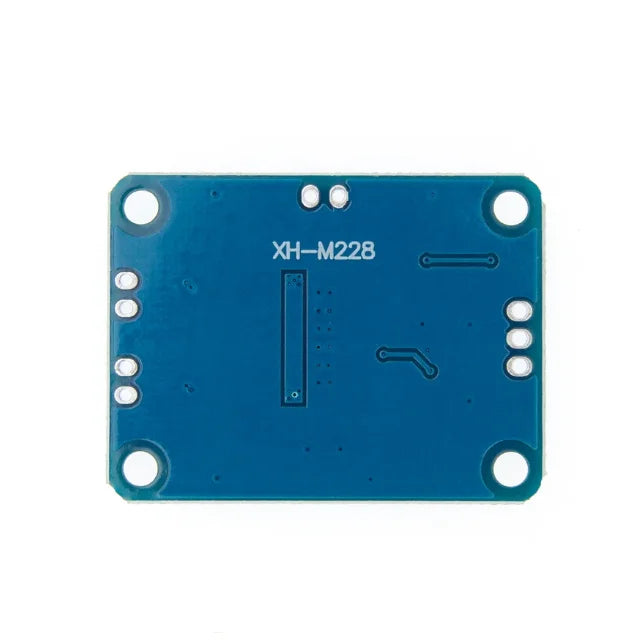

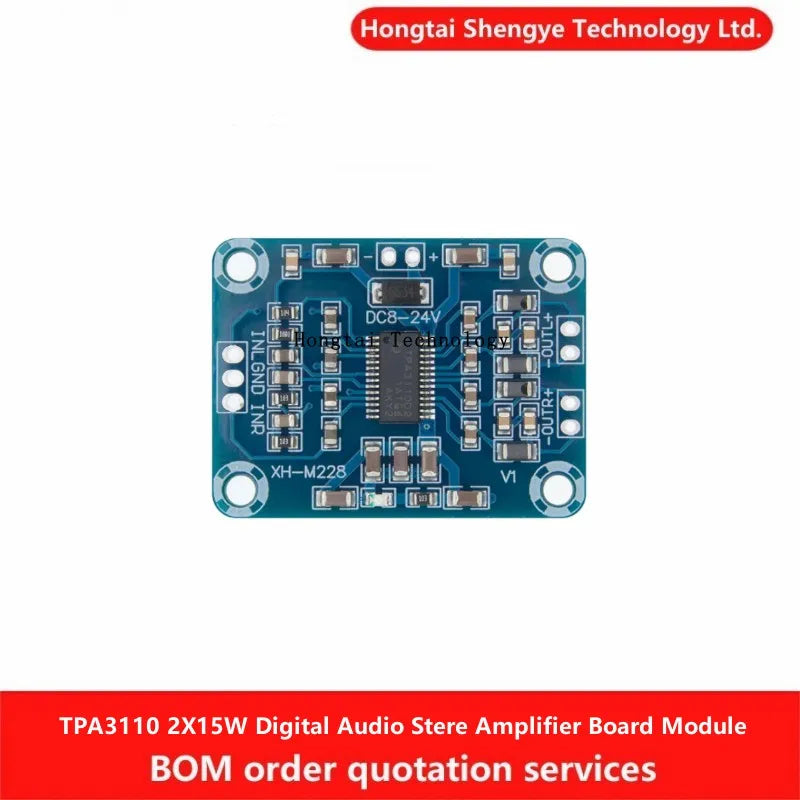

XH-M228 Ultra Slim TPA3110 Dual Channel Audio Digital Amplifier Board

Notes:

*This amplifier board must use DC DC power supply, requires better performance of the switching power adapter, *Can not use AC transformers, if the use of AC transformers, must be rectified, filtered circuit into pure DC DC.

*Can not use AC transformers, if the use of AC transformers, must be rectified, filtering circuit into a pure DC DC can be used.

*DC power supply: voltage DC12V-24V/current power greater than 2A or more, be sure to distinguish the positive/negative pole, cut the neglect to use more than DC24V voltage, otherwise burned IC chip!

* can be connected to the speaker or speaker 4Ω or 8Ω, power between 10W-80W, this depends on the size of the power supply to determine the power of the speaker.

Name: mini digital amplifier chip

Chip: TPA3110D2

Number of channels: two-channel stereo.

Input voltage: 8~24V

Size: 40.2*30mm

Output power: 15W*2
