SPECIFICATIONS

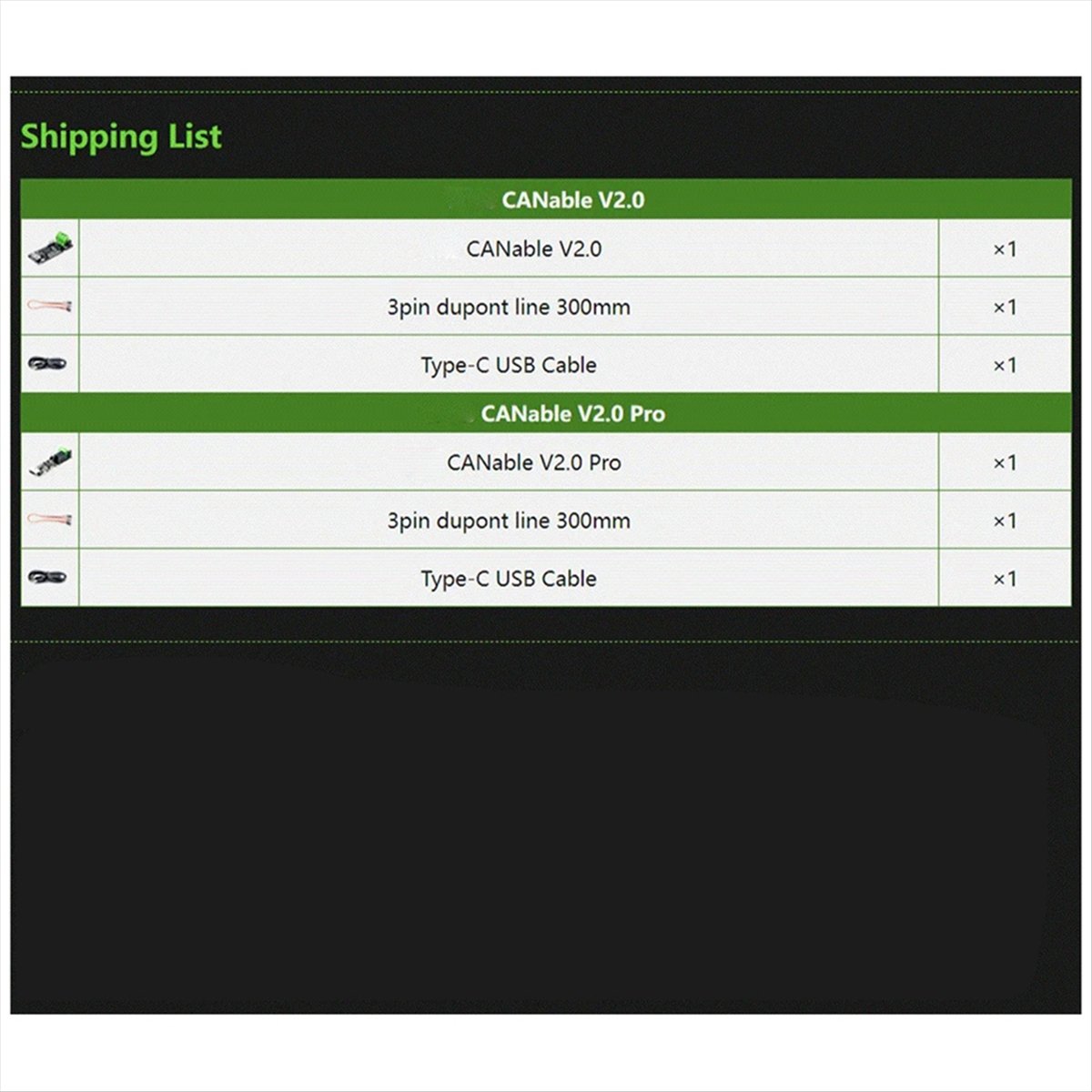

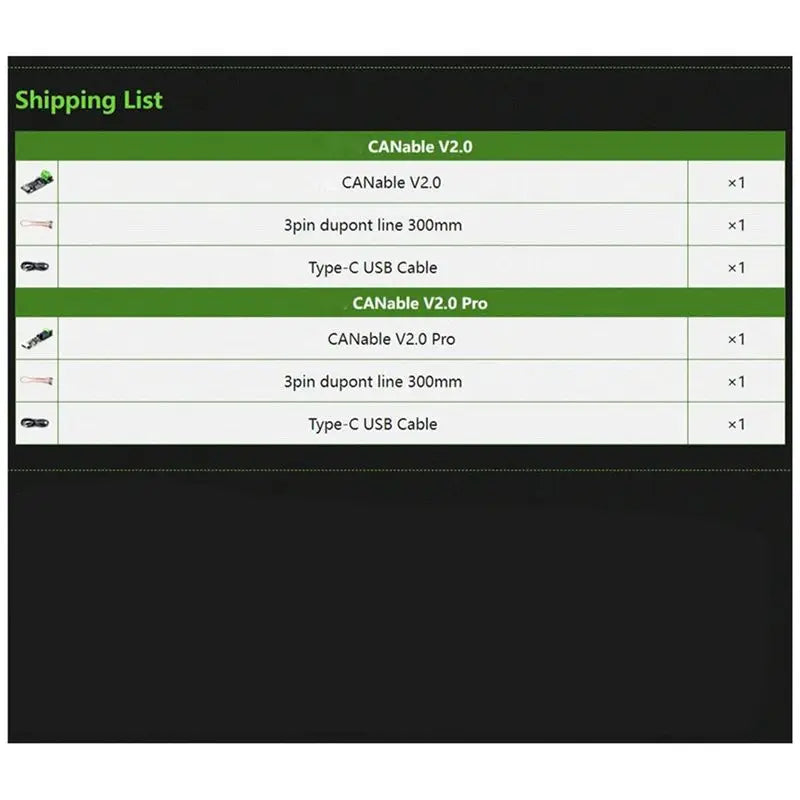

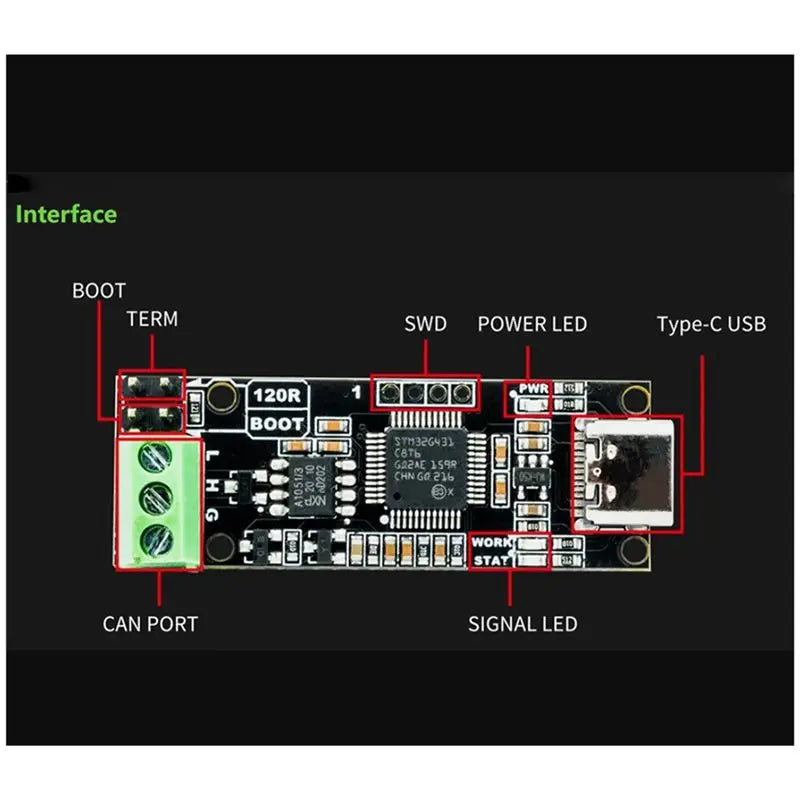

Product Introduction:Under the premise of high-speed transmission rate and high operational stability, the CAN V 2.0Pro module has stronger anti-interference ability and is very suitable for industrial debugging or Application in motor field. When using the candleLight firmware, CAN is enumerated as a native CAN interface on for Linux. The CAN analyzer is compatible with for ARM-based embedded platforms, such as: for , for Zero, for O DROID, for Beagle Bone, etc., making it very suitable for integration into products. Product Features: 1. Support for CAN 2.0A, CAN 2.0B, baud rate up to 1M; 2. Support candleLight, sl can firmware, sl can initially supports CAN-FD, test rate up to 2M/5M baud rate; 3. The terminal resistor can be selectively enabled/disabled through the short-circuit cap; 4. Supports Type-C USB interface, online firmware upgrade and DFU mode firmware upgrade; 5. Uses high-performance ARM -M4STM32G431C8T 6 processor, operating frequency up to 170MHz; 6. Provided Schematic diagram, firmware and source code, host computer, etc. The information is complete and easy to use. analyzer board Version: V2.0 Pro Material: abs colour: As Shown Package Contents: 1 x usb data cable 1 x 3pin double cable 1 x analyzer board Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
