SPECIFICATIONS

Brand Name: NONE

Certification: NONE

Electrified: Yes

High-concerned chemical: none

Origin: Mainland China

Specification 1: GPS BN220 Dual GLONASS Antenna Module

Specification 2: BN220 Dual GLONASS Antenna Module

Specification 3: Antenna Module

Specification 4: GLONASS Antenna Module TTL Level

Specification 5: For RC Racing FPV Drone

Weight: 10.6g

Welcome to our store. Buy more, save more. Please feel free to contact us if you have any questions. Thank you. Enjoy Your shopping.

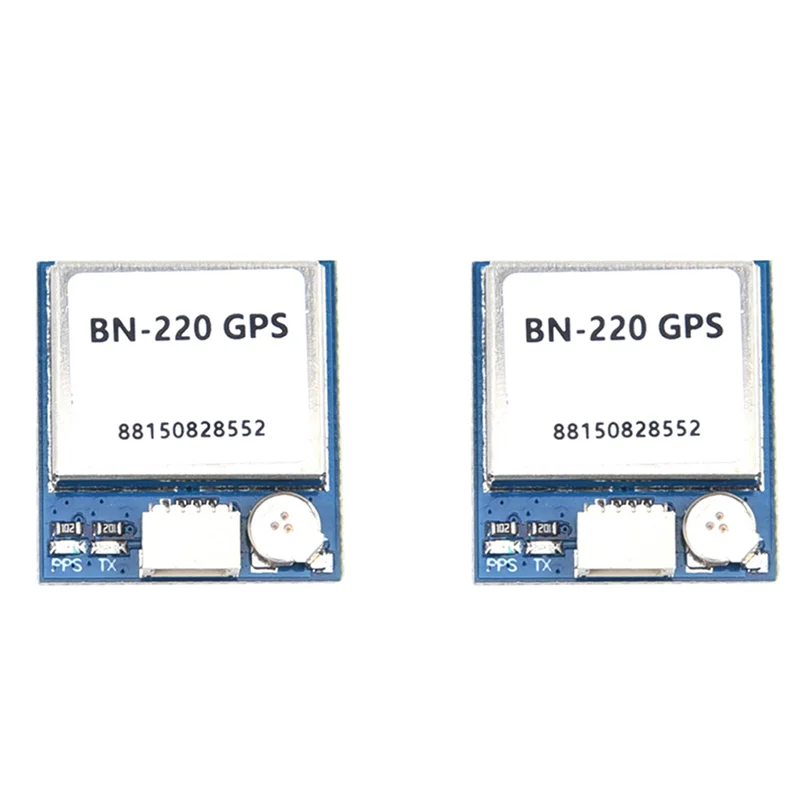

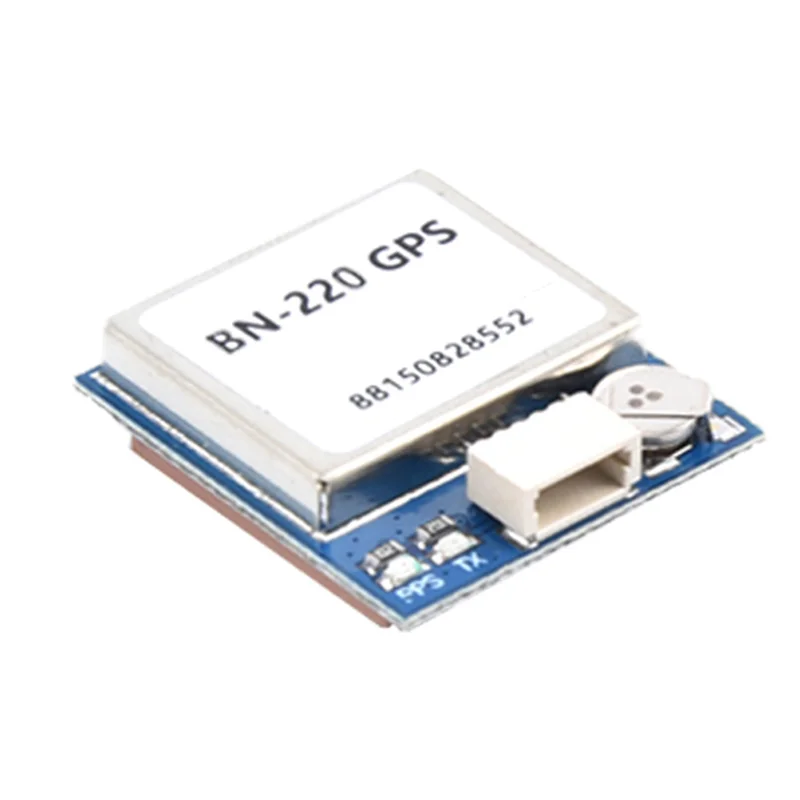

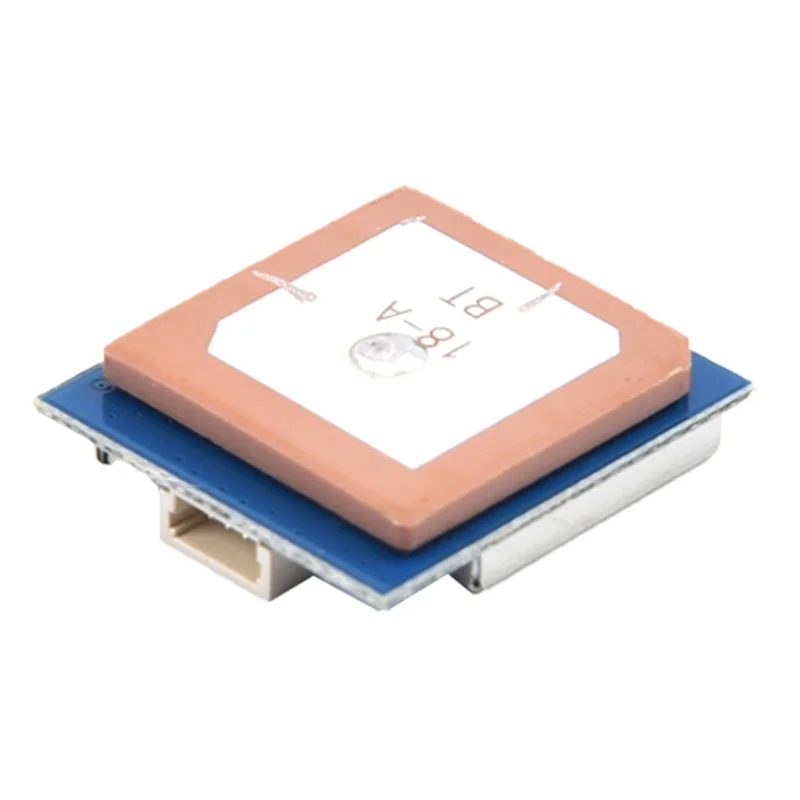

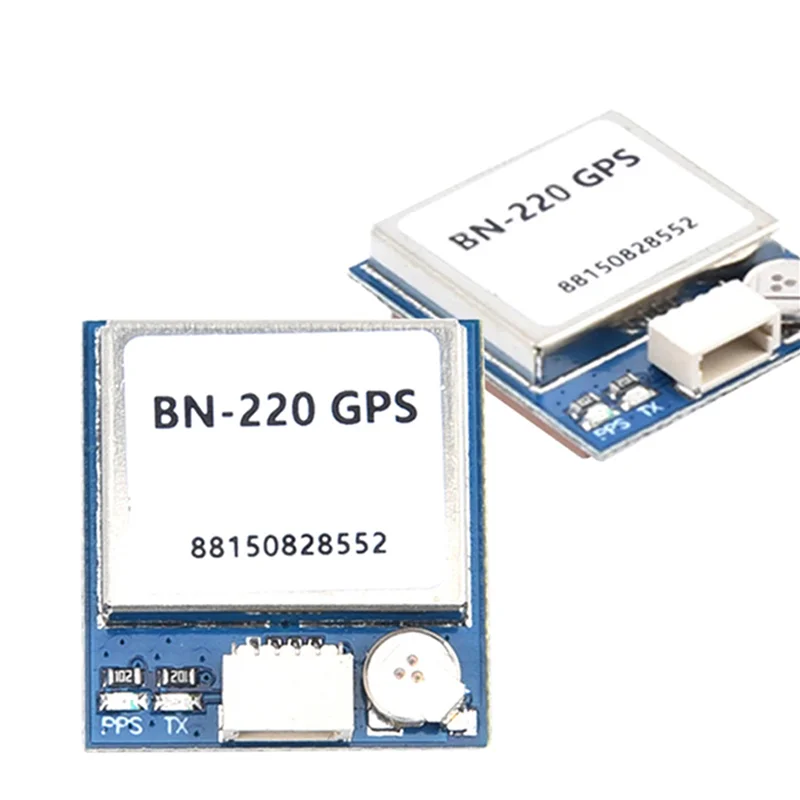

Type:BN-220 GPS Module
Dimension: 22mmx20mmx6mm
Weight:10.6g
Connector:1.00mm spacing between the 4pins patch seat

Electrical Characteristics:
Chipset:M8030-KT
Receiving Format:GPS,GLONASS,BeiDou,QZSS and SBAS
Frequency:GPS L1,GLONASS L1,BeiDou B1,SBAS L1
Channels:72 Searching Channel
Sensitivity:
Tracking:-167dBm
Reacquisition:-160dBm
Cold start:-148dBm
Hot start:-156dBm
Accuracy:
Position Horizontal: 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)
Velocity:0.1m/sec 95% (SA off)
Timing:1us synchronized to GPS time
Acquisition Time:
Cold Start:26s
Warm start:25s
Hot start:1s
Data and Update Rate:
Support Rate:4800bps to 921600bps,Default 9600bps
Data Level:TTL or RS-232,Default TTL level
Data Protocol:NMEA-0183, Default NMEA-0183
Single GNSS:1Hz-18Hz
Concurrent GNSS:1Hz-10Hz,Default 1Hz
Operational Limits:
Altitude: 50,000m Max
Velocity: 515m/s Max
Acceleration: Less than 4g
Power consumption:
VCC:DC Voltage 3.0V-5.5V,Typical:5.0V
Current:Capture 50mA/5.0V
Operating temp:-40℃ - +85℃
Storage Temp:-40℃- +105℃
Indicator:
TX LED:blue.The data output, TX LED flashing
LED:red. LED not bright when GPS not fixed,flashing when fixed
Wiring:GND,TX output,RX input,VCC(3.0v-5.5v)
Due to different product batches, the appearance may vary, which does not affect the use.
Colour:As Shown
Material:PC

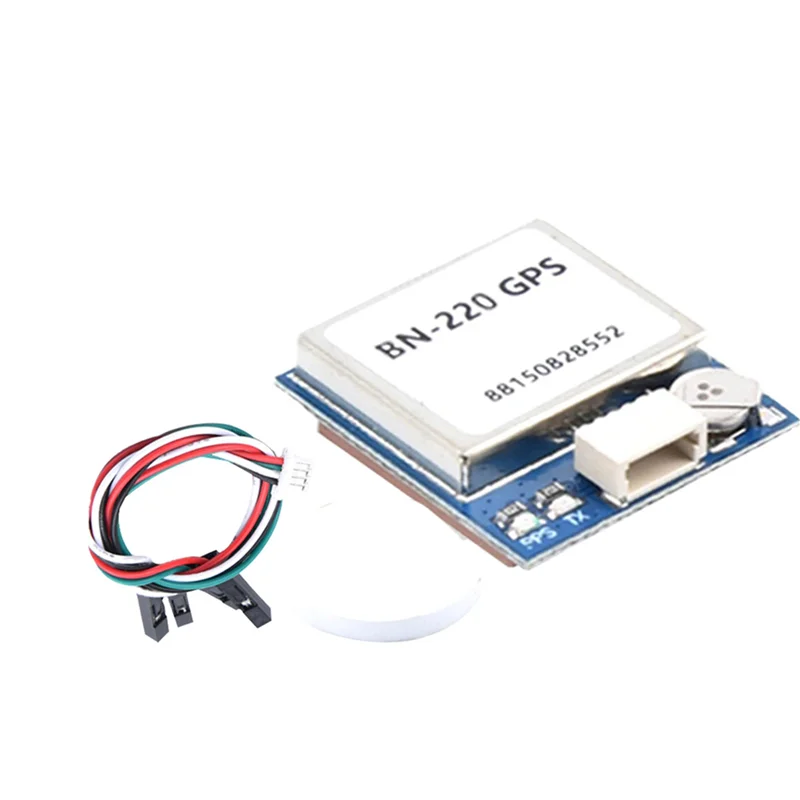

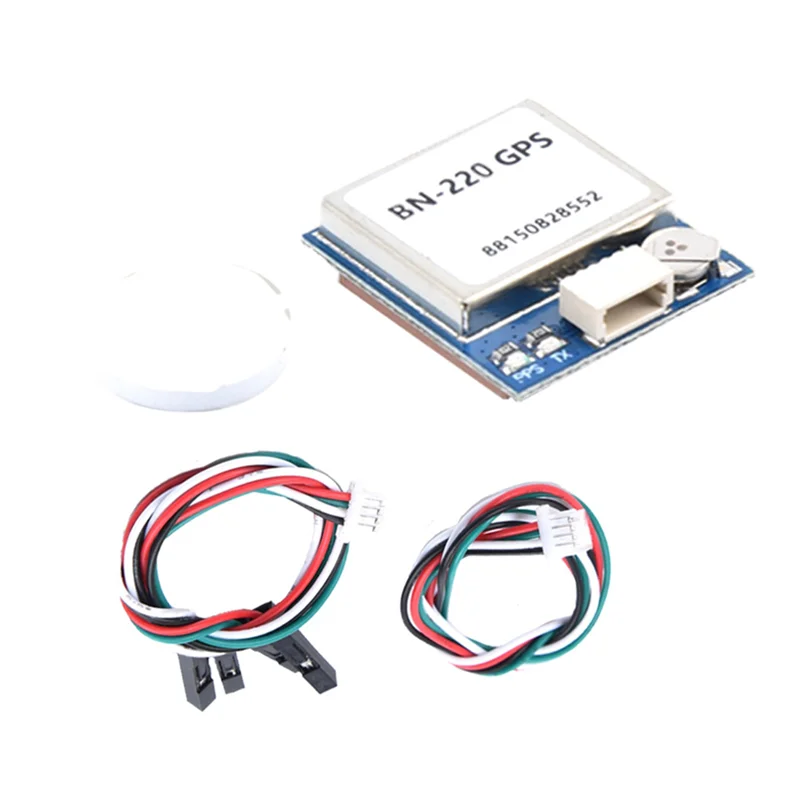

Package Contents:
2 x Antenna Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
