Description
SPECIFICATIONS
Brand Name: NoEnName_Null
For Vehicle Type: Airplanes
High-concerned chemical: none
Is Batteries Included: No
Is Electric: No battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Composite Material
Origin: Mainland China
Quantity: 1 pcs
Recommend Age: 14+y
Remote Control Peripherals/Devices: RECEIVERS
Technical parameters: value 3
Tool Supplies: Assembled class
Use: Vehicles & Remote Control Toys
Wheelbase: Screws
Product Feature：
DescriptionUser Manual

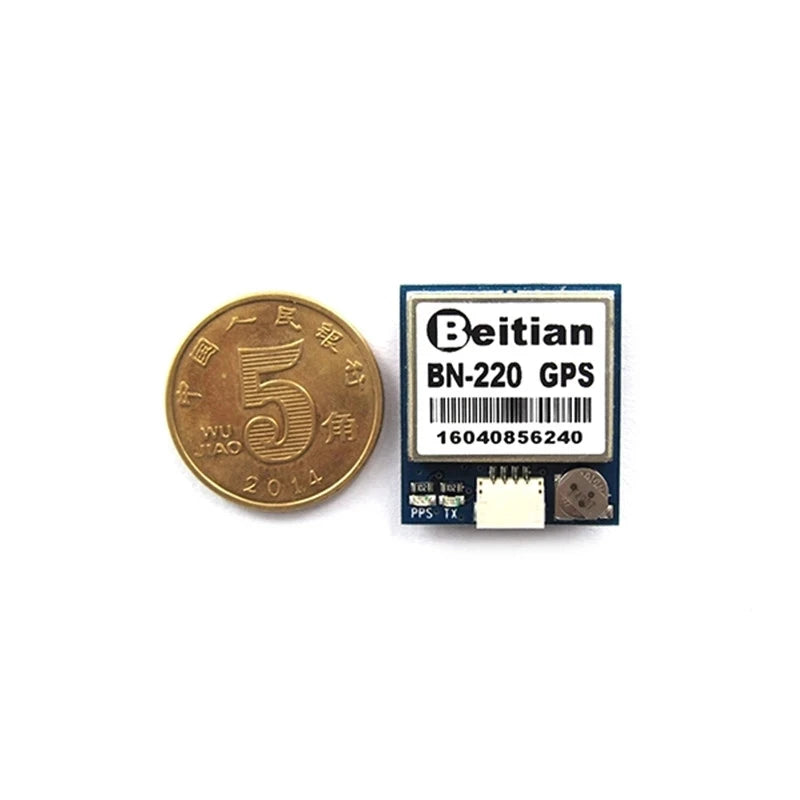

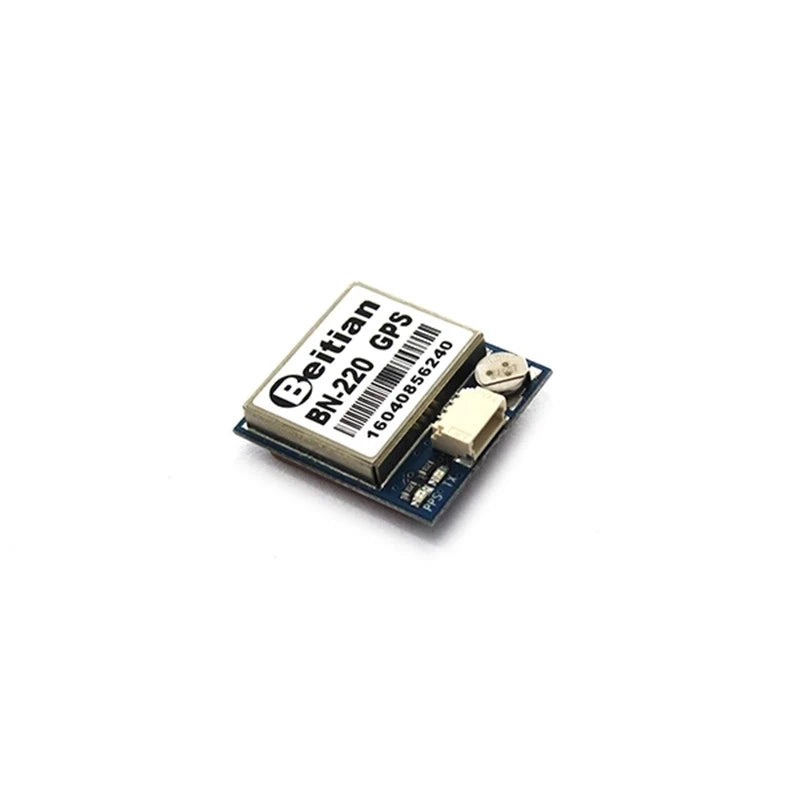

Dimension : 22mm*20mm*6mm
Weight : 5.3g
Connector : 1.00mm spacing between the 4pins patch seat
Specification
Electrical Characteristics
Chipset : M8030-KT
Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
Channels : 72 Searching Channel
Sensitivity
Tracking : -167dBm
Reacquisition : -160dBm
Cold start : -148dBm
Hot start : -156dBm
Accuracy
Position Horizontal : 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)
Speed : 0.1m/sec 95% (SA off)
Timing : 1us synchronized to GPS time
Acquisition Time
Cold Start : 26s
Warm start : 25s
Hot start : 1s
Data and Update Rate
Support Rate : 4800bps to 921600bps,Default 9600bps
Data Level : TTL or RS-232,Default TTL level
Data Protocol : NMEA-0183, Default NMEA-0183
Single GNSS : 1Hz-18Hz
Concurrent GNSS : 1Hz-10Hz,Default 1Hz
Operational Limits
Altitude : 50,000m Max
Speed : 515m/s Max
Acceleration : Less than 4g
Electricityconsumption
VCC : DC Voltage 3.0V-5.5V,Typical: 5.0V
Current : Capture 50mA/5.0V
Operating temp : -40 °C ~ +85°C
Storage Temp : -40°C ~ +105°C

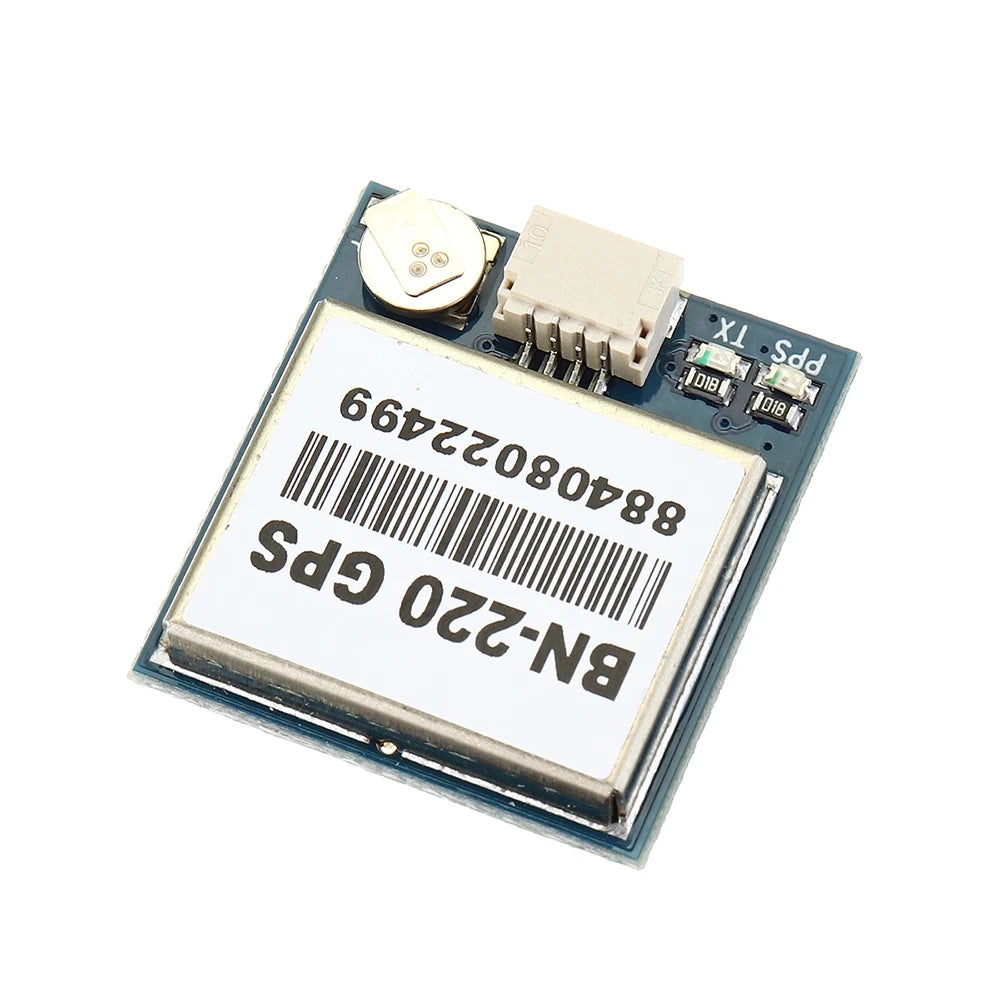

Indicator :
TX LED:blue.The data output, TX LED flashing
PPS LED:red.PPS LED not bright when GPS not fixed,flashing when fixed

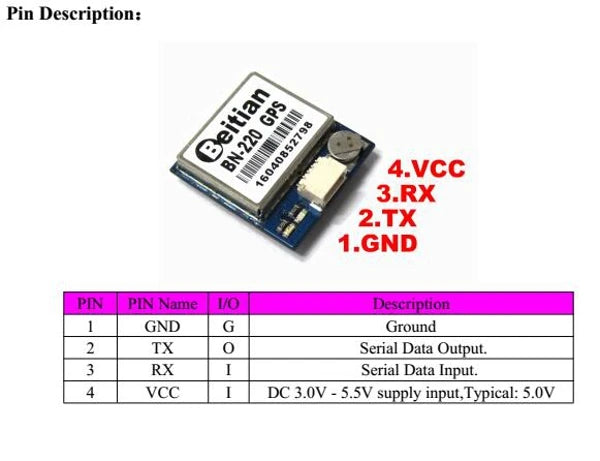

Wiring:
GND,TX output,RX input,VCC(3.0v-5.5v)
Package Included (optional)

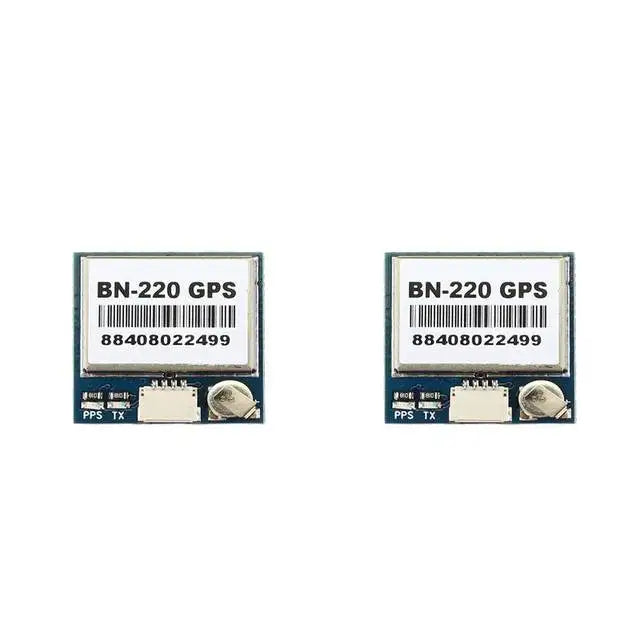

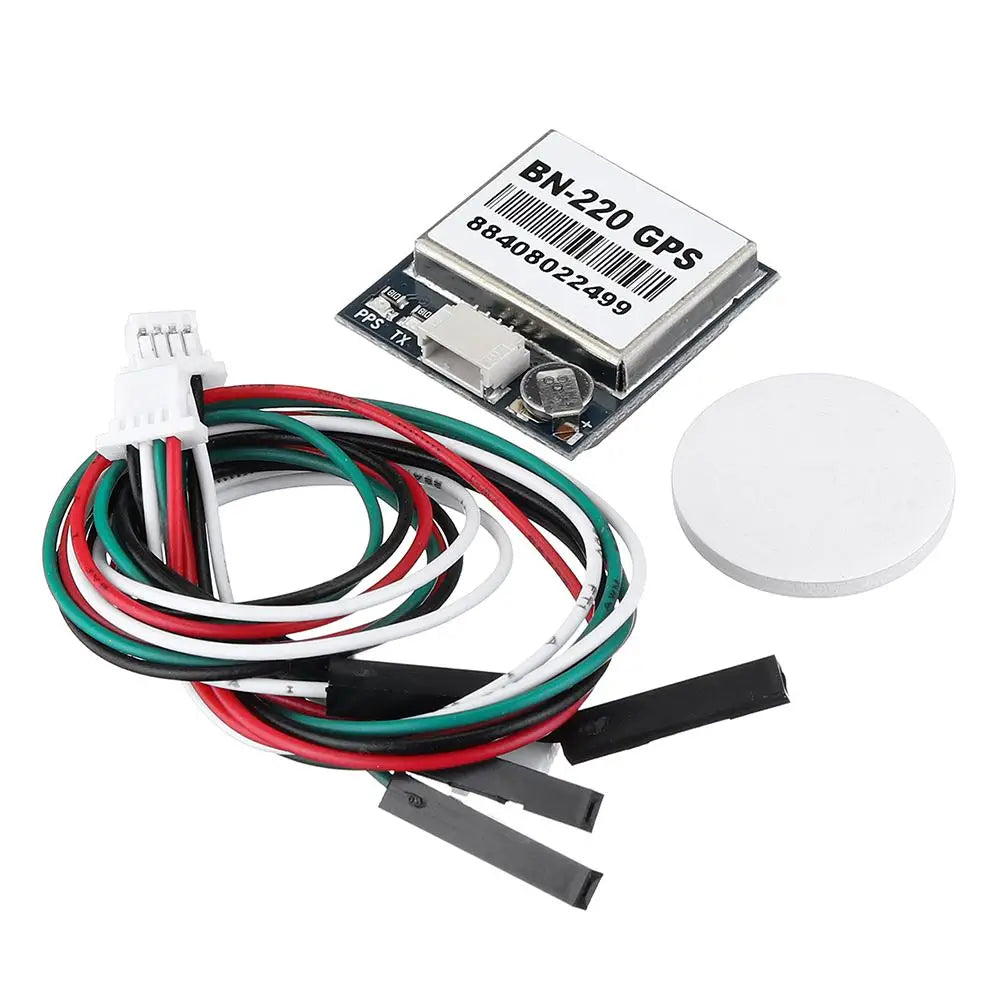

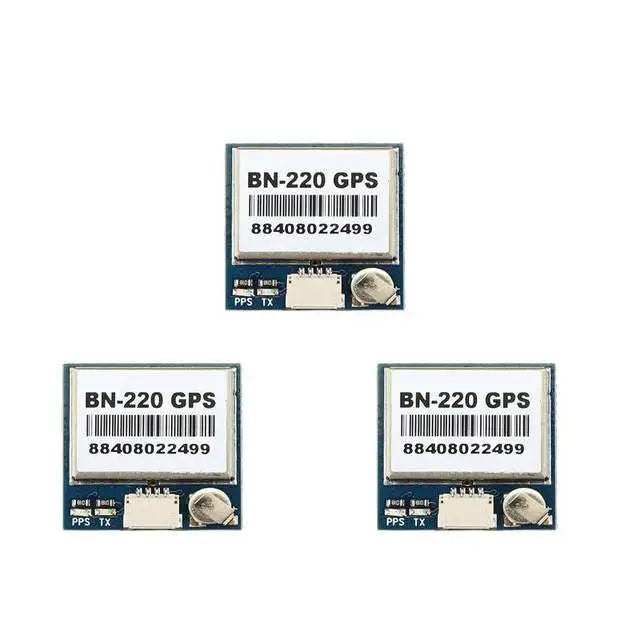

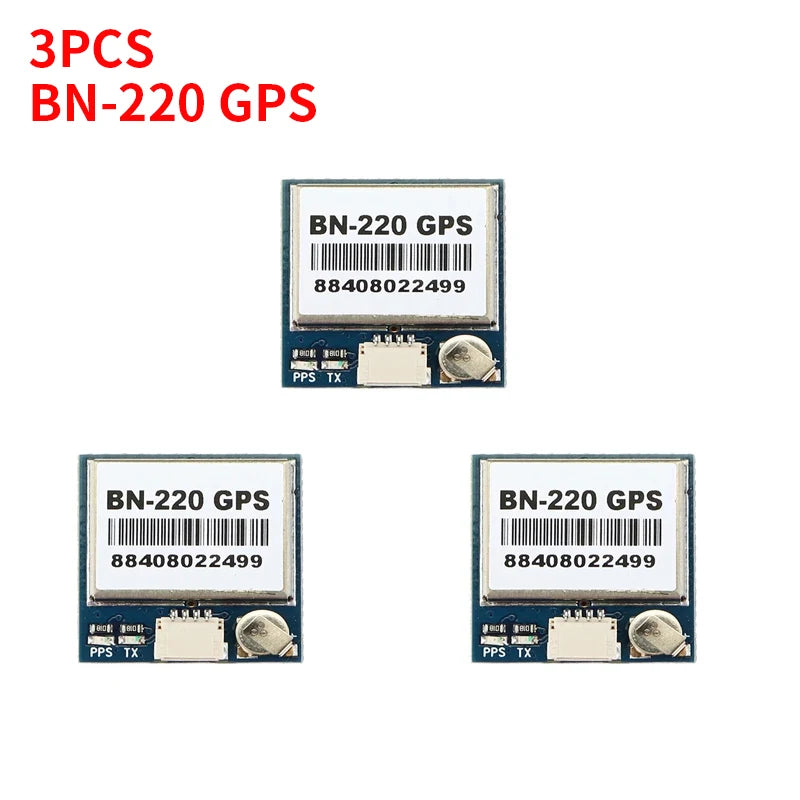

1/2/3 x BN-220 GPS Module

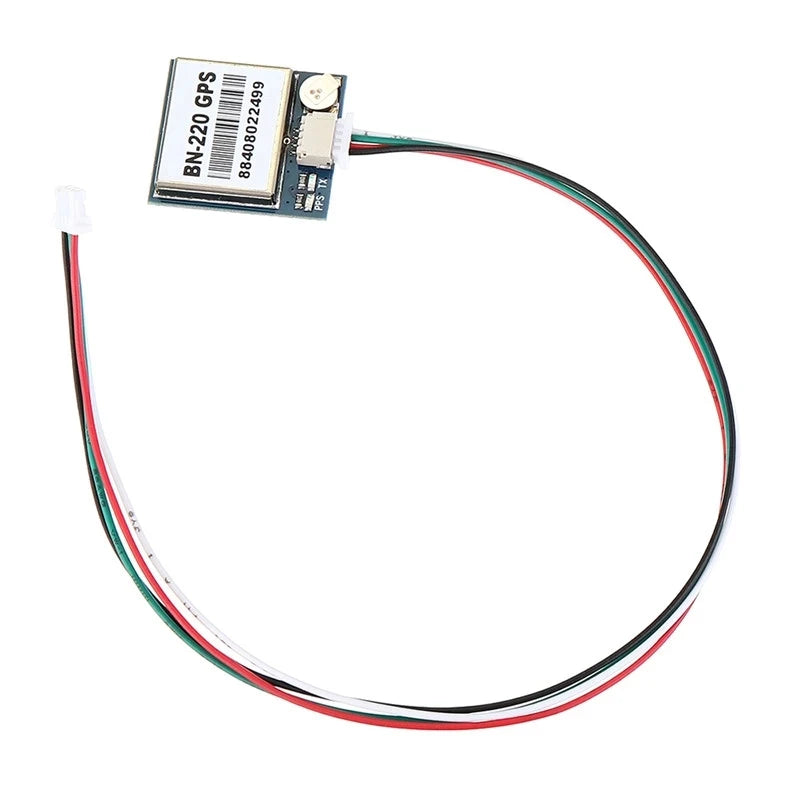

2 x 15cm Cable
or

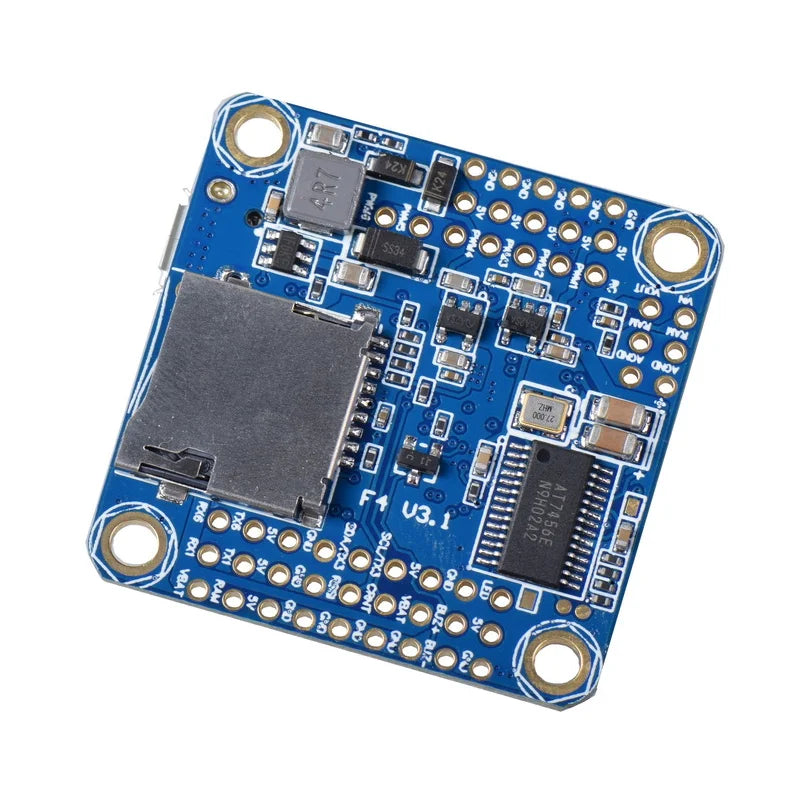

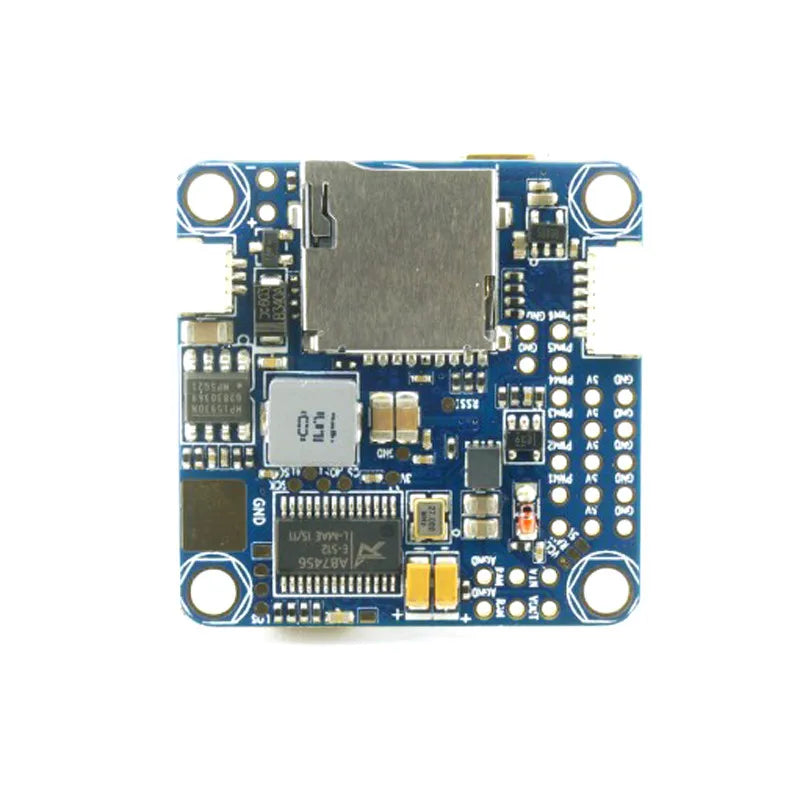

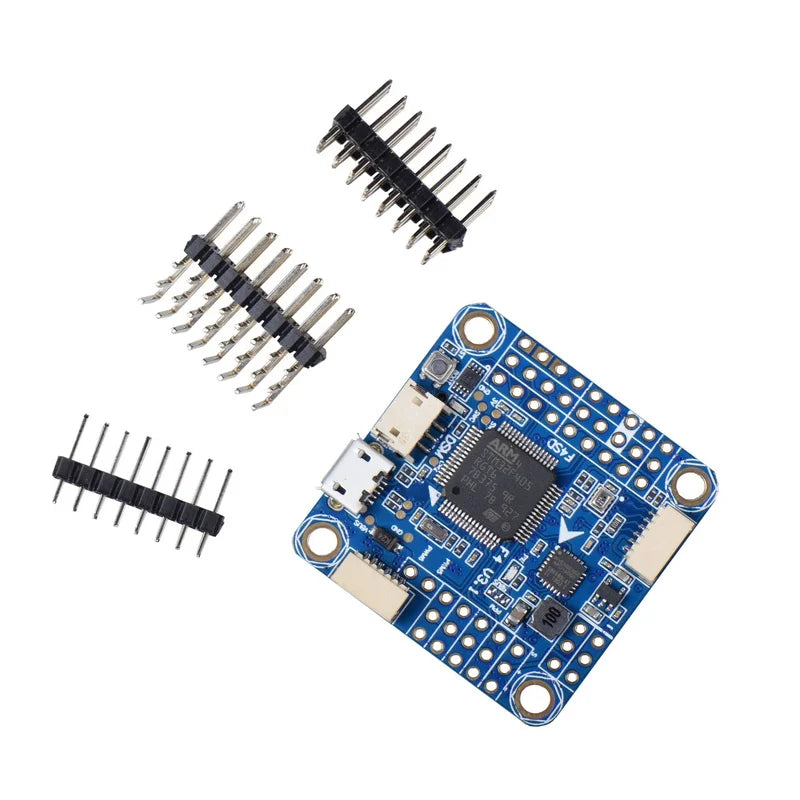

1 x Omnibus F4 Pro V3 Flight controller
or
1 x Omnibus F4 Pro V3 Flight controller &BN-220 GPS Module
Product Pictures：
,
,,
