Hot Sale COB 16 PINS 84x44mm 5V Panel Balck Screen 16x2 LCD Display Module 16*2 1602 Charcter OLED

Hot Sale COB 16 PINS 84x44mm 5V Panel Balck Screen 16x2 LCD Display Module 16*2 1602 Charcter OLED

$87.71

$87.71 $0.00

Color Green on balck Red on balck Yellow on balck Blue on black White on black

Ships FromChina Mainland

Description

SPECIFICATIONS

Brand Name: simair

Controller: WS0010-TX

Display Color: White / Yellow / Blue / Green / Red

Display Mode: 1000:1

Drive method: 1/16

High-concerned chemical: none

Interface: 6800, option 8080, SPI

Model Number: SEH1602E-OLED

Origin: Mainland China

Outline Size: 84*44mm

Power Supply: 5V

Resolution: 16*2,16 characters x 2 Lines

Size: 2.29"

Structure: COB

Type: Character,Character OLED

is_customized: Yes

Purchase Instructions:

Dear customers, welcome to Our shop ! Hope you have a good business trip in our store！

1. Please select the model you need. If you have any questions, please contact us.

2. The product can provide detailed development data and technical support. Please contact us !

3. For repair and replacement, if you are not familiar with LCD, pls.contact us first !

4. If you have any questions about freight and price, please contact us.

5. Pls.choose the right shipment .According to experience, we suggest to choose Aliexpress Standard shipping .

6 We are factory . We support customized products if you have big quantity .

7. If you have any questions, please contact us first. Thanks for your cooperation!

1.Specification parameters

OLED

OLED (Organic Light-Emitting Diode), also known as organic electric laser display, organic light emitting semiconductor (Organic Electroluminesence Display, OLED).

The dimensions and VA dimensions of SMR1602E-OLED display are the same as the traditional STN standard 1602 LCD. It is recommended that customers can use SMR1602E-OLED to replace the traditional LCD module and upgrade the product to an OLED display.


This module has built-in WS0010-TX Controller IC and built-in 4 fonts: English/Japanese, West European ,Scandinavian European, and Cyrillic(Russian).
The product default is 6800 parallel port,If you require 8080 parallel port or SPI serial port, please contact our customer service, and we will be happy to assist you.
Change to SPI:
Remove the resistance of position PS_H J68 L_CSSimultaneously soldering zero ohm resistor at position L_PS JCS.If you need SPI LCD,please contact us!

Model	SEH1602-E
Model size	84(L)x44(W)x10(H)mm
View Area	66*16mm
Backlight	No backlight required, self-luminous
Display Colour	Yellow	White	Blue	Red	Green
Operating voltage	5V/3.3V
Driver IC	WS0010-TX
Net weight（g）	50
Driving Method	1/16 DUTY,1/5 BIAS
Number of chracter	16 characters x 2 lines
Operating Temperature	-20℃ ~ +70℃
Storage Temperature	-30℃ ~ +80℃
Built-in fonts	English/Japanese, West European, Scandinavian European, and Cyrillic (Russian)
Product features	Light and thin, Low power consumption, Ultra-wide temperature, High brightness, Fast response, Wide viewing angle

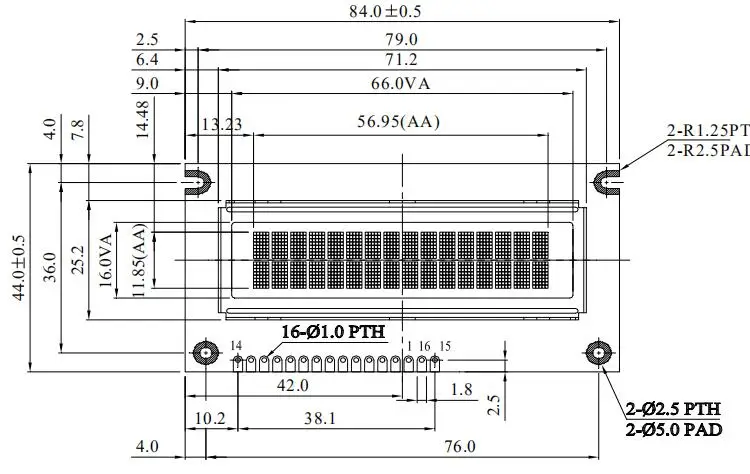

2.Extenal Dimensions

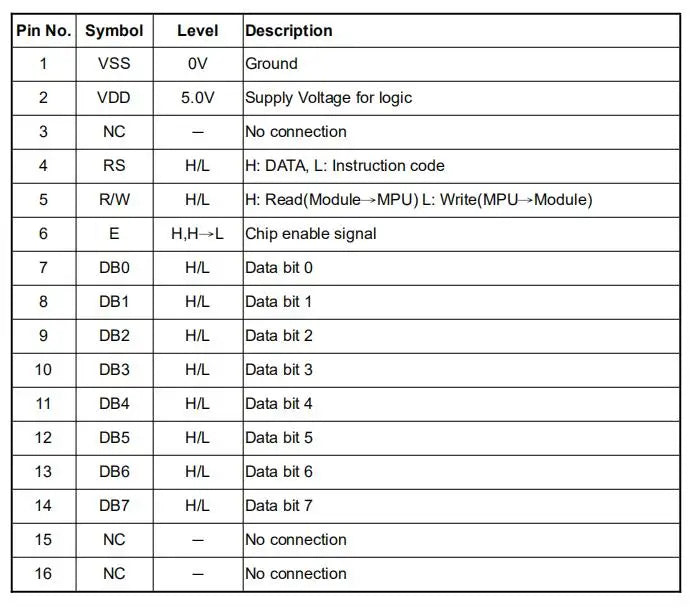

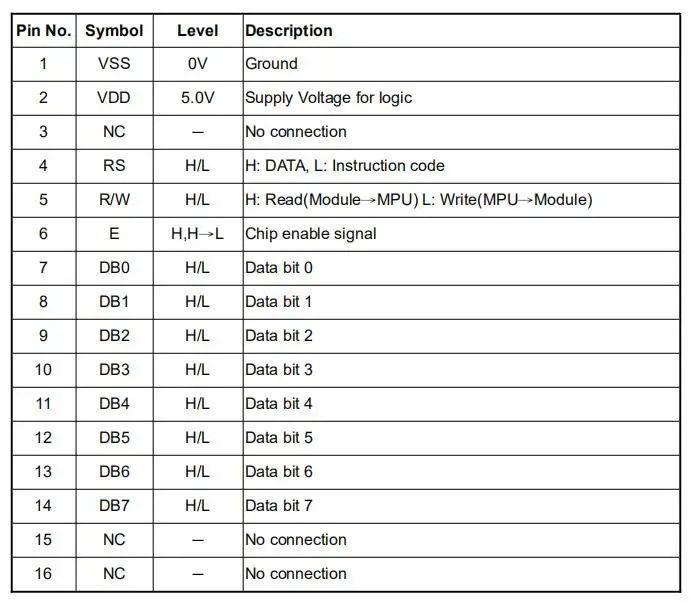

3.Pin Descriptions

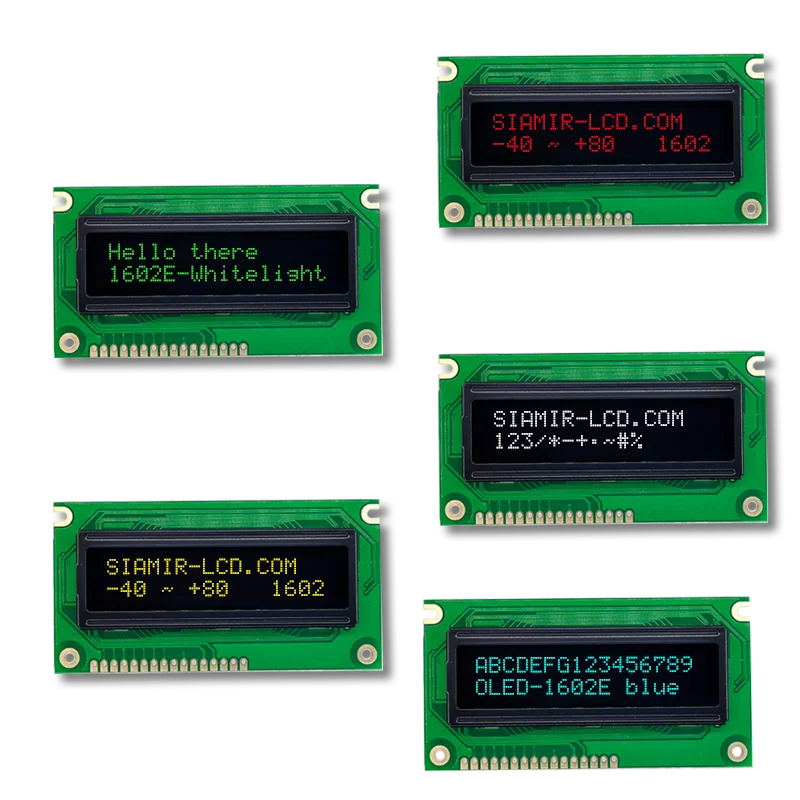

4.Photo Display

Q: Is the product in stock? How long production cycle?
A: Some products are in stock, Small batch production for 1-2 weeks,Mass production for 3-4 weeks.

Q: How long is the product warranty and service?
A: The product is valid for 1 year and is a lifetime technical support service.

Q: Can you customize the product?  How can I get the samples?
A: We can customize as needed, and the quantity has a minimum order quantity requirement.
Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling &samples → Samples finished → Delivery via freight or sea collect.


Q: Can you provide drawings and related procedures?
A: We can provide drawings and procedures for customers to confirm.

Q: Can the LCD module be Export directly?
A: The products are through the relevant certification, it can be exported.

Q: Are you manufactory or trade company?
A:We are professional manufactory, which specializes in TN, HTN, FSTN, STN monochrome LCD, LED backlights, LCD modules more than 10 years.


Q: How do you manage product quality?
A: The products are baked, aging, electrical measurement and other procedures for testing.
