SPECIFICATIONS

Accuracy Level: 0.5%

Battery Included: no

Brand Name: NONE

Diaphragm Material: 316L Stainless Steel (Customizable: Hastelloy or others)

High-concerned chemical: none

Installation Type: G1/4 (Default), Customizable: M20*1.5, 1/2NPT, G1/2, 1/4NPT

Measuring Medium: Various gases, liquids, water, oil, etc.

Origin: Mainland China

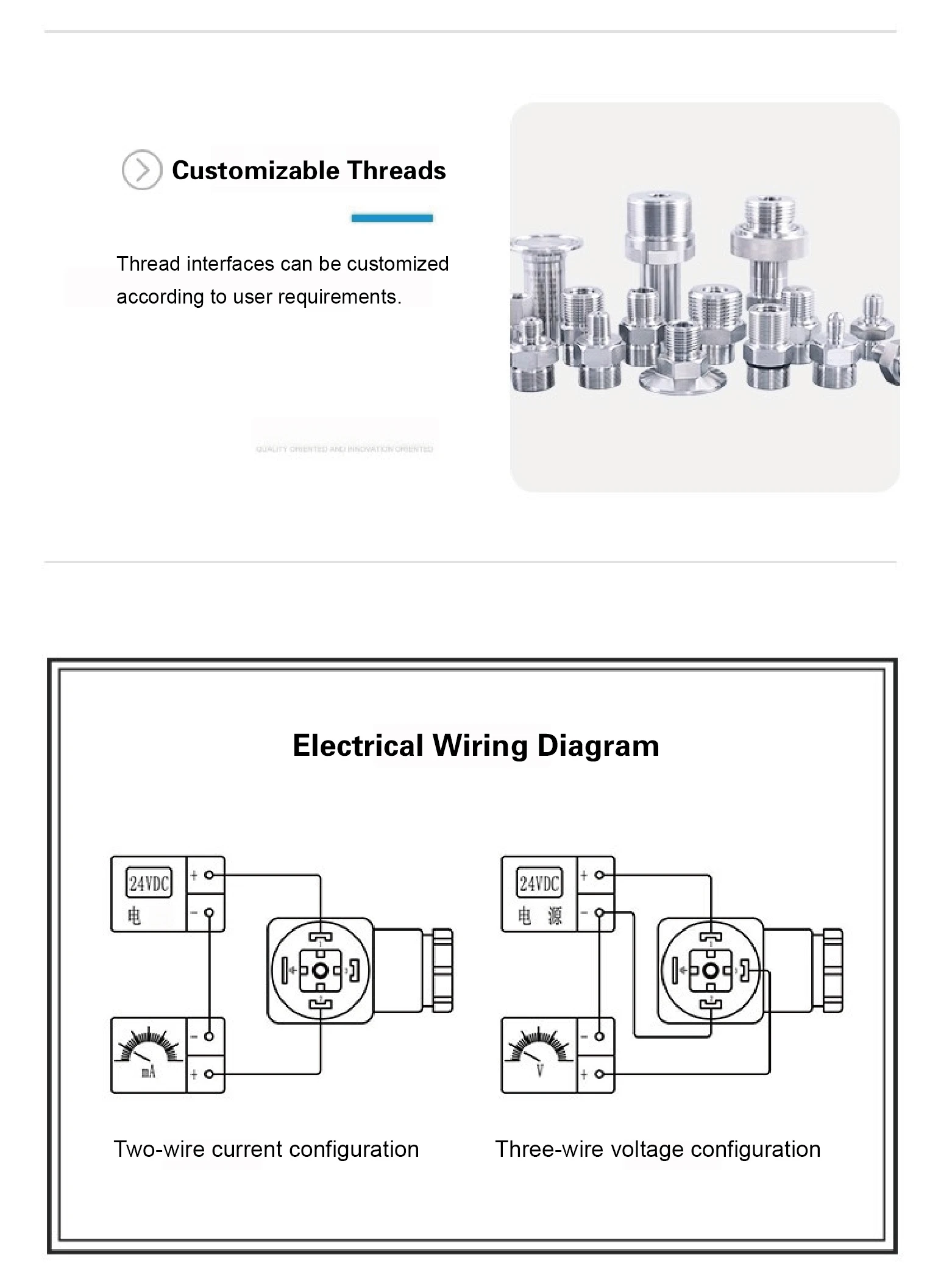

Output Signal: 4-20mA (Default), Customizable: 0-10V, 0-5V, 485 signal

Power Supply: DC16-32V

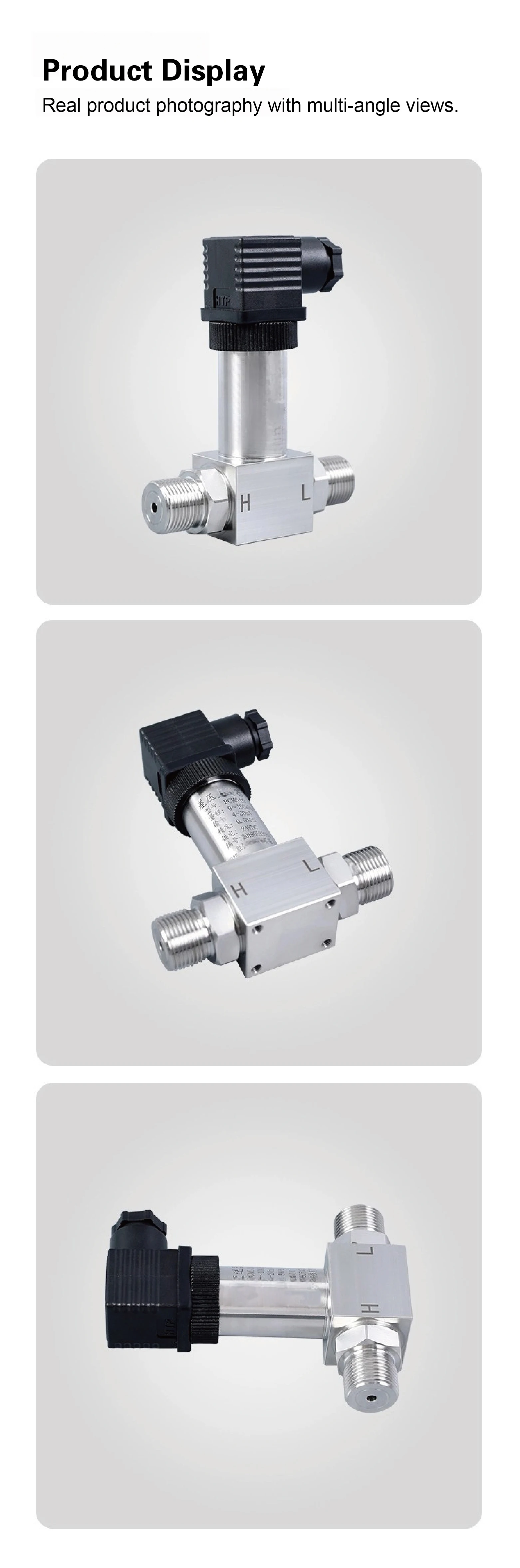

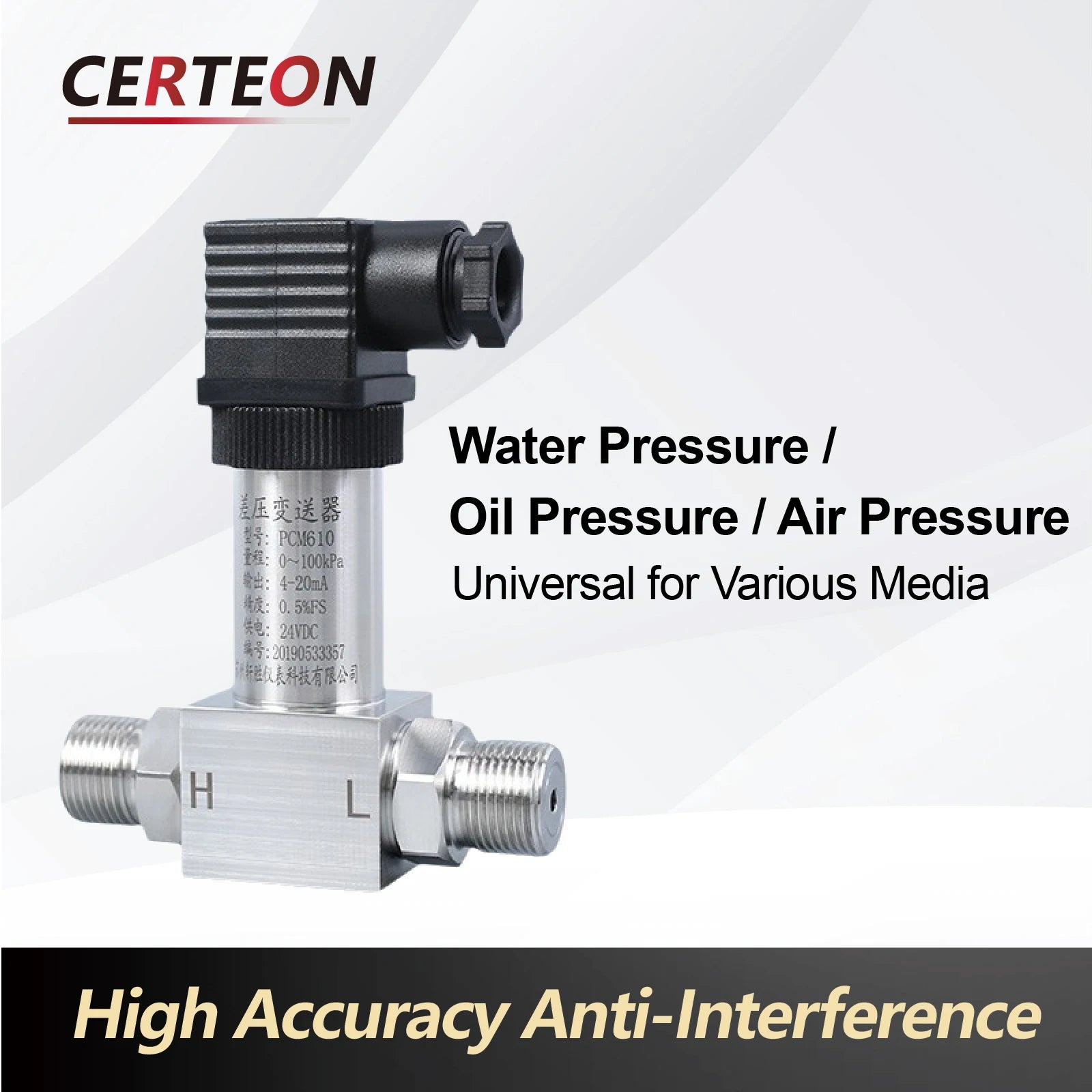

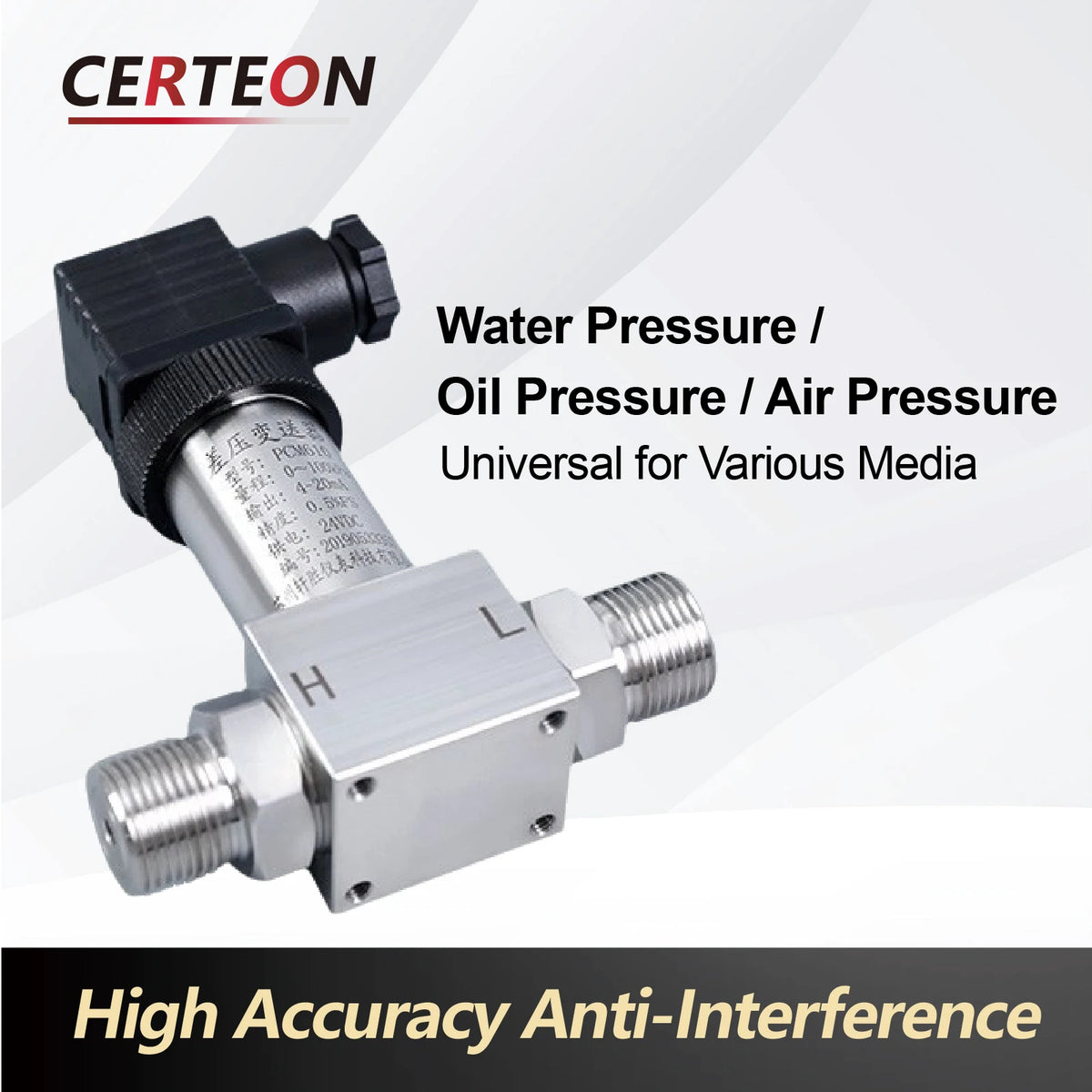

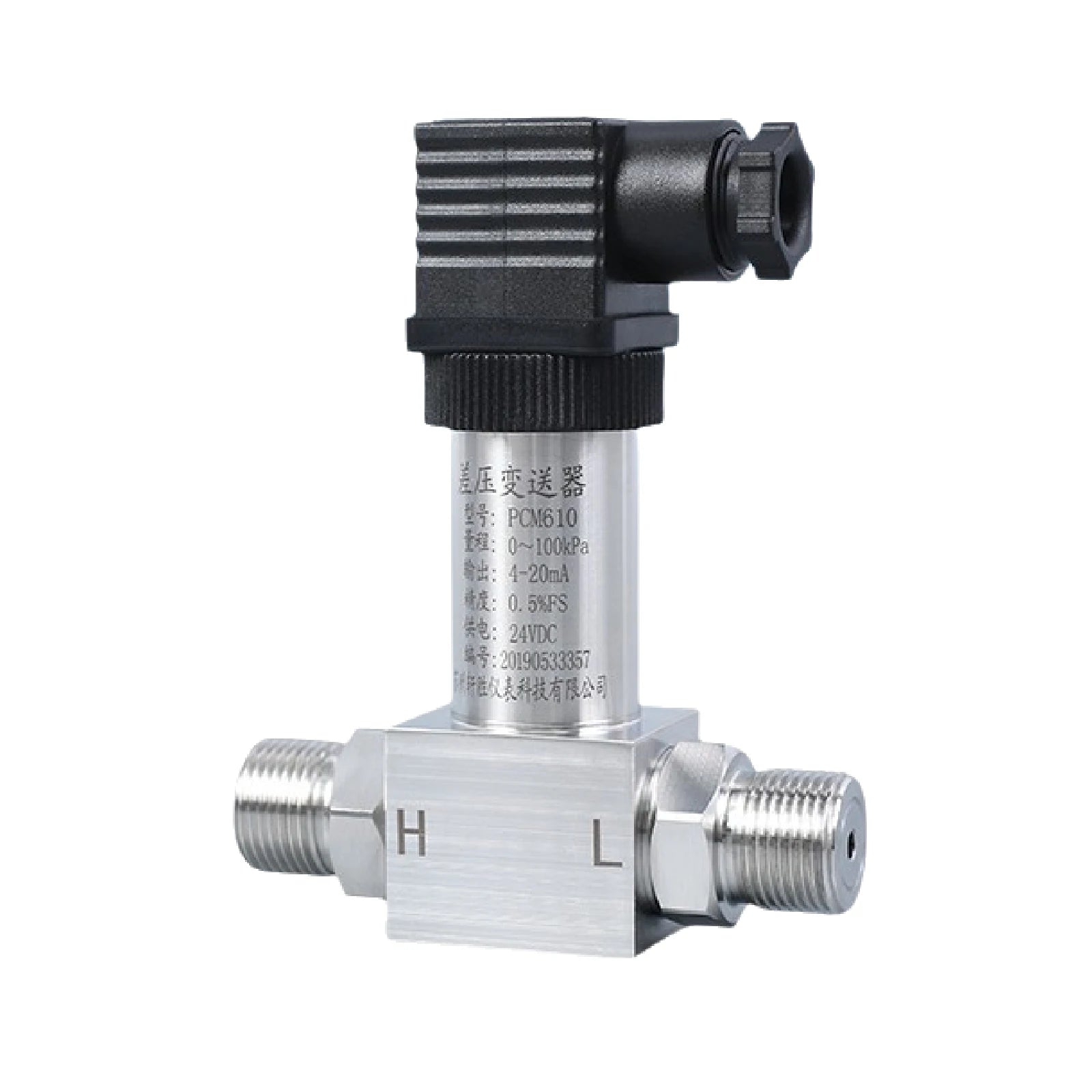

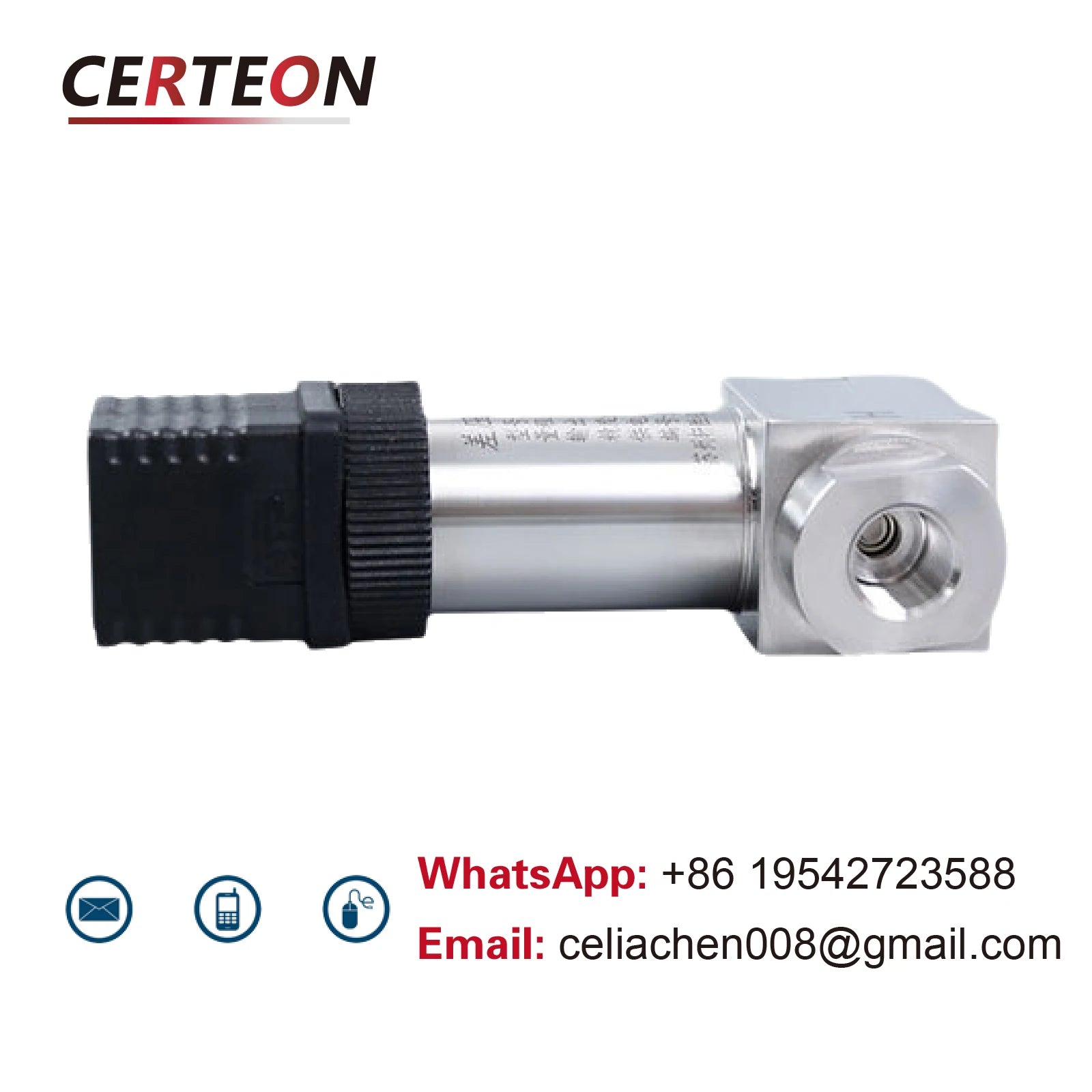

Product Name: Diffused Silicon Pressure Transmitter

Protection Grade: IP65

Semi-finishedproduct: No

Due to page limitations, we are unable to list all available pressure ranges and corresponding units. However, any pressure range within -0.1 to 60 MPa does not affect the price. Supported pressure units include MPa, kPa, bar, psi, and kgf/cm². If the required pressure range or unit is not listed, please select any available range, along with the desired thread type and signal output, and place your order. Make sure to specify your required pressure range and unit (e.g., MPa, bar, psi) in the order notes. We will produce and ship the product according to your specified parameters. Thank you for your understanding!

1. NOTE
Due to page limitations, some configurations may not be listed. Please contact us or leave a note during checkout for special requests.

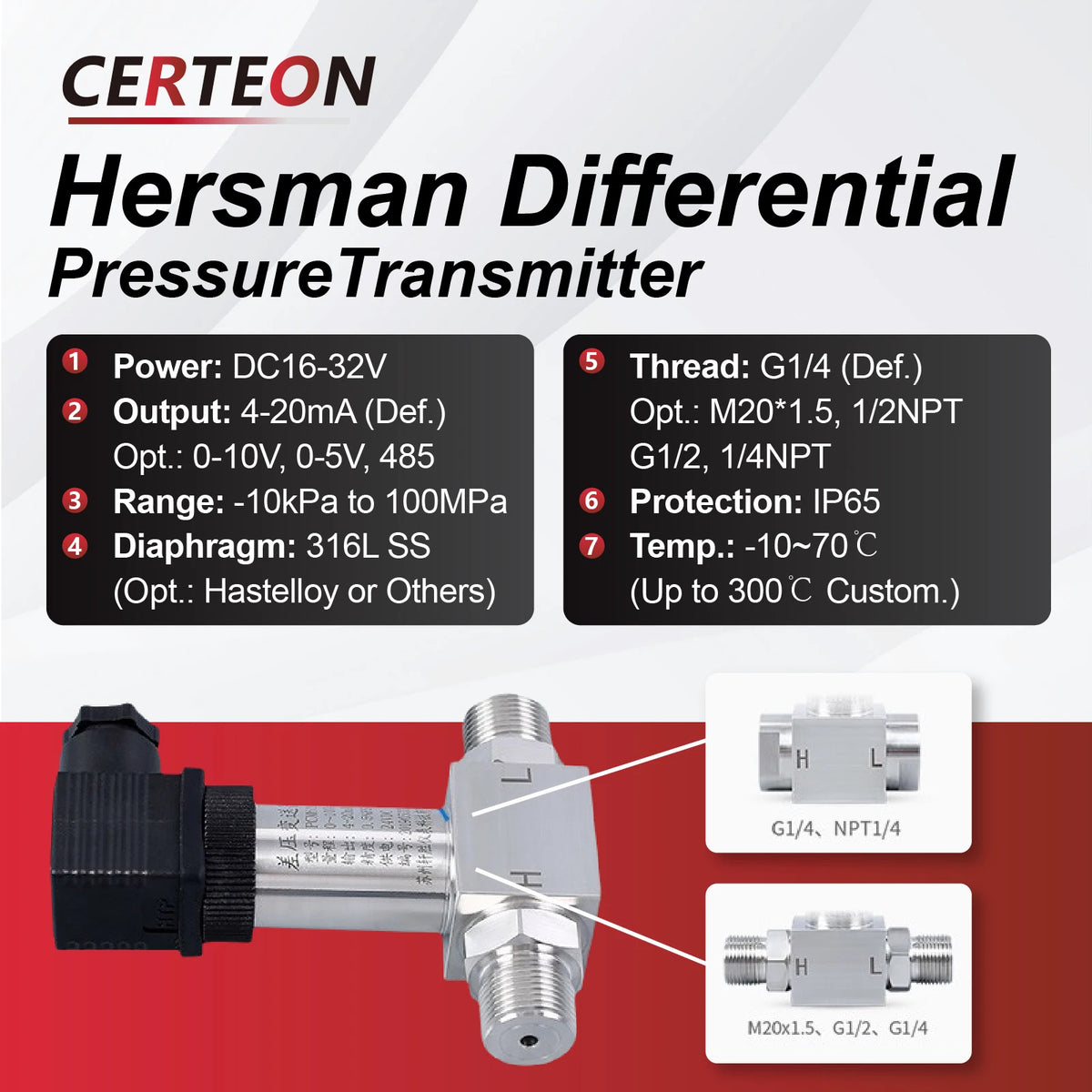

Default Configuration Includes:

• Power Supply: DC16–32V

• Output Signal: 4–20mA (Default)

• Optional Output Signals: 0–10V, 0–5V, RS485

• Pressure Range: -10kPa to 100MPa

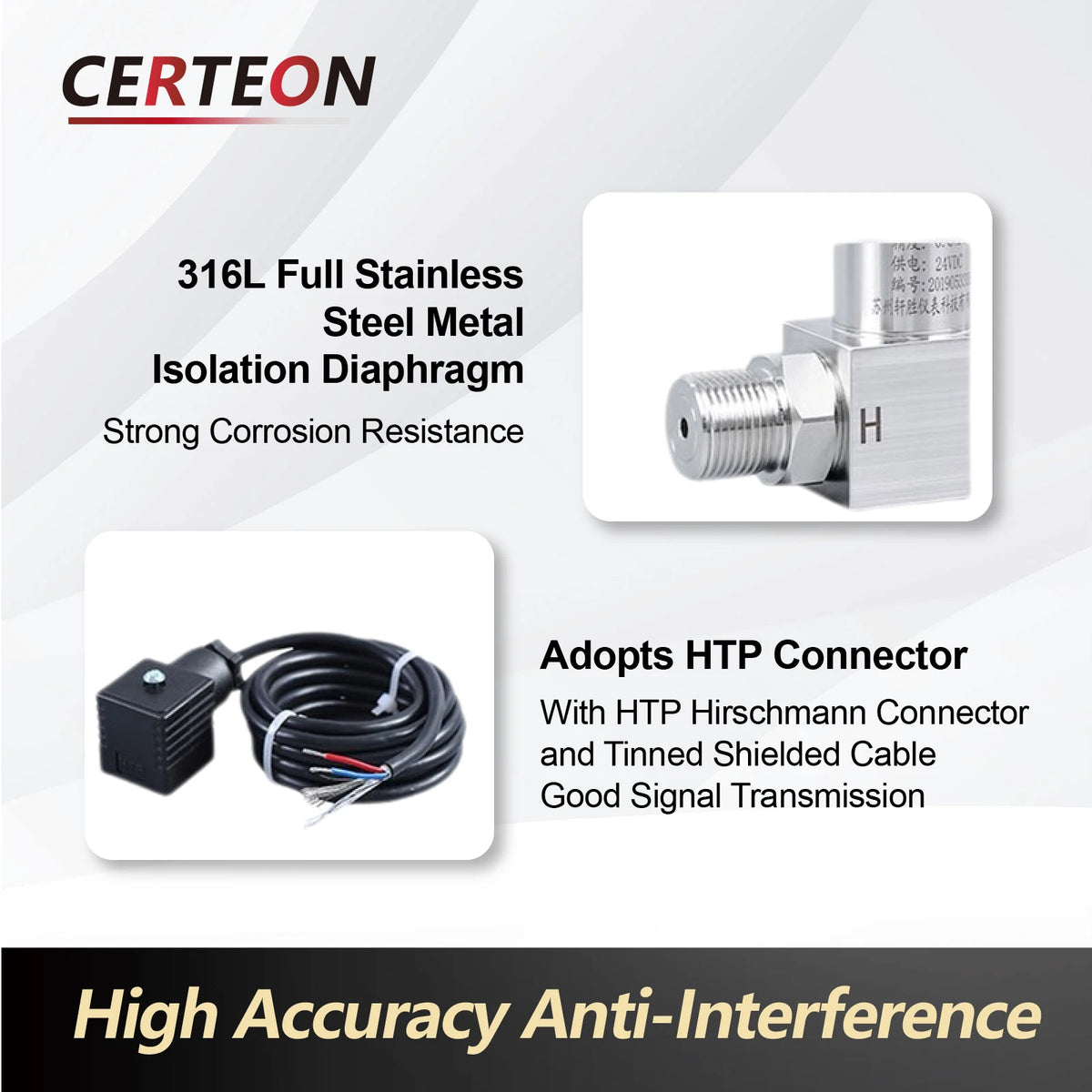

• Diaphragm Material: 316L Stainless Steel (Optional: Hastelloy, Tantalum, or others)

• Thread Size: G1/4 (Default)

• Optional Threads: M20×1.5, 1/2NPT, G1/2, 1/4NPT

• Protection Level: IP65

• Operating Temperature: -10°C to 70°C (Customizable up to 300°C)

Optional Configurations Include:

• Pressure Range: Customizable (e.g., -100kPa–10MPa, -0.1MPa–100MPa)

• Diaphragm Material: Customizable (e.g., 316L Stainless Steel, Hastelloy, Tantalum)

• Thread Type: Customizable (e.g., M20×1.5, 1/2NPT, G1/2, 1/4NPT)

• Output Signal: Customizable (e.g., 4–20mA, 0–5V, 0–10V, RS485)

• Operating Temperature: Customizable (e.g., -10°C–300°C)

Please confirm the required pressure range, output signal, connection type, and power supply before placing your order.

For customization, please contact us.

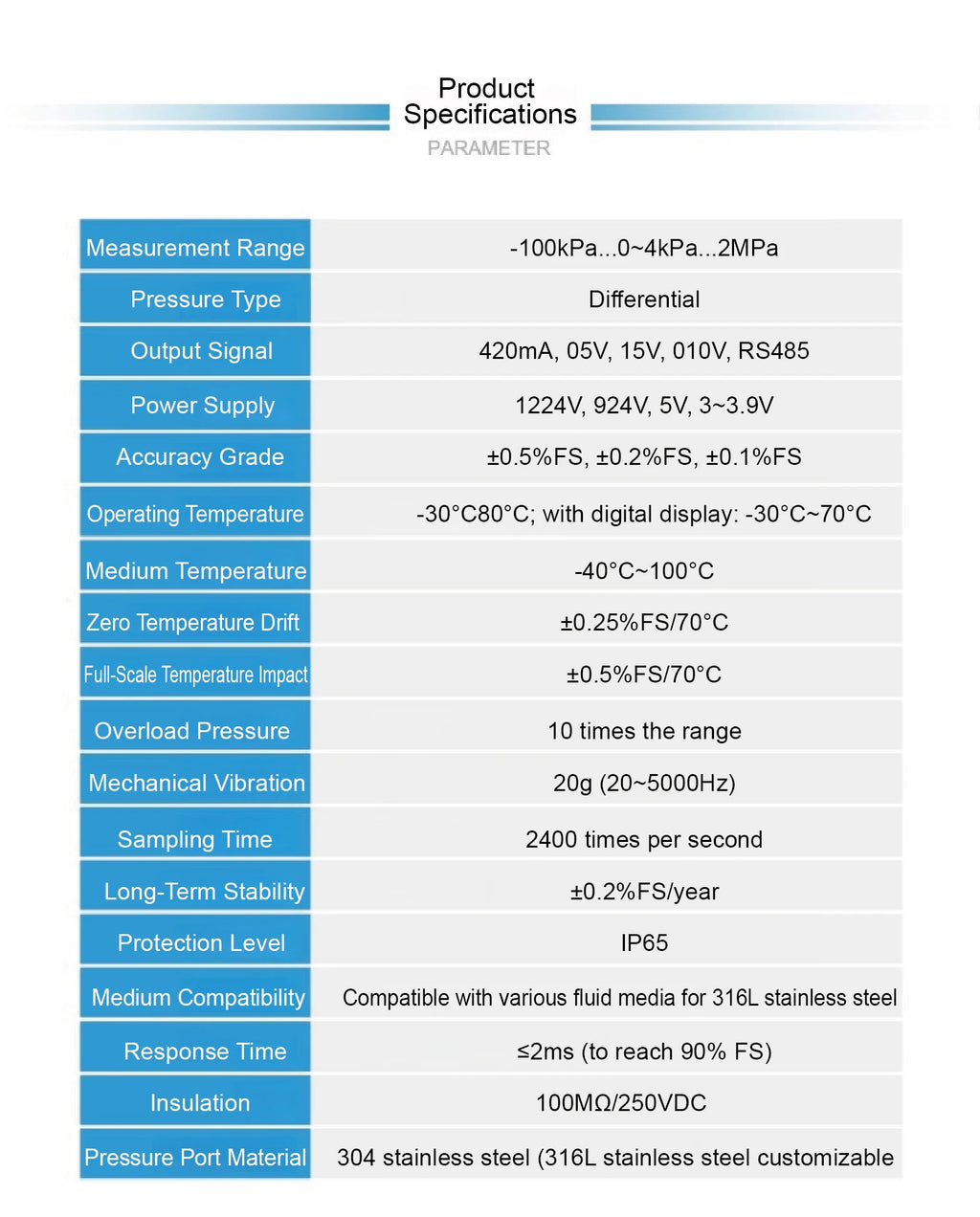

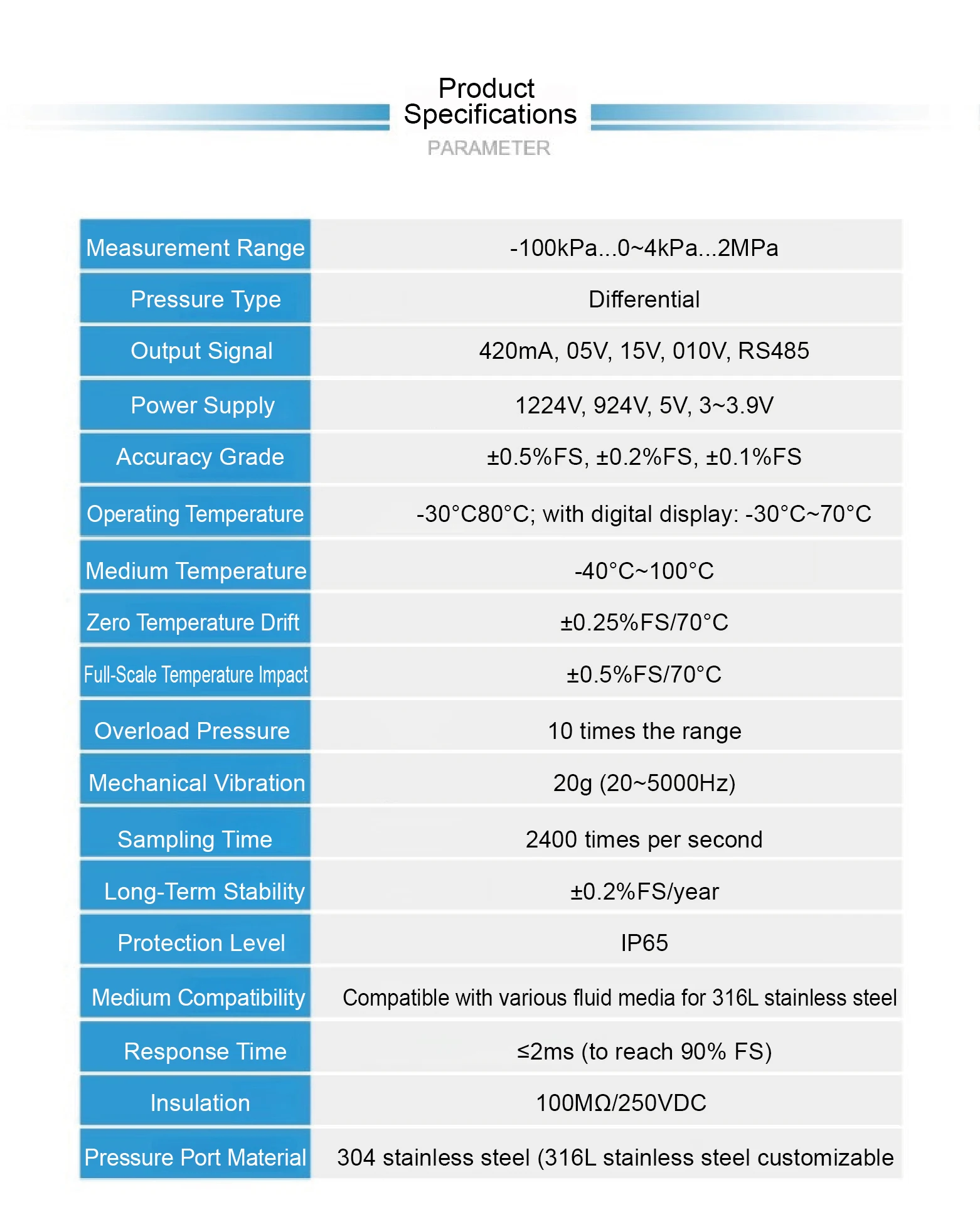

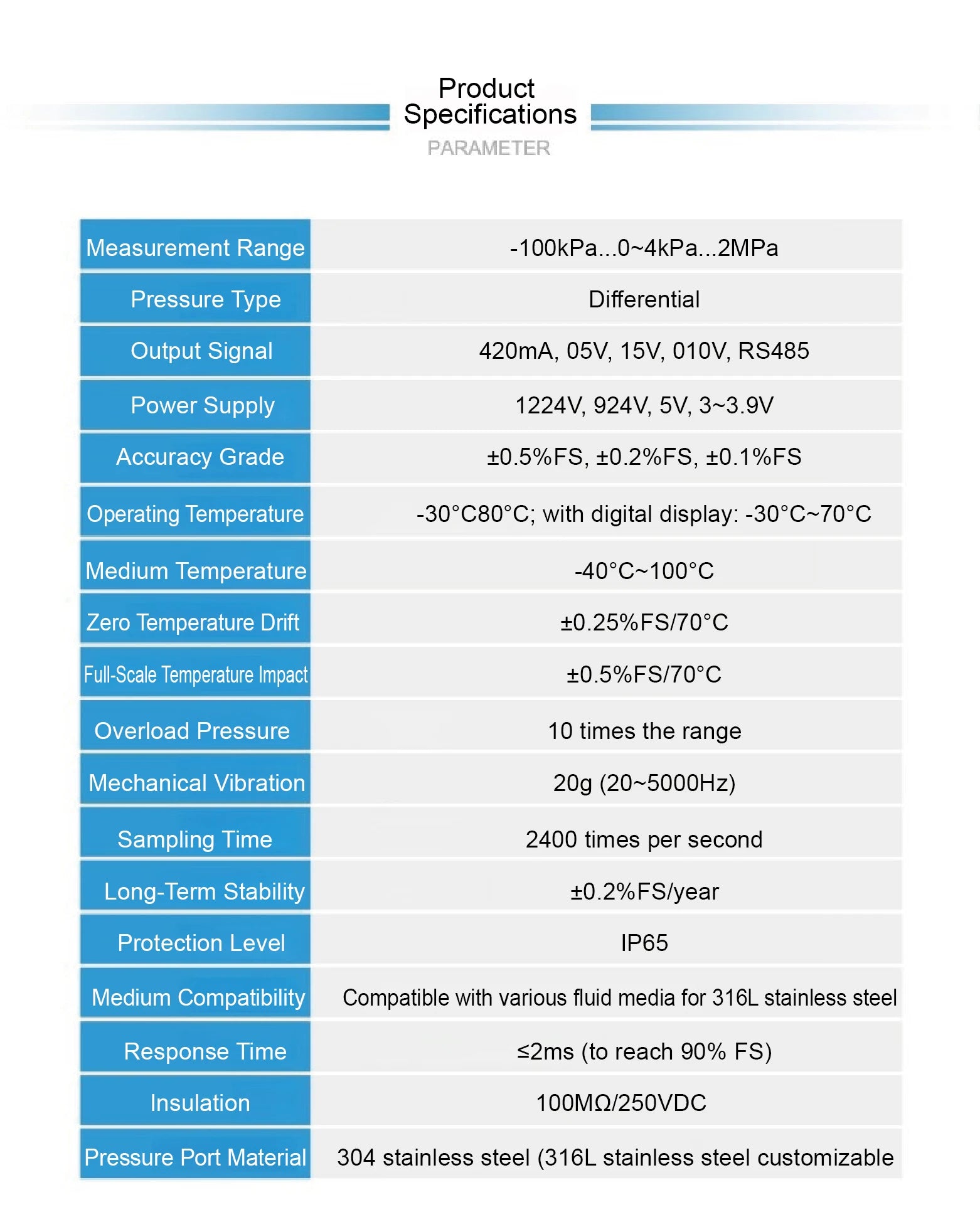

2. PARAMETERS

3. APPLICATIONS
Widely applicable for various industrial needs, including:

Petroleum equipment

Compressor units

Liquid level detection

Constant pressure water supply

4. FEATURES

High stability and precision suitable for various mediums.

Customizable thread and output signal options.

Durable construction with stainless steel materials.

Wide temperature and pressure adaptability for diverse conditions.

5. FAQ
Q: Can I customize the diaphragm material?
A: Yes, materials like Hastelloy or others can be customized based on your requirements.

Q: What should I consider when choosing the pressure range?
A: Select a range approximately 1.5 times your regular operating pressure.

Q: Is the transmitter suitable for high-temperature mediums?
A: Yes, the medium temperature can be customized up to 300°C if required.
