SPECIFICATIONS

Brand Name: HTRC

Certification: NONE

Charge Current Range: 80W :0.1-6.0A

Chip: STM32G030C8T6

Data Transmission: no

Discharge current range: 80W:0.1-2.0A

Display screen: Yes

Feature: IMAX B6 Charger

Feature 1: RC Charger

High-concerned chemical: none

Intelligent Charge: Yes

Material: Metal

Model Number: IMAX B6

Operating voltage range: DC11.0-18.0 Volt / AC to DC adaptor(DC11.0-18.0V/ 6A/5A)

Origin: Mainland China

Output Interface: USB

Output Power: 74.6-150（include150）

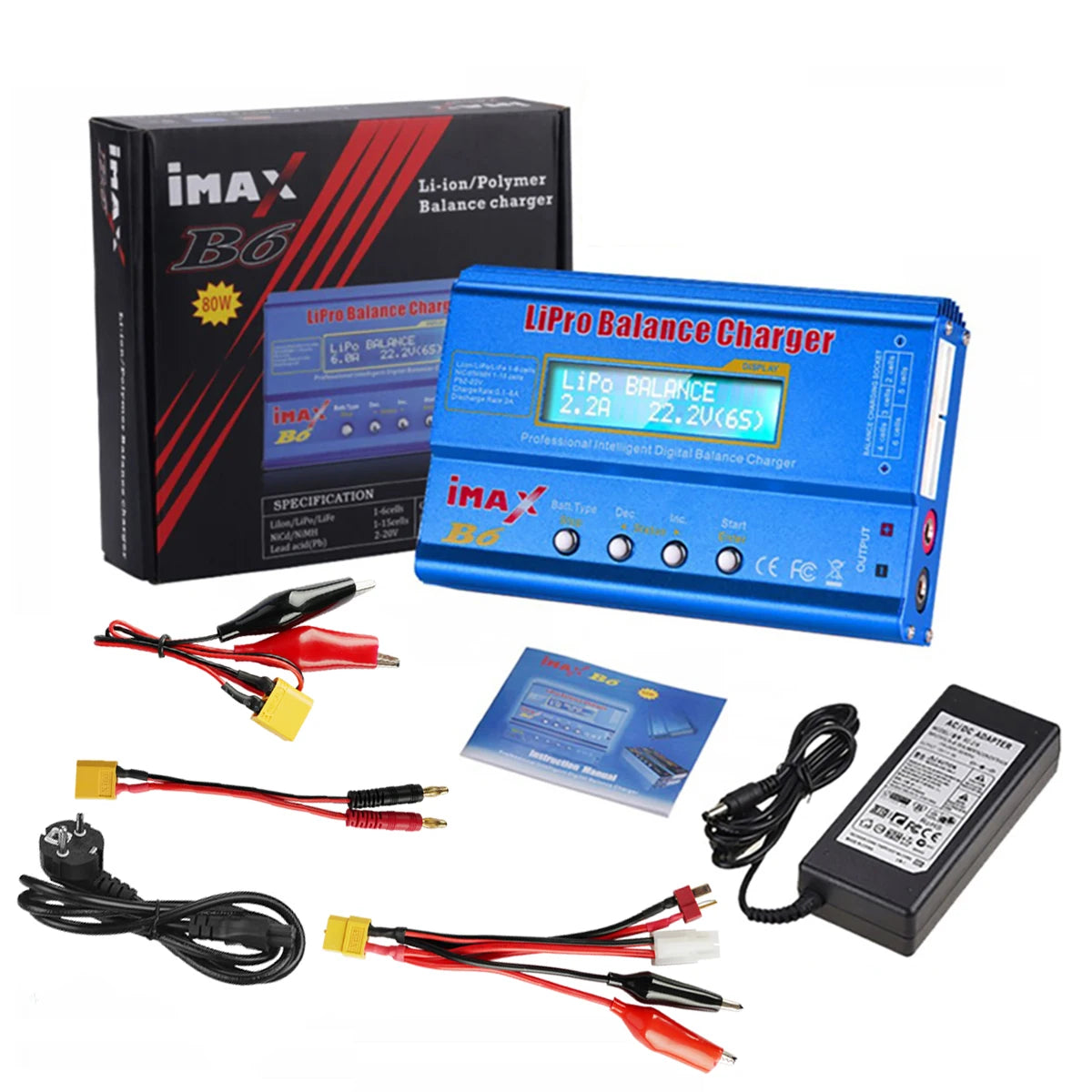

Package: Yes

Power Source: AC&DC

Quick charge: Yes

RC Parts & Accs: Lipo Charger

Type: Electric

Upgrade Parts/Accessories: Charger

Use: Standard Battery

Voltage range: Low voltage non-USB (below 75V DC, below 50V AC)

New note:

Packaging wiring upgrade！！The Chinese warehouse will ship new wiring, while the overseas warehouse will still ship the old wiring. Please be informed, thank you！！

Note:

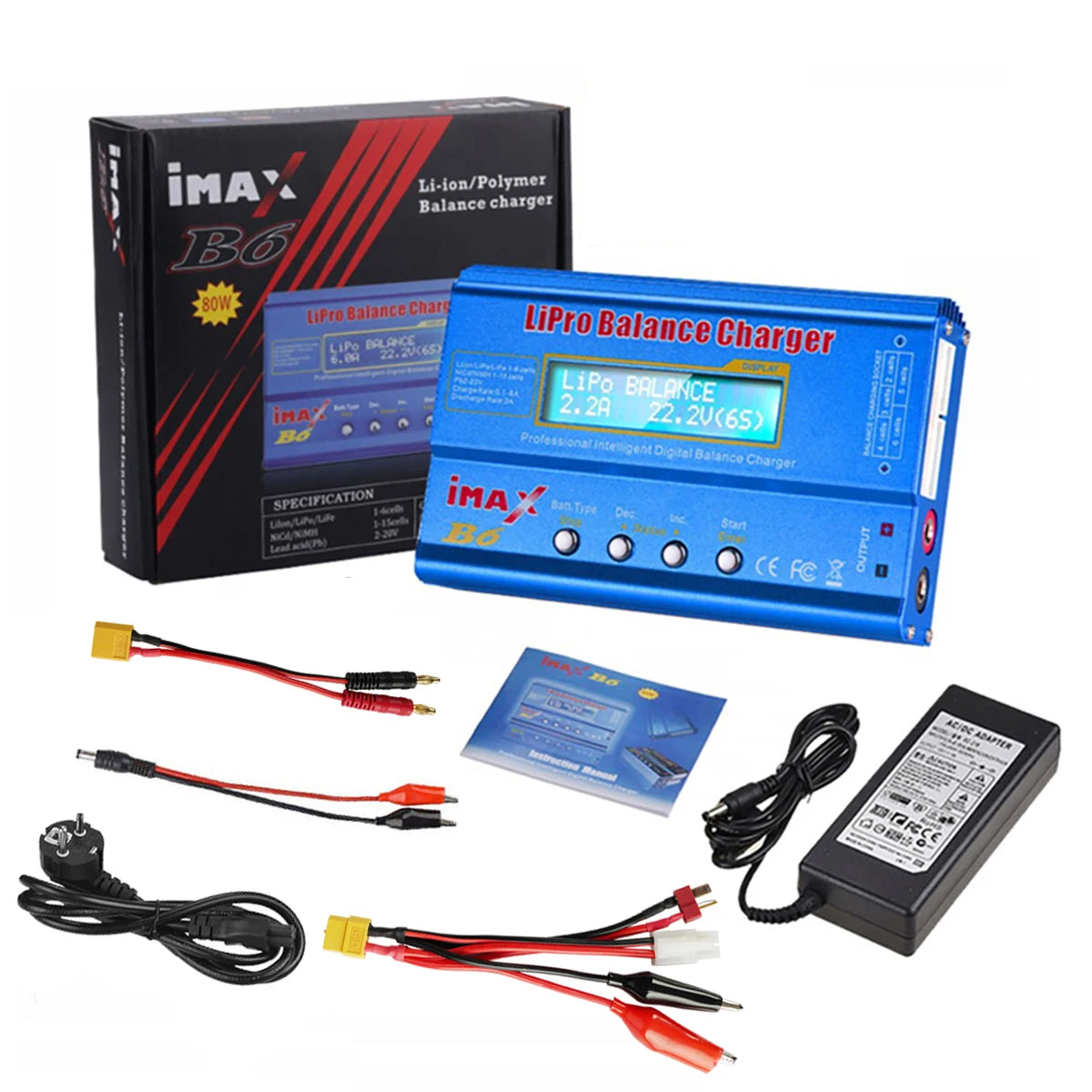

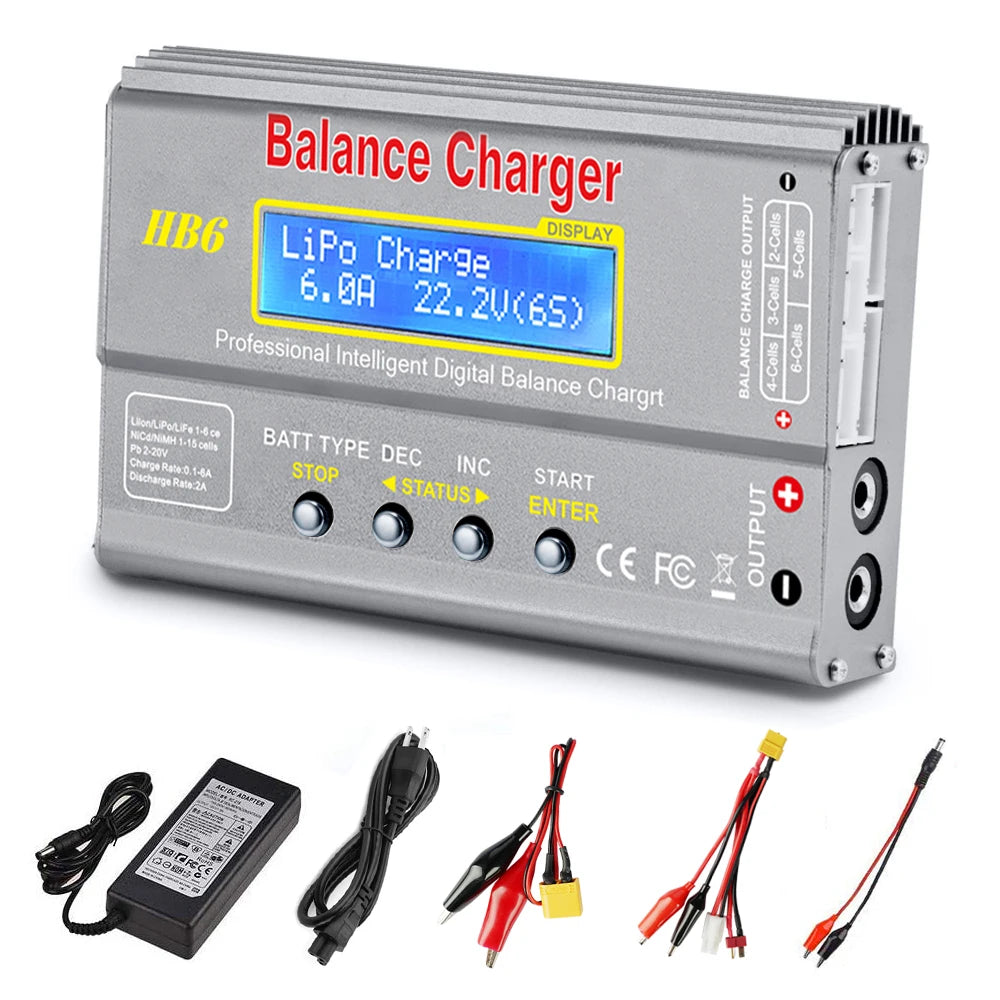

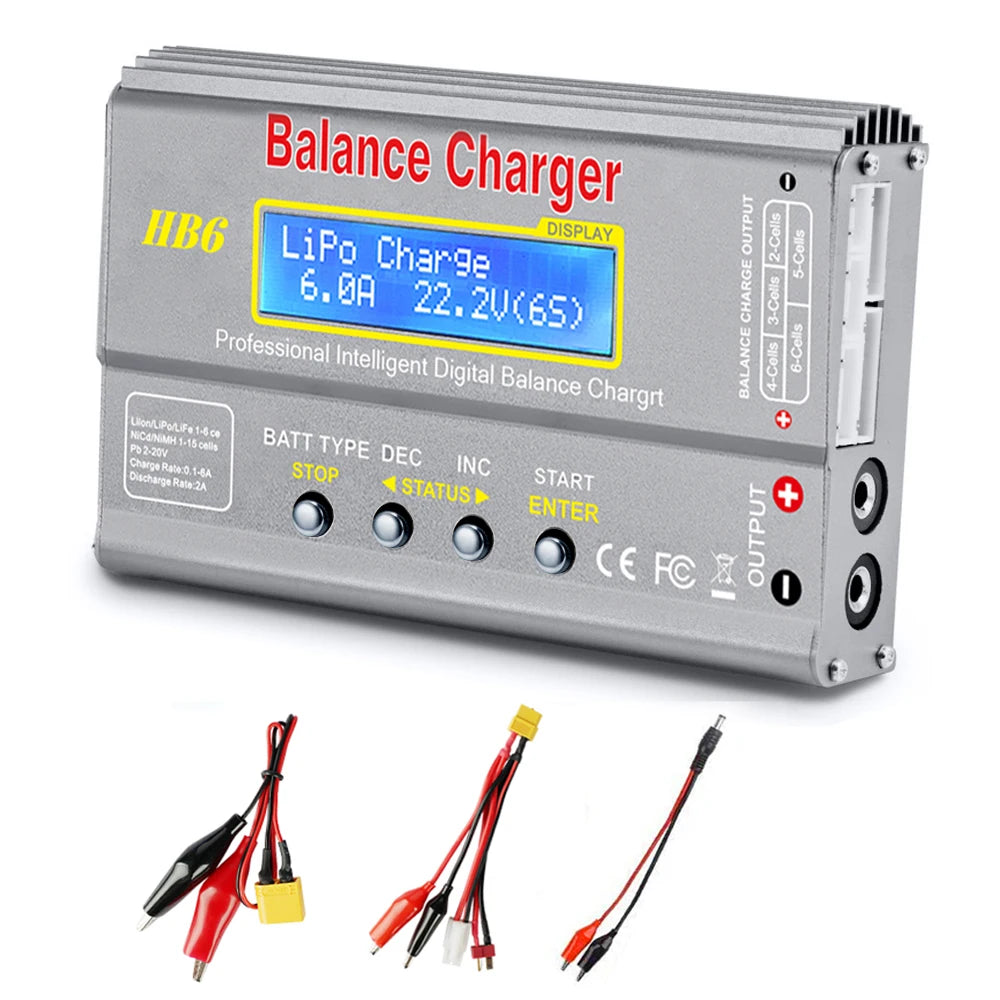

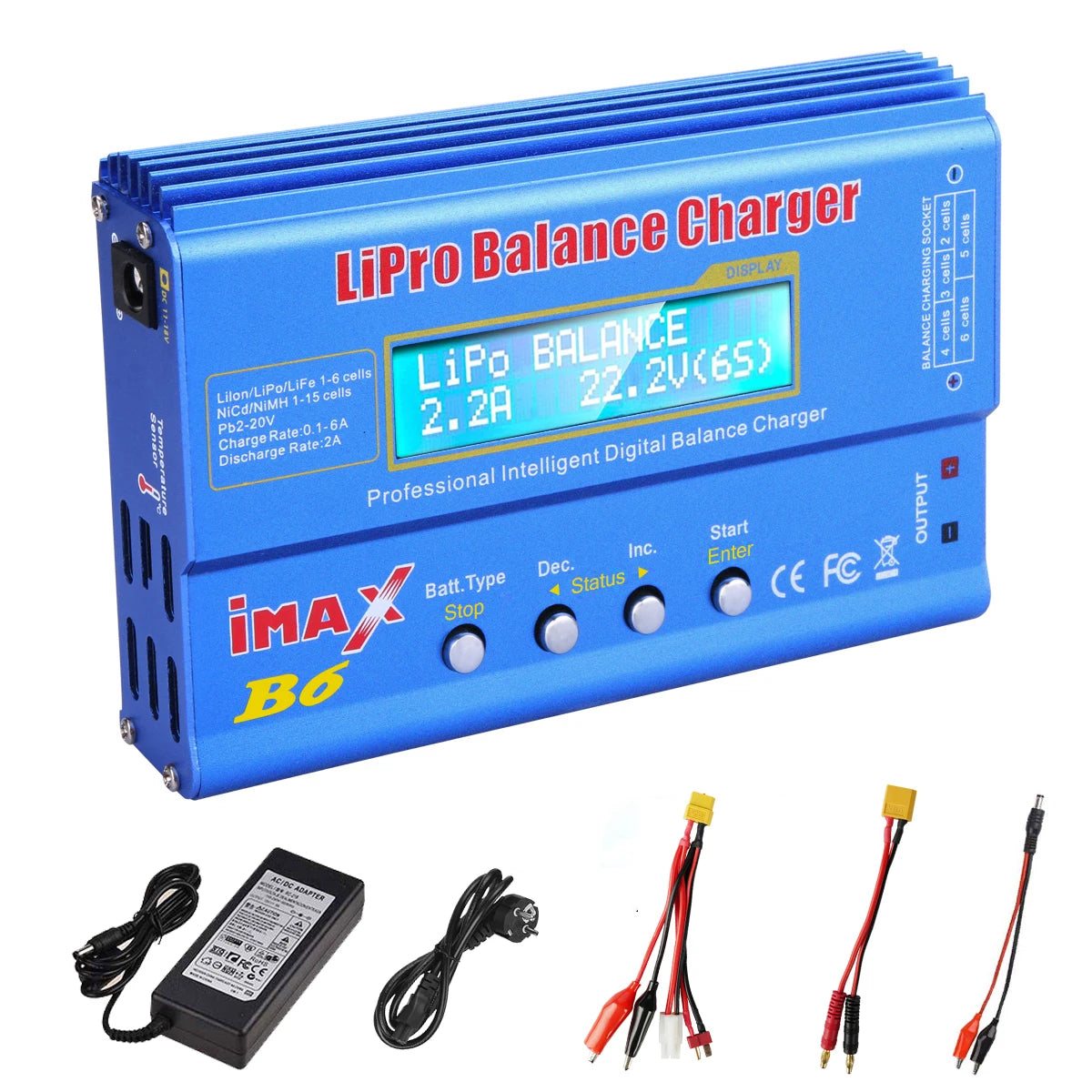

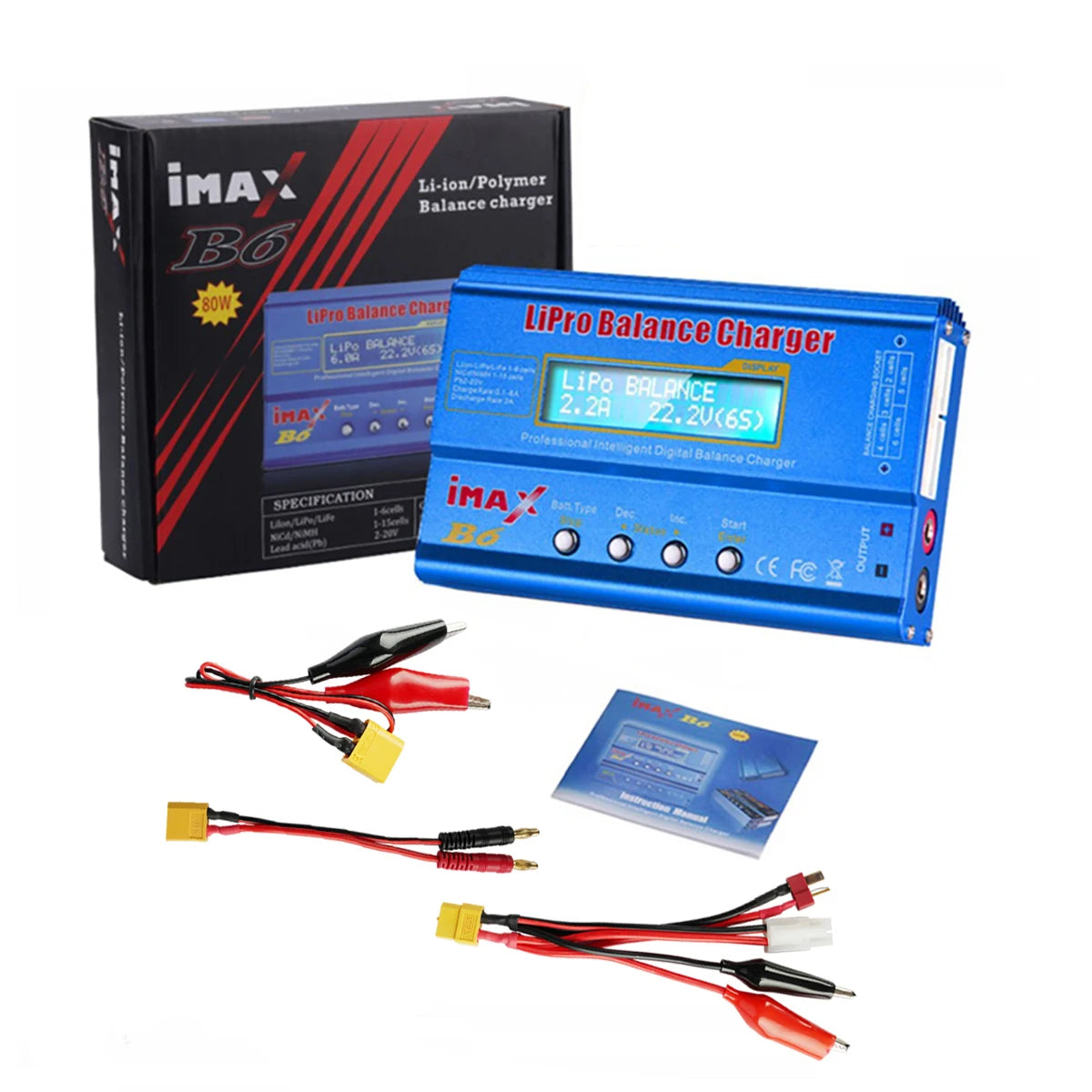

1.There are two types for choose: b6 no adapter and b6 with adapter,you can choose as you want.

2.This imax b6 is HTRC brand and produced by HTRC,HTRC is a factory which focus on the production of high quality chargers. Not Other Brand ,Not Fake ,We have not need Security Code .If you mind it ,please not buy ,thanks!

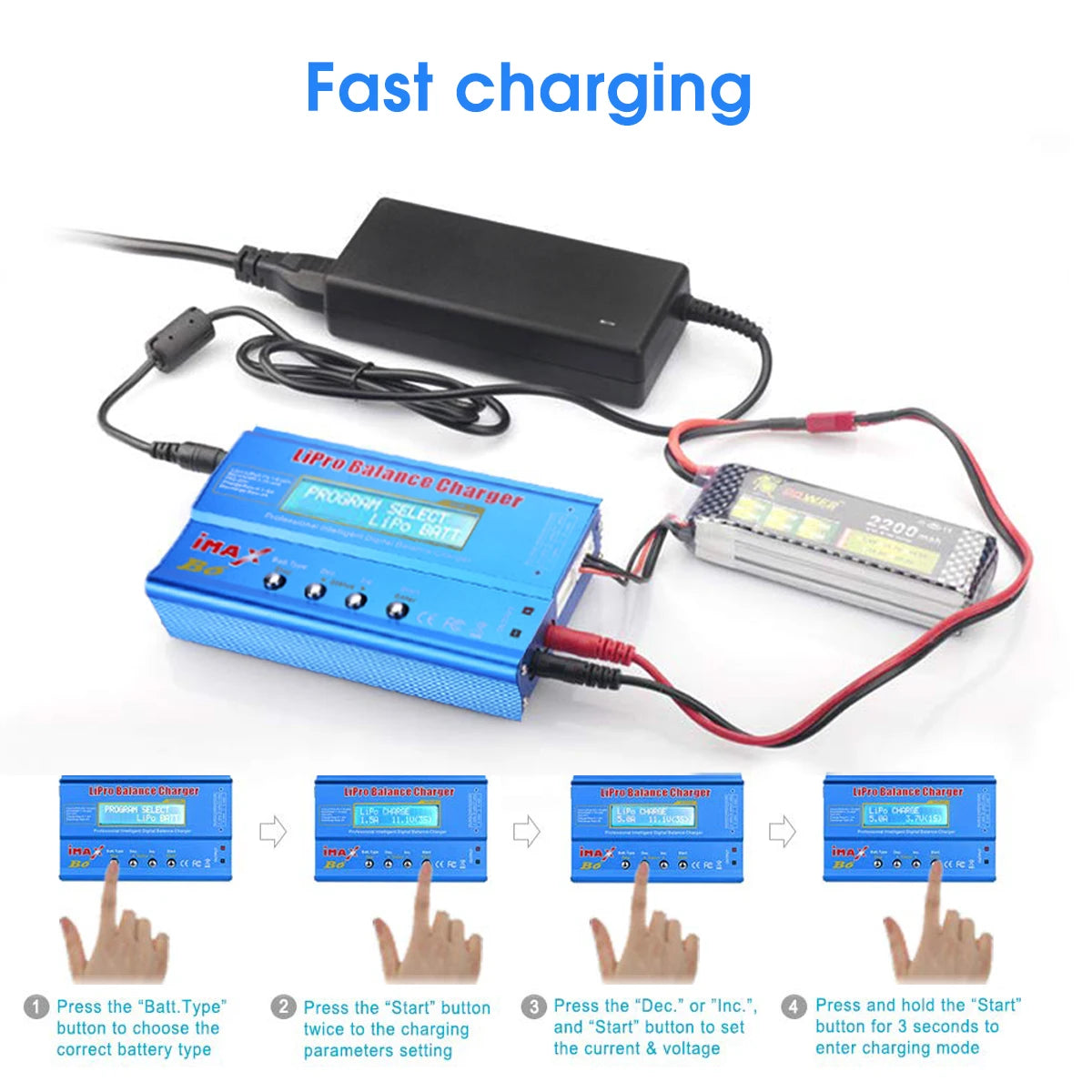

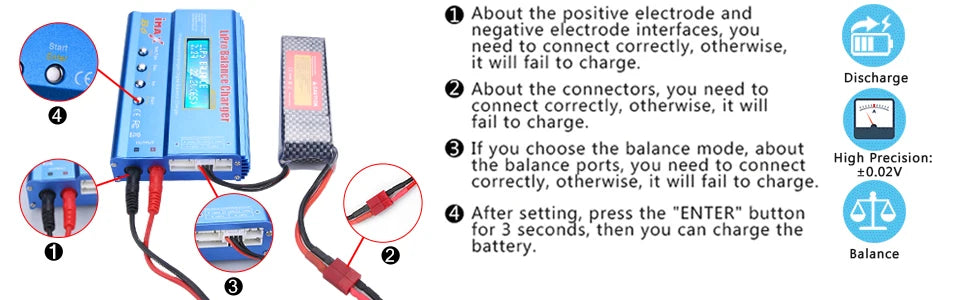

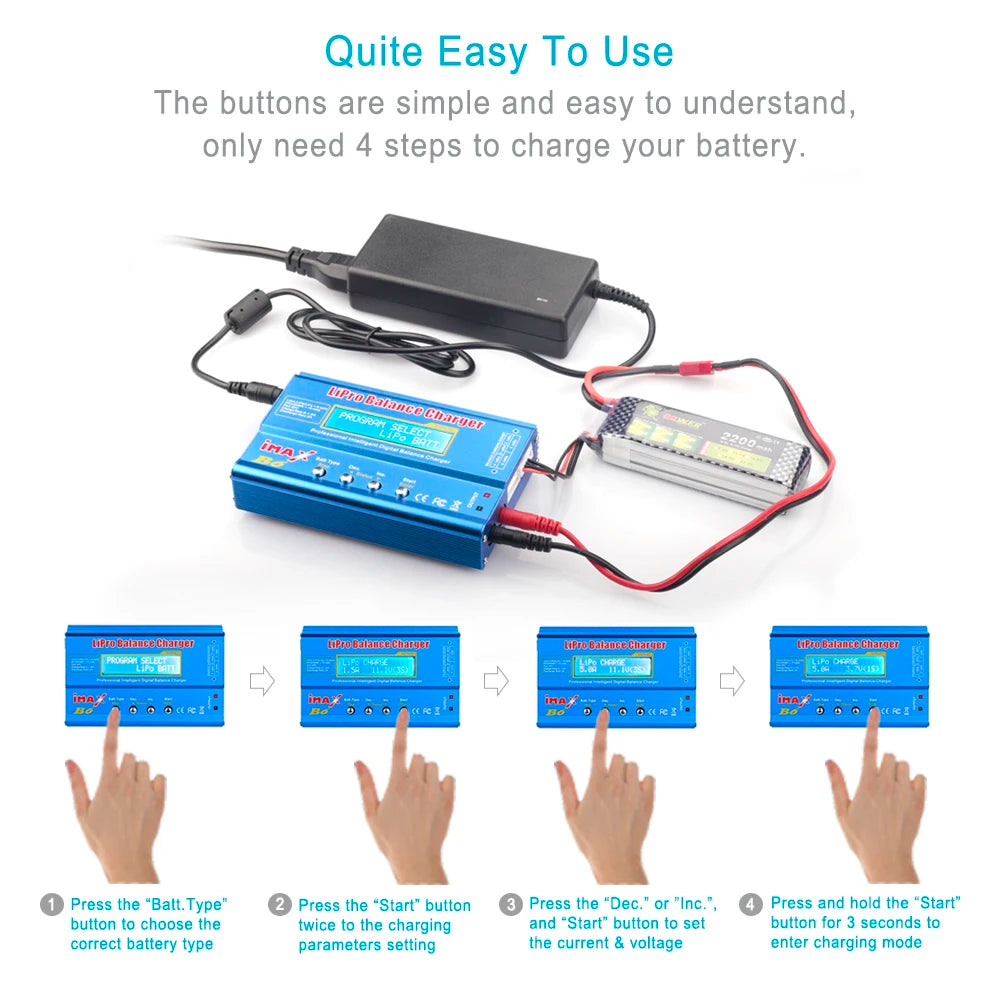

3.After you received the goods,please follow the using turn

(1.plug in the adapter firstly,then plug the machine)if you plug the mahcine firstly, then plug the adapter that will caused it can not open or work unnormally

If any problems ,please contact us ,thanks!

Description:

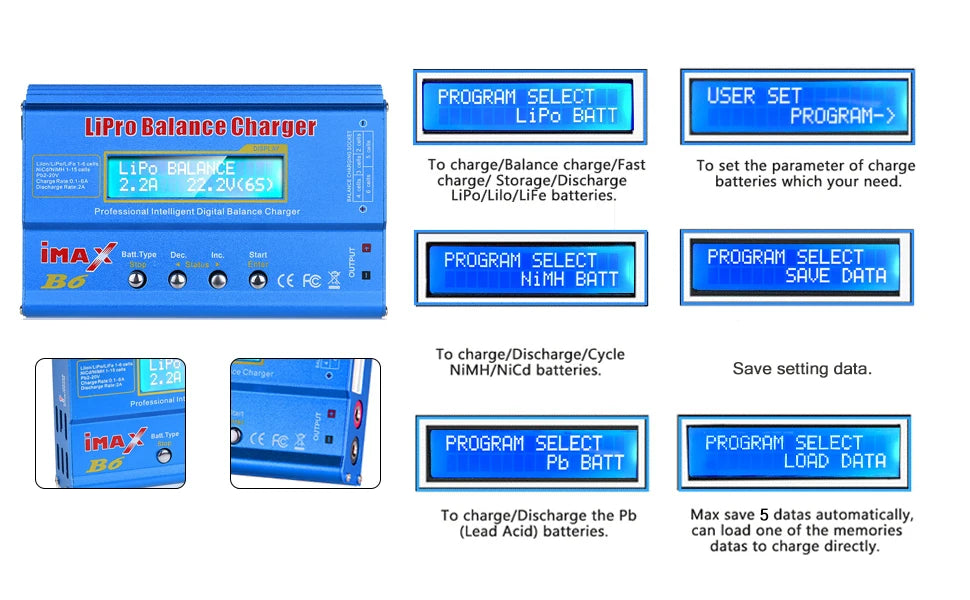

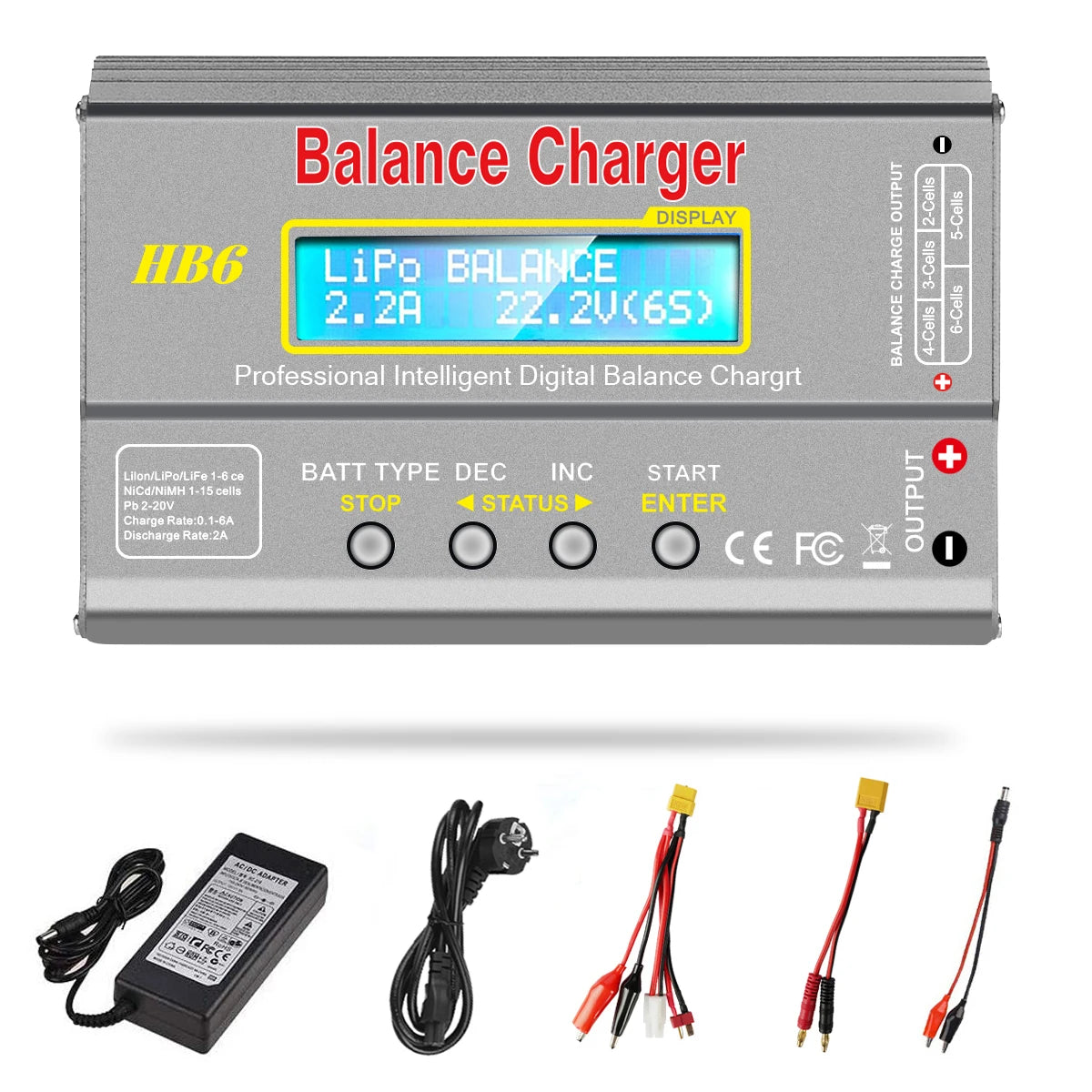

IMAX B6 LCD Screen Digital RC Lipo NiMH NiCd LiFe Pb Battery Balance Charger Discharger

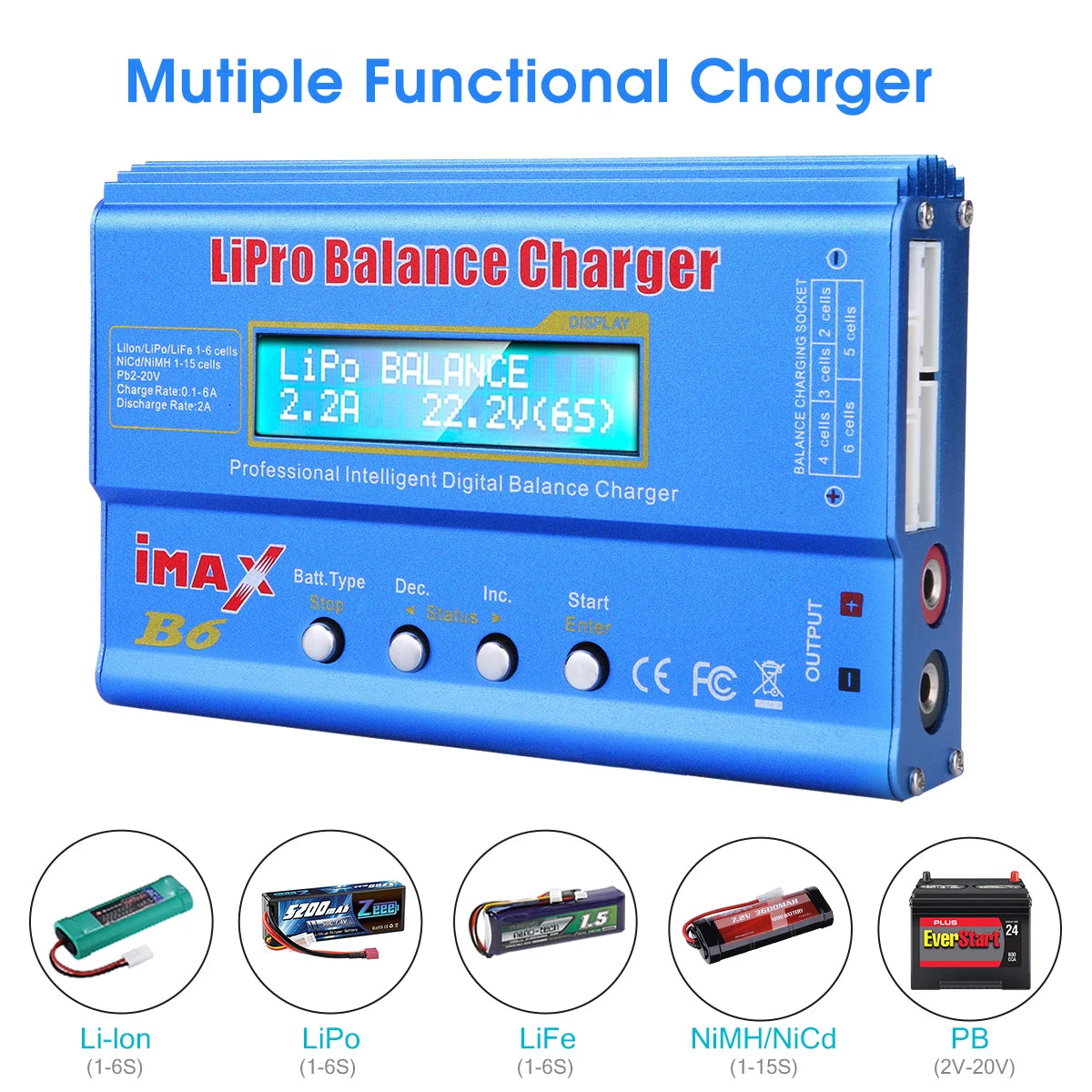

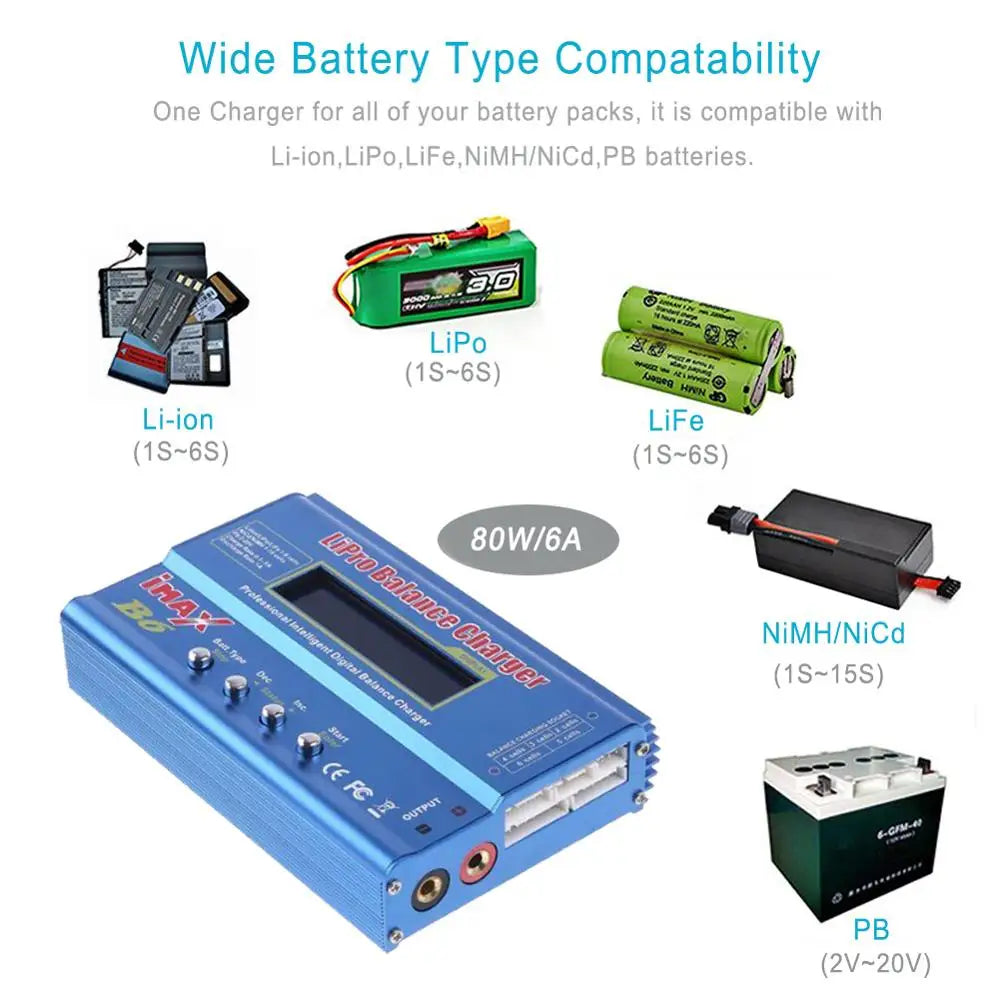

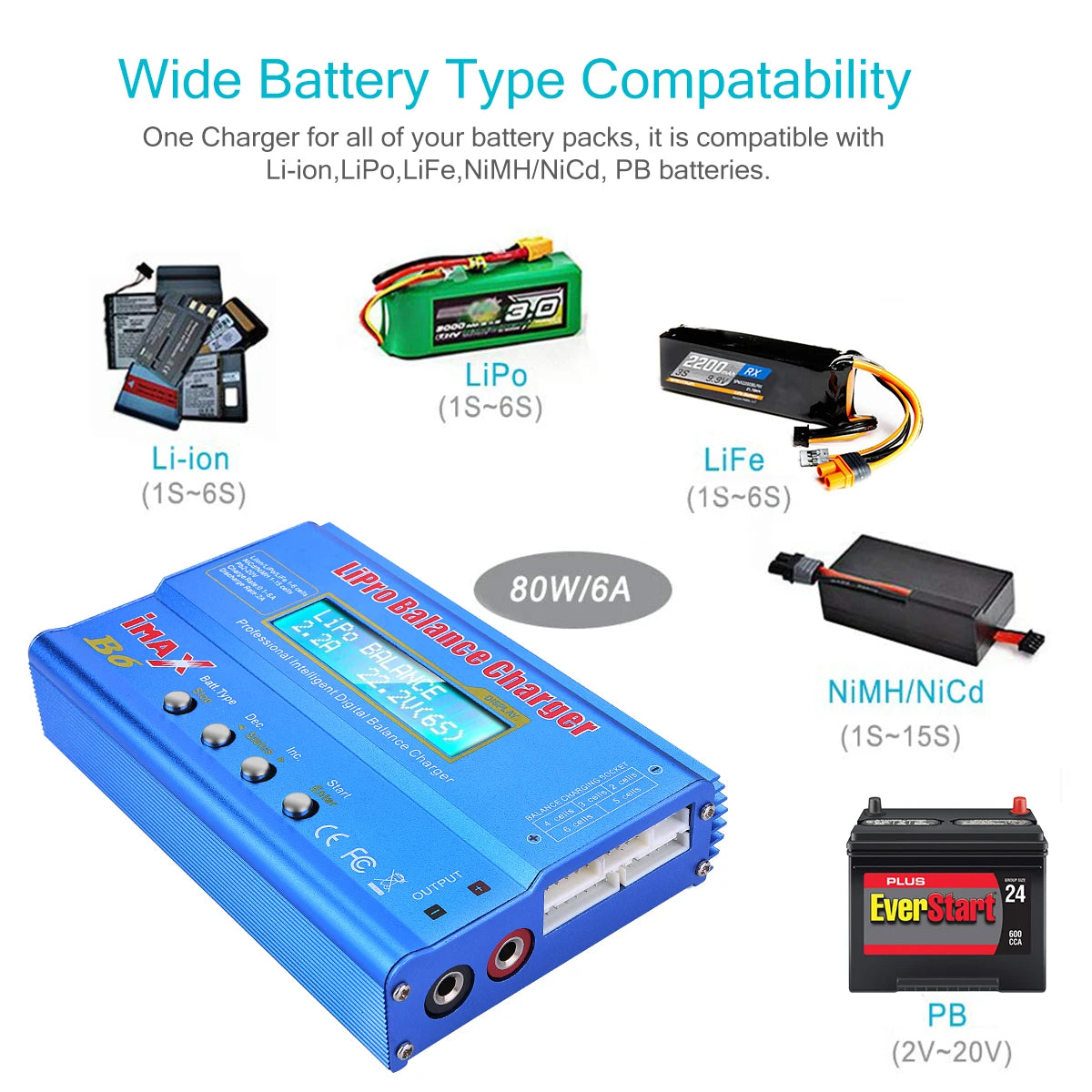

IMAX B6 is the new intelligent multifunction charger which can charge and discharge for
Lion, LiPo, LiFe , Pb, NiCd and NiMH batteries. It\'s all-powerful in a way.

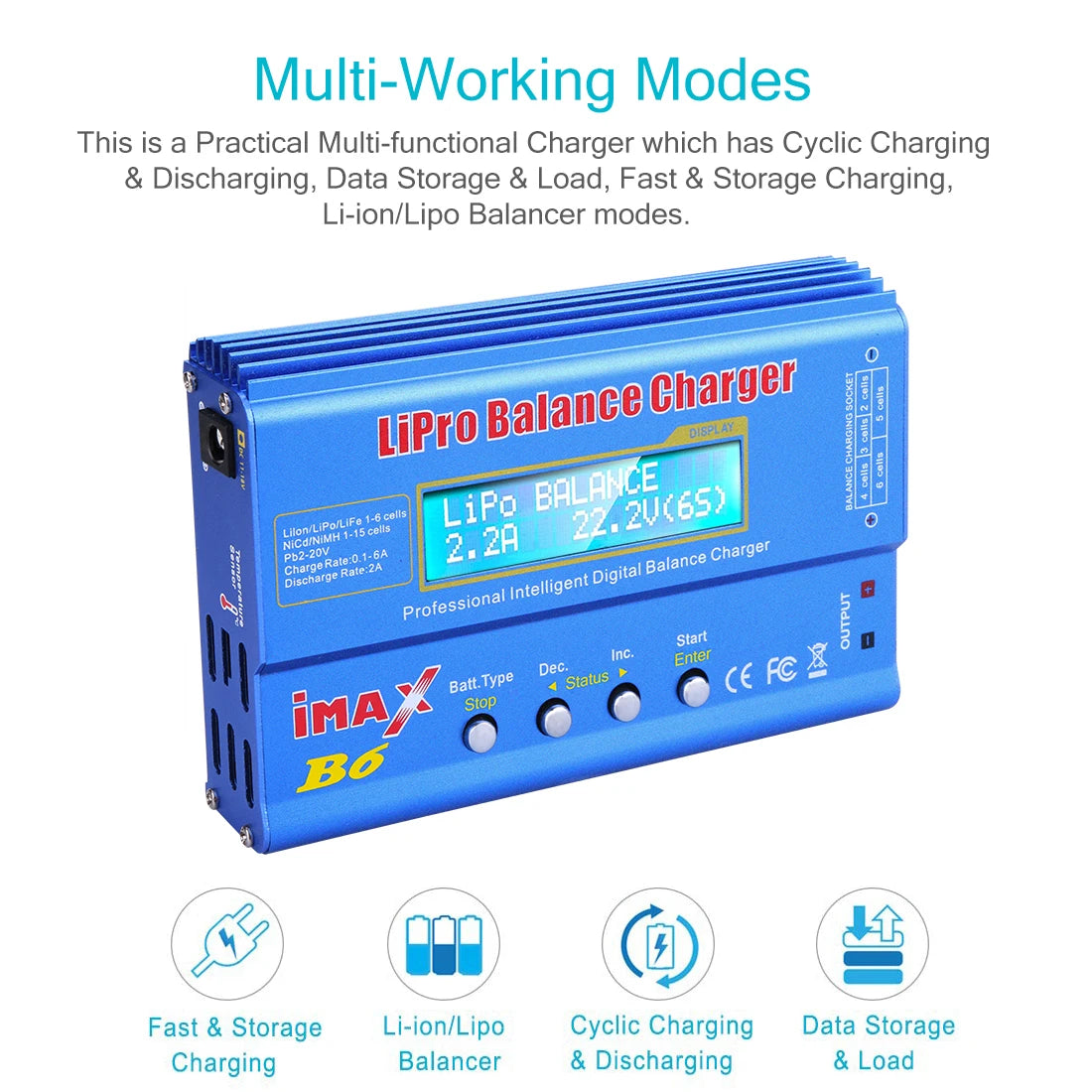

Feature:

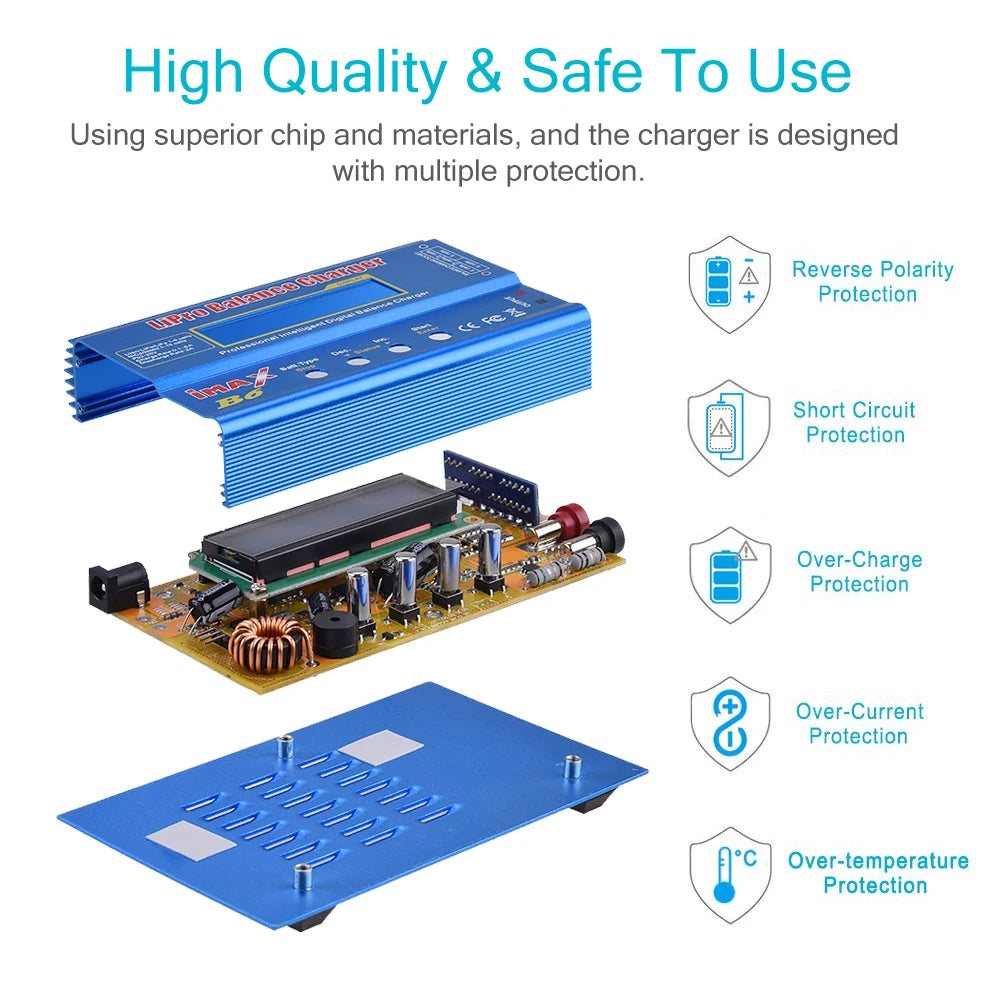

1. Microprocessor controlled Delta-peak sensitivity.

2. Individual cell balancing Li-ion, LiPo and LiFe capable Ni-Cd and NiMH capable

3. Large range of charge currents Store function, allows safe storage current

4. Time limit function

5. Input voltage monitoring. (Protects car batteries at the field)

6. Data storage (Store up to 5 packs in memory)

7. Battery break in and cycling.

8. Support new generation  system (LiFe) battery

Specification:

*Operating voltage range: DC11.0-18.0 Volt

AC to DC adaptor(DC11.0-18.0V/ 6A/5A)

Circuit power: Max.charge power 50W / 80W

Max.discharge power 5W

Charge Current Range:50W 0.1~5.0A

80W :0.1-6.0A

Discharge current range:50W 0.1-1.0A / 80W:0.1-2.0A

Current drain for balancing Li-po: 300mAH/cell

LiIon/LiPo/LiFe cells : 1-6 cells

NiCd/NiMH cells : 1-15

Pb battery voltage: 2~20v

Dimensions: 133x87x33mm

15V 6A AC adapter:

Output : DC 15V 6A

Power:80W

Color: Black

DC Plug size:

-Inner diameter:2.5mm

-Outer diameter:5.1mm

Input : 100-240V AC 50/60Hz
