SPECIFICATIONS

Adapter Socket: M2

Application: Laptop

Bluetooth Protocol: No support

Brand Name: HUASJ

Certification: CE,KC

Frequency: none

Frequency Band Class: Dual-Band

Heat dissipation: Support

High-concerned chemical: none

Interface Type: NGFF

Kind: Internal

Model Name: T99W175

Model Number: T99W175

Origin: Mainland China

Package: Yes

Transmission Rate: 1000Mbps

Type: WireLess

Wired Interfaces: none

Wired socket: NGFF

Wired transmission rate: none

Wireless Communication Standard: none

Wireless socket: none

Wireless transmission rate: none

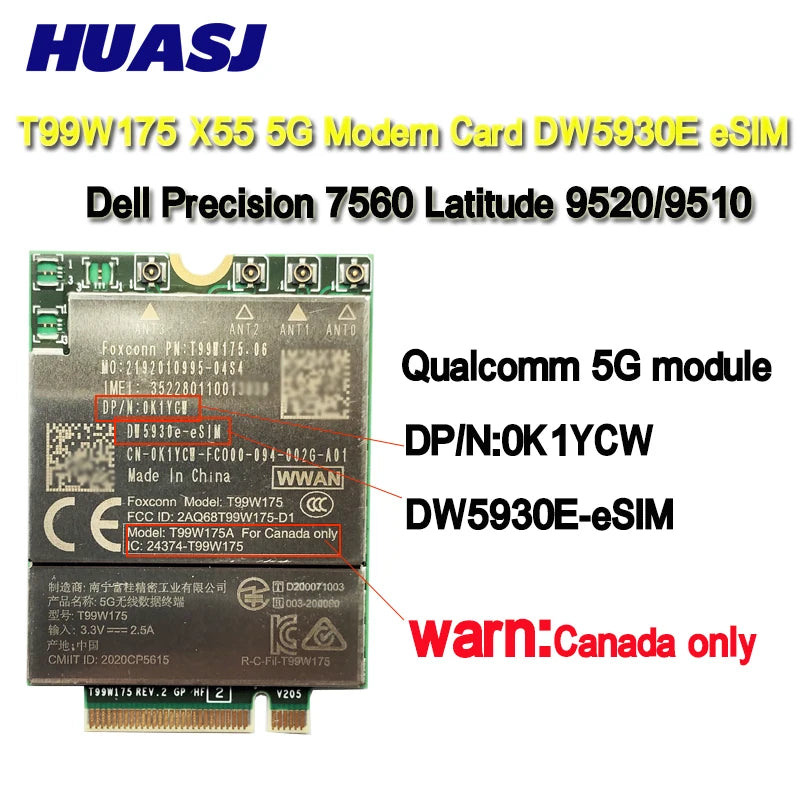

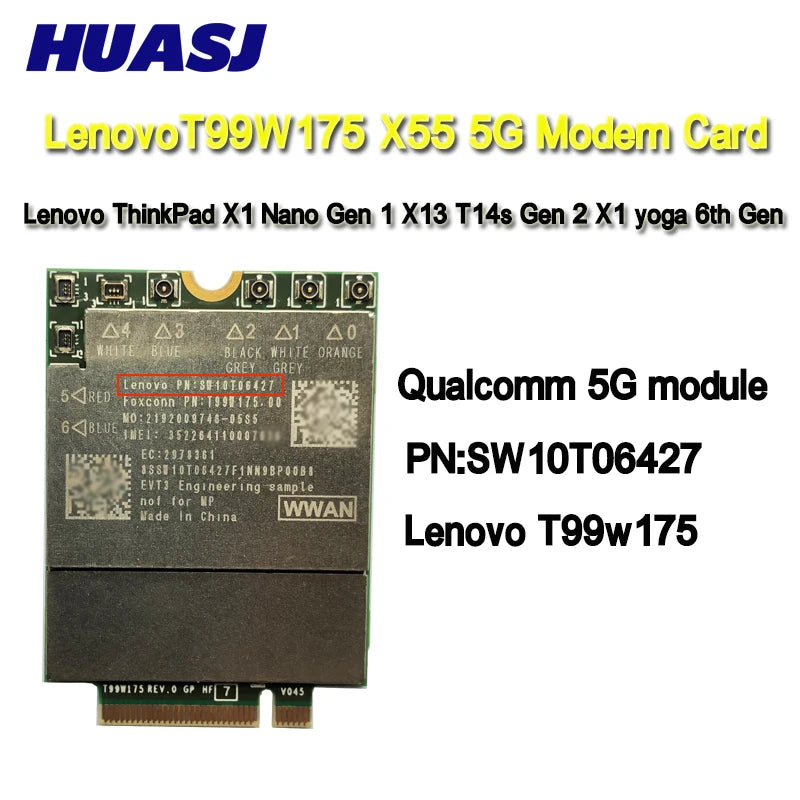

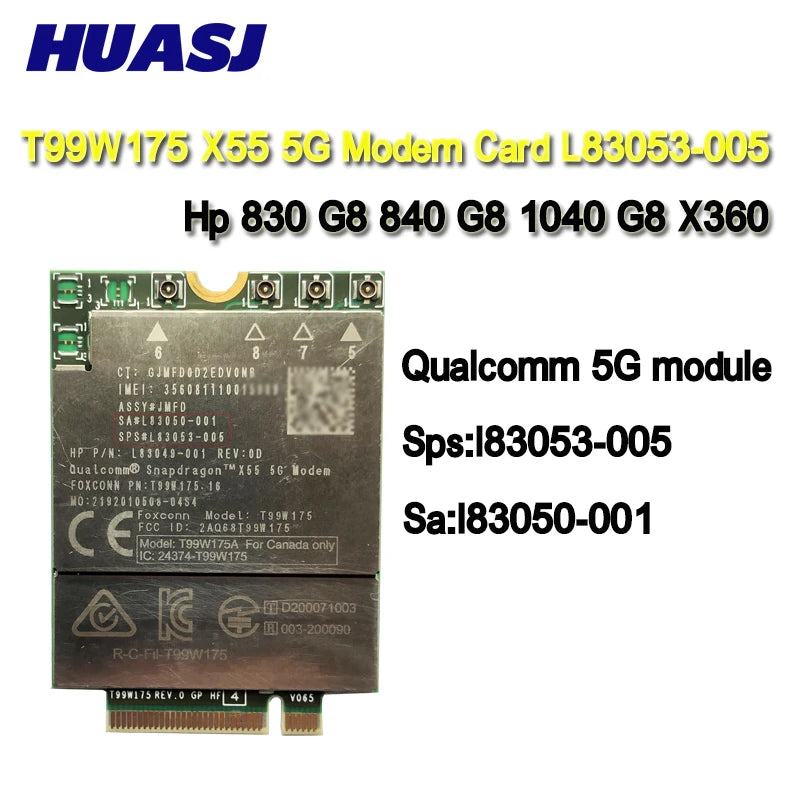

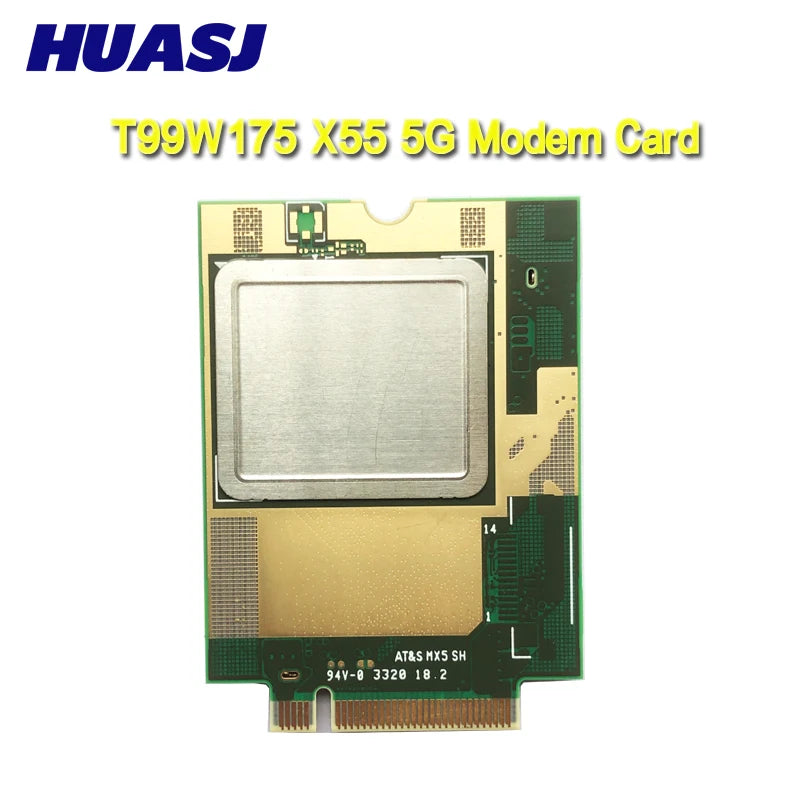

T99W175 WWAN card is a 5G wireless module which is designed to enable wireless data connectivity for notebook computer or any other device compatible with the PCI Express M.2 Specification 3042 type Key B slot. Foxconn T99W175 module is the data card solution that delivers wireless wide-area network (WWAN) connectivity for the 5GNR (Sub 6G), LTE, UMTS (HSDPA / HSUPA / HSPA + DC-HSPA +) and GPS / Glonass / Beidou / Galileo protocols in one hardware configuration.

Foxconn T99W175 5G Module Specifications:

* Chipset: Qualcomm Snapdragon X55

* Form factor: PCIe M.2

* Support 5G NR NSA Bands: 1, 2, 3, 5, 7, 8, 12, 20, 28, 38, 41, 66, 71, 77, 78, 79, 257, 258, 260, 261

* Support 4G LTE Bands: 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 34, 38, 39, 40, 41, 42, 46, 48, 66, 71

* Support LTE 4x4 Bands: 1, 2, 3, 4, 7, 25, 30, 38, 39, 40, 41, 42, 48, 66

* LTE DL/UL Modulation: 256QAM / 64QAM

* UE-Category UL 13 (UL: 150Mbps) + UE-Category DL 20 (DL: 2Gbps);

* 7xDL CA, 3xUL CA (Intra-band), 5xDL CA+4X4 MIMO (Up to Cat.20)

* LTE Max Speed (DL/UL) : 2000/150 Mbps

* WCDMA Cat: HSPA+ Rel8 (DL/UL: 42/11 Mbps)

* GNSS Dual-Frequency GNSS: L1:GPS/Glonass/Beidou/Galileo
