SPECIFICATIONS

product description:

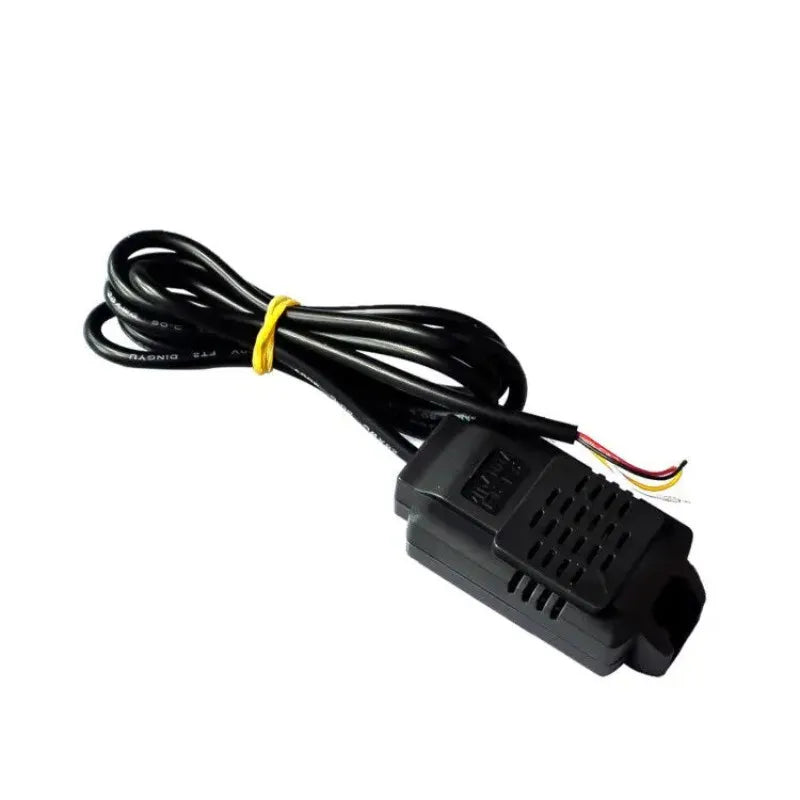

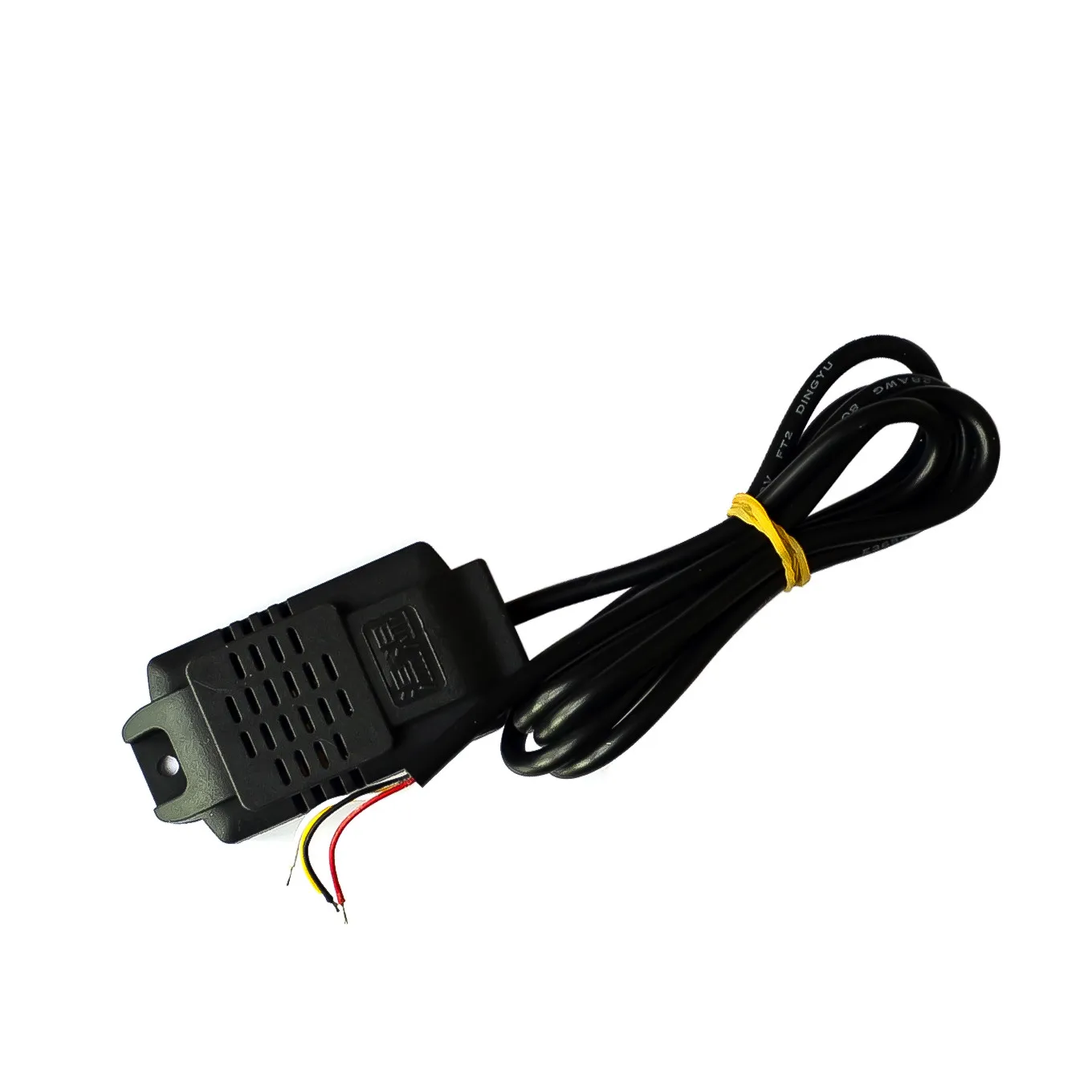

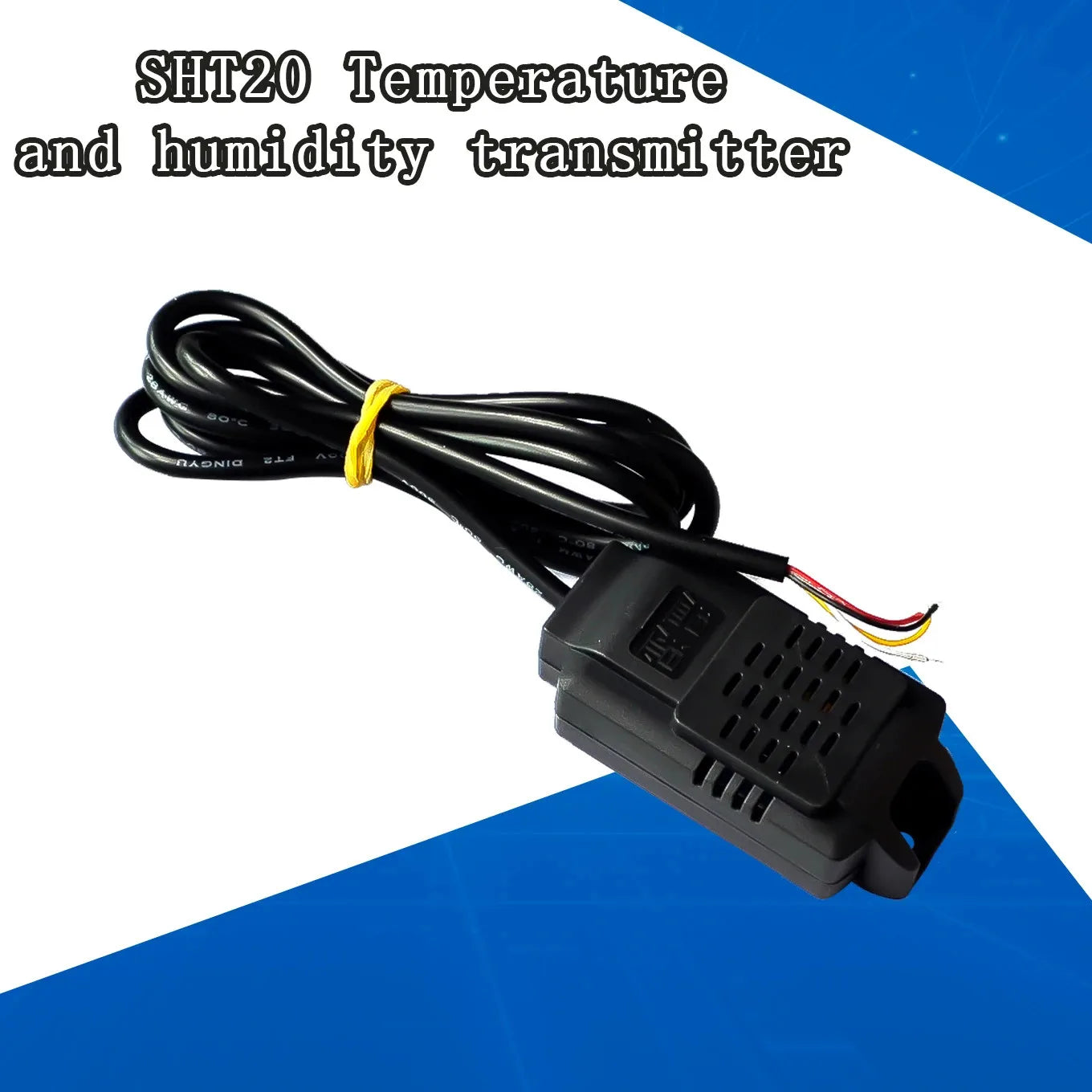

        the product adopts industrial chip, imported with high precision SHT20 the temperature and humidity sensor ensures the excellent reliability, high precision and interchangeability of the product. Using RS485 the hardware interface (with lightning protection design ), the protocol layer is compatible with the standard industry Modbus-Rtu protocol. The present set of products MODBUS the protocol is integrated with the common protocol. Users can choose the communication protocol by themselves. The common protocol has the automatic upload function ( connection RS485 the temperature and humidity will be automatically output through the serial port adjustment tool).

Product Highlights:

industrial products, high progress SHT20 the temperature and humidity sensor, RS485 communication;

standard MODBUS the protocol is integrated with the common protocol, and users can choose the communication protocol by themselves;

baud rate can be set by itself;

common protocols have automatic upload function, and the upload rate can be set by yourself.

Product parameters:

working voltage: DC4-30V(The maximum limit their statements to no more33V)

maximum power:0.2W

operating temperature: temperature-20+60 humidity0%RH-100%RH

control accuracy: temperature± 0.3(25) humidity±3%RH(25)

output interface: RS485 communication (standard MODBUS protocol and custom common protocol), see The Protocol Description

address: you can set1-247 the default value is1

baud rate: the default9600(Users can set it by themselves),8 bit Data,1 bit stop, no verification

size:60*30*18
