Description

SPECIFICATIONS

Brand Name: NONE

High-concerned chemical: none

Model: HWT9053-485

Origin: Mainland China

Output model category: Digital sensor

Sensor category: accelerometer

Working current: 0.06A

Working principle: Vibration sensor

applicable scenario: attitude measurement

material: metal

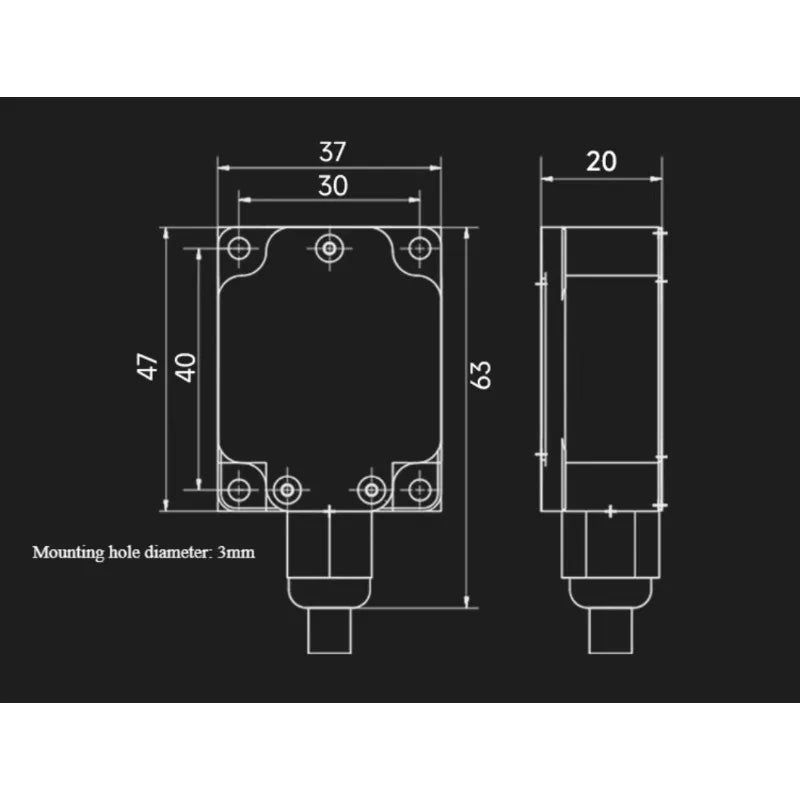

size: 47x37x20mm

working voltage: 5V

The product has a variety of specifications to choose from, please consult customer service for details:

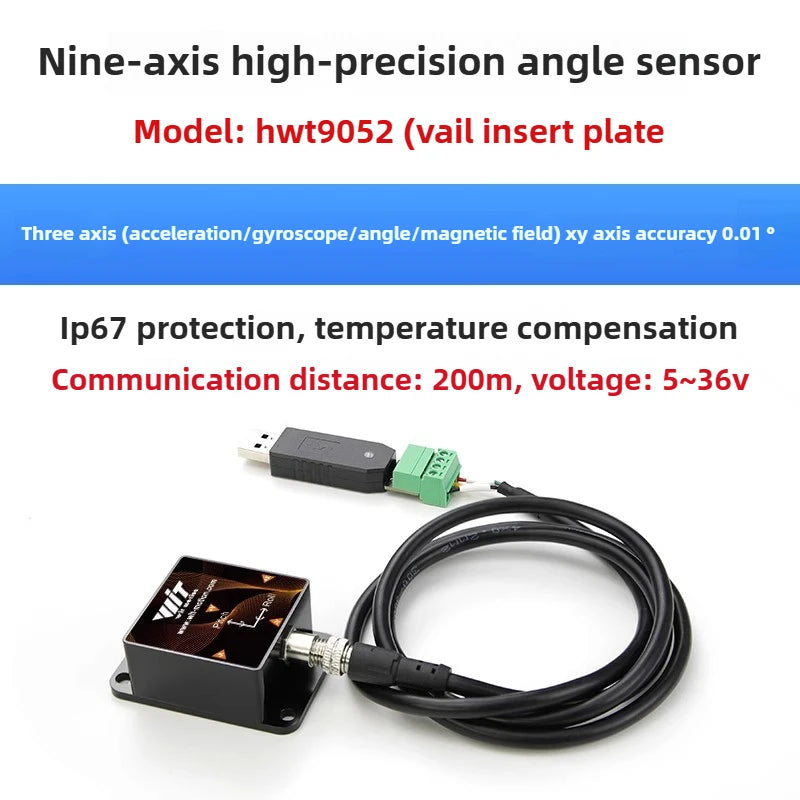

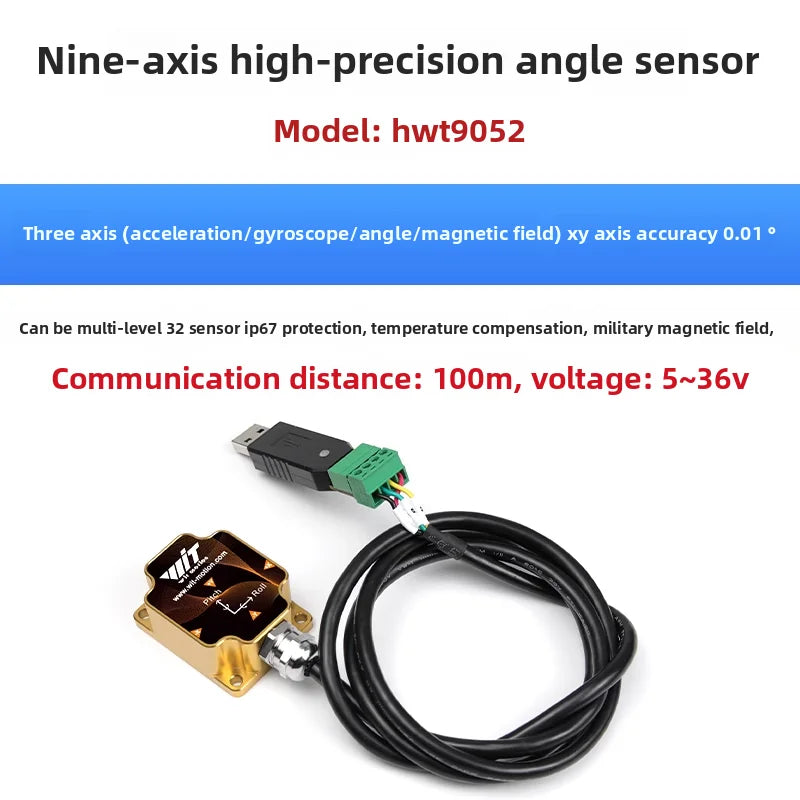

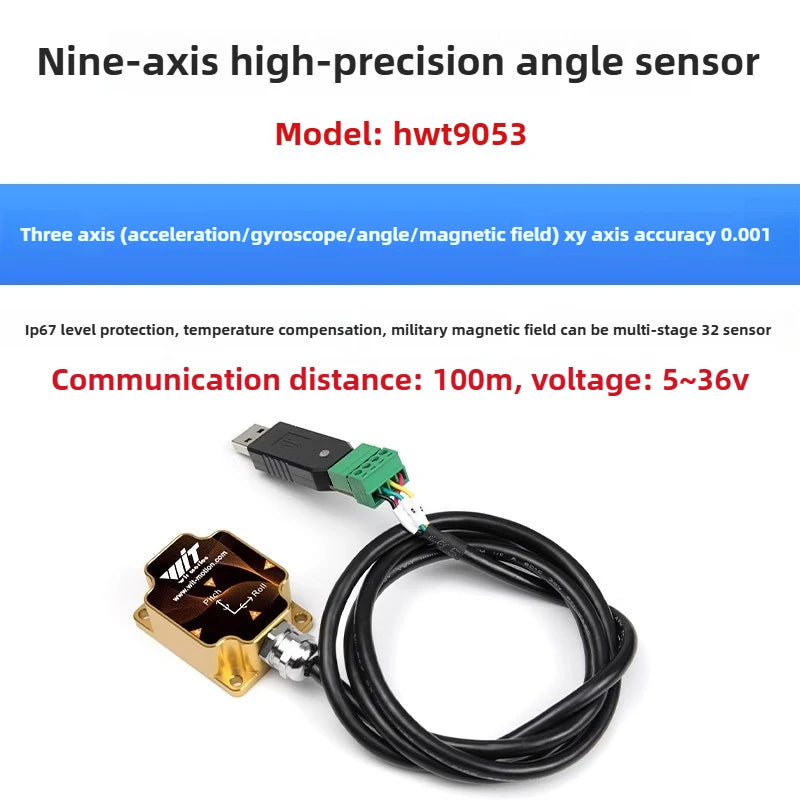

Model          Number of axes accuracy        communication version
HWT6052        Six-axis 0.01 °           4G (built-in battery)
HWT6053         Six-axis 0.001 °         4G (built-in battery)
HWT9052        Nine-axis 0.01 °           4G (without battery)
HWT9053    Nine-axis 0.001 °         4G (without battery)

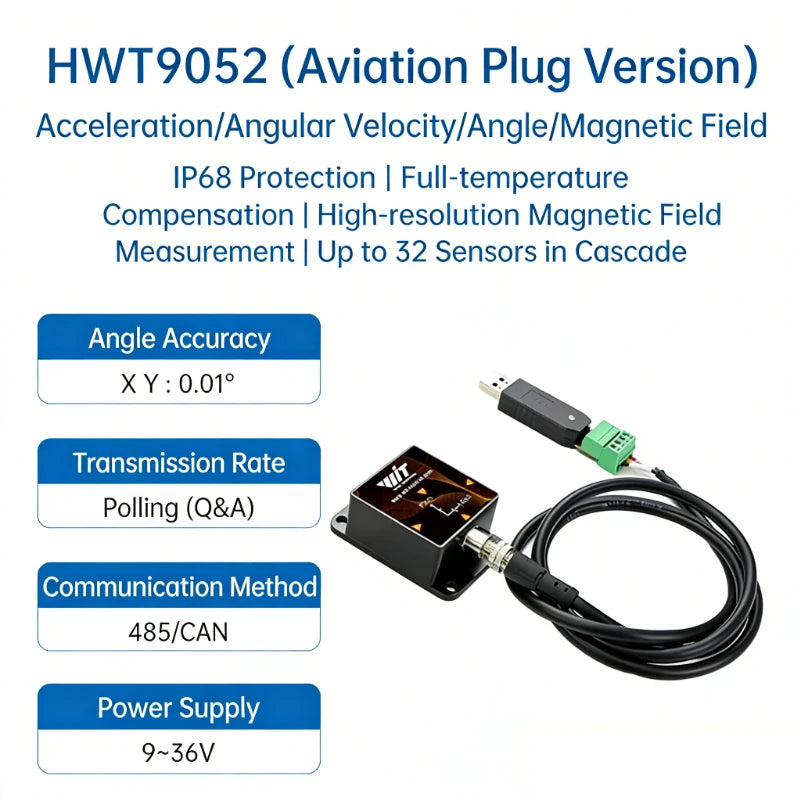

HWT9052 (aerial version) Nine-axis 0.01 °        CAN

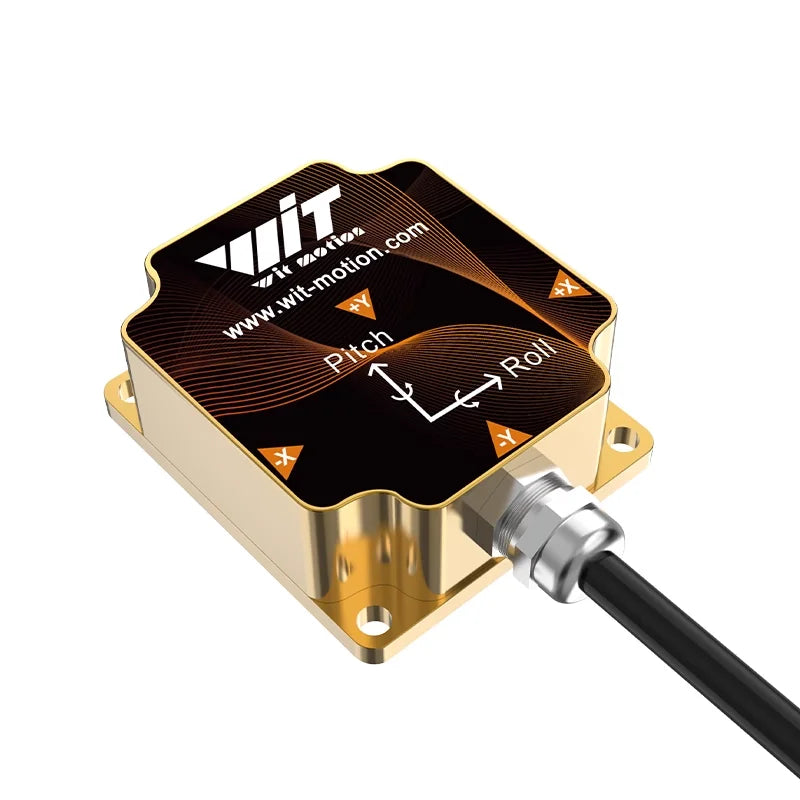

HWT9053 Nine-axis high-precision angle sensor Product information

Product Overview

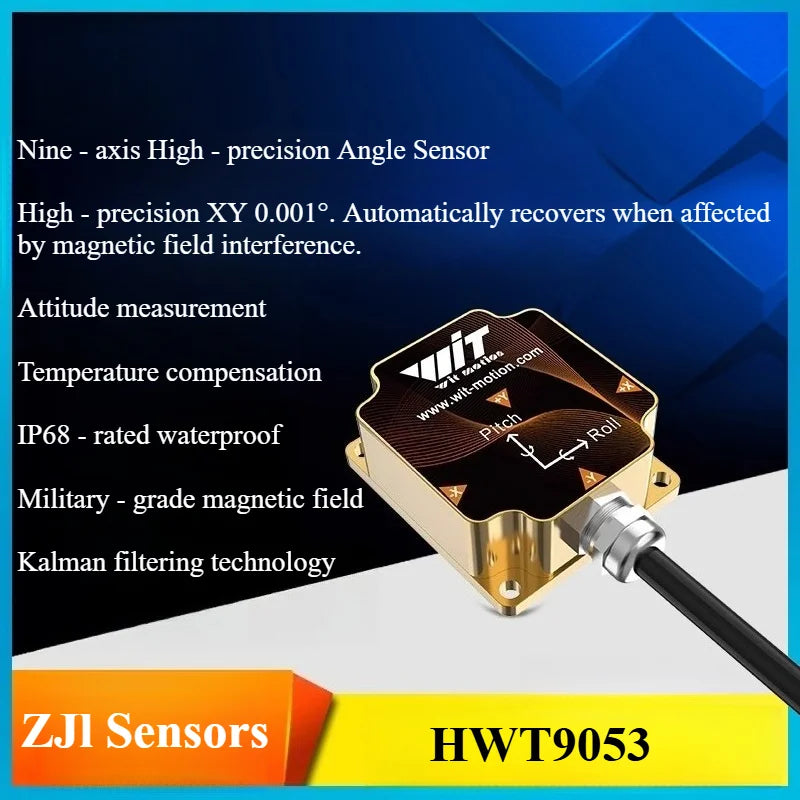

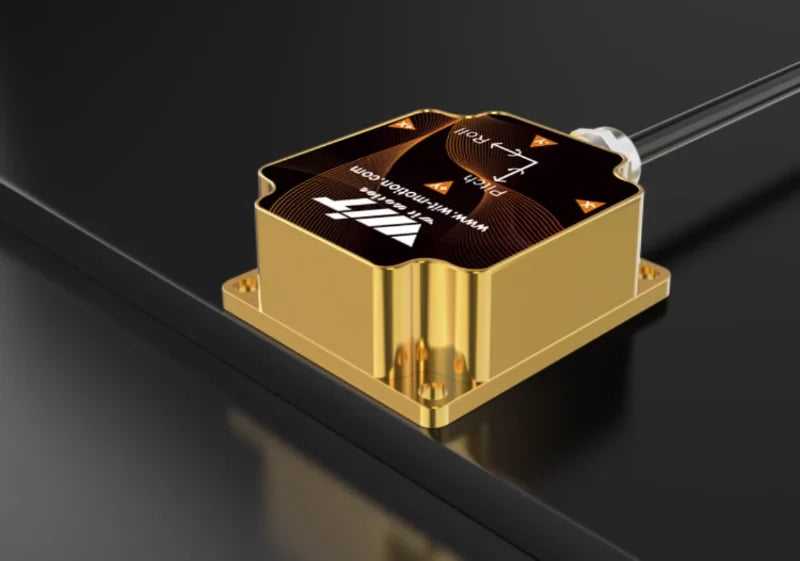

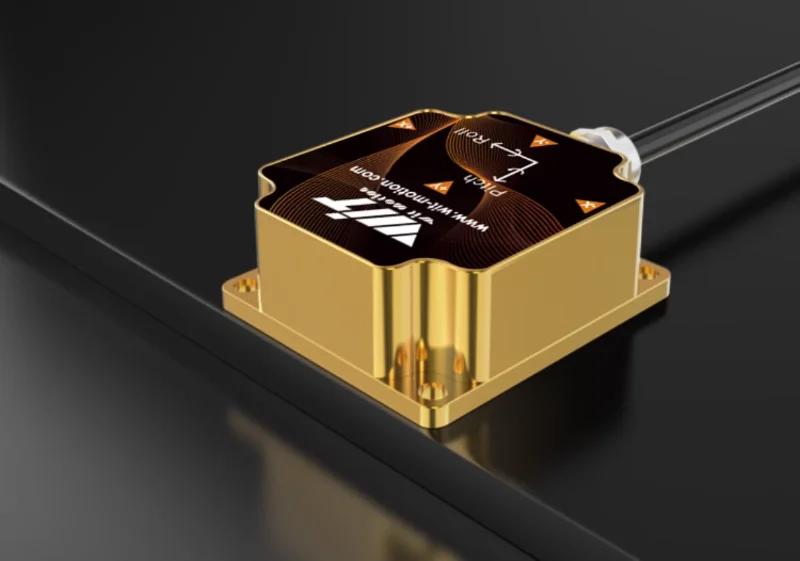

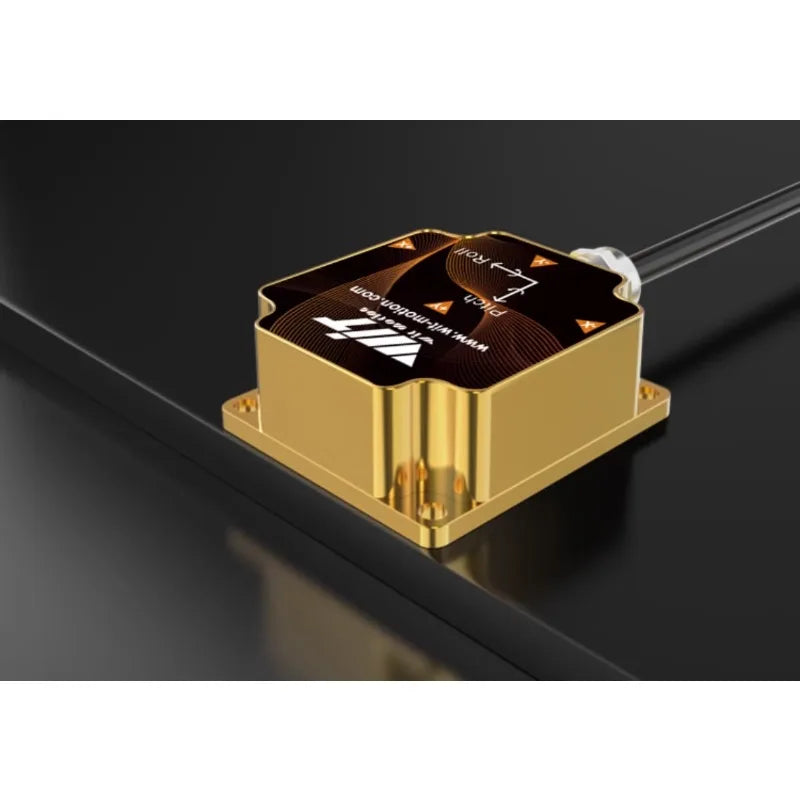

High-precision angle sensor, XY axis accuracy up to 0.001 °. After 1 "ultra-high-precision turntable fine calibration, integrated Witter self-developed fusion algorithm. With attitude measurement, temperature compensation function, IP68 waterproof design, suitable for harsh environments.

Technical Highlights
High-precision calibration: meticulously design each process, calibrate each product, and pass the 1/10,000 three-axis non-magnetic calibration platform for 100% accurate calibration before leaving the factory.
High and low temperature full temperature calibration: 24 hours high and low temperature circulation + aging 12 hours rapid temperature change, covering the full temperature range of 20-70 ° C, temperature coefficient of 0.0005 °/° C.
Core chip and algorithm: Equipped with a military-grade magnetic field chip, it has the advantages of wide measurement range, excellent noise resistance, no temperature drift, and stable temperature characteristics. It can automatically recover the magnetic field due to interference. Using the Kalman filter fusion algorithm, the three-axis angle data is calculated, with accuracy X, Y axis 0.001 °, Z axis 1 ° (no magnetic field interference).
Sensor performance: integrated high-precision gyroscope and accelerometer.

Product advantage
WKF self-developed fusion algorithm.
Reduce temperature drift, X axis zero bias test.
4 °/h zero bias stability.
Soak in water for up to 24 hours.

Product parameters
Model: HWT9053
Supply voltage: 5 - 30V
Working current: < 50mA
Communication mode: serial port 485 (Modbus protocol), CAN series (private protocol)
Output data: 3D (acceleration, gyroscope, Euler angle, magnetic field, quaternion, time)
Range: acceleration ± 2g, angular velocity ± 2000 °/s, X/Z axis angle ± 180 °, Y axis angle ± 90 °
Baud Rate: UART: 4800 - 921600, CAN: 3K - 1M
Return rate: CAN: 0.2 - 200Hz

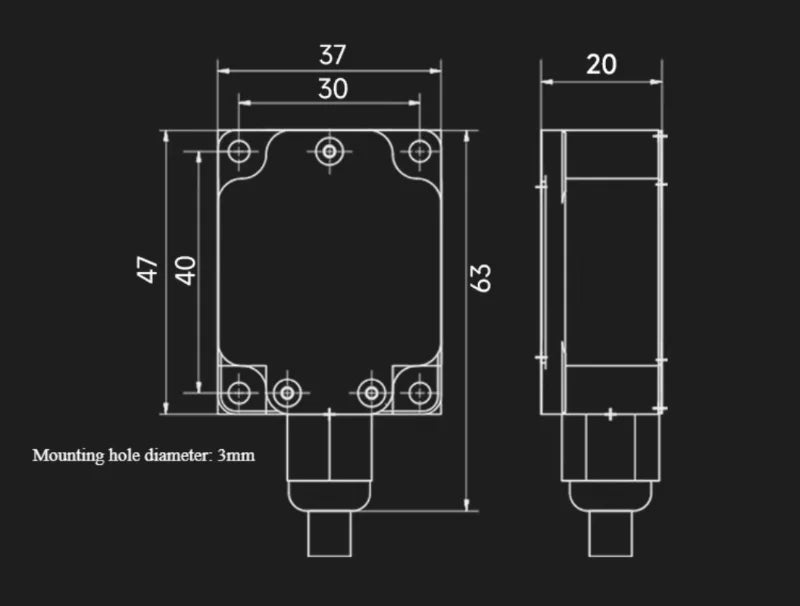

Size: 473720mm, the default line length is 1 meter (support customization)
Weight: Sensor Technologies 52.8g, Line Technologies 43.7g
Installation method: disc or horizontal installation

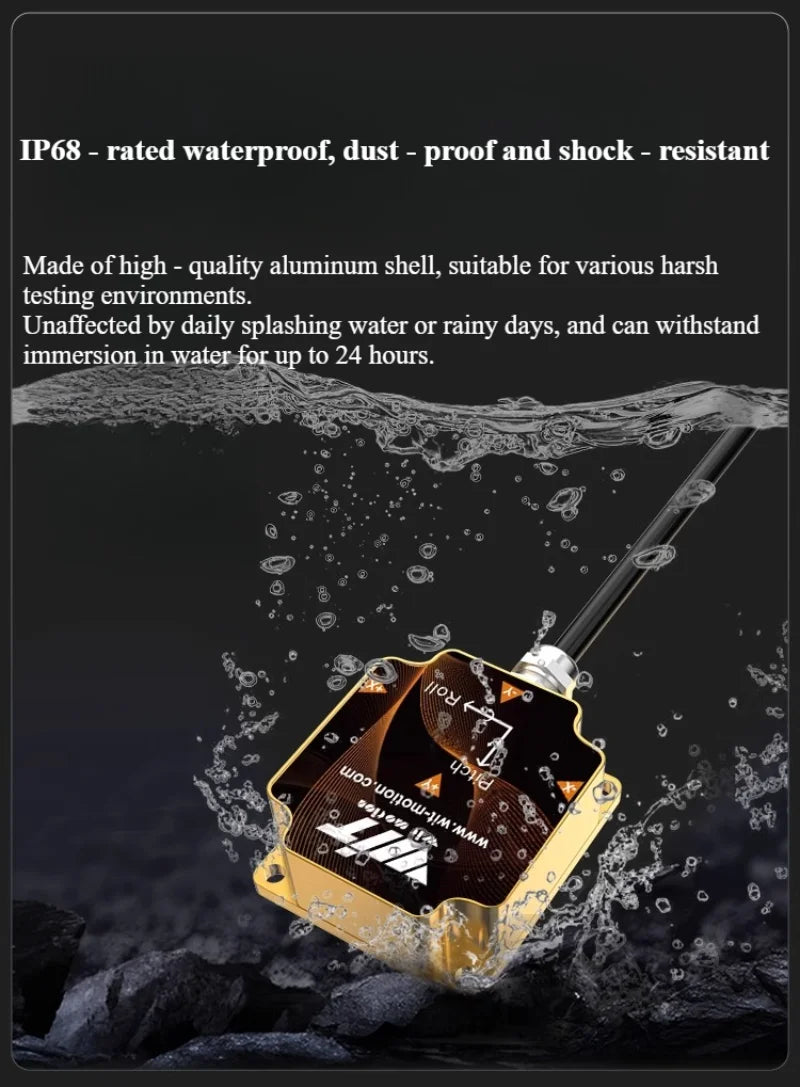

protective characteristics
Using high-quality aluminum shell, IP68 waterproof, dustproof and shock-resistant, daily splashing or rainy days are not affected, and the soaking time can reach 24 hours.
