SPECIFICATIONS

Assembly Required: no

Brand Name: PremierCable

Cable Type: RG113 Coaxial Cable

Capacity: no

Certification: RoHS

Choice: yes

Connector A: IPEX Gen 4 (MHF4)

Connector B: SMA Female, Bulkhead Panel Mount

Contact: 3U" Gold-Plated

High-concerned chemical: none

Impedance: 50 Ohm

Length: 25cm/0.82FT

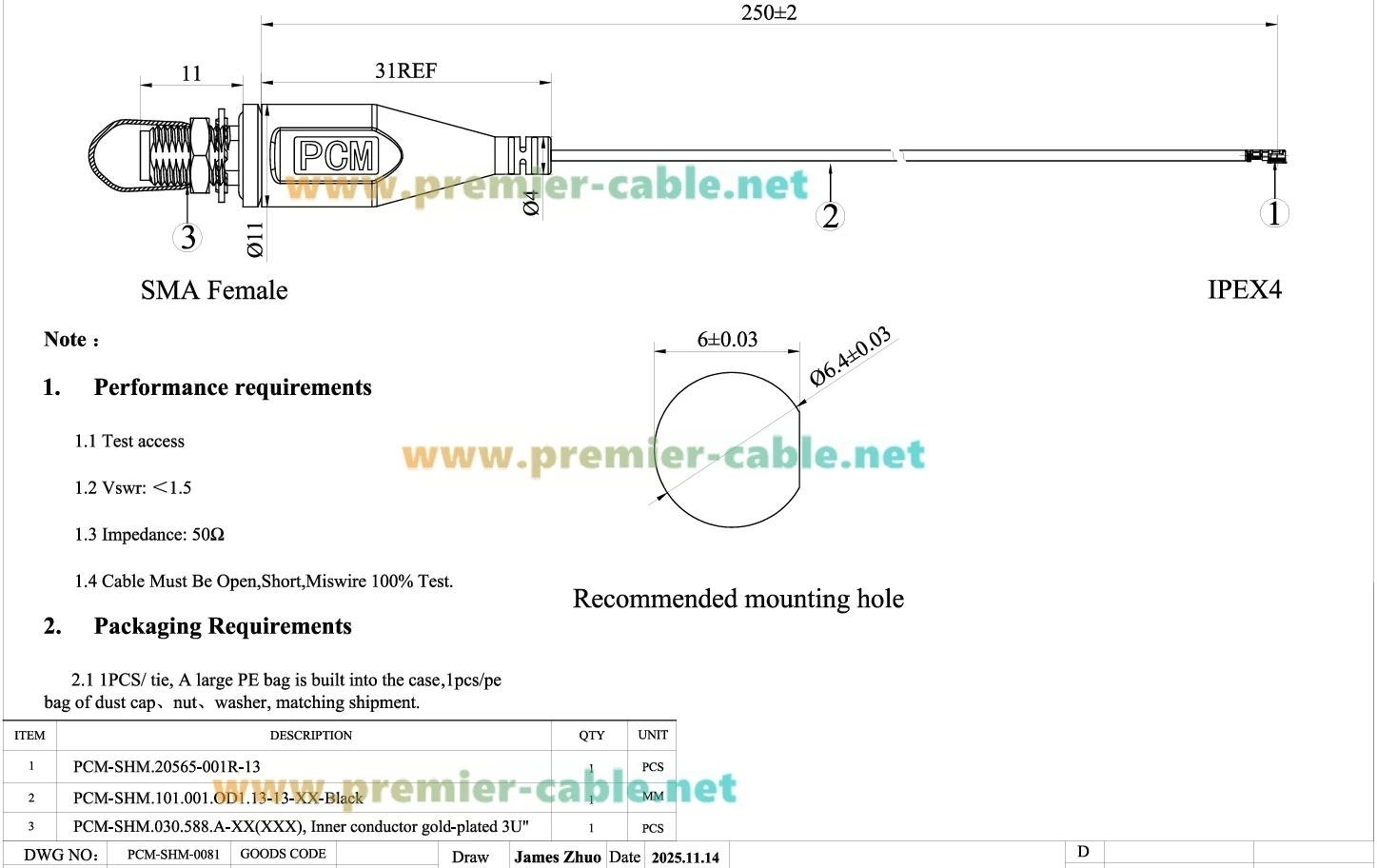

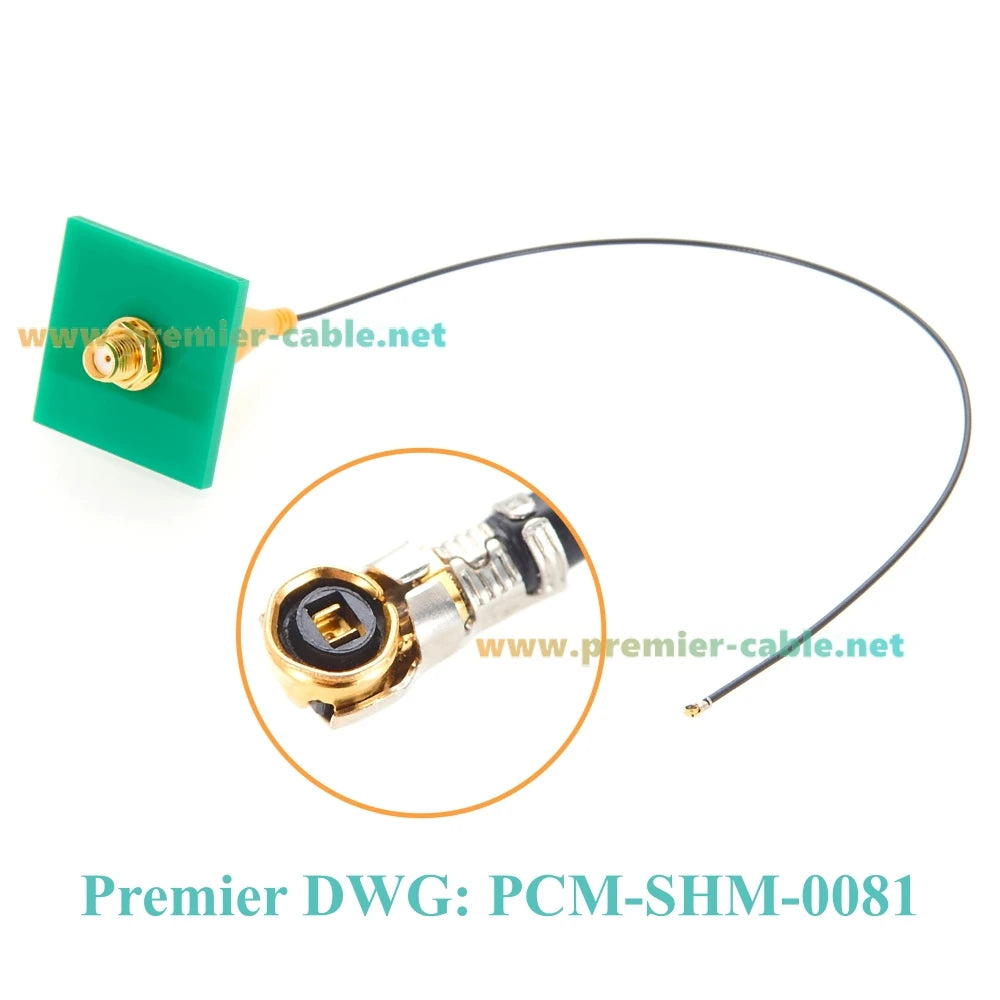

Model Number: PCM-SHM-0081

Origin: Mainland China

Package: Yes

Panel Opening Diameter: 6.4 mm

Type: Cable Adapter

semi_Choice: yes

Specifications:

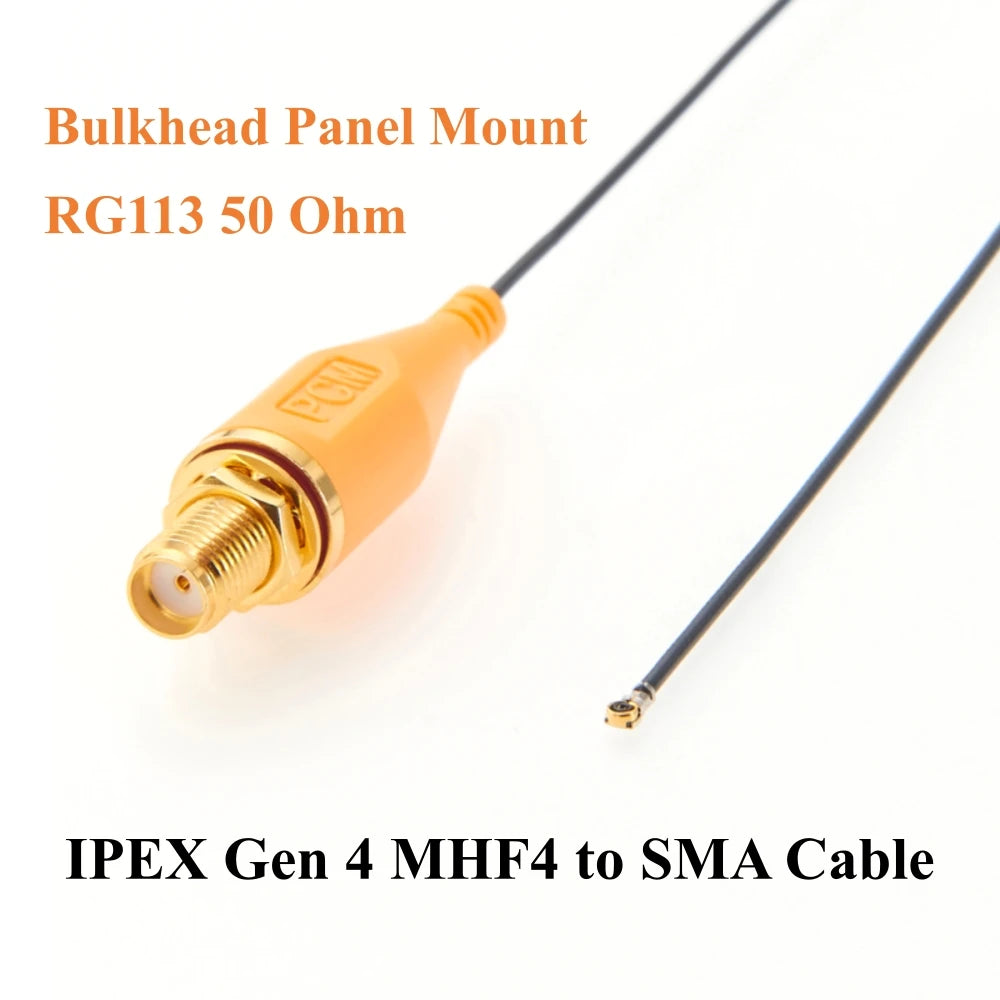

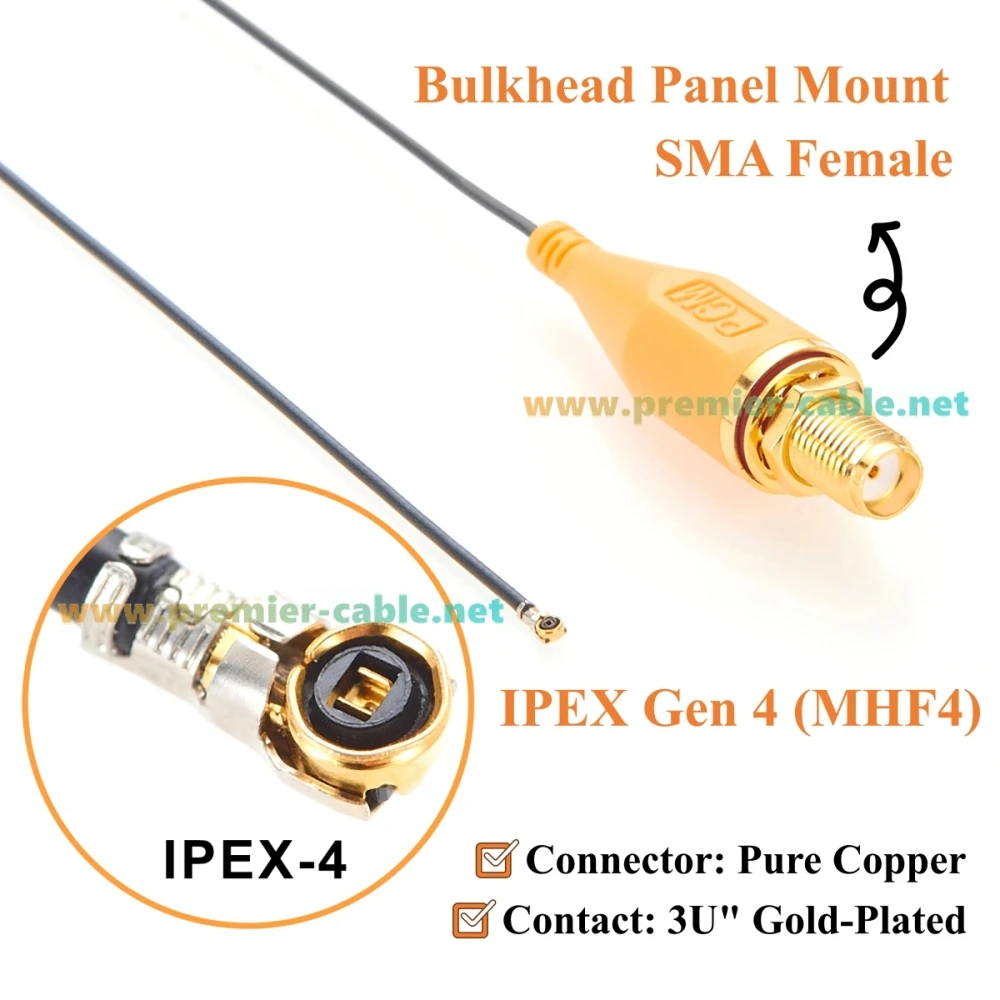

Product Name: IPEX Gen 4 (MHF4) to SMA Female Bulkhead Extension Cable

Connector A: IPEX Gen 4 (MHF4)

Connector B: SMA Female, Bulkhead Panel Mount

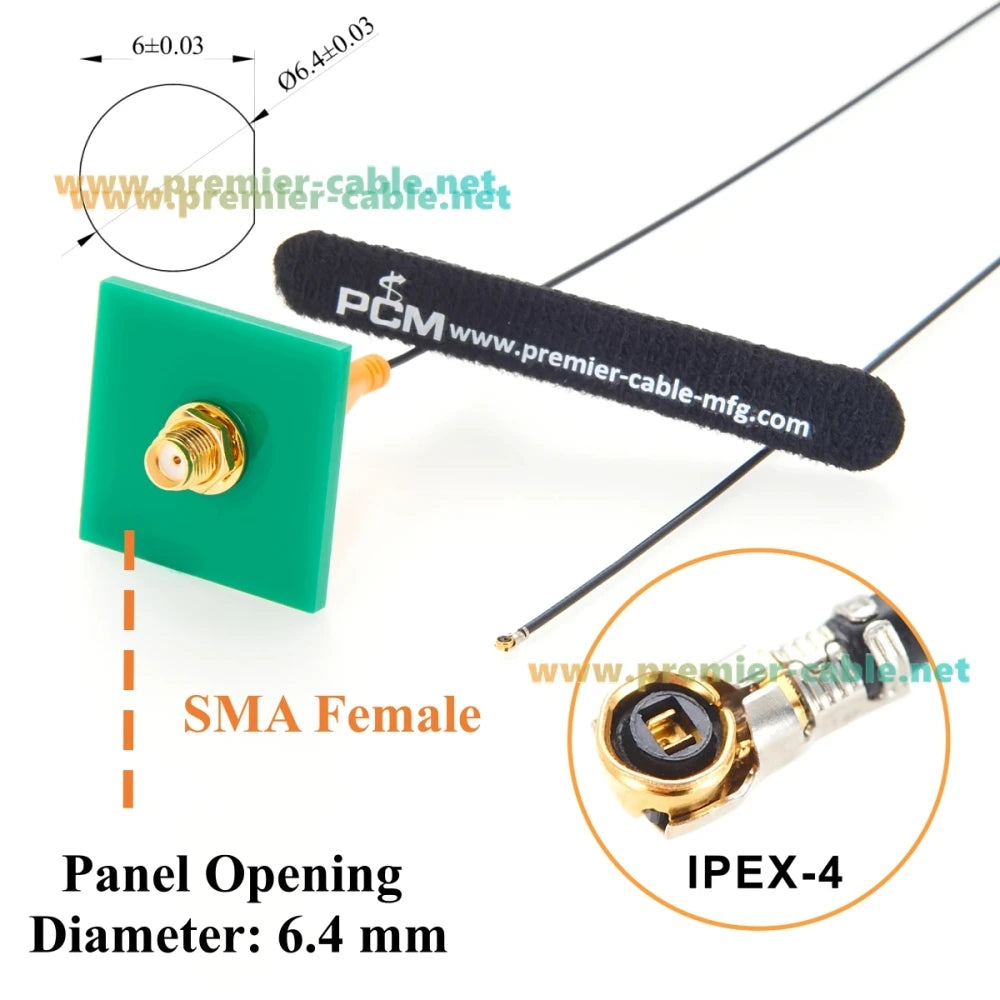

Panel Opening Diameter: 6.4 mm

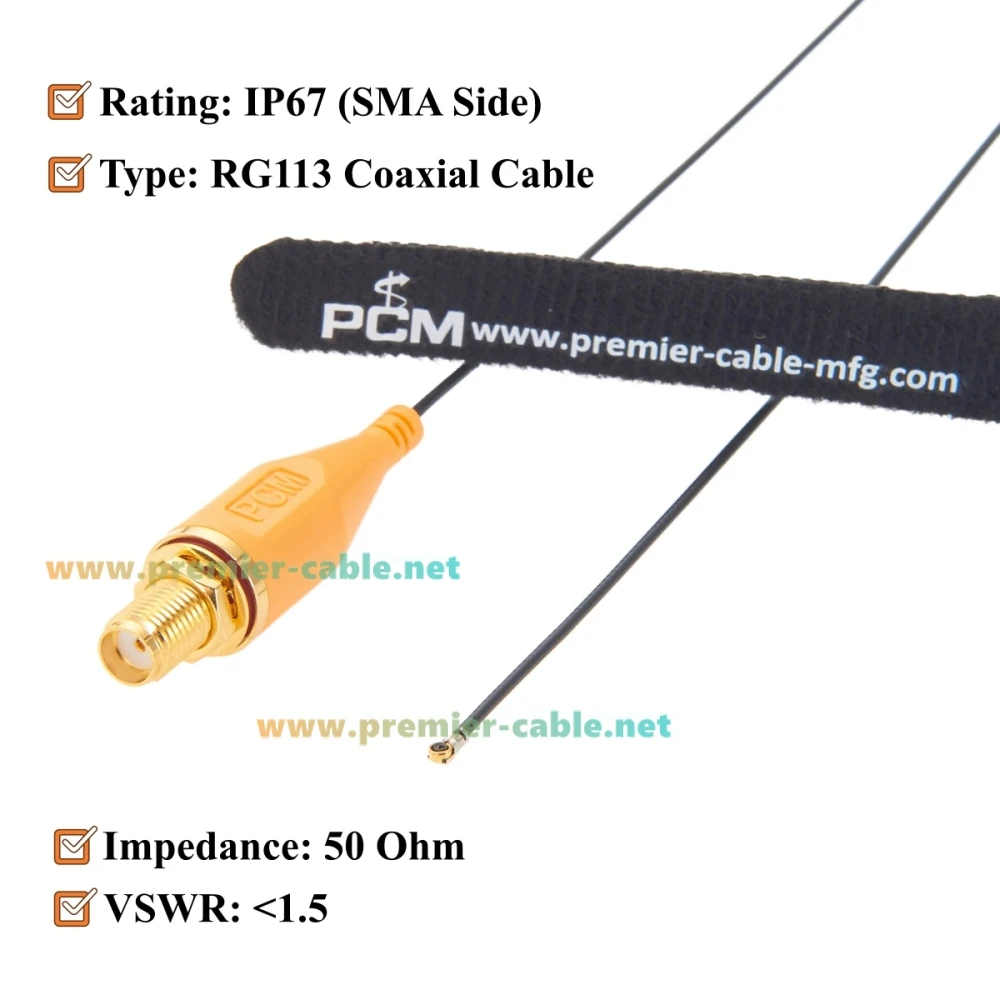

Waterproof Rating: IP67 (SMA Side)

Cable Type: RG113 Coaxial Cable

Impedance: 50 Ohm

VSWR: <1.5

Shielding: Silver-Plated Copper Braided Shield

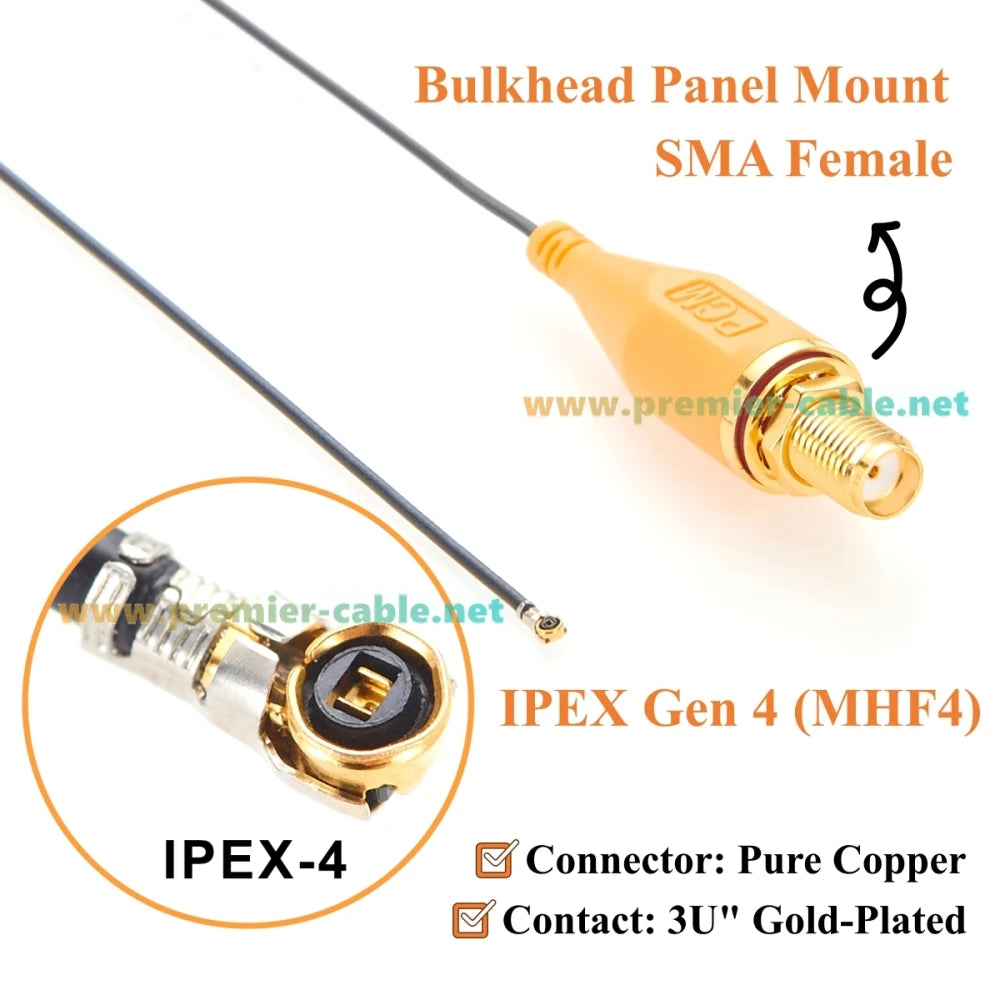

Connector Contact Plating: 3U" Gold-Plated

Connector Material: Pure Copper

Feature:

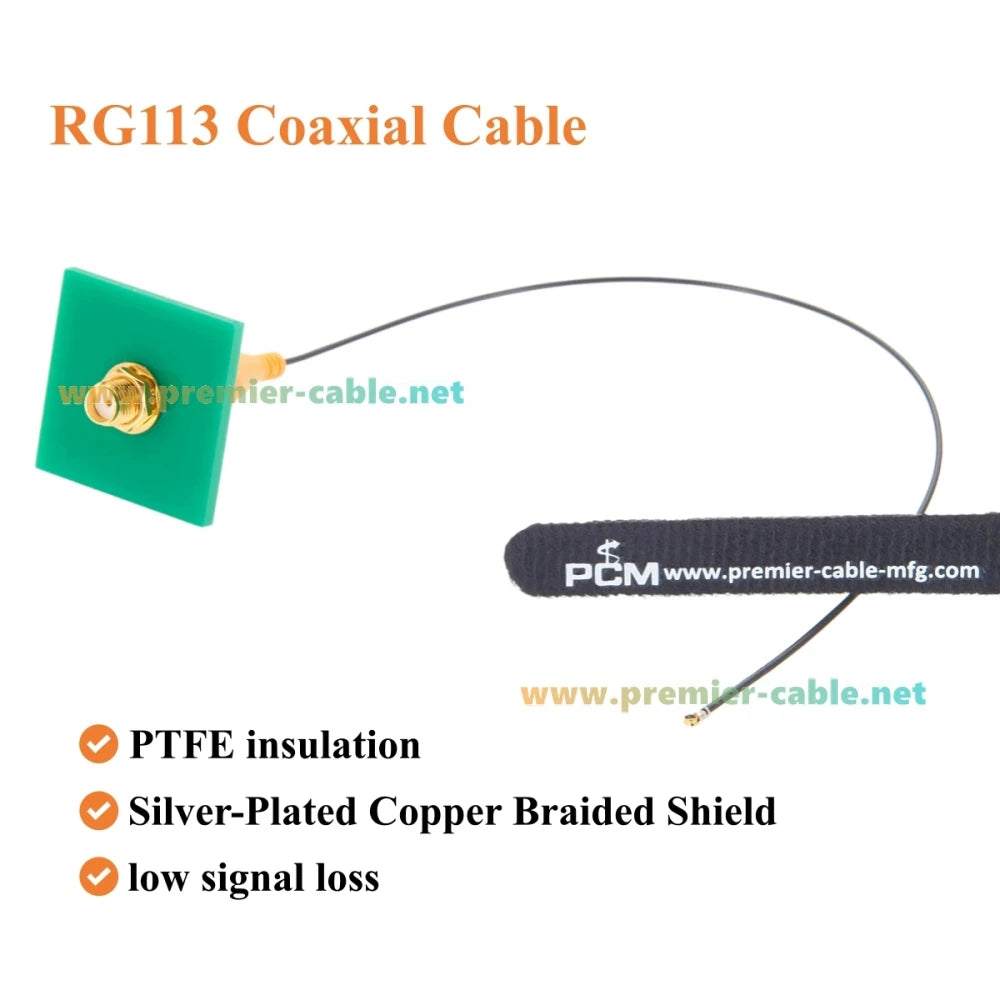

✔RG113 Coaxial Cable – SMA to IPEX Gen 4 RF Jumper Extension Cable, Built with premium RG113 coaxial cable, featuring silver-plated copper conductor, PTFE insulation, and braided shielding. Provides low signal loss, and strong resistance to EMI interference.

✔50Ω Impedance & Low Loss – SMA to IPEX MHF4 RF Antenna Coax Extender Jumper Cable, Built with 50 Ohm Impedance and VSWR <1.5, ensuring efficient signal transmission with minimal loss and reflection.

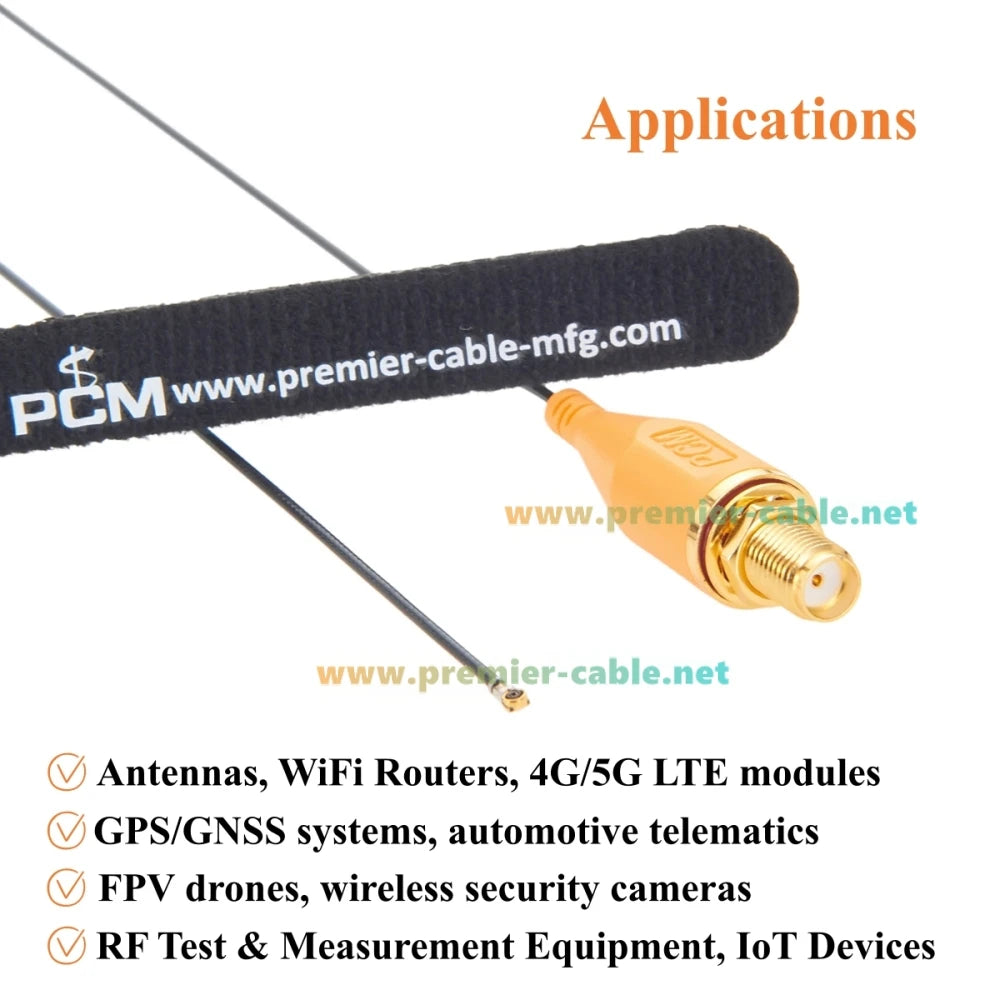

✔Applications – RG113 IPEX MHF4 to SMA Female Pigtail Antenna Cable, Ideal for WiFi Antennas, WiFi Routers, 4G/5G LTE modules, GPS/GNSS systems, automotive telematics, FPV drones, wireless security cameras, IoT Devices, embedded systems, signal boosters, industrial communication applications and RF Test & Measurement Equipment.
