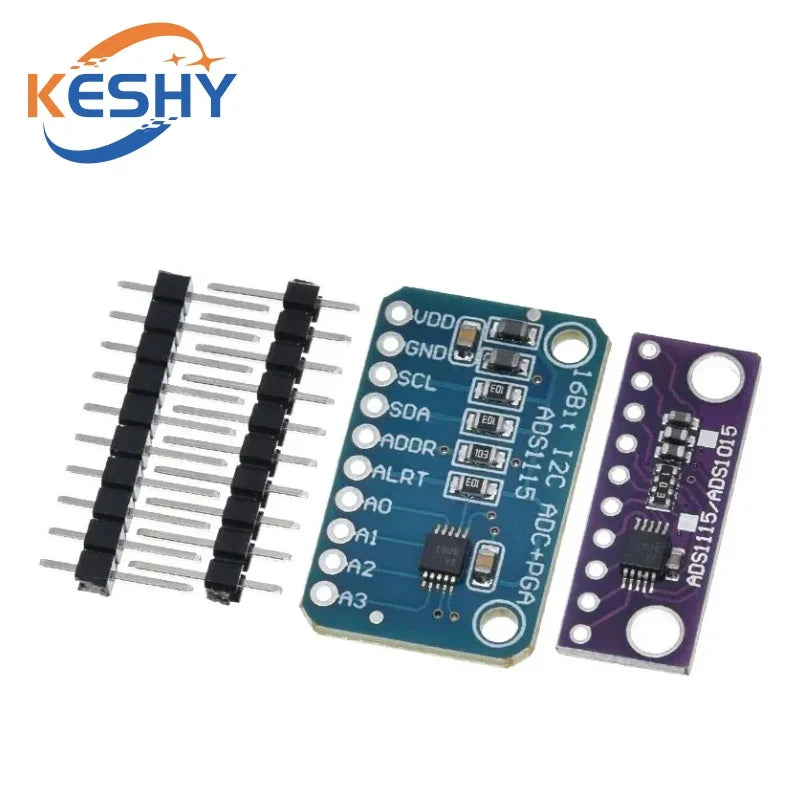

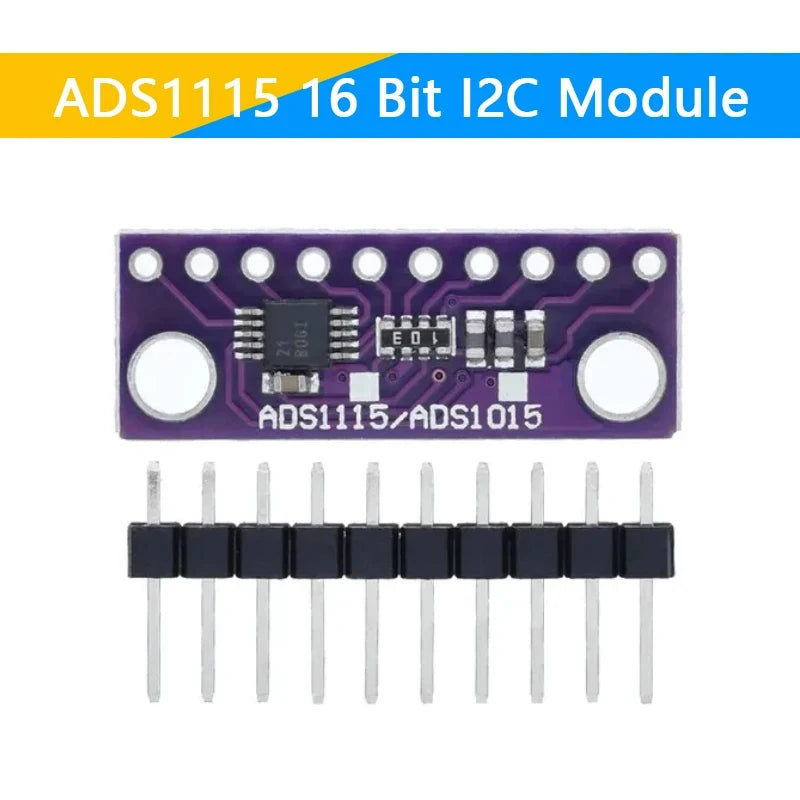

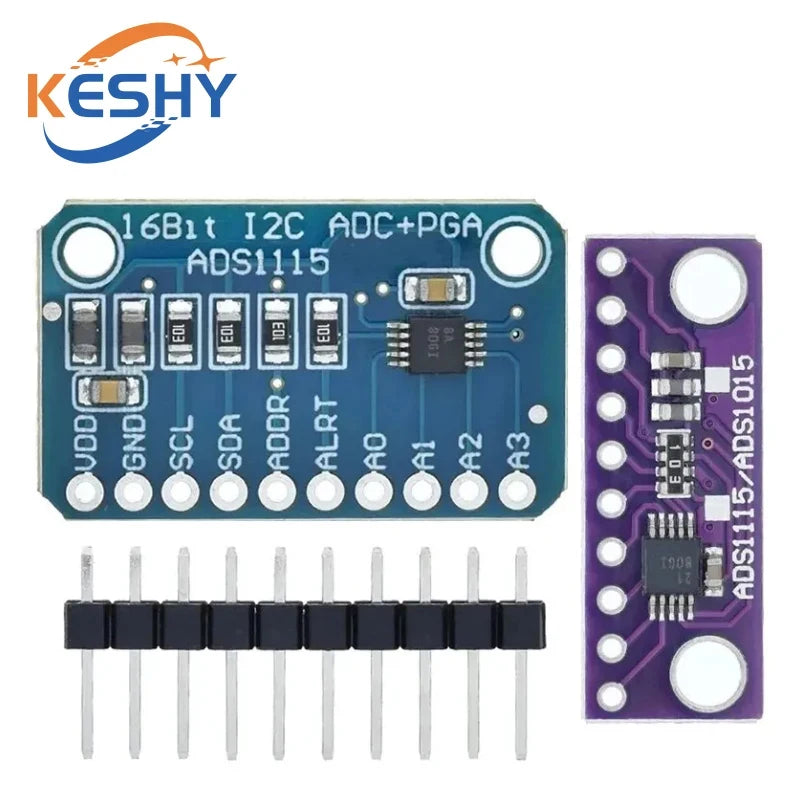

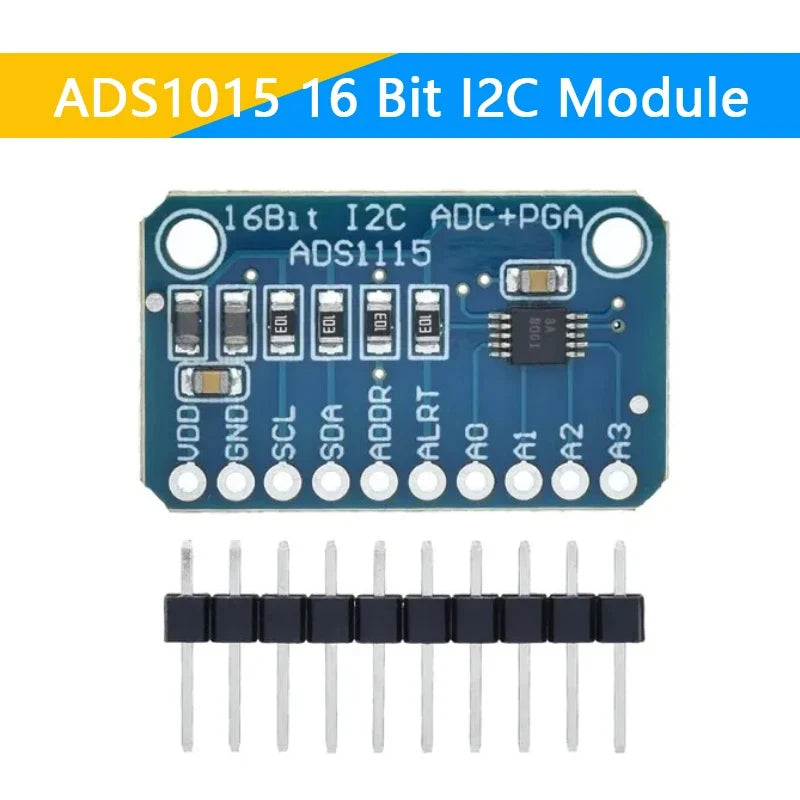

I2C ADS1115 ADS1015 16 Bit ADC 4 channel Module with Programmable Gain Amplifier 2.0V to 5.5V RPi

I2C ADS1115 ADS1015 16 Bit ADC 4 channel Module with Programmable Gain Amplifier 2.0V to 5.5V RPi

$7.25

$7.25 $0.00

Color ADS1015 Purple ADS1115 Purple ADS1015 Blue ADS1115 Blue

Description

SPECIFICATIONS

Brand Name: Keshy

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

is_customized: Yes

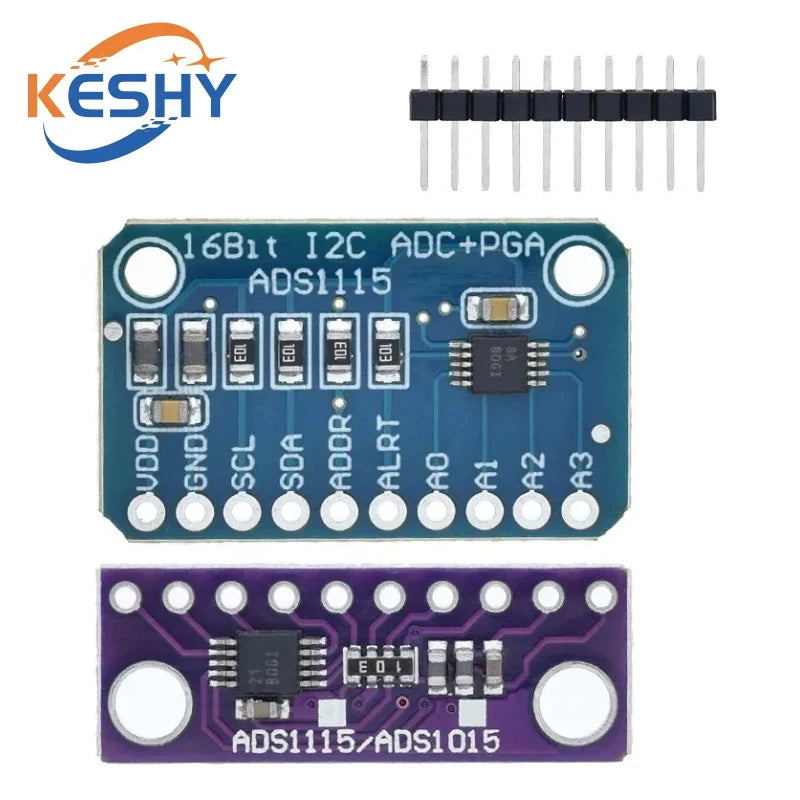

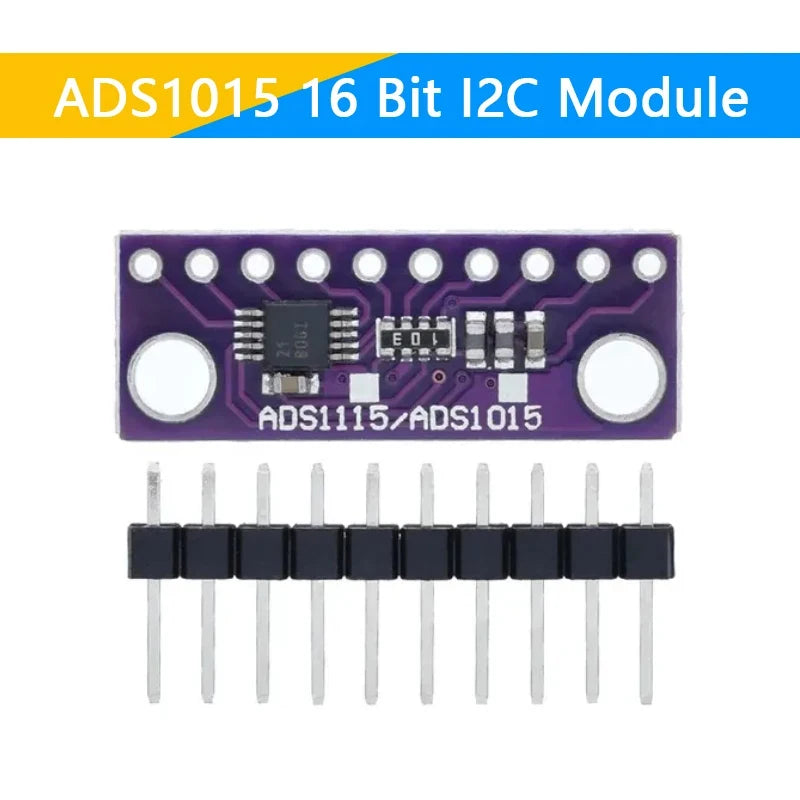

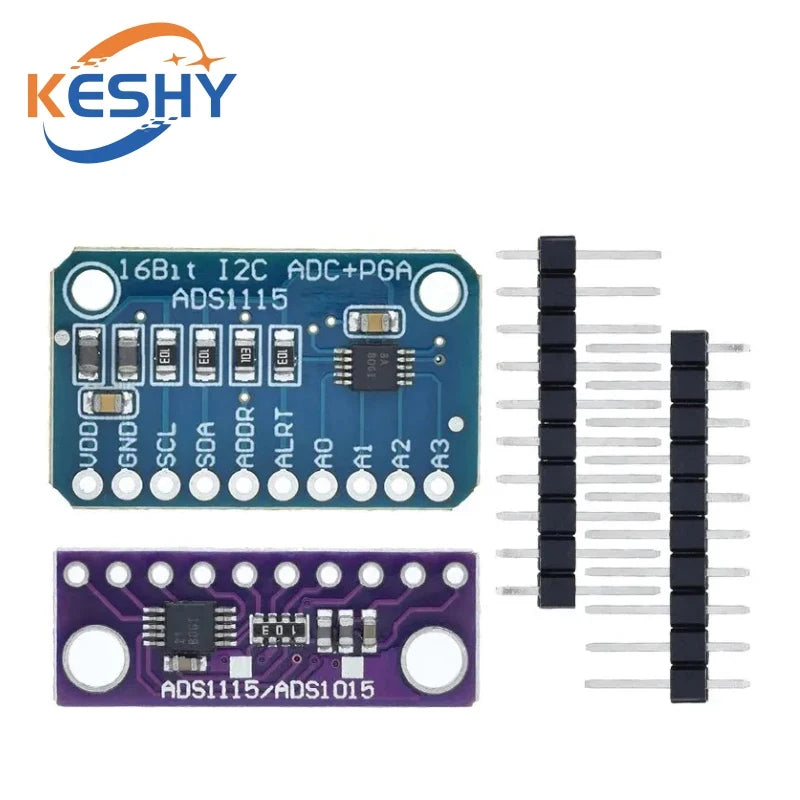

ADS1115 ultra-compact 16-precision ADC ADC module development board

FEATURES DESCRIPTION

23 ULTRA-SMALL QFN PACKAGE: The ADS1113, ADS1114, and ADS1115 are

2mm × 1,5mm × 0,4mm precision analog-to-digital converters (ADCs) with 16

WIDE SUPPLY RANGE: 2.0V to 5.5V bits of resolution offered in an ultra-small, leadless

LOW CURRENT CONSUMPTION: QFN-10 package or an MSOP-10 package The ADS1113 / 4/5 are designed with precision, power, and.

Continuous Mode: Only 150A ease of implementation in mind The ADS1113 / 4/5.

Single-Shot Mode:. Auto Shut-Down feature an onboard reference and oscillator Data are

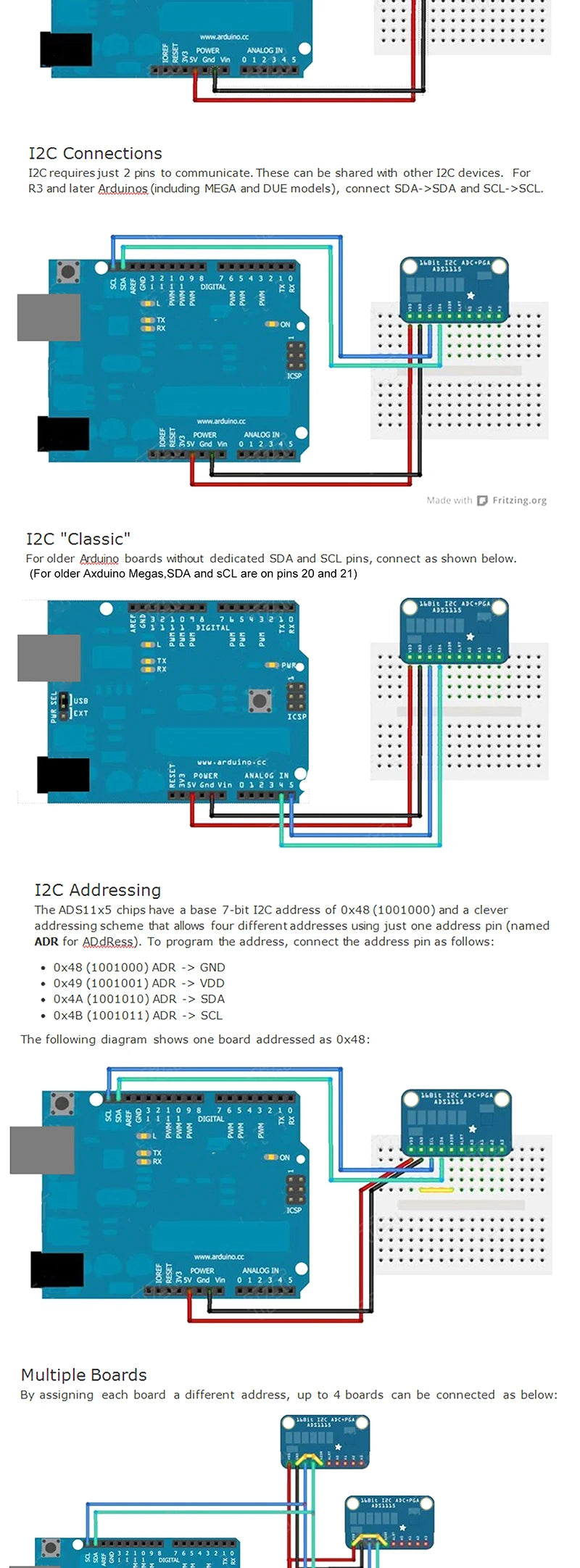

PROGRAMMABLE DATA RATE: transferred via an I2C-compatible serial interface; four

8SPS to 860SPS I2C slave addresses can be selected. The

INTERNAL LOW-DRIFT ADS1113 / 4/5 operate from a single power supply

VOLTAGE REFERENCE ranging from 2.0V to 5.5V.

INTERNAL OSCILLATOR The ADS1113 / 4/5 can perform conversions at rates

INTERNAL PGA up to 860 samples per second (SPS). An onboard PGA is available on the ADS1114 and ADS1115 that

I2C INTERFACE: Pin-Selectable Addresses offers input ranges from the supply to as low as

FOUR SINGLE-ENDED OR TWO ± 256mV, allowing both large and small signals to be

DIFFERENTIAL INPUTS (ADS1115) measured with high resolution. The ADS1115 also

features an input multiplexer (MUX) that provides two PROGRAMMABLE COMPARATOR differential or four single-ended inputs.

(ADS1114 and ADS1115)

The ADS1113 / 4/5 operate either in continuous

APPLICATIONS conversion mode or a single-shot mode that

PORTABLE INSTRUMENTATION automatically powers down after a conversion and greatly reduces current consumption during idle

CONSUMER GOODS periods. The ADS1113 / 4/5 are specified from -40 ° C

BATTERY MONITORING to + 125 ° C.

• Precision ADC :The ADS1115 16 Bit I2C Module Precision ADC ensures accurate and reliable data readings, making it ideal for any development board project.

• 4 Channel Design :Its 4-channel design allows for multiple simultaneous readings, enhancing the efficiency of your coding and testing processes.

• Pro Gain Amplifier :Equipped with a pro gain amplifier, this module can handle complex signal processing with ease, making it perfect for more advanced projects.

• 2.0V to 5.5V Compatibility :Designed to work with Arduino, the module is compatible with devices running on 2.0V to 5.5V, providing a wide range of application possibilities.

• Mainland China Origin :Originating from Mainland China, this product guarantees high-quality craftsmanship and durability, ensuring long-lasting performance.

• Voltage Regulator :As a voltage regulator, it can help stabilize your power supply, ensuring your devices run smoothly and efficiently.
