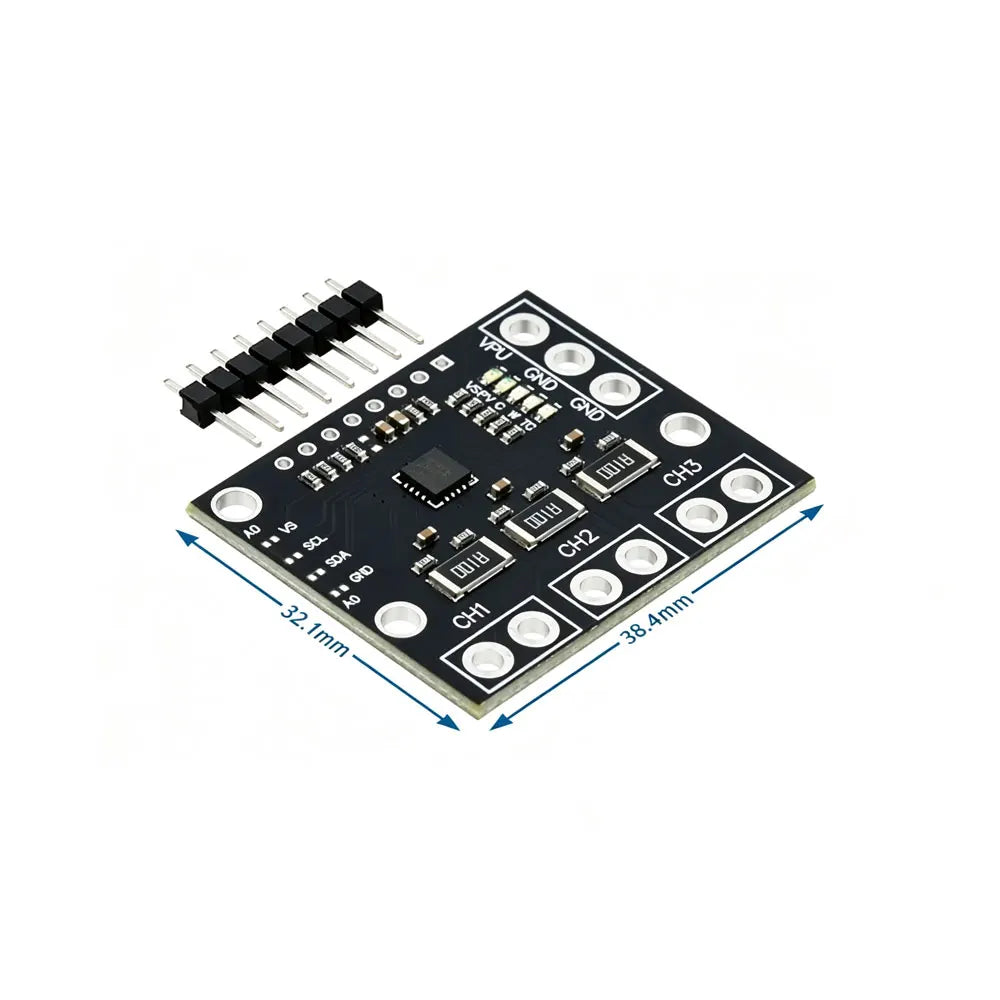

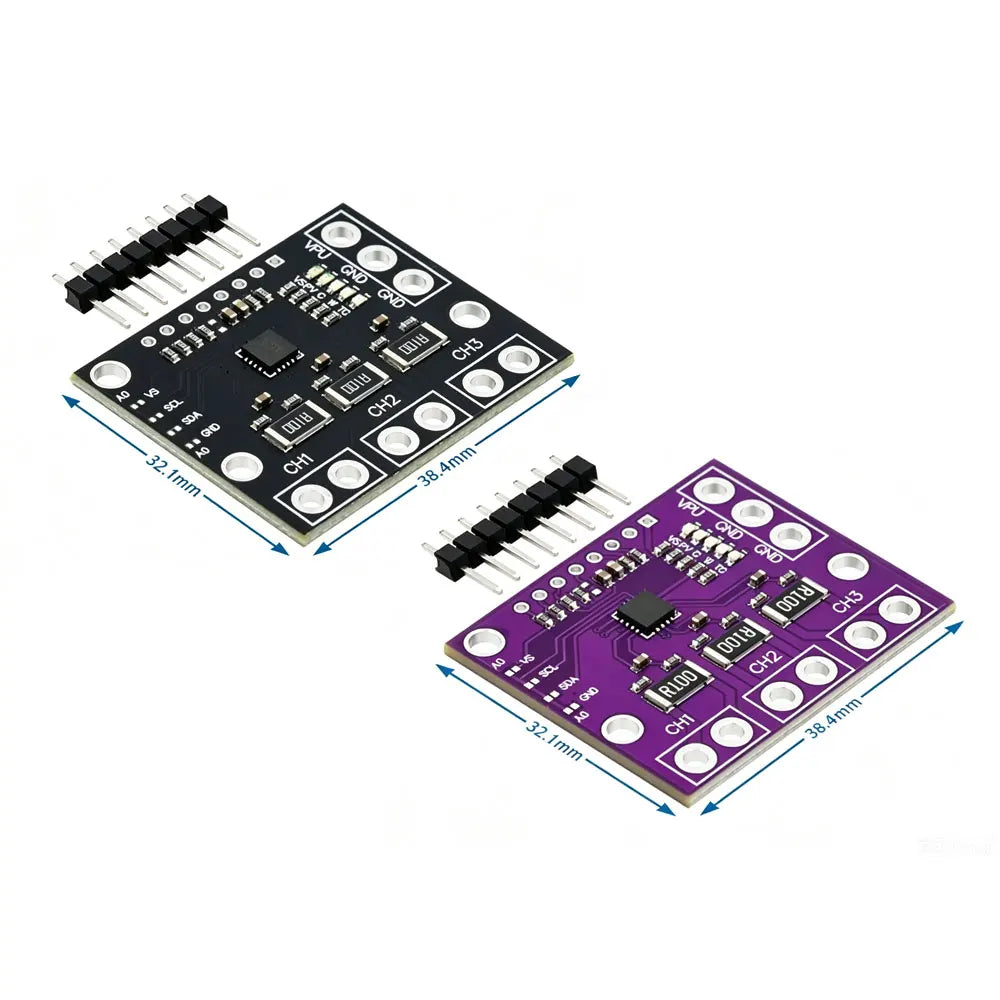

I2C SMBUS INA3221 Triple-Channel Shunt Current Power Supply Voltage Monitor Sensor Board Module Replace INA219 With Pins
Black
$7.16
Sale price
$7.16
Regular price
$0.00
Skip to product information
I2C SMBUS INA3221 Triple-Channel Shunt Current Power Supply Voltage Monitor Sensor Board Module Replace INA219 With Pins
$7.16
Sale price
$7.16
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Condition: New
High-concerned chemical: none
Origin: Mainland China
Type: Module

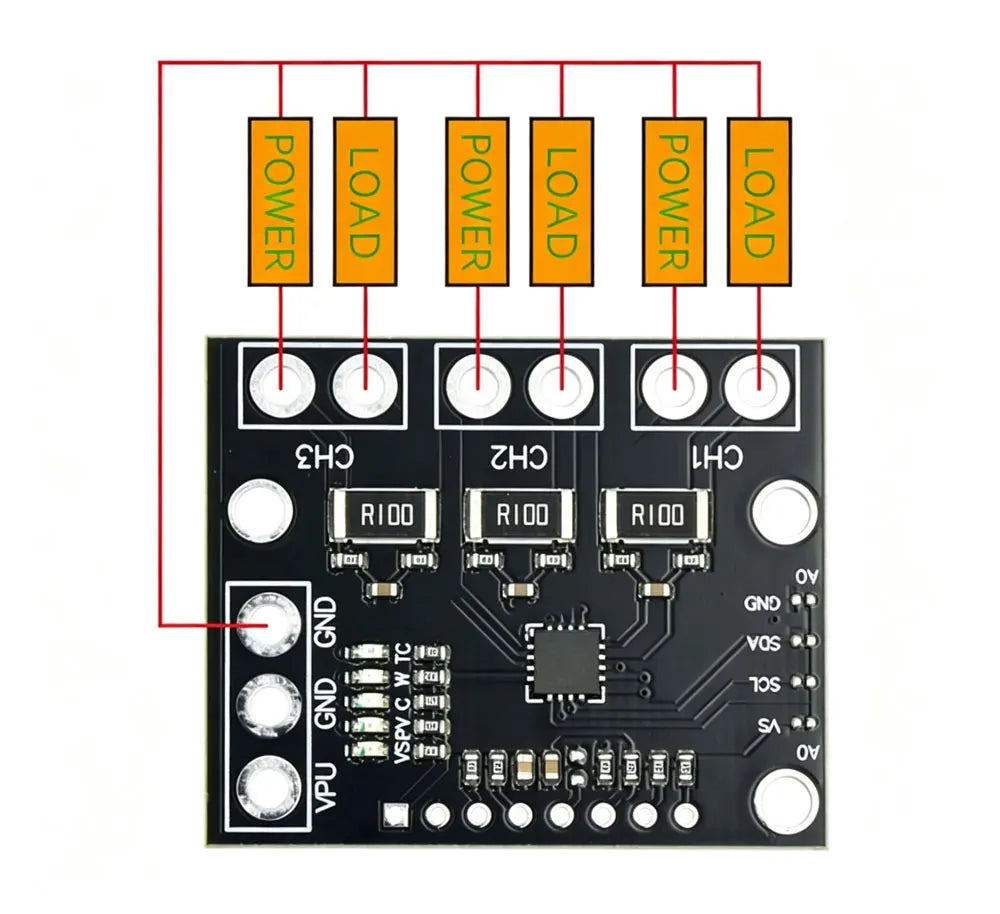

The INA3221 is a three-channel,high-side current and bus voltage monitor with an I2C- and SMBUS-compatible interface. The INA3221 monitors both shunt voltage drops and bus supply voltages,in addition to having programmable conversion times and averaging modes for these signals. The INA3221 offers both critical and warning alerts to detect multiple programmable out-of-range conditions for each channel.
The INA3221 senses current on buses that can vary from 0 V to 26 V. The device is powered from a single 2.7-V to 5.5-V supply,and draws 350 µA (typ) of supply current. The INA3221 is specified over the operating temperature range of –40°C to +125°C. The I2C- and SMBUS-compatible interface features four programmable addresses.
Features
Senses Bus Voltages From 0 V to 26 V
Reports Shunt and Bus Voltage
High Accuracy:
Offset Voltage: ±80 µV (max)
Gain Error: 0.25% (max)
Configurable Averaging Options
Four Programmable Addresses
Programmable Alert and Warning Outputs
Power-Supply Operation: 2.7 V to 5.5 V
