SPECIFICATIONS

General information

Type

CPU / Microprocessor

Market segment

Mobile

Family

Model number  ?

CPU part number

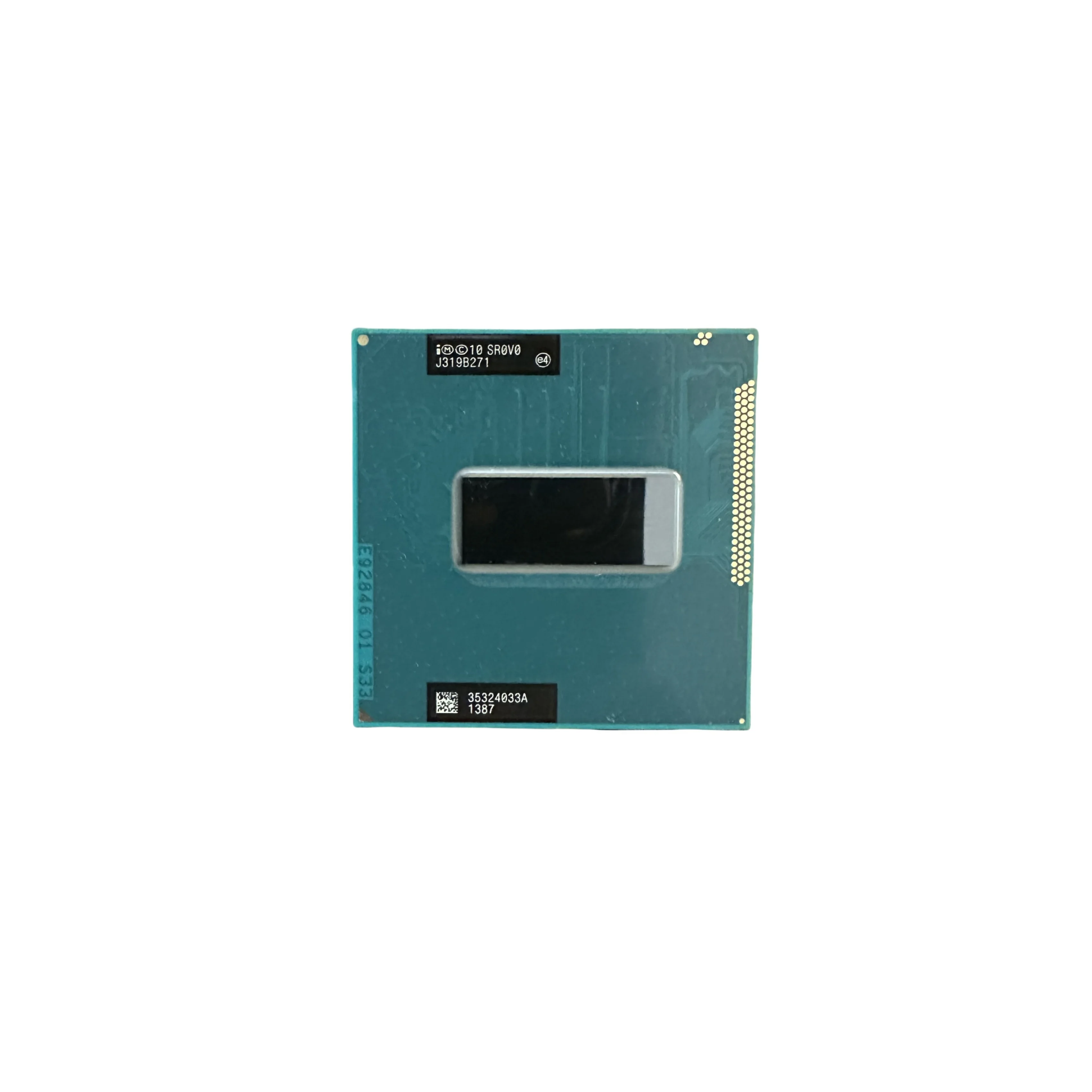

• AW8063801152800 is an OEM/tray microprocessor

Frequency ?

2200 MHz

Maximum turbo frequency

3200 MHz

Bus speed ?

5 GT/s DMI

Clock multiplier ?

22

Package

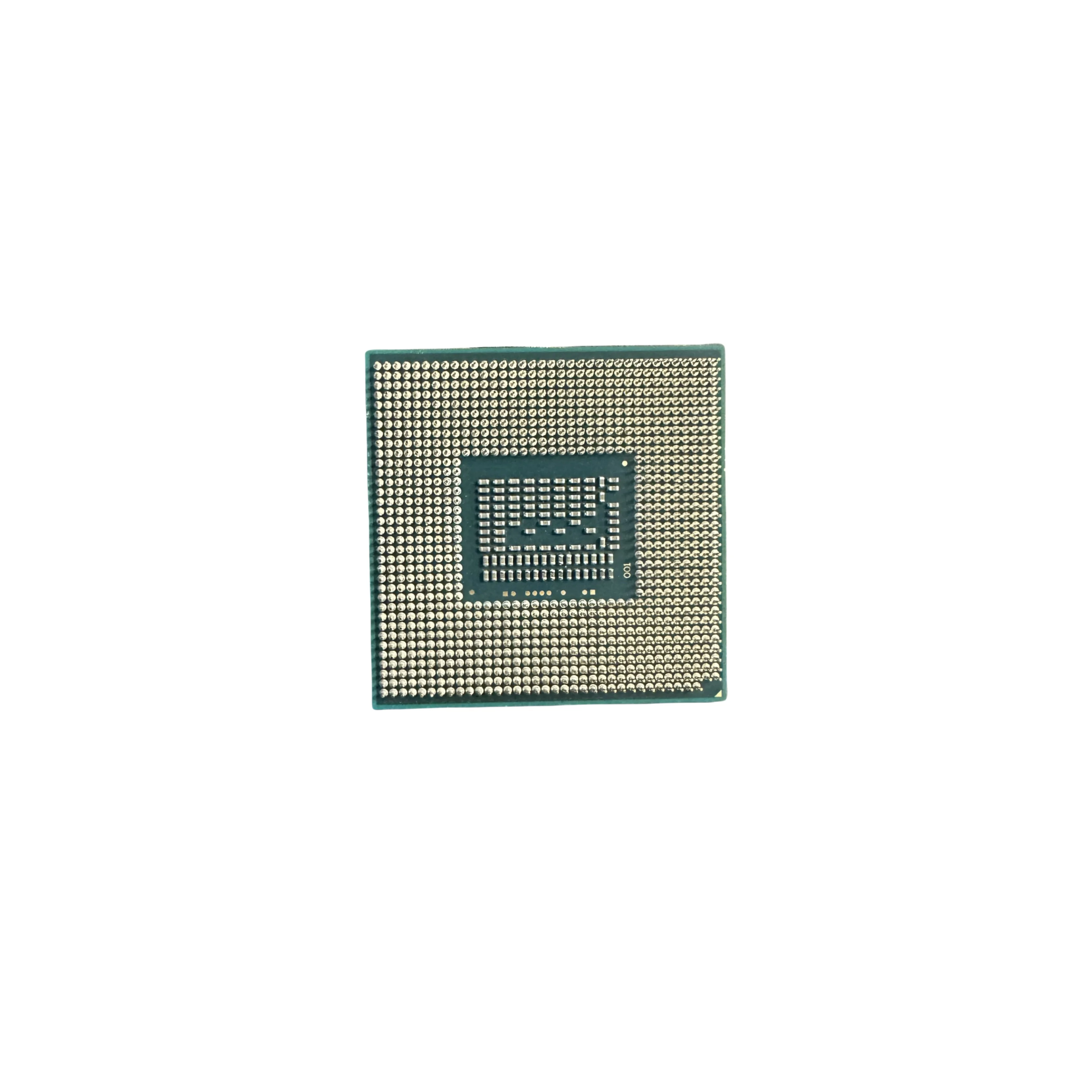

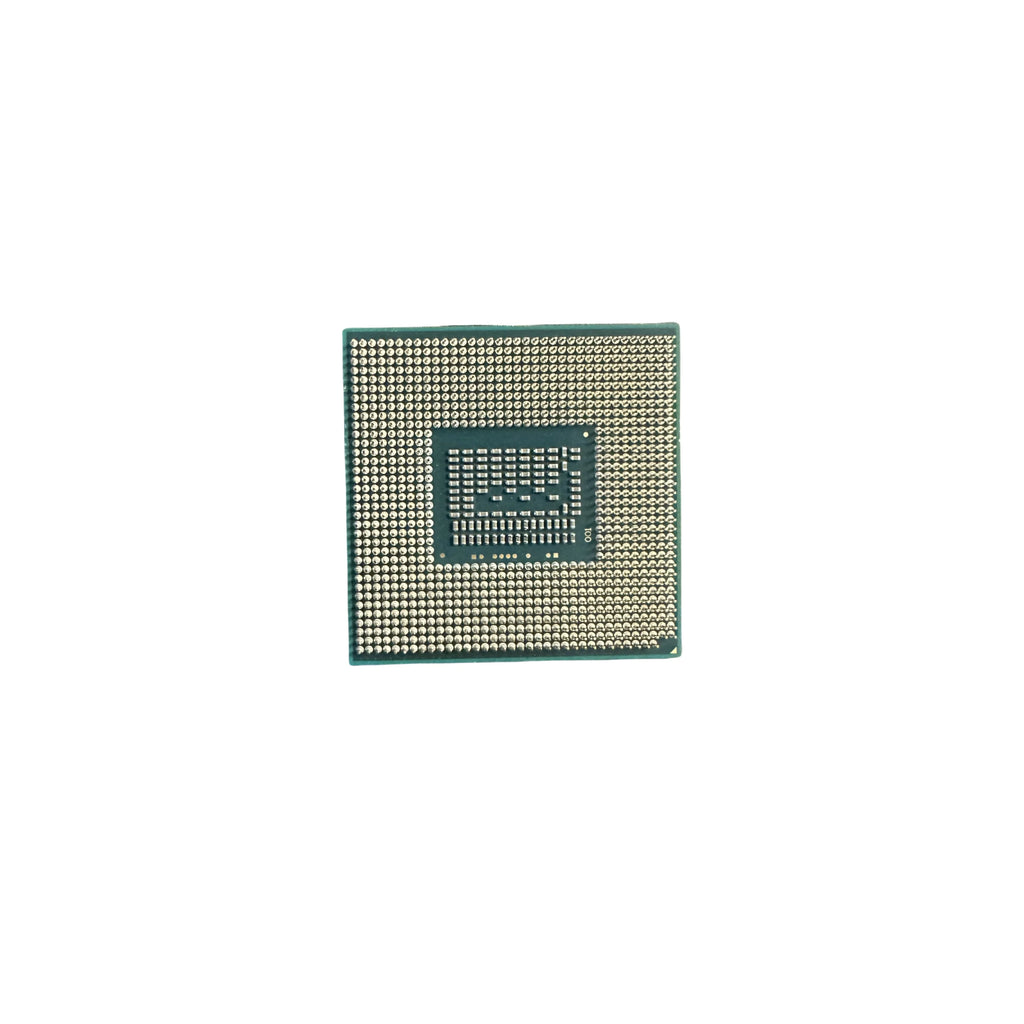

988-pin micro-PGA (rPGA988B)

Socket

Socket G2 / rPGA988B

Size

1.48" x 1.48" / 3.75cm x 3.75cm

Introduction date

October 2012

Price at introduction

$378

S-spec numbers

Architecture / Microarchitecture

Microarchitecture

Ivy Bridge

Processor core  ?

Ivy Bridge

Core stepping  ?

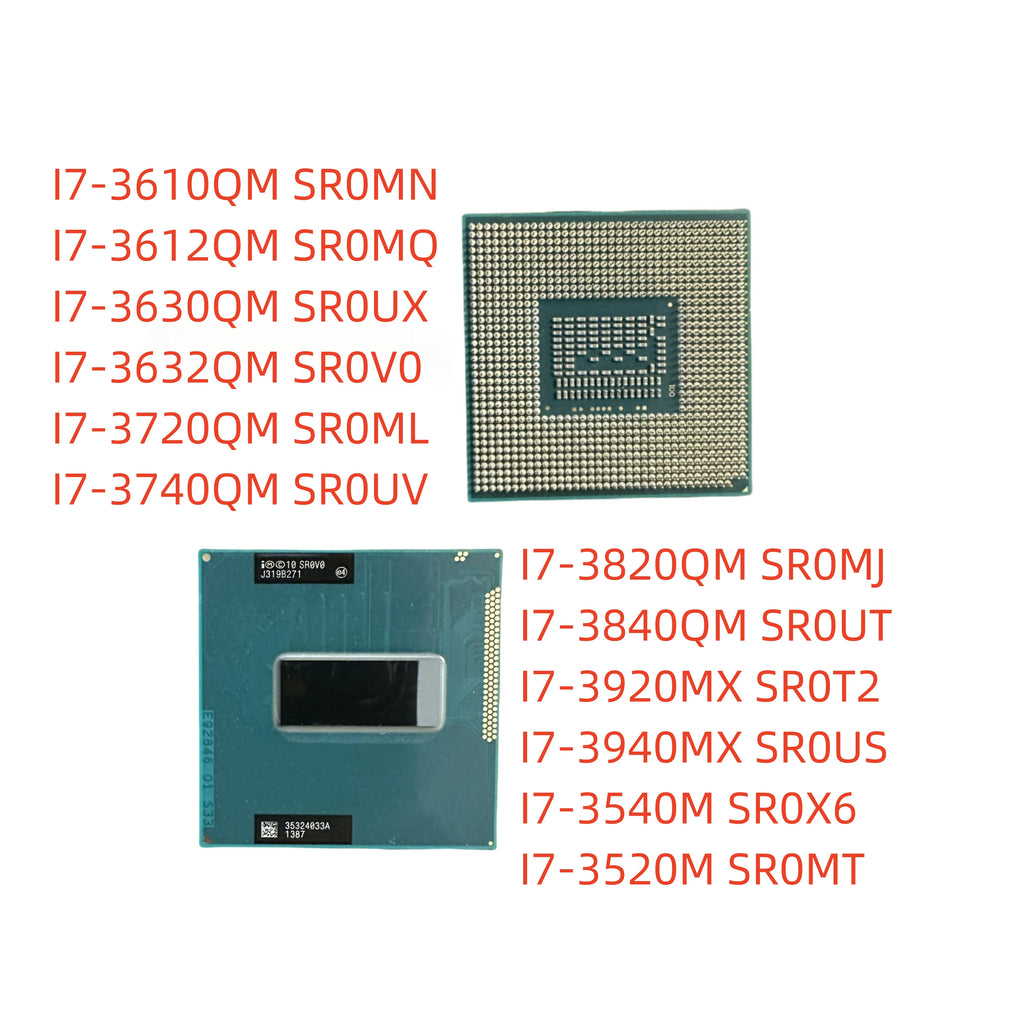

E1 (QCF8, SR0V0)

CPUID

306A9 (QCF8)

Manufacturing process

0.022 micron
1.4 billion transistors

Die

159.82mm2

Data width

64 bit

The number of CPU cores

4

The number of threads

8

Floating Point Unit

Integrated

Level 1 cache size  ?

4 x 32 KB 8-way set associative instruction caches
4 x 32 KB 8-way set associative data caches

Level 2 cache size ?

4 x 256 KB 8-way set associative caches

Level 3 cache size

6 MB 12-way set associative shared cache

Physical memory

32 GB

Multiprocessing

Not supported

Features

• MMX instructions

• SSE / Streaming SIMD Extensions

• SSE2 / Streaming SIMD Extensions 2

• SSE3 / Streaming SIMD Extensions 3

• SSSE3 / Supplemental Streaming SIMD Extensions 3

• SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4  ?

• AES / Advanced Encryption Standard instructions

• AVX / Advanced Vector Extensions

• F16C / 16-bit Floating-Point conversion instructions

• EM64T / Extended Memory 64 technology / Intel 64  ?

• NX / XD / Execute disable bit  ?

• HT / Hyper-Threading technology  ?

• TBT 2.0 / Turbo Boost technology 2.0  ?

• VT-x / Virtualization technology  ?

Low power features

Enhanced SpeedStep technology  ?

Integrated peripherals / components

Integrated graphics

GPU Type: HD 4000
Graphics tier: GT2
Microarchitecture: Gen 7
Execution units: 16
Base frequency (MHz): 650
Maximum frequency (MHz): 1150
The number of supported displays: 3

Memory controller

The number of controllers: 1
Memory channels: 2
Supported memory: DDR3-1333, DDR3-1600, DDR3L-1333, DDR3L-1600, DDR3L-RS 1333, DDR3L-RS 1600
Maximum memory bandwidth (GB/s): 25.6

Other peripherals

• Direct Media Interface 2.0

• PCI Express 3.0 interface

Electrical / Thermal parameters

Maximum operating temperature  ?

105°C

Thermal Design Power ?

35 Watt
