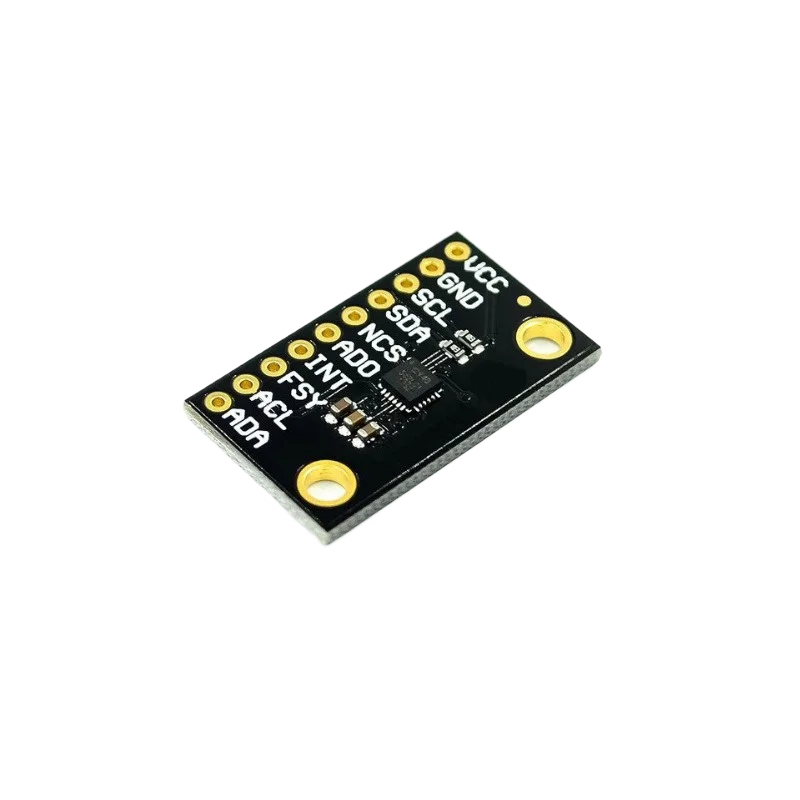

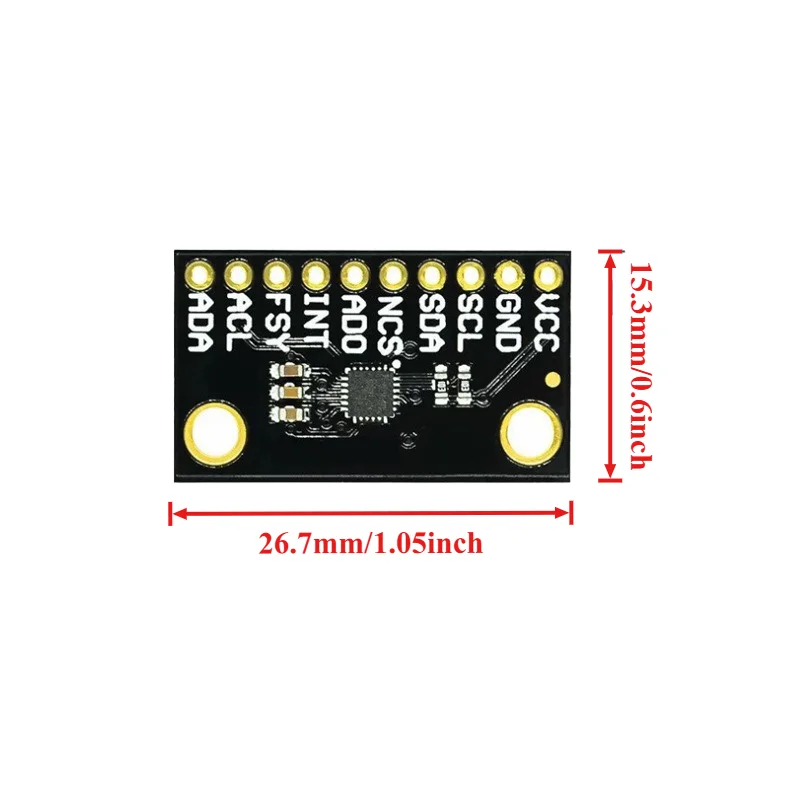

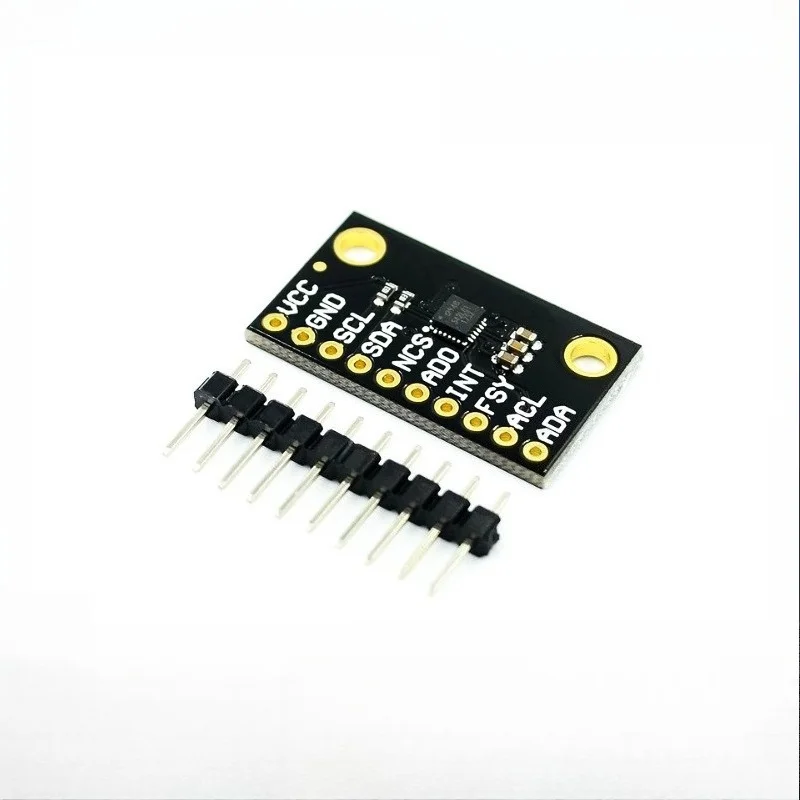

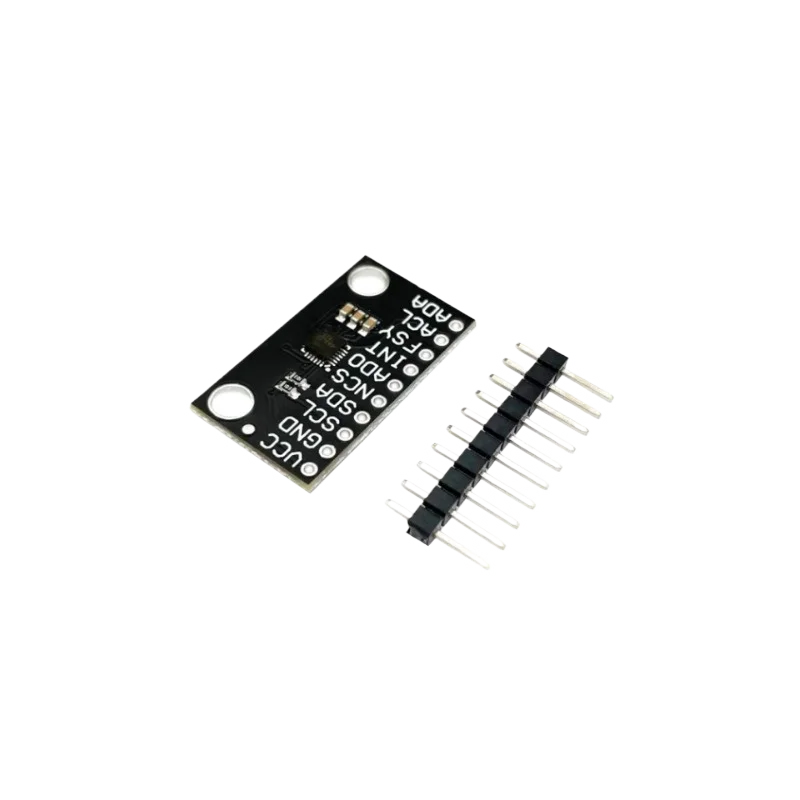

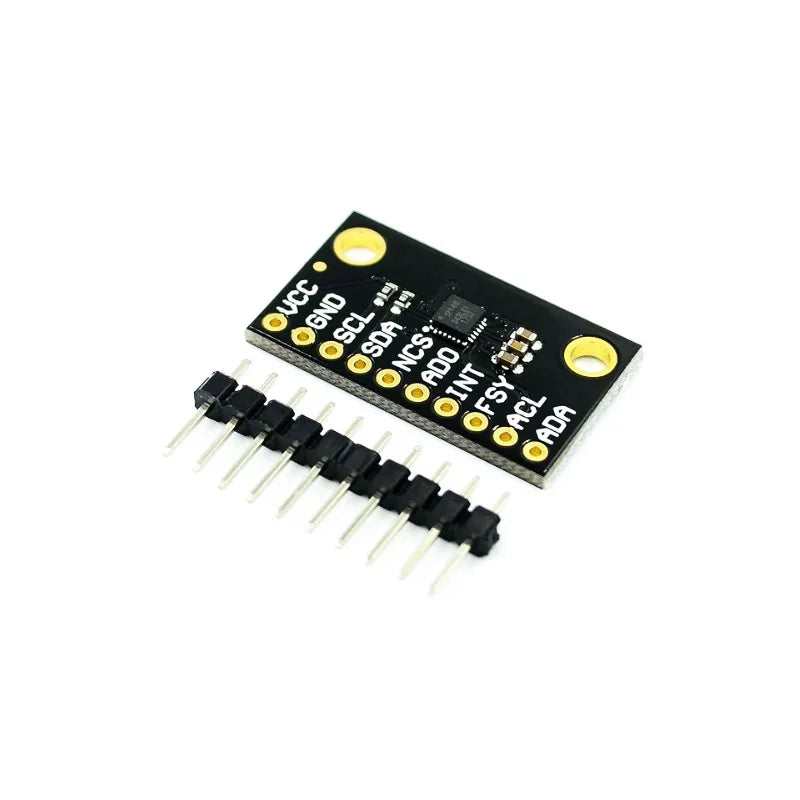

ICM 20948 Low Power 9 Axis MEMS Motion Tracking Sensor ICM-20948 IMU Chip for Electronic DIY Navigation Module
$165.29
Sale price
$165.29
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Condition: New
High-concerned chemical: none
Origin: Mainland China
Quantity: 1
Type: Module
Features
- 1.Lowest power 9-axis device with a power consumption of 2.5 mW
- 2.3-axis gyroscope with programmable FSR: ±250 DPS, ±500 DPS, ±1000 DPS, and ±2000 DPS
- 3.3-axis accelerometer with programmable FSR: ±2 g, ±4 g, ±8 g, and ±16 g
- 4.3-axis compass with a wide measurement range up to ±4900 μT
- 5.Onboard Digital Motion Processor (DMP)
- 6.Support for Android
- 7.Auxiliary I2C interface for external sensors
- 8.On-chip 16-bit ADC and programmable filter
- 9.7 MHz SPI or 400 kHz Fast Mode I²C
- 10.Digital-output temperature sensor
- 11.VDD operating voltage range: 1.71 V to 3.6 V
- 12.MEMS structure with hermetic sealing and bonding at wafer level
-
