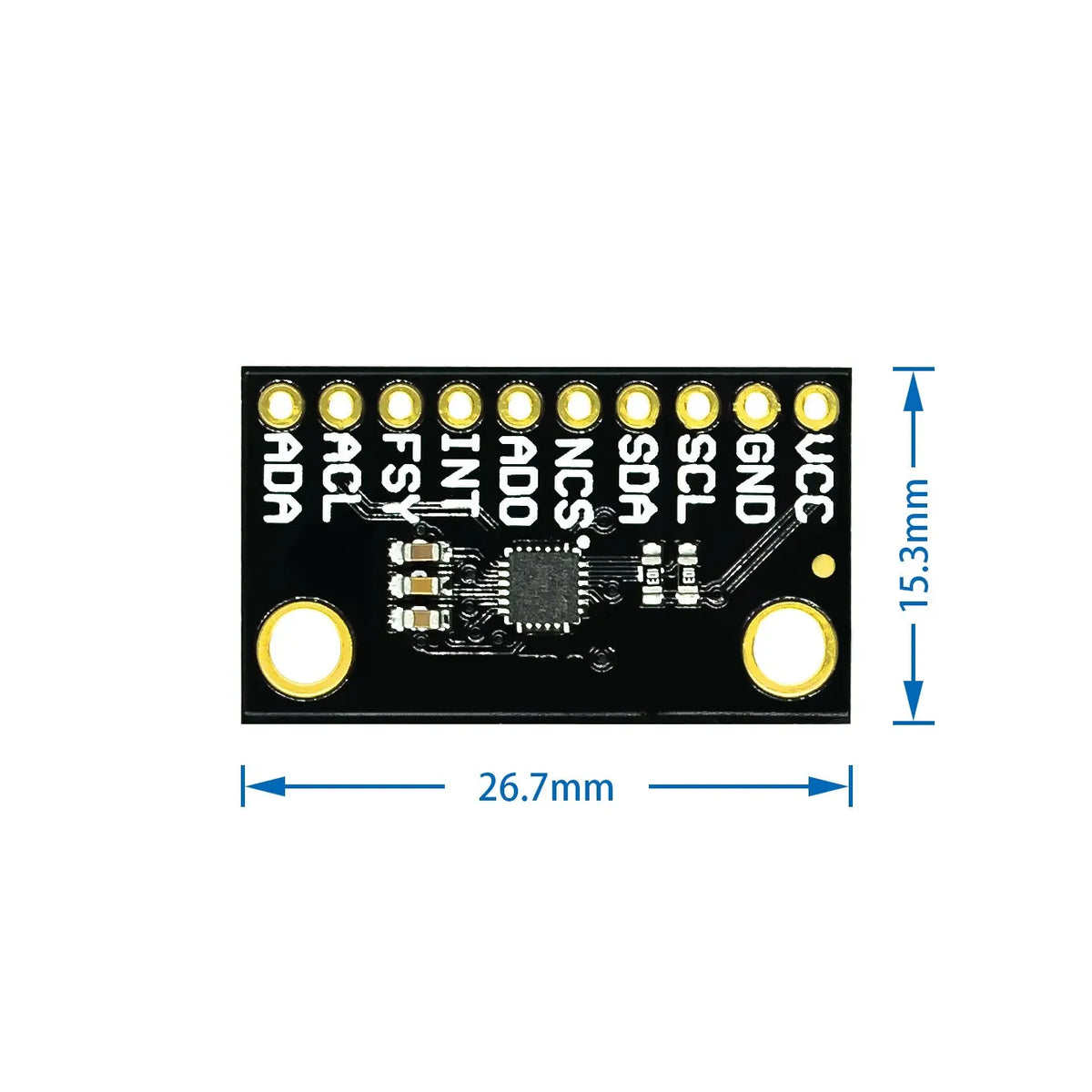

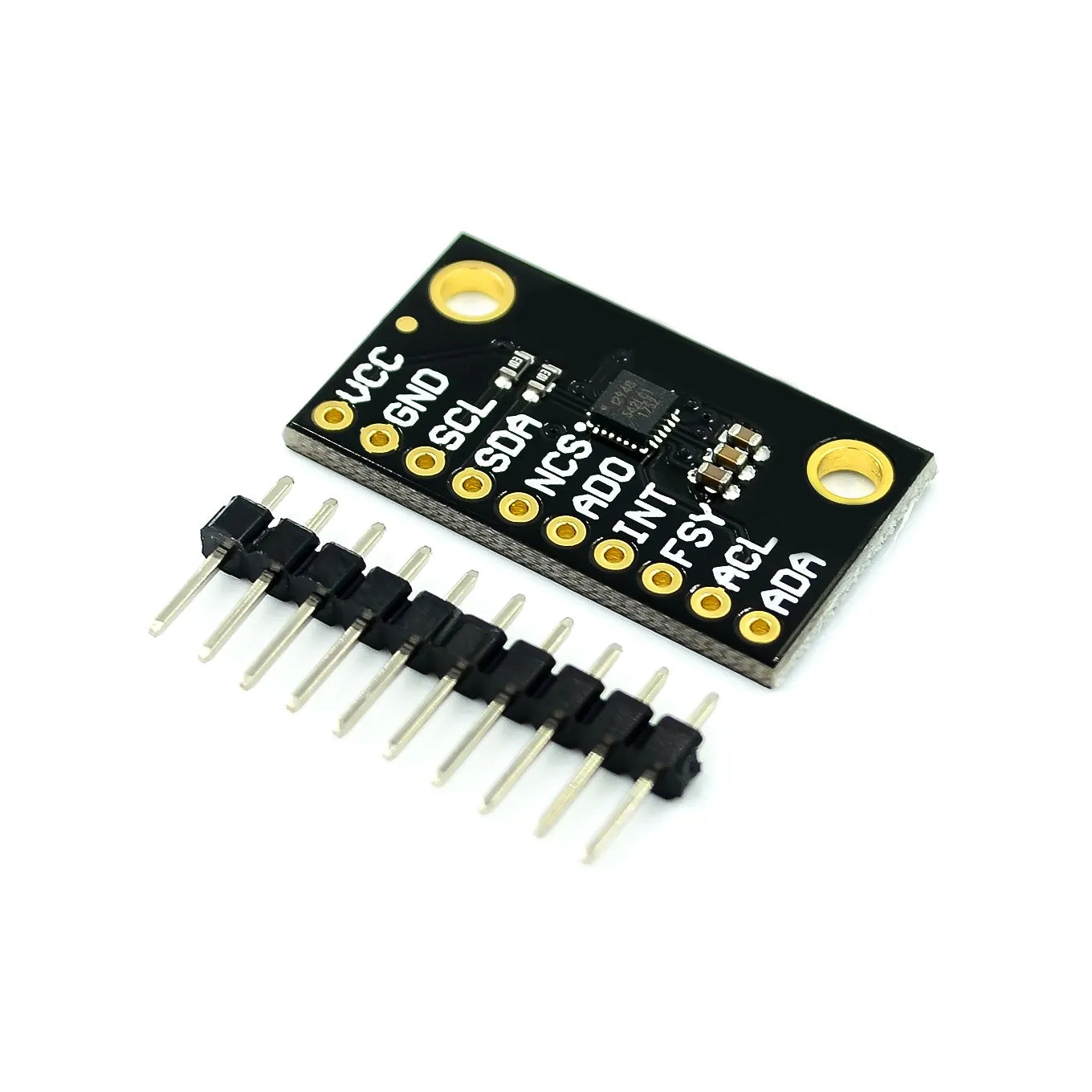

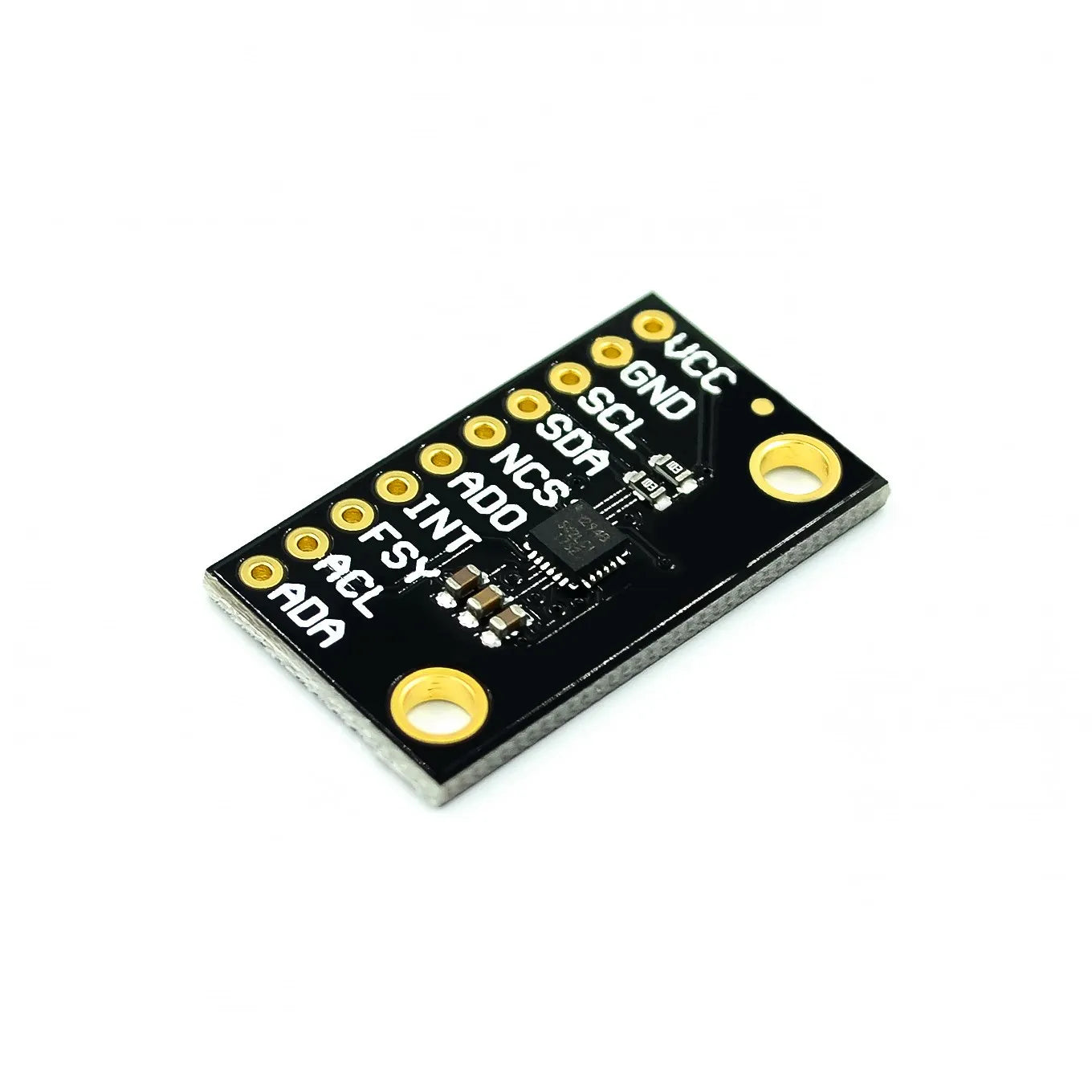

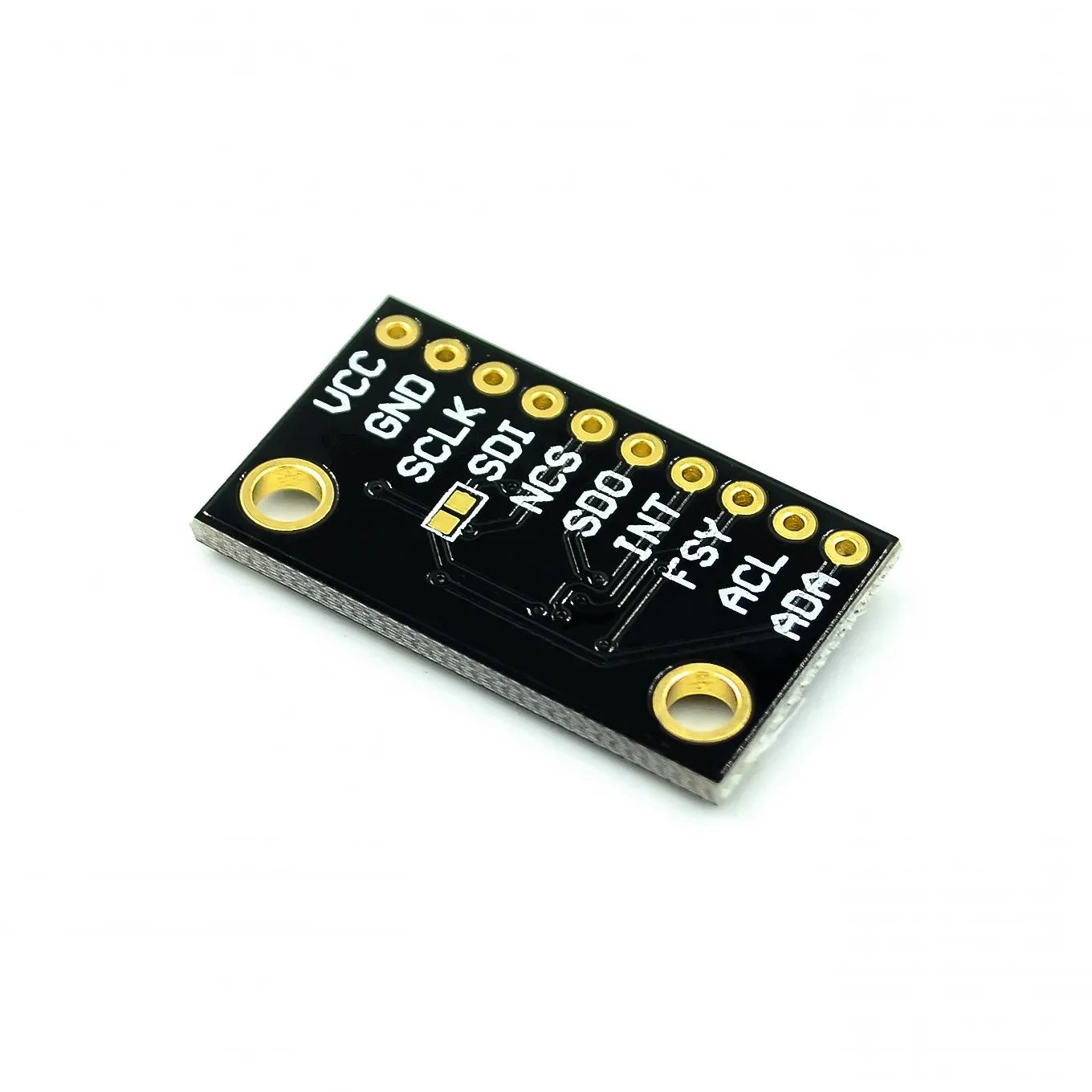

ICM-20948 Sensor Module 9 Axis MEMS Motion Tracking Device Sensor Low Power Integrated Circuits ICM20948
Default Title
$47.03
Sale price
$47.03
Regular price
$0.00
Skip to product information
ICM-20948 Sensor Module 9 Axis MEMS Motion Tracking Device Sensor Low Power Integrated Circuits ICM20948
$47.03
Sale price
$47.03
Regular price
$0.00
Description
SPECIFICATIONS
Application: Computer
Brand Name: NONE
Condition: New
Dissipation Power: 1w
High-concerned chemical: none
Operating Temperature: 0-85
Origin: Mainland China
Package: TQFP
Supply Voltage: 3-5v
Type: Logic ICs
is_customized: Yes
FEATURES
Lowest Power 9-Axis Device at 2.5 mW
3-Axis Gyroscope with Programmable FSR of
±250 dps, ±500 dps, ±1000 dps, and ±2000 dps
3-Axis Accelerometer with Programmable FSR of
±2g, ±4g, ±8g, and ±16g
3-Axis Compass with a wide range to ±4900 T
Onboard Digital Motion Processor (DMP)
Android support
Auxiliary I2C interface for external sensors
On-Chip 16-bit ADCs and Programmable Filters
7 MHz SPI or 400 kHz Fast Mode I⊃2;C
Digital-output temperature sensor
VDD operating range of 1.71V to 3.6V
MEMS structure hermetically sealed and bonded at wafer level
Lowest Power 9-Axis Device at 2.5 mW
3-Axis Gyroscope with Programmable FSR of
±250 dps, ±500 dps, ±1000 dps, and ±2000 dps
3-Axis Accelerometer with Programmable FSR of
±2g, ±4g, ±8g, and ±16g
3-Axis Compass with a wide range to ±4900 T
Onboard Digital Motion Processor (DMP)
Android support
Auxiliary I2C interface for external sensors
On-Chip 16-bit ADCs and Programmable Filters
7 MHz SPI or 400 kHz Fast Mode I⊃2;C
Digital-output temperature sensor
VDD operating range of 1.71V to 3.6V
MEMS structure hermetically sealed and bonded at wafer level
