SPECIFICATIONS



Q:Does The IMAX B6 ac Original?

A:Yes.Our imax b6 ac is "HTRC "Brand And produced by Our HTRC factory which focus on the high quality chargers.not Skyrc,no fake,and don't need Security Code,if you mind,please don't buy,thanks!



Q:How to charge correctly when received the goods?

A:after you received the goods,please follow those using turn

1.plug in the adapter firstly.

2.then plug the machine.

(if you plug the machine firstly,that will caused the machine can not open or work unnormally)



Q:How to use?

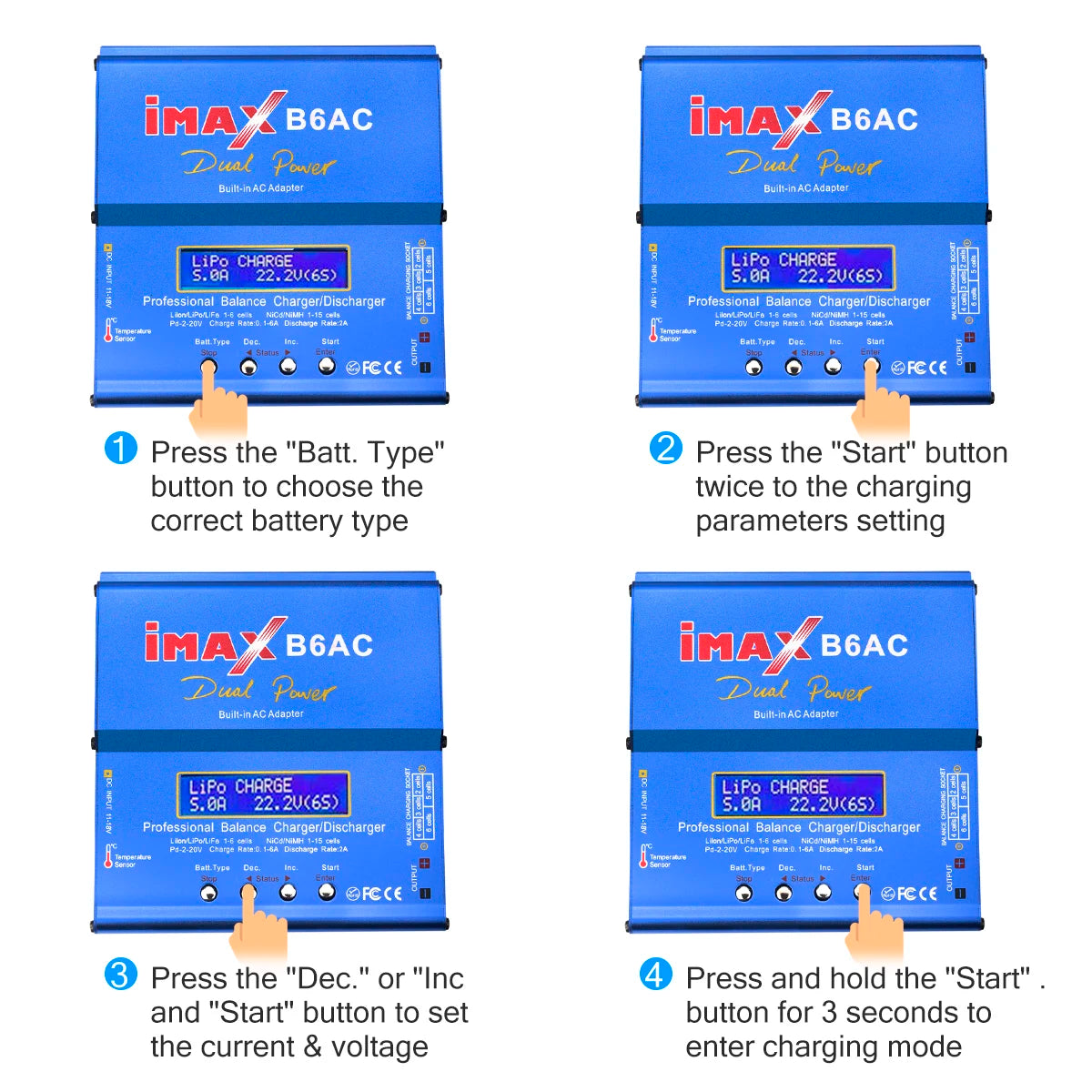

A:Do as below the picture show:

1.press the "battery type"button to choose the correct battery type

2.press the "start"button twice to the charging parameters setting

3.press the "dec."or "inc" and "start"button to set the current & voltage .

4.press and hold the "start"button for 3 seconds to entrt charging mode .

Specifications:

Operation Voltage range :

DC 11.0 ~ 18.0 Volt - AC 100V ~ 240V 50/60Hz
Circuit Power : AC to DC adaptor (DC 11.0 ~ 18.0V / 5A)
Max. Charge power 80W
Max.Discharge power 5W
Charge Current range : : 0.1~6.0A
Discharge Current range : 0.1~2.0A
Current Drain for Balancing Li-Po : 300mAh/cell
NiCd / NiMH battery Cell Count : 1~15 cell
Li-Ion / Polymer Cell Count : 1~6 series
Pb Battery Voltage : 2V~20V

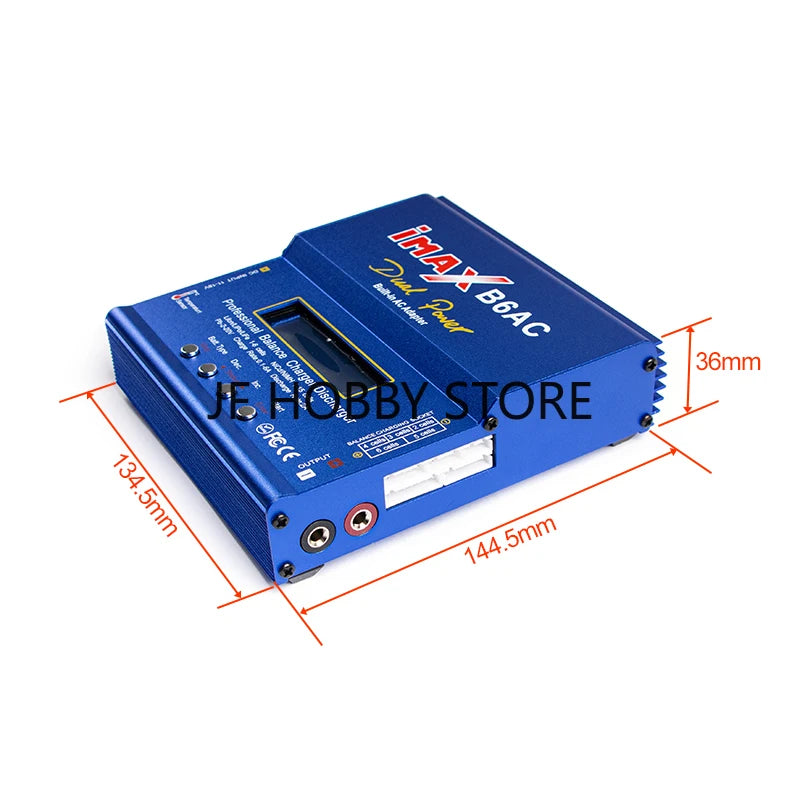

Dimensions : approx. 13.5x14.4x3.6cm

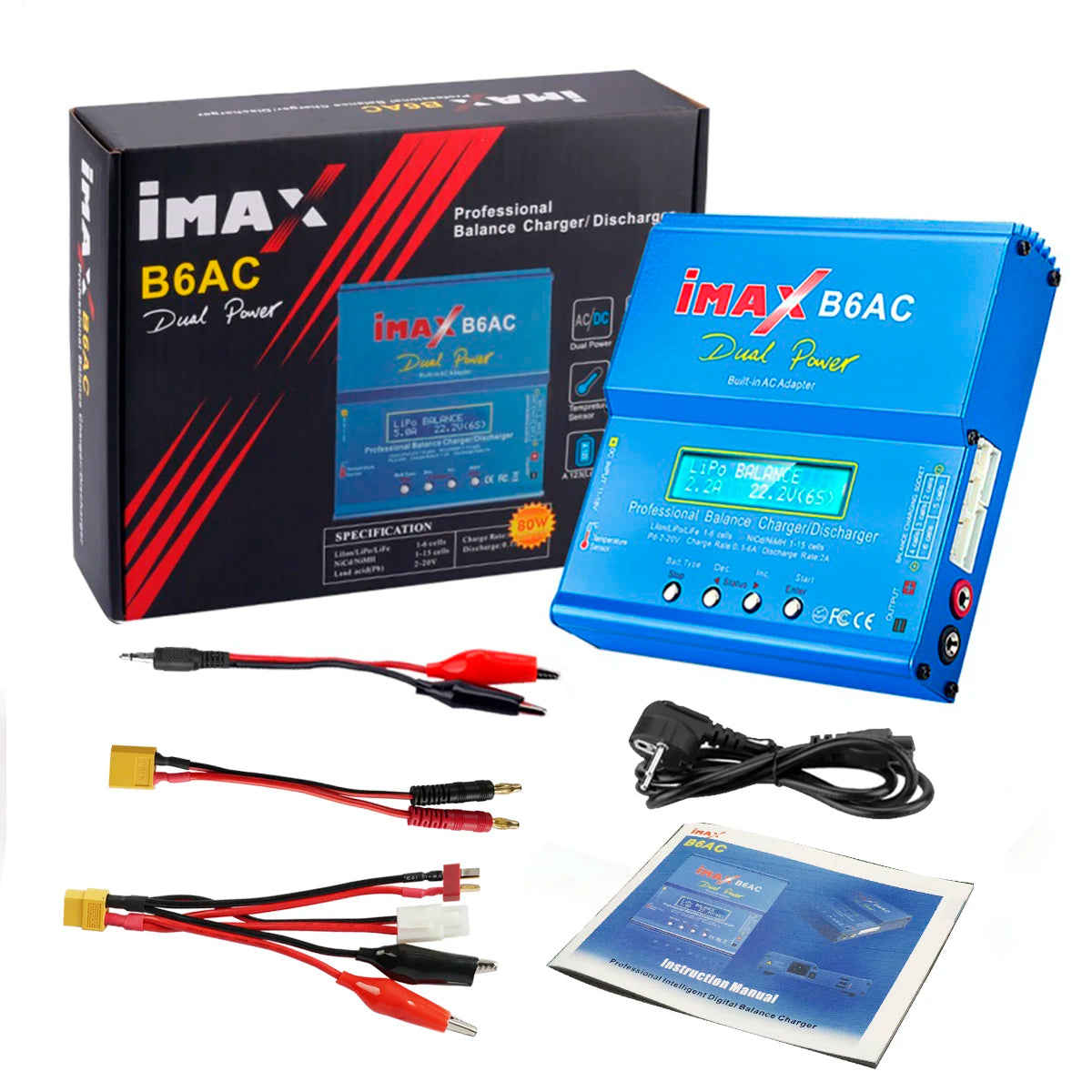

Package Included:

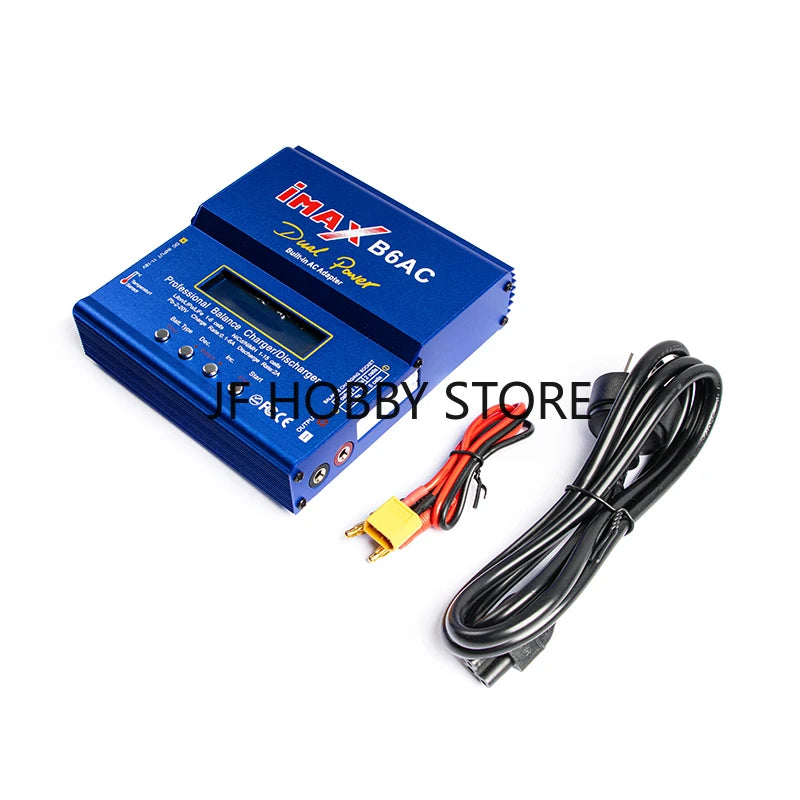

1 x B6AC Charger

1 x charge cable with xt60
1 x 3 in 1 cable(T Plug/Big Tamiya /Universal crocodile clip)
1 x Universal crocodile clip

1 x Manual
1 x AC plug

Please note:

Our machine can't support to  measure the 1s battery 's voltage and Resistance
