IMX258 /OV5693 Customized 4K 12MP HD USB2.0 Camera Module High Speed AF/FF 30FPS MJPEG, YUY2 for Production Vision

IMX258 /OV5693 Customized 4K 12MP HD USB2.0 Camera Module High Speed AF/FF 30FPS MJPEG, YUY2 for Production Vision

$116.76

$116.76 $0.00

Bundle 5MP OV5693 AF 5MP OV5693 FF 4K 12MP IMX258 AF 4K 12MP IMX258 FF

Ships FromChina Mainland

Description

SPECIFICATIONS

Brand Name: Hoskang

Certification: CE

Compatible Camera Style: Camcorders

Customized Support: Yes

Foucs Type: AF/FF

High-concerned chemical: none

Model Number: OV5693 / IMX258

Origin: Mainland China

Output Format: MJPEG, YUV2

Package: Yes

Resolution: 4K 3840 H x 2160 V/ 2952 H x 1944 V

Sensor: 1/3.06 Inch CMOS IMX258/OV5693

We are a professional supplier of Camera Modules,support all kinds of Camera Module customization,

if you need sample or need customize products pls send me message before make order we will reply you within 24hours .

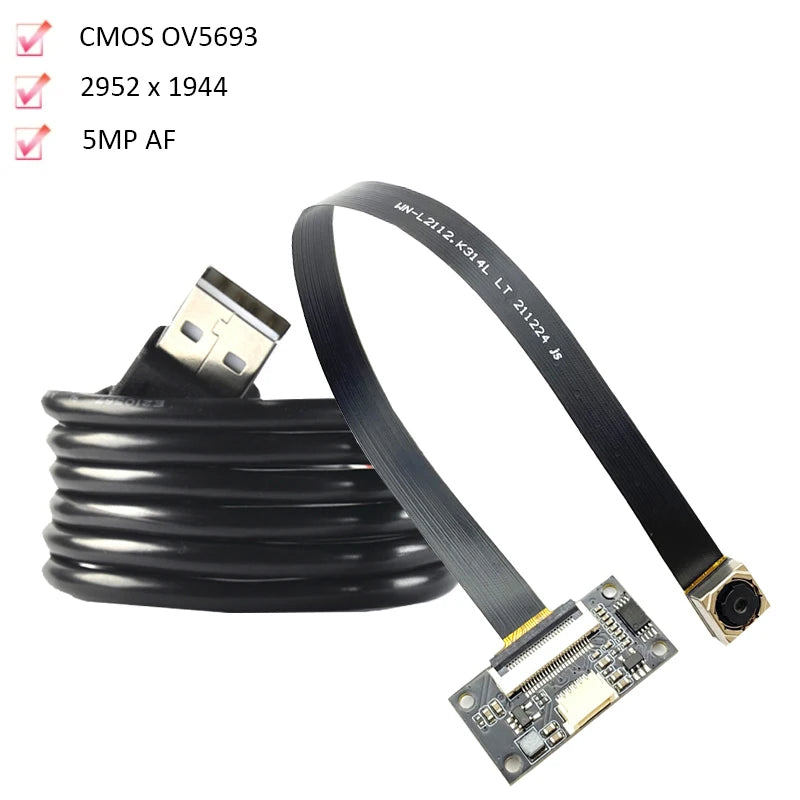

Type 1: OV5693 5MP AF

Type 2: OV5693 5MP FF

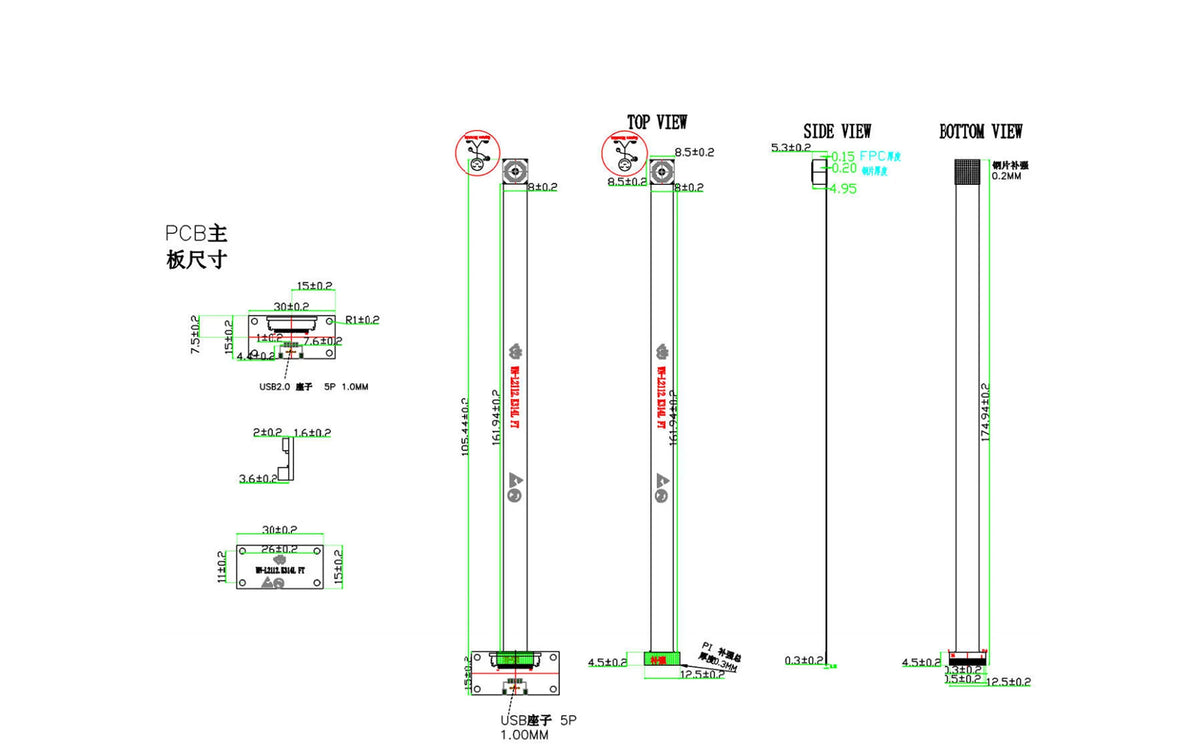

Module Size	44*30mm, FPC 80mm
Sensor	1/4.0-Inch OV5693 CMOS Sensor
Pixel Size	1.4*1.4µm
Resolution	2952 H x 1944 V
Output Format	MJPEG, YUV2
FOV	D:73°H:63°V:49°
Lens	FEL:2.94mm F/NO:2.0 4P
Scanning Speed	0.1S
Dynamic Range	Up to 37.1dB
Focus Type	AF/ FF/ MF
Shutter Type	Electronic Rolling shutter
Output and Power Supply	High Speed USB2.0
Interface	5 PIN 1.0MM Socket
Controllable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure
Supported OS	Windows, Android, Linux, Wince, Mac OS

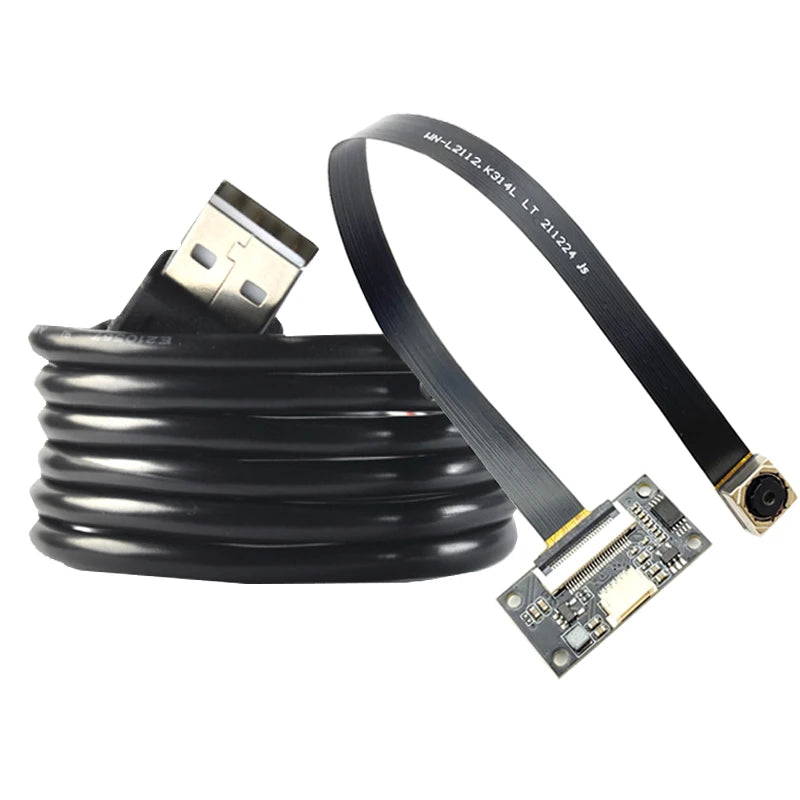

Cable Length	Default 1.0 Meter USB Cable

Format	Resolution	Frame Rate (USB2.0)
MJPEG	2952*1944	30FPS
	2048*1536	30FPS
	1920 x 1080 (1080P)	30FPS
	1280 x 720 (720P)	30FPS
	800 x 600 (WVGA)	30FPS
	640 x 480 (VGA)	30FPS
YUY2	2952*1944	3FPS
	2048*1536	3FPS
	1920 x 1080 (1080P)	5FPS
	1280 x 720 (720P)	10FPS
	640*480(WVGA)	30FPS

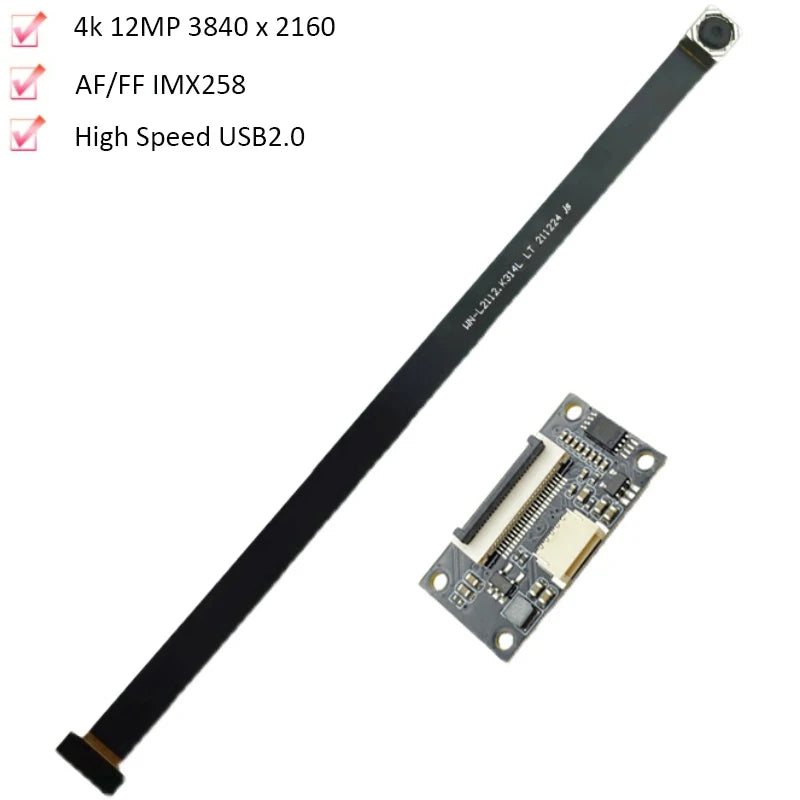

Type 2: 4K 12MP AF

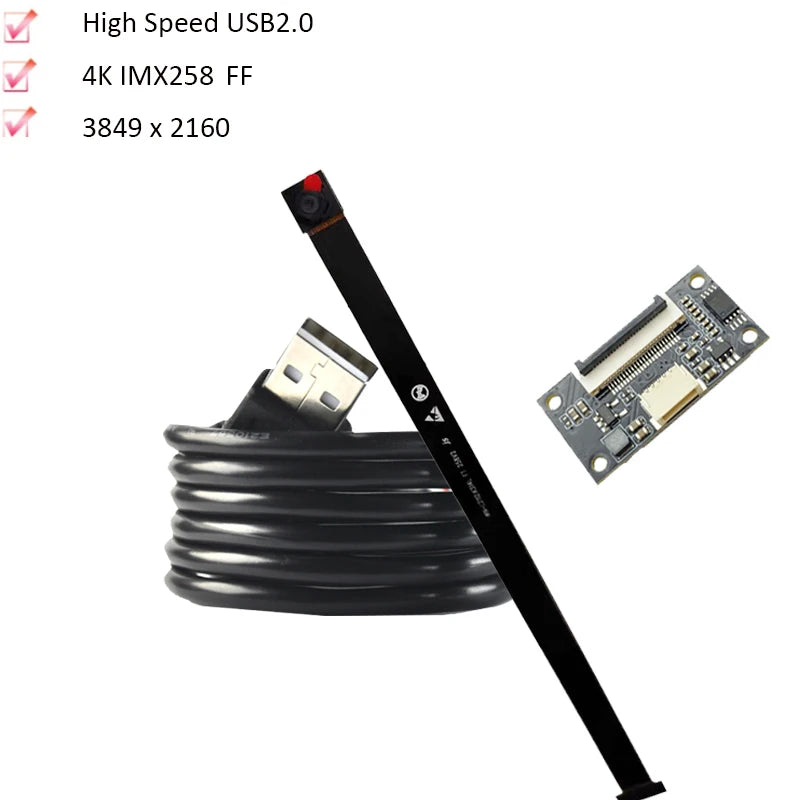

Type 3: 4K 12MP FF

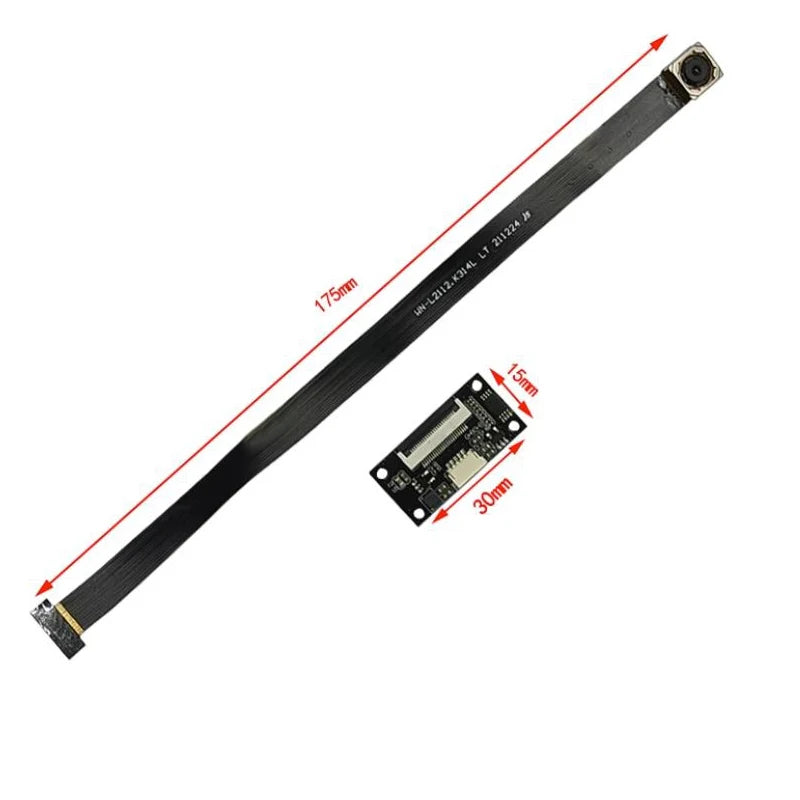

Module Size	44*21mm
Sensor	1/3.06 Inch CMOS IMX258
Pixel Size	1.12um x 1.12um
Resolution	4K 3840 H x 2160 V
Output Format	MJPEG
FOV	75° / 120°
Focus Type	AF/FF
Shutter Type	Electronic Rolling shutter
Output and Power Supply	High Speed USB2.0
Interface	5 PIN 1.0MM Socket
Controllable Parameters	Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure
Supported OS	Windows, Android, Linux, Wince, Mac OS
Cable Length	Default 1.0 Meter USB Cable

Format	Resolution	Frame Rate (USB2.0)
MJPEG	3840 x 2160	30FPS
	3264 x 2448	30FPS
	2592 x 1944	30FPS
	2048 x 1536	30FPS
	1920 x 1080	60FPS
	1280 x 720	30FPS
	800 x 600	30FPS

Pin No.	Signal Name	Description
1	VCC	5V Power
2	DM	USB2.0 Data-
3	DP	USB2.0 Data+
4	GND	GND
5	GND	GND

Operating Voltage	USB DC +5V Supply
Operating Current	190mA
Operating Temperature	-20℃ ~ 60℃
Storage Temperature	-20℃ ~ 105℃
Humidity	80 ~85%
