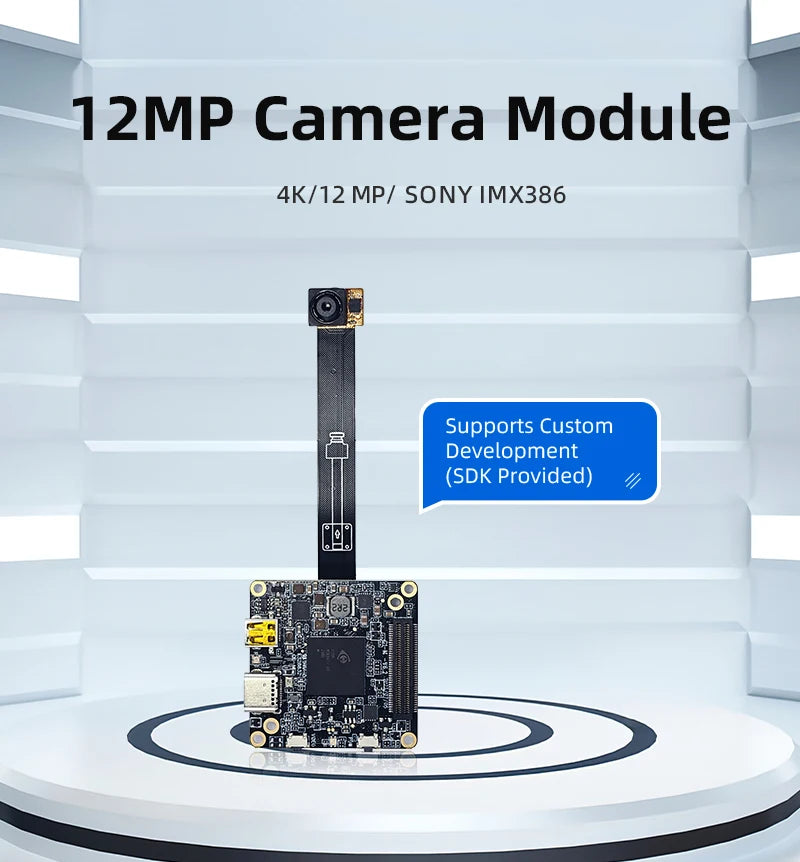

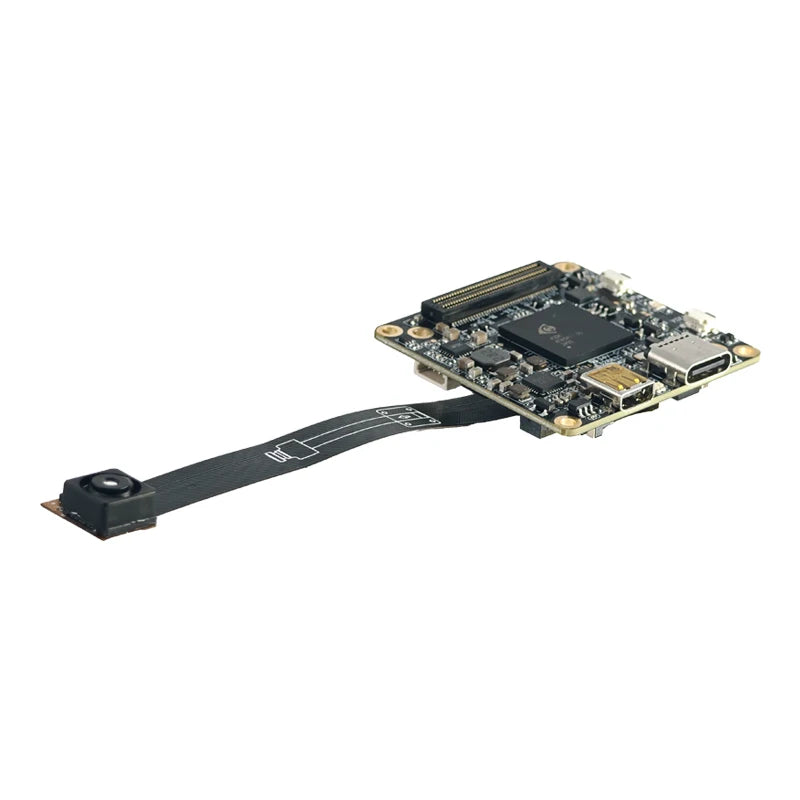

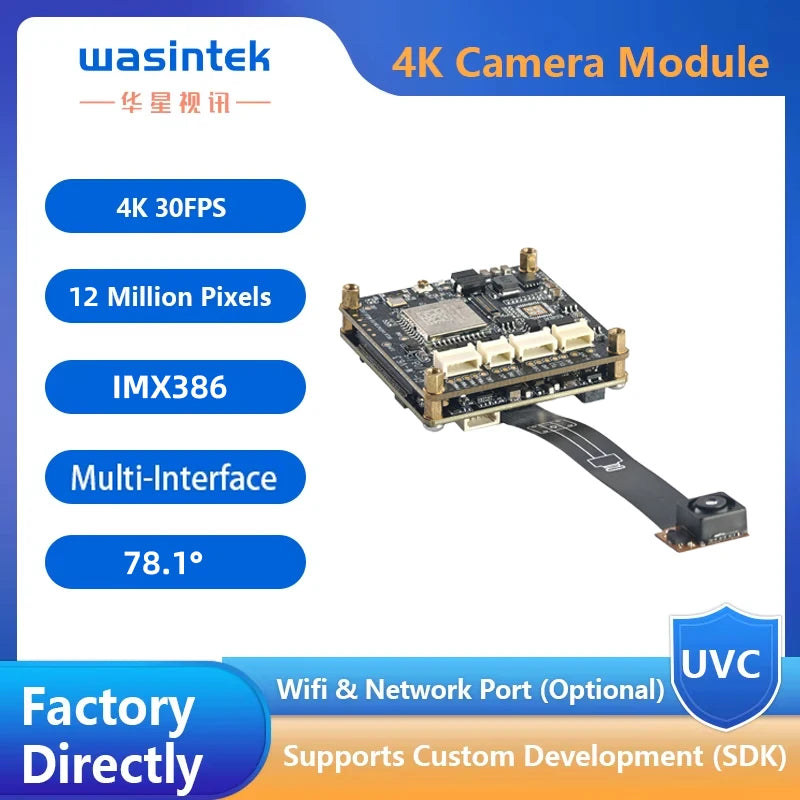

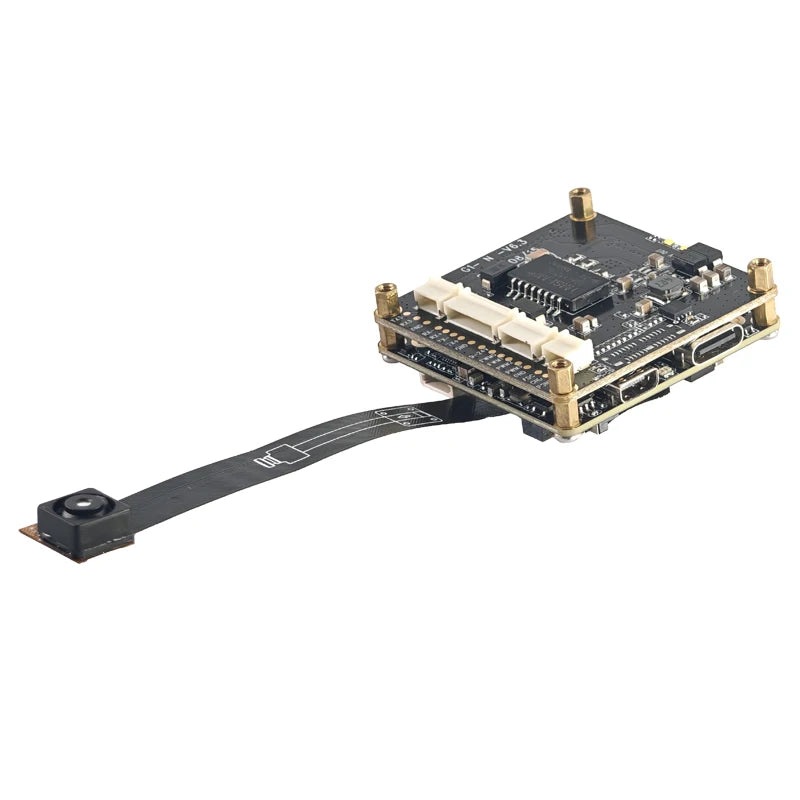

IMX386 Camera Module 12MP 4K 1/2.86" Outdoor Bike Helmet FPC Camera Module Wifi Mini Action Camera(Not Surveillance Camera)

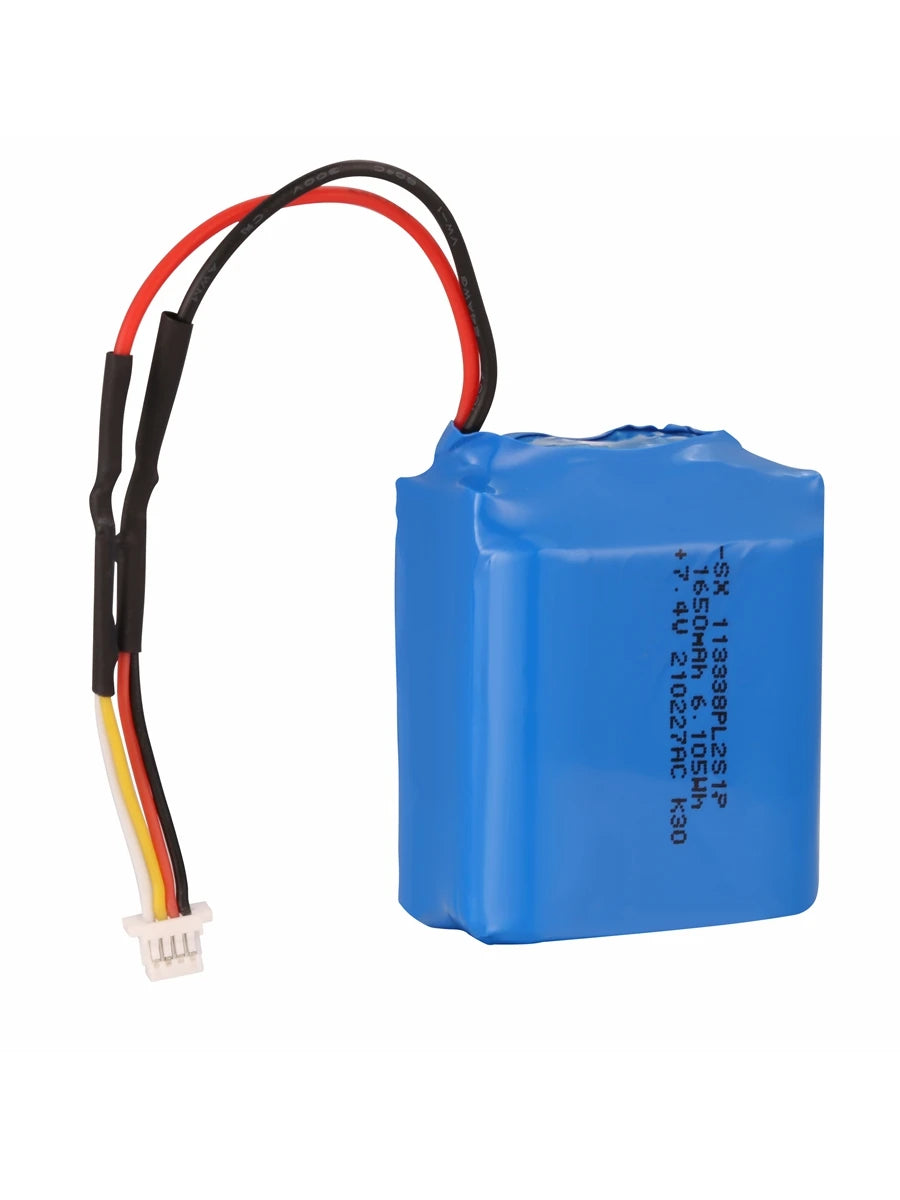

7.4V 1650mAh Battery
$88.48
Sale price
$88.48
Regular price
$0.00
Skip to product information
IMX386 Camera Module 12MP 4K 1/2.86" Outdoor Bike Helmet FPC Camera Module Wifi Mini Action Camera(Not Surveillance Camera)
$88.48
Sale price
$88.48
Regular price
$0.00
Description
SPECIFICATIONS
Application: Action Camera

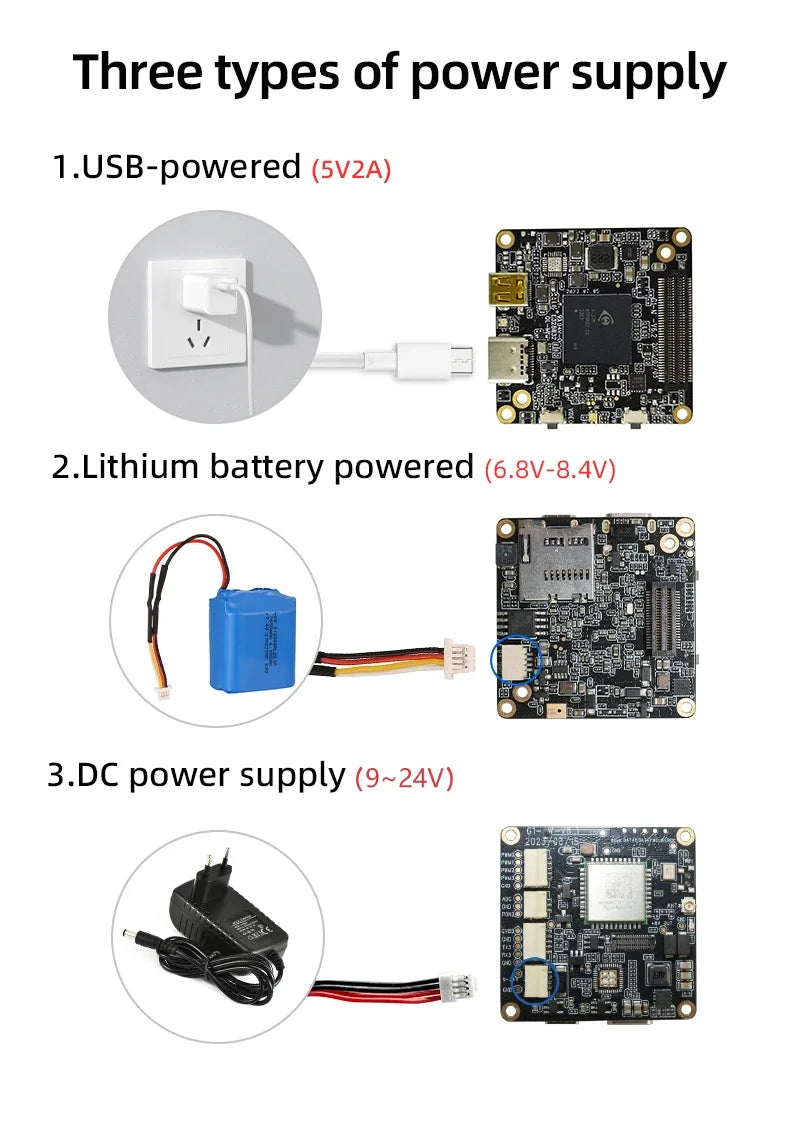

Battery voltage: 6.6~8.8V
Brand Name: Wasintek
Compatible Camera Style: Action Video Cameras
Data Storage: TF Card
Description: Mini Camera Module
Features: mini camera module
High-concerned chemical: none
Image Sensor: IMX386
Origin: Mainland China
Package: No
Pixel: 12MP,10MP,8MP,5MP,3MP,2MP
Pixel size: 1.25um
Place of Origin: Guangdong, China
SOC/DSP: iCatch V39M
Sensor Size: 1/2.86"
Size / Dimension: 38mmx38mmx16mm
USB interface: USB2.0
Video resolution: 4K 30FPS,2.7K 60FPS,1080P 120FPS,720P 240FPS
SOC/DSP：iCatch V39M
Image Sensor：IMX386
Sensor Size：1/2.86"
Sensor type：CMOS
Video resolution：
4K@24/25/30fps，4K@48/50/60fps
2.7K@24/25/30/48/50/60fps
1080P@24/25/30/48/50/60fps，1080P@120fps
720P@24/25f/30/48/50/60/120fps/240fp
Pixel
12M(4000x3000)
10M(3648x2736)
8M(3264x2448)
8M(3264x2448)
5M(2592x1944)
3M(2048x1536)
2M(1920x1080)
Battery voltage：6.6~8.8V
USB interface：USB2.0
Pixel dot size: 1.25μm x 1.25μm
EFL：3.81mm
F/NO.：2.2±5%

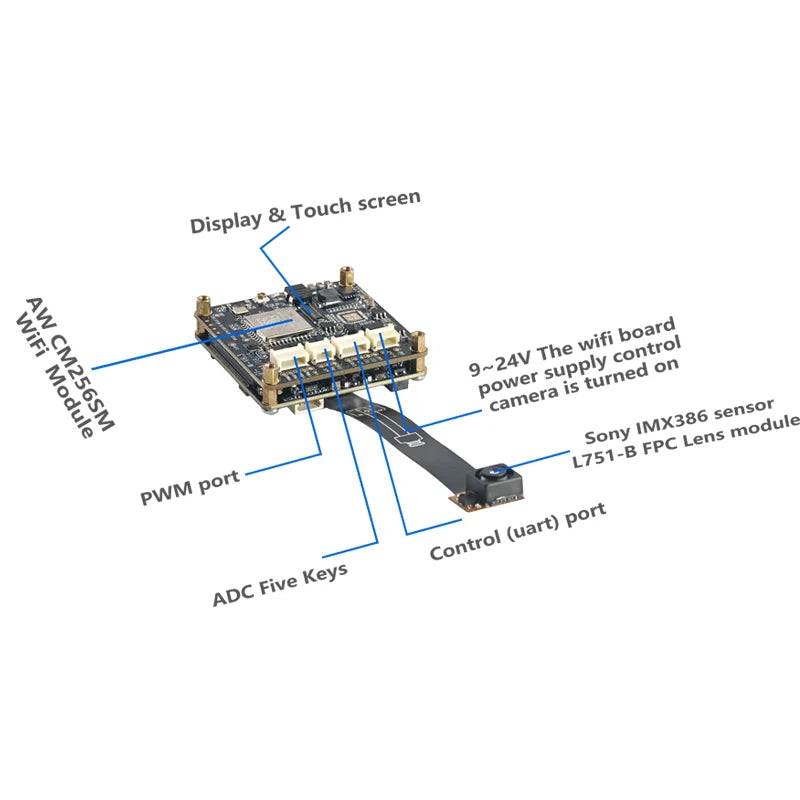

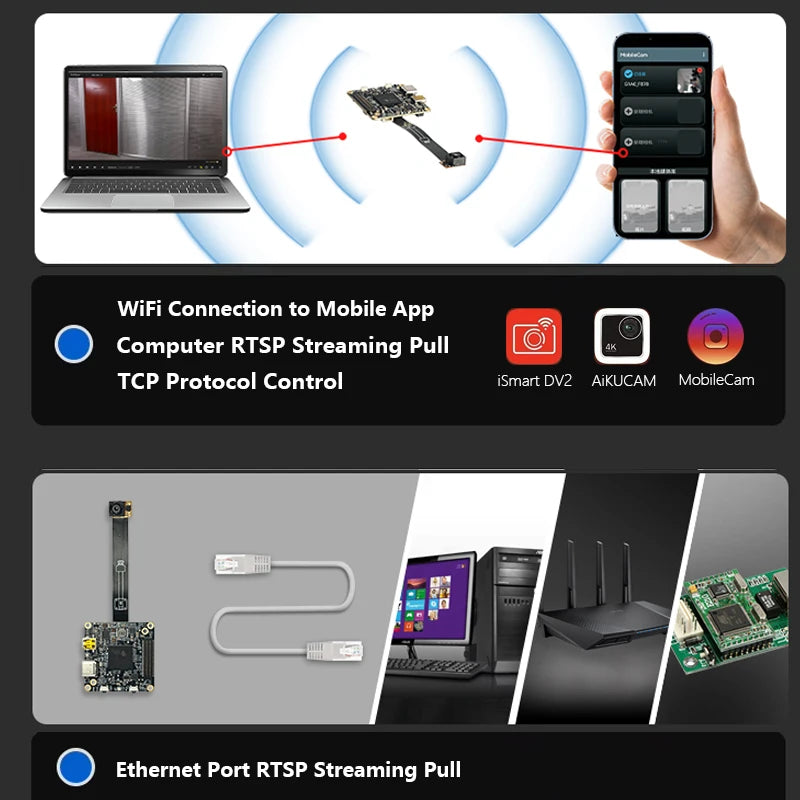

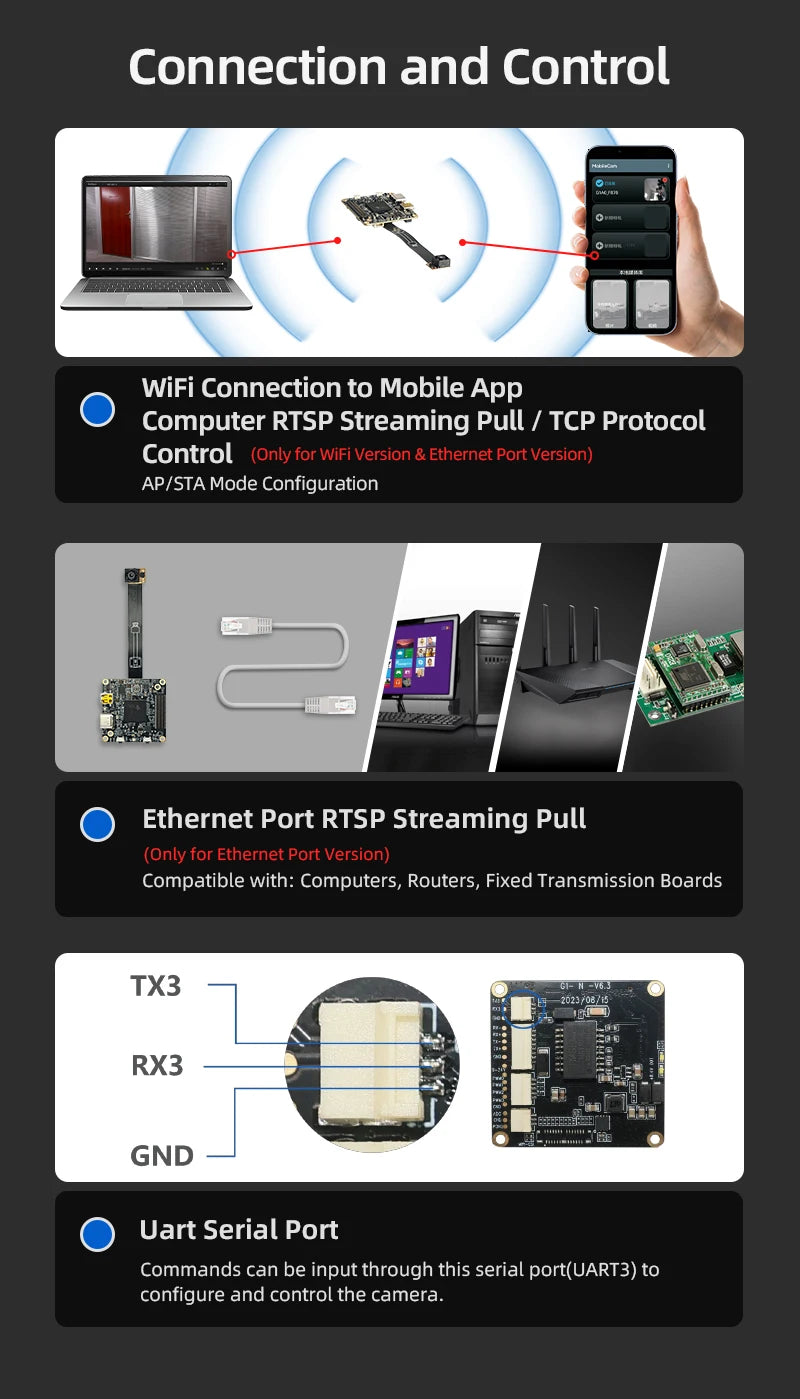

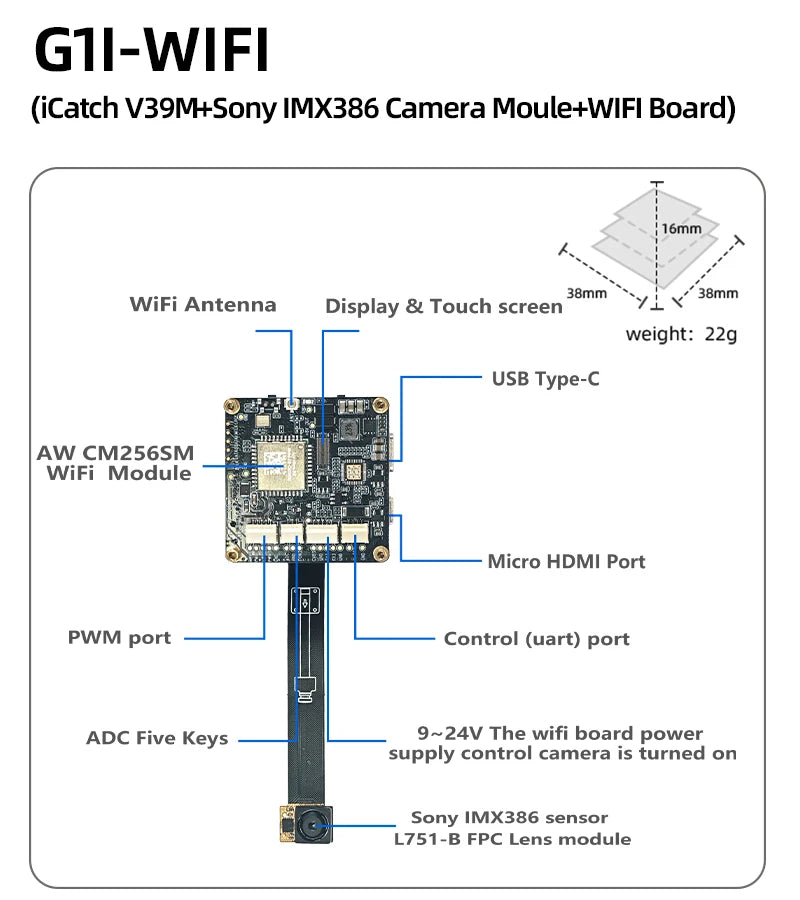

WIFI module:AW CM256SM
Frequency range:
2.400 GHz~2.497 GHZ (2.4 GHz ISM Band）
4.900 GHz~5.845 GHZ (5.0 GHz ISM Band)
FOV：H66.1° V52° D78.1°
Operating temperature：-10~+60°C
Storage temperature：-20~+80°C

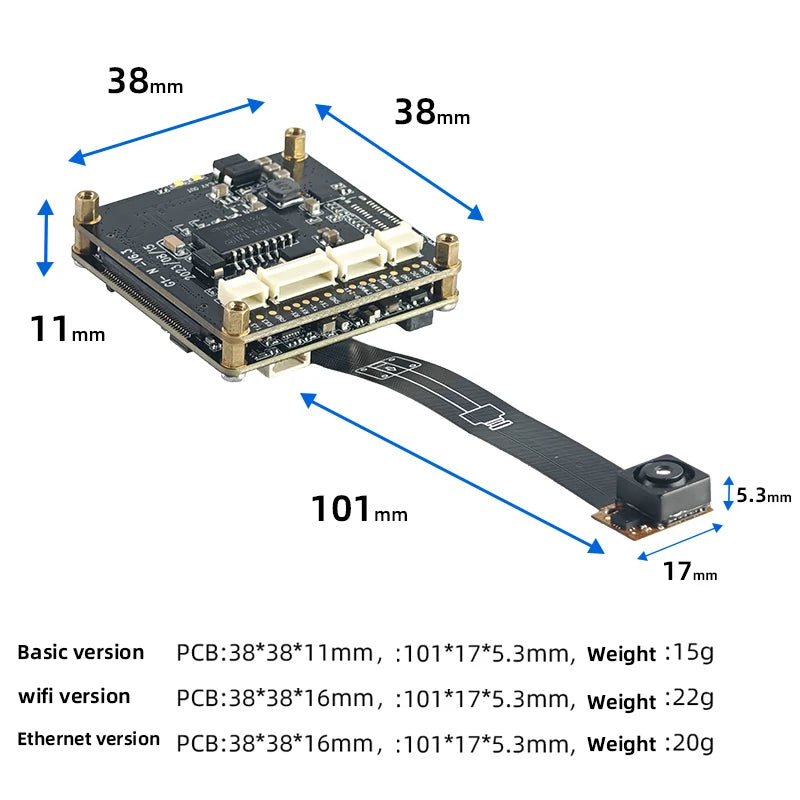

Size：38mmx38mmx16mm
FOV:H66.1° V52° D78.1°

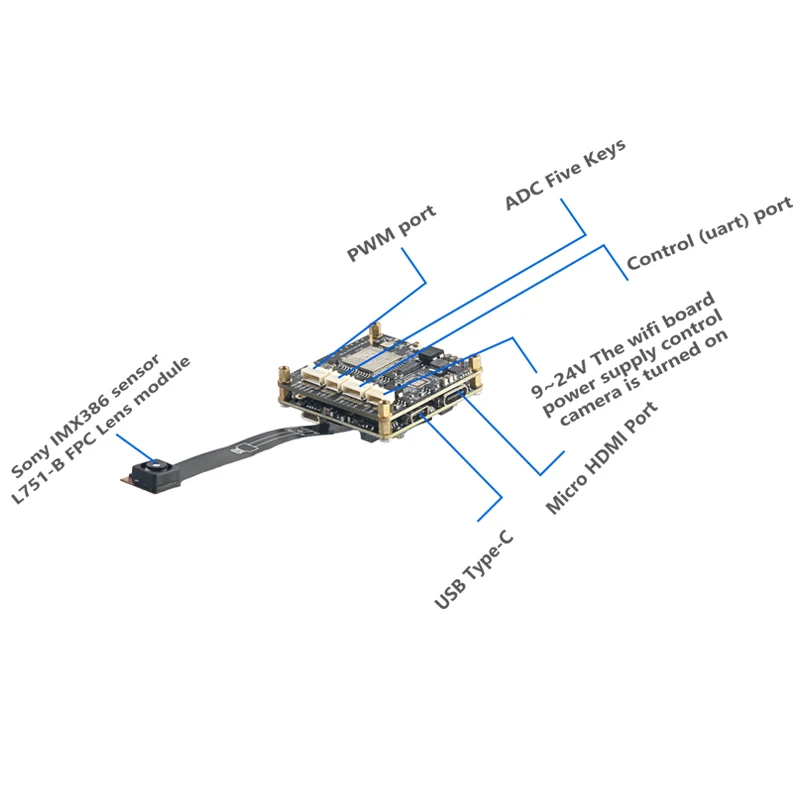

Product Description

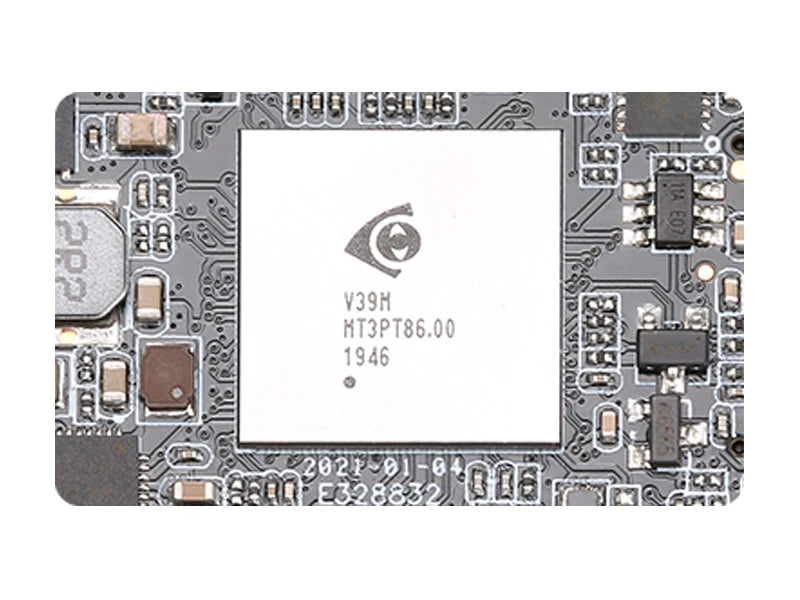

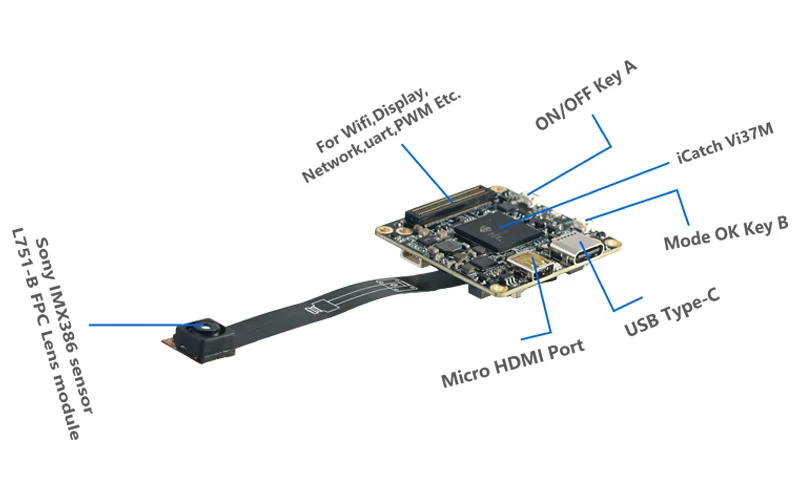

iCatch V39M

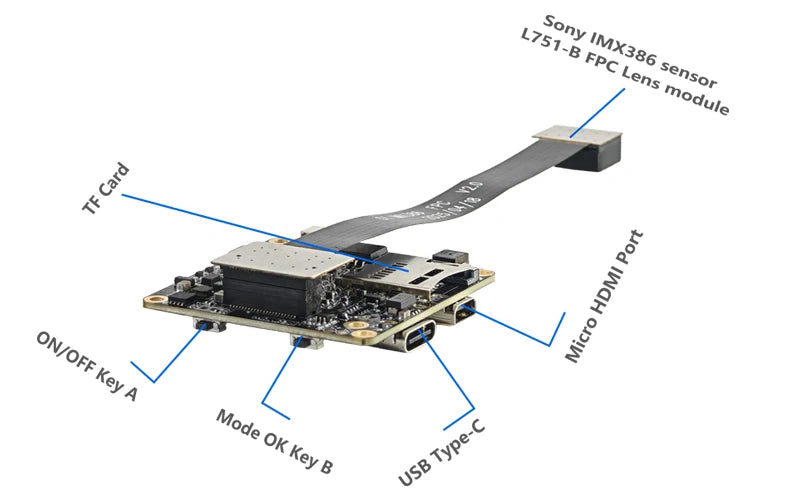

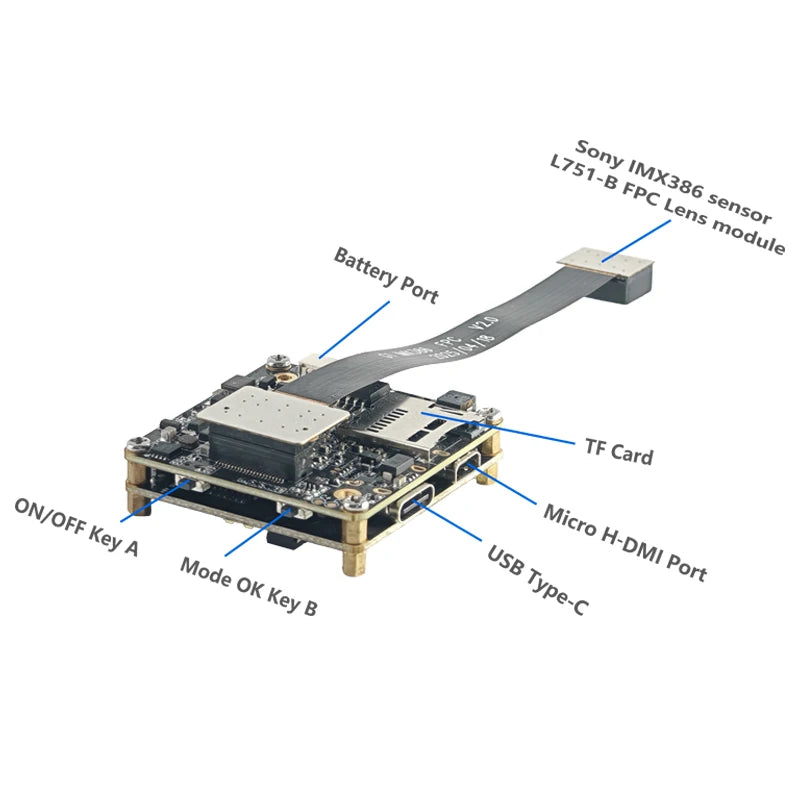

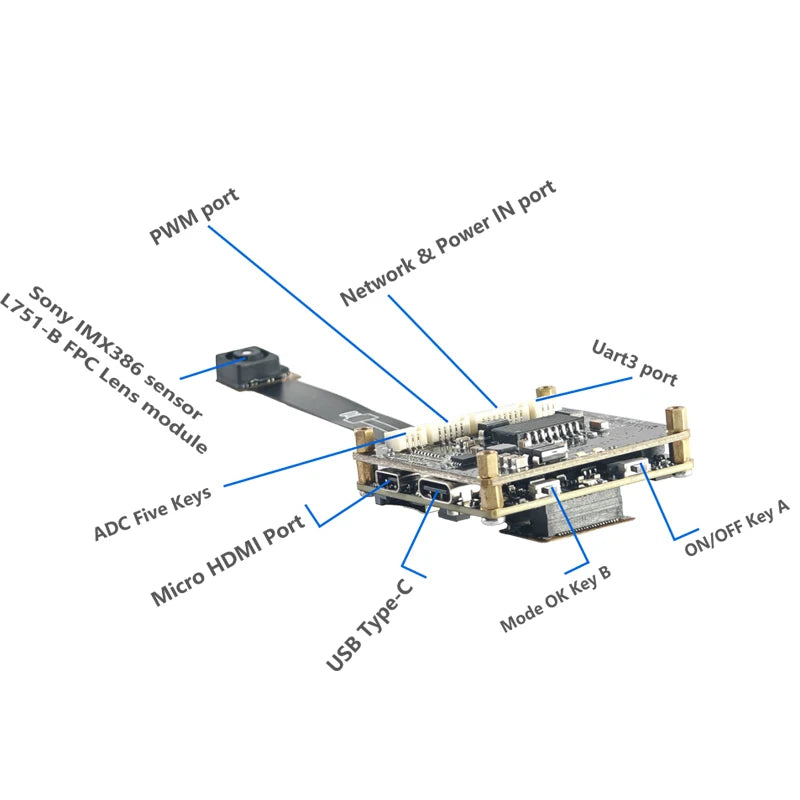

The iCatch V39M integrates 2GB DDR3, supporting up to 4K@60FPS (interpolated), 4K@30FPS, and1080P@120FP5 H.264 encoded video.Onboard features include Type-C,H-DMl, TF storage card,audio recording, 2 control buttons, a buzzer, and battery-powered operation.

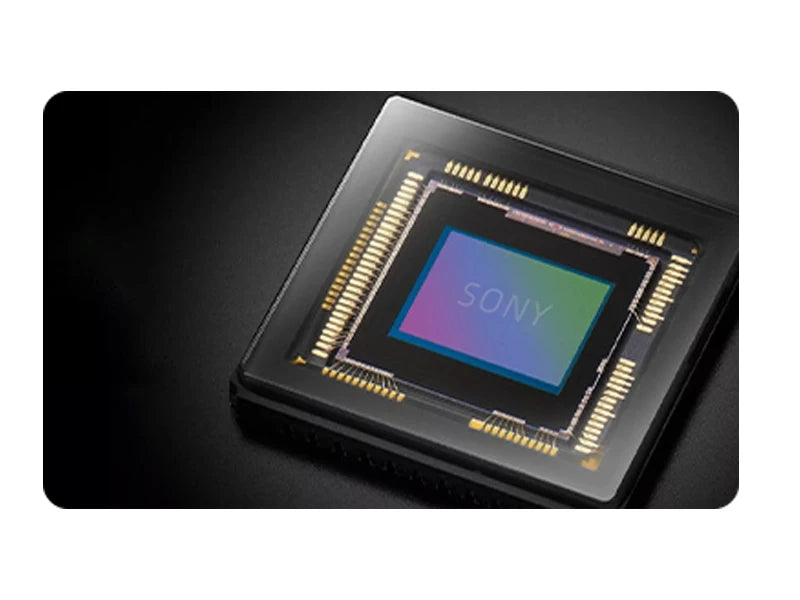

Sony lMX386
The Sony lMX386 color image sensor used is a high-performance sensor CMOS 1/2.86 image sensor, capable of providing up to60 fps per second 12 million pixel image signal.The pixel size is 1.25 μ m x 1.25 μ m.Can support shooting 12M pixel high-definitionimages, up to a maximum of 4K@60fps(Interpolation),4K@30fps Video shooting.

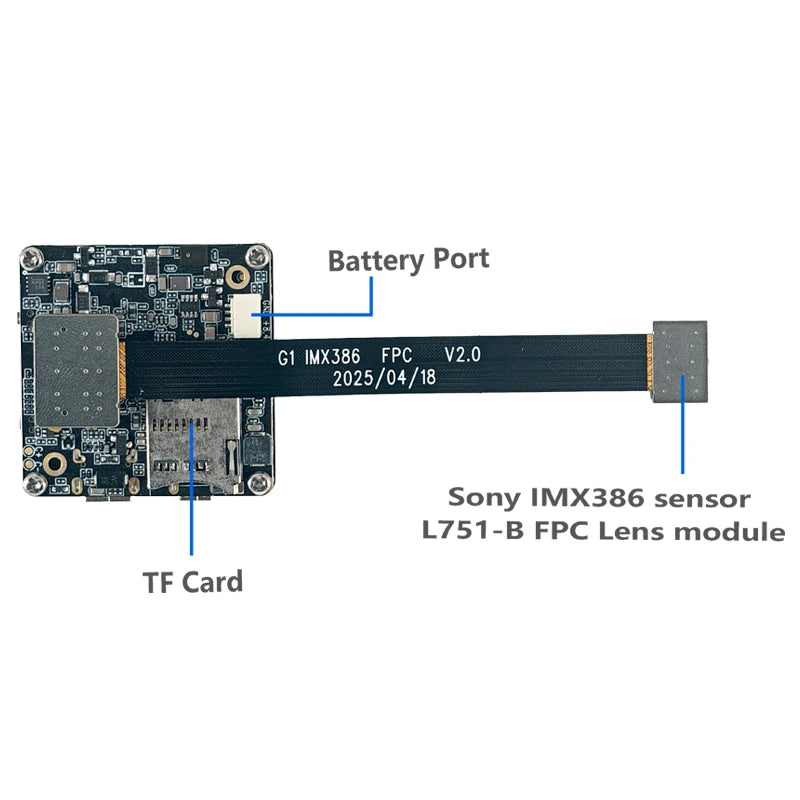

High quality small lens
L751-B lens
Diagonal angle:78.1°
Effective Focal Length(EFL): 3.81mm
Aperture(F/#):f/ 2.2±5%
