SPECIFICATIONS

Application: Computer

Brand Name: UICPAL

Choice: yes

Condition: New

Dissipation Power: Standard

High-concerned chemical: none

Operating Temperature: -20 to +70

Origin: Mainland China

Package: SMD

Quantity: 1

Supply Voltage: Standard

Type: Module

is_customized: Yes

semi_Choice: yes

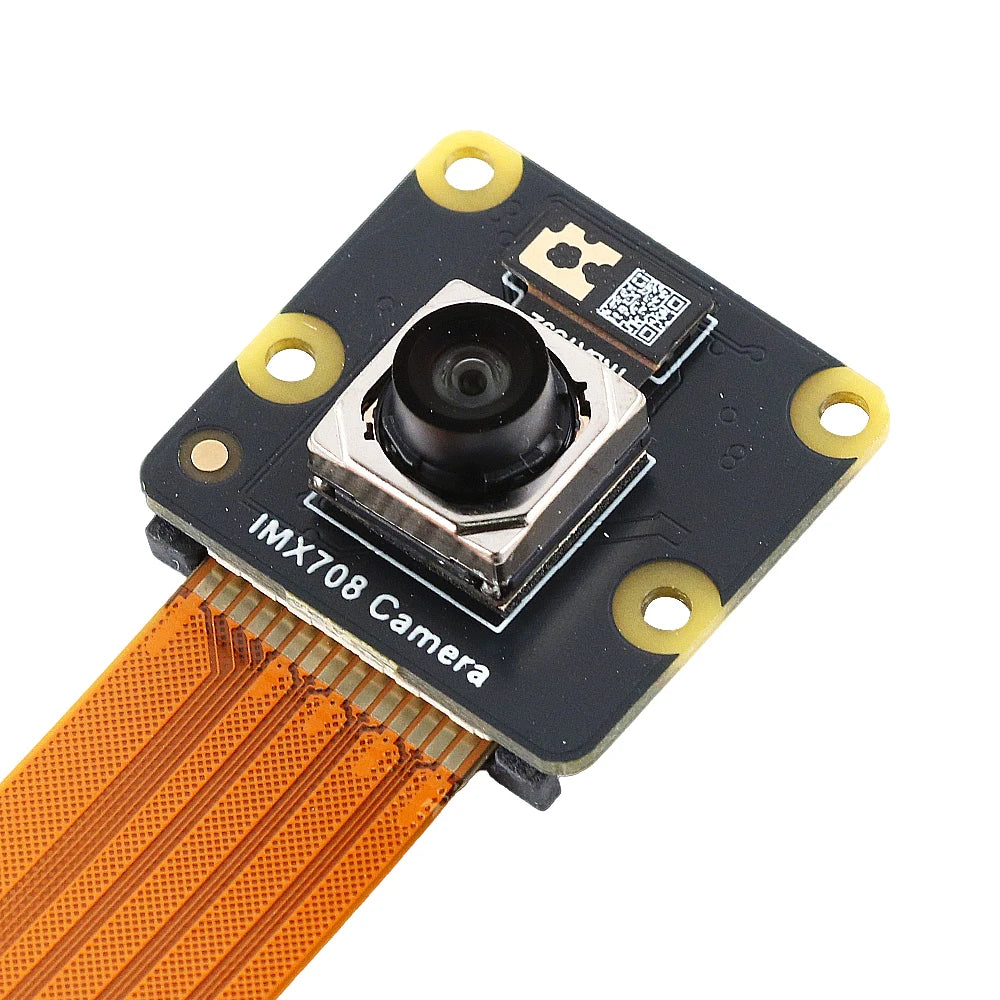

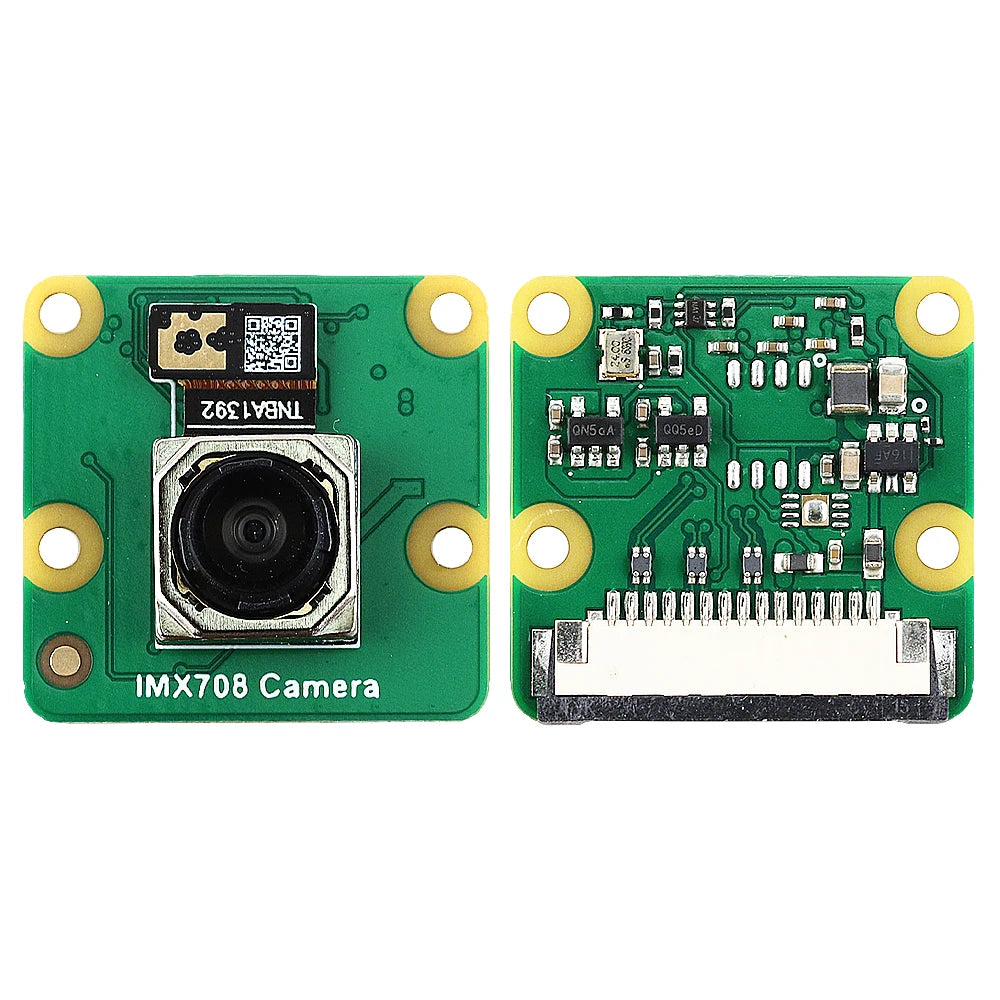

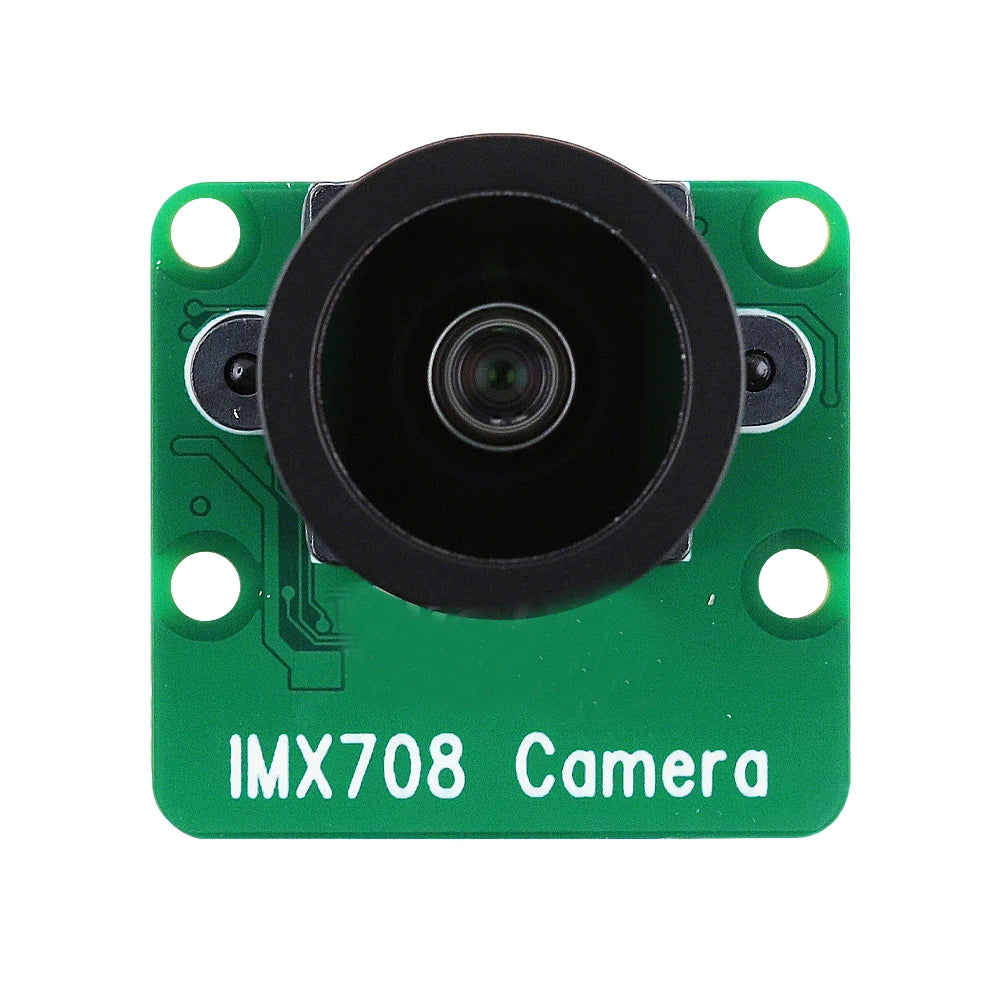

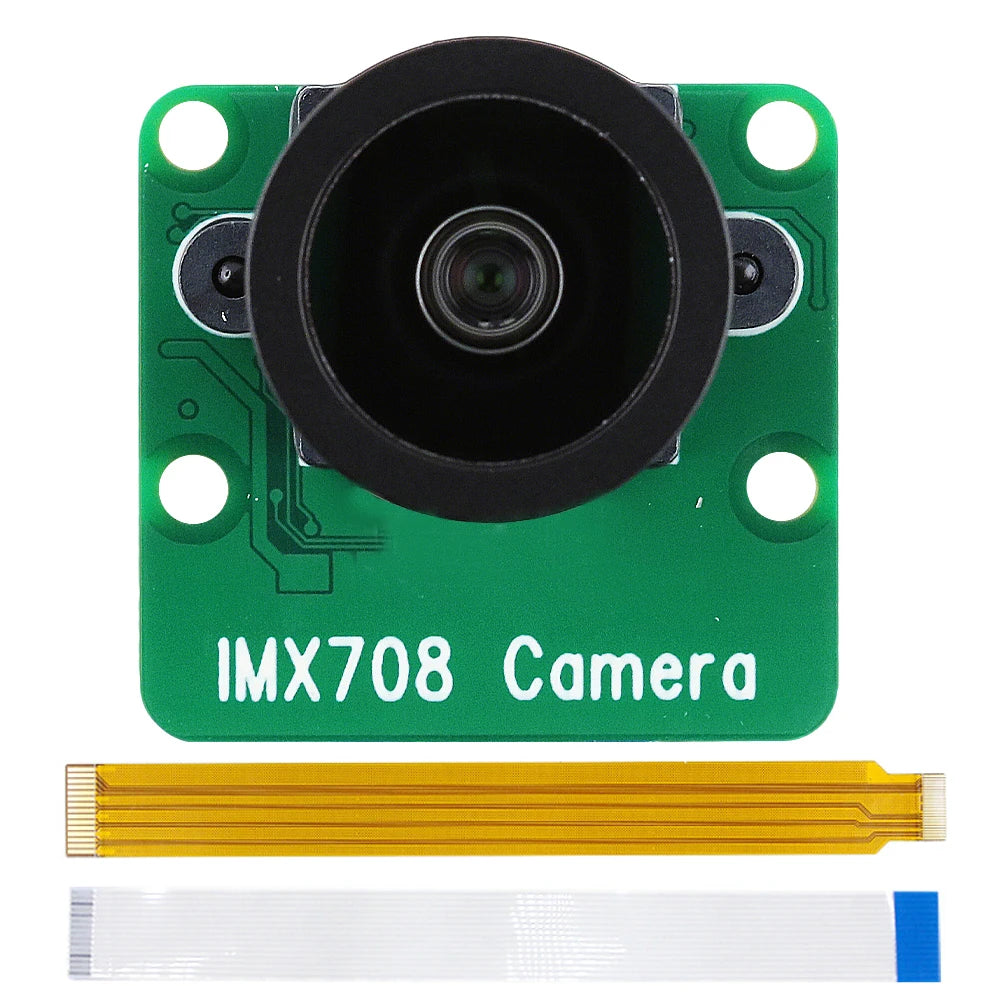

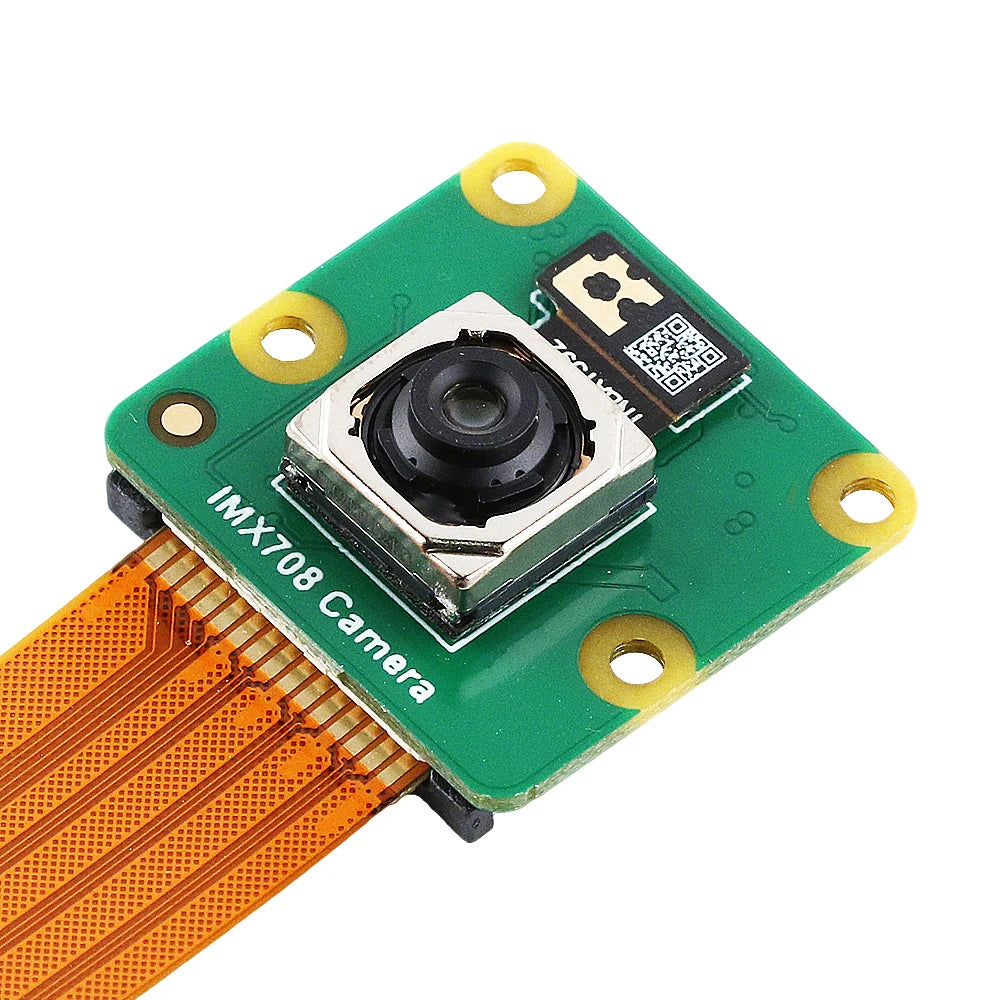

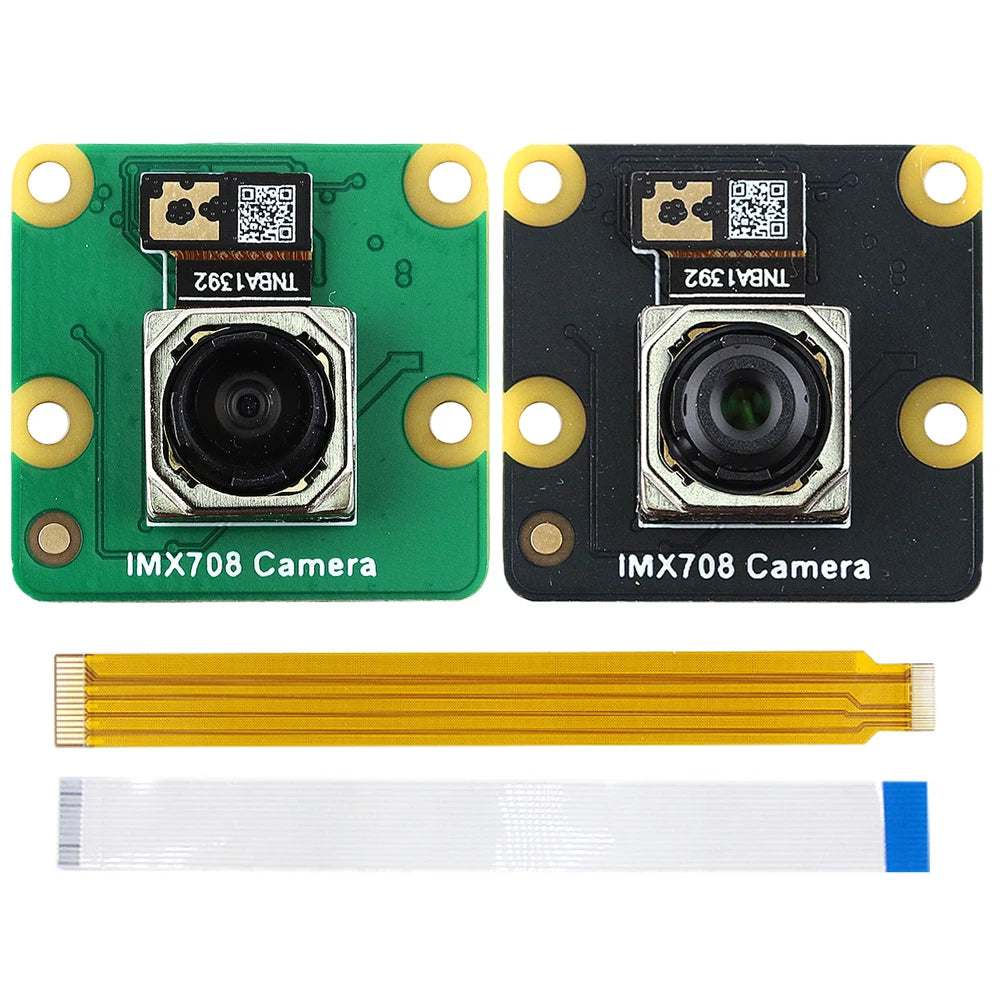

IMX708 Camera Module for Raspberry Pi 5 4 4B 3B+ ZERO 2 W HD 12MP Auto focus 75 120 Degree Night Vision NO IR 22PIN CSI 15PIN

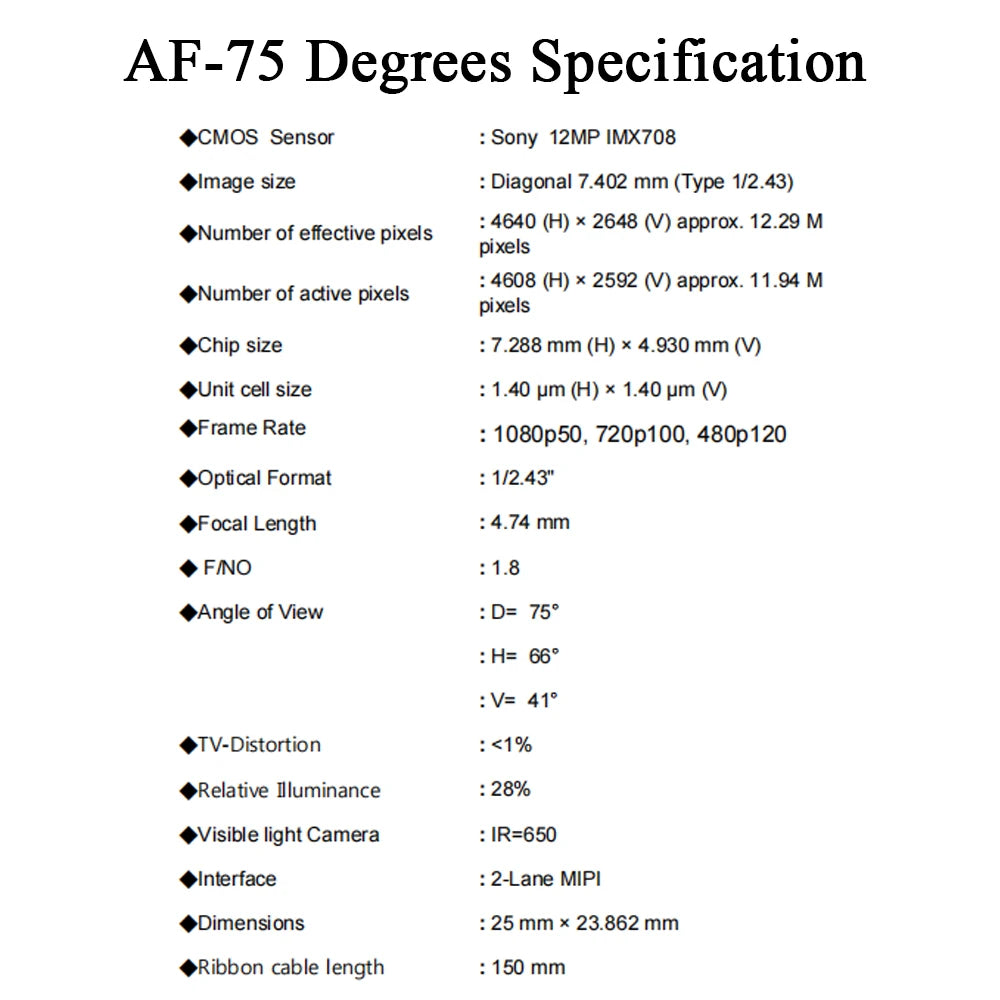

CMOS Sensor : Sony 12MP IMX708

Image size : Diagonal 7.402 mm (Type 1/2.43)

Number of effective pixels: 4640 (H) × 2648 (V) approx. 12.29 Mpixels

Number of active pixels: 4608 (H) × 2592 (V) approx. 11.94 Mpixels

Chip size : 7.288 mm (H) × 4.930 mm (V)

Unit cell size : 1.40 µm (H) × 1.40 µm (V)

Frame Rate : 1080p50, 720p100, 480p120

Optical Format : 1/2.43" Focal Length : 4.74 mm

F/NO : 1.8

Angle of View : D= 75° H= 66° V= 41° TV-Distortion : <1%

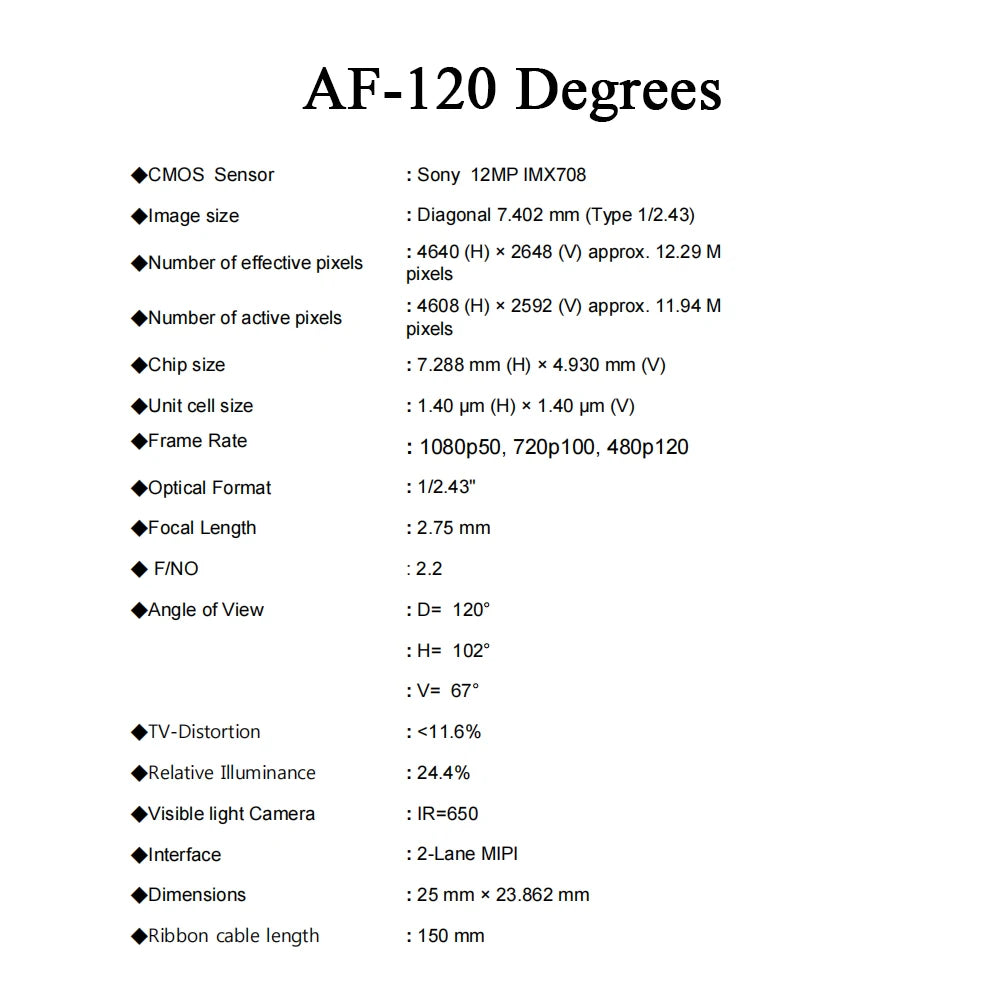

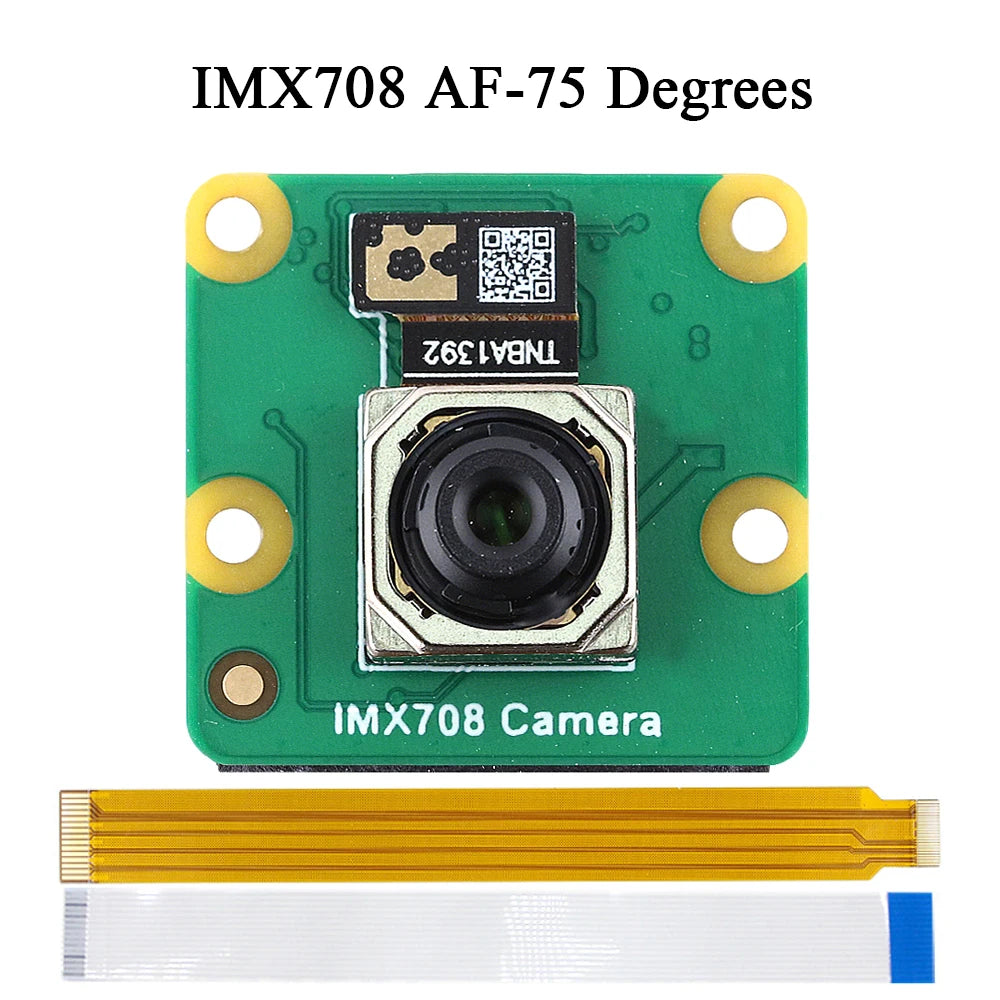

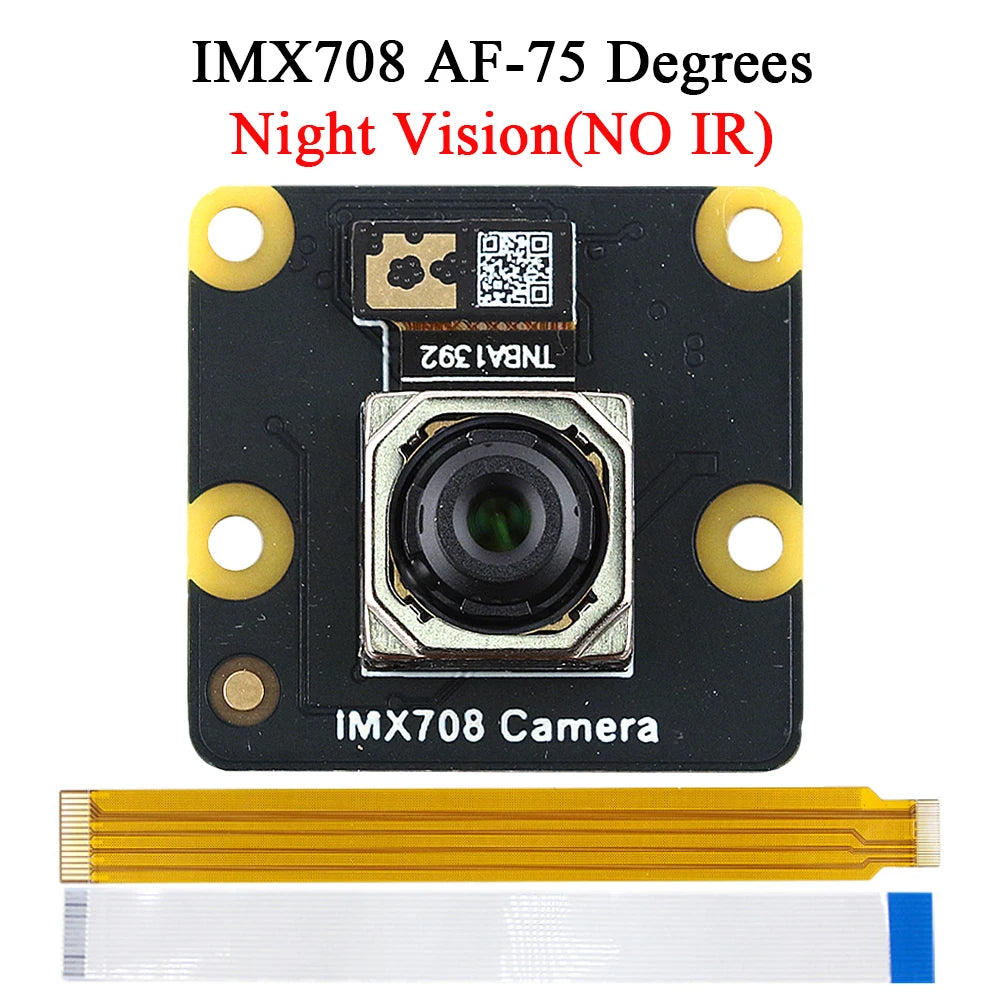

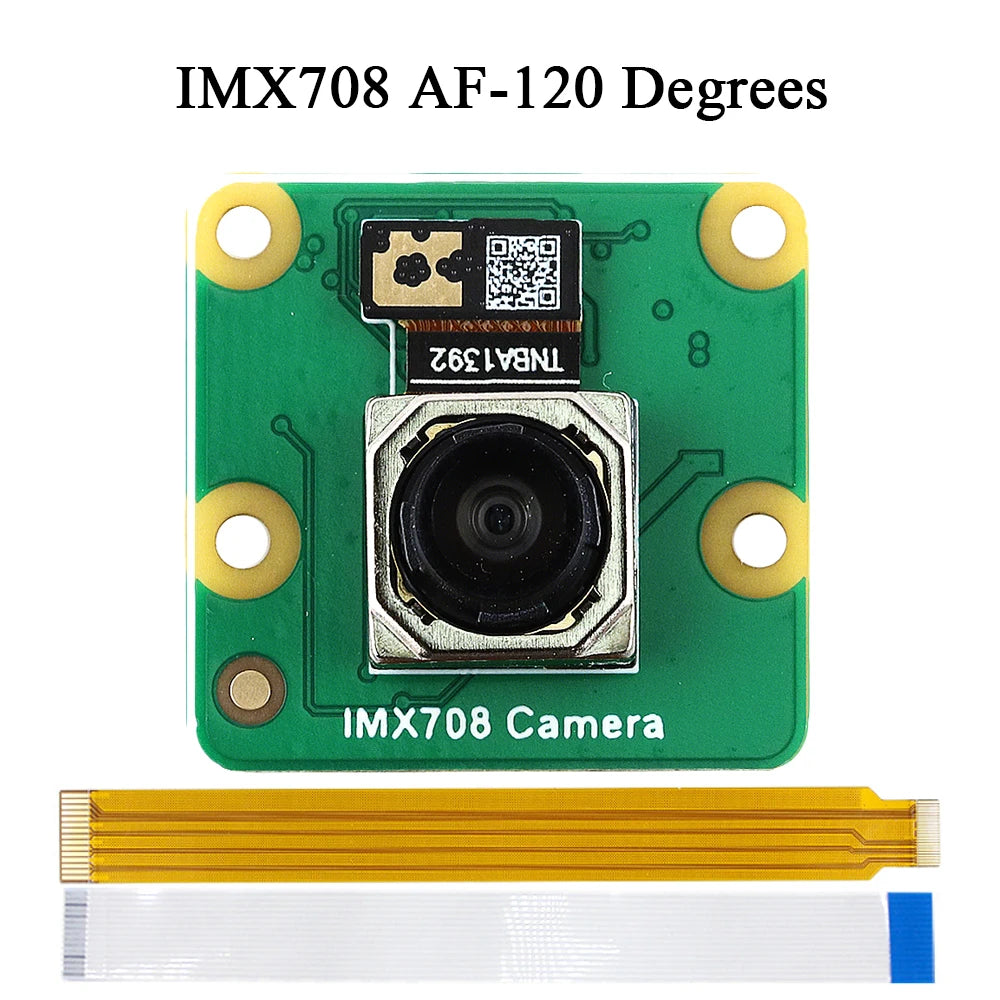

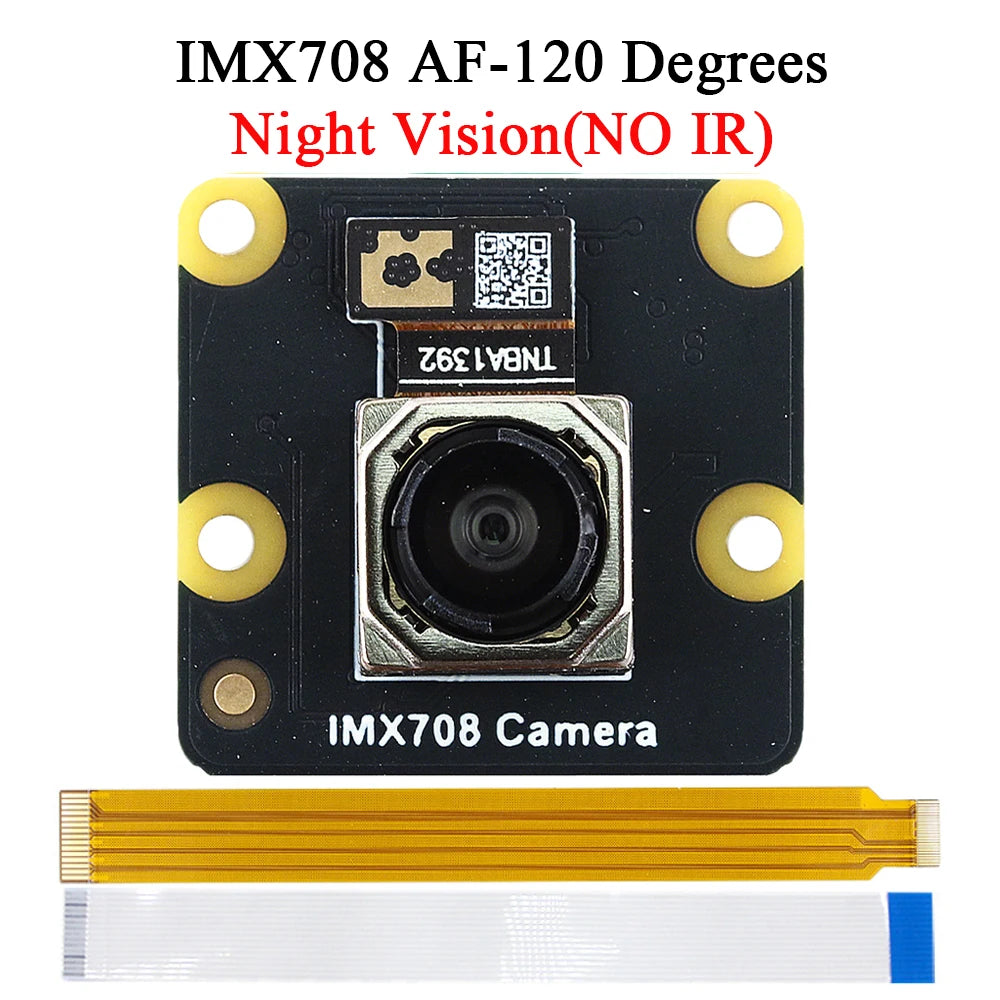

Lens: AF-75/AF-120

Relative Illuminance : 28%

Visible light Camera : IR=650/NO IR

Interface : 2-Lane MIPI

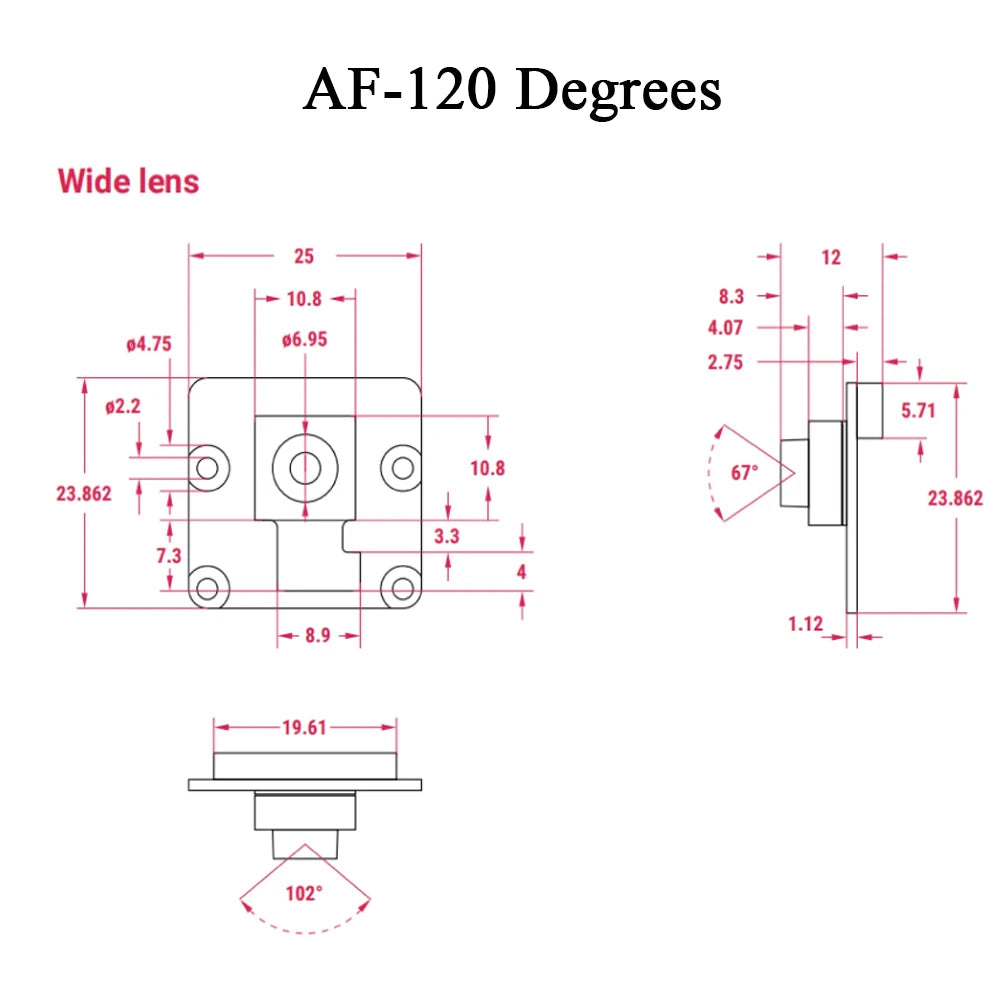

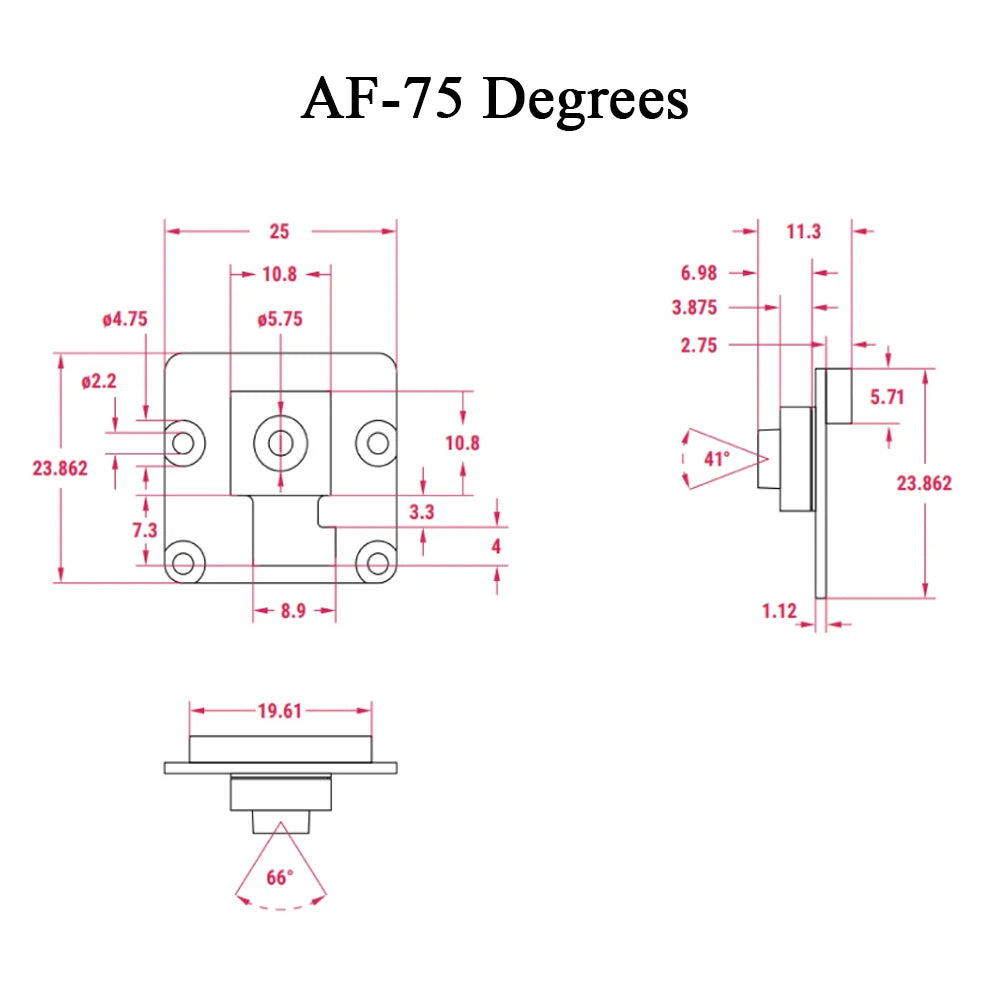

Dimensions : 25 mm × 23.862 mm

Ribbon cable length : 150 mm

Complementary for Official: Raspberry Pi officially released the amazing IMX708 autofocus camera module 3 at the beginning of this year, and this M12 Lens manual focus camera module as a supplement to the official camera.

Arducam Camera Module 3 Series: Based on back-illuminated stacked CMOS 12-megapixel high-resolution Image Sensor (Sony IMX708) with HDR mode for up to 3-megapixel output on Raspberry Pi. Max Resolution: 4608 × 2592.

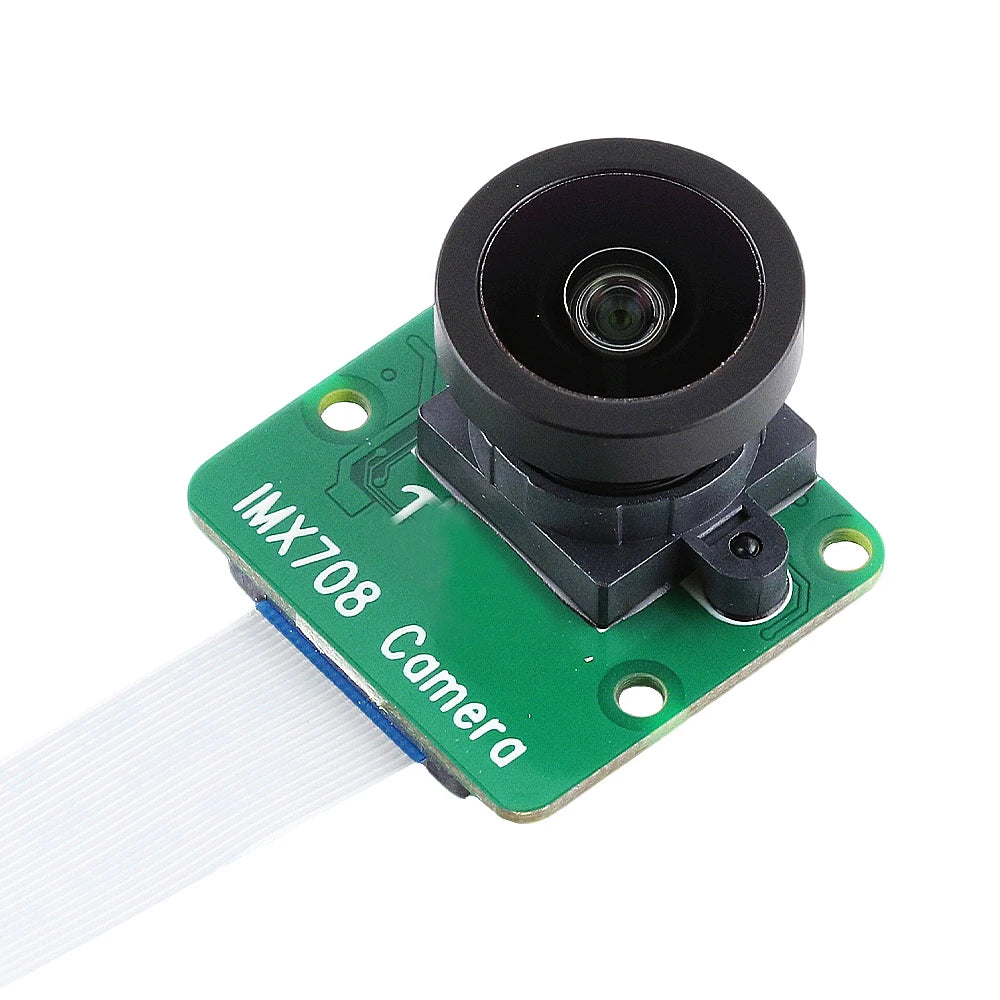

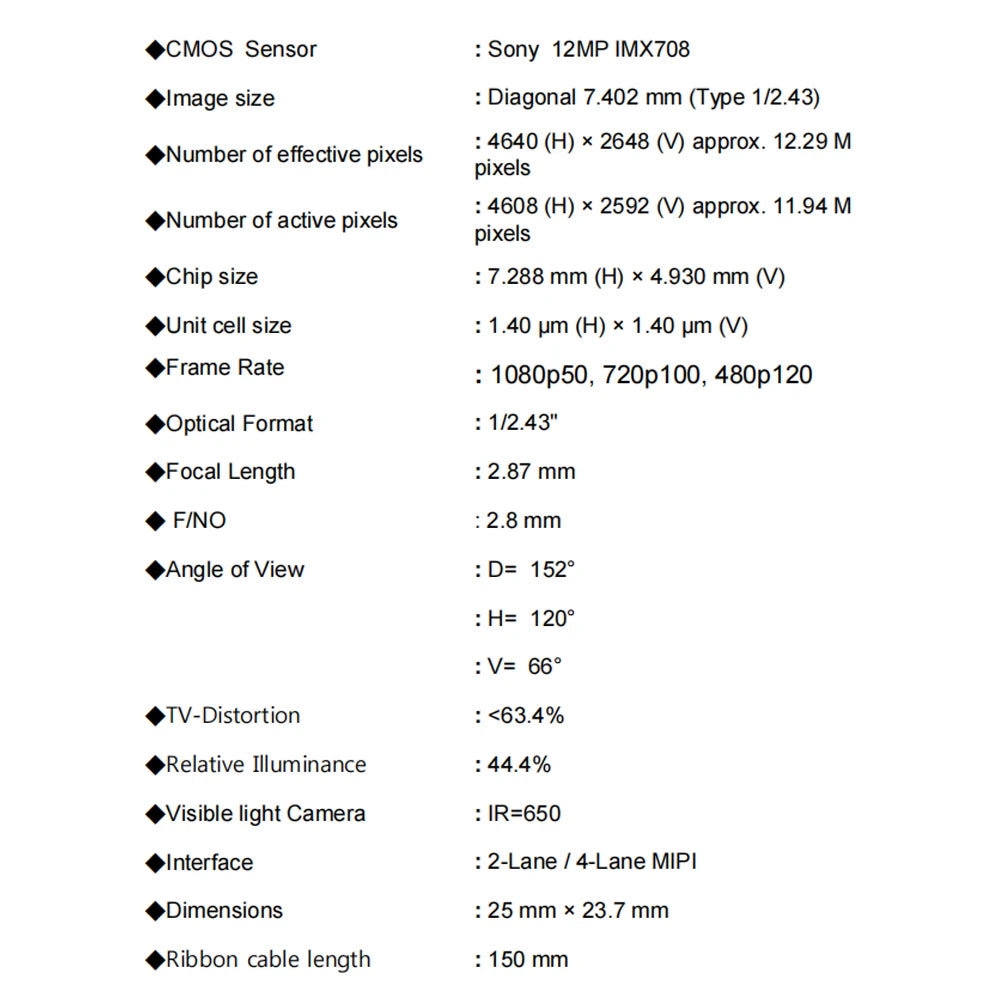

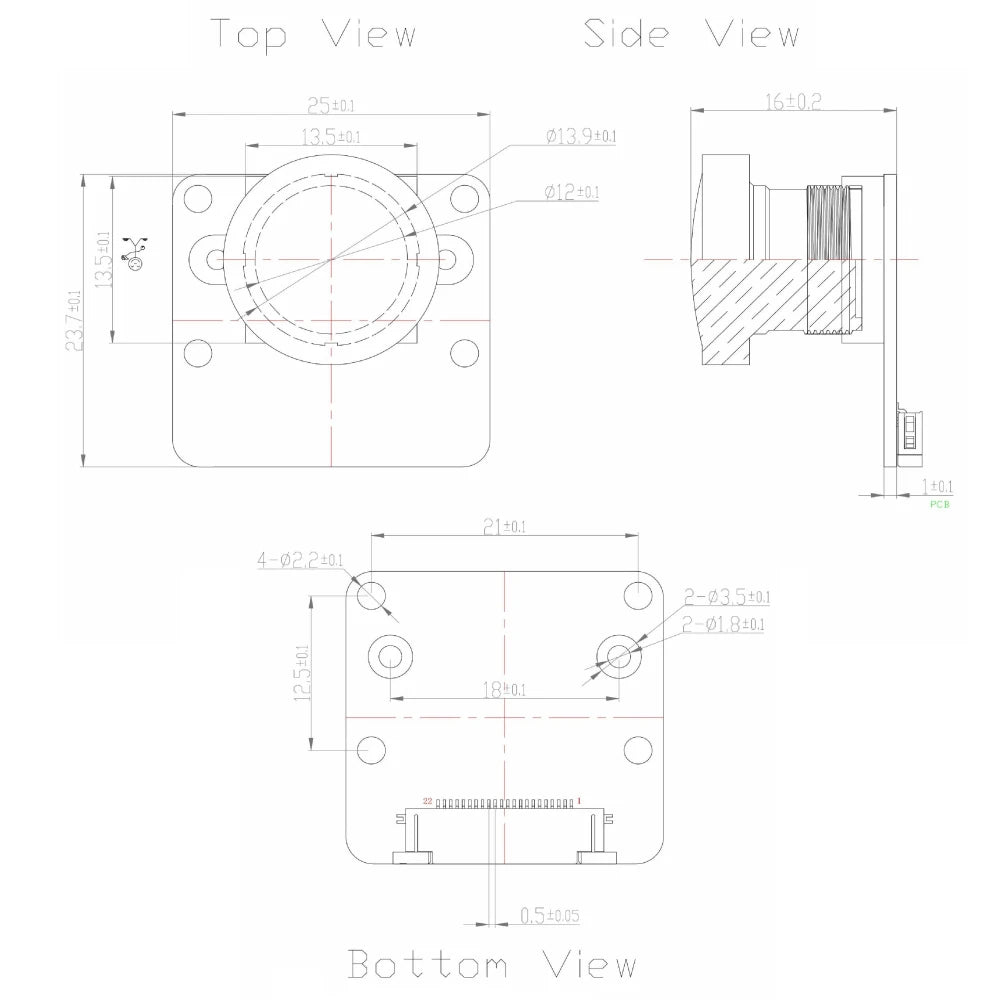

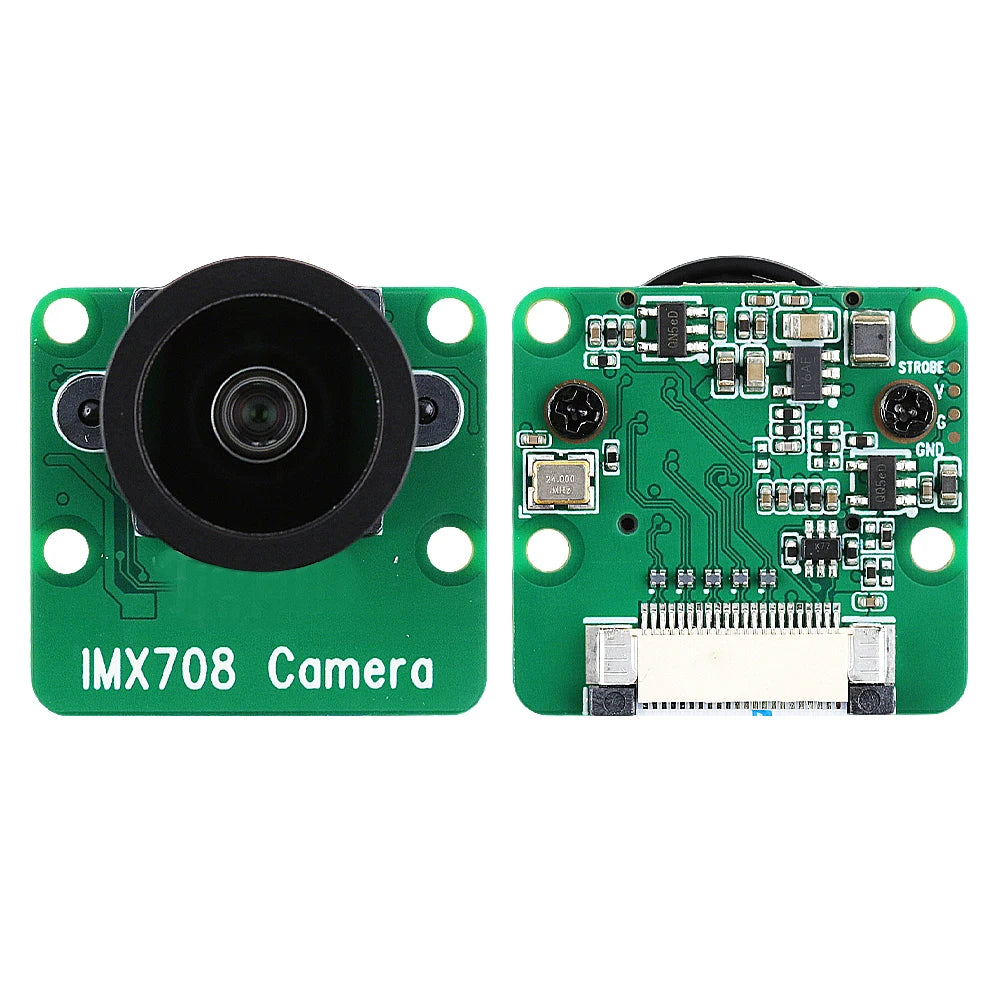

Wide Angle M12 Lens: Armed with a 120°(HFOV) Wide Angle M12 Lens. A wide-angle lens has a deeper depth of field, which can effectively reduce bokeh. At the same time, they can better include foregrounds for landscape photos and improve image quality.

Manual Focus: Manual Focus cameras are always more suitable in some special conditions. For example, in low-light and macro photography environments, manual focus can obtain a complete overall contrast of pictures, thereby improving image quality and focus accuracy. In HDR mode, panorama stitching, and other modes, manual focus can decrease different focus layers and blur efficiently.

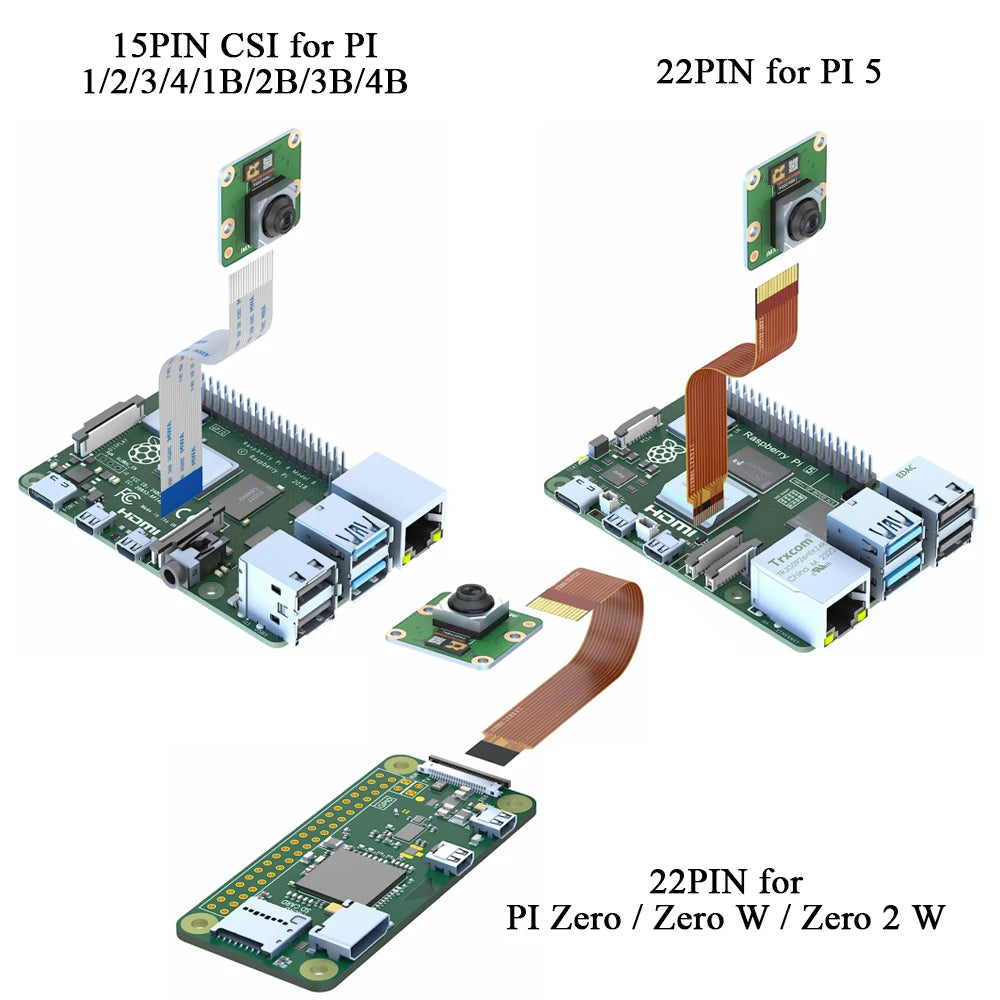

Platform Compatibility: Compatible with Raspberry Pi 5, 3, 4 A/B, equipped with 15-22pin and 15-15pin FPC flexible cables. Support used on Raspberry Pi Zero.
