INA128 Amplifier Module, Instrumentation Amplifier, Precision Microvolt/Millivolt Amplifier, High Gain Amplifier KDT0319AMP-003

INA128 Amplifier Module, Instrumentation Amplifier, Precision Microvolt/Millivolt Amplifier, High Gain Amplifier KDT0319AMP-003

$117.54

$117.54 $0.00

Description

SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

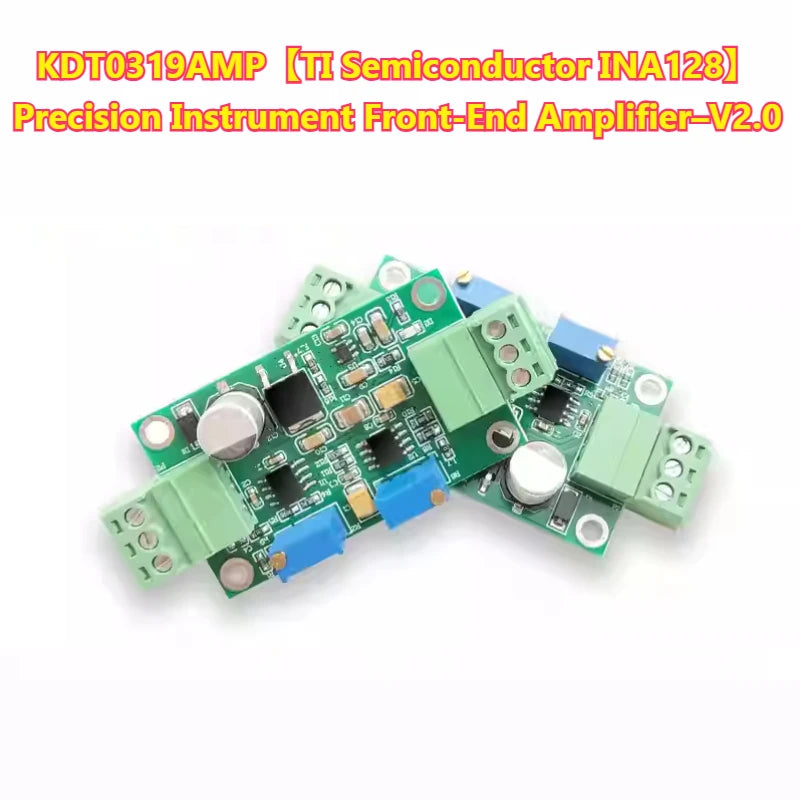

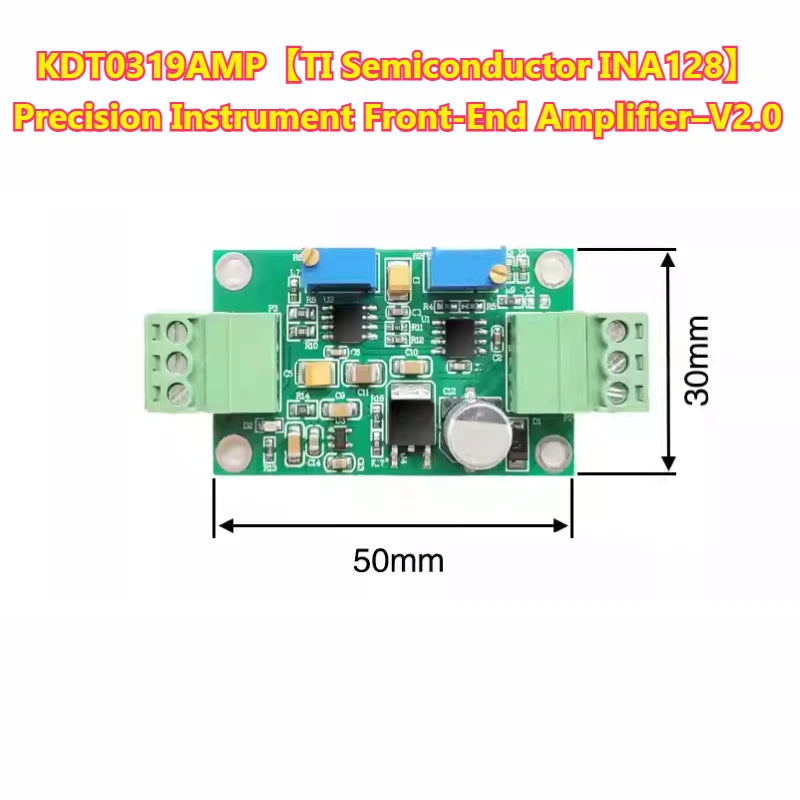

Module Model: KDT0319AMP-003 (TI Semiconductor INA128)

Module Function: Amplifier (Precision Instrument Front-End Amplifier, for Low-Frequency Weak Signals)

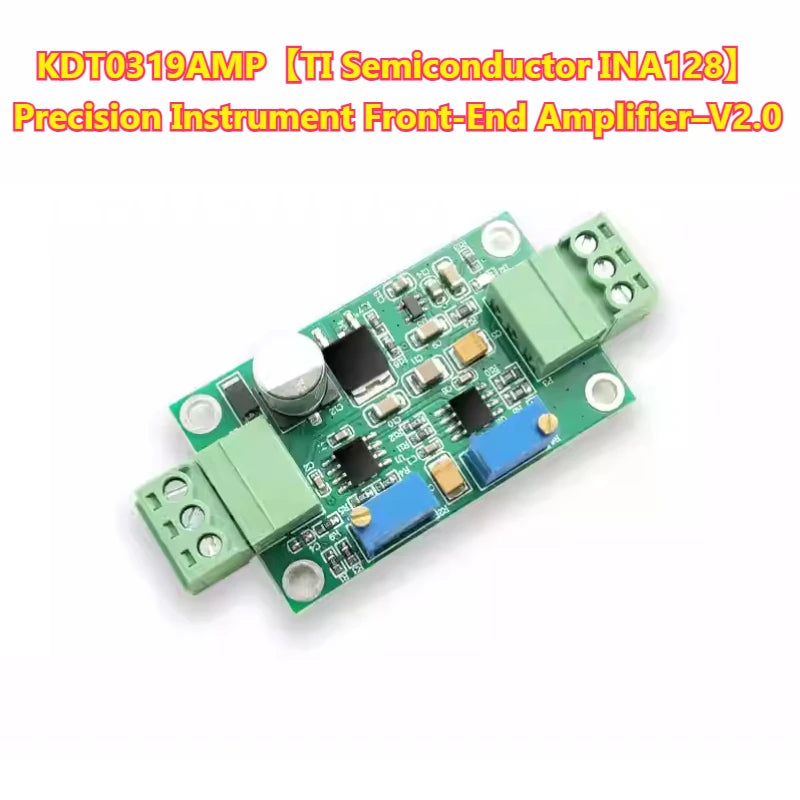

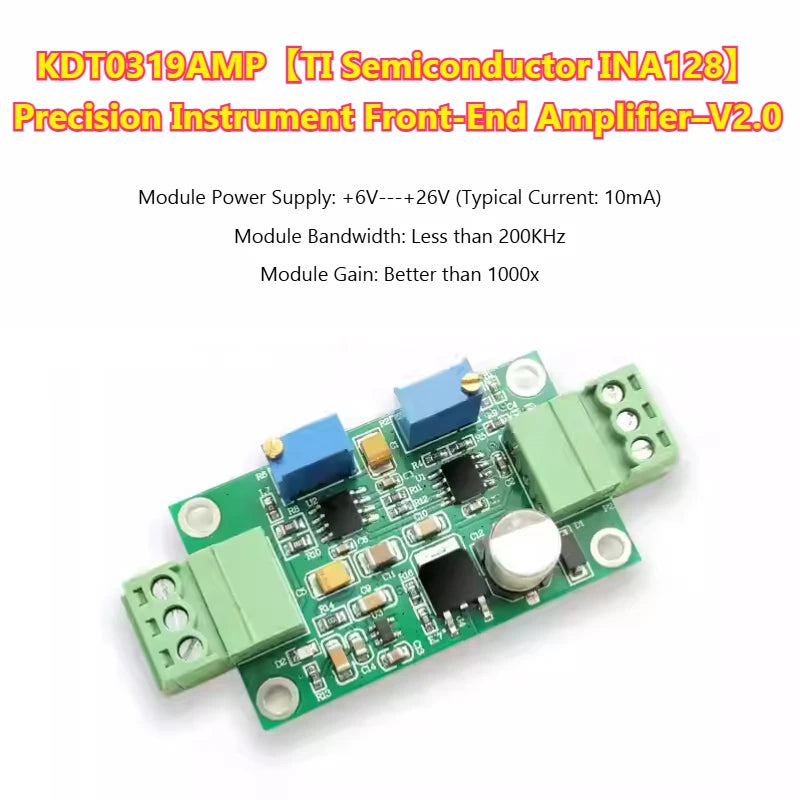

Module Power Supply: +6V---+26V (Typical Current: 10mA)

Module Bandwidth: Less than 200KHz (Bandwidth Decreases with Increasing Gain)

Module Gain: Better than 1000x

Input Impedance: High Impedance

Bias Voltage Adjustment Range: ±4.5V

INA128 Chip Parameters (Main Specification Parameters of Instrument Amplifier)

Input Offset Voltage: 50uV(max)
Input Offset Drift: 0.5uV/℃ (max)
Input Bias Current: 5nA(max)
Common Mode Rejection Ratio: 120dB(min, G=100)
Input Voltage Noise: 8nV√Hz(1KHz)
Bandwidth: 700KHz (G=10)

Output Signal Saturation Amplitude: 10Vpp(±5Vpp)

Module Weight: 14.82g

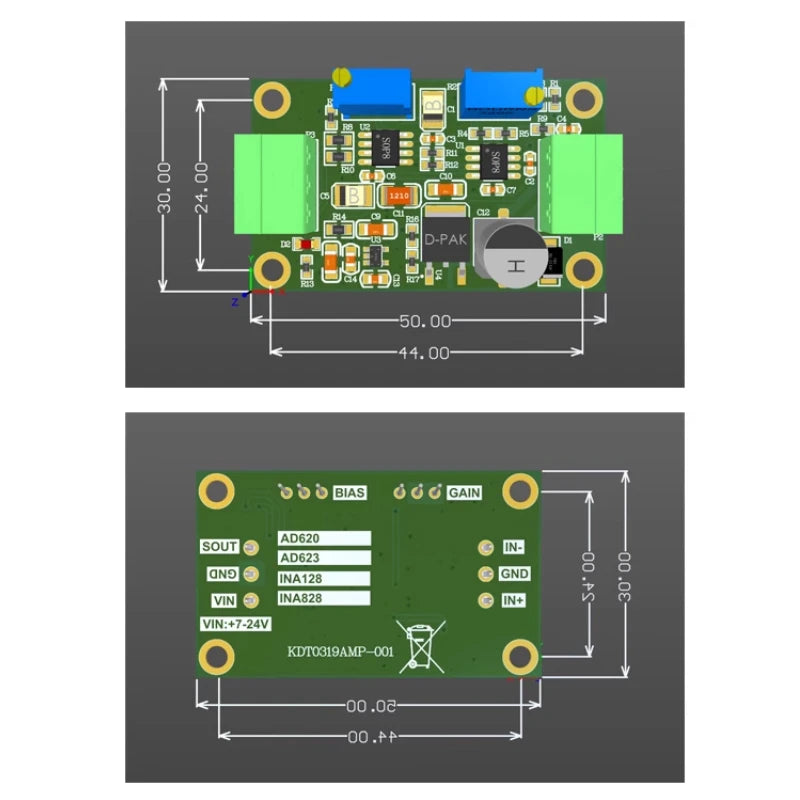

Module Dimension: 50mm X 30mm X 15mm (Length X Width X Height)

Interface Type: 3.81 Plug-in Interface (Very Convenient to Use)

Operating Temperature Range: -25℃ -- +85℃

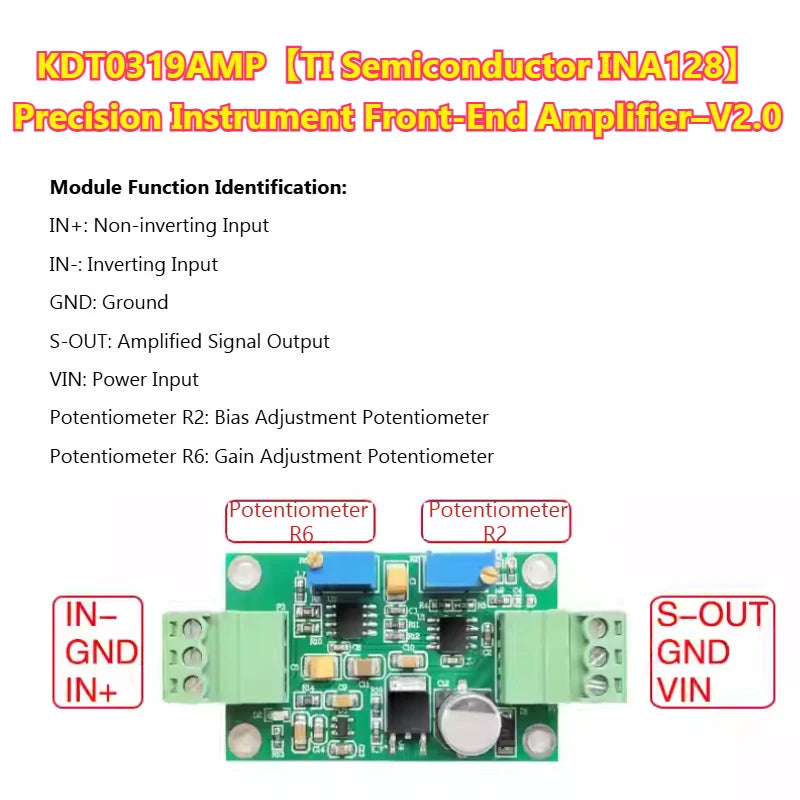

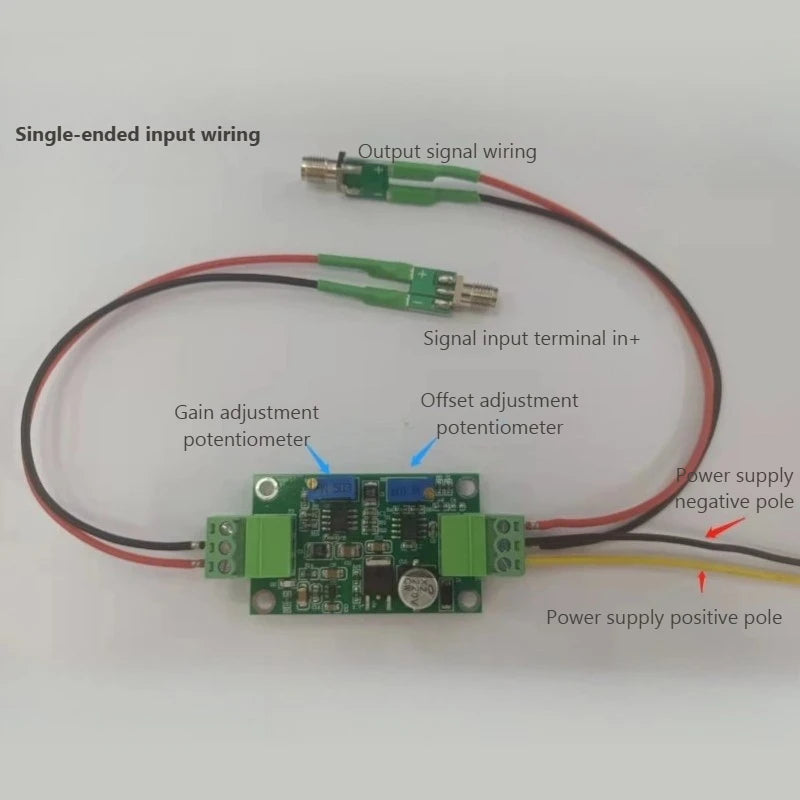

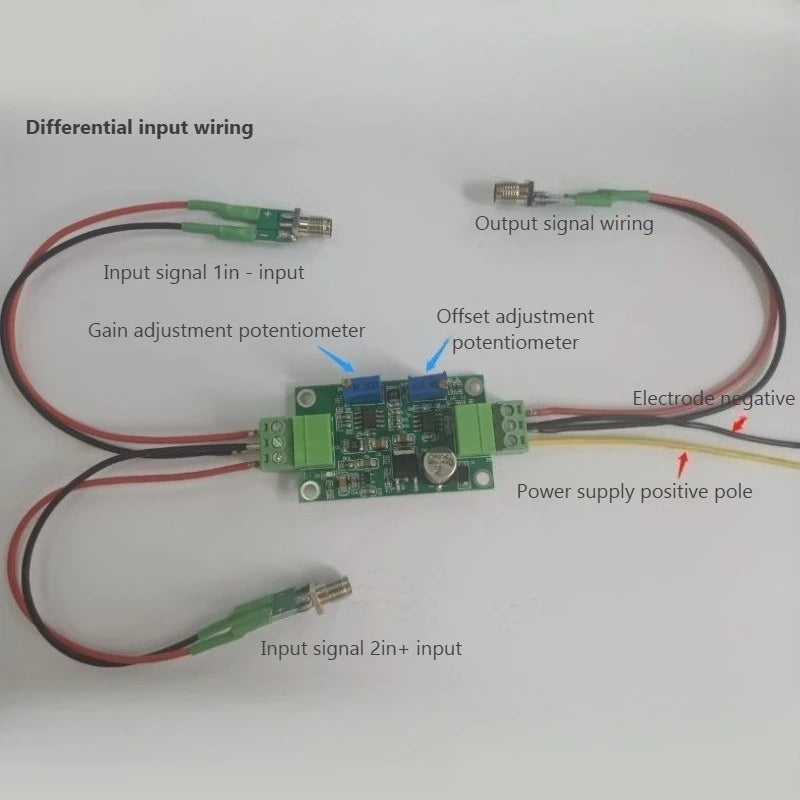

Other Features: Multiple (M3 Four-Pin Positioning Holes; Power Indicator; Wide-Voltage Single Power Input; Reverse Connection Protection; Output Zero Adjustment Function; Can Work in Differential Amplification or Single-Ended Amplification)

Application Range: Multiple (Load Cells, Platinum Resistance Temperature Detection, ECC and Medical Instruments, Data Acquisition Front-End, Weak Signal Amplification, etc.)

Precautions for Use: Please supply power correctly according to the module details; Please test and use correctly according to the module details;

Module Description

(1) Single power supply with wide voltage operation, reverse connection protection, and large-capacity filter capacitor, suitable for environments with strong interference and large power fluctuations;

(2) The module adopts high-performance, high-speed, low-noise charge pump negative voltage conversion, allowing the amplifier to have a negative half-axis power rail and easily achieve 10V pp amplitude voltage output; (Note: Most online products use ICL7660 charge pump to reverse negative voltage, whose low switching frequency will introduce interference into the amplifier. When the instrument amplifier works at high gain, the switching frequency of ICL7660 is within the effective bandwidth, so interference is inevitable. Therefore, when designing such amplifiers, in addition to reasonable power supply filtering, a high-speed switching frequency negative voltage converter should be used to pull a significant spectral distance from the effective bandwidth of the amplifier, making post-filter processing easier.)

(3) The module adopts 3.81 plug-in wiring design, which is more practical in actual applications;

(4) The module can realize the adjustment of any gain value within the range, output zero adjustment, and bias voltage adjustment and other basic functions
