SPECIFICATIONS

Product Description

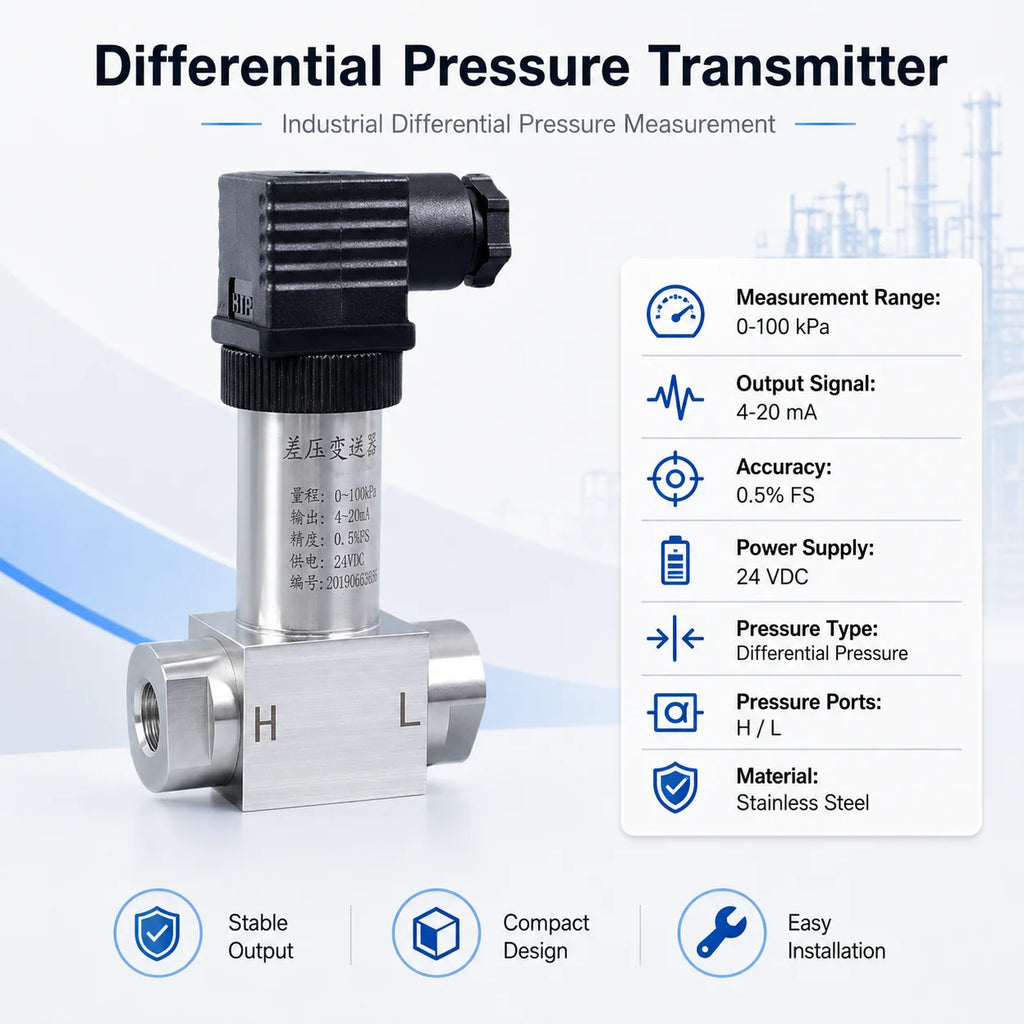

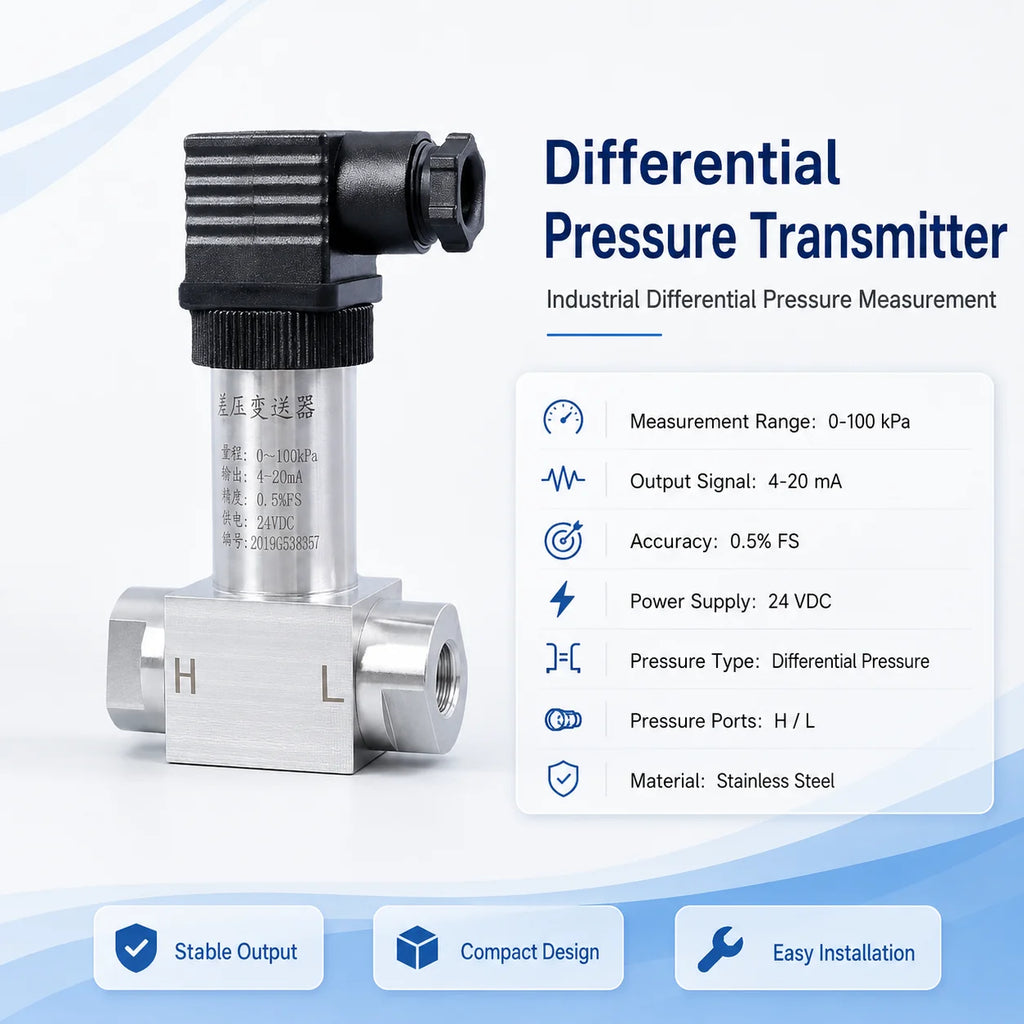

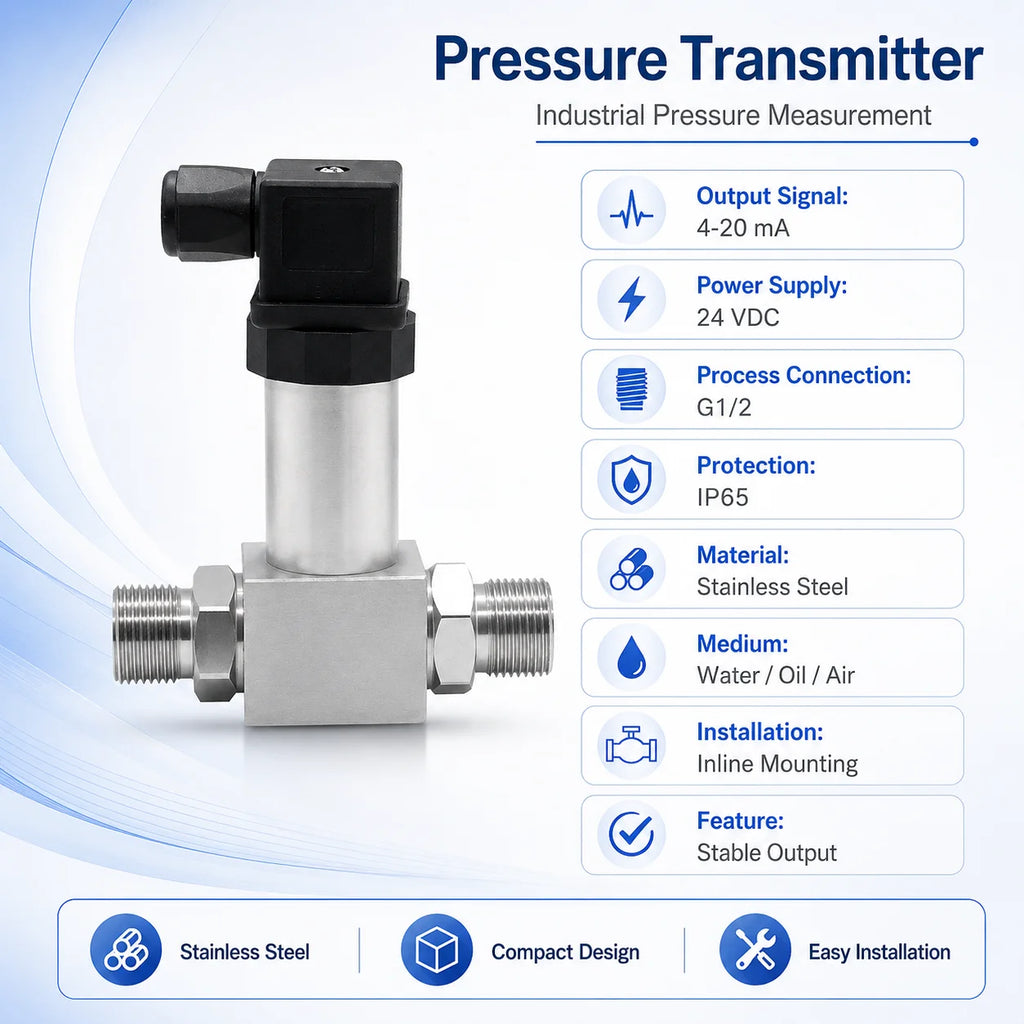

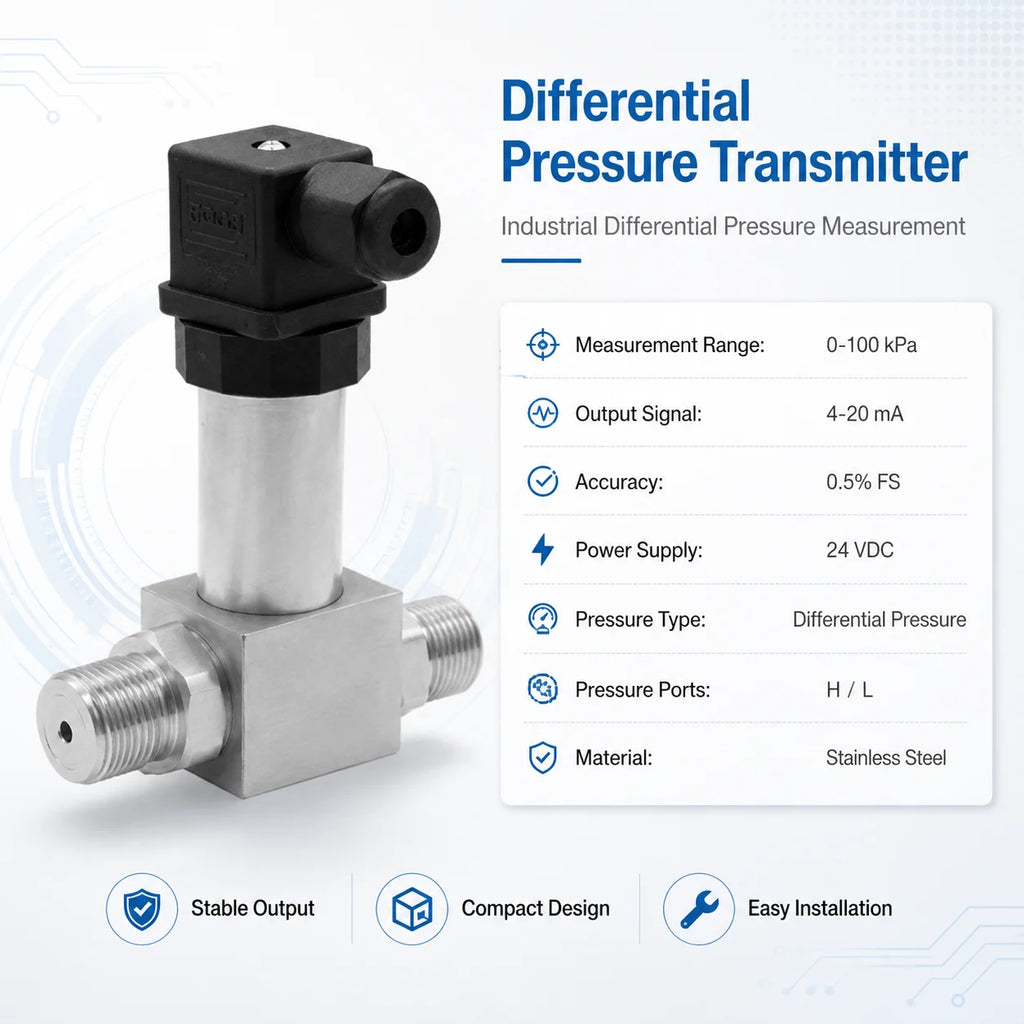

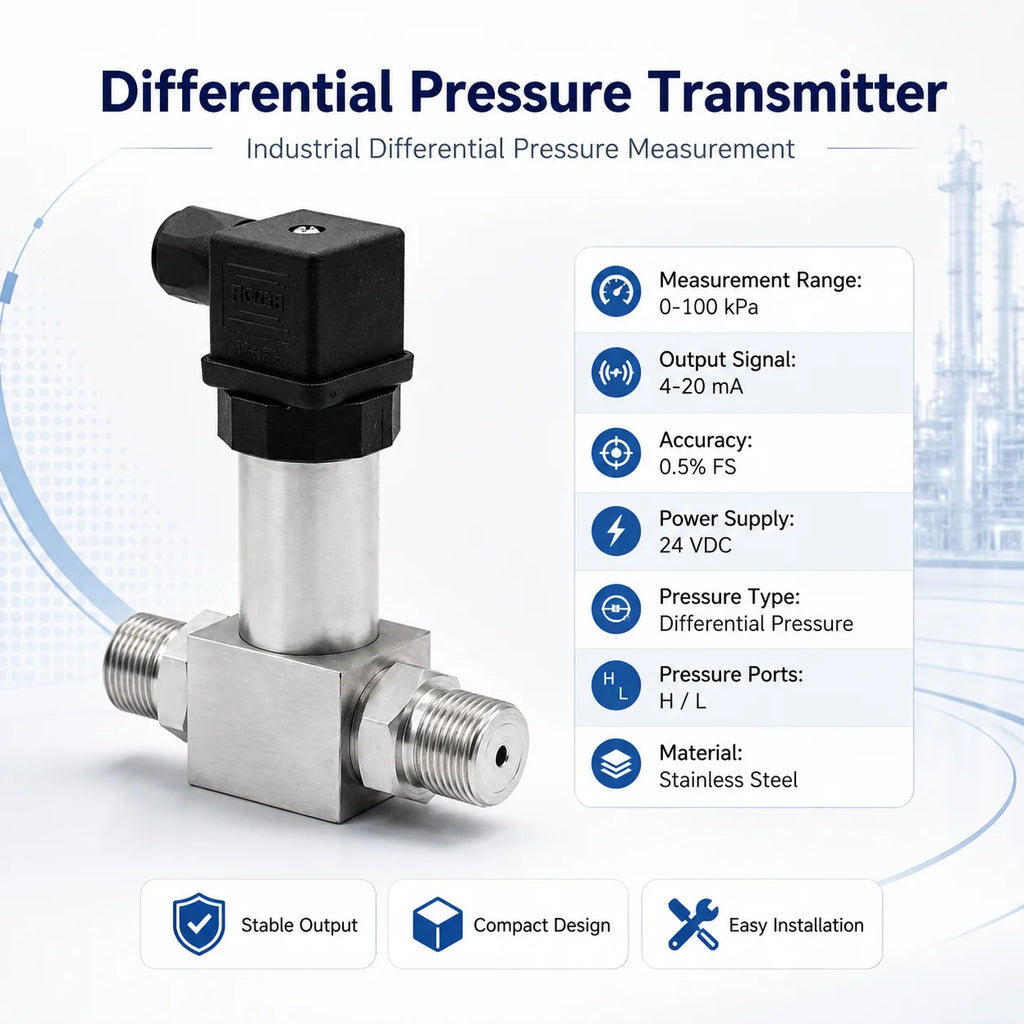

Industrial Differential Pressure Transmitter 4-20mA

This differential pressure transmitter is designed for measuring the pressure difference between high-pressure and low-pressure sides. With compact structure and standard electrical output, it is suitable for various industrial pressure monitoring and control applications.

The transmitter features clearly marked H (High Pressure) and L (Low Pressure) ports for convenient installation and connection.

Main Features

• Differential pressure measurement

• Measurement range: 0-100 kPa

• Standard 4-20mA output

• 24VDC power supply

• Accuracy: 0.5% FS

• H / L differential pressure ports

• Compact and durable structure

• Stable signal output

• Easy installation

• Suitable for industrial monitoring and control systems

Working Principle

The transmitter measures the pressure difference between the H high-pressure port and the L low-pressure port, then converts the differential pressure into a standard 4-20mA electrical signal.

It can be connected to PLCs, controllers, displays, data acquisition equipment and other industrial control systems.

Typical Applications

Suitable for differential pressure monitoring in:

Industrial equipment • Pneumatic systems • Pipeline pressure monitoring • Filter monitoring • Process control • Automation systems

How to Order

Please provide the following information before ordering:

Pressure Range + Output Signal + Power Supply + Process Connection + Measuring Medium

Example:

0-100 kPa / 4-20mA / 24VDC / H-L Ports / Air

For other pressure ranges or connection requirements, please contact us before placing your order.
