SPECIFICATIONS

Assembly Required: no

Brand Name: PremierCable

Capacity: no

Certification: CE,RoHS,UL

Choice: yes

Converter Serial Interface: 4 in 1 Serial cable

High-concerned chemical: none

IC Chips: FT232RNL

Input Connector: USB

Model Number: PCM-KW-469

Origin: Mainland China

Output Connector: Terminal Block

Package: Yes

Type: USB Adapter

USB-C to RS232: USB to RS485

USB-C to RS422: USB to TTL

semi_Choice: yes

Product description

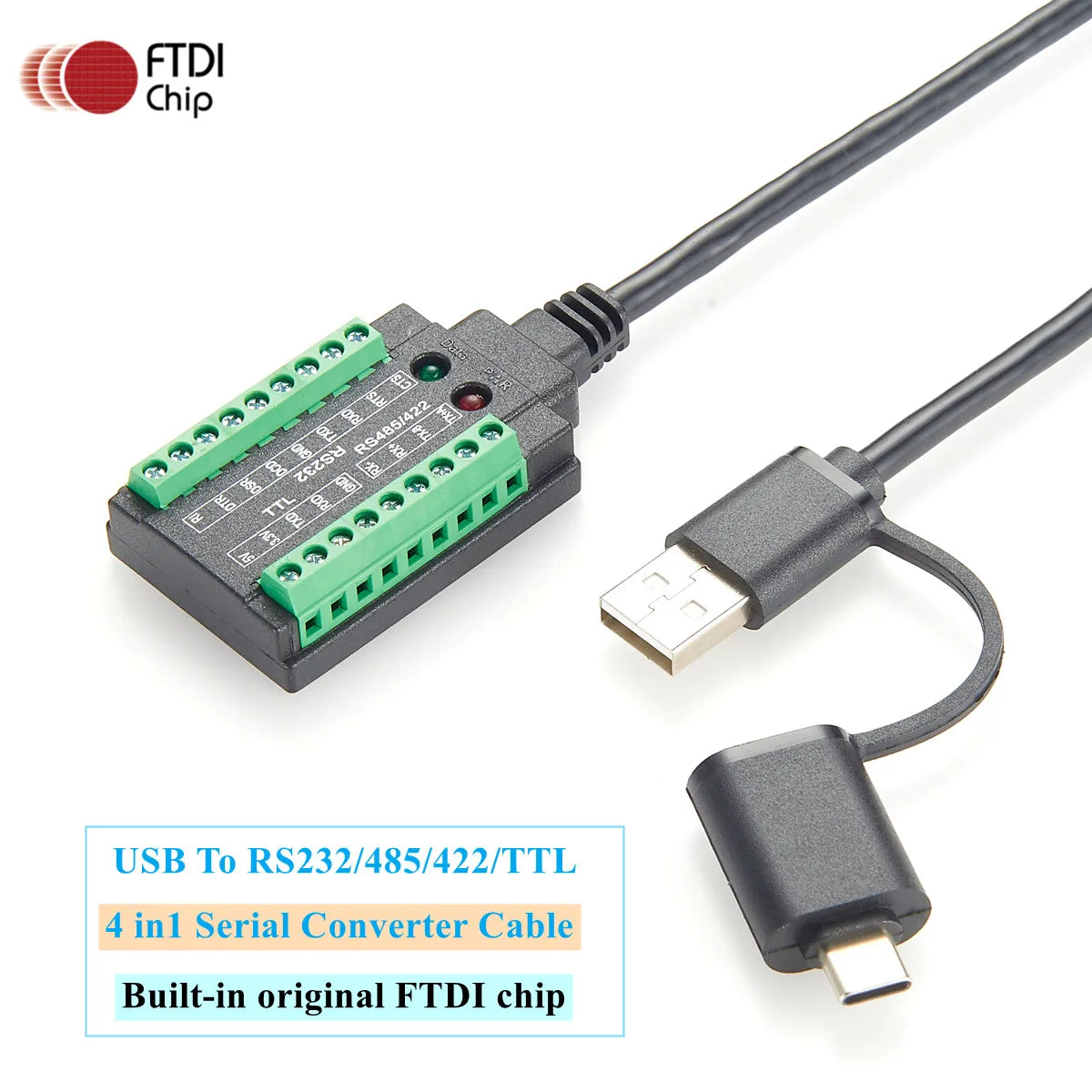

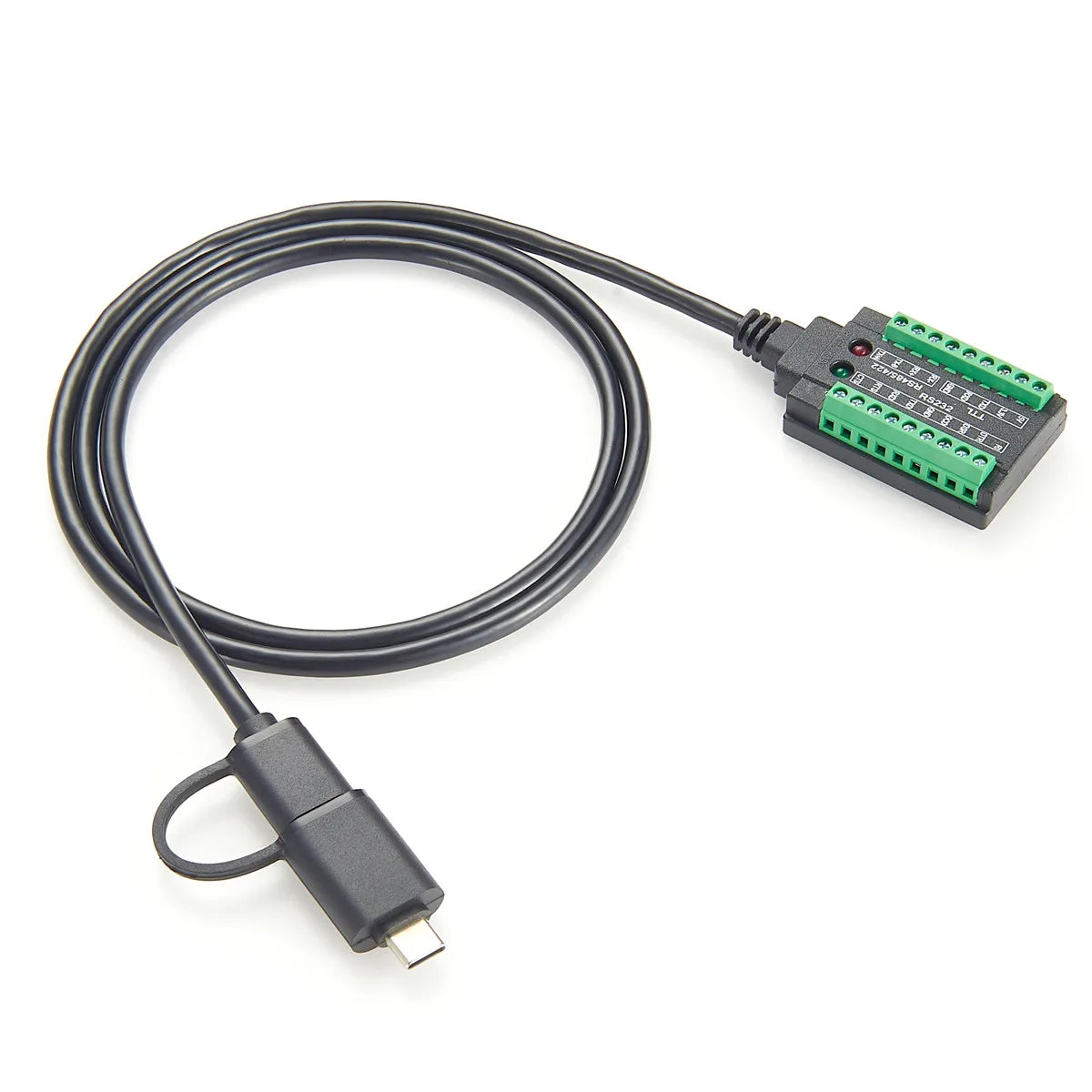

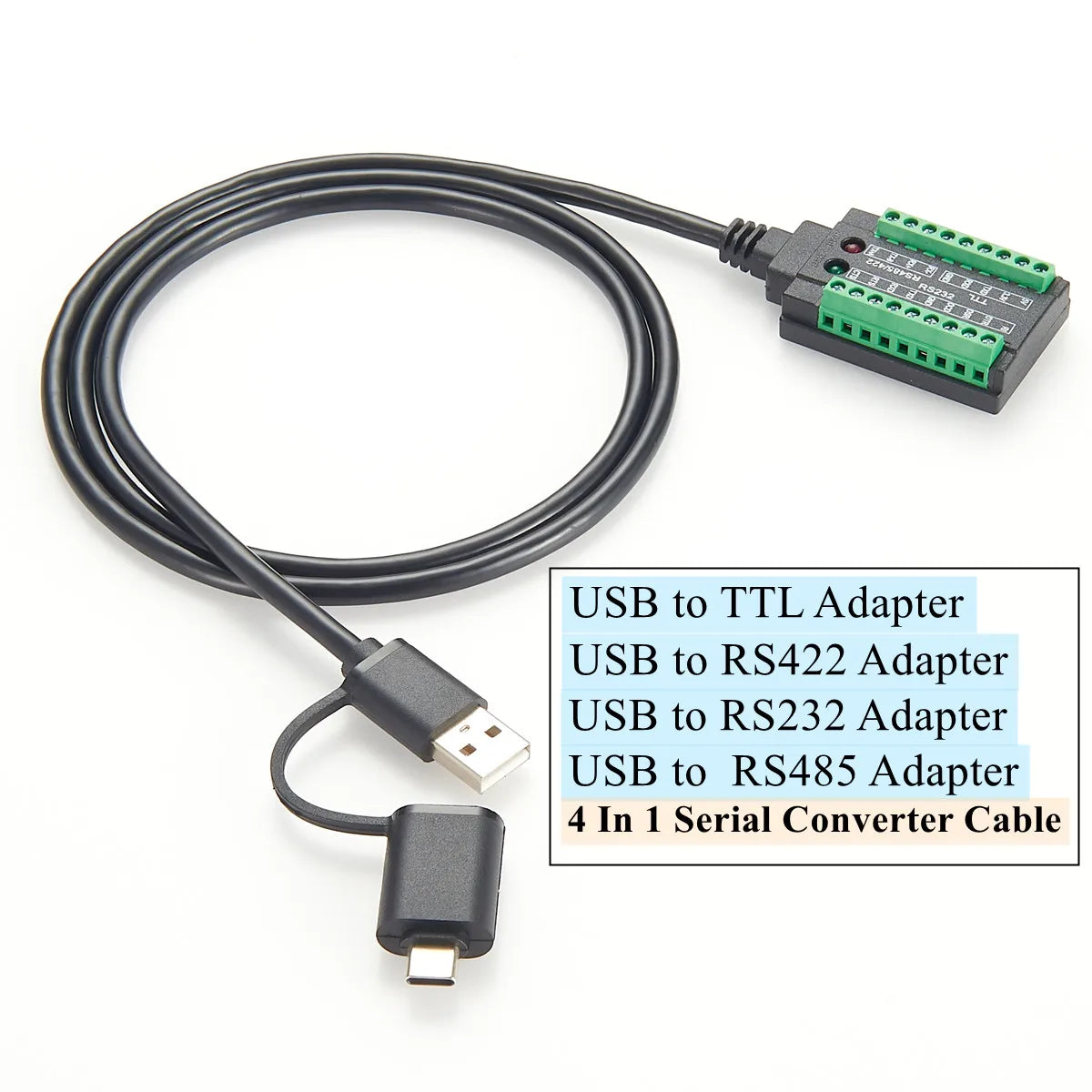

The PCM-KW-469 is a USB to Multi-Protocol Serial adapter cable,It supports RS232 serial, TTL UART serial,RS485 and RS422.

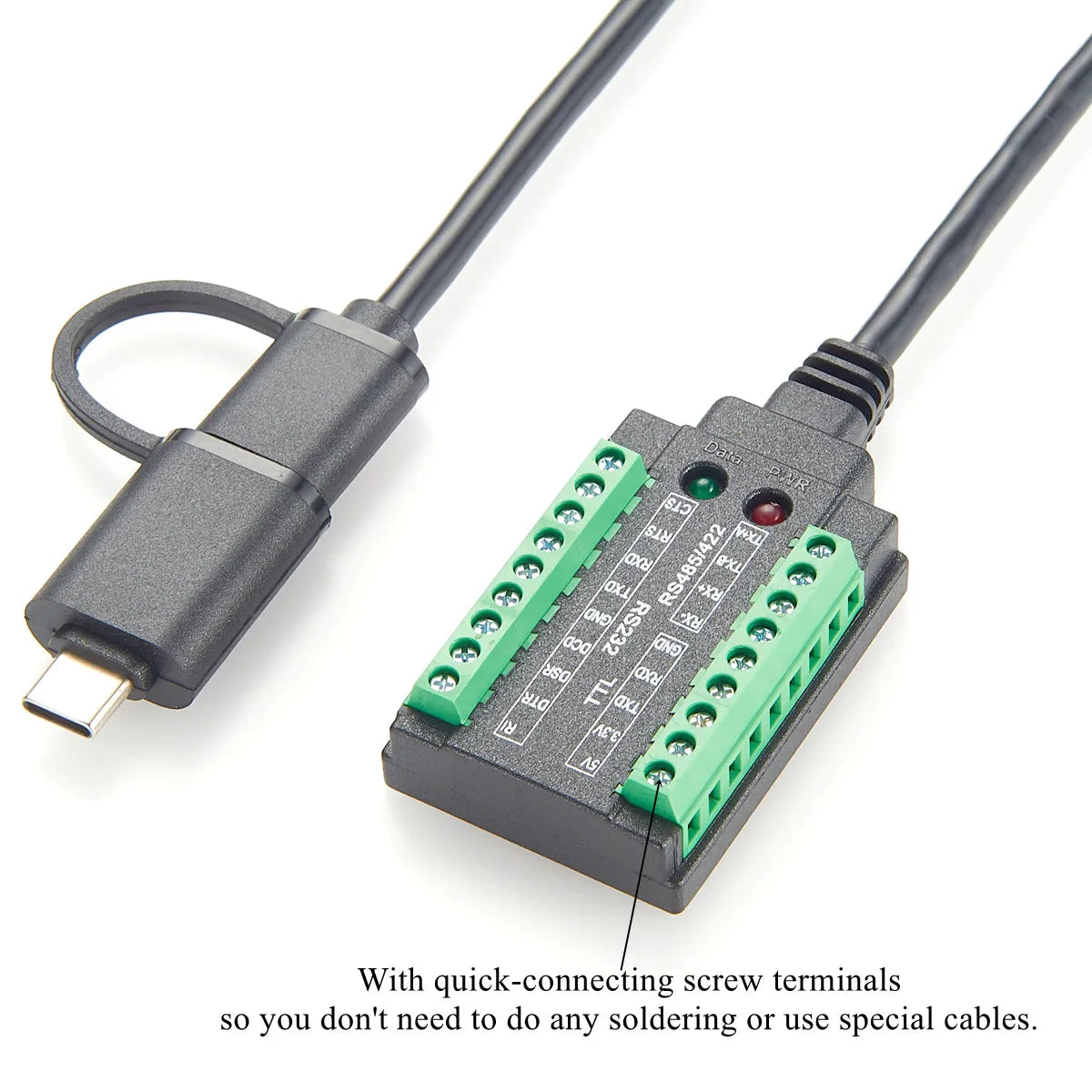

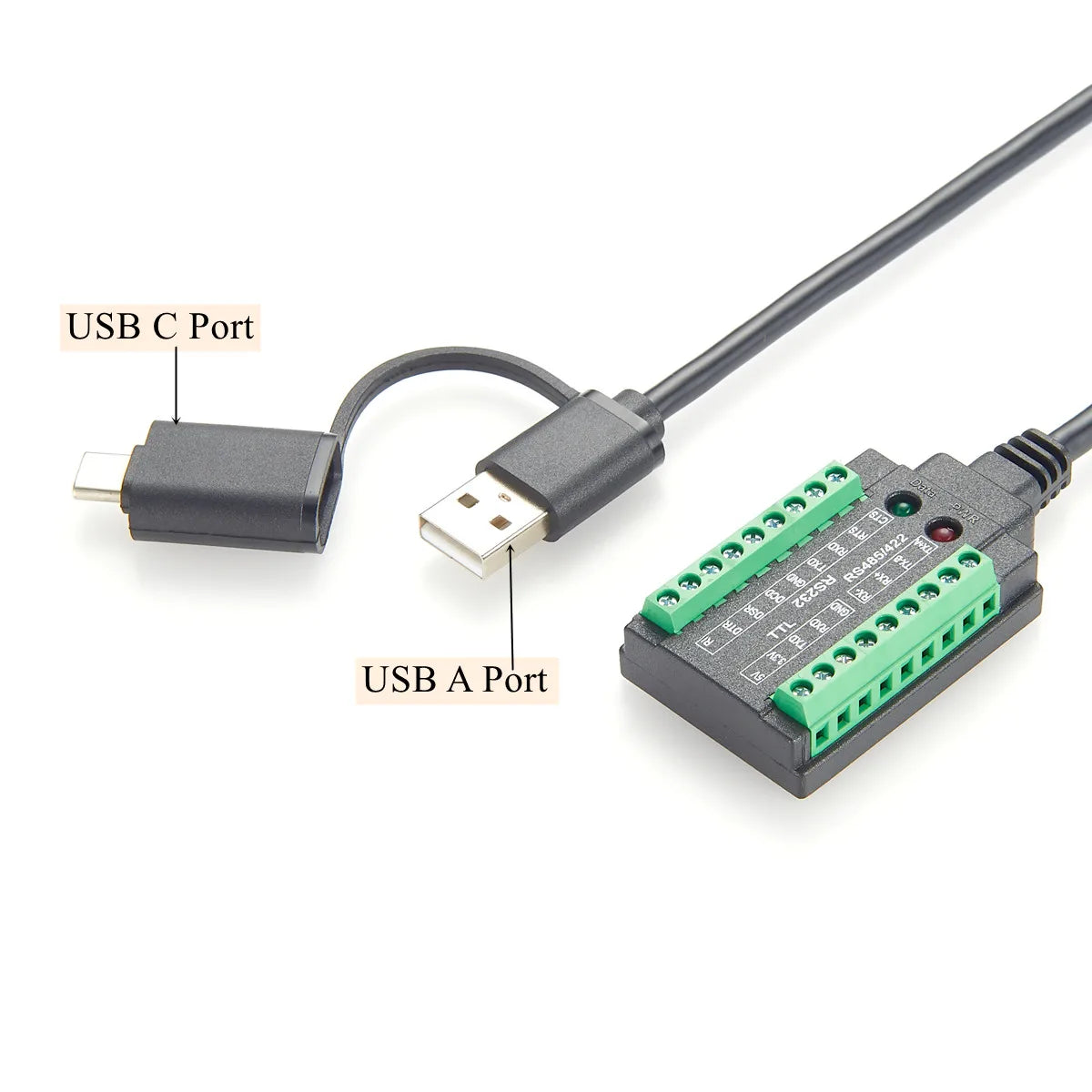

This 4 in 1 Serial Cable with  terminal block and screwdriver, so you don't need to do any soldering or use special cables,just plug directly into a computer's USB A or C port and use a Phillips screwdriver to open the terminal and insert a solid or stranded-core wire.

As the PC industry growing, most of the low speed external ports are replaced by USB port. In industrial environment, lots of important equipments still adopt RS-485/422 interface design. With this, most of the users use USB to RS-485/422 converter to transmit the data between PC and RS-485/422 equipments.

PCM-KW-469 is a universal USB to RS232/RS-485/422/TTL converter. There is no need external power; it is compatible with USB and RS-485/422 standards. PCM-KW-469 4 in1 Serialcable enables to convert USB signal to balanced differential RS-232/485/422/TTL signal. It provides each wire with surge protection; the tiny interelectrode capacitance ensures high speed transmission for RS-232/422/485 ports. RS-485/422 adopts USB male as connector; internal zero delay auto receiving and transmitting function, unique I/O circuit auto control data flow direction without any handshake signal (RTS, DTR) ; there is no need jumper wire setting for full duplex (RS-422) and half duplex (RS-485) mode, plug & play. All these ensure that it is compatible with all the communication software and interface hardware.

Product characteristics：

Industrial Grade Isolated USB Converter:USB TO RS232/485/422/TTL. Adopt original FT232RNL chip, fast communicating, stable and reliable, better compatibility

Multi System Support:Supports Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7, Etc.

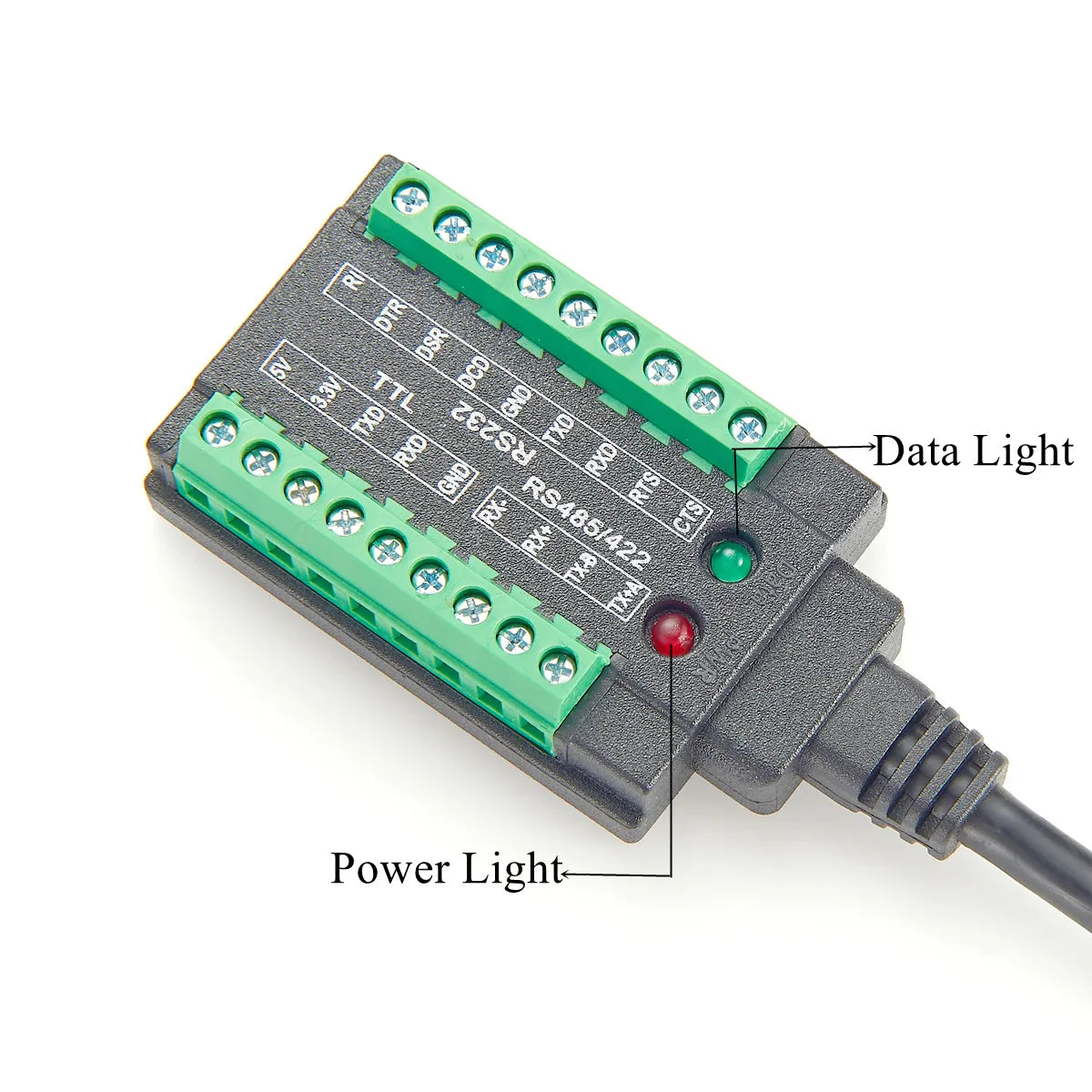

LED Light:Red 'Power good' LED, Green 'Data transmission' LED

• Input Connector : USB

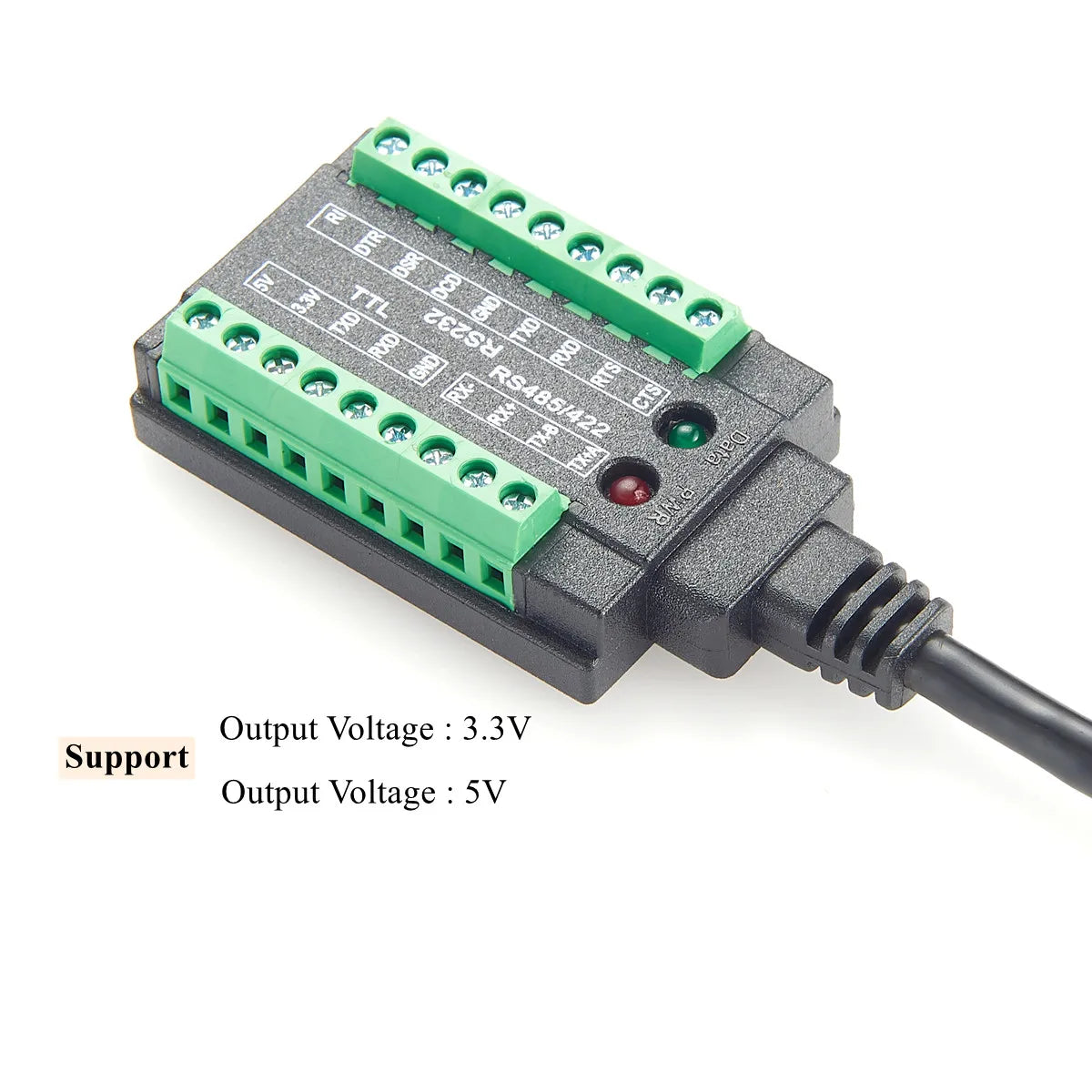

• Output Voltage : 3.3V, 5V

• Output Connector : Terminal Block

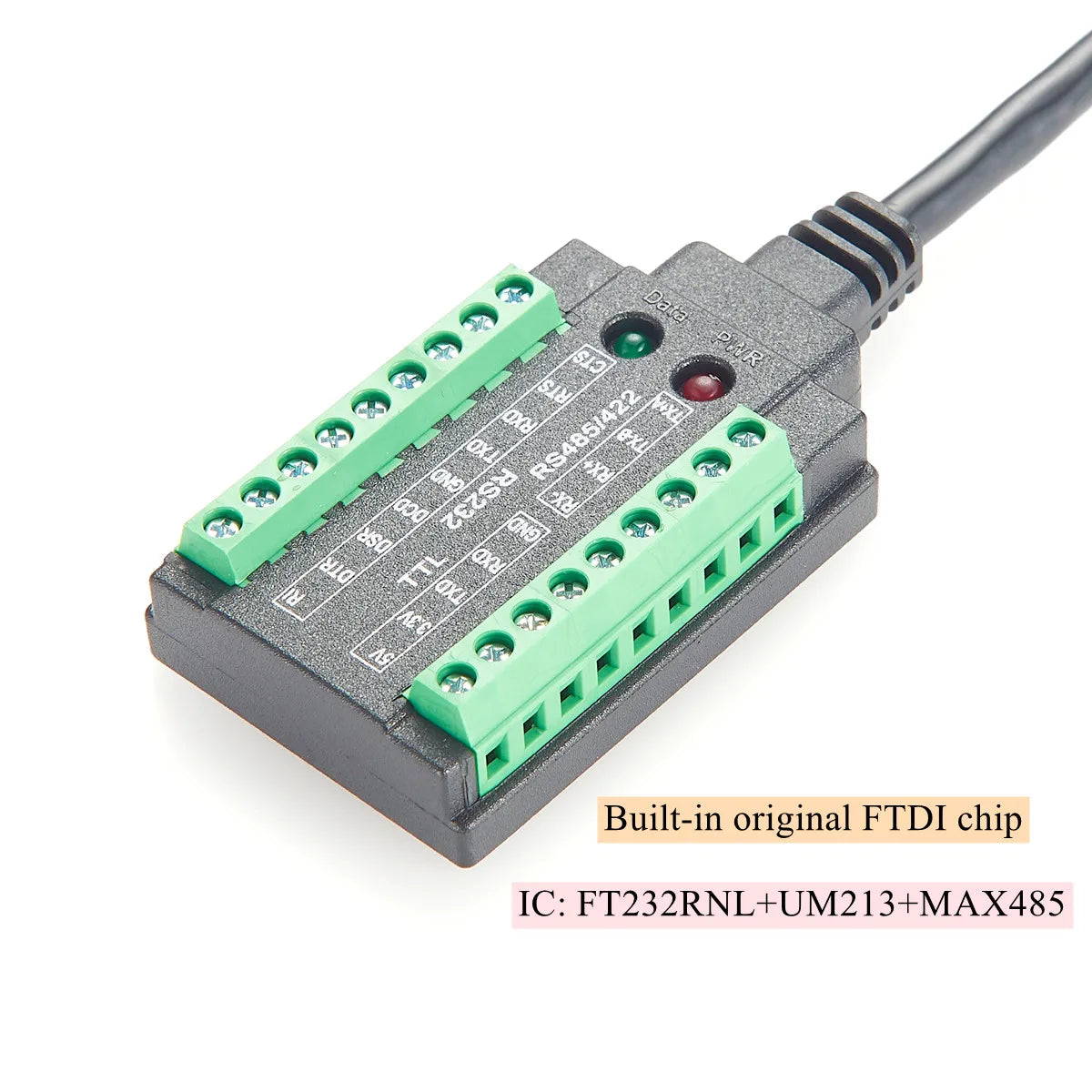

• IC Chips : FTDI CHIP FT232RNL+UM213+MAX485

• Output Signal : RS232, RS485, RS422, TTL

Product display

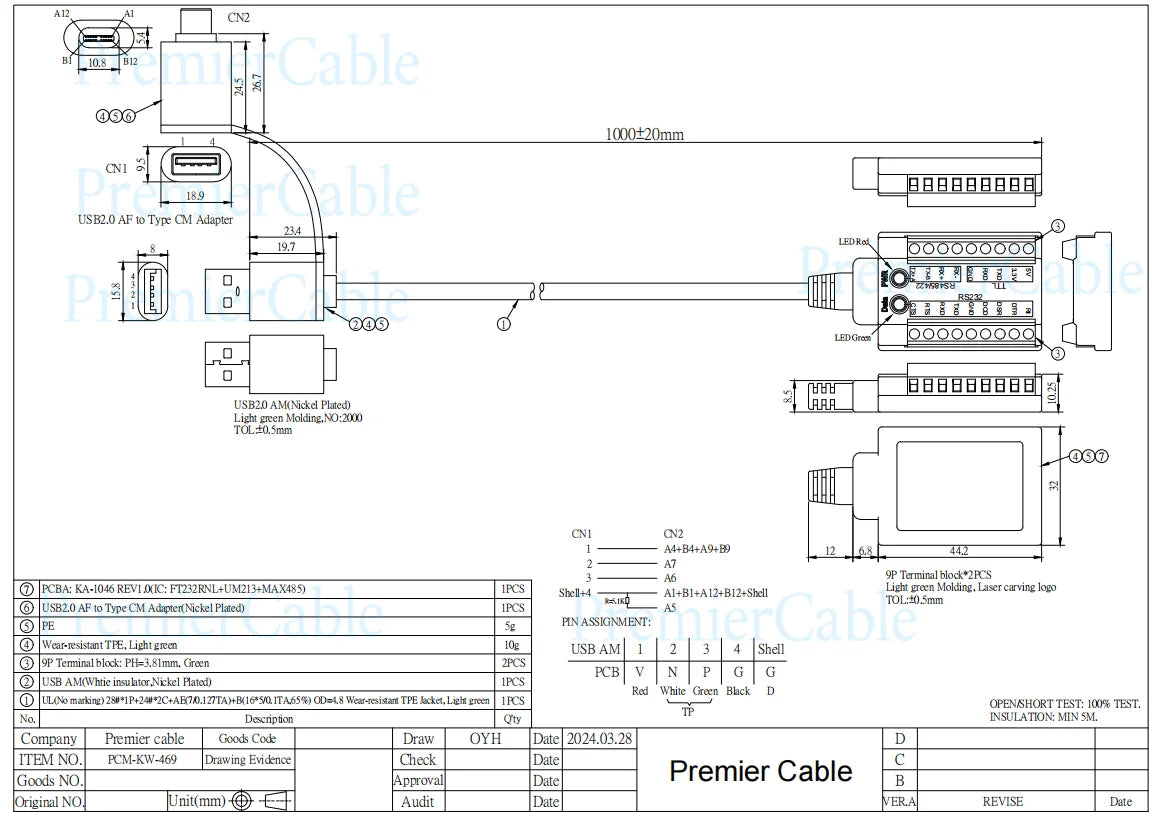

The drawing is as follows：
