Industrial Isolated 4CH RS485 TO POE ETH (B) RJ45 Converter UART For Modbus 4-Ch RS485 to RJ45 Ethernet Serial Server

Industrial Isolated 4CH RS485 TO POE ETH (B) RJ45 Converter UART For Modbus 4-Ch RS485 to RJ45 Ethernet Serial Server

$308.64

$308.64 $0.00

Description

SPECIFICATIONS

Accessory Type: Extension Board

Battery Included: no

Brand Name: spotpear

Choice: yes

Compatible With: RS485 TO POE ETH

High-concerned chemical: none

Origin: Mainland China

Typical Application Fields: Education and Learning

semi_Choice: yes

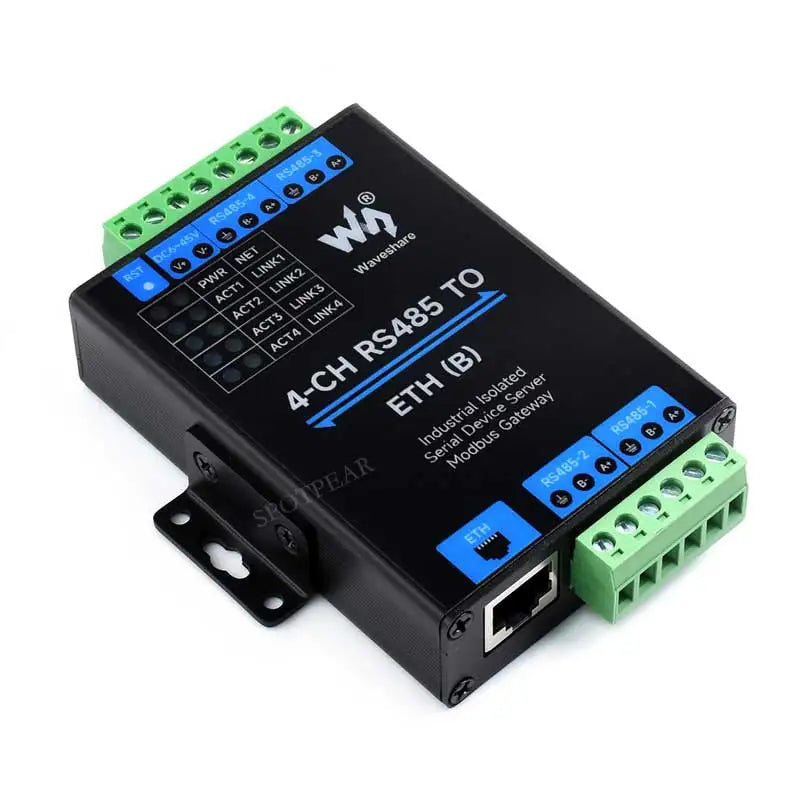

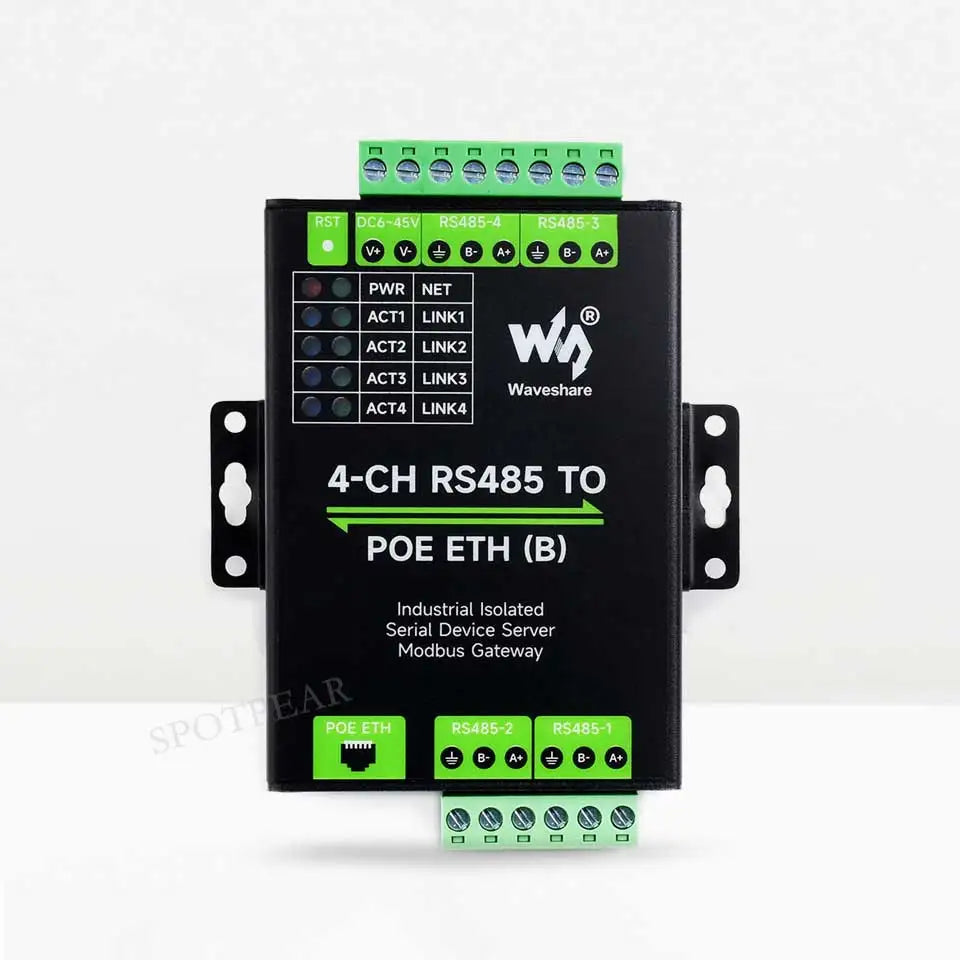

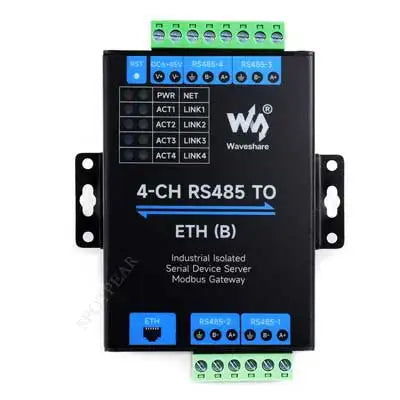

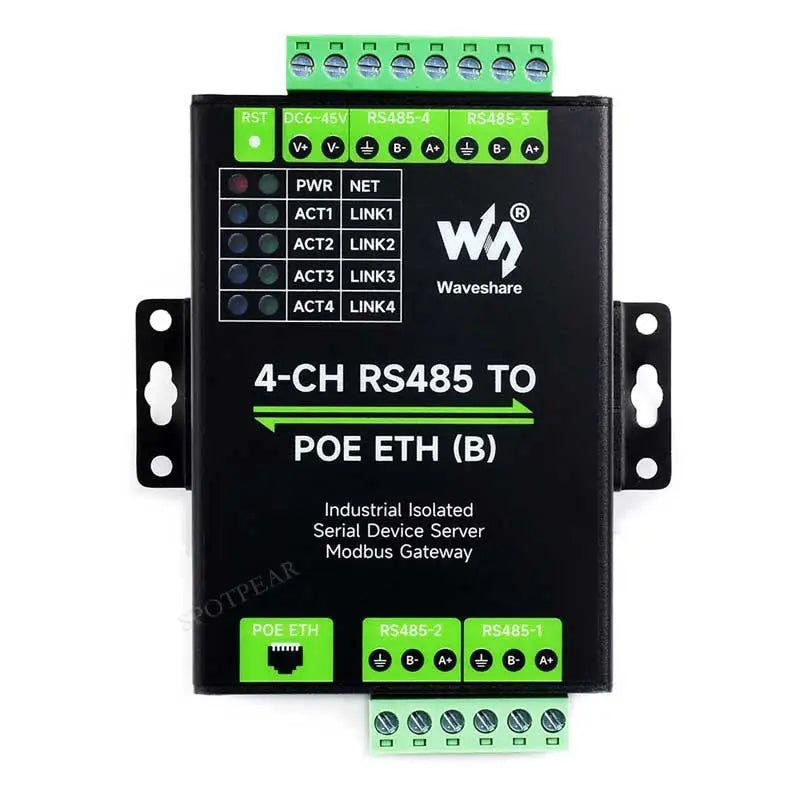

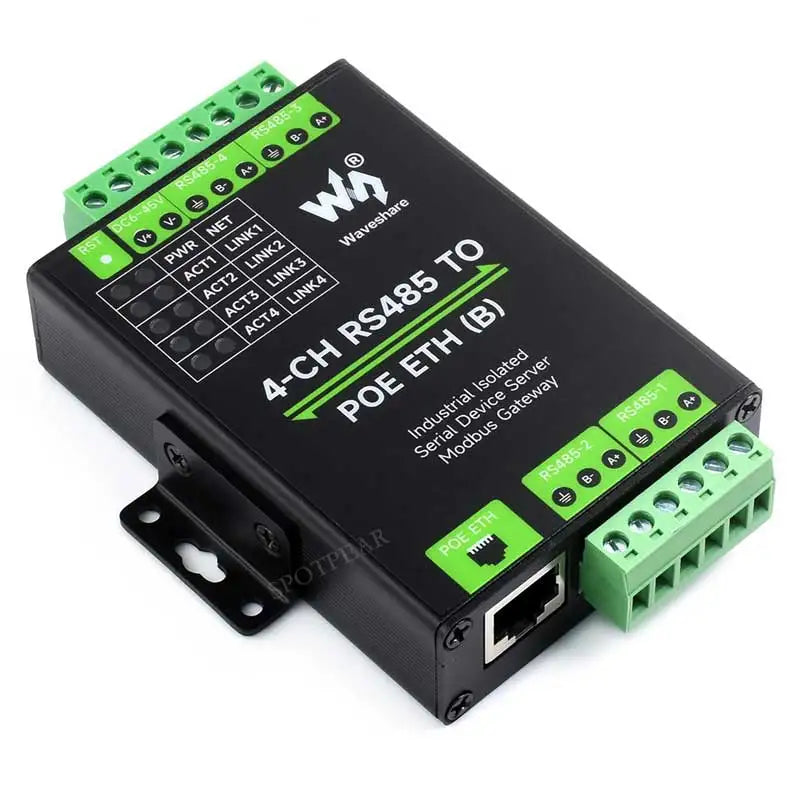

Industrial Isolated 4-Ch RS485 To RJ45 Ethernet Serial Server

4-way RS485 to Ethernet, support Modbus/MQTT/JSON, metal rail housing

Features At A Glance

This is a multi-functional device data acquisitor / IoT gateway with 4-ch RS485 and an Ethernet port (PoE version optional), small in size, easy to install, and cost-effective. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring, meeting various application scenarios.

4-ch RS485 can work independently without affecting each other at the same time, enabling more effective data transmission
Combines multiple functions in one, including serial server, Modbus gateway, MQTT gateway, and RS485 to JSON, etc.

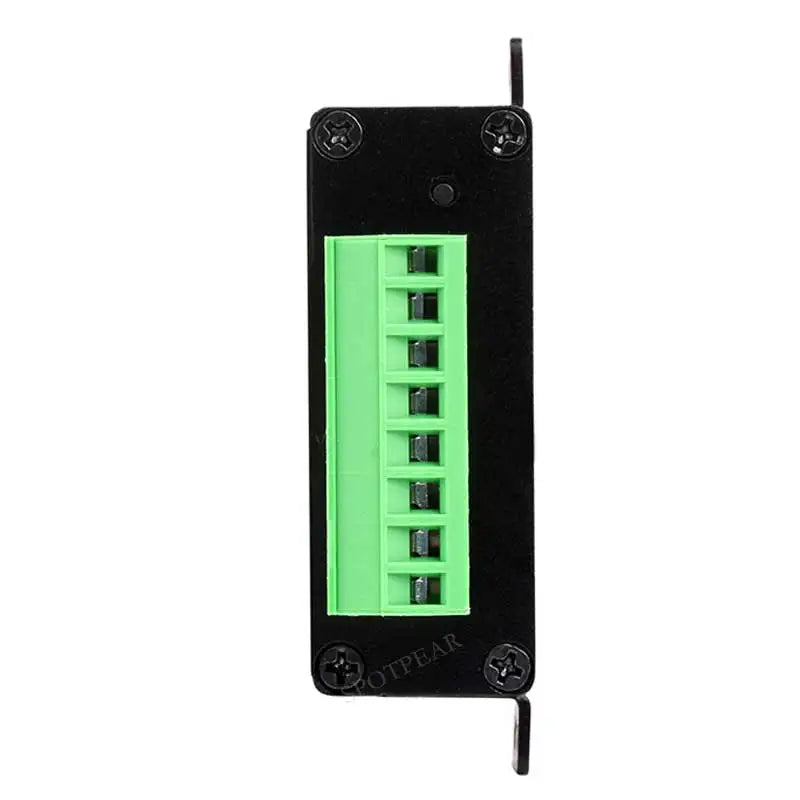

Adopts screw terminal for stable power input

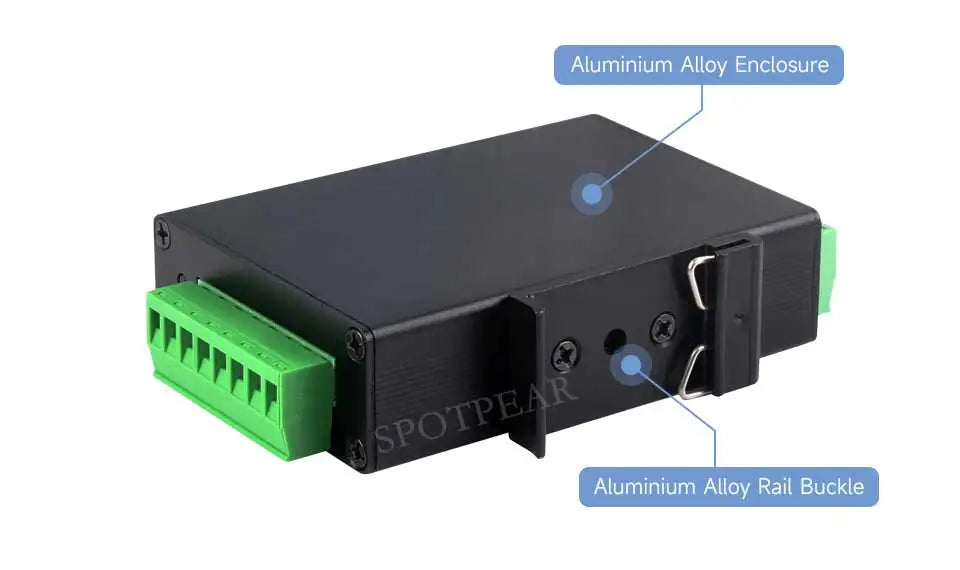

Wall-mount and rail-mount case design, easy to install, for quick deployment and expansion

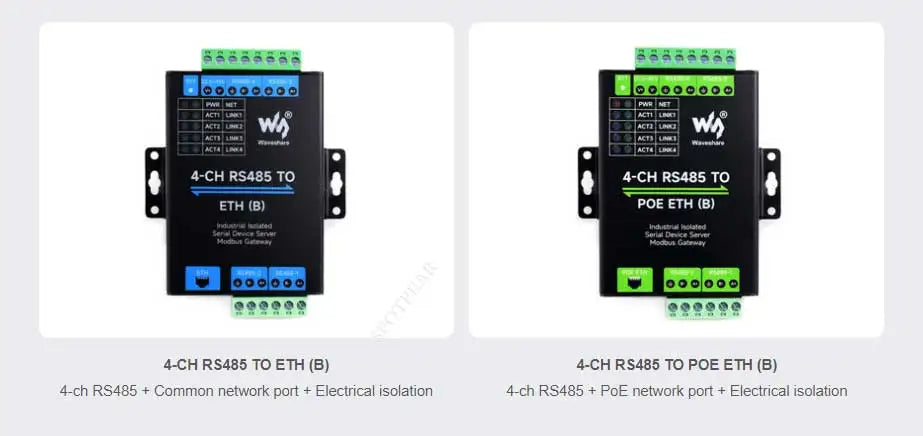

Version Options

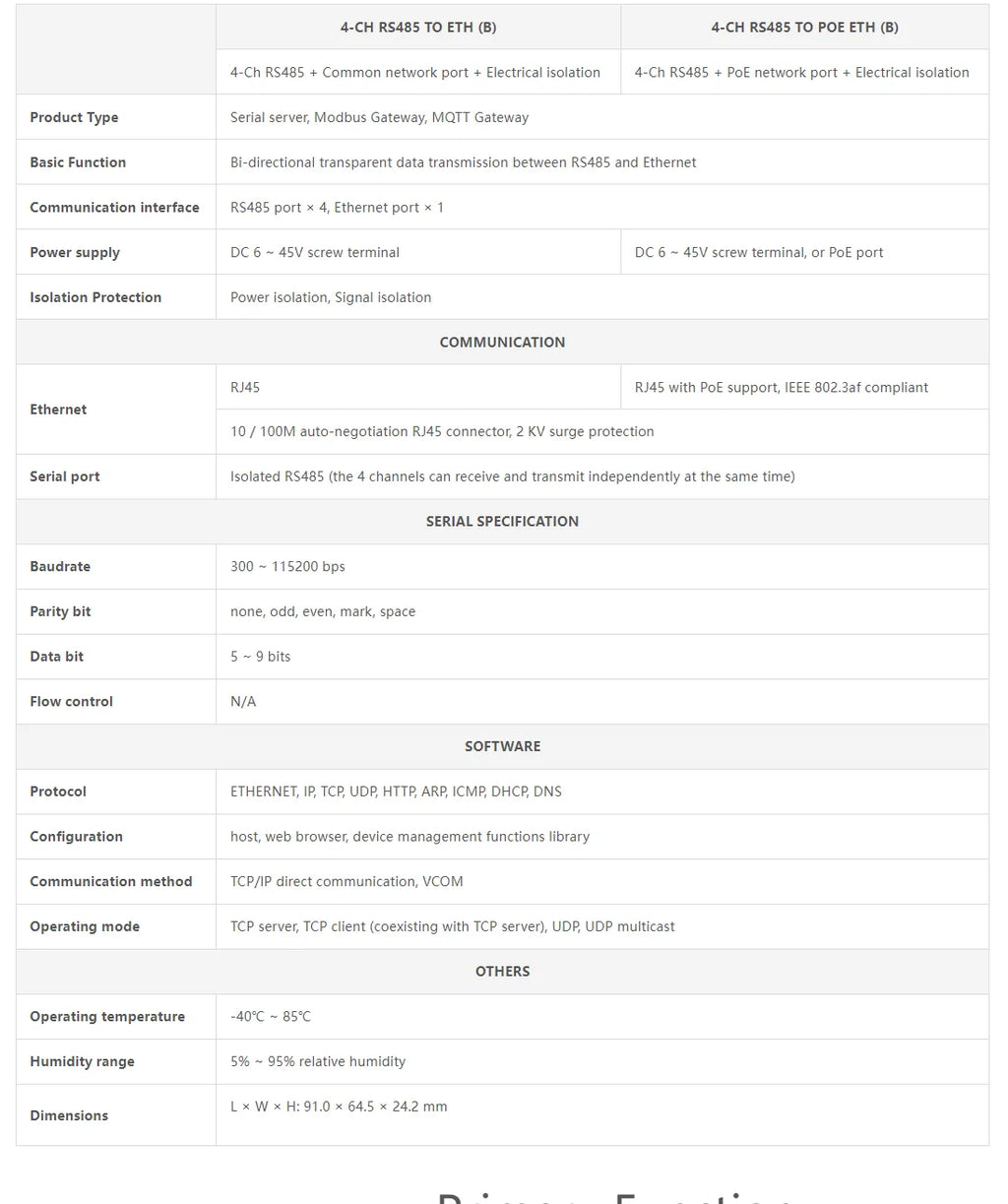

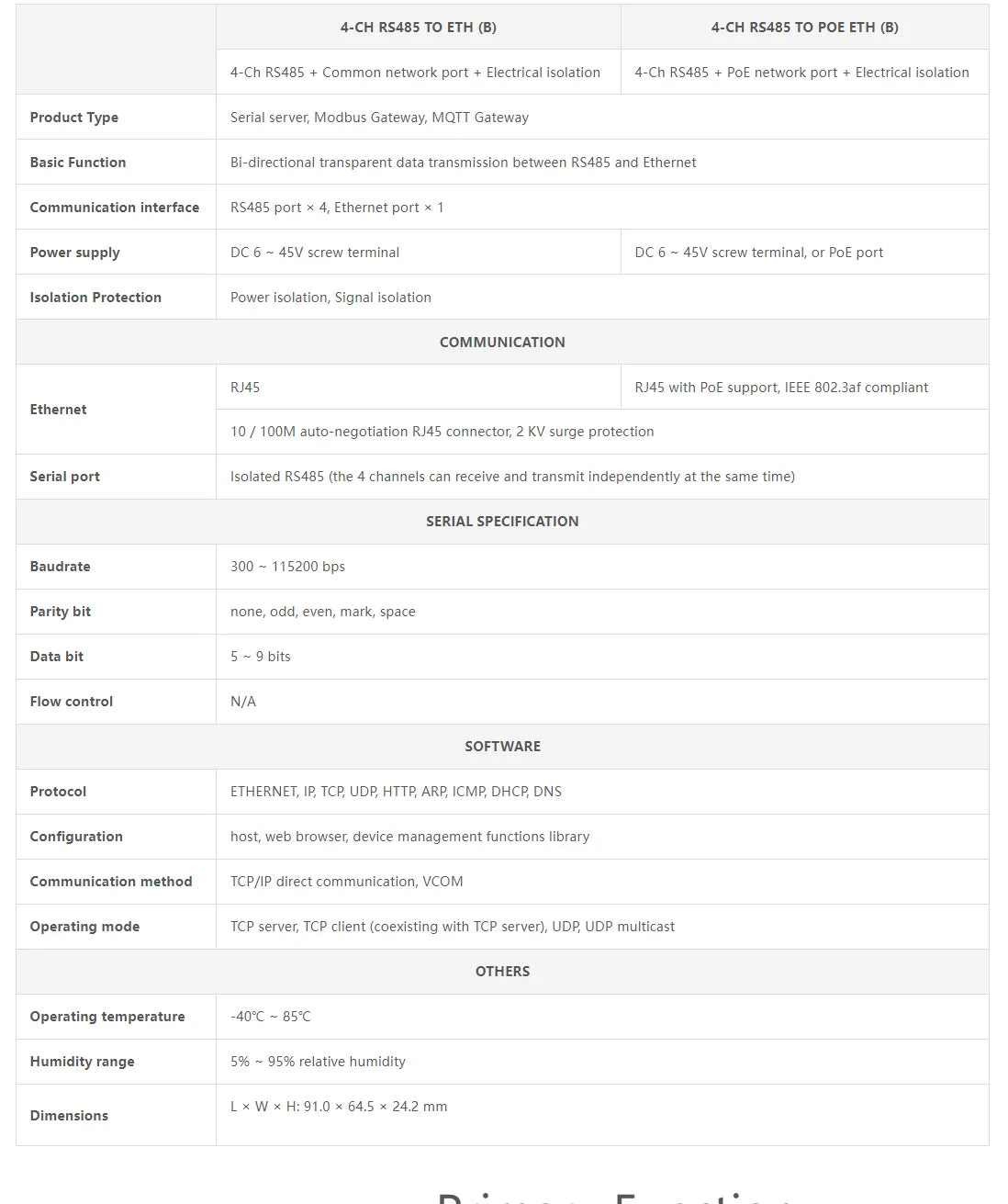

Specifications

Primary Function

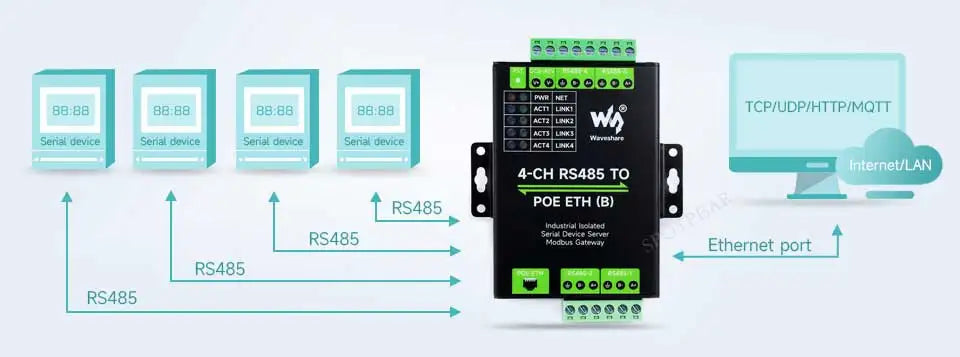

Bi-Directional Transparent Data Transmission Between 4-Ch RS485 And Ethernet

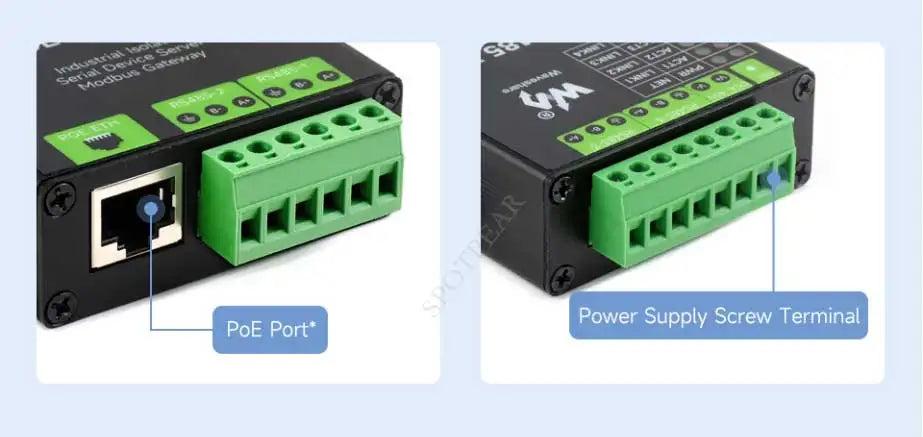

Multi Power Supply Options

Support PoE Ethernet Port Power Supply*, Suitable For IEEE 802.3af PoE Standard
Support Screw Terminal For Power Supply, DC 6~45V Wide Voltage Range Input

* This function is only available on the PoE version

Industrial Serial Server

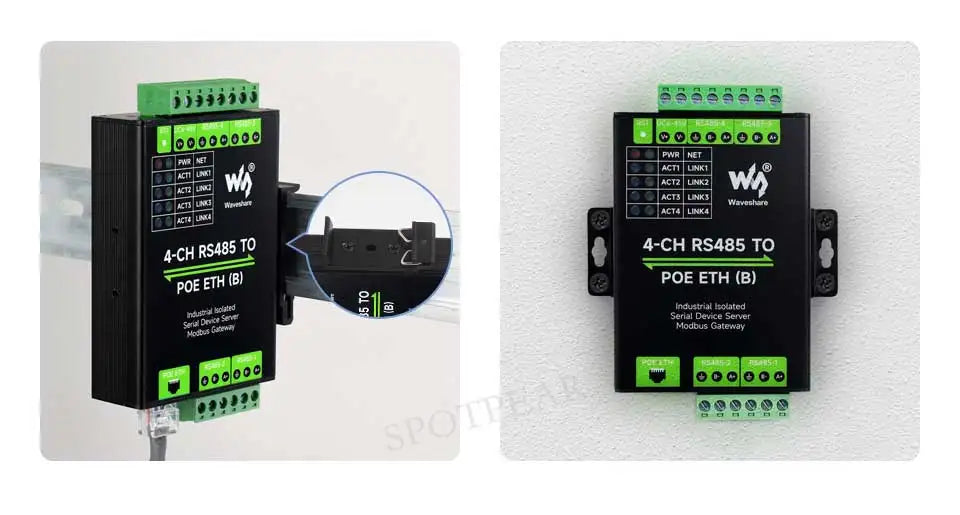

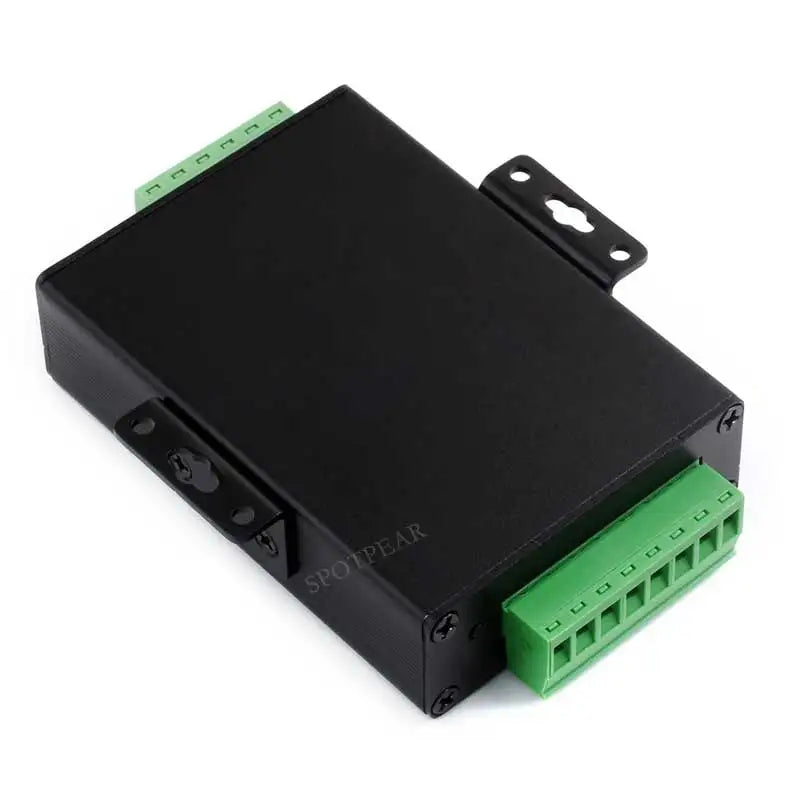

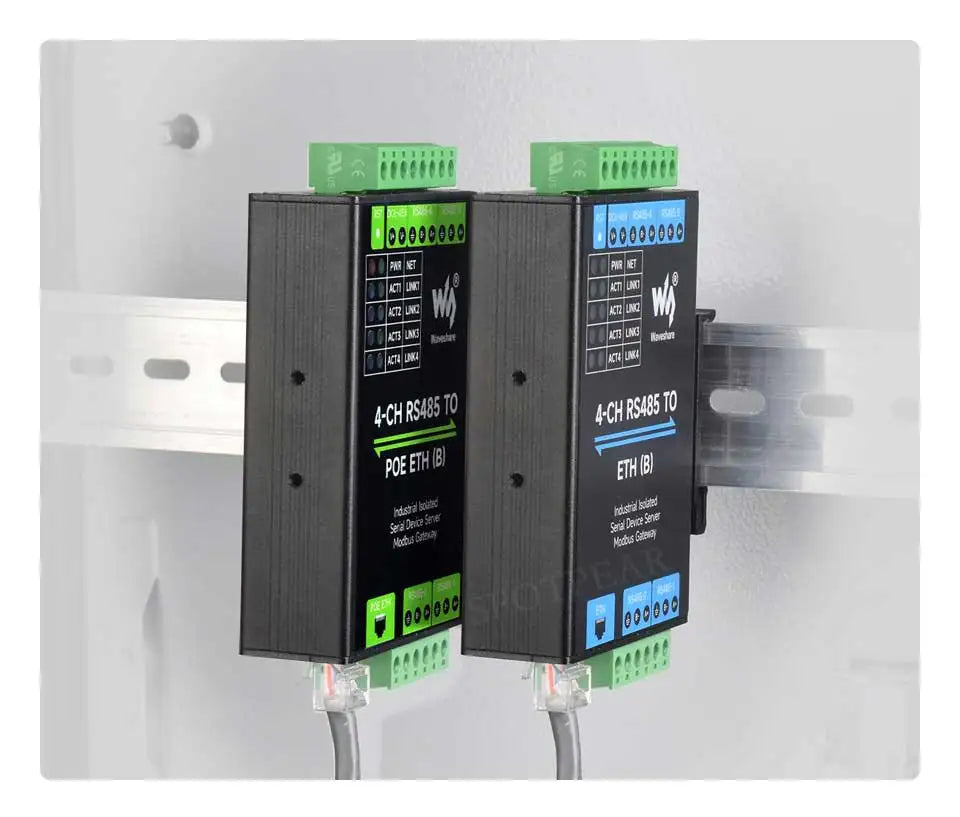

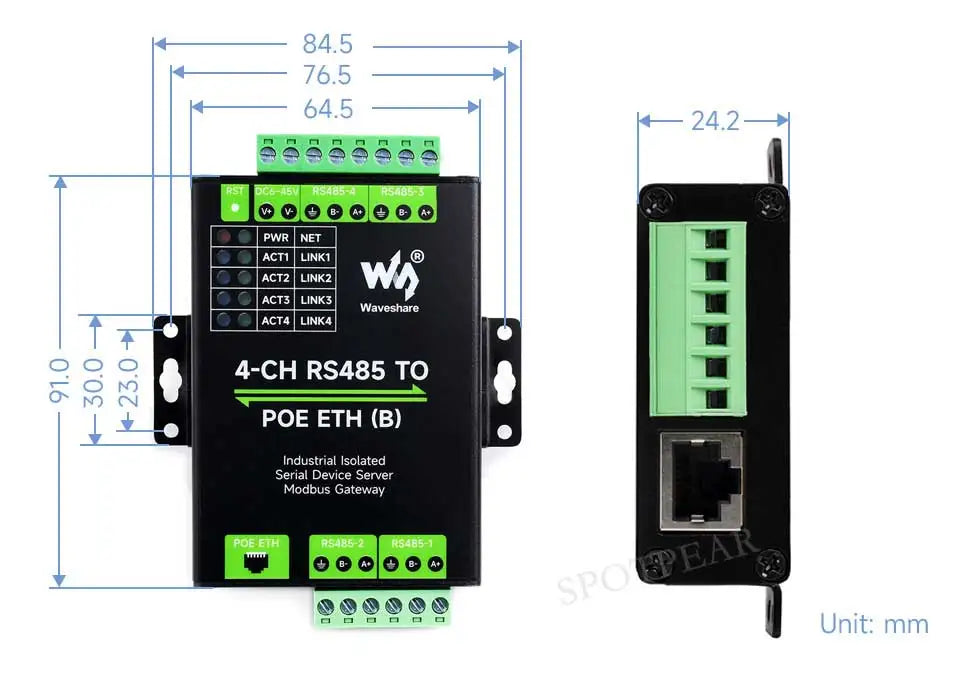

Industrial Rail-Mount Design, Support Wall-Mount And Rail-Mount Installation, Compact Size, Easy Installation, Cost-Effective

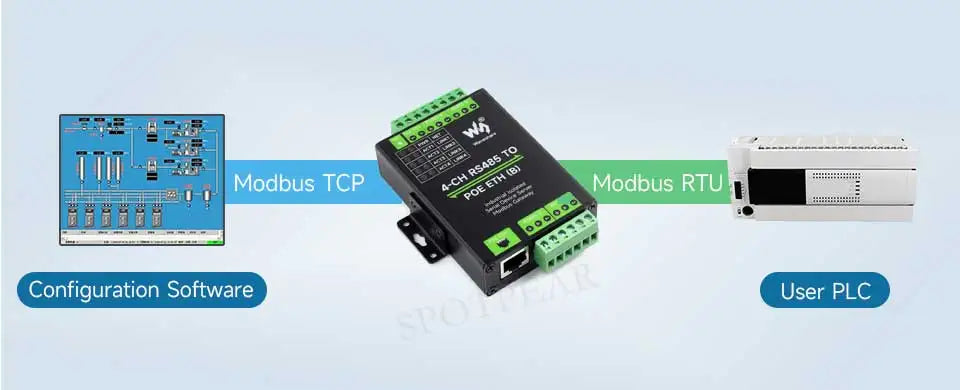

Modbus Gateway Support

Suitable For Modbus Networking Upgrade, Can Be Used With Specific Configuration Software

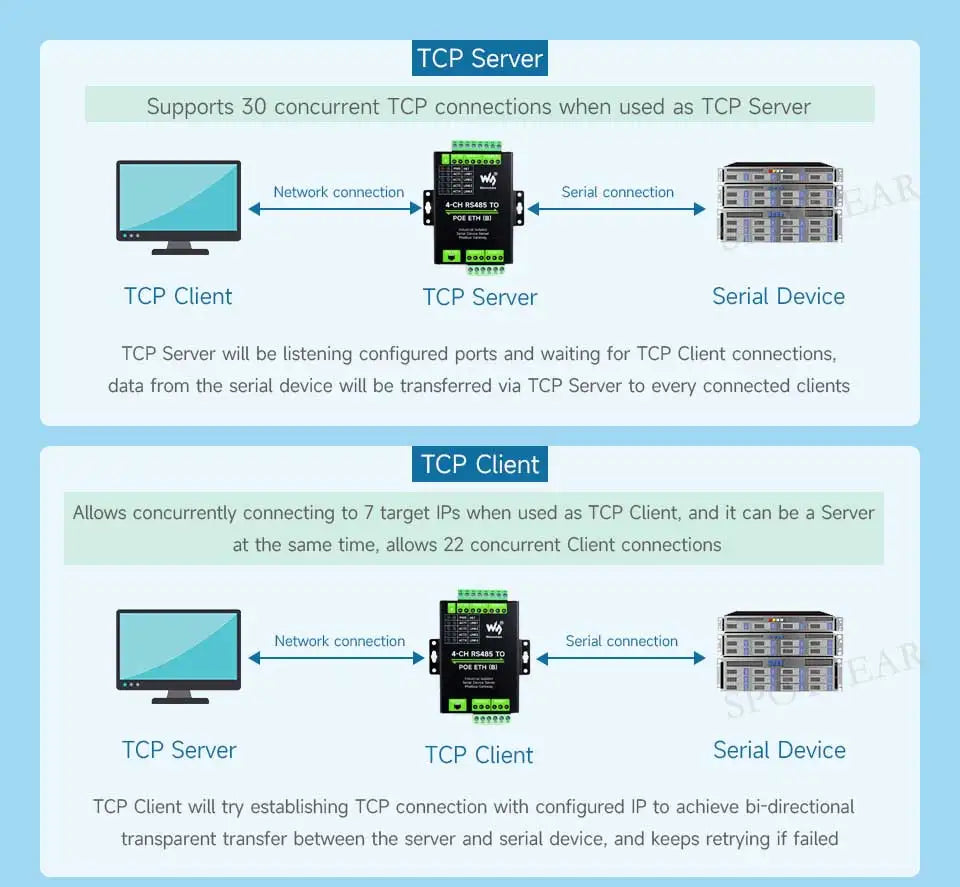

Multi Communication Modes

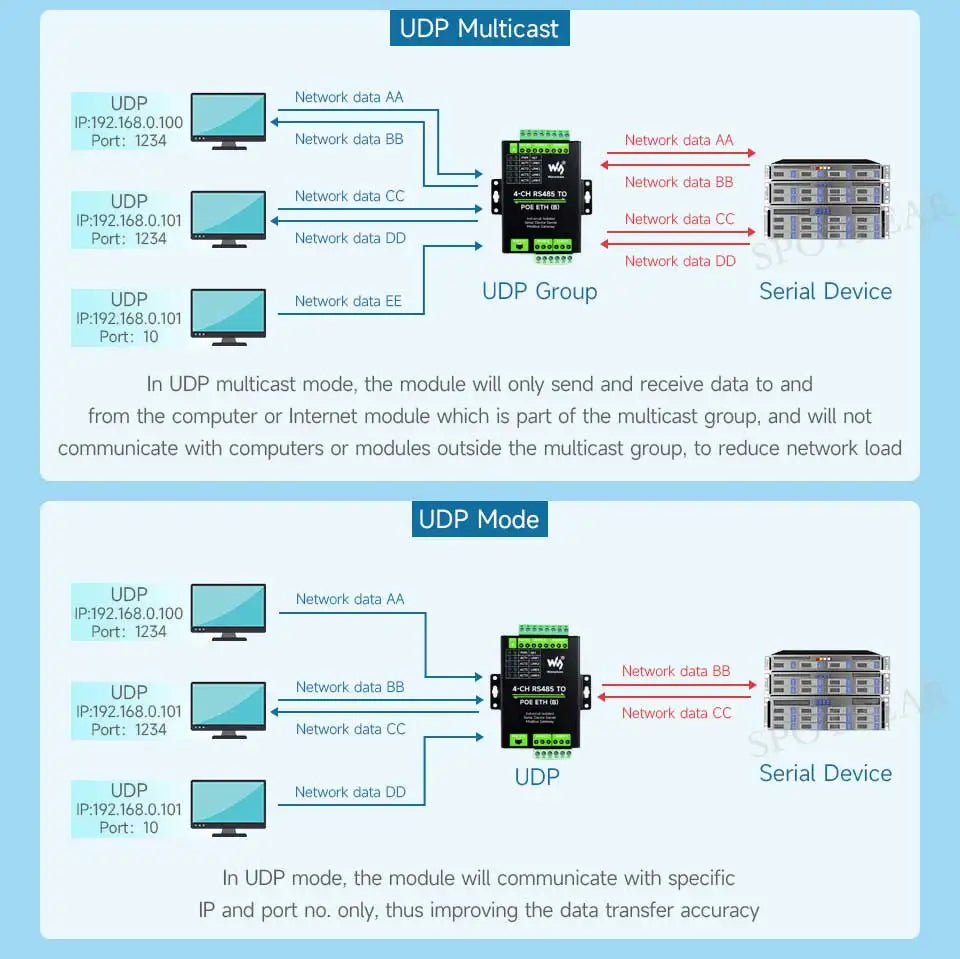

Supports TCP Server / TCP Client / UDP Multicast / UDP Mode

* Note: This module is 4-channel, and each channel supports the above functions separately

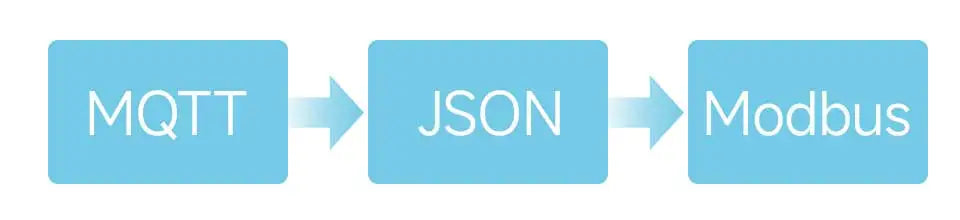

MQTT/JSON To Modbus

More Flexible Conversion Between Different Protocols

When used as MQTT gateway, the devices can upload serial data to MQTT server by MQTT protocol through transparent transmission, supported servers including Baidu Cloud MQTT, Alibaba Cloud MQTT, China Mobile OneNet, etc. The acquired Modbus RTU or non-standard serial data can be parsed into JSON format and packaged into MQTT data packet for uploading.

When used as JSON data acquisition gateway, the devices can be connected to data acquisition instruments through RS485 connection, then acquire data automatically, convert the data into JSON format, and finally post it to server. The acquired data supports Modbus RTU 645 instrument 97 version, 645 instrument 07 version, as well as sorts of non-standard RS485 protocols. The uploaded data format can be configured via host, and the JSON upload protocol can be MQTT protocol, HTTP POST protocol, HTTP GET protocol, and so on.

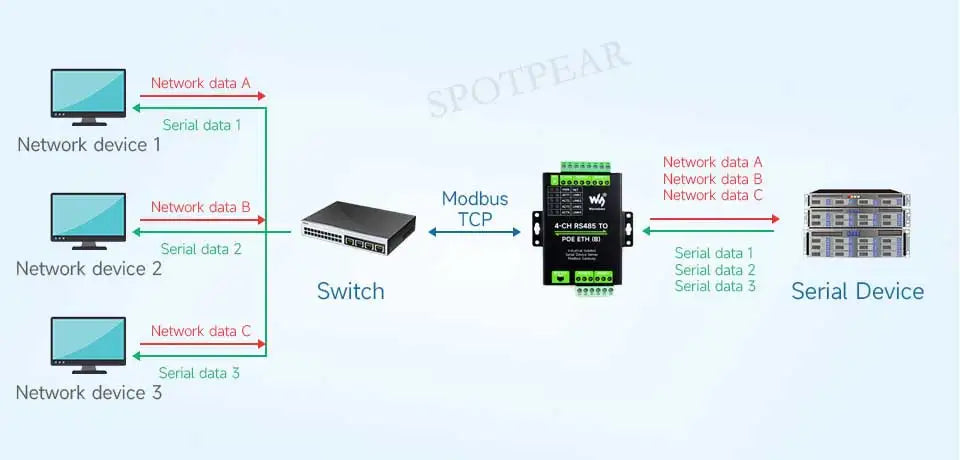

Multi Hosts Roll-Polling Support

Different Network Devices Will Be Identified And Responsed Respectively,
No More Crosstalk Issue While Communicating With Multi Network Devices

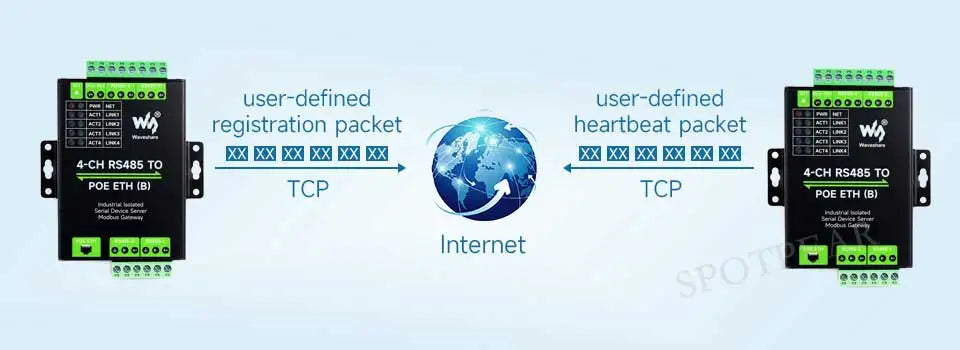

User-Defined Heartbeat/Registration Packet

Easy For Cloud Communication And Device Identification

NTP Protocol Support

Getting Network Time Info For Serial Output Or Data Upload

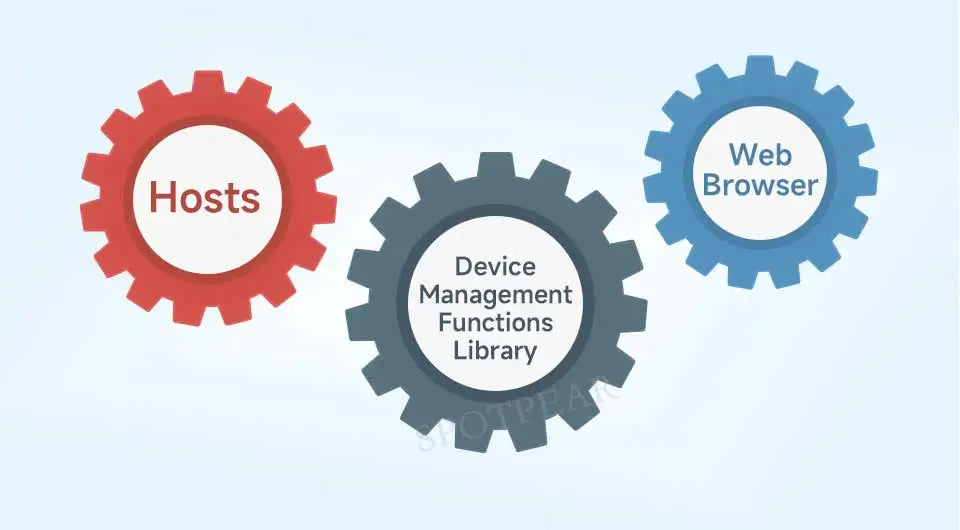

Multi Configuration Methods

Supports Web Browser Configuration, Obtaining Dynamic IP Via DHCP,
DNS Protocol Connected Domain Server Address

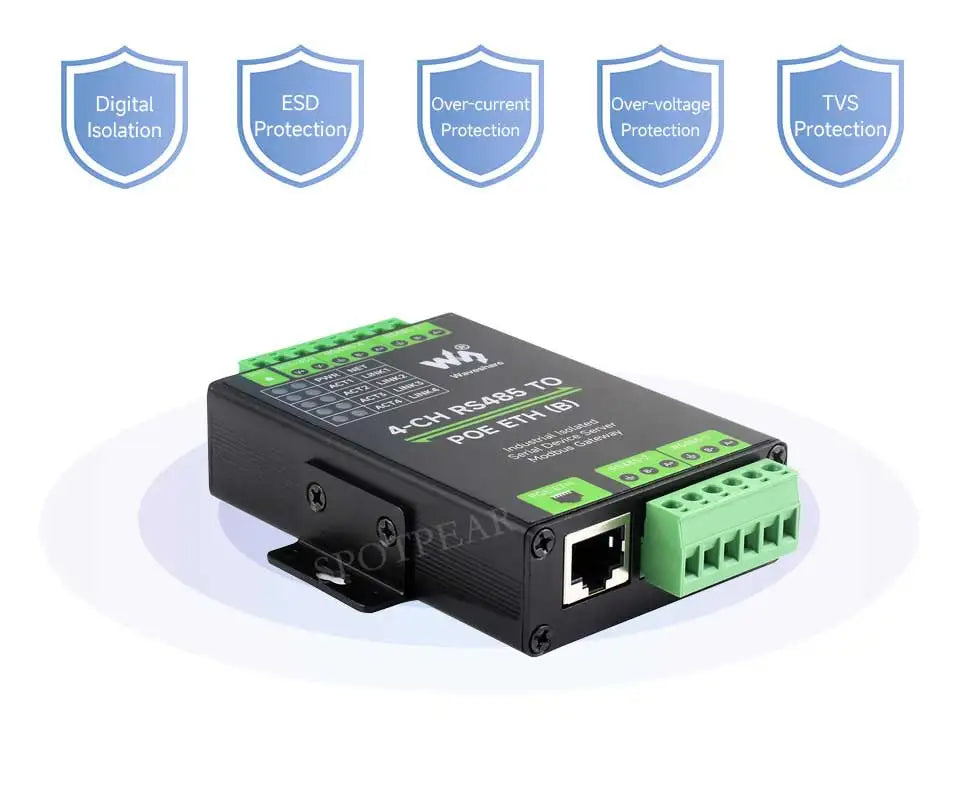

Multiple Protection, Safe And Stable

Onboard power supply and signal isolation, it can provide stable isolation voltage with high reliability and strong anti-interference. Built-in TVS (transient voltage suppression tube) can effectively suppress the surge voltage and transient peak voltage in the circuit, lightningproof & ESD protection. Built-in resettable fuse and protection diode to ensure stable output of current and voltage, prevents over-current and over-voltage proof, improve shock proof performance
